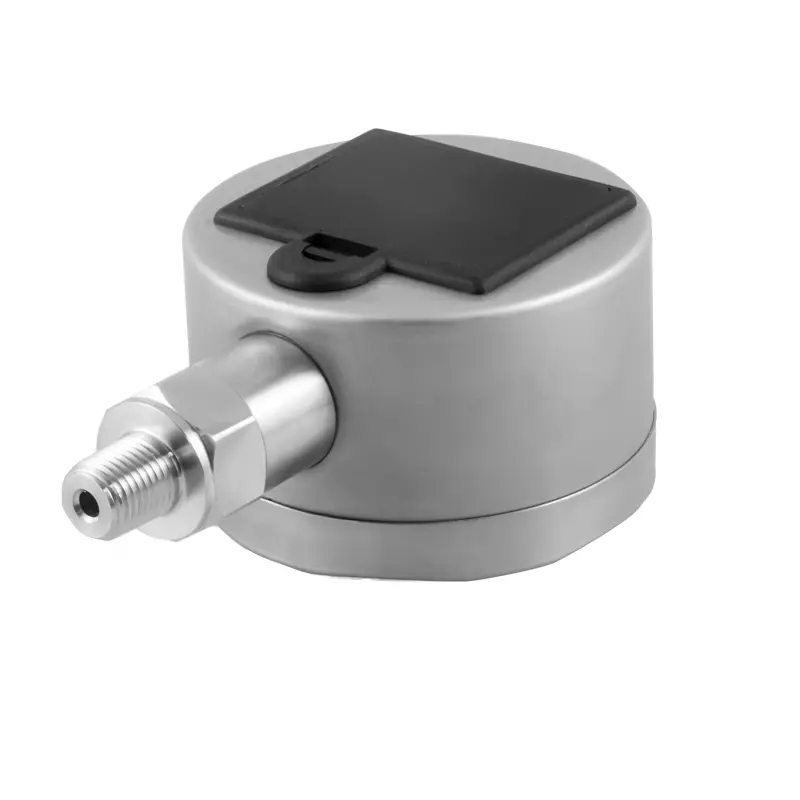

Pressure Sensor PCE-DPG 3-ICA incl. ISO Calibration Certificate

Order no.: PCE-DPG 3-ICA
ISO Calibration

£ 450.00
£ 540.00
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

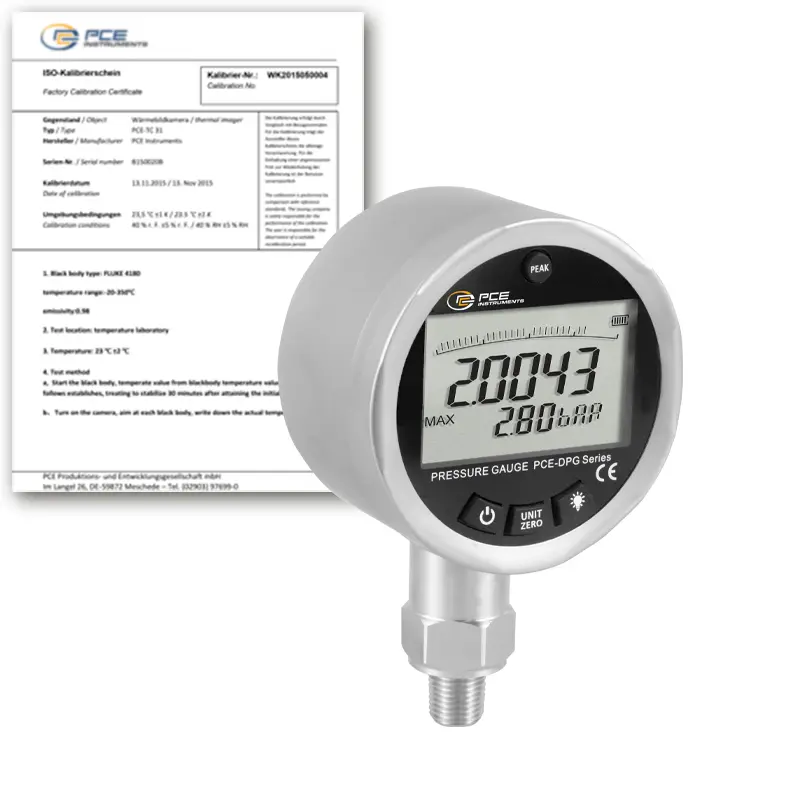

Pressure Sensor PCE-DPG 3-ICA incl. ISO Calibration Certificate
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator / Battery-operated

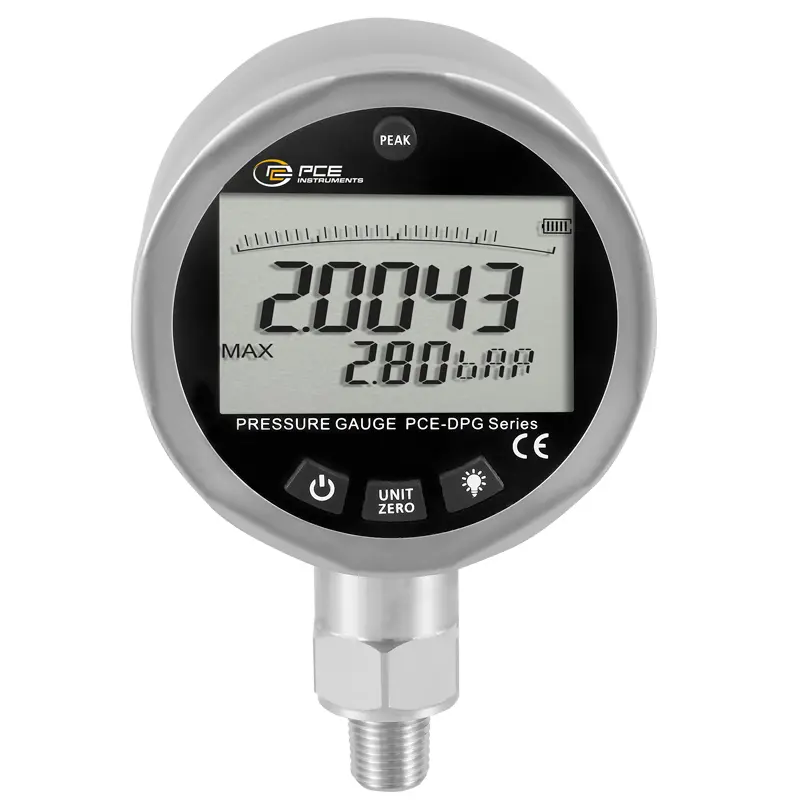

The pressure sensor of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure sensor is versatile. The current pressure is displayed by the pressure sensor as a value and at the same time as a bar graph. As an additional function, the pressure sensor offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure sensor at the push of a button.

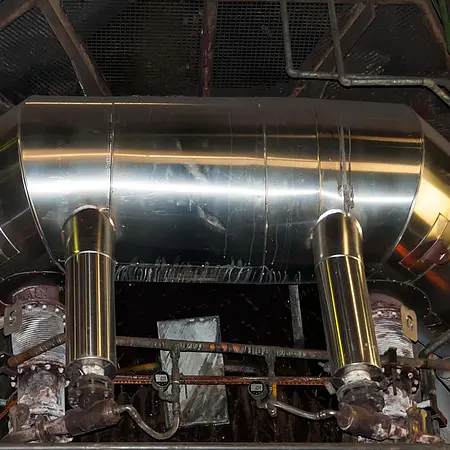

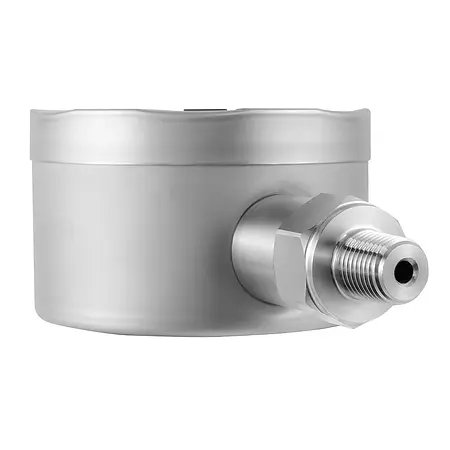

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the pressure sensor would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure sensor is < 50 ms. The connection of the pressure sensor to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.

- Measuring range up to 43.5 psi, 3 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread
- incl. ISO Calibration Certificate
Measuring range -1 ... 3 bar
Resolution 0.0145 psi, 0.001 bar
Accuracy 0.25% FSO
Pressure relative
Overpressure 1.5 times
Measurable media gases, water
Response time < 50 ms
Housing material metal
Measurement units Mpa, bar, Kpa, mH2o, kg / cm²,
  psi, mmH2o, in.WC, mbar
Protection class IP56
Diameter display 2.5"
Dimensions (without sensor)    Ø80 x 50 mm / 3.1 x 2 in
Pressure connection 1/40" NPT
Power supply 3 x 1.5V AAA batteries
Environmental conditions -10 ... 60°C / 14 ... 140°F, < 80% RH
Weight approx. 276 g / < 1 lb (without batteries)

1 x Pressure Sensor PCE-DPG 3-ICA
3 x Batteries 1.5V AAA
1 x Operating instructions
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
