pH Value Controller PCE-PHC 10

Order no.: PCE-PHC 10
£ 160.00
£ 192.00
4250348719430
PCE-PHC 10
price ex. (VAT / delivery)
Delivery time: 1-2 working days
PCE-PHC pH Value Controller
2-point pH controller / Measures pH and regulates pH / 3-point calibration /  For fish farming, electroplating or water treatment

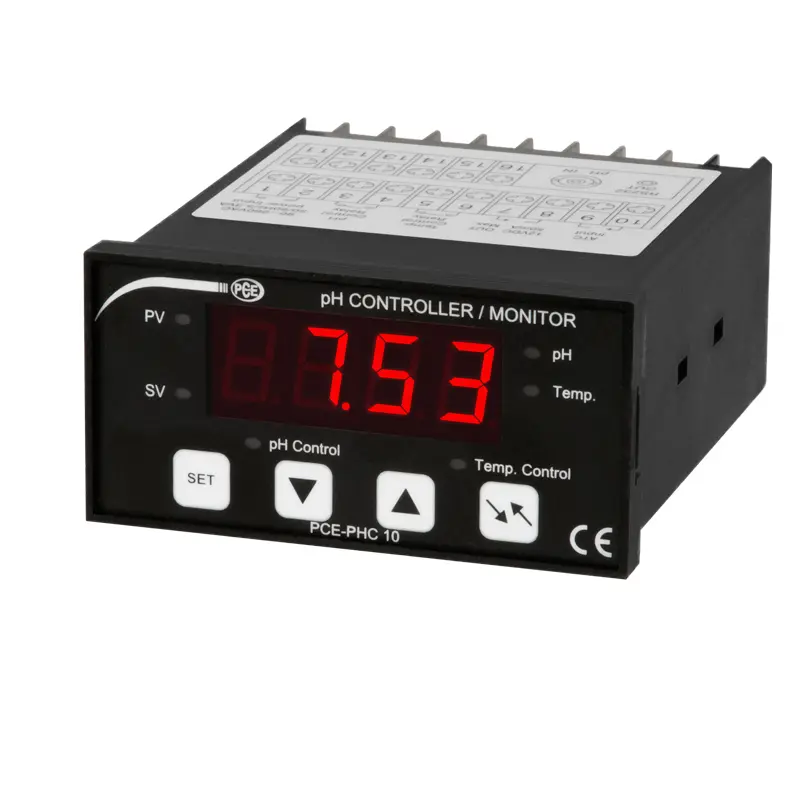

The pH process controller PCE-PHC 10 measures and regulates the pH of various substances and is able to influence the pH value. The pH process controller is a classic 2-point controller, depending on the application, the controller can be used to influence the liquid in the direction of alkaline or acidic. The limit values ​​for the 2-point control are programmed via the buttons of the pH controller, which are located on the front. Also in the front is the LED display, on which the current measured value can be read at any time. This facilitates the fast and precise control of the water values, especially in the industrial process.

A pH electrode is connected to the pH controller via BNC plug. The screw connections can be used to connect a temperature probe for automatic temperature compensation to the pH process controller. The pH controller finds its application in electroplating, the control of fresh and wastewater or in the wastewater neutralization. Due to the compact dimensions, the pH controller fits in every control panel.

- Small dimensions
- Large LED display
- 2 control relays for pH and temperature

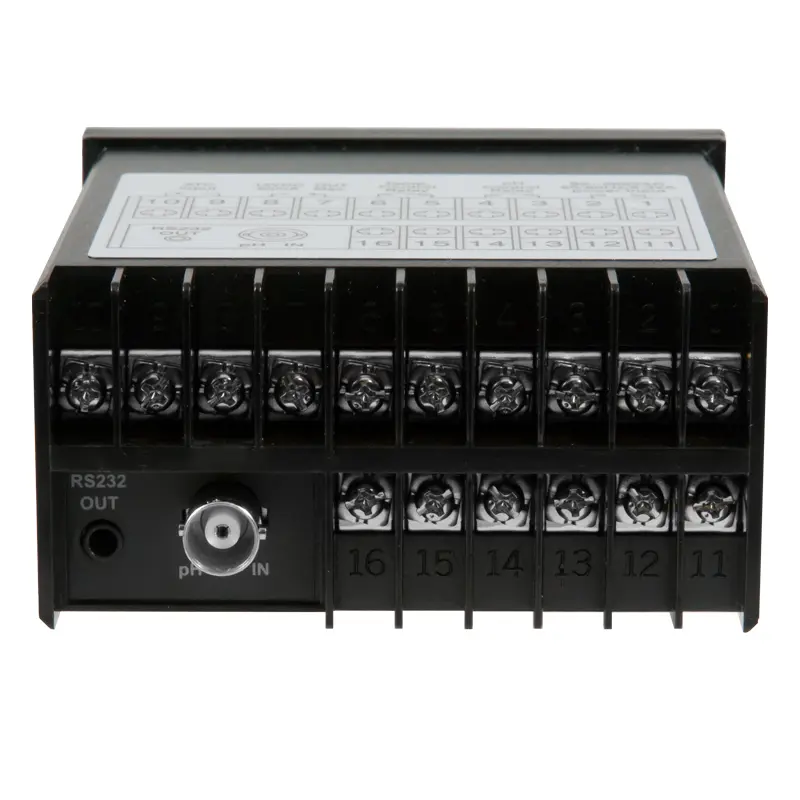

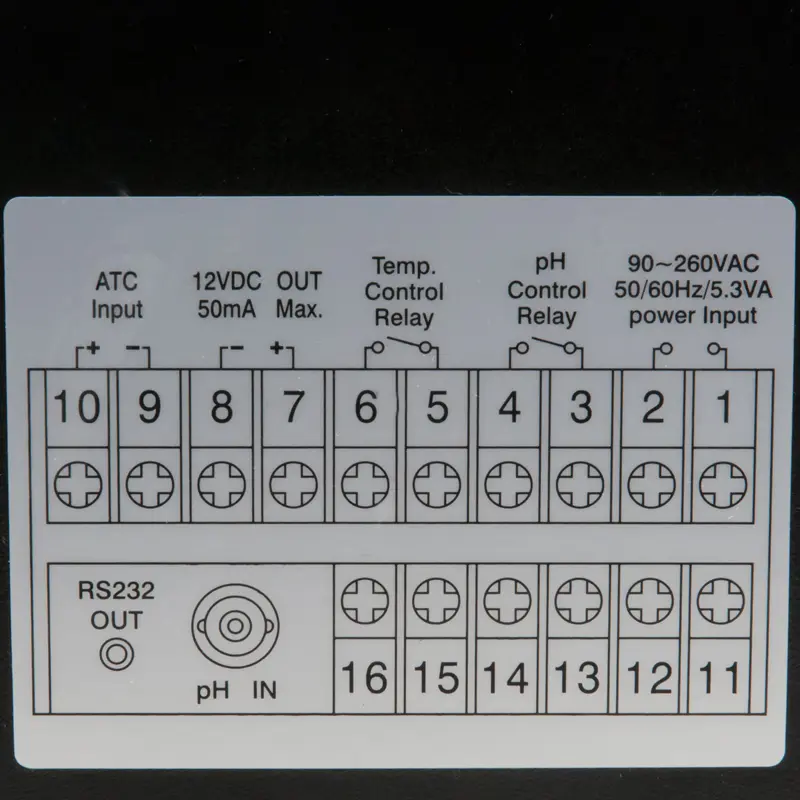

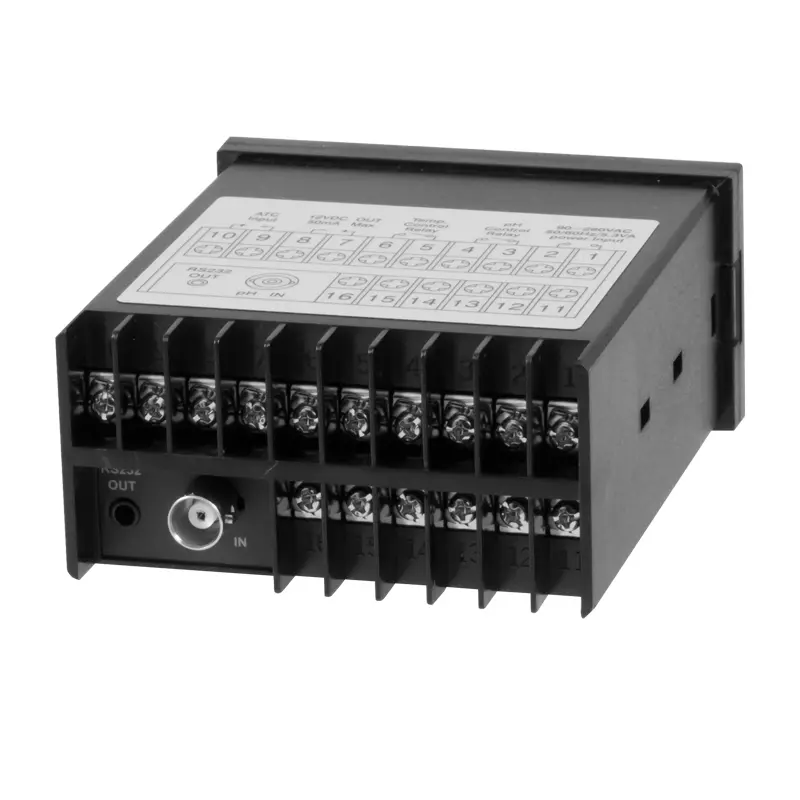

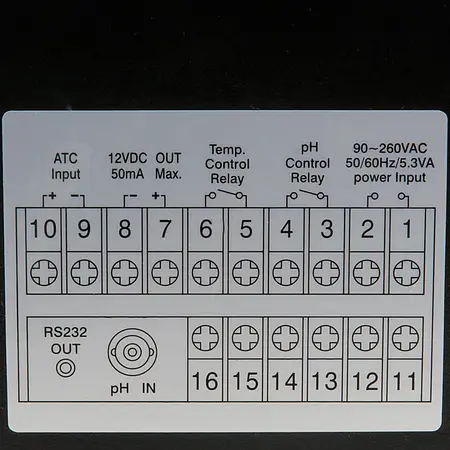

- Connection via BNC and screw contacts
- For water treatment, electroplating ...
- 3-point calibration
Measured variable pH
Measuring range0 ... 14 pH
Resolution0.01 pH
Accuracy± (0.02 pH + 2 digits)

Measured variable temperature
Measuring range 0 ... 65°C / 32 ... 149°F
Resolution 0.1°C / 0.18°F
Accuracy

± 0.8°C / 1.44°F


pH input impedance1012 ohms
Temperature compensation   Manual: -30 ... 100°C / -22 ... 212°F
 Automatic: 0 ... 65°C / 32 ... 149°F
3-point calibration pH 7, pH4, pH10
Connection pH electrode BNC
Ampling rate About 1 second
Display 4 digit LED display
  14 mm digit height
NO relay 250V AC / 0.5A
  24V DC / 0.5A
Spannungsausang 12V / 0.05A DC
Interface Serial RS232
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
Power supply 90 ... 260V AC / 50/60 Hz
Input Approx. 4.7 VA at 110V AC
  Approx. 5.3 VA at 220V AC
Weight About 384 g / < 1 lb
Dimensions 96 x 48 x 100 mm / 3.8 x 1.9 x 3.9 in
Front panel 92 x 41 mm / 3.6 x 1.6 in


1 x pH value controller PCE-PHC 10
1 x User manual
