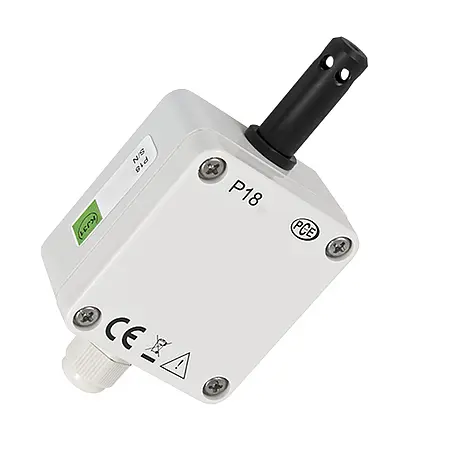

Humidity Sensor PCE-P18 0...10V

Order no.: PCE-P18-2A0E0

£ 142.00
£ 170.40
PCE-P18-2A0E0
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Measures temperature and humidity / output as 0 .. 10 V signal / compact

Modbus RTU interface / wall mounting

The humidity sensor PCE-P18 is used in HVAC technology to monitor humidity and temperature. The measured values ​​are output by the PCE-P18 humidity sensor as a 0 ... 10 V standard signal. In this compact humidity sensor, air humidity and temperature are precisely determined using a semiconductor component. For commissioning, the humidity sensor PCE-P18 is supplied via a DC voltage. The measured variables are output via a two-wire line. All connections are made via screw contacts in the waterproof IP 65 housing. In addition to the output of the measurement signal as a 0 ... 10 V signal, the measurement values ​​can be output via the RS485 interface. This function is particularly useful if several measuring points are to be linked to one another during your home surveillance.


- Humidity and temperature sensors
- 0 ... 10 V output
- simple wall mounting
- RS-485 interface
- for permanent monitoring
- various filters available
- small dimensions - Modbus RTU


Technical data humidity sensor PCE-P18
humidity
measuring range0 ... 100% RH
accuracy

± 2% (in the range 10% .... 90% RH)

± 3% (remaining range)

hysteresis± 1% RH
temperature
measuring range- 20 ... 60 ° C
accuracy
± 0.7% of the measuring range
temperature effect± 25% / 10 ° C
Humidity sensor output
analog output0 ... 10 V
Data InterfaceRS-485 Modbus RTU
transfer mode8N1, 8N2, 8E1, 8O1
baud rate

4800 bps

9600 bps

19200 bps

38400 bps

57600 bit / s

General technical data for humidity sensors
supply voltage19 V ... 30 V DC
power<1.5 W
ambient temperature- 30 ° C ... 85 ° C
Max. humidity≤ 95% RH
preheat15 minutes
degree of protectionIP 65
Assemblywall mounting
Dimensions (wxhxd)> 35 x 58 x 118 mm
Weight125 g

Delivery content:
1 x Humidity Sensor PCE-P18-3
1 x instruction manual
