Panel Meter PCE-ULM 10

Order no.: PCE-ULM 10
£ 441.00
£ 529.20
4250348722379
PCE-ULM 10
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Panel Meter PCE-ULM 10

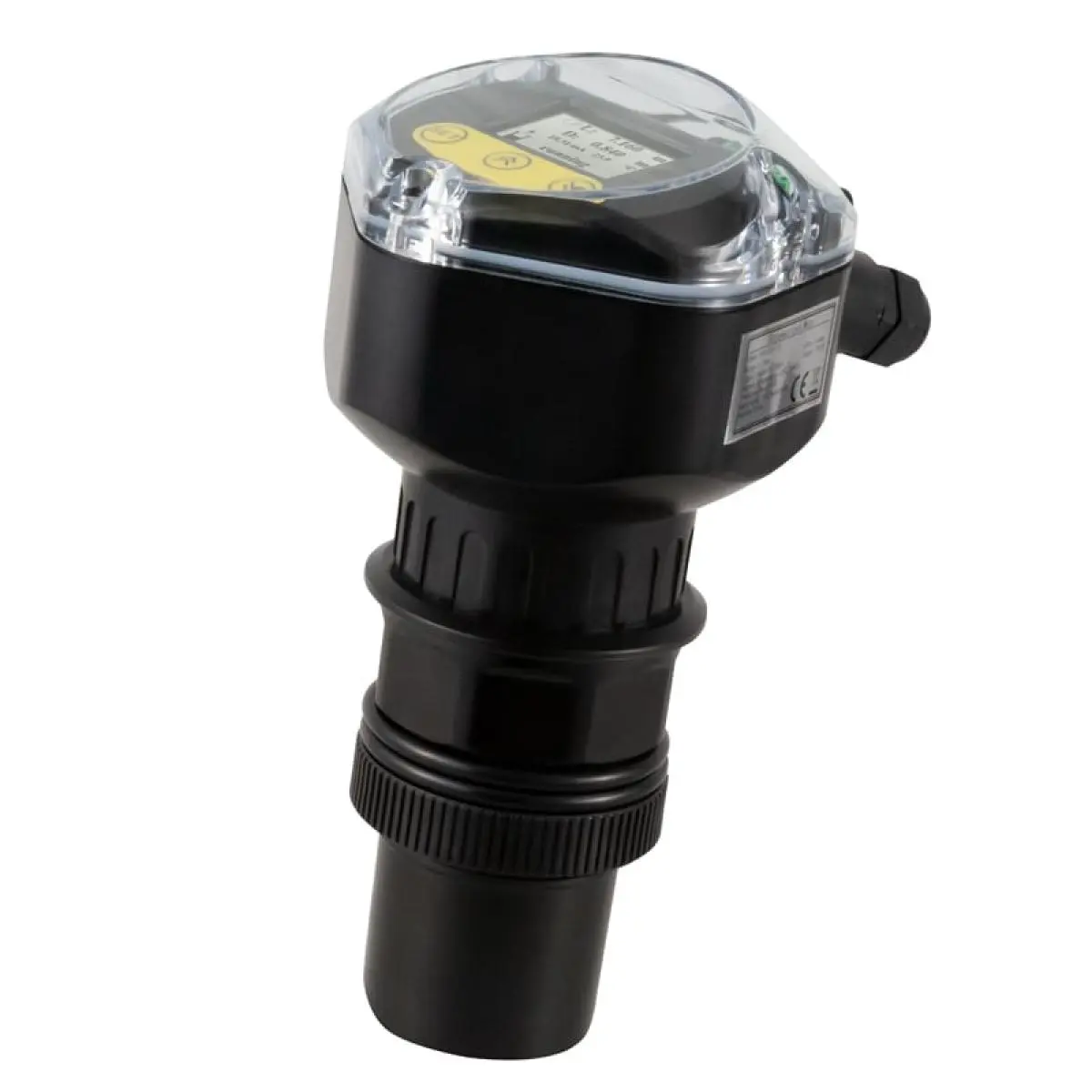

Ultrasonic level indicator with 4 ... 20-mA output signal / Two-wire connection technology / With ambient temperature display / With level and distance display / Measuring depth 10 m  (32.8 ft)

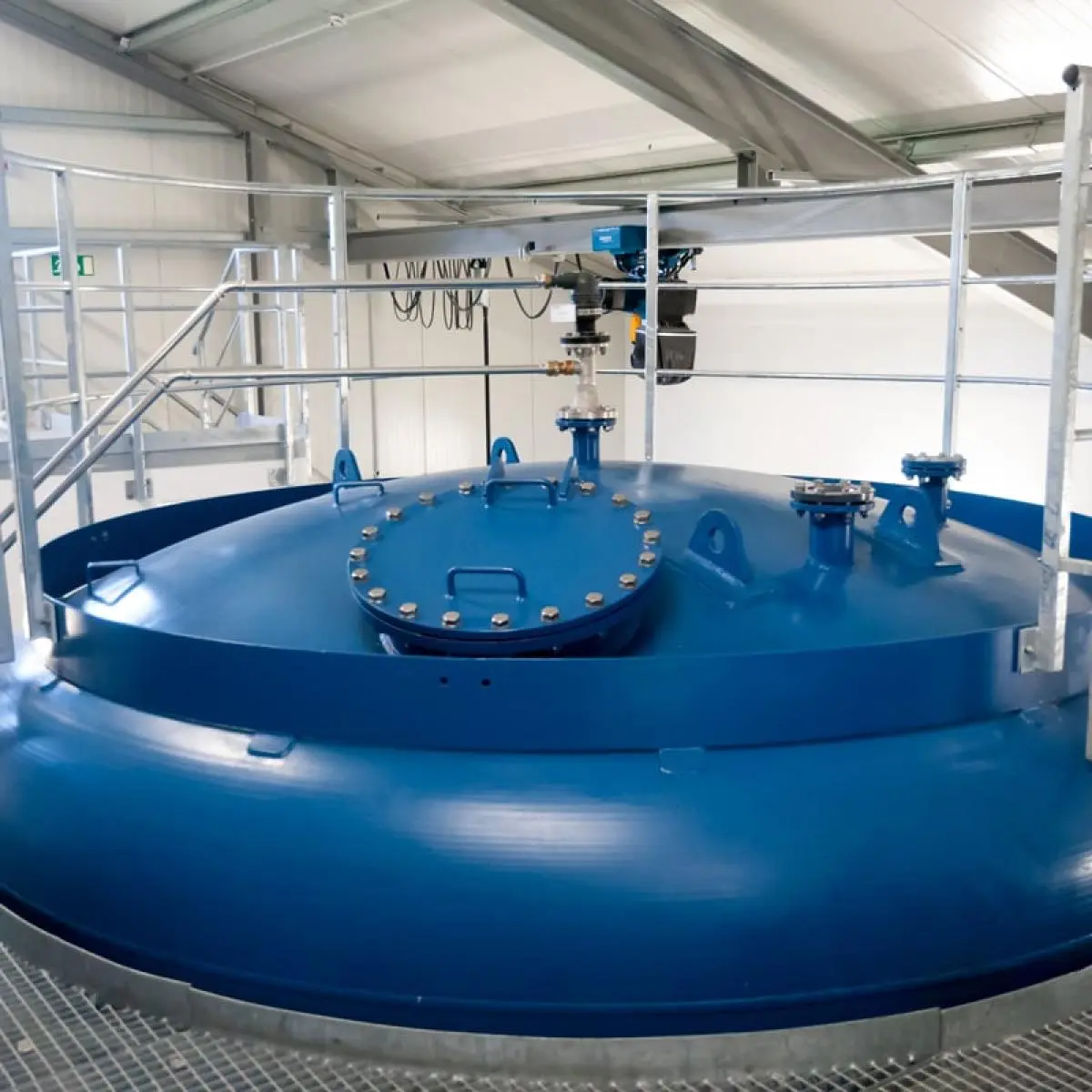

The panel meter is the ideal measuring device to determine the fill level of a silo. Thanks to the 4… 20-mA output signal, the panel meter can also be connected to the operational process control. This allows the measurement signal from the panel meter to be processed further. The panel meter can be used to check whether a silo is still sufficiently filled. The high IP protection class of the panel meter guarantees protection of the electrical components in the event of water leakage.

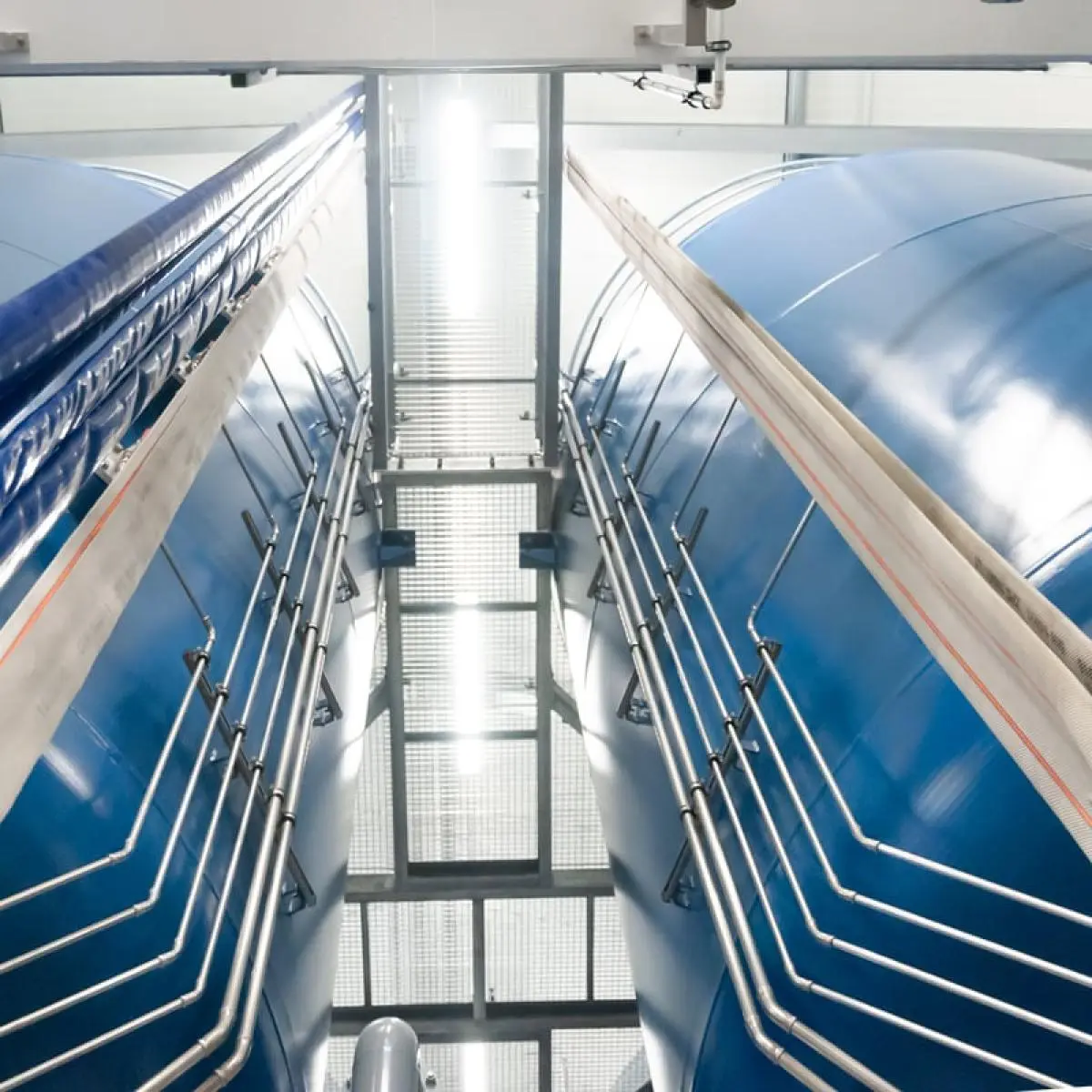

With a measuring range of 10 meters / 32.8 ft, larger silos can also be monitored with the panel meter. Depending on the application, the panel meter can indicate the level or the distance between the medium and the sensor as a measured value. The ambient temperature can also be measured with the panel meter. Thanks to the extensive functions and safety aspects, the panel meter is an ideal measuring device for monitoring silo systems.

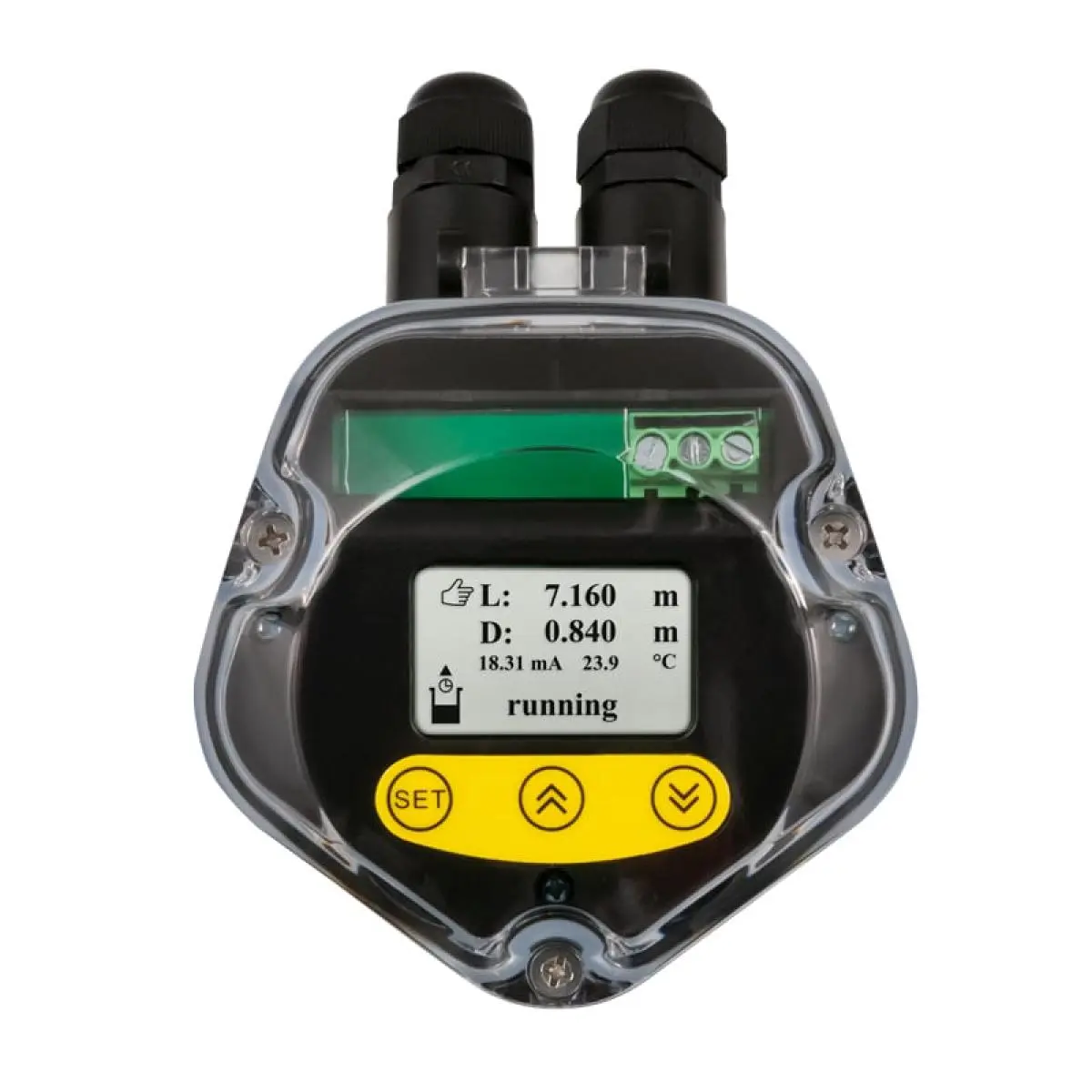

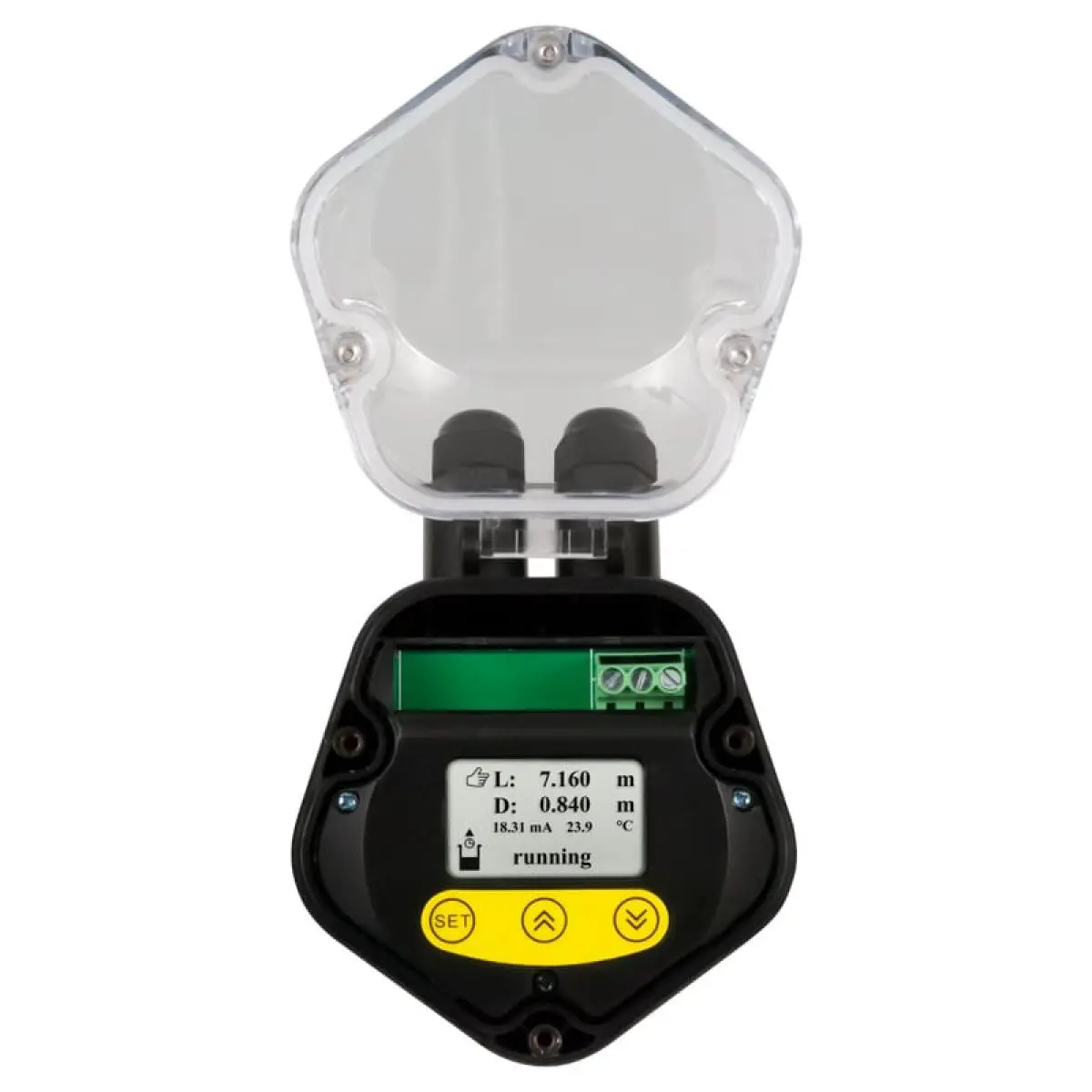

- With display for setting and reading
- Stable M60 connection thread
- Protection class of the display IP66
- Connectable to process technology
- For a measuring depth of up to 10 meters / 32.8 ft
- With ambient temperature display
Measuring range 0 ... 10 m / 0 ... 32.8 ft*
Accuracy 0.5%
Resolution 0.001 m
Minimum distance to the wall 1 m / 3.3 ft
Resolution of the temperature display       0.1°C / 0.18
Output 4 ... 20-mA
Output signal resolution 0.01-mA
Connection 2-wire, PE
Power supply 24V DC
Protection class IP 66
connecting thread M60
Connection thread cable glands M18 x 1.5
Environmental conditions -20 ... 60°C / -4 ... 140°F
Dimensions 110 x 140 x 215 mm / 4.3 x 5.5 x 8.5 in
Weight Approx. 825 g / 1.8 lbs

*The measuring range only applies under the following conditions:
-The measuring medium is a liquid
-There are no turbulences
-There are no dusts or vapors between the medium and the sensor
-The temperature difference between the sensor and the medium is < 20°C / 68°F



1 x Panel Meter PCE-ULM 10
1 x Instruction manual
