Panel Meter PCE-N20T

Order no.: PCE-N20T
£ 111.00
£ 133.20
price ex. (VAT / delivery)
Delivery time: up to 10 working days
Panel Meter PCE-N20T / 2 open collector outputs / setup via software /
for Pt100 sensors or thermocouples / IP 65 protected front

The digital panel meter is used for processing signals from Pt100 temperature sensors or thermocouples (type J, K). The measurement results are shown on the large 5-digit LED-display of the panel meter. Depending on the actual values, the temperature can be shown in three different colours, which makes it easier to evaluate them.


The panel meter can also output signals via its two open collector outputs, when a threshold value is exceeded. This allows the usage of external alarm systems in combination with the panel meter. The threshold values and other konfiguration settings can be set by using the free software LPCon and the optional PCE-PD 14 programming adapter. The panel meter is available with different measuring units, inputs and power supplies. You can select the particular parameters further below.

- Input (selectable): Pt100, thermocouple type J or type K
- Accuracy: ± (0.2 % FS + 1 dgt.)
- IP 65 protection on the front
- for Pt100 sensors or thermocouples
- connection via screw terminals
- 24 V power supply sytem for sensors and transducers
- 5-digit, three-coloured LED display
- two open connector outputs

Input (selectable)PT100 : -50 ... +400 °C
Thermocouple type J: -50 ... +1200 °C
Thermocouple type K: -50 ... +1370 °C
Measuring current< 300 µA
Accuracy± (0.2 % FS + 1 dgt.)
Scale2 points
Averaging time0.5 ... 20 s
Outputs2x open collector outputs, 30 V, 20 mA
Display 5-digit 7-segment LED display, height: 14 mm, three-coloured
Display range-19999 ... 99999
Environmental temperatureDuring operation: -10 °C ... 55 °C
During Storage: -25 °C ... +85 °C
max. humidity95 % non-condensing
Dimensions96 mm x 48 mm x 64 mm
Panel installation92 mm x 45 mm (according to DIN standard)
Power supply
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Power consumption< 6 VA
Protection classFront: IP 65
Weight< 250 g
MountingMounting clips with screws,

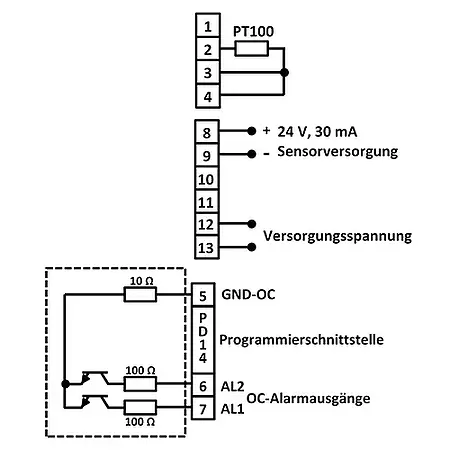

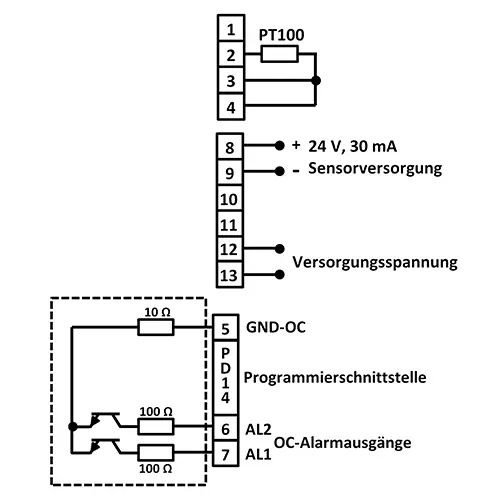

Connection via screw terminals (connection plan on the housing)
HousingSolid plastic

1 x Panel Meter PCE-N20T
1 x mounting clips
1 x gasket seal
1 x instruction manual
