Order no.: PCE-DPG 100

Panel Meter PCE-DPG 100

£ 298.00
£ 357.60
:
4250348721259
PCE-DPG 100
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

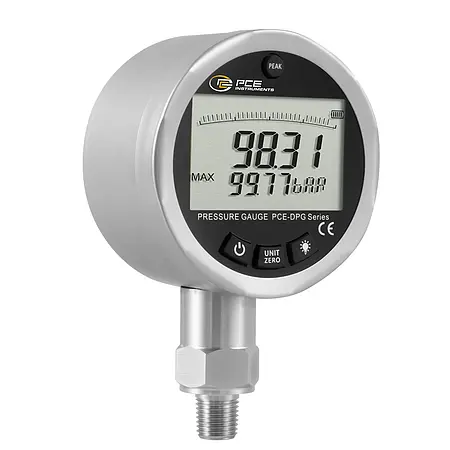

Panel Meter PCE-DPG 100
Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator / Battery-operated

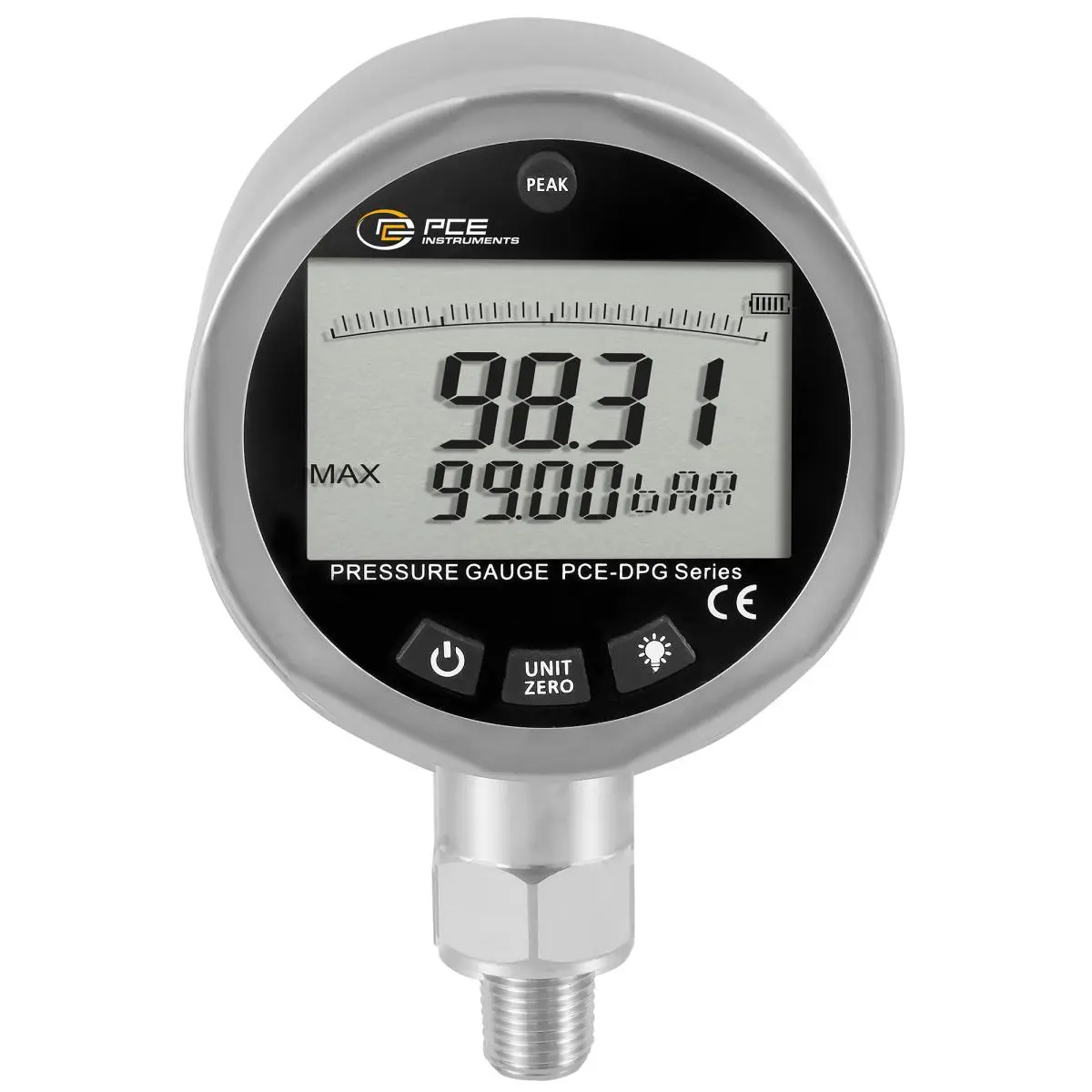

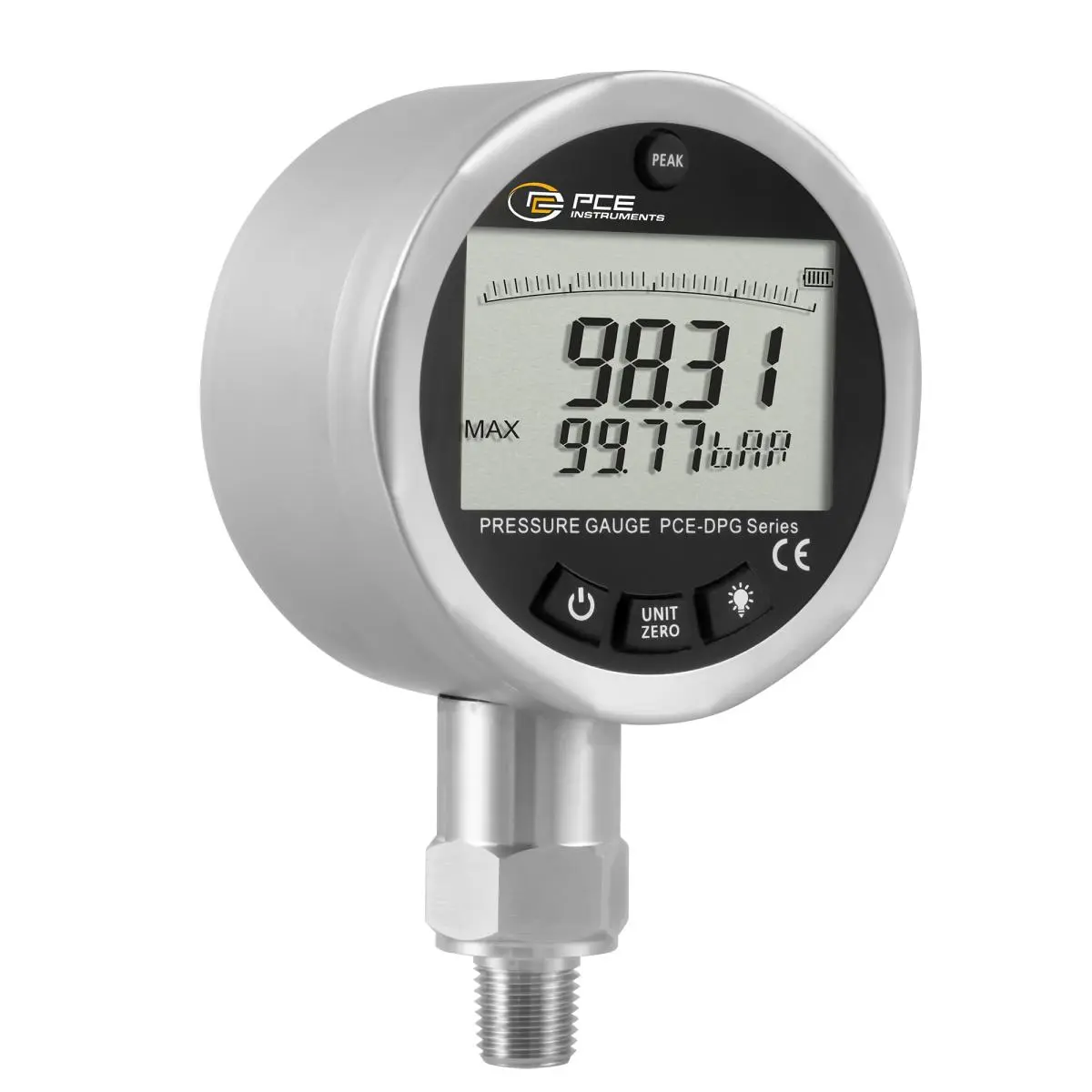

The panel meter of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this panel meter is versatile. The current pressure is displayed by the panel meter as a value and at the same time as a bar graph. As an additional function, the panel meter offers a peak function. This function shows the operator the maximum and minimum pressure measured on the panel meter at the push of a button.

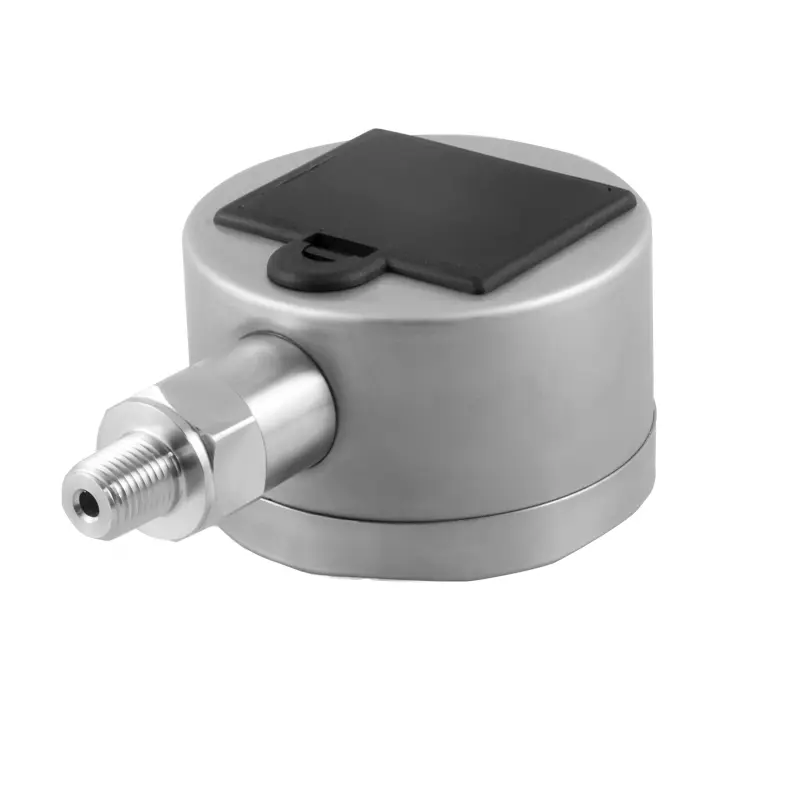

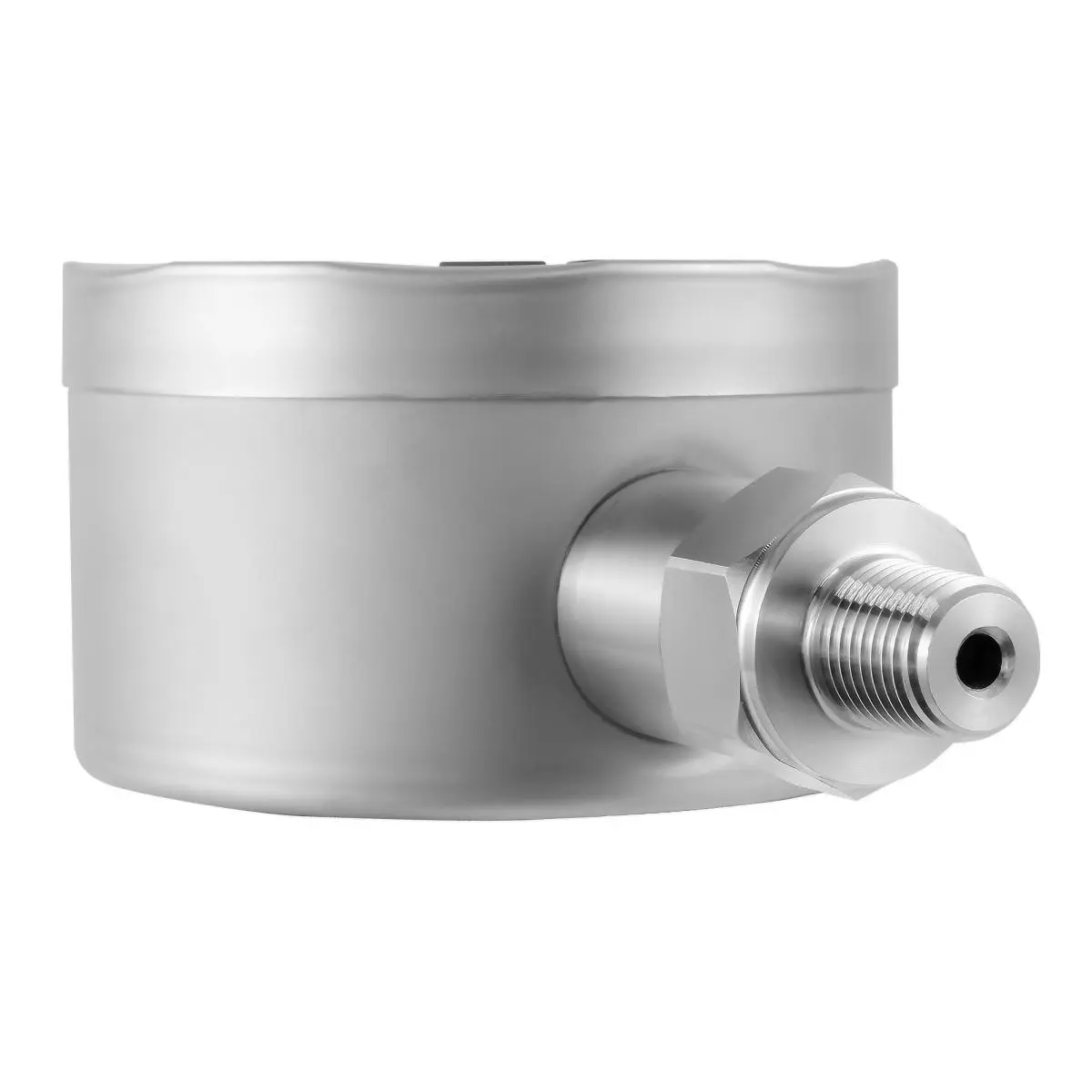

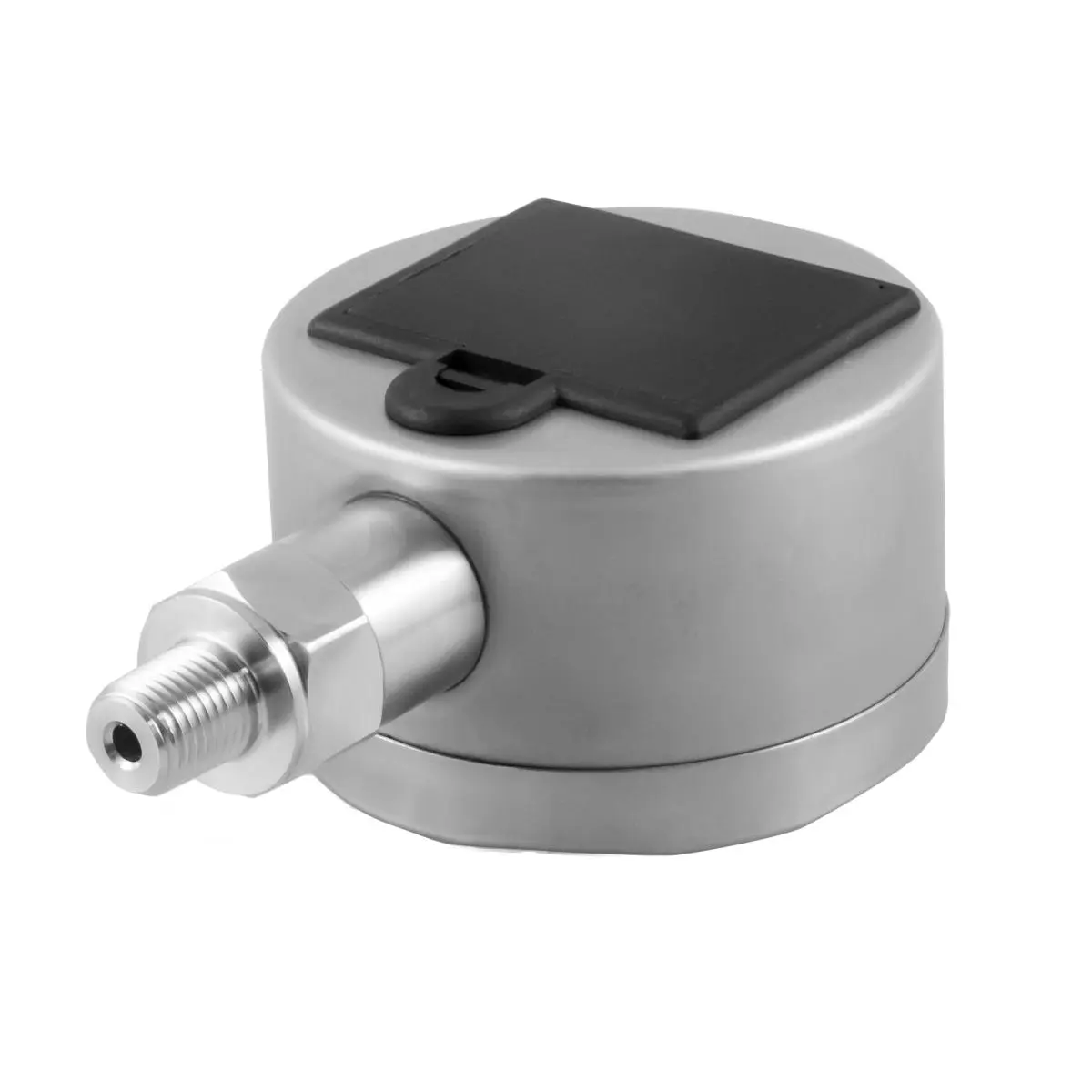

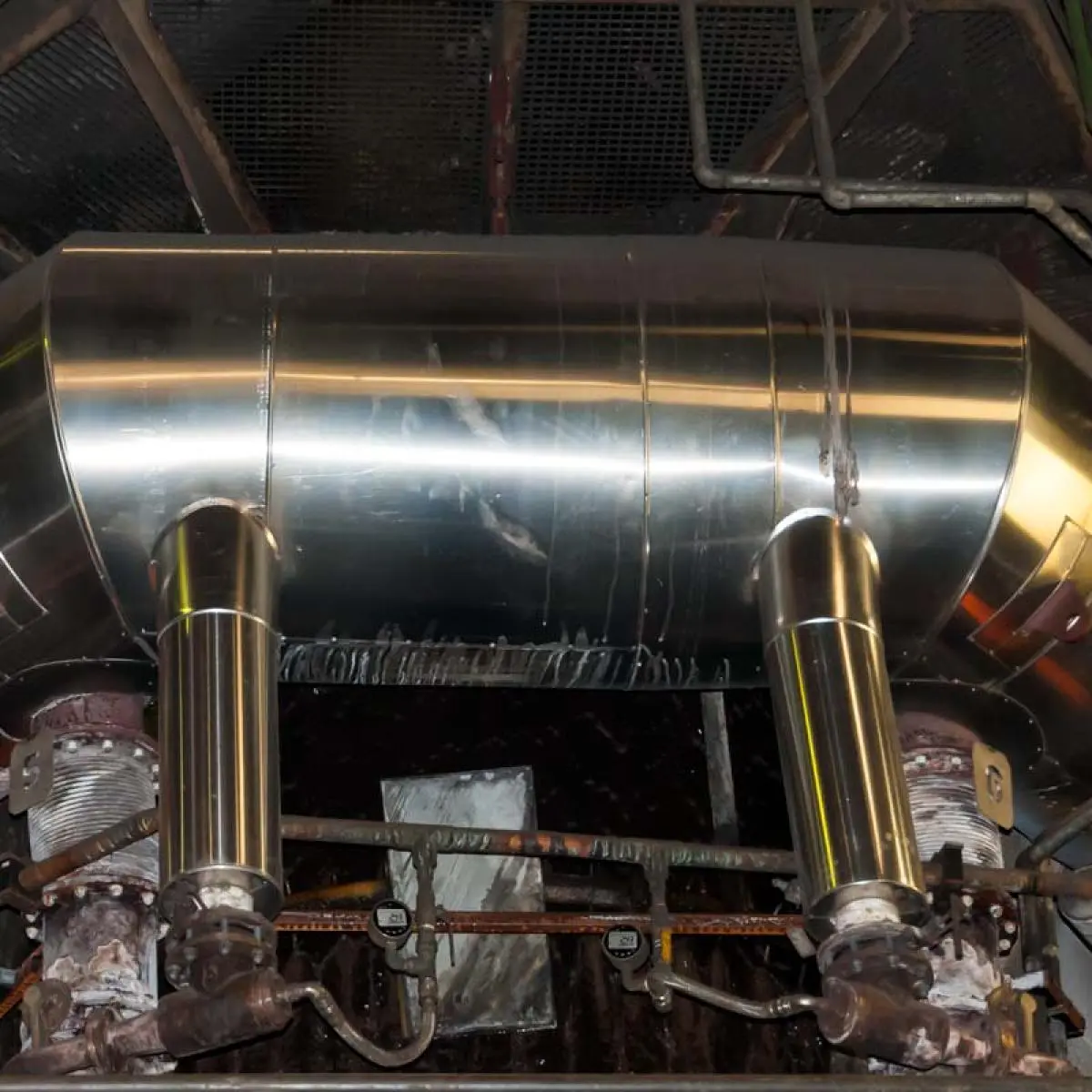

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the panel meter would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the panel meter is < 50 ms. The connection of the panel meter to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.

Highlights

- Measuring range up to 1450 psi, 100 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread

Specification

Measuring range 0 ... 1450 psi, 0 ... 100 bar
Resolution 0.145 psi, 0.01 bar
Accuracy 0.25% FSO
Pressure Relative
Overpressure 1.5 times
Measurable media Gases, water
Response time < 50 ms
Housing material Metal
Measurement units Mpa, bar, Kpa, mH2o, kg / cm²,
  psi, mmH2o, in.WC, mbar
Protection class IP56
Diameter display 2.5"
Dimensions (without sensor)       Ø80 x 50 mm / 3.1 x 2 in
Pressure connection 1/40" NPT
Power supply 3 x 1.5V AAA batteries
Environmental conditions    -10 ... 60°C / 14 ... 140°F, < 80% RH
Weight Approx. 276 g / < 1 lb (without batteries)



Delivery Scope

1 x Panel Meter PCE-DPG 100
3 x Batteries 1.5V AAA
1 x Operating instructions
