Panel Meter PCE-DPD-F1

Order no.: PCE-DPD-F1

Question / Callback

Delivery time: 10 - 14 days

Panel Meter PCE-DPD-F1
Force display for strain gauges with mV & V / modular output cards / 6 digit LED display / 230V or 24V power supply

The built-in display is used to indicate the force and weight detected by force sensors and load cells with strain gauges. The output signal of the measuring cell is irrelevant because the panel meter makes it possible to display the correct weight in mV / V based on the set sensitivity. The panel meter shows the measured values on a 6-digit LED display. The measuring range could theoretically be between -199999 ... 999999. Depending on the desired and adjusted scaling, a corresponding unit sticker can be affixed to the panel meter.

The panel meter can directly supply voltage to the connected measuring cell with strain gauges. The supply voltage can be selected between 5V and 10V. Depending on the voltage selected, up to 8 or 4 force or load cells can be connected to the panel meter. A special feature of this digital display for mV / V is the modular output concept. Different, changeable output cards are available depending on the application.

- Digital display for strain gauges
- mV / V input
- 3 different measuring speeds
- Modular output cards available
- 1/8 DIN panel mounting dimensions
- LED display

Technical specification for DMS display of the PCE-DPD-F series
Signal Input Range	Accuracy at 25°C	Sensitivity in mV / V at 5V	Sensitivity in mV / V at 10V
0 ... 100 mV DC	± 0.05% of reading	20 mV / V	10 mV / V
0 ... 30 mV DC	± 0.05% of reading	6 mV / V	3 mV / V
0 ... 20 mV DC	± 0.05% of reading	4 mV / V	2 mV / V
0 ... 15 mV DC	± 0.05% of reading	3 mV / V	1.5 mV / V
0 ... 10 mV DC	± 0.05% of reading	2 mV / V	1 mV / V
0 ... 5 mV DC	± 0.05% of reading	1 mV / V	0.5 mV / V
Maximum input voltage		30V in all measuring ranges
Supply voltage measuring cells		5V or 10V
Maximum current		140-mA
Maximum number of measuring cells (with 350 Ohm measuring cells otherwise max. 140-mA)		5V supply: 1 ... 8 measuring cells 10V supply: 1 ... 4 measuring cells
Display		6-digit 7-segment LED display
Units (available to user)		g, kg, t, pcs, mg, lb, N, kN
Colour		Red
Character height		14 mm
Display area		-199999 ... 999999
Decimal		Adjustable after each displayed digit
Under and Over range display		The display flashes
Measuring rate (adjustable) / response time		16 Hz / 63 ms 50 Hz / 20 ms 60 Hz / 17 ms
Refresh rate display		16 Hz
Electrical connections		Screw connections 1 ... 2.5 mm²
Power supply		85 ... 265V AC / DC
Input		Max. 1 W without output cards Max. 4 W with output cards
Degree of protection		Front: IP65
Assembly		Panel cut
Size panel cutout		92 x 44 mm / 3.6 x 1.7 in
Dimensions		96 x 48 x 91 mm / 3.7 x 1.9 x 3.6 in
Weight		About 150 g / < 1 lb
Operating temperature		0 ... 50°C / 32 ... 122°F
Storage temperature		-20 ... 70°C / -4 ... 158°F
Heating time		About 15 minutes

1 x Panel Meter PCE-DPD-F1
1 x Power supply terminal
1 x Strain gauge terminal
1 x Unit label
1 x User manual

Manual

man-panel-indicator-pce-dpd-f-series-en.pdf

Manual

Accessories

Order no.: PCE-DPD/T

Transistor Module for PCE-DPD Series

Transistor module for plugging into the PCE-DPD series installation display. The transistor module has a switching transistor.

- 1 switching transistor

- 35V / 50-mA contact load

- Potential free

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 47.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DPD/SSR

SSR-Module for PCE-DPD Series

SSR module For plugging into the PCE-DPD series installation display. The SSR module has an AC relay.

- SSR Relays / Solid State Relays
- 0/15V at 45-mA output

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 47.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DPD/485

RS485 Module for PCE-DPD Series

Using the RS485 module for the PCE-DPD digital displays, the measured values can be transmitted to a PC in ASCII format.

- RS485 module with ASCII protocol

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 89.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DPD/232

RS232 Module for PCE-DPD Series

Using the RS232 module for the PCE-DPD digital displays, the measured values can be transmitted to a PC in ASCII format.

- RS232 module with ASCII protocol

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 89.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DPD/R

Relay Module for PCE-DPD Series

Relay module for plugging into the PCE-DPD series installation display. The relay module has a changeover relay.

- Changeover relay
- 230V / 8 A contact load
- Potential free

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 47.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DPD/MB

Modbus RTU Module for PCE-DPD Series

Modbus RTU module for plugging into the PCE-DPD series installation display. The Modbus RTU module allows the display to be integrated as a slave in a Modbus network.

- Enables Modbus communication

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 89.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-DPD/AV

Analog Output Module for PCE-DPD Series

The analogue output module makes it possible that with the digital display PCE-DPD the displayed measured values are transmitted as 4 ... 20-mA or 0 ... 10V signal to a process recorder or PLC.

- Optionally provides a 4 ... 20-mA or 0 ... 10V output

Catalogue: Control Systems / Indicator

Manufacturer: PCE Instruments

£ 89.00

Price excl. VAT &. delivery
2 year Warranty

Force Sensor PCE-C-R20LFC-H11 series 5-2000 kg

Order no.: PCE-C-R20LFC-H11

Force Sensor PCE-C-R20LFC-H11 series 5-2000 kg

The flat miniature force sensor has a height of only 11 mm. With a diameter of 20 mm, this miniature force sensor is very compact. This force sensor achieves a measurement uncertainty of only 0.5%.

- Rated load / force F.S.: 5-2000 kg / 50 N - 20 kN
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V

- Force sensor nominal load selectable!

Catalogue: Measuring Instruments / Test Meters / Tension Dynamometer / Tension Load Cell

Manufacturer: PCE Instruments

£ 231.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-C-R19LFC

Force Sensor PCE-C-R19LFC

This is a pressure cell as a force sensor with a high measuring range with small dimensions. The dimensions of the force sensor are only 9 mm in height and 19 mm in diameter.

- Rated load / force F.S.: 5-500 kg / 50-5000N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V

- Force sensor nominal load selectable!

Catalogue: Measuring Instruments / Test Meters / Tension Dynamometer / Tension Load Cell

Manufacturer: PCE Instruments

£ 201.00

Price excl. VAT &. delivery
2 year Warranty

Datasheet

Force Sensor PCE-C-R13LFC-H7 series 5-100 kg

Order no.: PCE-C-R13LFC-H7

Force Sensor PCE-C-R13LFC-H7 series 5-100 kg

A force sensor made of stainless steel with a measurement uncertainty of only 0.5%. With the dimensions of Ø 13 mm and a height of 7 mm, the force sensor is very versatile.

- Rated load / force F.S.: 5-100 kg / 50-1000 N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V

- Force sensor nominal load selectable!

Catalogue: Measuring Instruments / Test Meters / Tension Dynamometer / Tension Load Cell

Manufacturer: PCE Instruments

£ 201.00

Price excl. VAT &. delivery
2 year Warranty

Datasheet

Force Sensor PCE-C-R12LFC-H4 series 5-50 kg

Order no.: PCE-C-R12LFC-H4

Force Sensor PCE-C-R12LFC-H4 series 5-50 kg

The flat miniature force sensor has a height of only 4 mm. With a diameter of 12 mm, this miniature force sensor is very compact. This force sensor achieves a measurement uncertainty of only 0.5%.

- Rated load / force F.S.: 5-50 kg / 50-500 N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V

- Force sensor nominal load selectable!

Catalogue: Measuring Instruments / Test Meters / Tension Dynamometer / Tension Load Cell

Manufacturer: PCE Instruments

£ 231.00

Price excl. VAT &. delivery
2 year Warranty

Datasheet

Force Sensor PCE-C-R10LFC series 5-100 kg

Order no.: PCE-C-R10LFC

Force Sensor PCE-C-R10LFC series 5-100 kg

Thanks to its small dimensions, the miniature force sensor is easy to use on hard-to-reach measuring points. The height in particular is something special with this force sensor. With a diameter of only 10 mm, this force sensor is smaller in diameter than a 1 cent coin.

- Rated load / force F.S.: 5-100 kg / 50-1000 N
- Limit load / force: 120 %
- Breaking load / force: 150 %
- Rated output: 1.0 – 1.5 mV/V

- Force sensor nominal load selectable!

Catalogue: Measuring Instruments / Test Meters / Tension Dynamometer / Tension Load Cell

Manufacturer: PCE Instruments

£ 201.00

Price excl. VAT &. delivery
2 year Warranty

Datasheet

Force Sensor PCE-C-R8LFC series 10-50 kg

Order no.: PCE-C-R8LFC

Force Sensor PCE-C-R8LFC series 10-50 kg

The miniature force sensor can be used in many applications due to its compact dimensions. With a small force application surface, the miniature force transducer enables force measurement at small contact surfaces.

- Rated load / force F.S.: 10-50 kg / 100-500 N
- Limit load / force: 150 %
- Breaking load / force: 200 %
- Rated output: 1.0 – 1.5 mV/V

- Force sensor nominal load selectable!

Catalogue: Measuring Instruments / Test Meters / Tension Dynamometer / Tension Load Cell

Manufacturer: PCE Instruments

£ 201.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-TGH450

Table Housing PCE-TGH450

Table housing for controller, display, screen recorder with the control panel cutout 45 x 92 mm. For laboratory use.

Housing type: Table housing with support feet
Housing material: ABS
Front panel material: aluminium
Cutout: 45 x 92 mm

Manufacturer: PCE Instruments

£ 111.00

Price excl. VAT &. delivery
2 year Warranty

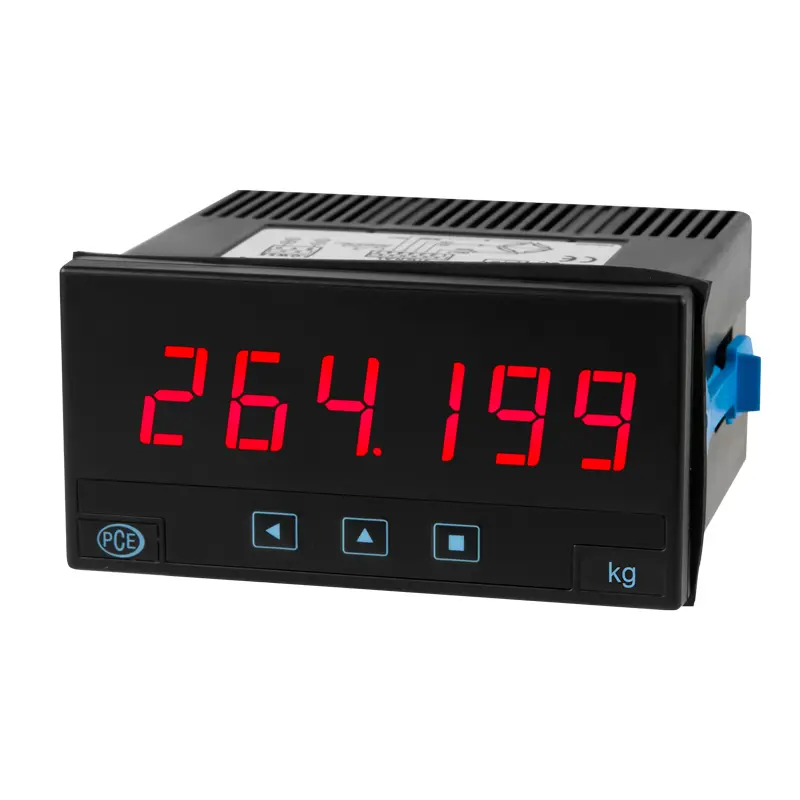

Panel Meter PCE-DPD-F1

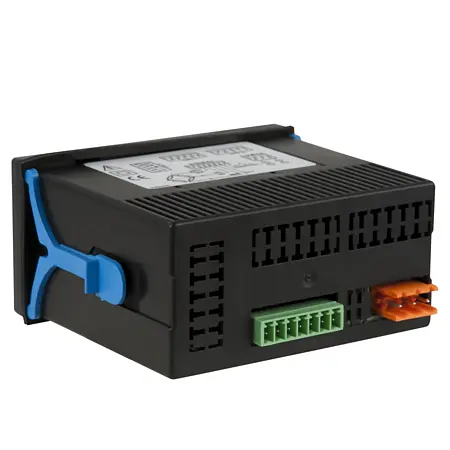

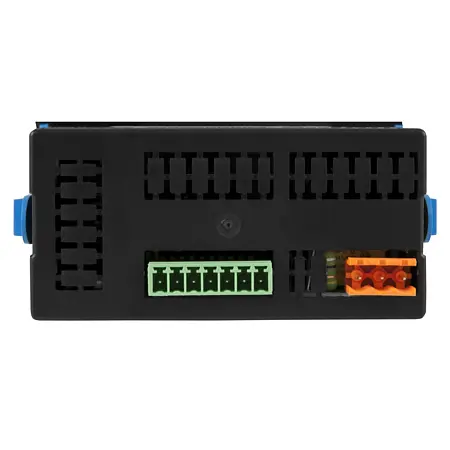

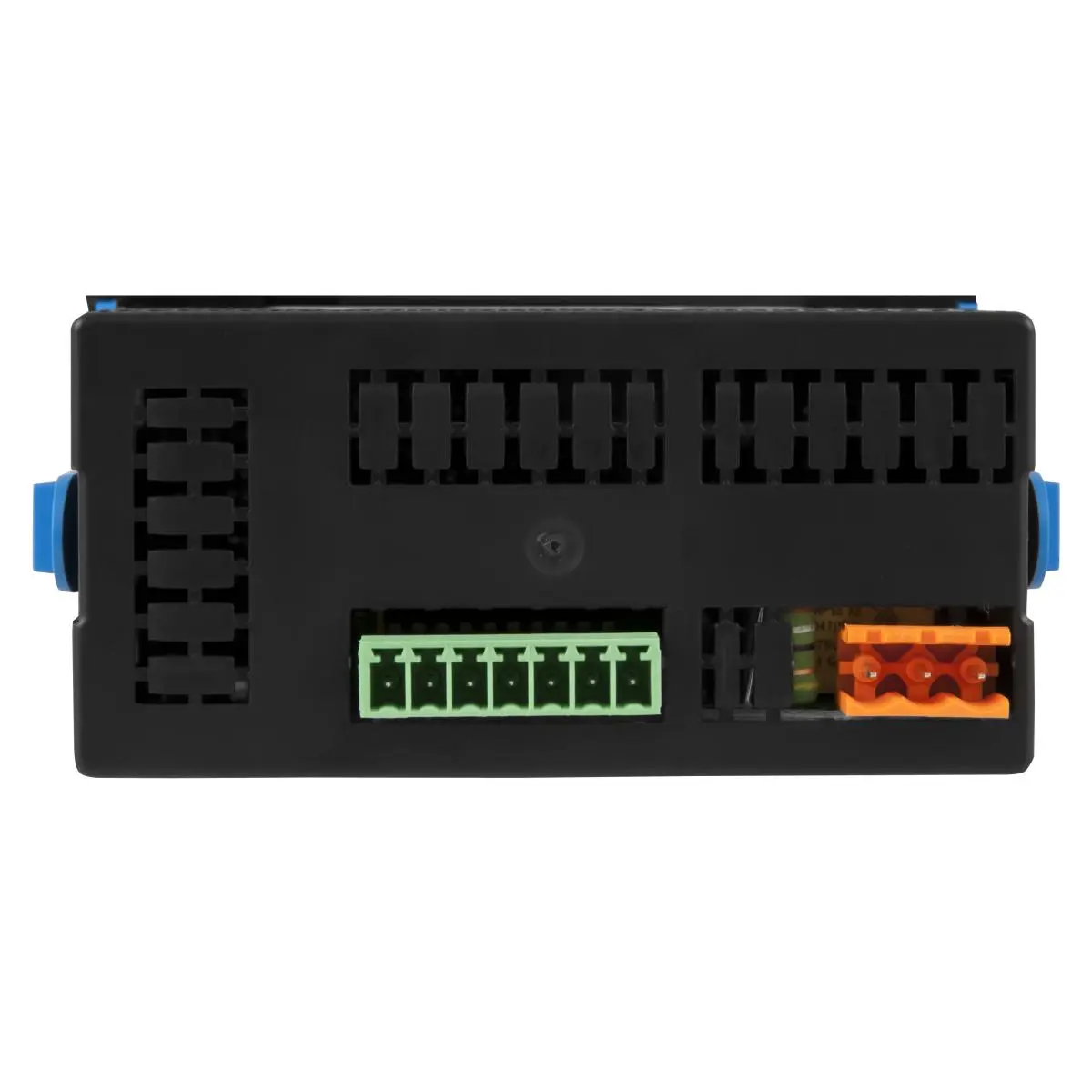

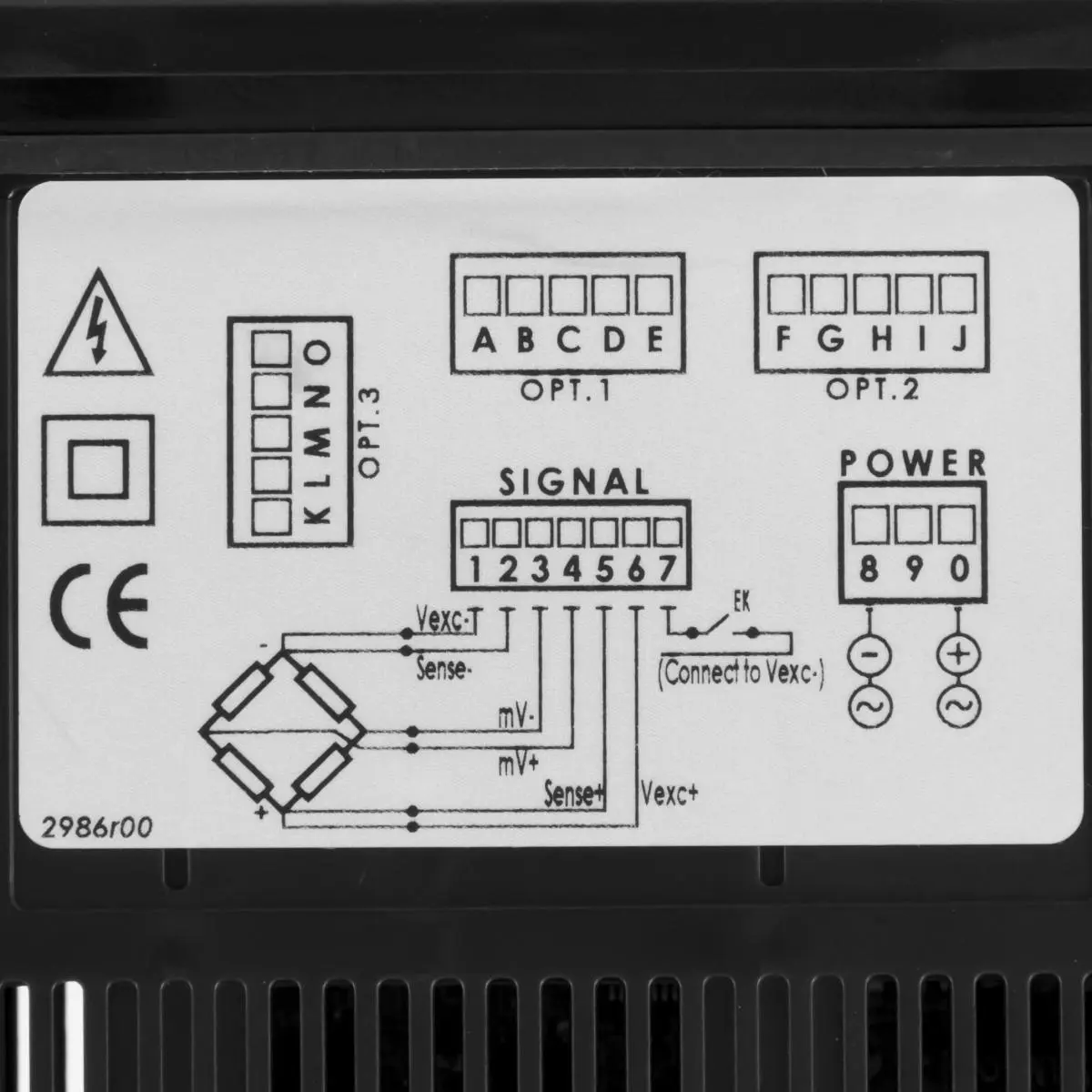

Panel Meter rear view
