Precision Balances / Precision Scales PCE-MA 60XT

Precision Balance PCE-MA 60XT

Order no.: PCE-MA 60XT
GTIN (EAN): 4250348732552
₹267,735.00
₹315,927.30
price ex. (VAT / delivery)
:
4250348732552
PCE-MA 60XT
Delivery time:1-2 working days

Description

Precision balance Precision balance up to max. 60 g sample weight / measuring resolution 0.1 mg = 0.0001 g = 0.001 % humidity
drying temperature up to 160°C / 5" touch color display / internal product database / measurement data can be stored as TXT file directly on USB stick

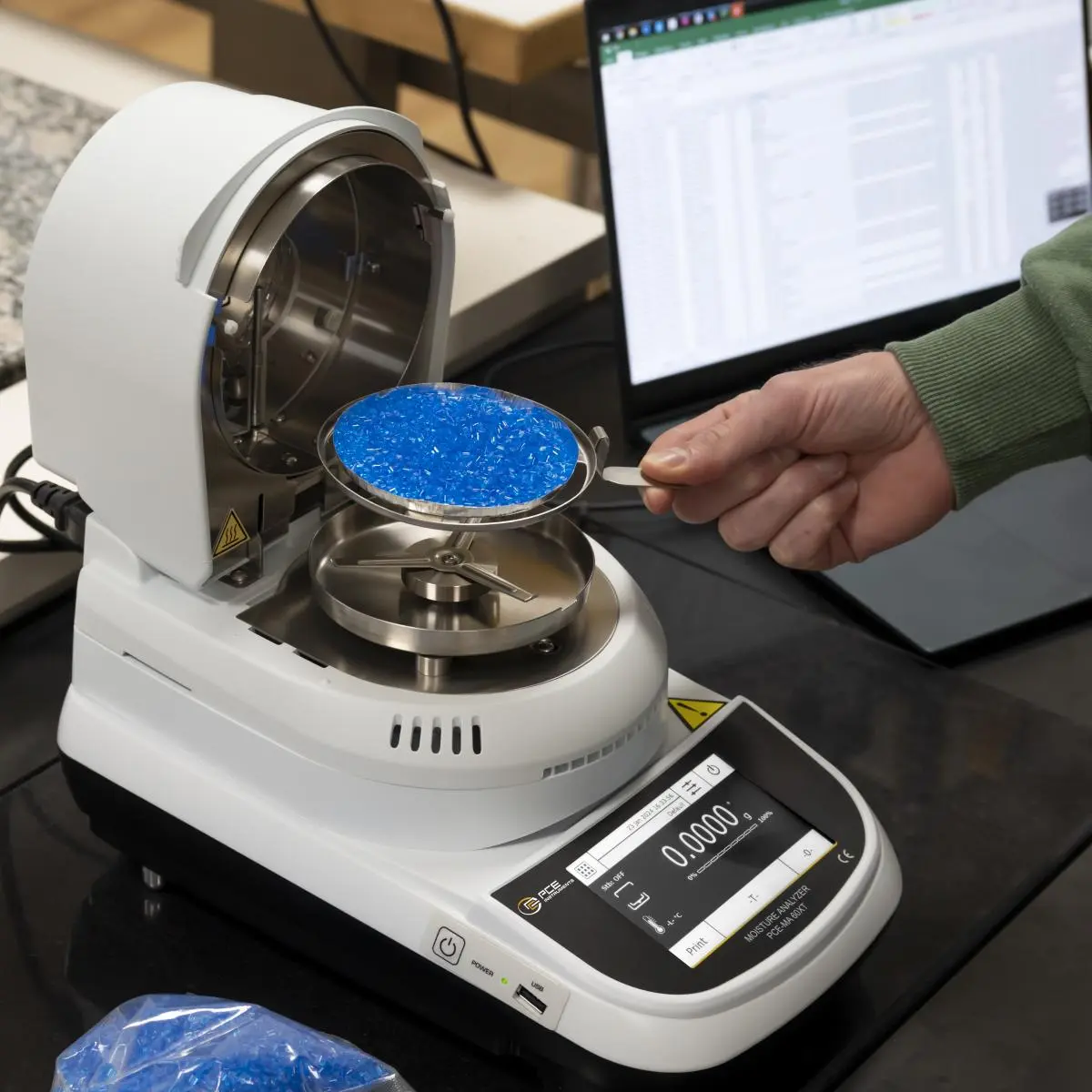

The precision balance enables accurate and simple moisture determination in a wide range of materials. The sample is automatically weighed, dried and the weight loss is displayed as moisture content. This measuring principle does not require any time-consuming creation of characteristic curves and is immediately ready for use shortly after set-up.

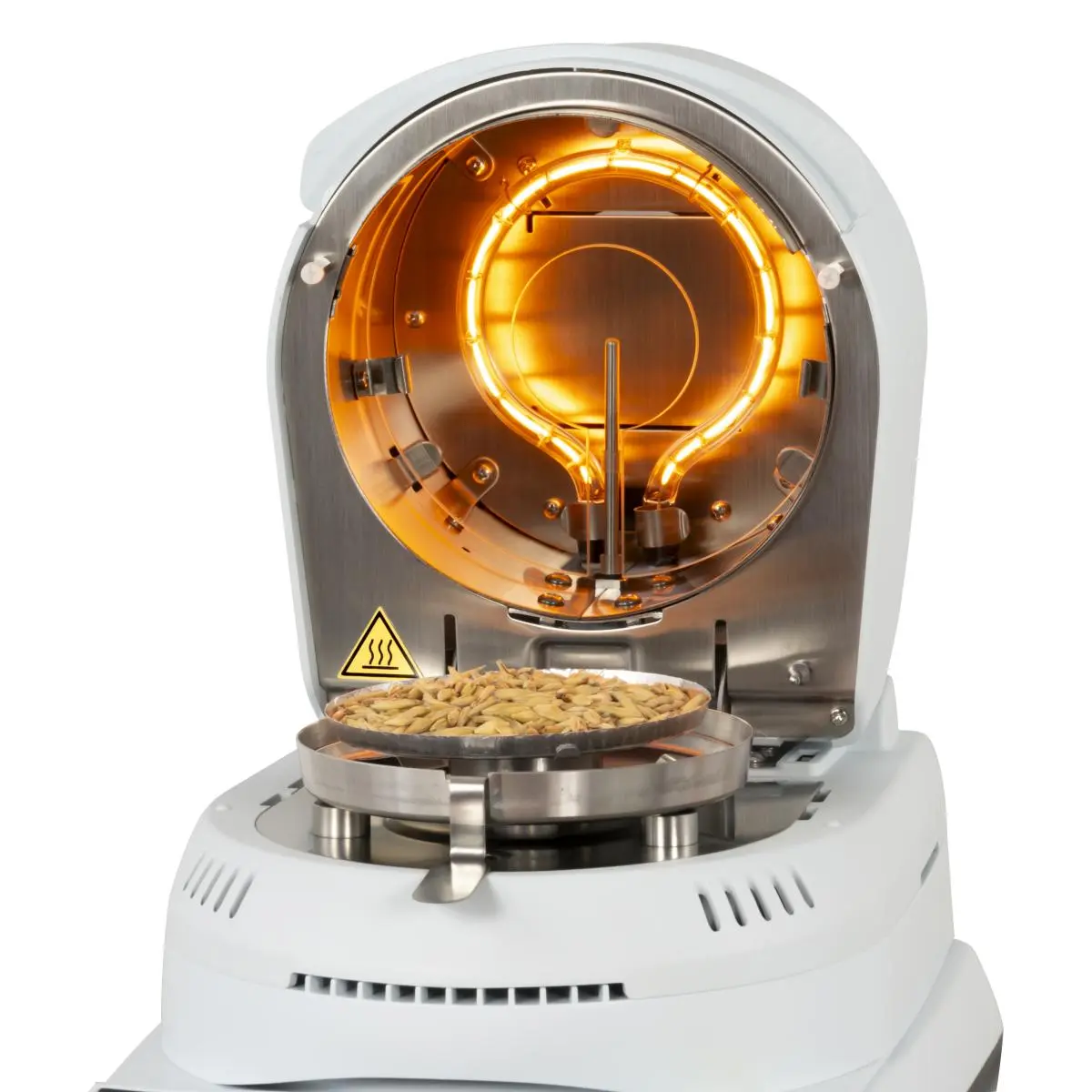

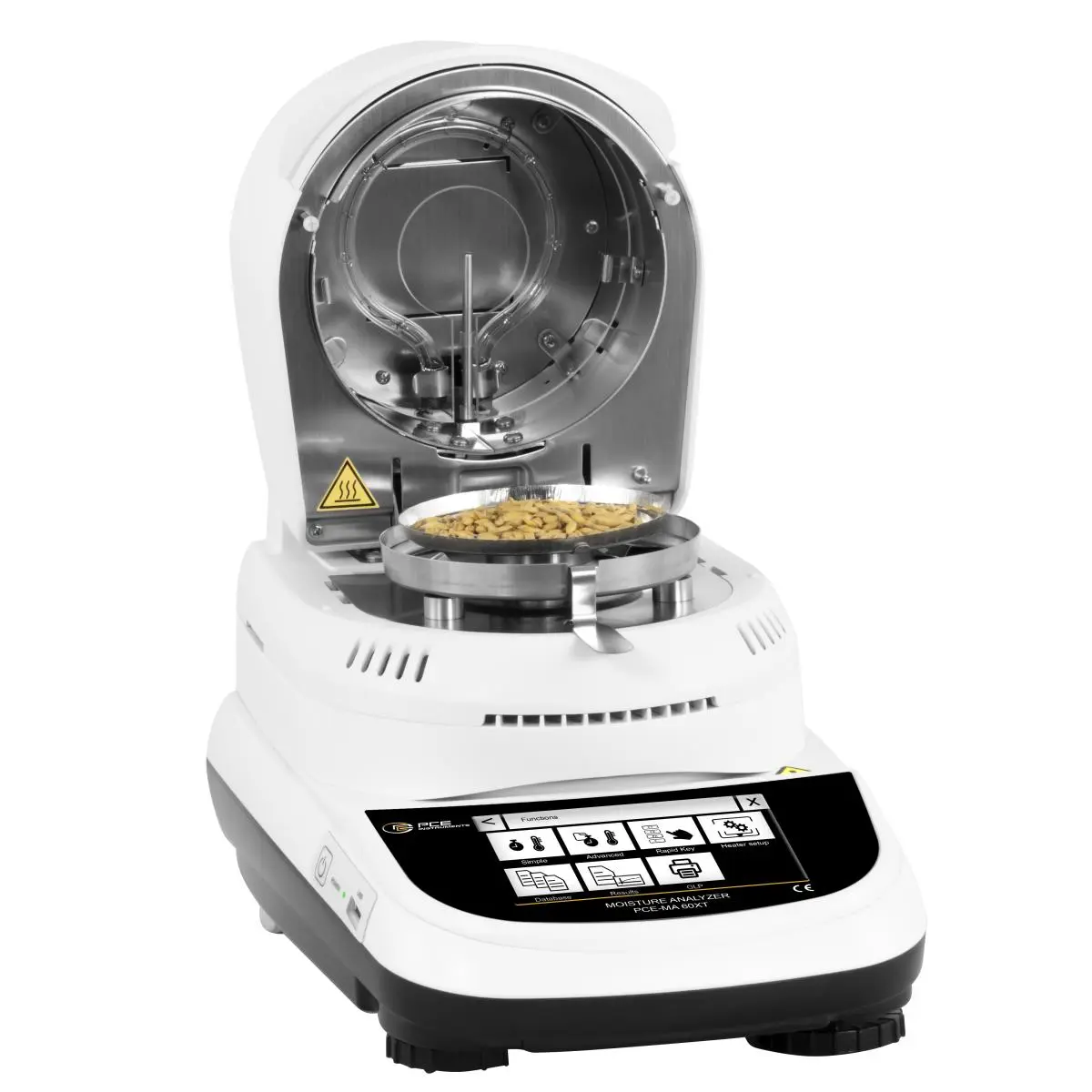

For the weighing task, the precision balance has an electromagnetic load cell installed which registers the weight loss with a measuring resolution of 0.1 mg = 0.0001 g. For the drying of the sample, a moisture analyzer is installed in the sample chamber. To dry the sample, a 400 watt halogen round lamp installed in the lid is used to ensure uniform heat distribution.

To avoid burning the sample, the user of the precision balance can access the internal product database or set the drying temperature between 35 °C and 160 °C in 1 °C steps, product specific. The product database has preset drying parameters that can be easily expanded and changed by the user.

Highlights

- Sample weight max. 60 g
- Readability 0.1 mg = 0.0001 g = 0.001 % humidity

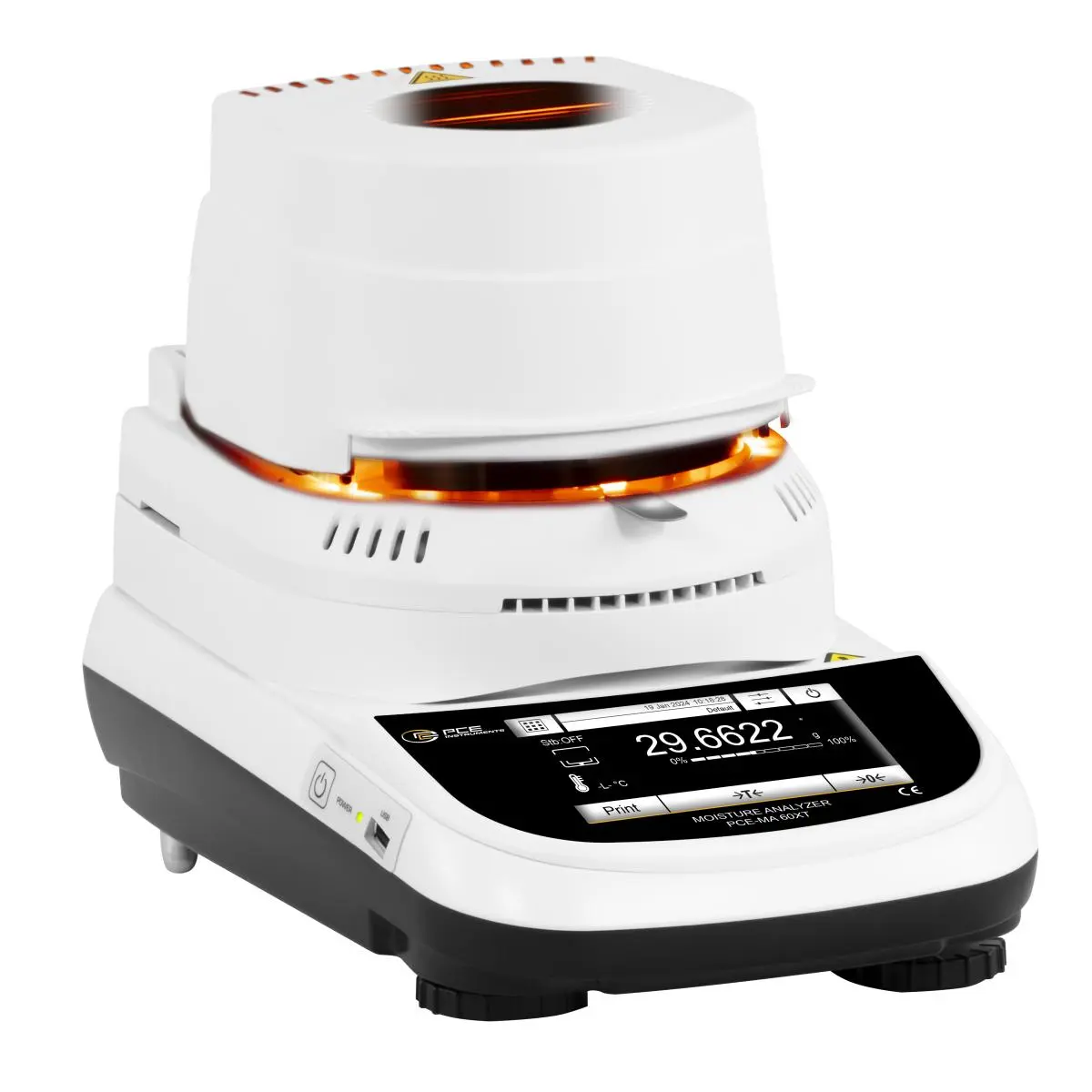

- Round 400 watt IR halogen lamp
- Drying temperature adjustable from 35 °C up to 160 °C in 1 °C steps
- Sample dish size Ø100 mm / h= 8 mm

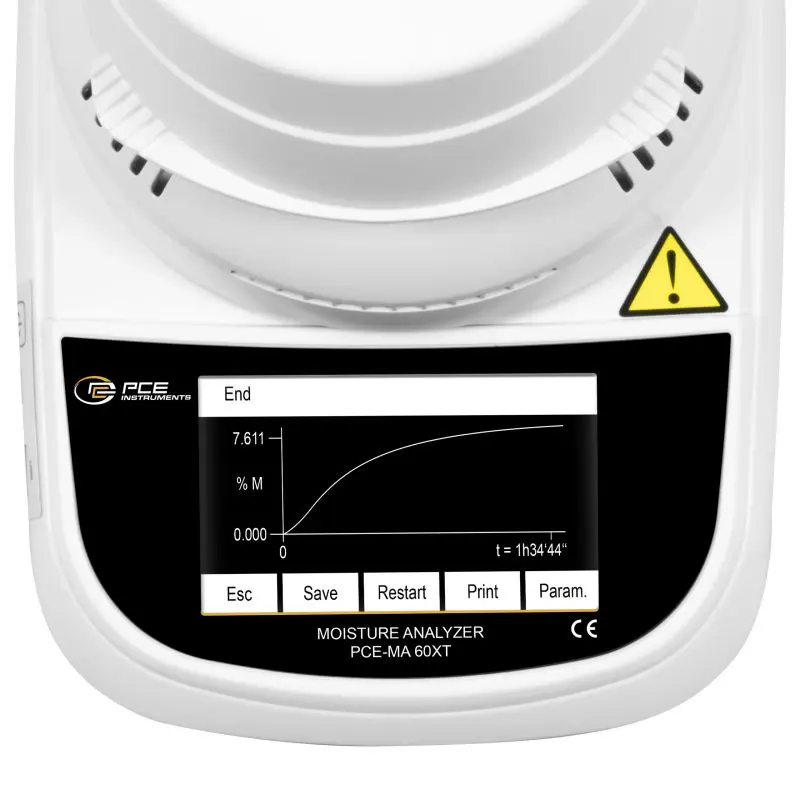

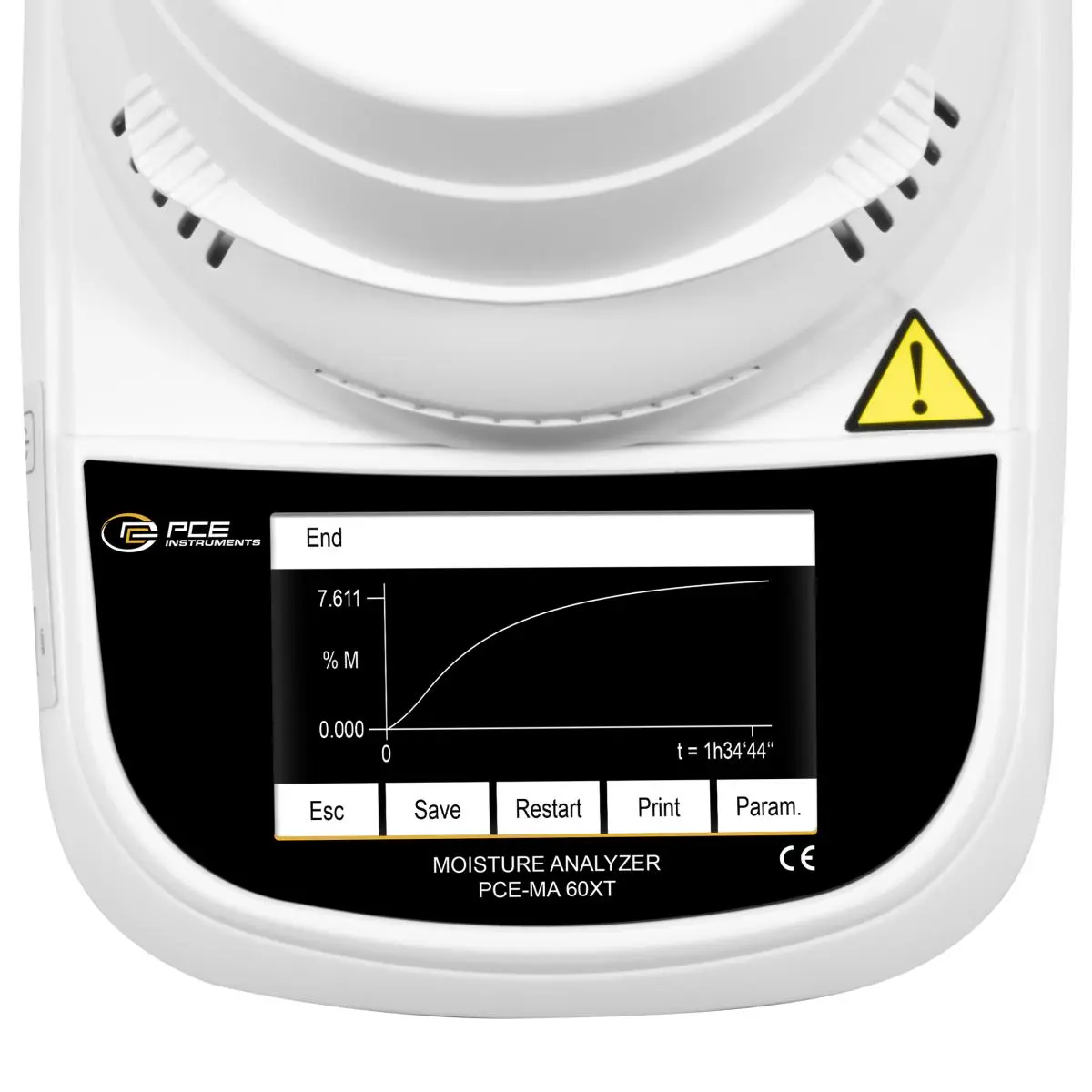

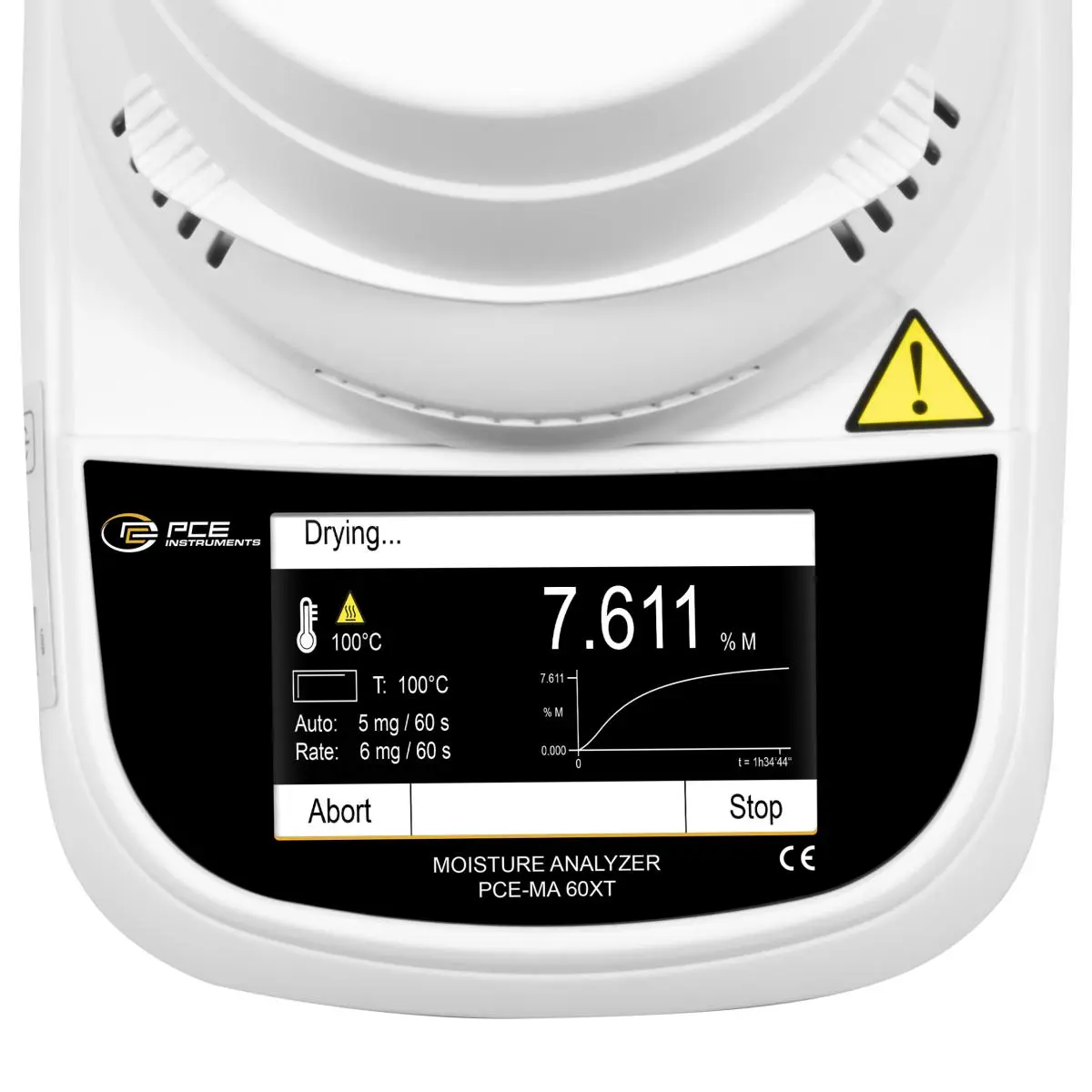

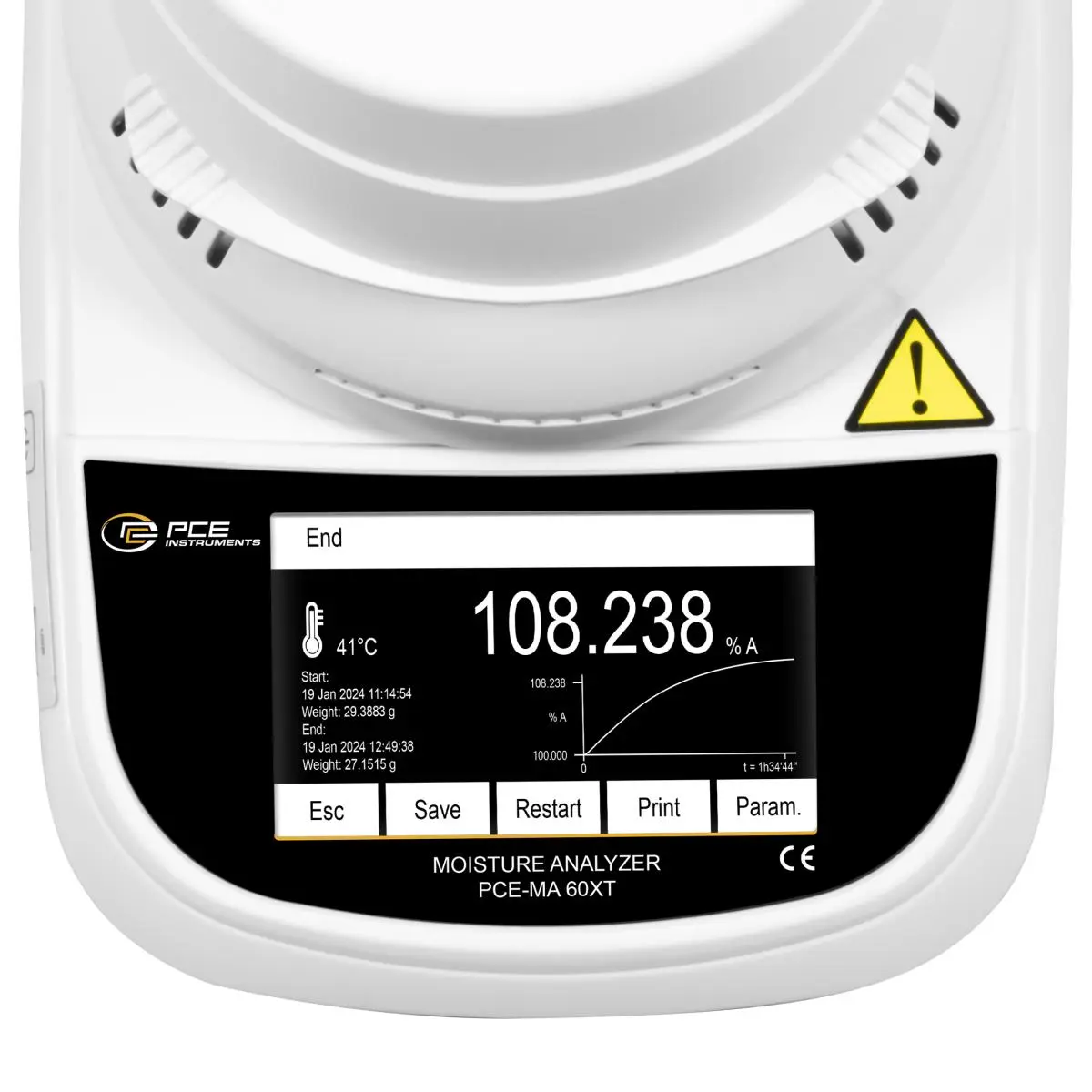

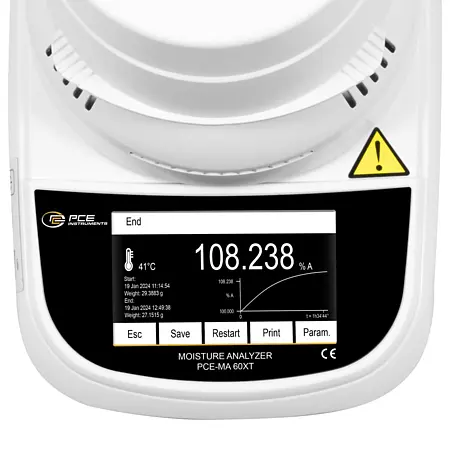

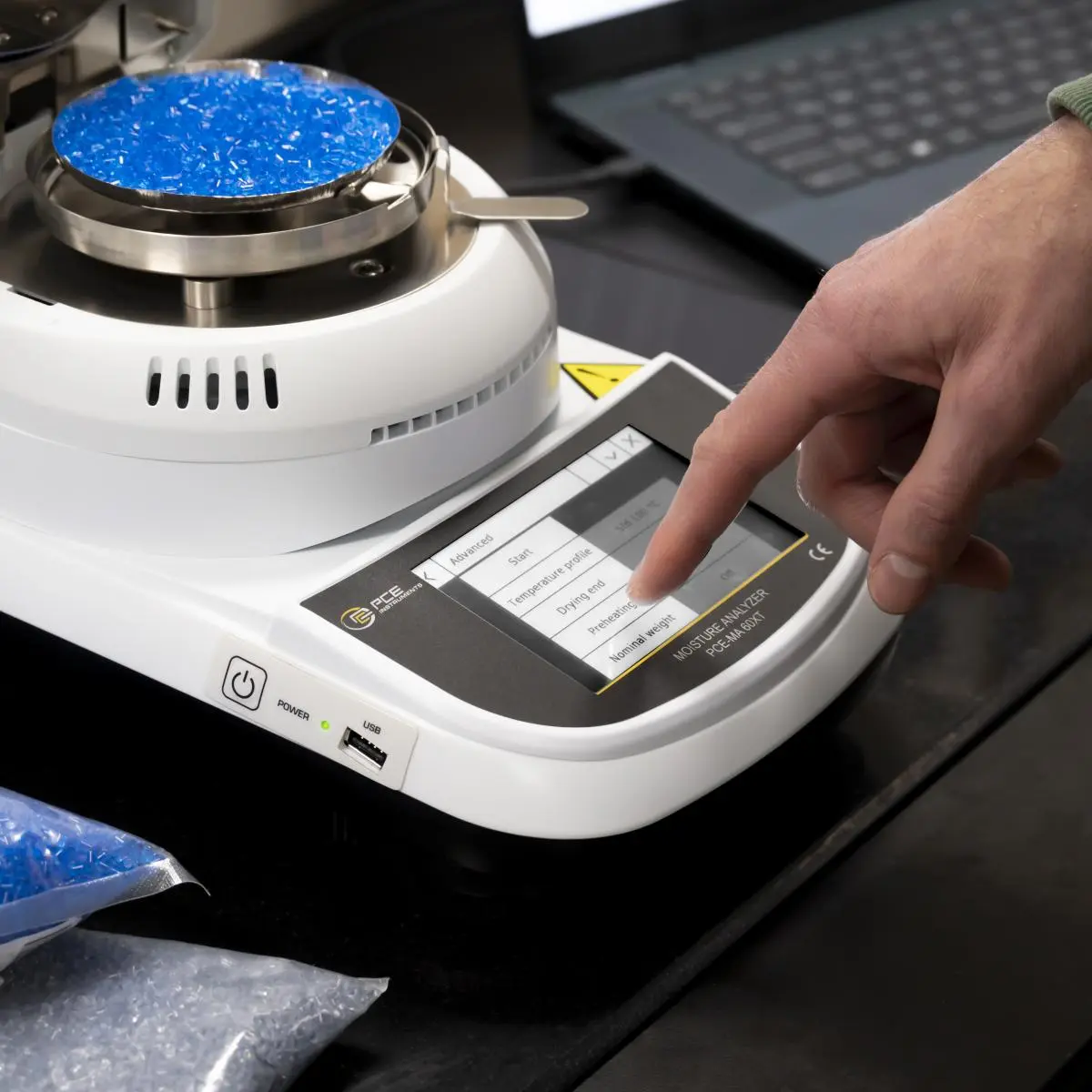

- 5" color touch display
- Memory for up to 300 performed moisture determinations

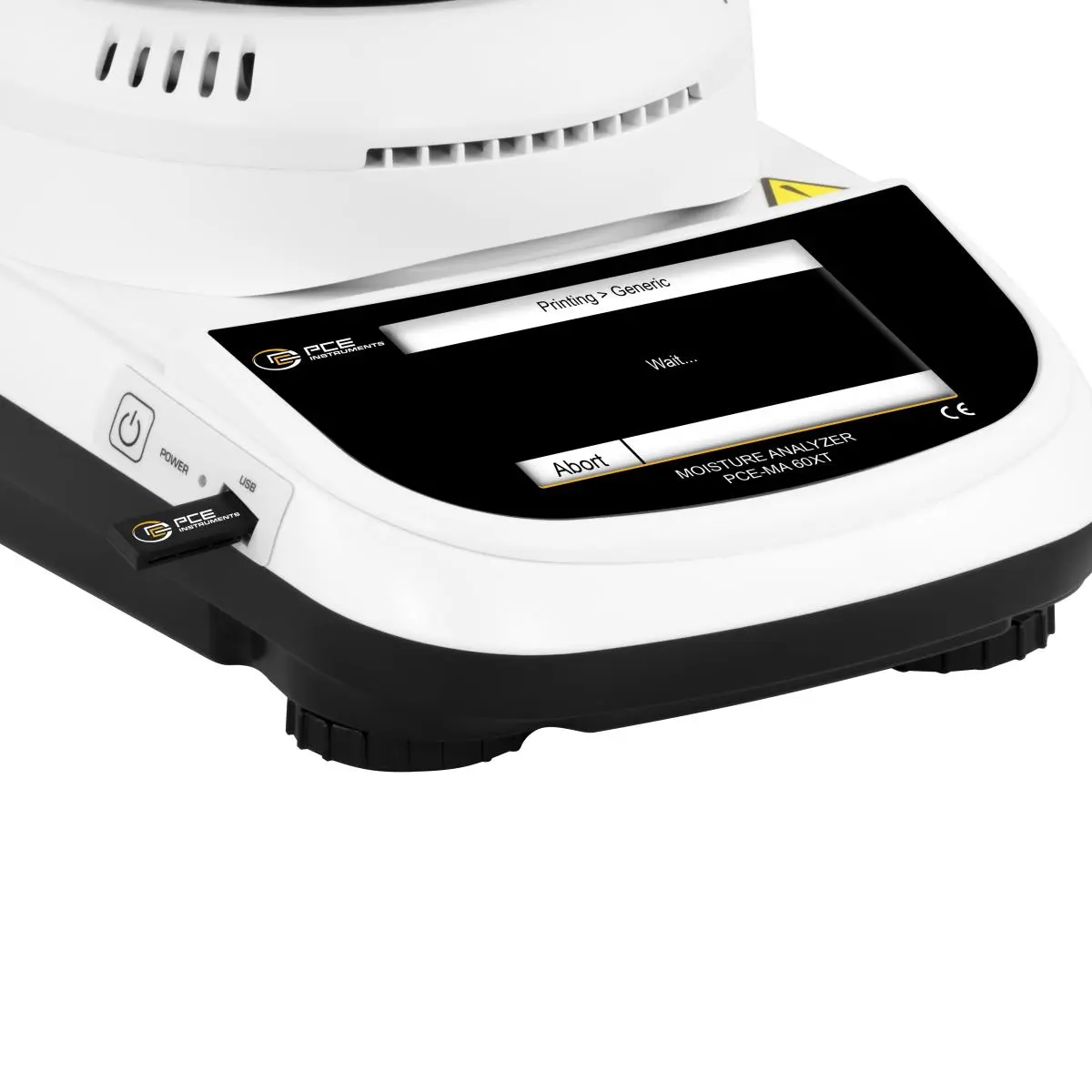

- Data transfer as TXT file to USB stick directly possible
- User database / product database / measurement database

Specification

Absolute moisture
Measuring range  0 ... 100 %
Resolution  0,001 %
Accuracy  0.18% (based on 2 g sample)

Weighing range
Measurement range up to [Max]  60 g
Resolution [d]  0,0001 g
Accuracy  ±0.0003 g

General technical data
Measuring functions  Moisture content %, Dry content %, ATRO %, Weight
Measuring principle  Gravimetric moisture determination
Display type  Colour touch display
Display size  5 Inch
Storage medium  Internal memory, USB pen drive
Storage capacity  300 Measurements
Memory capacity (additional information)  Drying database for over 30 products, user database for 10 users

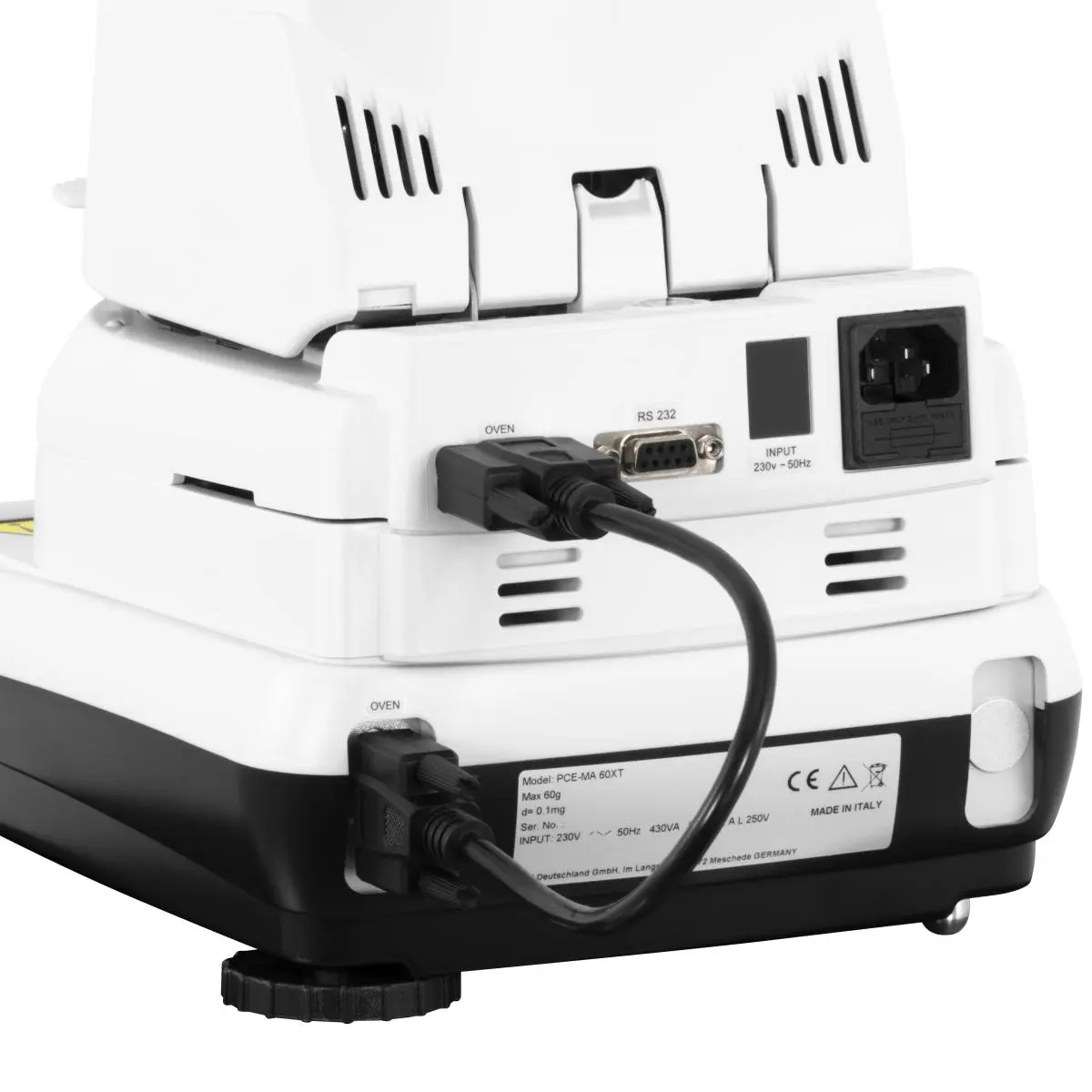

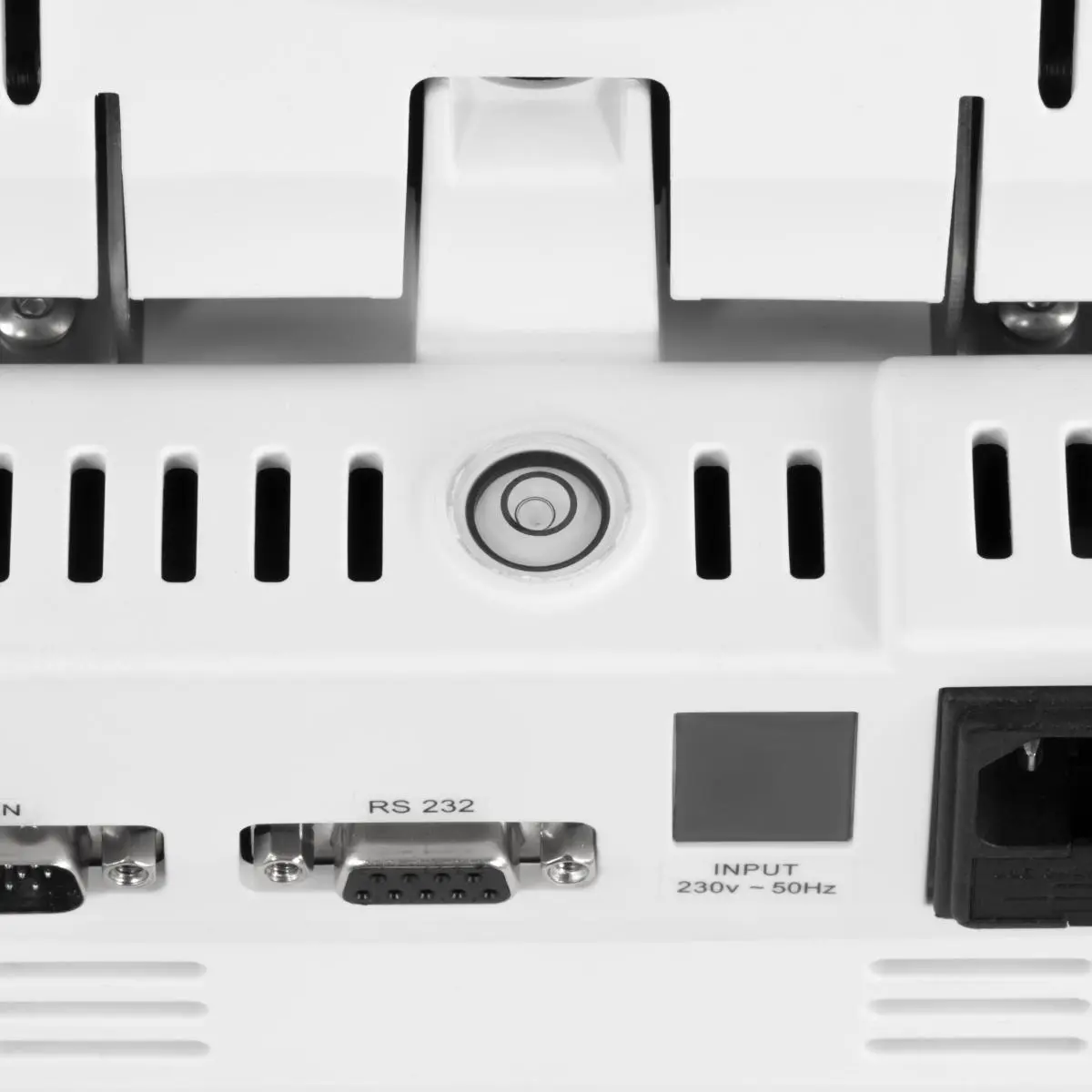

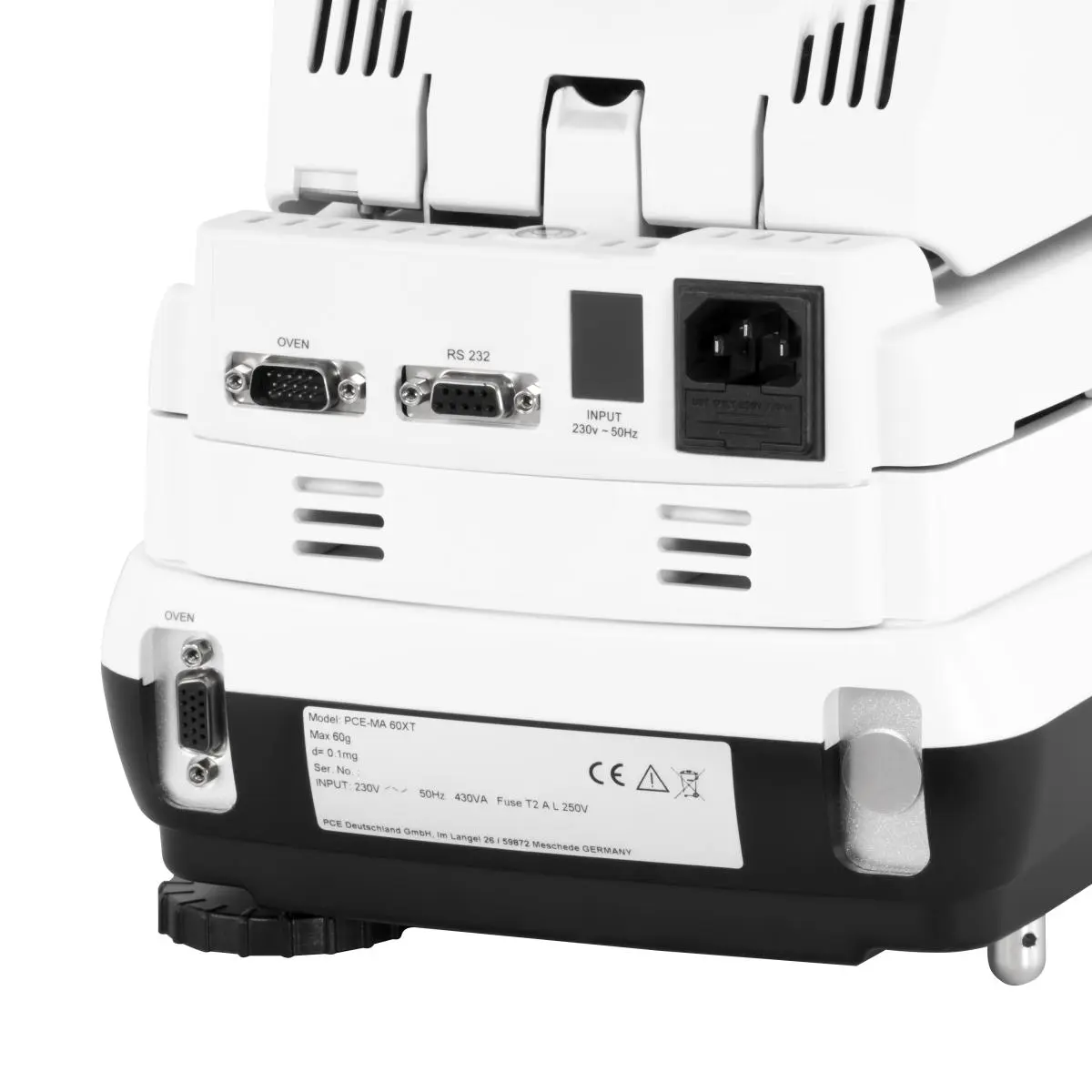

Interface  RS232, USB-A
Heating element  Halogen light
Heating temperature  35 ... 160 °C
Reproducibility  Weight measurement ±0.0003 g / moisture measurement ±0.18 % (based on 2 g sample)
Sample quantity  Min. 2 g / Max. 60 g
Dimensions  Sample area: approx. Ø 100 mm / height max. 25 mm
Menu language  German, English, French, Italian, Spanish
Protection class (device)  IP20
Power supply  220 V / 50 Hz
Connector type  Cold-device plug
Operating conditions  5 ... 35 °C , 0 ... 75 % RH
Storage conditions  0 ... 40 °C , 0 ... 75 % RH
Dimensions ( L x W x H )  345 x 215 x 235 mm
Weight  6100 g

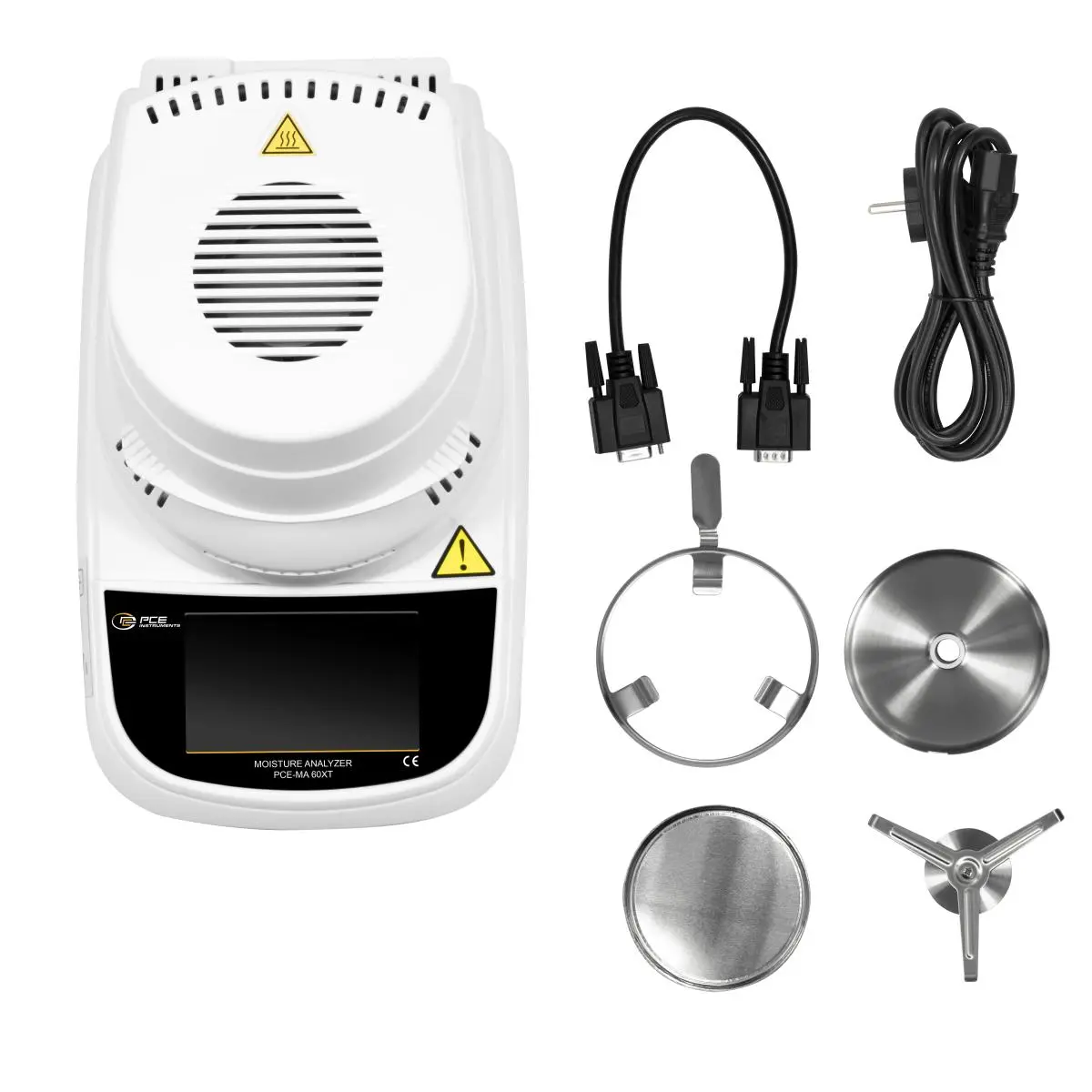

Delivery Scope

1 x moisture analyzer PCE-MA 60XT
10 x aluminum sample trays
1 x cold device plug
