Precision Balances / Precision Scales PCE-DMS 1100

Precision Balance PCE-DMS 1100

Order no.: PCE-DMS 1100
GTIN (EAN): 4250348721228
₹55,065.00
₹64,976.70
price ex. (VAT / delivery)
:
4250348721228
PCE-DMS 1100
Delivery time:1-2 working days

Description

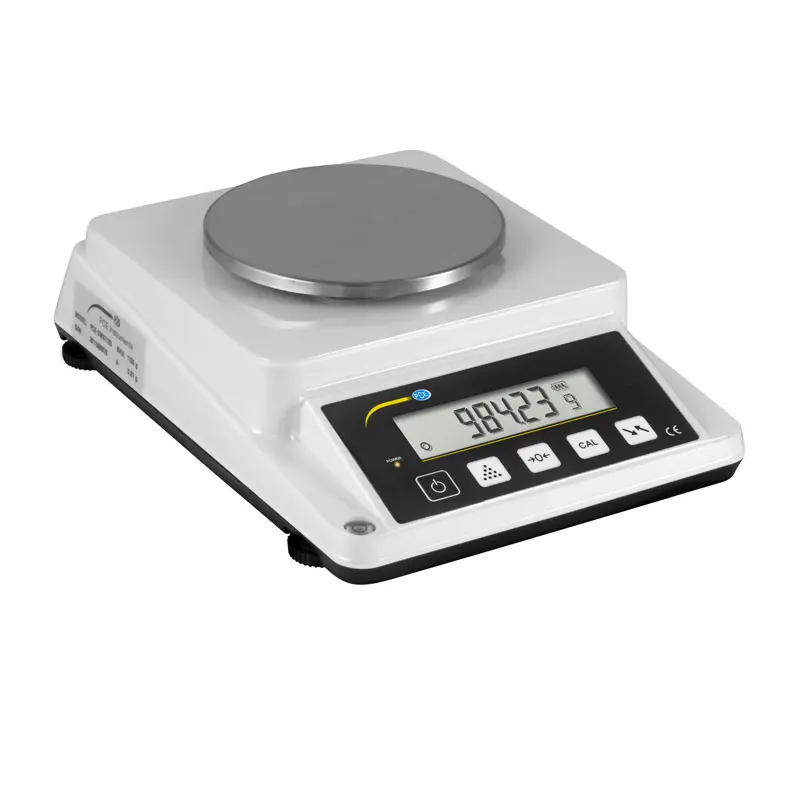

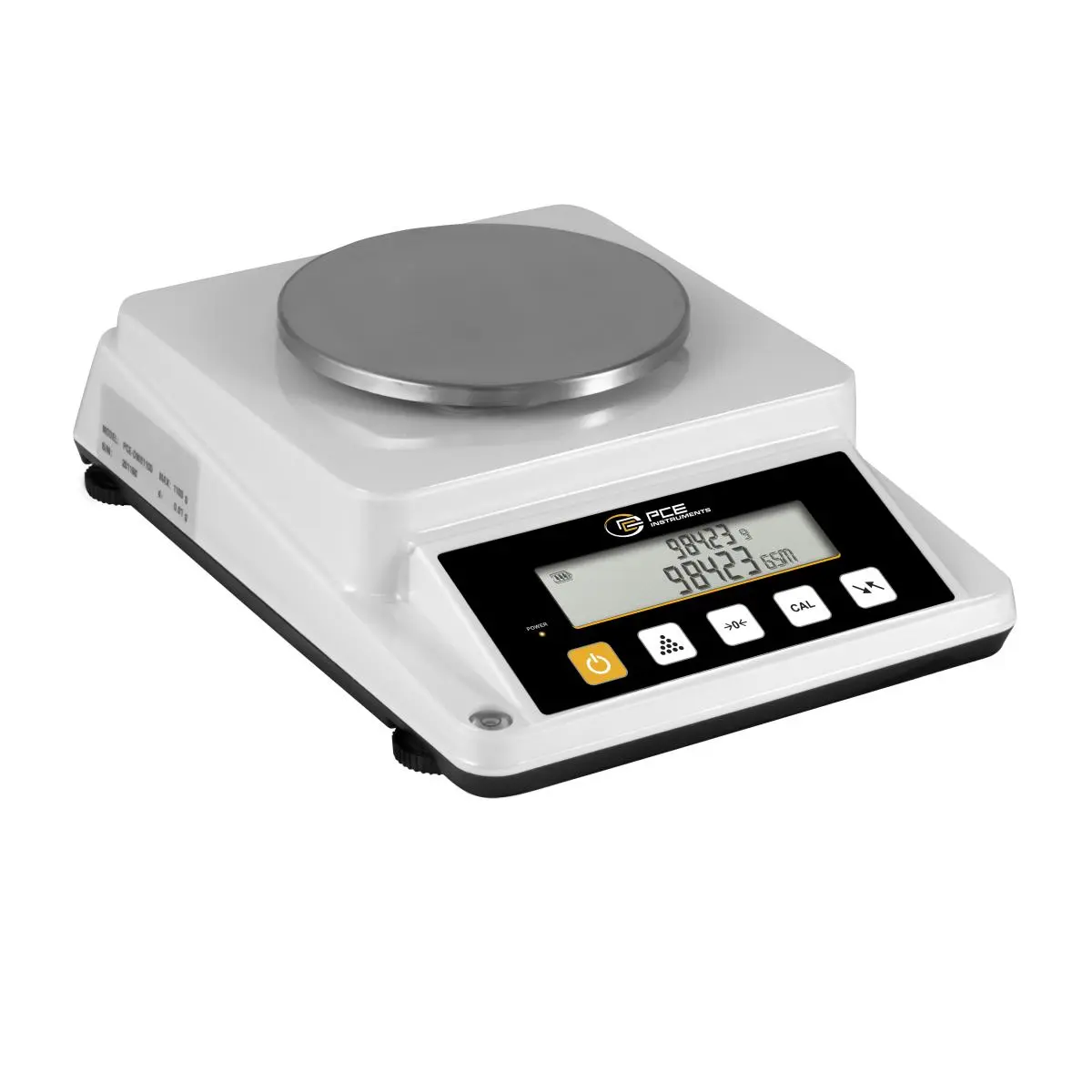

Precision Balance PCE-DMS 1100
Paper scale with direct display in g / m² Paper scale with RS-232 interface / Backlight / Piece counting function Measurement of basis weight / Fabric balance / Also suitable for mobile use

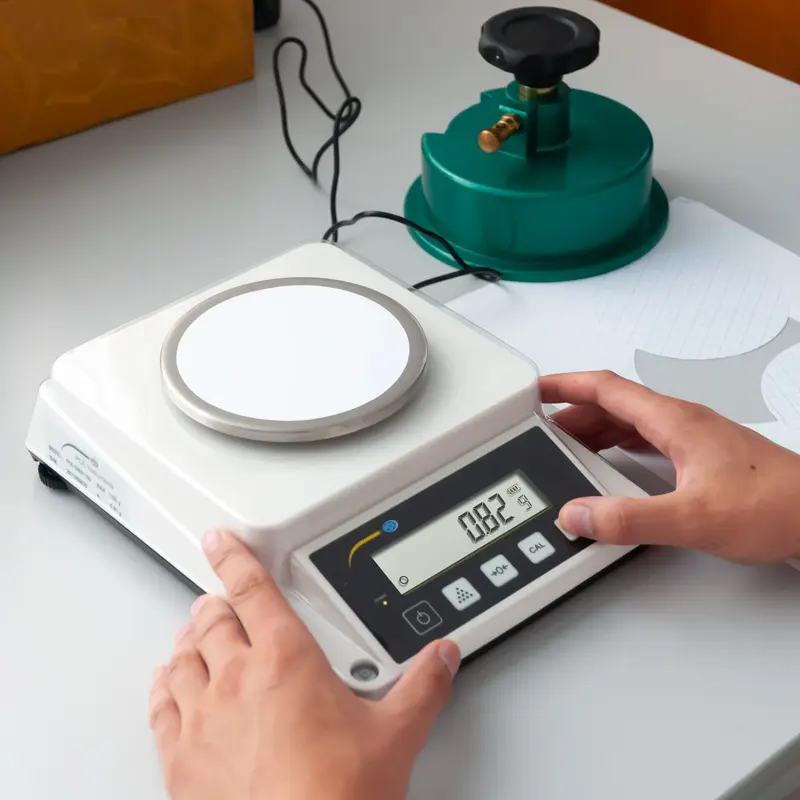

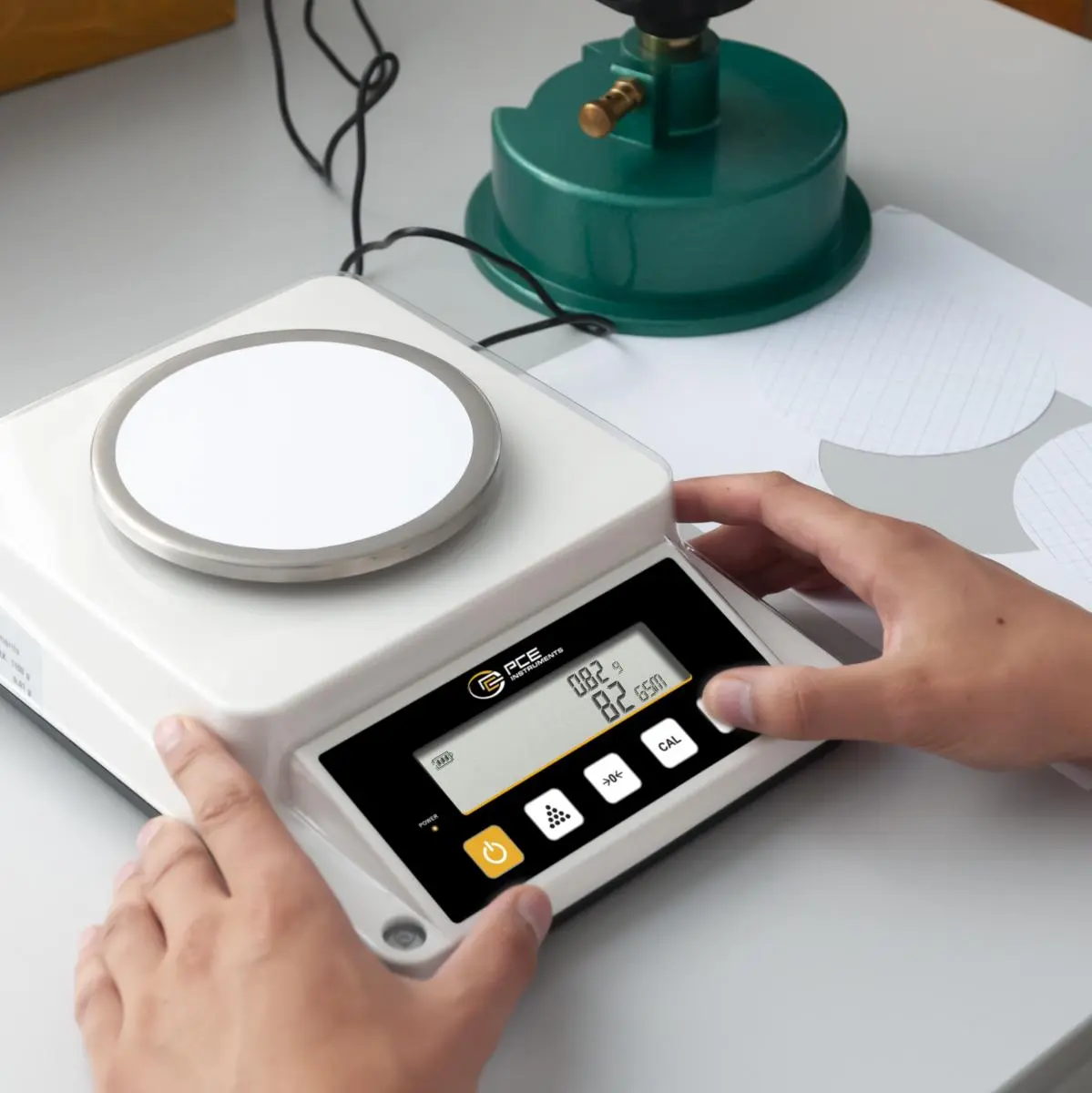

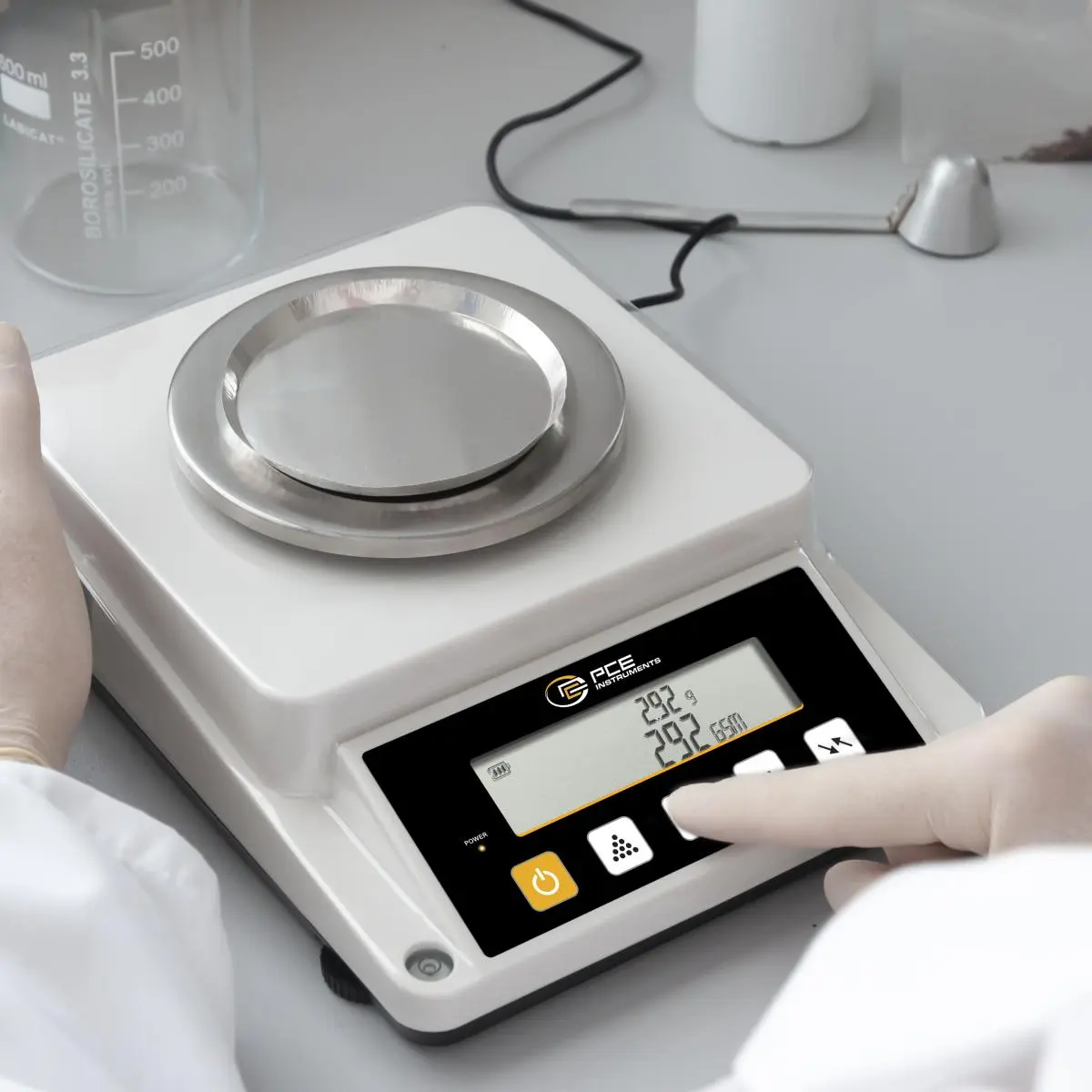

The precision balance was specially designed for measuring the basis weight. Thanks to this precision balance, basis weight measurements can be carried out and evaluated within a very short time. With this precision balance, you can also determine, for example, the grammage of paper, cardboard or various textiles exactly. Weighing up to 1100 g at a resolution of 0.01 g can be carried out depending on the precision balance.

In addition to the basis weight measurement, the precision balance can also transfer the measured data to a PC. This is possible with the help of the installed RS-232 interface. The included power supply allows stationary use of the precision balance. Alternatively, the precision balance can also be used for mobile use. For this 3 x 1.5V AA batteries can be used. The optionally available paper sample level sampler ensures that the same samples are always used for basis weight determination.

Highlights

- High precision

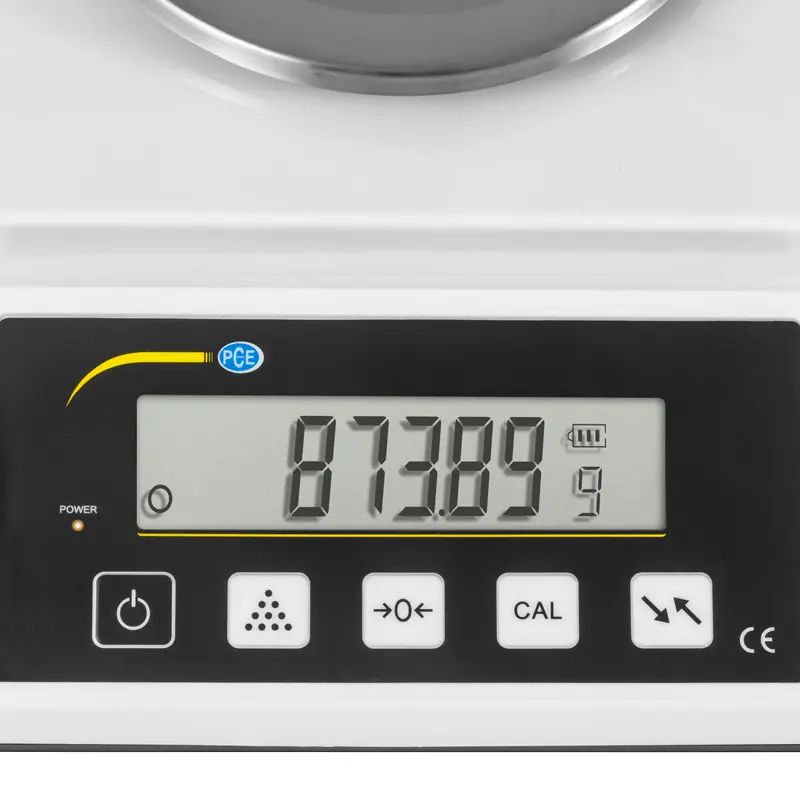

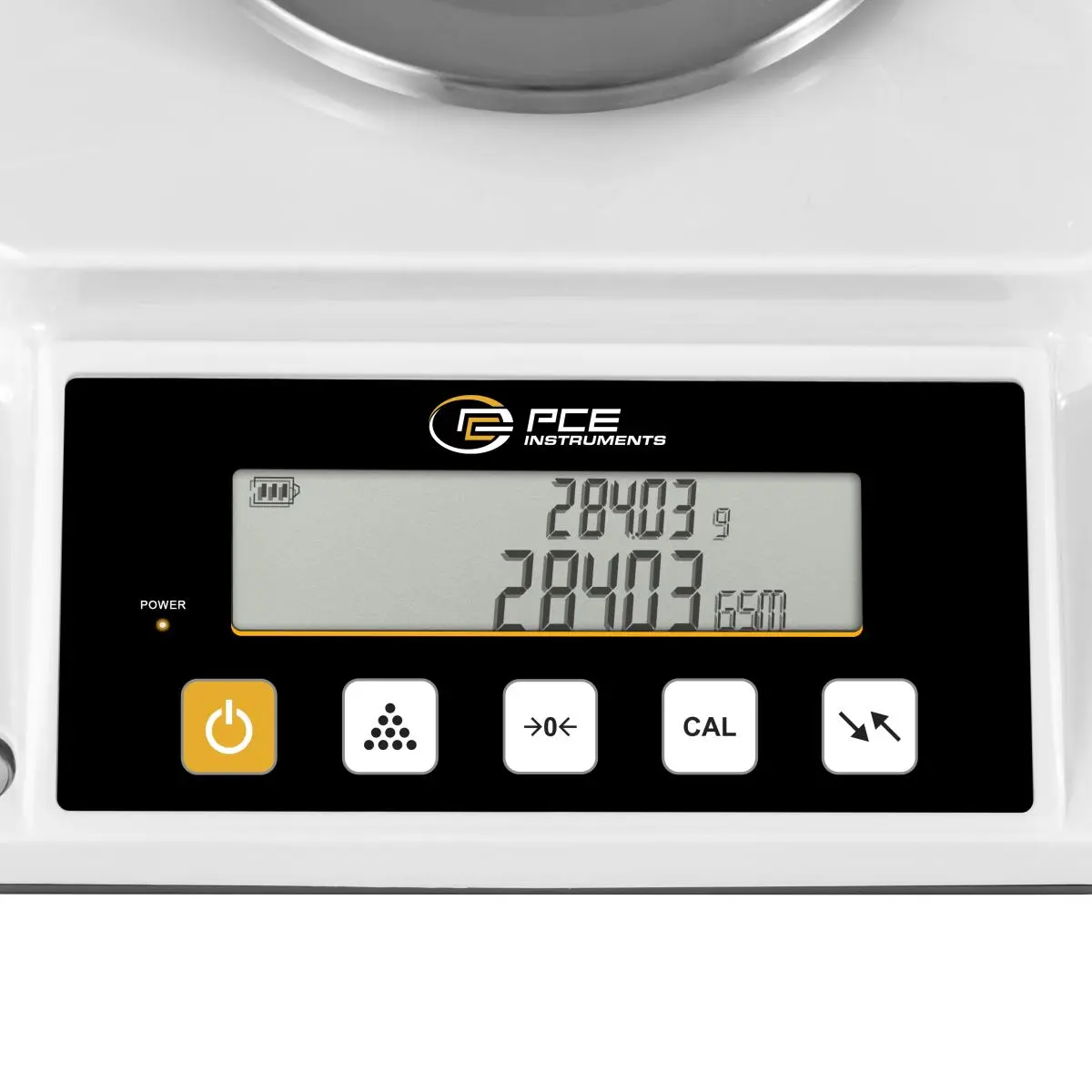

- Display with backlight
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use

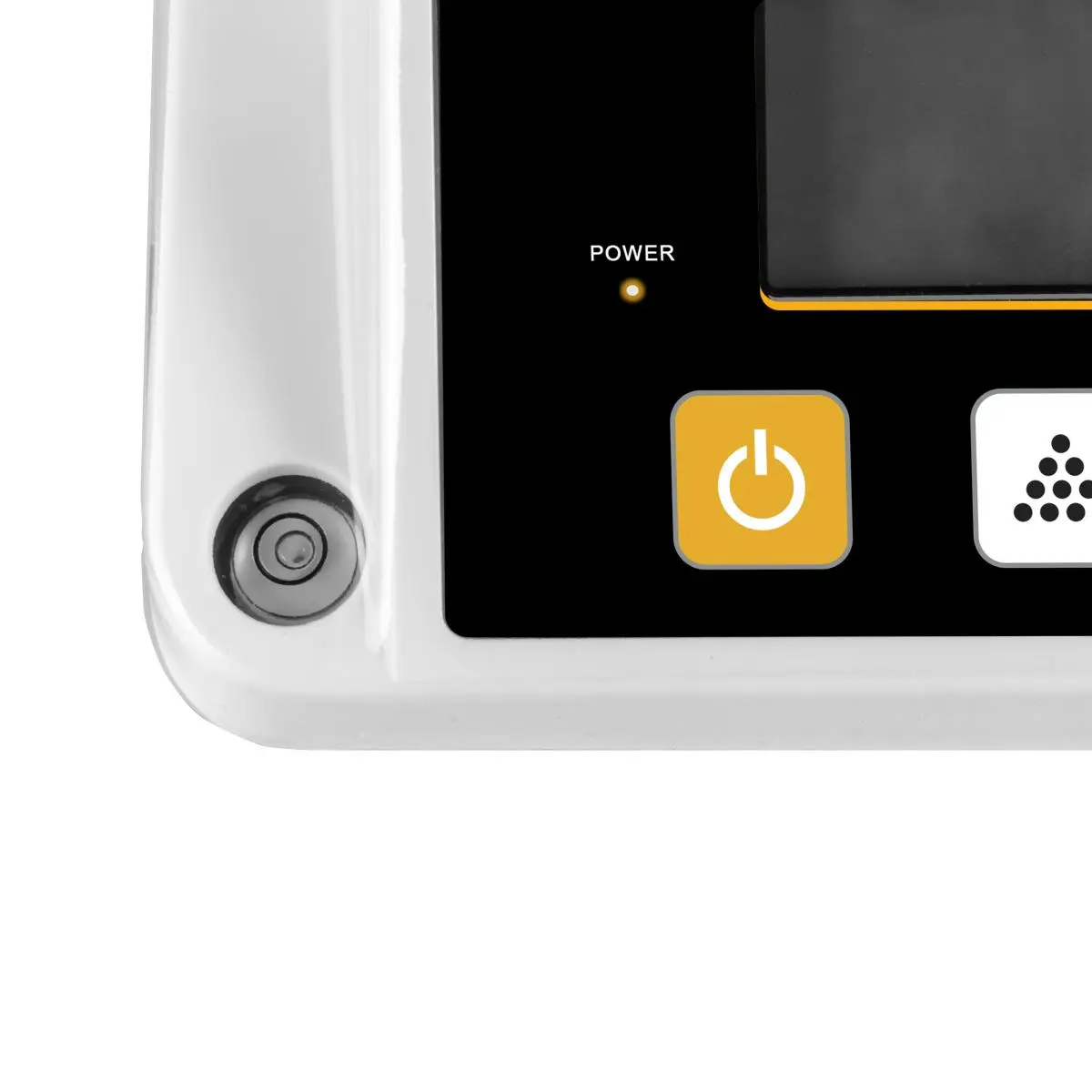

- Alignment of the balance with dragonfly

Specification

Weighing range
Measurement range up to [Max]  1100 g
Resolution [d]  0,01 g
Accuracy  0.03 g

Weighing range
Measurement range up to [Max]  110000 g/m²
Resolution [d]  1 g/m²

General technical data
Repeat accuracy  ±0.02 g
Measuring functions (additional information)  Piece counting function, basis weight weighing
Interface  RS232
Linearity  ±0.03 g
Stabilisation time  3 s
Protection class (device)  IP20
Connector type  Device-europlug
(Rechargeable) battery  3 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  17 ... 22 °C , 0 ... 85 % RH
Storage conditions  17 ... 22 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  270 x 200 x 80 mm
Weight  1760 g

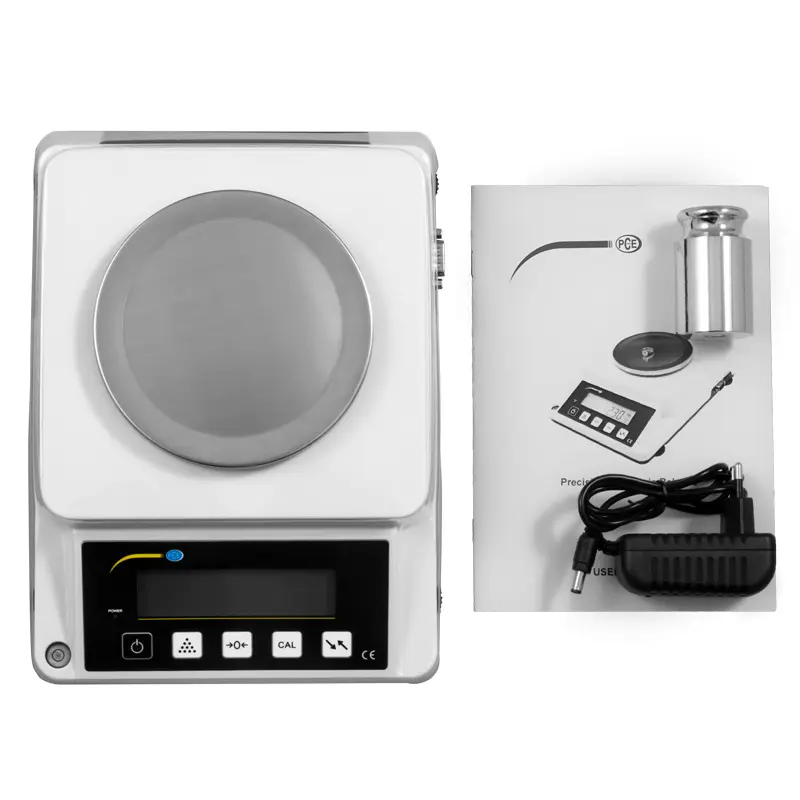

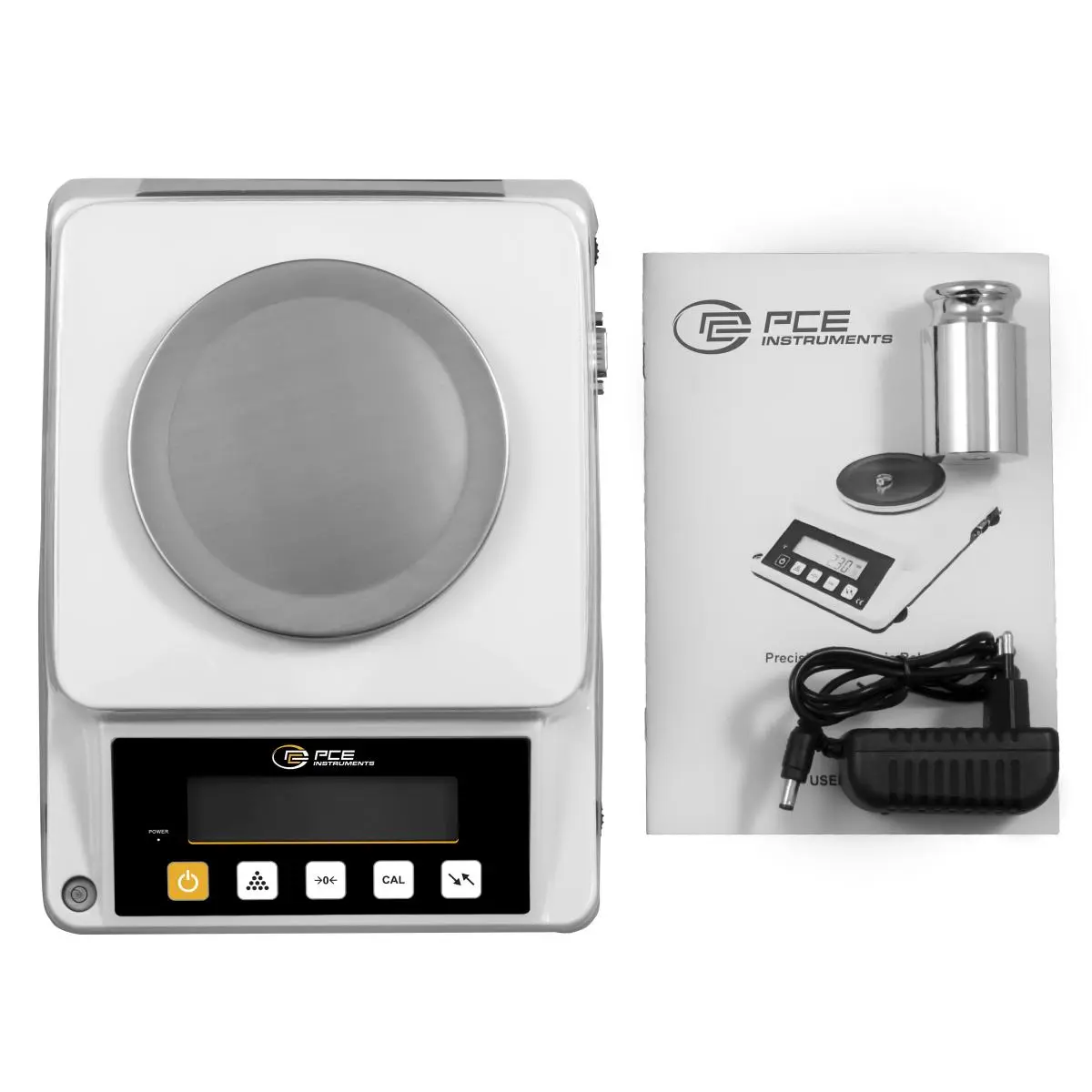

Delivery Scope

1 x Precision Balances / Precision Scaless PCE-DMS 1100
1 x Test weight
1 x Power supply
1 x User manual
