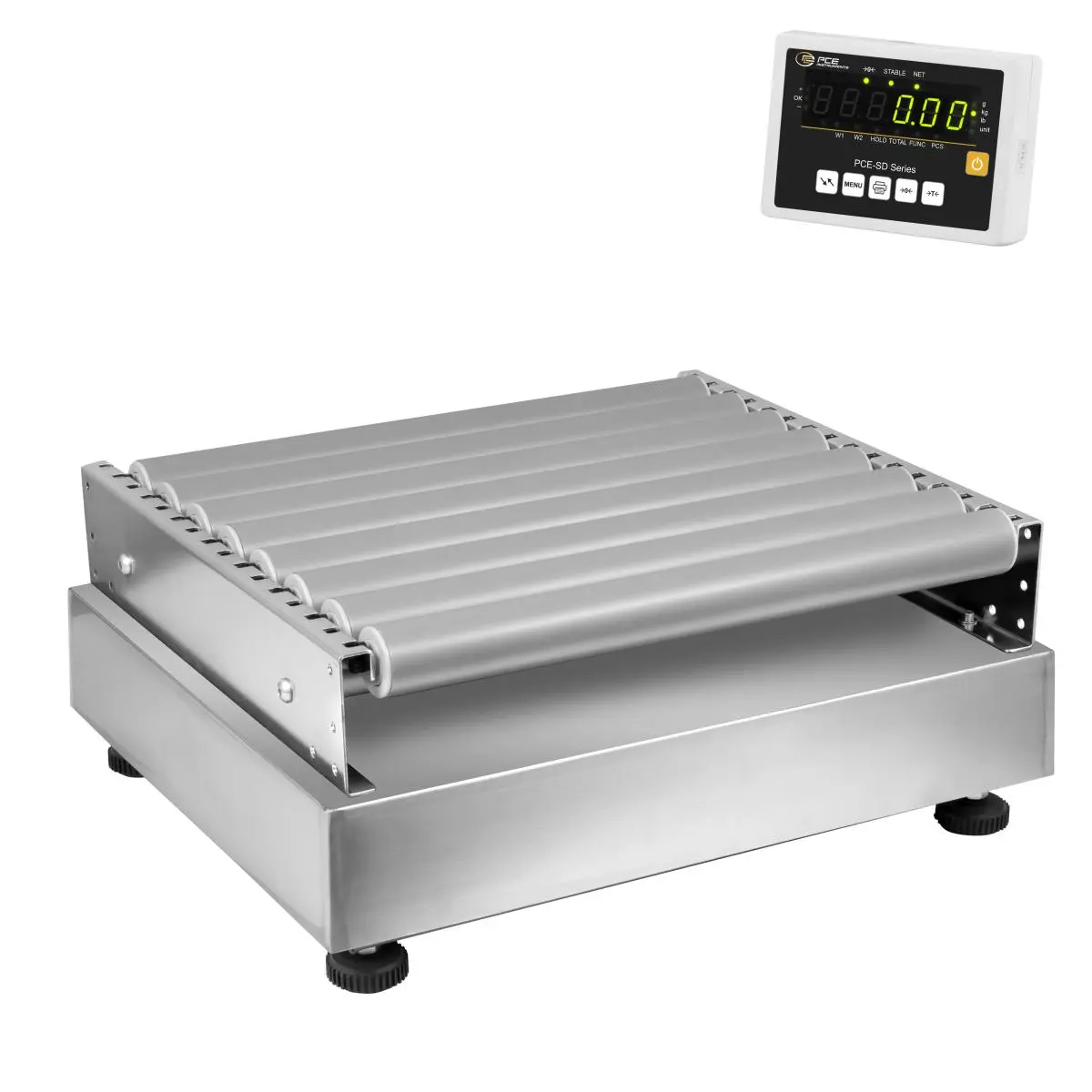

Platform Scales PCE-SD 150CR

Platform Scales PCE-SD 150CR [zoom]

Platform Scale PCE-SD 150CR

Order no.: PCE-SD 150CR
GTIN (EAN): 4250348712585
₹224,895.00
₹265,376.10
price ex. (VAT / delivery)
:
4250348712585
PCE-SD 150CR
Delivery time:1-2 working days
0.05 kg
verifiable

Accessory

Description

Platform Scale up to max. 30kg - 150 kg / bi-directional RS-232 interface /
width of guide rail approx. 580 mm /
optionally purchasable: RS-485, analogue outputs 4 ... 20 mA, 0 ... 10 V,  USB interface
The platform scale PCE-SD ... CR series is designed for applications in many processes and delivery businesses, since the platform scale supports many interfaces. Furthermore the platform scale features a standard RS-232 interface. In addition the platform scale PCE-SD CR series can be equipped with further interfaces which enable control of the platform scale. For example, the platform scale can be extended with an analogue output 4-10 mA or 0-10 V, or even potential-free contacts. The platform scale is calibrated and thus can be used for tasks in areas of custody transfer. The platform scale can be also integrated into larger rollers, and hence can be used as an extension module.

Highlights

- Calibratable incl. initial calibration
- Display cable for platform 1.5 m
- Guide rail scale for max. 30 kg-150 kg
- Diameters of guide rail: 500 x 580 mm
- Smoothly running synthetic rails
- Bi-directional RS-232 interface
- Item counting function
- Tolerance range function: min / OK / max

Specification

Weighing range
Measurement range up to [Max]  150 kg
Resolution [d]  50 g
Accuracy  50 g
Verification value [e]  50 g

General technical data
Cable length  1,5 m
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function
Units  kg, g, oz, ct, ozt, gr, dwt
Display type  LCD
Digit size [WxH]  18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  1000 g
Tare range  over the full weighing range
Weighing plate material  Stainless steel
Substructure material  Galvanised steel
Upper housing material  Plastic
Dimensions  Roller conveyor dimensions 500 x 580 x 110 mm
Display 190 x 140 x 65 mm
Verification class [e]  M III
Settling time  < 3 s
Menu language  English, English (GB)
Protection class (device)  IP54
Power supply  230V AC | 50 Hz 8V A / 12V DC 850 mA
Connector type  Device-europlug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Dimensions ( L x W x H )  620 x 520 x 150 mm
Weight  33000 g

Delivery Scope

Delivery content of the Platform Scales PCE-SD 150CR
1 x Platform Scales PCE-SD 150CR (incl. calibration), 1 x adapter, 1 x instruction
manual

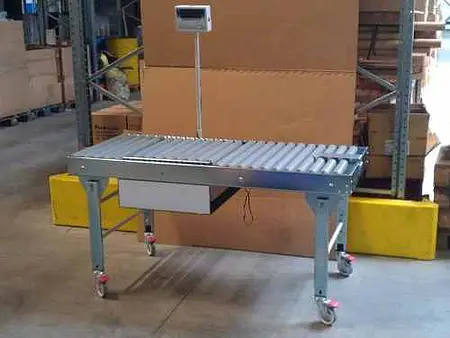

N.B. the roller table (in which the scale is mounted) that appears in some of
the images is NOT included
