Platform Scales PCE-SD 1500F SST

[zoom]

Platform Scale PCE-SD 1500F SST

Order no.: PCE-SD 1500F SST

GTIN (EAN): 4250348712387

₹1,032,735.00

Price (exclude VAT)

₹1,218,627.30

Price (include VAT)

price ex. (VAT / delivery)

GTIN (EAN):

4250348712387

Order no.

PCE-SD 1500F SST

Delivery time:1-2 working days

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (₹+2,043.88)

+AF-DW-PCE: Additional function dual range weighing (₹+4,354.36)

+AF-TD-PCE: Additional function time and date (₹+2,399.34)

Ablesbarkeit

0.5 kg

Verifizierung

verifiable

Question / Callback

Accessory

USB cable PCE-USB

₹2,280.00

USB interface AF-USB-S

₹13,755.00

RS485 interface AF-RS485-PCE

₹10,695.00

Additional RS-232 interface

₹5,340.00

Adaptor RS232 to USB

₹5,034.00

Additional date and time function

₹5,034.00

LAN interface

₹22,935.00

Analog output / analog interface 0-10V

₹20,640.00

Analog output / analog interface 4-20mA

₹20,640.00

USB Memory Adapter

₹22,935.00

Scale Software PCE-SOFT-SC-Pro

₹31,503.00

Scale Software PCE-SOFT-SC-Basic

₹27,525.00

Scale Software PCE-SOFT-SC-3XPro

₹59,196.00

Signal lights for Balances

₹76,485.00

Limit weighing including control interface

₹9,165.00

RS232 Cable

₹4,269.00

Two additional function ranges for PCE-SD Series

₹9,165.00

Stand for PCE-SD Series

₹34,410.00

Description

Calibrated stainless steel built-in platform scale up to 1.5t / Resolution 0.5 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

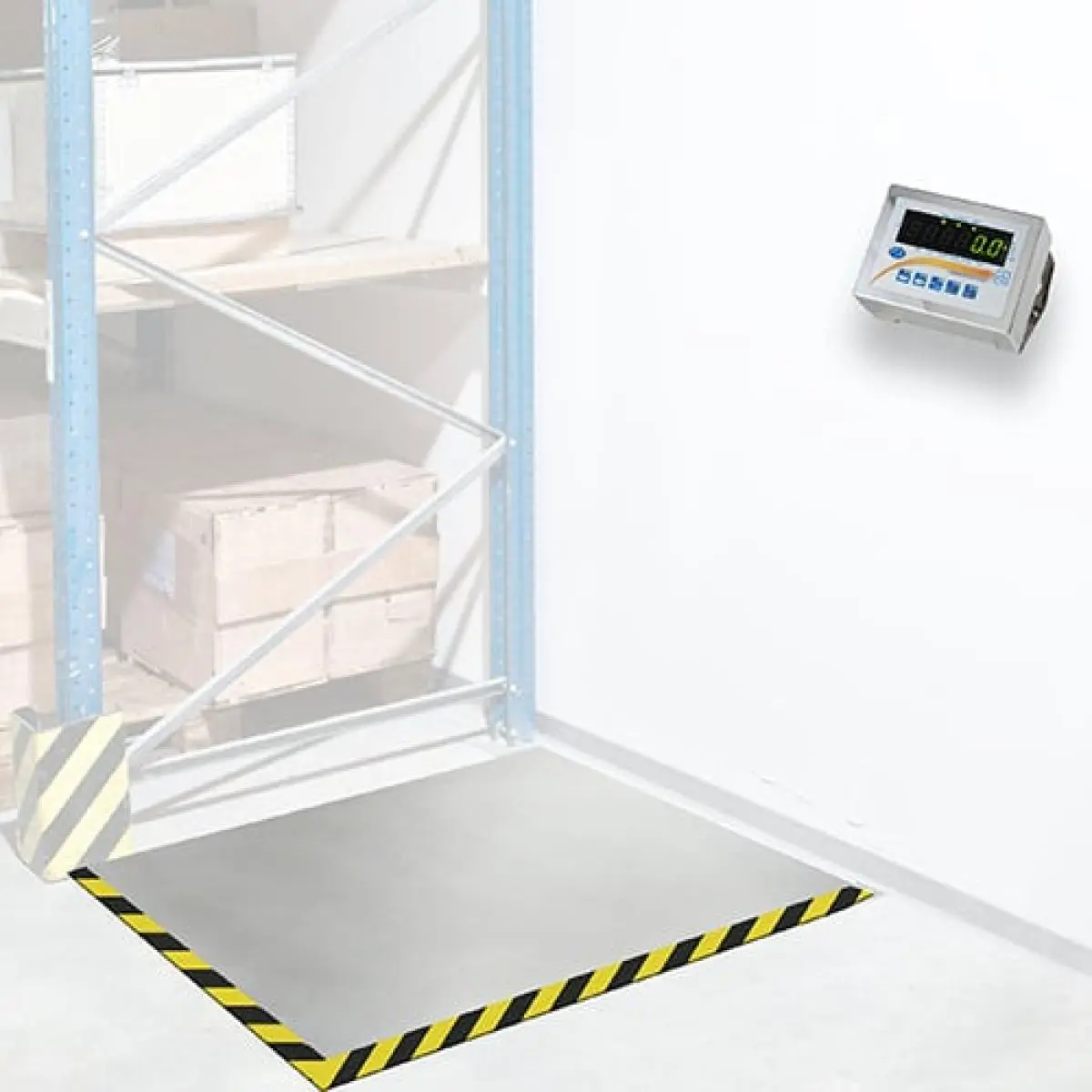

The stainless steel parcel scale is installed in the counting to obtain a flat surface. As a result, the stainless steel parcel scale can be easily loaded with all kinds of conveyors. The stainless steel parcel scale has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the stainless steel parcel scale with a damper which makes it easier to lift the weighing surface. The cells of the stainless steel parcel scale are IP68 protected and the display IP65. Due to the high protection class, the stainless steel pallet scale has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the stainless steel parcel scale to monitor or control production processes.

Highlights

- Piece counting function

- Percent% comparison weighing

- Filter (reaction time) adjustable

- Animal weighing function

- A tare value storable

- Tolerance determination Weight min / ok / max

- Sum up several weighings

- Statistics function

- Adjustable automatic shutdown

- Gross / net button on the display

- Menu freely adjustable

- Maintenance-free components

- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]	1500 kg
Resolution [d]	0,5 kg
Accuracy	0.5 kg
Verification value [e]	0,5 kg

General technical data
Cable length	4 m
Measuring functions	MIN, MAX
Measuring functions (additional information)	Piece counting function, percentage comparative weighing, animal weighing function, recipe mixture weighing, totalising several weighings
Units	kg, lb, T, oz, ct, ozt, gr, dwt
Display type	LED
Digit size [WxH]	Height: 18 mm
Interface	RS232
Automatic power-off	5 min
Minimum load [min]	10 kg
Tare range	Multiple tare over the full weighing range
Weighing plate material	Plain stainless steel sheet
Dimensions	Display 190 x 140 x 65 mm
Verification class [e]	M III
Settling time	< 3 s
Menu language	English, English (GB)
Protection class (device)	IP65, IP68
Power supply	230V AC \| 50 Hz, 8V A
Connector type	Schuko plug
(Rechargeable) battery	1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity	220 mAh
Dimensions ( L x W x H )	1500 x 1500 x 118 mm
Weight	210000 g
