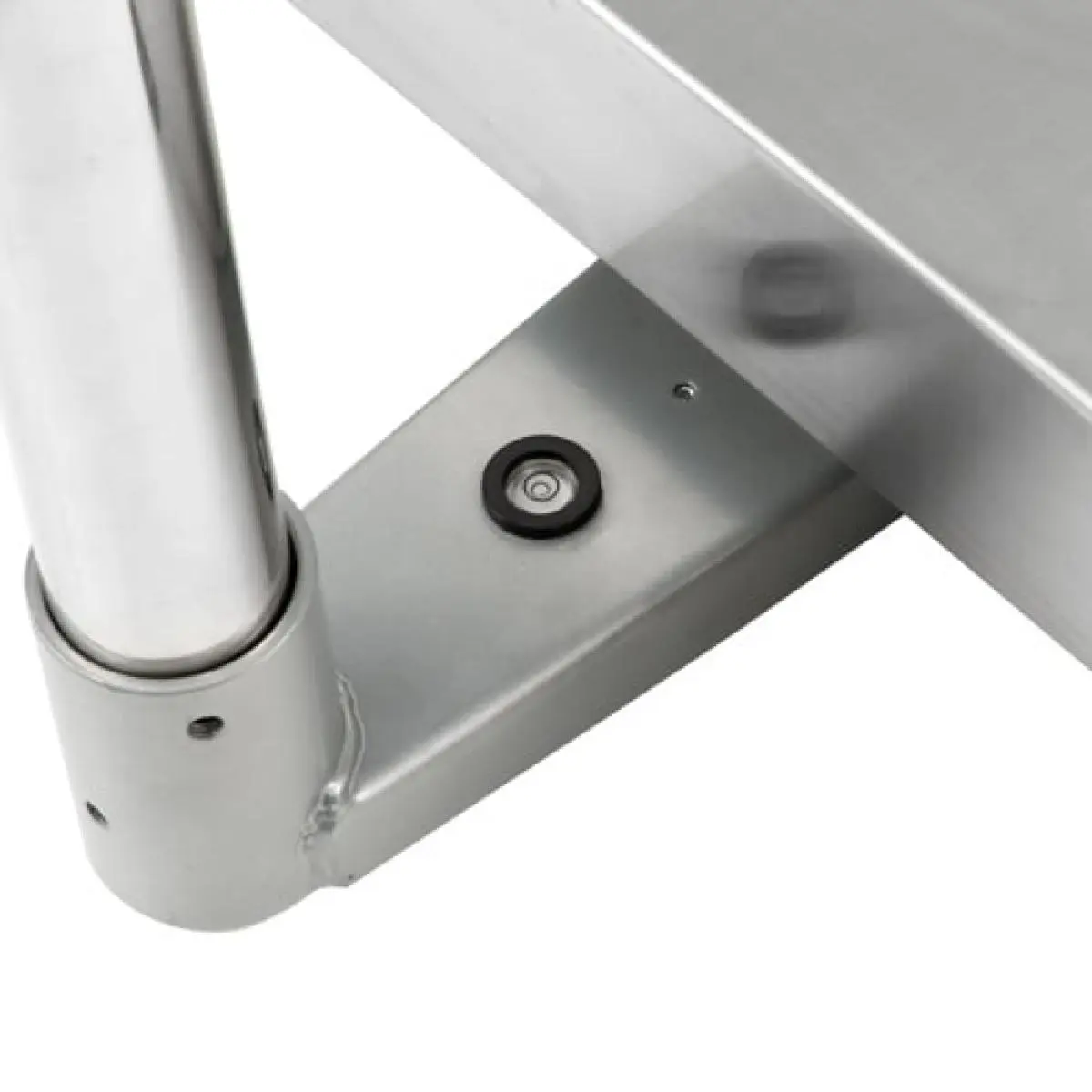

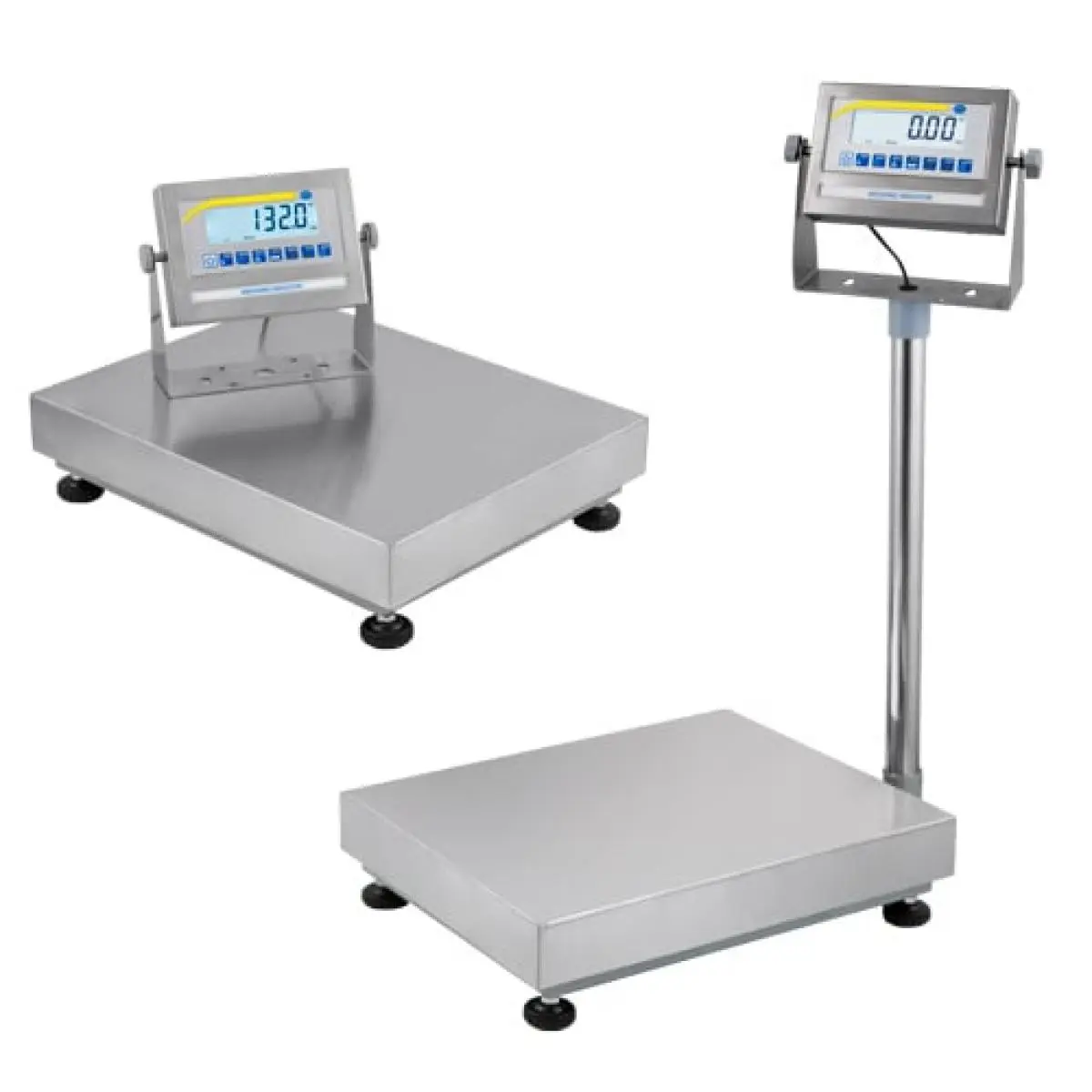

The robust platform scale is a real all-rounder. The stand of the platform scale can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of the platform scale is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the platform scales. P2 - weighing surface: 500 x 600 mm
In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, the platform scale has two special functions, i.e.the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of the platform scale can be queried from the PC. A similar platform scale, but in calibrated form, we can provide with the PCE-SD series.
| Weighing range | |
| Measurement range up to [Max] | 60 kg |
| Resolution [d] | 10 g |
| Accuracy | ±3 d (three times the resolution) |
| Weighing range | |
| Measurement range up to [Max] | 150 kg |
| Resolution [d] | 20 g |
| Accuracy | ±3 d (three times the resolution) |
| General technical data | |
| Outputs | 4 ... 20 mA, LO, OK, HI |
| Cable length | 1,6 m |
| Measuring functions | MIN, MAX, HOLD, peak |
| Measuring functions (additional information) | Totalising function, piece counting function, animal weighing function, container weighing function, filter function |
| Units | kg, lb |
| Units additional information | Freely adjustable weighing unit, e.g. kg/m |
| Display type | LCD |
| Digit size [WxH] | Height: 25 mm |
| Interface | bidirectional RS232 |
| Scale type | Dual-range scales |
| Tare range | Multiple tare over the full weighing range |
| Protection class (device) | IP54 |
| Power supply | Rechargeable battery: 6 V / 4.5 Ah Mains adaptor: 9 V / 1.2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 6 V internal , Lead gel battery |
| Capacity | 4500 mAh |
| Operating conditions | 0 ... 40 °C , 10 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 10 ... 80 % RH |
| Dimensions ( L x W x H ) | 600 x 500 x 600 mm |
| Weight | 25500 g |
