Moisture Balances PCE-MA 200

Moisture Analyzing Balance PCE-MA 200

Order no.: PCE-MA 200
GTIN (EAN): 4250348715197
₹183,010.00
₹215,951.80
price ex. (VAT / delivery)
:
4250348715197
PCE-MA 200
Delivery time:1-2 working days

Description

PCE-MA 200 Moisture Analyzing Balance
Oven-drying moisture analyzer for weighing and halogen-heating samples to determine moisture content /
 Accuracy to 0.01 %

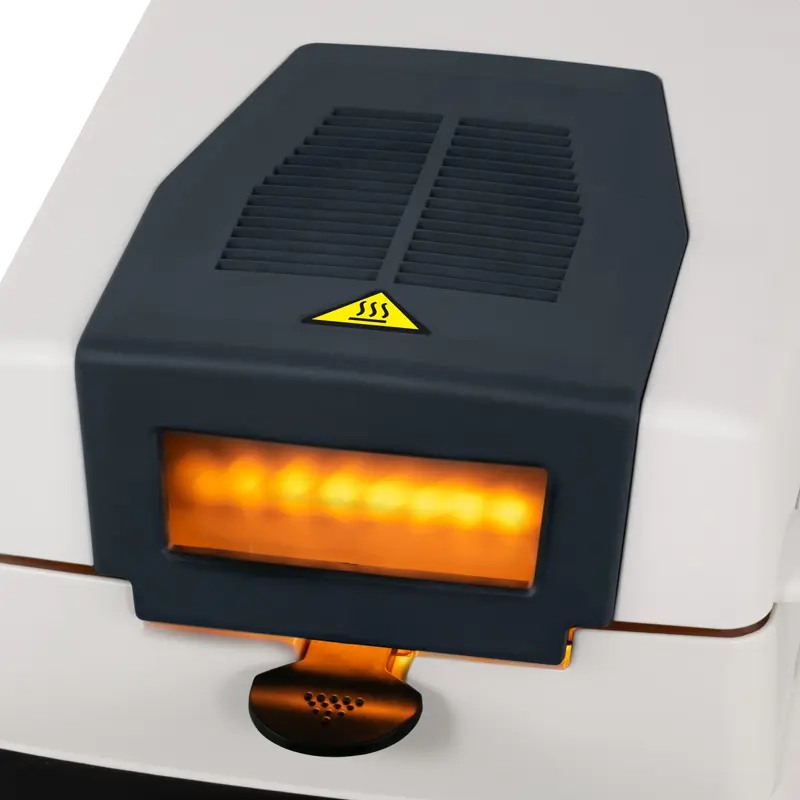

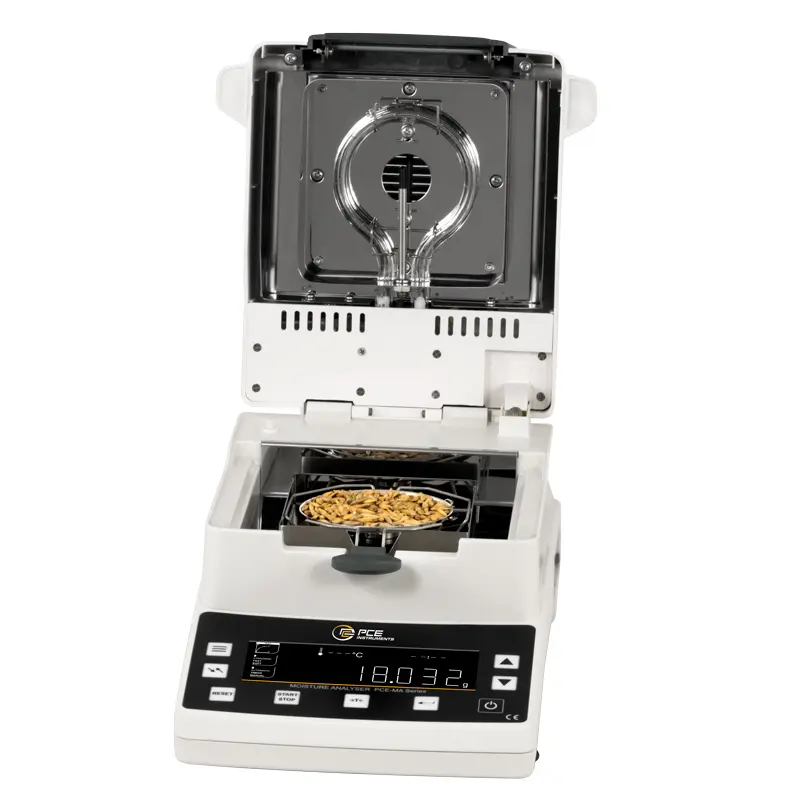

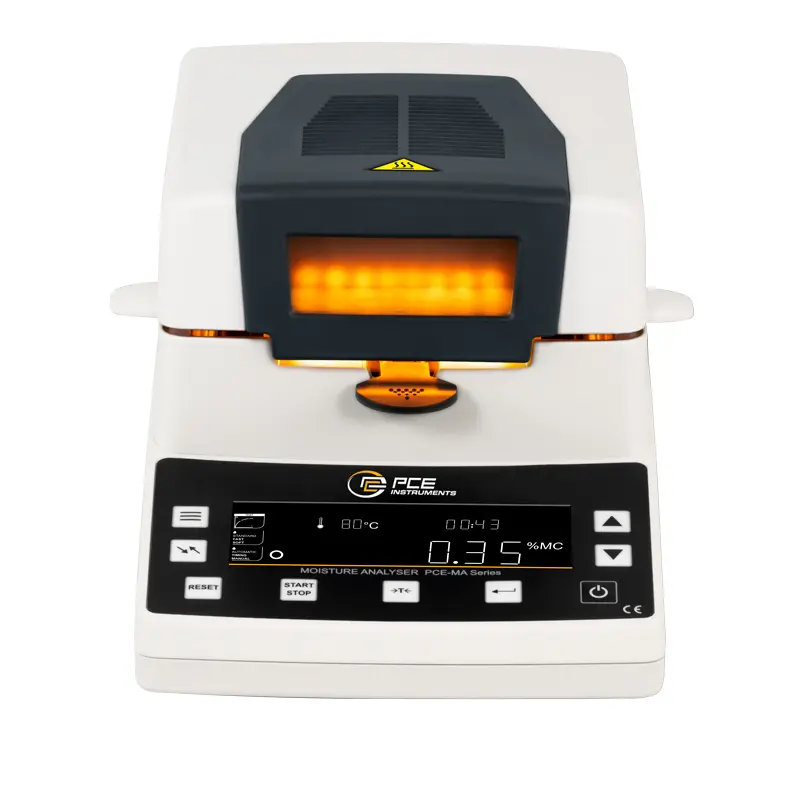

PCE-MA 200 is an oven-drying moisture analyzer or moisture balance for weighing and heating material samples to determine moisture content. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the moisture analyzer or moisture balance dries the sample to be weighed, and then calculates the moisture content from the weight difference. The moisture analyzer can determine the smallest weight differences thanks to a readout, readability or resolution of 1 mg / 0.001 g / 0.01 %. The results are displayed on the large, easy-to-read LCD screen.

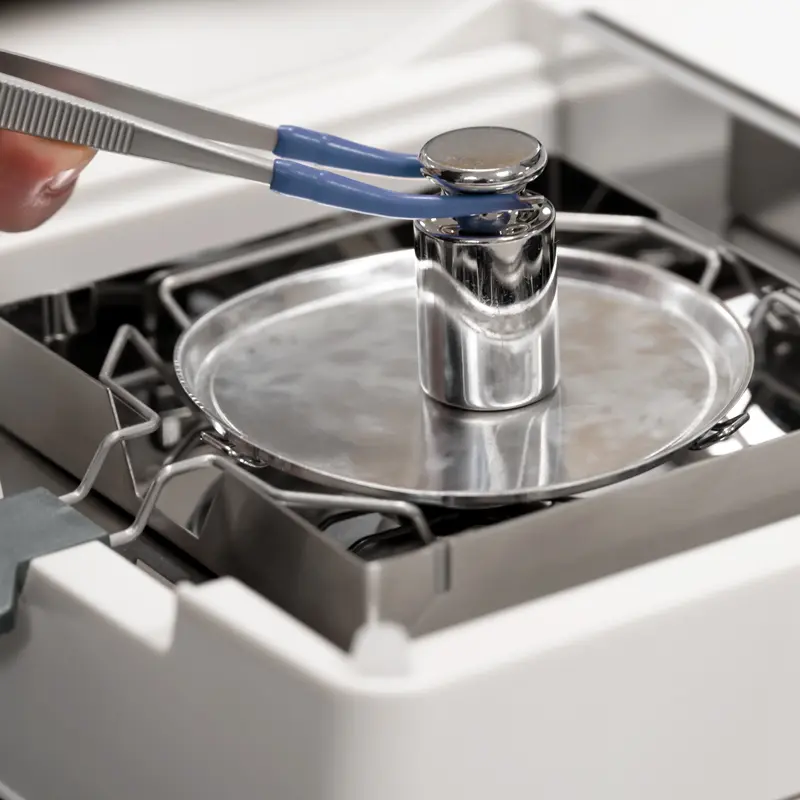

Up to 15 different drying programs can be stored in the memory of the moisture analyzer. Accordingly, the moisture analyzer is suitable for determining the moisture content of everything from food, biomass, pellets, pastes, animal feed, nuts, seeds, beans, lentils and legumes to soil, sand, ceramic clay, resin and brick materials. With the included 100 g weight, the moisture analyzer can be calibrated quickly and easily at any time.


Highlights

- Weighing range: 200 g
- Readability: 1 mg / 0.001 g
- Heating chamber for moisture determination

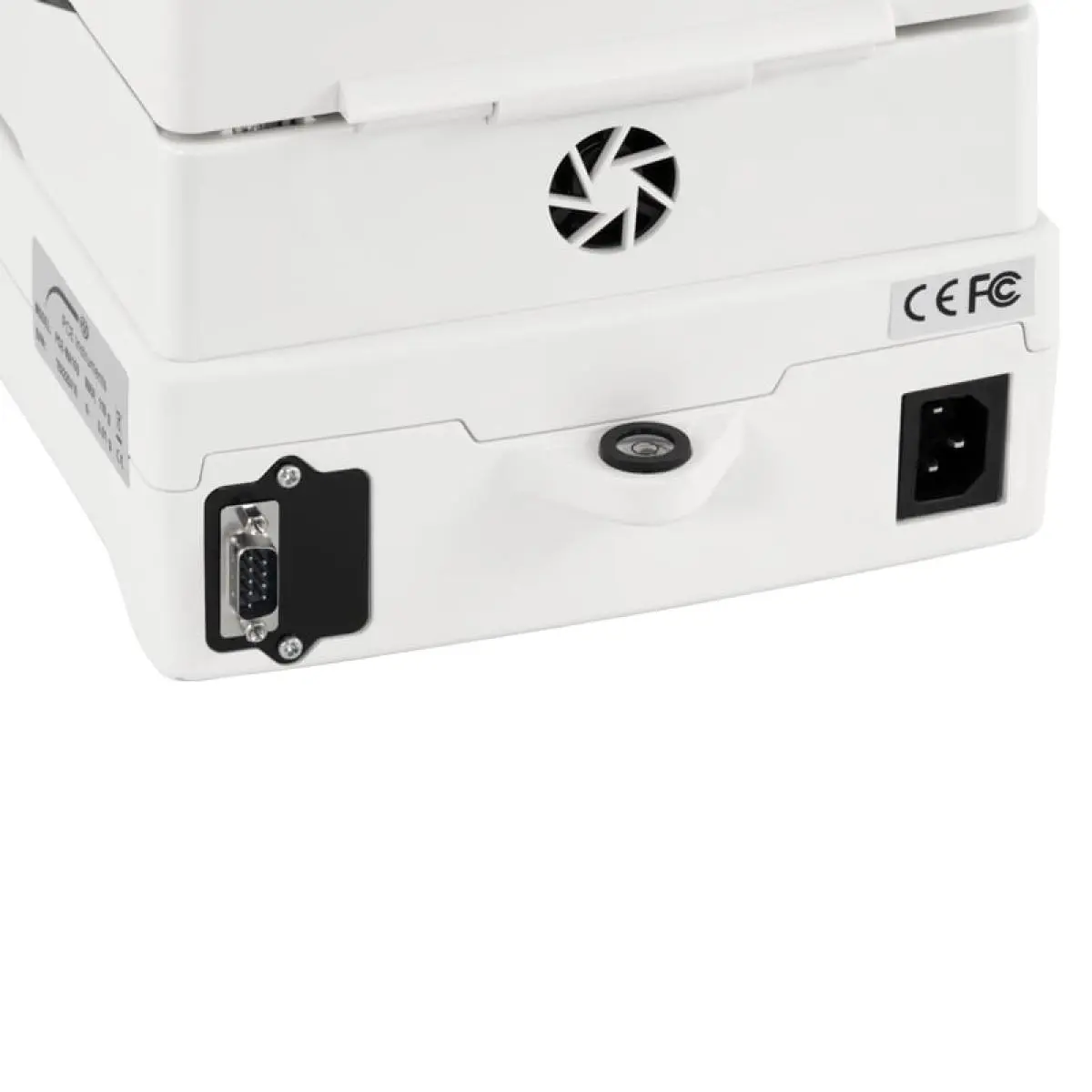

- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Ease of use
- Calibration function for readjustment
- 100 g calibration weight included

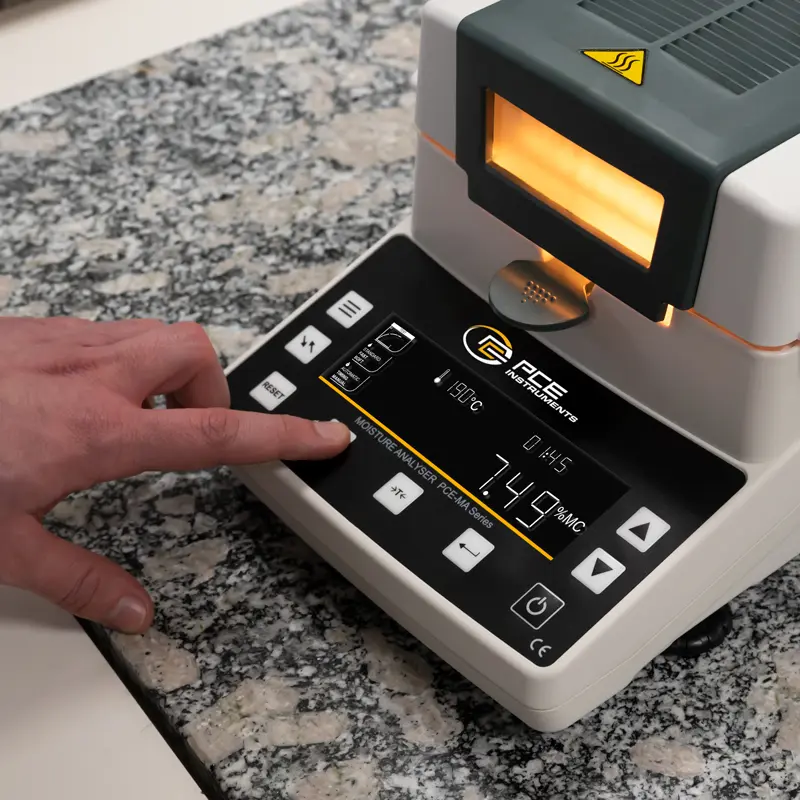

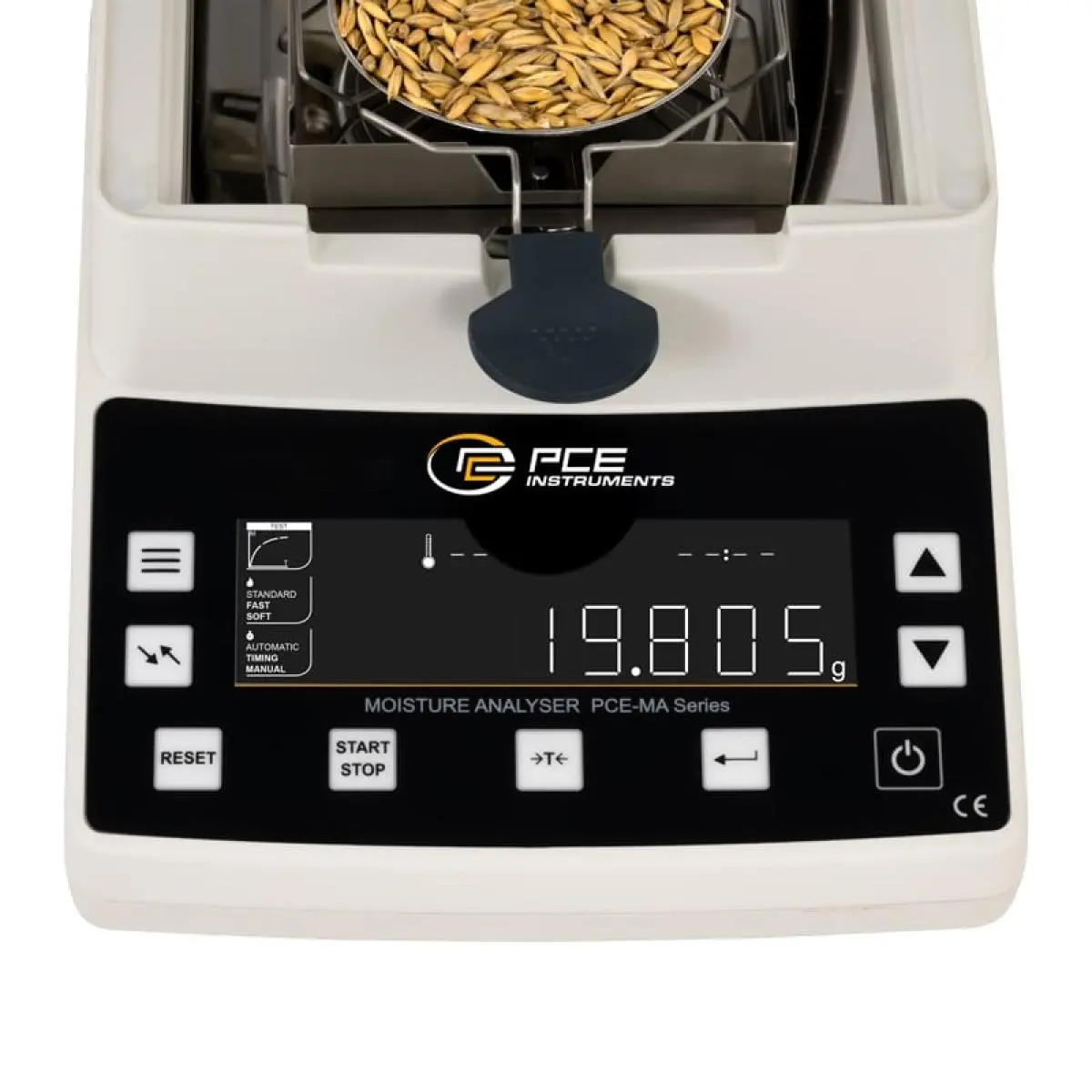

- Large LCD display with nine membrane keys
- Accuracy to 0.01 %

Specification

Absolute moisture
Measuring range  0 ... 100 %
Resolution  0,01 %

Weighing range
Measurement range up to [Max]  200 g
Resolution [d]  0,001 g
Accuracy  0.003 g

General technical data
Display type  LCD with backlight
Digit size [WxH]  H: 17 mm
Storage capacity  15 Programs
Interface  RS232

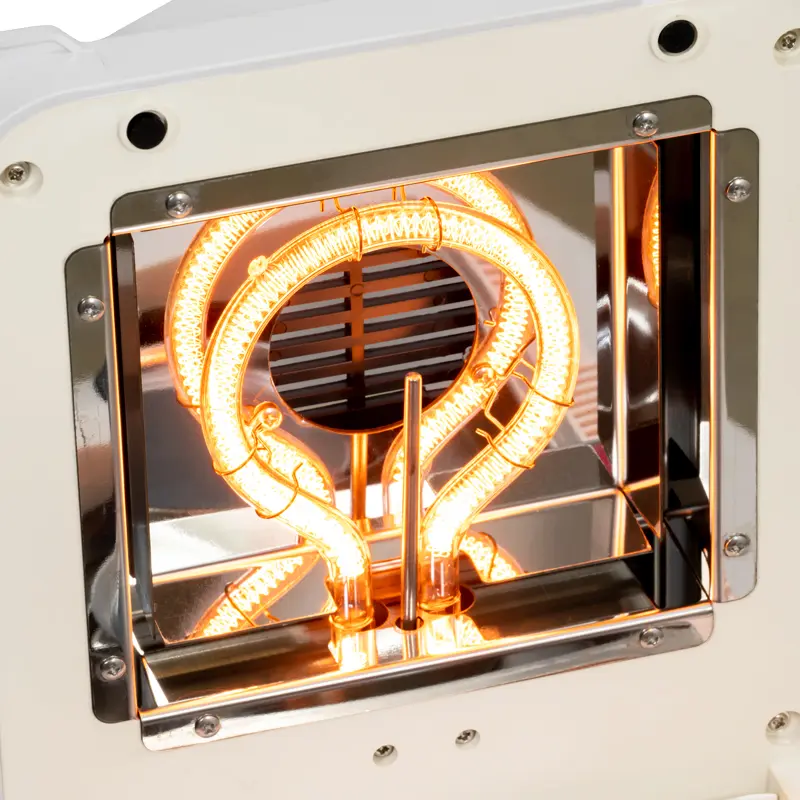

Heating element  Halogen light
Heating temperature  40 ... 199 °C
Repeatability  0,003 g
Dimensions  Halogen lamp: Ø 90 mm
Drying time  1 ... 99 min.
Settling time  4 s
Linearity  0.003 g
Readability  0,001 g
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  220 V / 50 Hz
Connector type  Cold-device plug
Operating conditions  5 ... 35 °C , 0 ... 75 % RH
Storage conditions  0 ... 40 °C , 0 ... 75 % RH
Dimensions ( L x W x H )  200 x 180 x 380 mm
Weight  4400 g

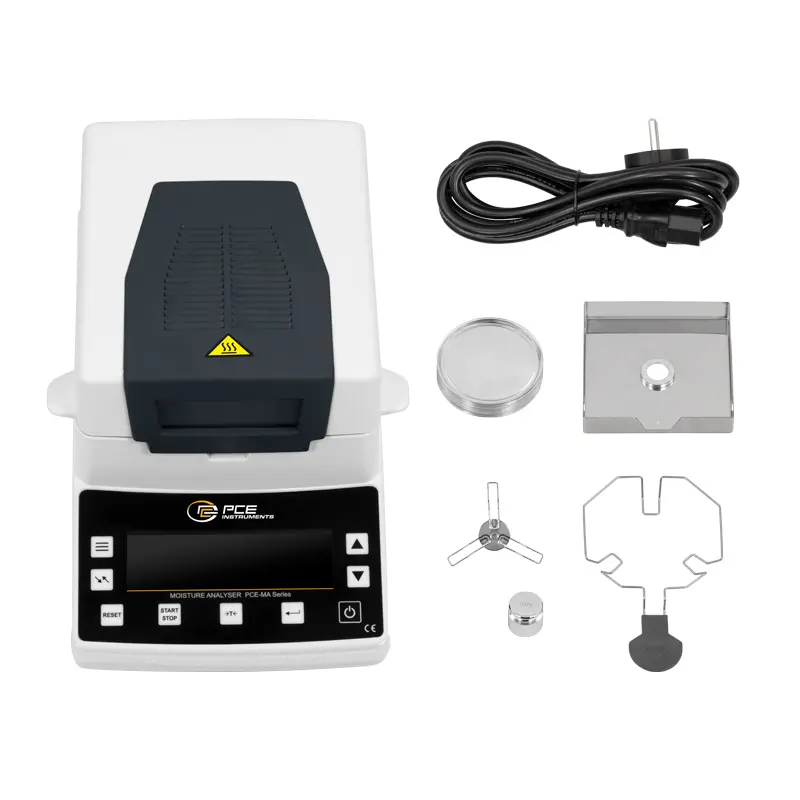

Delivery Scope

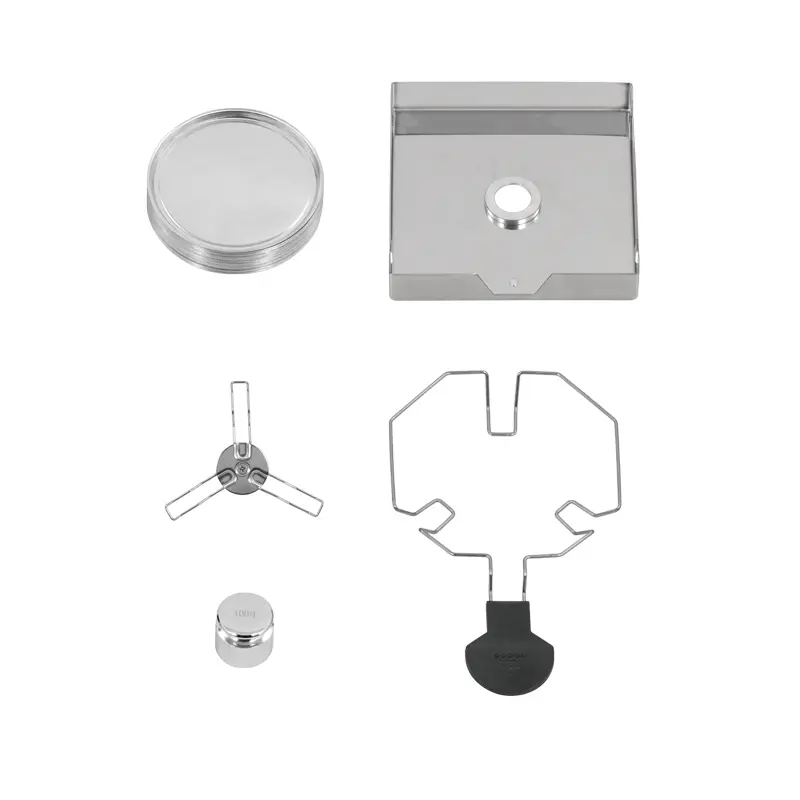

Delivery contents
1 x PCE-MA 200 Moisture Balances
1 x wind protection shield

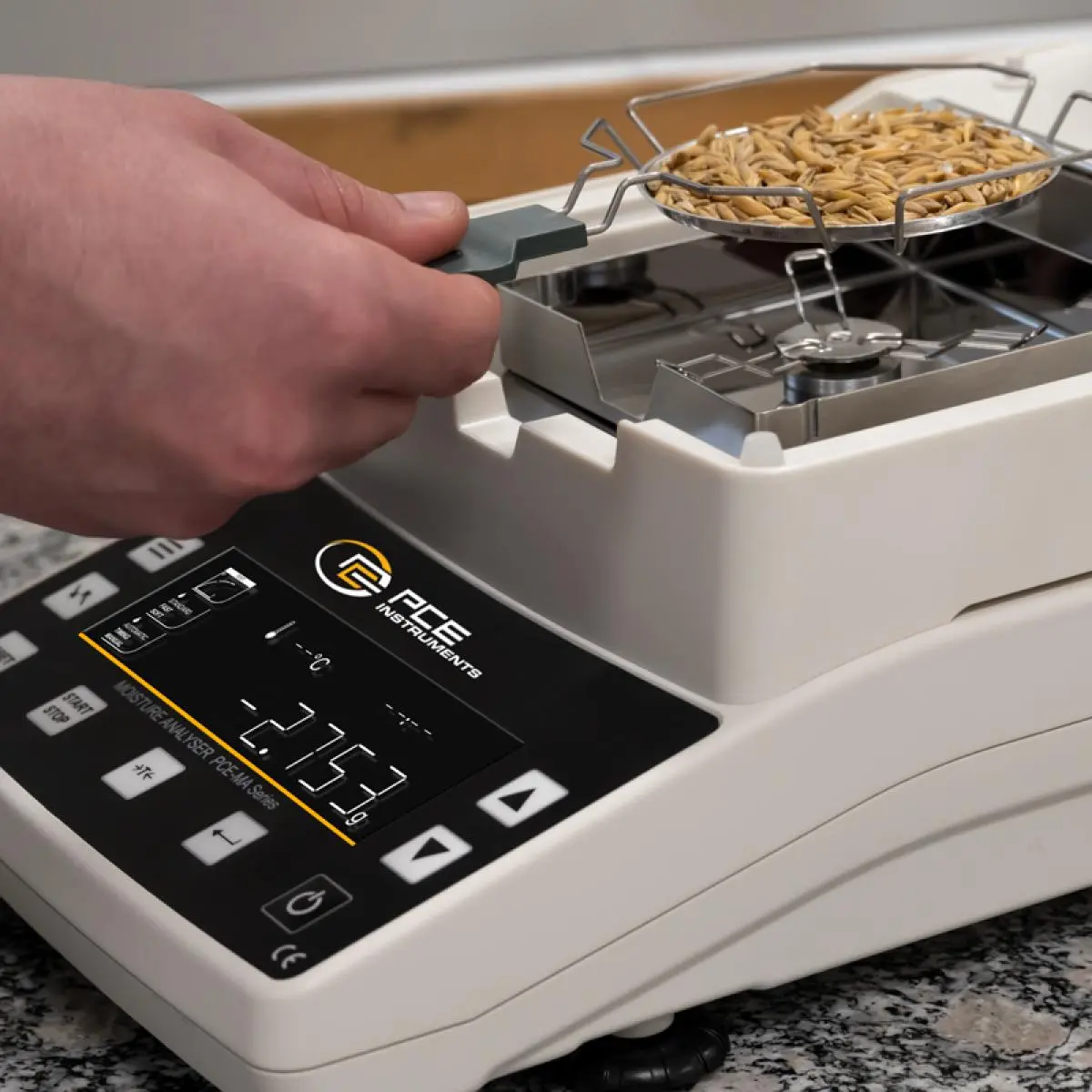

1 x sample pans

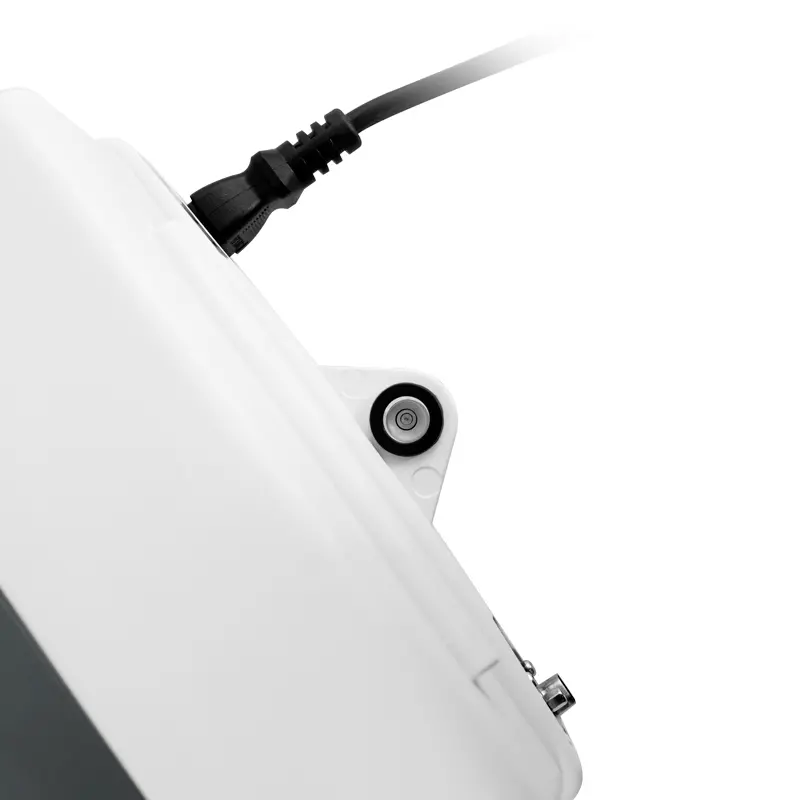

1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
