LAB Scales / Laboratory Scales PCE-MA 202

LAB Scale PCE-MA 202

Order no.: PCE-MA 202
GTIN (EAN): 4250348715203
₹141,346.00
₹166,788.28
price ex. (VAT / delivery)
:
4250348715203
PCE-MA 202
Delivery time:1-2 working days

Description

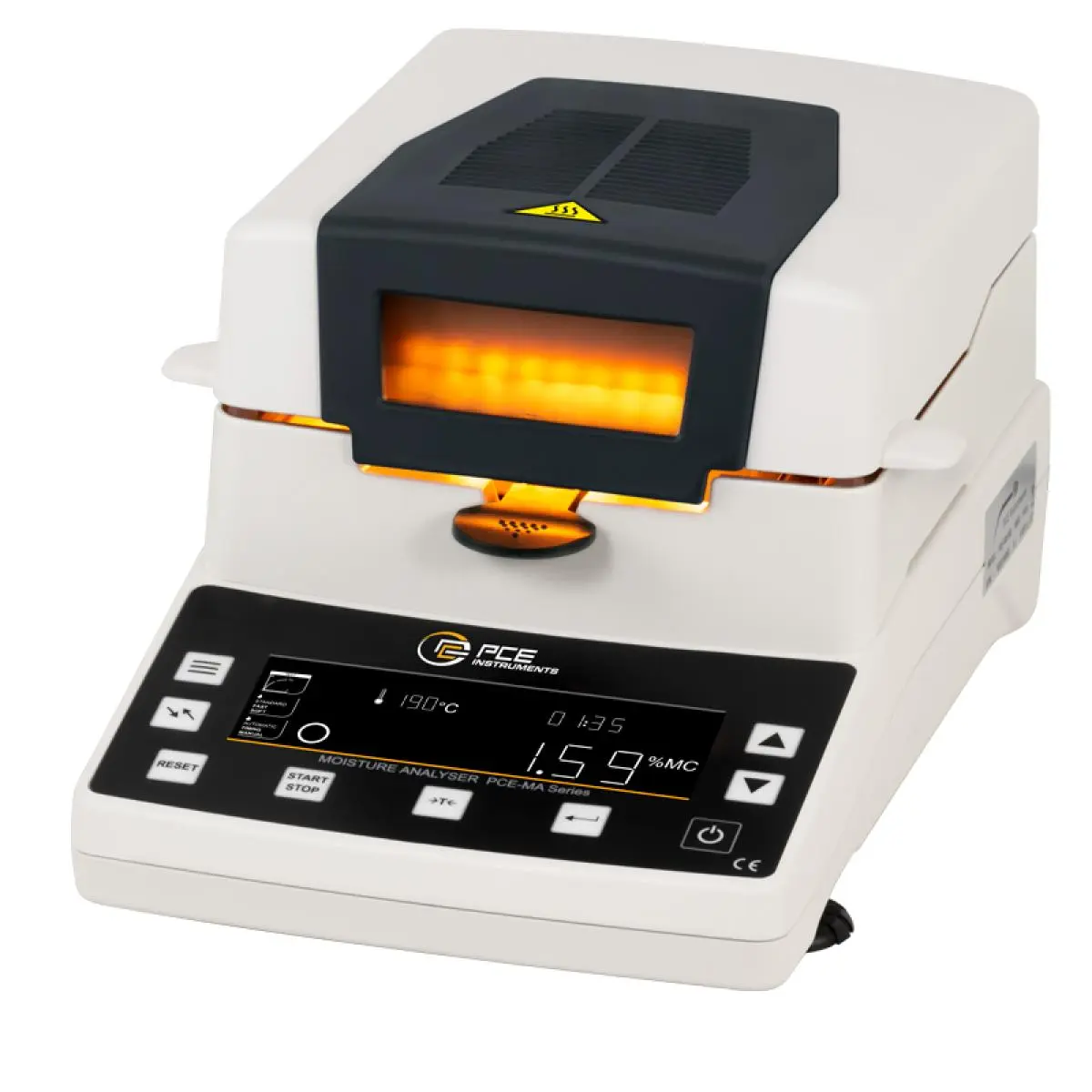

PCE-MA 202 LAB Scale
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content

The LAB Scale PCE-MA 202 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the laboratory balance dries the material to be weighed, and then calculates the moisture content from the weight difference. The laboratory balance can determine the smallest weight differences thanks to a readability of 0.01 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the laboratory balance. Accordingly, the laboratory balance is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the laboratory balance can be calibrated at any time.


Highlights

- Testing or weighing sample capacity: 200 g
- Readout, readability or resolution: 10 mg / 0.01 g / 0.1 %
- Halogen-heated oven or chamber for moisture determination
- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Easy to use
- Calibration function for readjustment
- 100 g calibration weight included
- Large LCD screen with nine membrane keys

Specification

Absolute moisture
Measuring range  0 ... 100 %
Resolution  0,1 %

Weighing range
Measurement range up to [Max]  200 g
Resolution [d]  0,01 g
Accuracy  0.03 g

General technical data
Display type  LCD with backlight
Digit size [WxH]  H: 17 mm
Storage capacity  15 Programs
Interface  RS232
Heating element  Halogen light
Heating temperature  40 ... 199 °C
Repeatability  0,03 g
Dimensions  Halogen lamp: Ø 90 mm
Drying time  1 ... 99 min.
Settling time  3 s
Linearity  0.03 g
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  220 V / 50 Hz
Connector type  Cold-device plug
Operating conditions  5 ... 35 °C , 0 ... 75 % RH
Storage conditions  0 ... 40 °C , 0 ... 75 % RH
Dimensions ( L x W x H )  200 x 180 x 380 mm
Weight  4400 g

Delivery Scope

1 x PCE-MA 202 moisture analyzer
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
