Inventory Scales PCE-BSK 1100

Inventory Scales PCE-BSK 1100 [zoom]

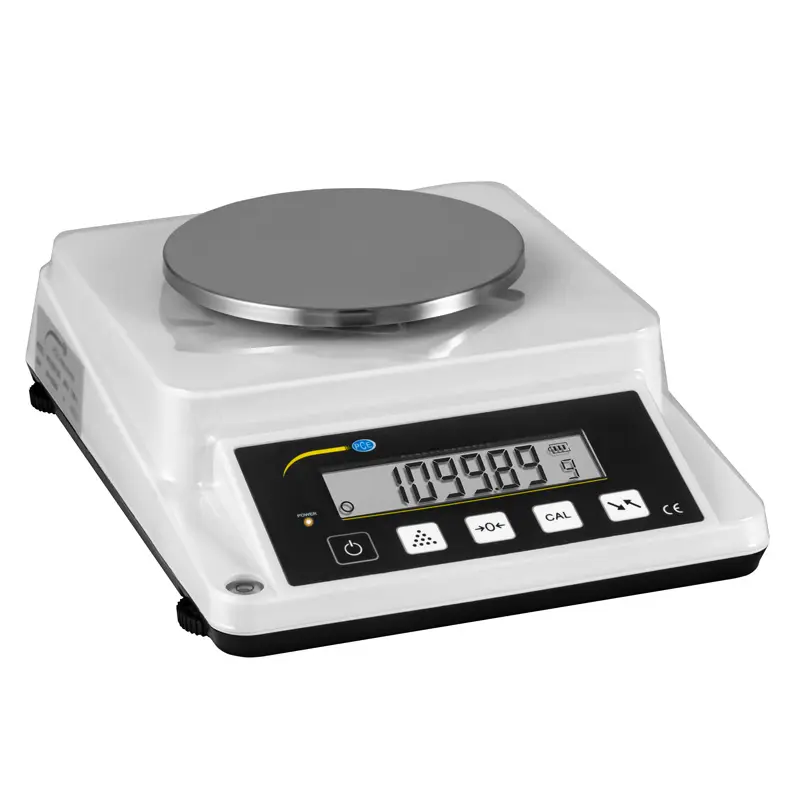

Inventory Scales PCE-BSK 1100

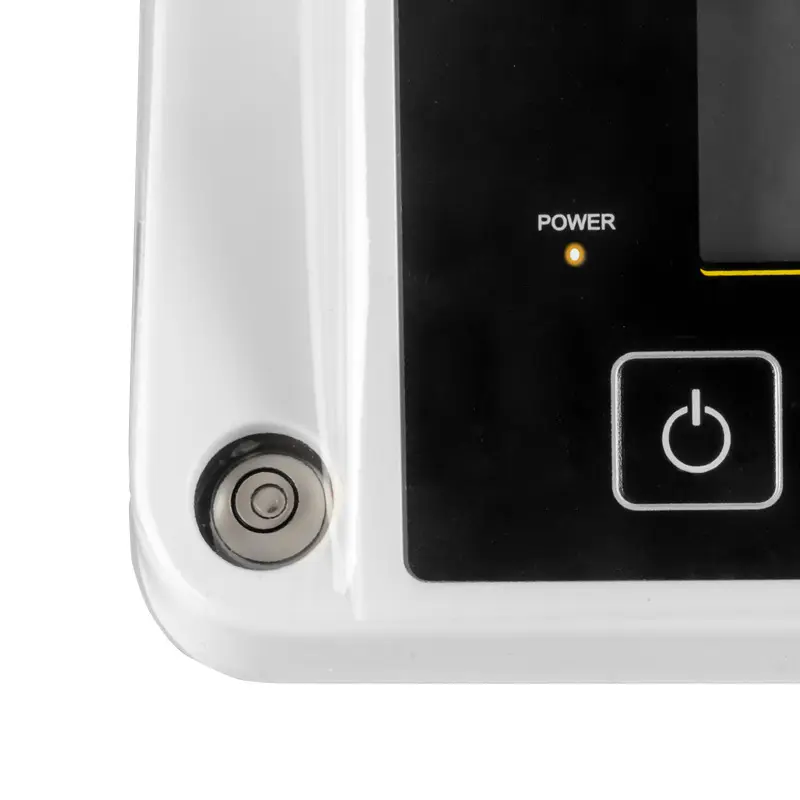

Inventory Scales Level

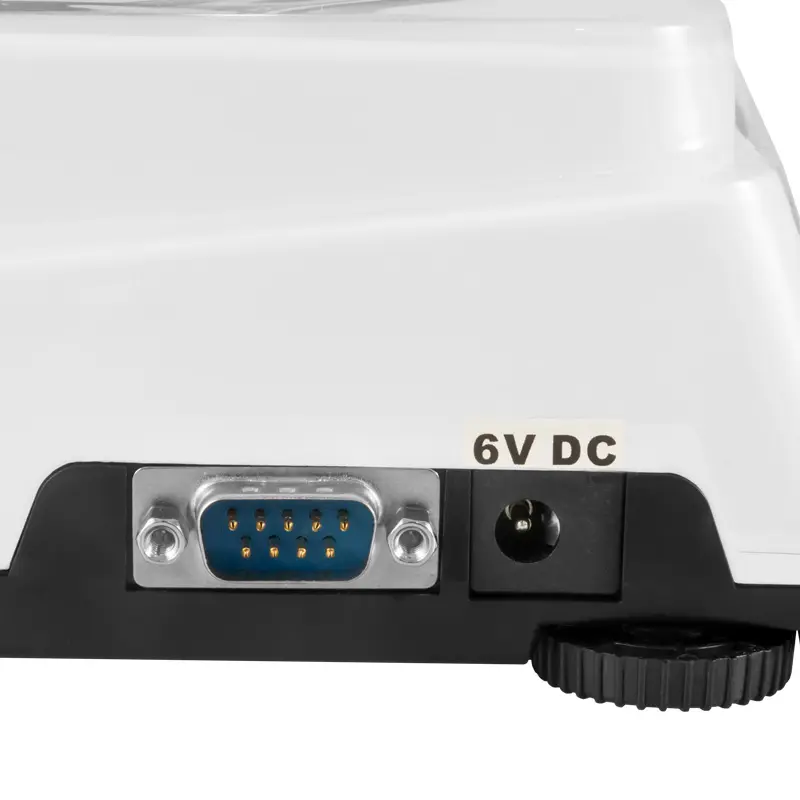

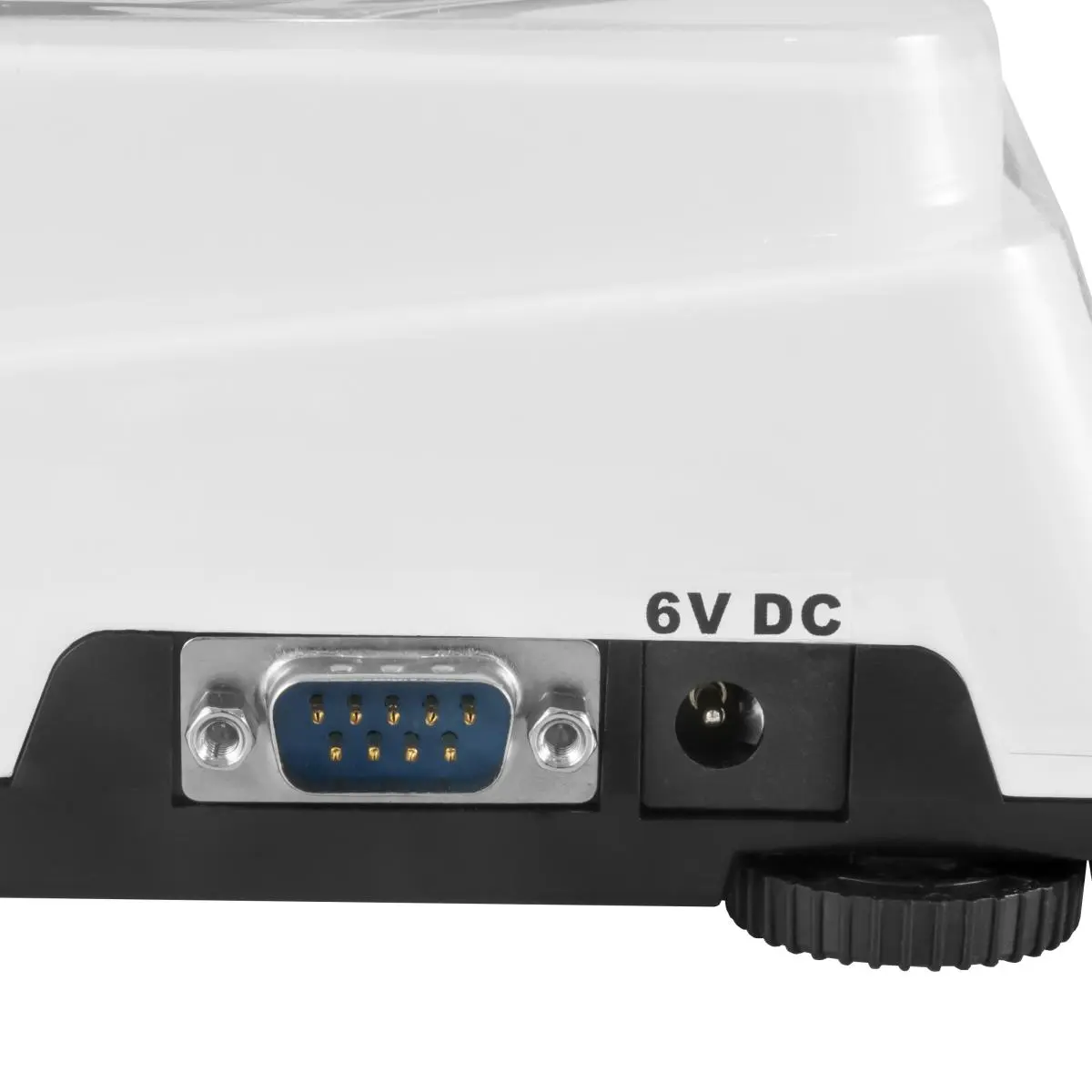

Inventory Scales Connections

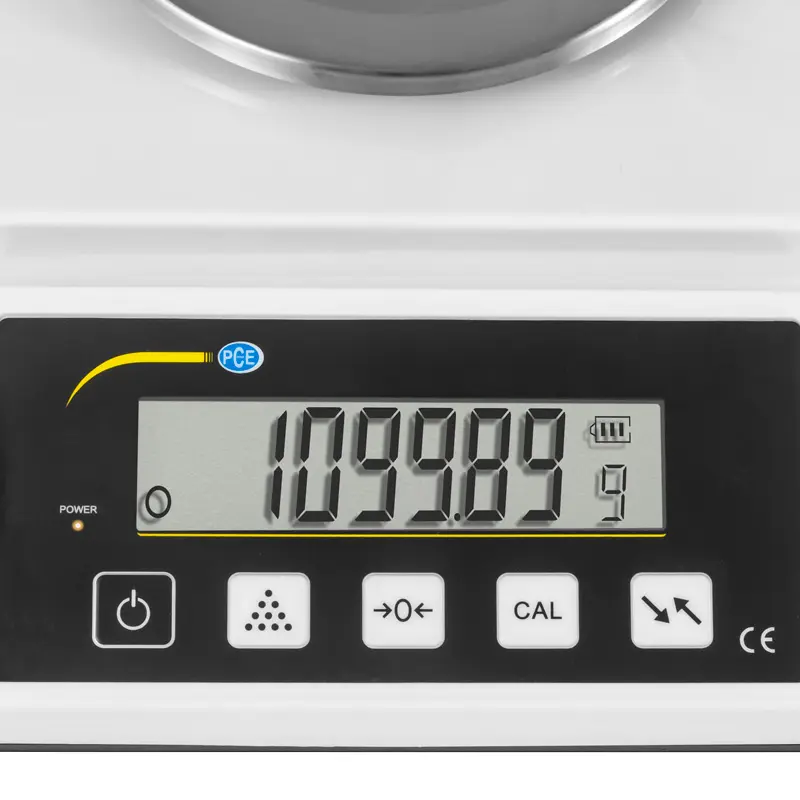

Inventory Scales Display

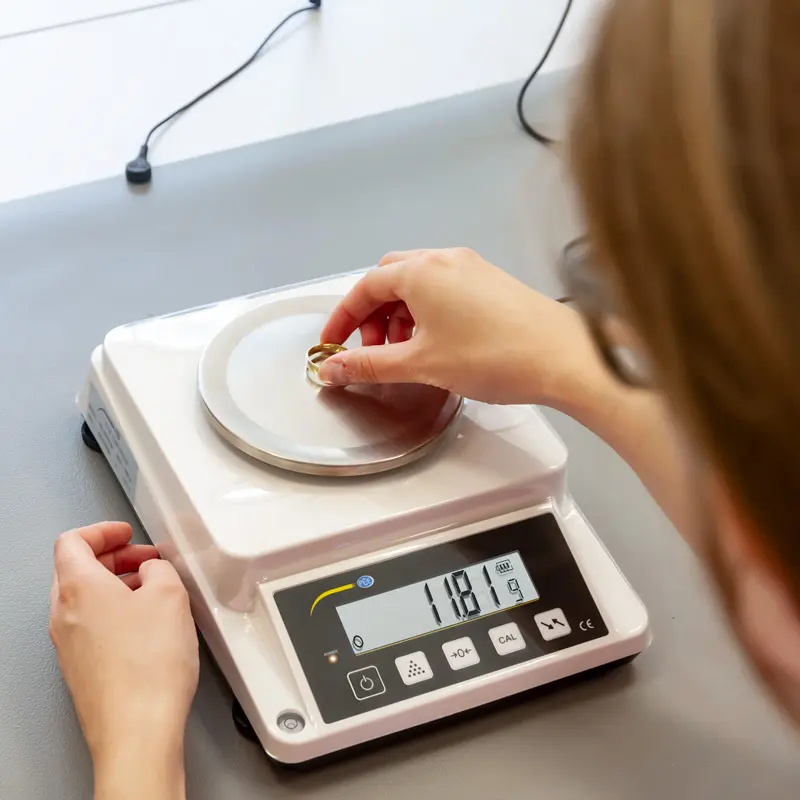

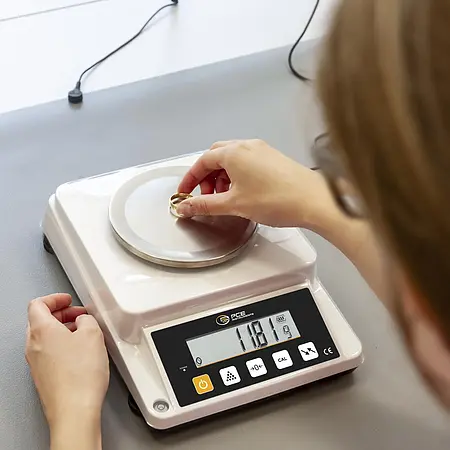

Inventory Scales Application picture

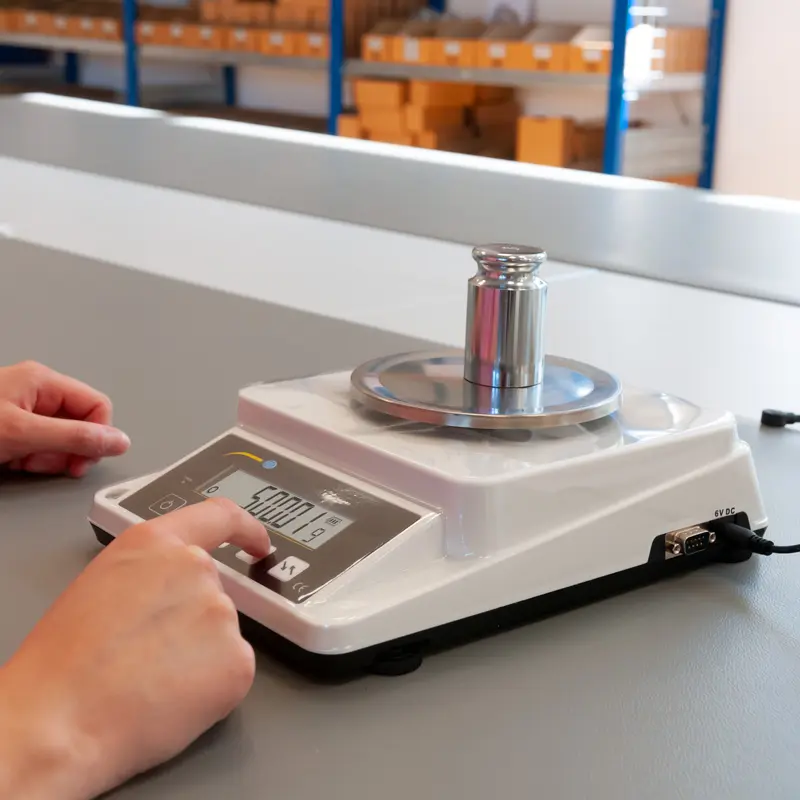

Inventory Scales Application picture

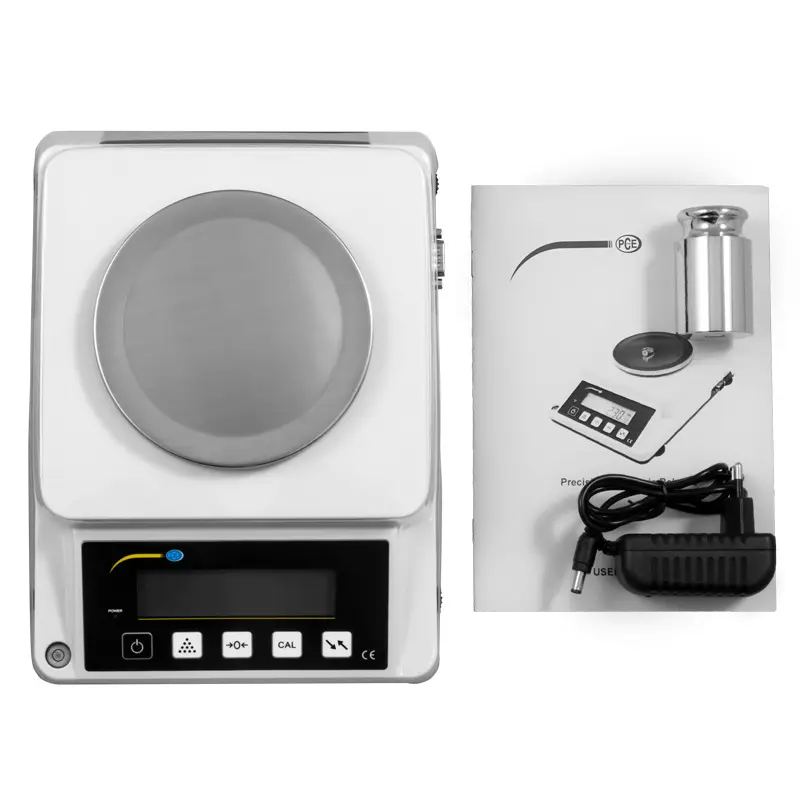

Inventory Scales Delivery scope

Inventory Scale PCE-BSK 1100

Order no.: PCE-BSK 1100
GTIN (EAN): 4250348722010
₹23,241.00
₹27,424.38
price ex. (VAT / delivery)
:
4250348722010
PCE-BSK 1100
Delivery time:1-2 working days

Accessory

Description

Inventory scale PCE-BSK 1100
Inventory scale with piece counting function / Usable batteries for mobile operation / RS-232 interface / Level for aligning the scale / For mobile use

The inventory scale is a scale for daily laboratory use. Another function besides the normal measurement function of the inventory scale is the piece counting function. This function allows the inventory scale to determine the number of screws, for example. Thus, for example, the inventory scale can also be used in logistics. So that the display is readable even in poor lighting conditions, the display of the inventory scale has a backlight.

In addition to the measuring functions, the inventory scale also has an RS 232 interface. Thanks to this interface, the measured values ​​can be transferred to a PC, for example. This benchtop scale can be used for stationary as well as for mobile use. For mobile use, the inventory scale requires 3 x 1.5V AA batteries, which can be used quickly and easily.

Highlights

- Piece counting function
- RS-232 interface
- Backlight
- Battery operation for mobile use
- Level indicator to align the scale
- High precision

Specification

Weighing range
Measurement range up to [Max]  1100 g
Resolution [d]  0,01 g
Accuracy  Class III

General technical data
Measuring functions (additional information)  Piece counting function
Interface  RS232
Housing  Plastic
Repeatability  ±0.02
Calibration  external
Dimensions  Cradle plate: Ø 130 mm
Settling time  < 3 s
Linearity  ±0.03 g
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50/60 Hz
6V DC, 500 mA
Connector type  Device-europlug
Operating conditions  0 ... 40 °C , 50 ... 85 % RH
Storage conditions  0 ... 50 °C , 50 ... 85 % RH
Dimensions ( L x W x H )  270 x 200 x 80 mm
Weight  930 g

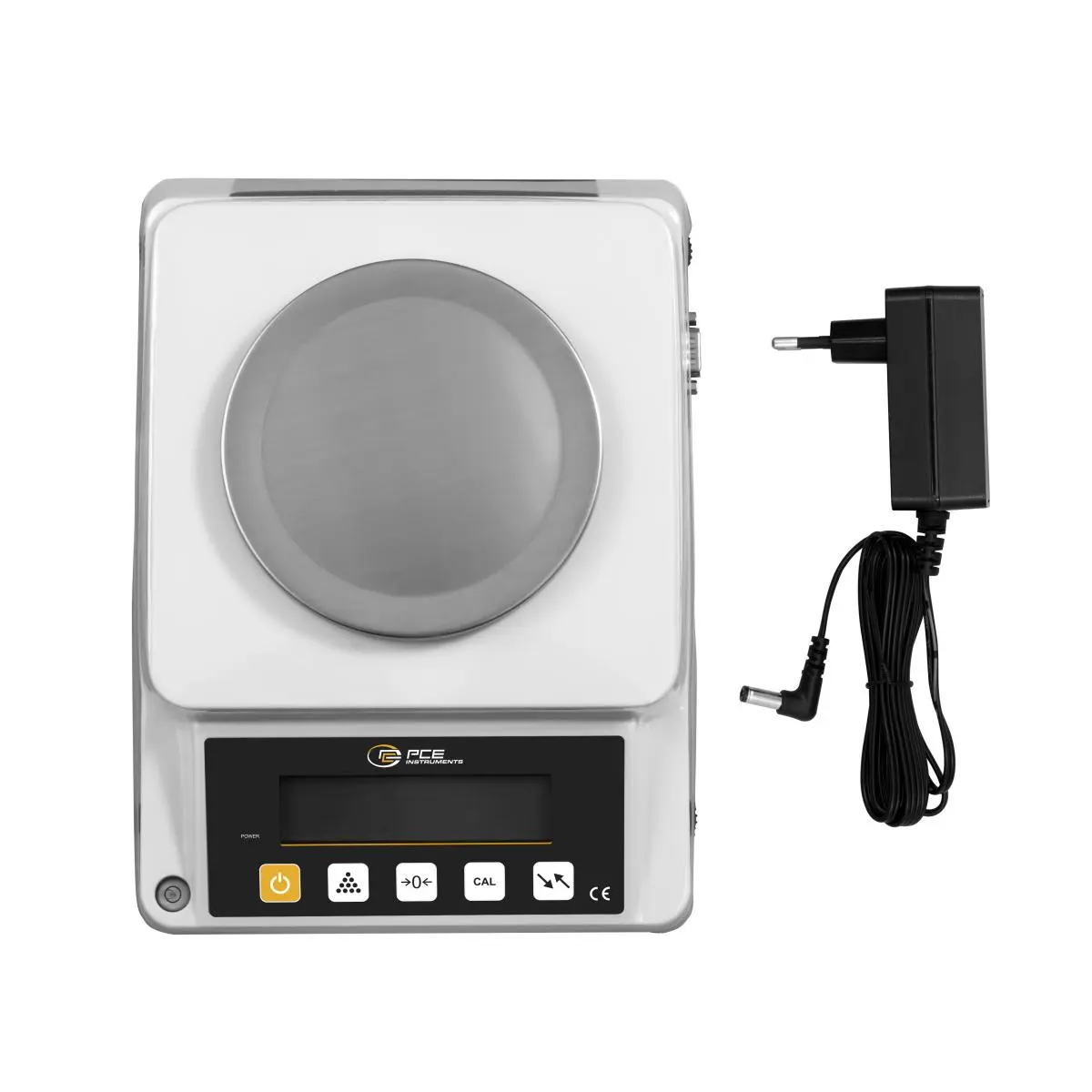

Delivery Scope

1 x Inventory Scales PCE-BSK 1100
1 x Test weight
1 x Power supply
3 x 1.5V AA batteries
1 x User manual
