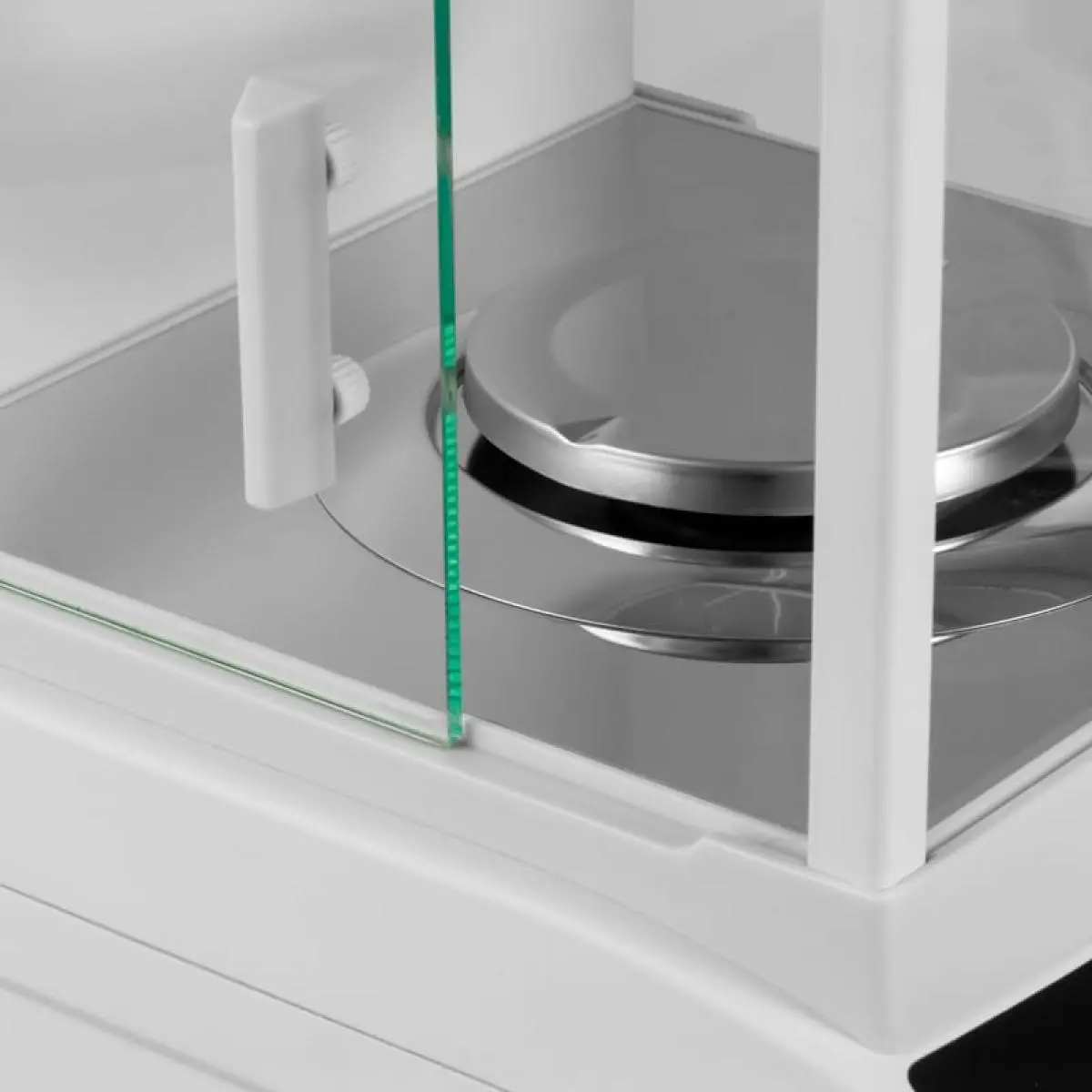

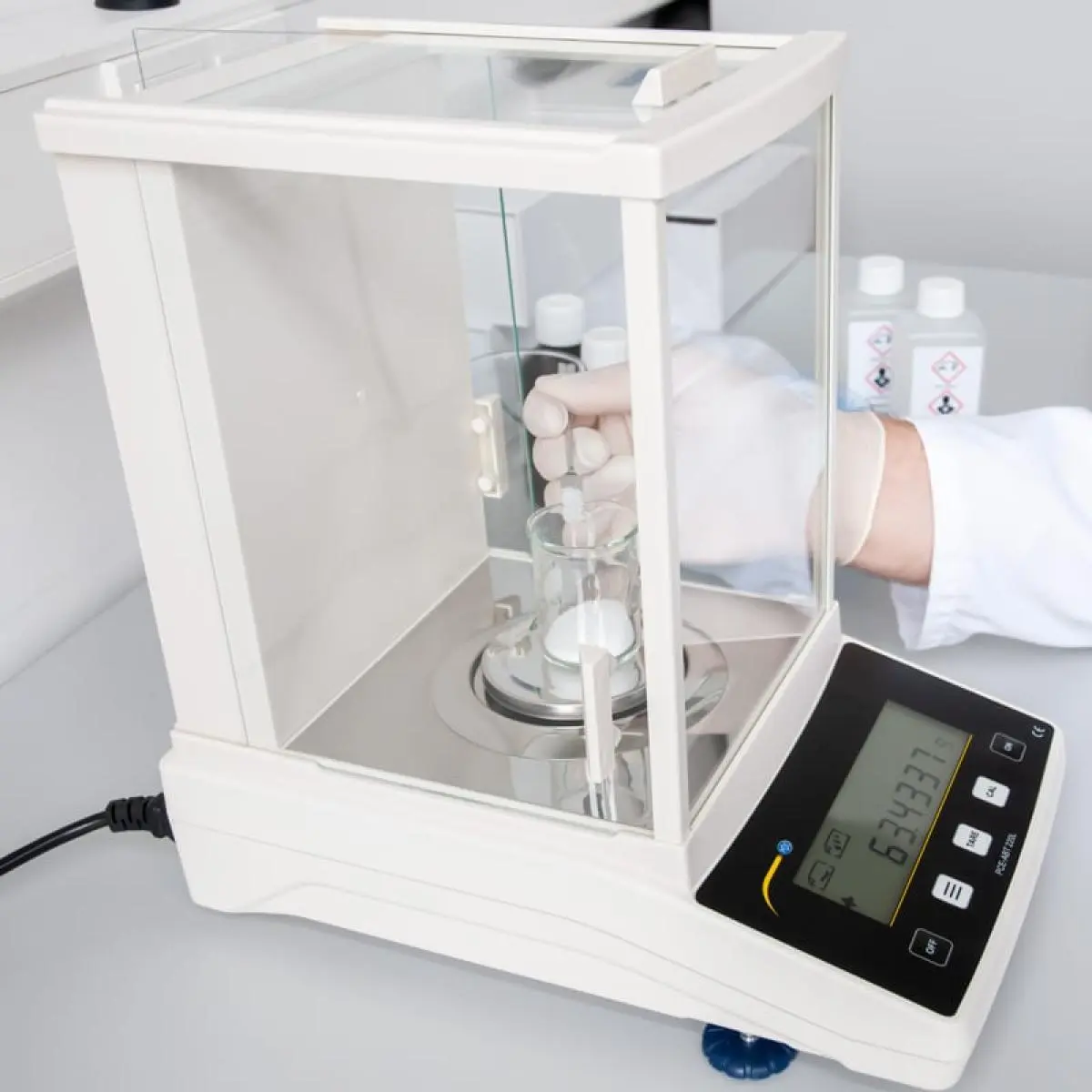

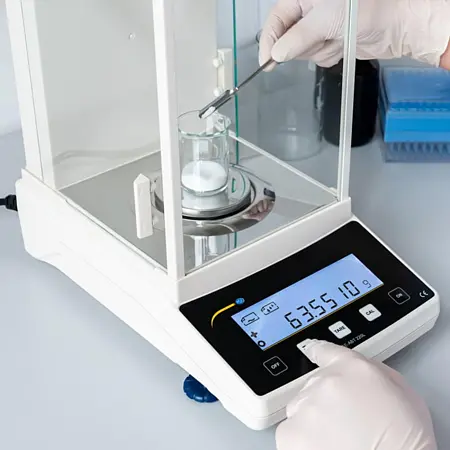

With a resolution of 0.1 mg, this Density Determination Kit is ideally suited for checking small samples for their weight. For example, powder can be weighed with the fine scale. Typical areas of application for the Density Determination Kit are therefore in laboratories or in research facilities. Weighing the smallest samples is very difficult because even a small gust of wind falsifies the measured value. For this reason, a wind shield is installed around the weighing surface of the Density Determination Kit. This ensures that even the smallest gusts of wind have no effect on the measurement of the precision scale.
The Density Determination Kit can be connected directly to a PC via the RS232 interface. With the optionally available software for the Density Determination Kit, the measurement data can be presented in a table. A graphic representation of the measured values from the Density Determination Kit is also possible with the software. There is also the option of exporting the measured values recorded by the Density Determination Kit. In this way, the measured values of the Density Determination Kit can be conveniently incorporated into presentations, sent by email or simply printed out.
If necessary, the Density Determination Kit can be checked with the calibration weight supplied. This ensures that the Density Determination Kit delivers a perfect measurement result. The Density Determination Kit can also be adjusted by the operator in a very short time using the calibration weight.
With the built-in bubble level, the current positioning of the Density Determination Kit can be determined at an installation location. If the positioning of the Density Determination Kit is not suitable, this can be readjusted using the height-adjustable feet. This ensures that the Density Determination Kit is properly aligned with the current installation location.
| Weighing range | |
| Measurement range up to [Max] | 220 g |
| Resolution [d] | 0,1 mG |
| Accuracy | 0.5 mg |
| General technical data | |

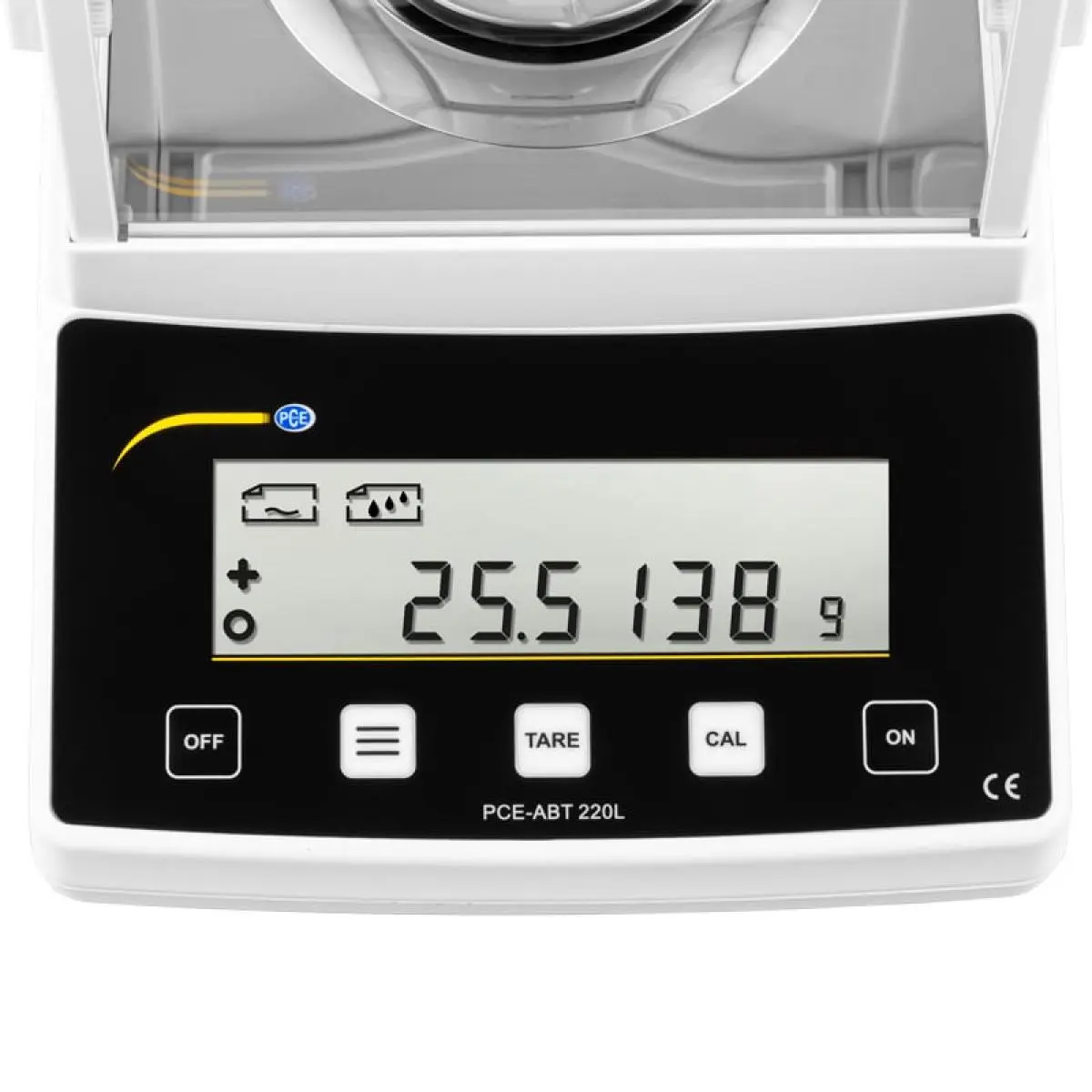

| Display size | 5 Inch |
| Interface | RS232 (unidirectional) |
| Repeatability | 0,2 mG |
| Tare range | full measurement range |
| Weighing plate material | Stainless steel |
| Settling time | < 4 s |
| Linearity | 0.5 mG |
| Menu language | English, English (GB) |
| Protection class (device) | IP40 |
| Power supply | 220 V |
| Connector type | Cold-device plug |
| Operating conditions | 10 ... 40 °C , 40 ... 80 % RH |
| Storage conditions | 10 ... 40 °C , 40 ... 80 % RH |
| Dimensions ( L x W x H ) | 340 x 210 x 350 mm |
| Weight | 5670 g |
