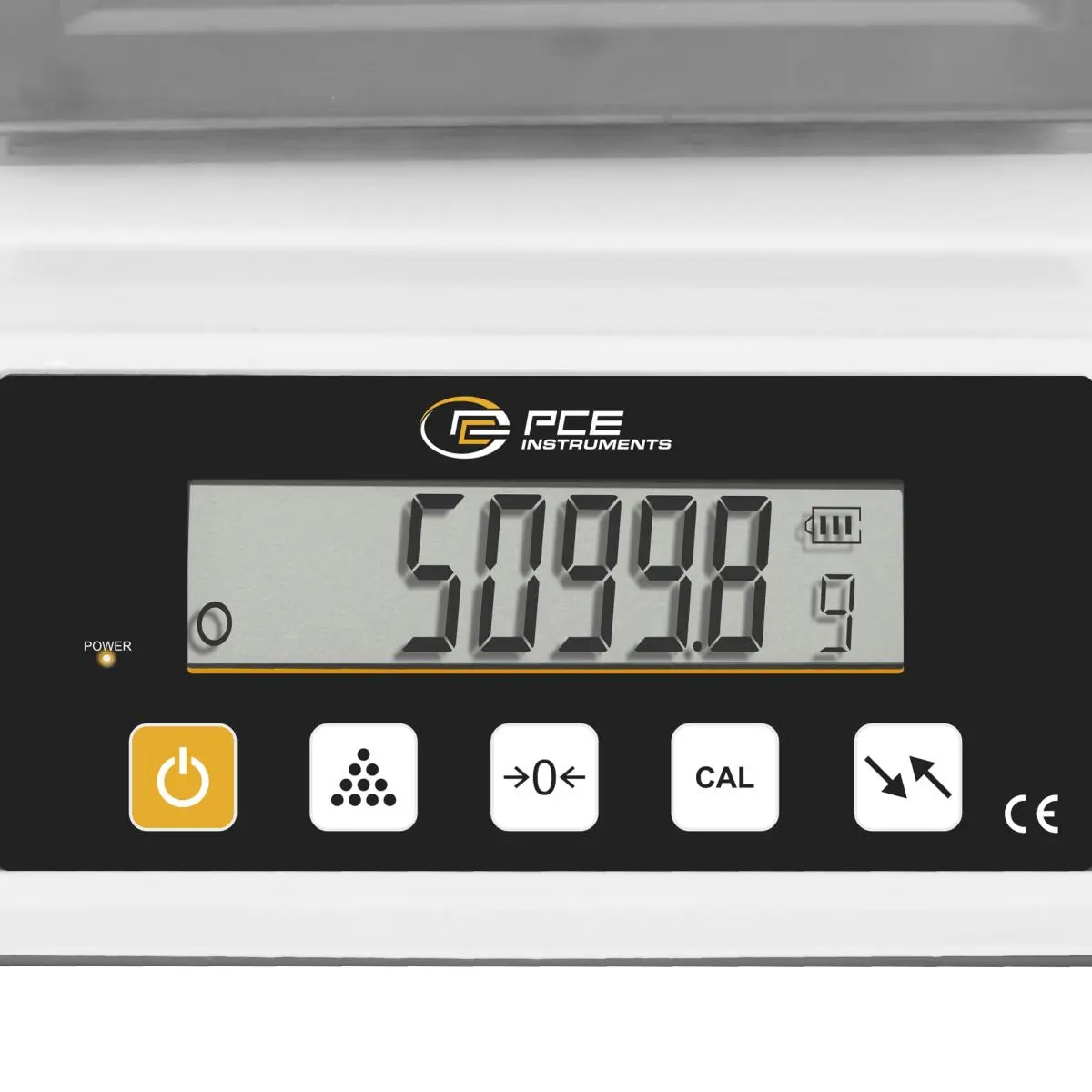

The Compact Scales / Compact Balances are scales for daily laboratory use. Another function besides the normal measuring function of the Compact Scales / Compact Balances is the piece counting function. This function allows the Compact Scales / Compact Balances to determine the number of screws, for example. Thus, the Compact Scales / Compact Balances can also be used in logistics, for example. So that the display is readable even in low light conditions, the display of the Compact Scales / Compact Balances has a backlight.
In addition to the measuring functions, the Compact Scales / Compact Balances also have an RS-232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. These Compact Scales / Compact Balances can be used for stationary as well as for mobile use. For mobile use, the Compact Scales / Compact Balances require 3 x 1.5V AA batteries, which can be used quickly and easily.
| Weighing range | |
| Measurement range up to [Max] | 5100 g |
| Resolution [d] | 0,1 g |
| Accuracy | Class III |
| General technical data | |
| Measuring functions (additional information) | Piece counting function |
| Interface | RS232 |
| Repeatability | 0,2 g |
| Housing | Plastic |
| Calibration | external |
| Dimensions | Weighing plate: 160 x 160 mm |
| Settling time | < 3 s |
| Linearity | ±0.3 g |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50/60 Hz 6V DC, 500 mA |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 50 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 50 ... 85 % RH |
| Dimensions ( L x W x H ) | 270 x 200 x 80 mm |
| Weight | 950 g |
