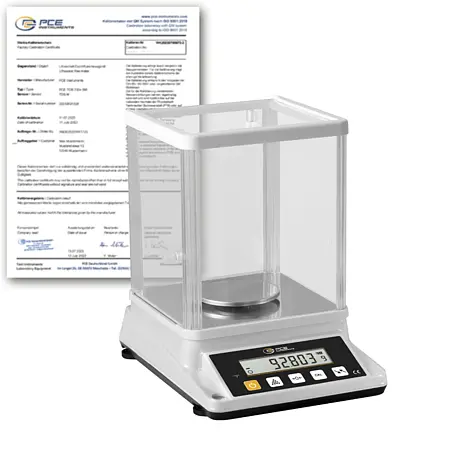

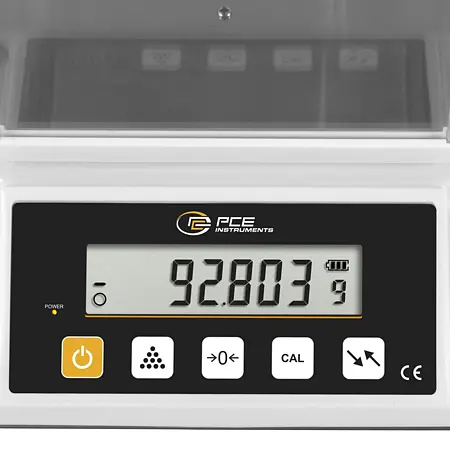

The Compact Scales / Compact Balances are scales for daily laboratory use. Another function besides the normal measurement function of the Compact Scales / Compact Balances is the piece counting function. This function allows the Compact Scales / Compact Balances to determine the number of screws, for example. Thus, for example, the Compact Scales / Compact Balances can also be used in logistics. So that the display is readable even in poor lighting conditions, the display of the Compact Scales / Compact Balances has a backlight.

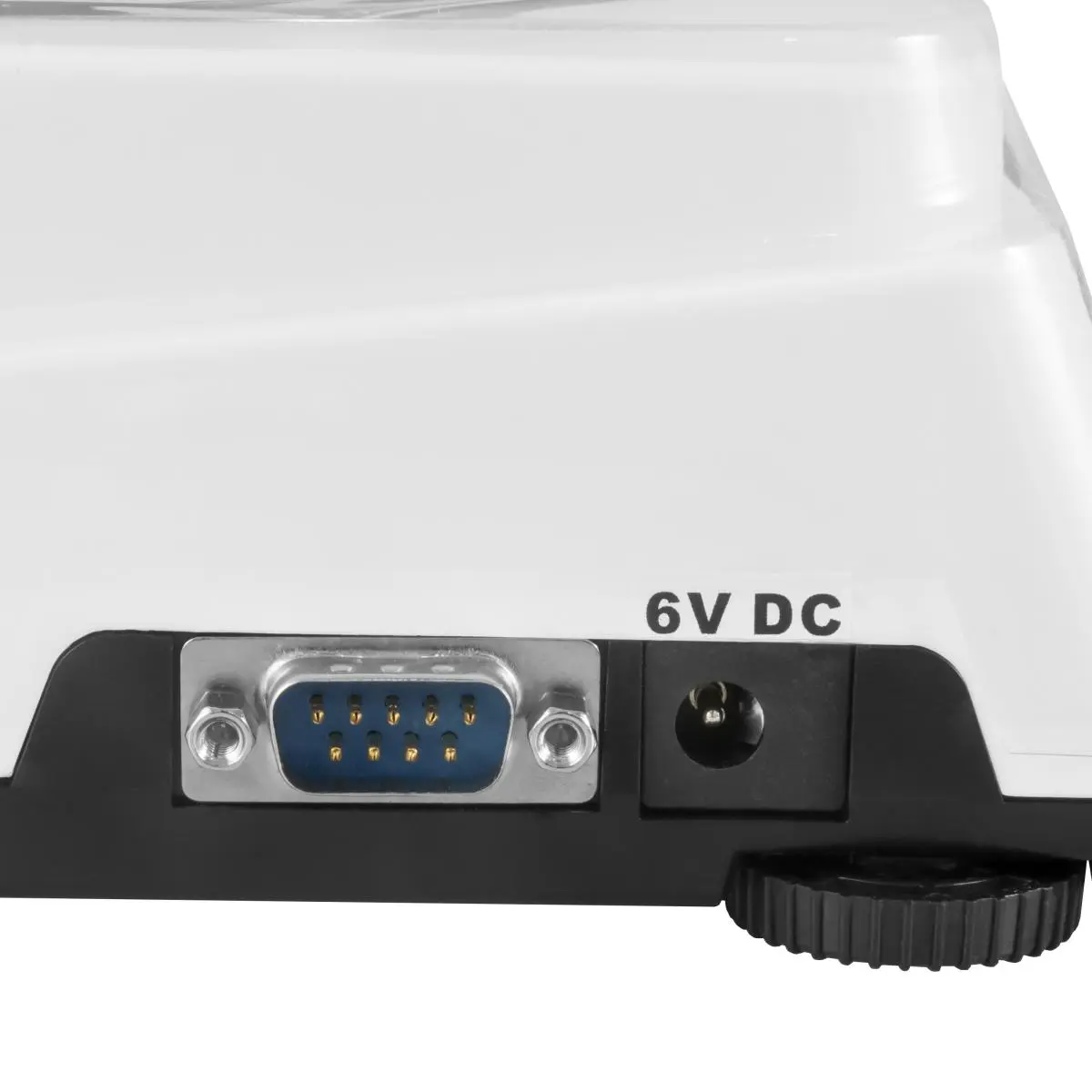

In addition to the measuring functions, the Compact Scales / Compact Balances also have an RS-232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. These Compact Scales / Compact Balances can be used for stationary as well as for mobile use. For mobile use, the Compact Scales / Compact Balances require 3 x 1.5 V AA batteries, which can be used quickly and easily.
| Weighing range | |
| Measuring range from | 0 g |
| Measurement range up to [Max] | 310 g |
| Resolution [d] | 0,001 g |
| Accuracy | Class II |
| General technical data | |
| Measuring functions (additional information) | Piece counting function |
| Interface | RS232 |
| Repeatability | 0,002 g |
| Housing | Plastic |
| Calibration | external |
| Dimensions | Wiegeplatte: Ø 90 mm |
| Settling time | < 3 s |
| Linearity | ±0.003 g |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50/60 Hz 6V DC, 500 mA |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 50 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 50 ... 85 % RH |
| Dimensions ( L x W x H ) | 270 x 265 x 190 mm |
| Weight | 3100 g |
