Analytical Balances PCE-MA 100-ICA

Analytical Balance PCE-MA 100-ICA incl. ISO Calibration Certificate

Order no.: PCE-MA 100-ICA
GTIN (EAN): 4250348726254
₹197,294.00
₹232,806.92
price ex. (VAT / delivery)
:
4250348726254
PCE-MA 100-ICA
Delivery time:5-7 working days

Description

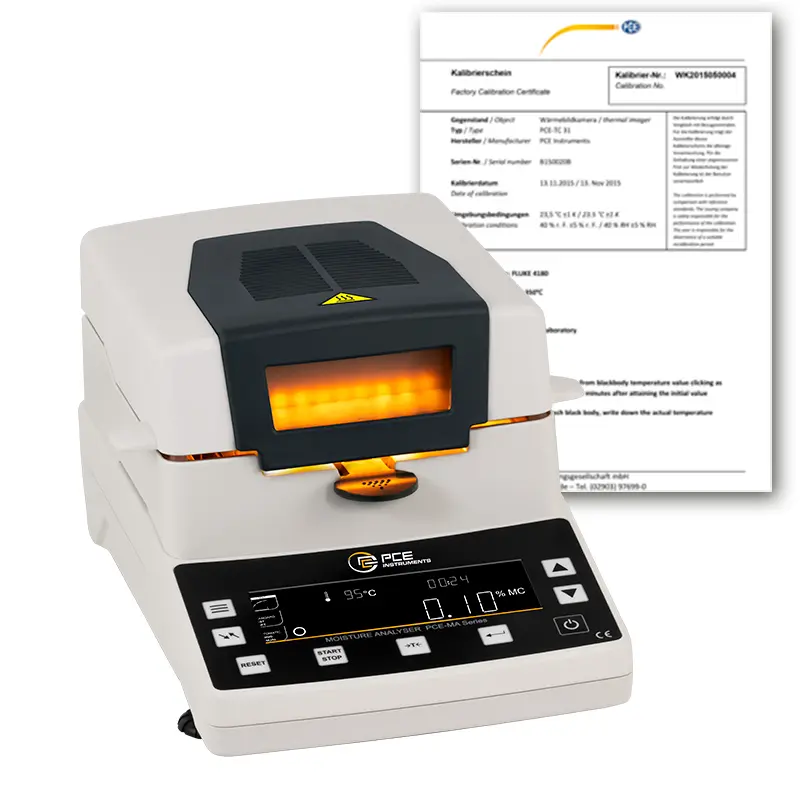

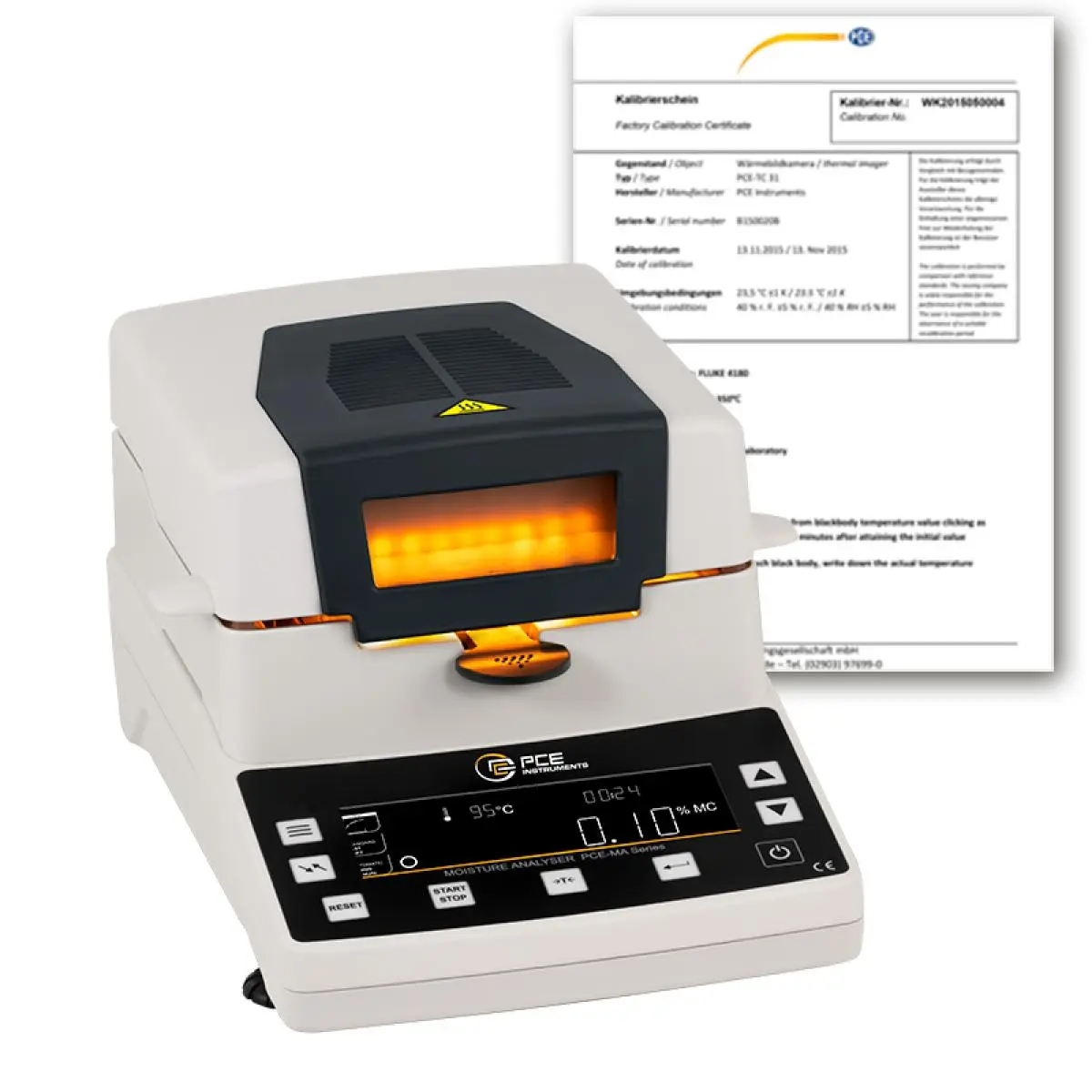

PCE-MA 100-ICA Analytical Balance incl. ISO Calibration Certificate
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content

The laboratory balance PCE-MA 100 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the laboratory balance dries the material to be weighed, and then calculates the moisture content from the weight difference. The laboratory balance can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the absolute moisture meter. Accordingly, the laboratory balance is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the laboratory balance can be calibrated at any time.


Highlights

- Weighing range: 110 g
- Readability: 1 mg / 0.001 g
- Heating chamber for moisture determination
- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Ease of use
- Calibration function for readjustment
- 100 g calibration weight included
- Large LCD display with nine membrane keys
- incl. ISO-Calibration Certificate

Specification

Absolute moisture
Measuring range  0 ... 100 %
Resolution  0,01 %

Weighing range
Measurement range up to [Max]  110 g
Resolution [d]  0,001 g
Accuracy  ±0.003 g

General technical data
Display type  LCD with backlight
Digit size [WxH]  H: 17 mm
Storage capacity  15 Programs
Interface  RS232
Heating element  Halogen light
Heating temperature  40 ... 199 °C
Repeatability  0,003 g
Dimensions  Halogen lamp: Ø 90 mm
Drying time  1 ... 199 min. - adjustable
Settling time  4 s
Linearity  0.003 g
Readability  0,001 g
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  220 V / 50 Hz
Connector type  Cold-device plug
Operating conditions  5 ... 35 °C , 0 ... 75 % RH
Storage conditions  0 ... 40 °C , 0 ... 75 % RH
Dimensions ( L x W x H )  200 x 180 x 380 mm
Weight  4320 g

Delivery Scope

1 x PCE-MA 100-ICA Analytical Balances
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
1 x ISO-Calibration Certificate
