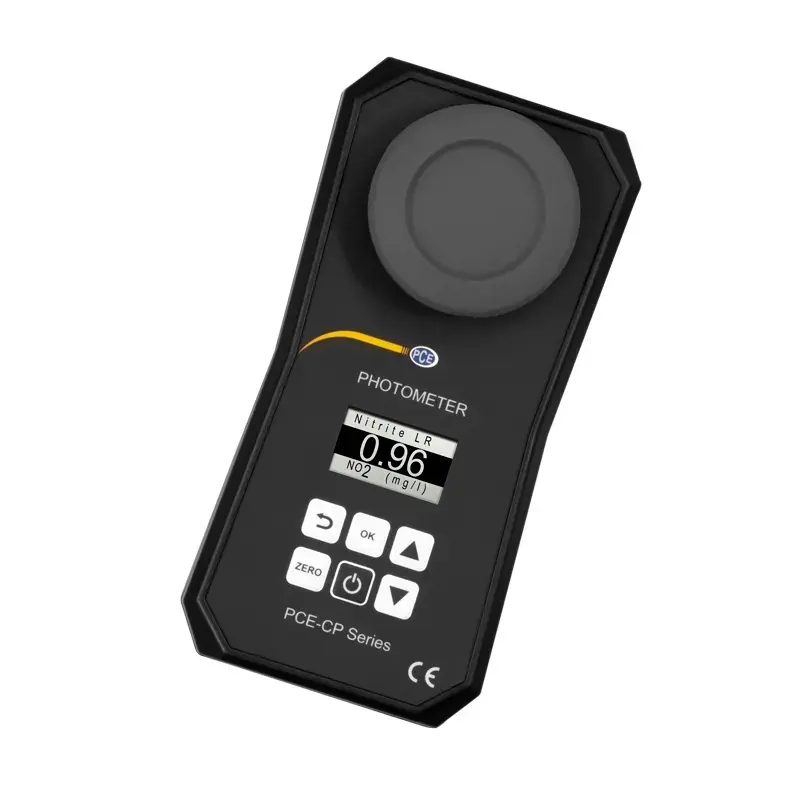

Water Hardness Meter / Water Hardness Tester PCE-CP 22

Water Hardness Meter / Water Hardness Tester PCE-CP 22 [zoom]
Water Hardness Meter / Water Hardness Tester PCE-CP 22

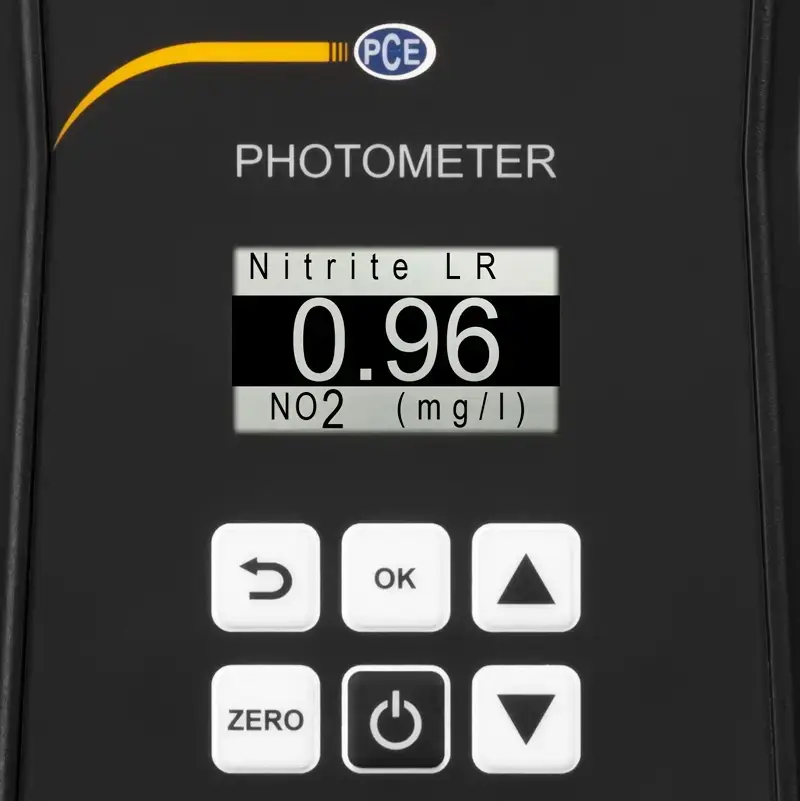

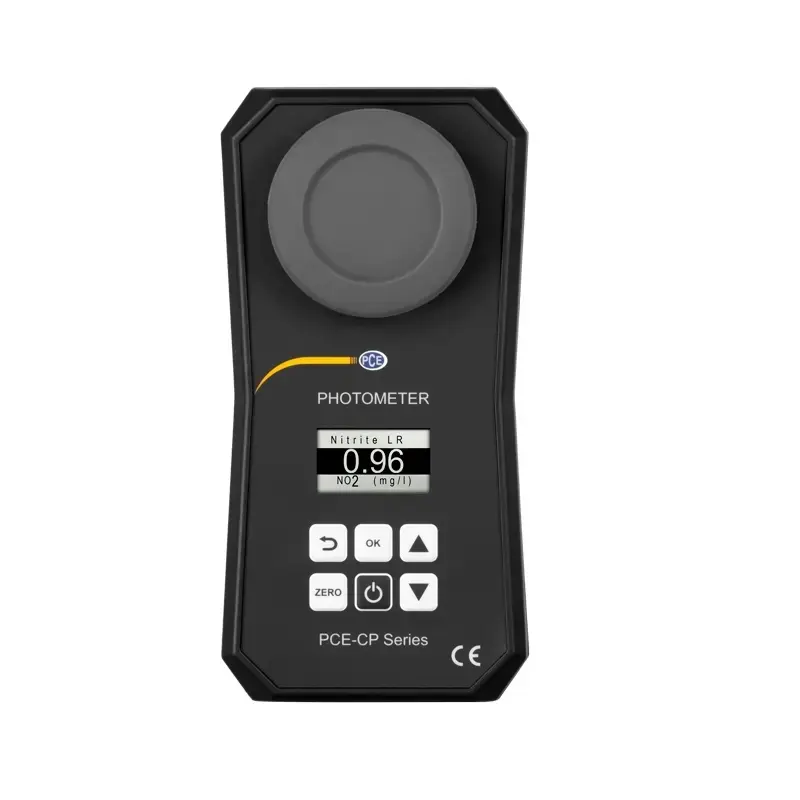

Water Hardness Meter / Water Hardness Tester Frontal
Water Hardness Meter / Water Hardness Tester Cuvette

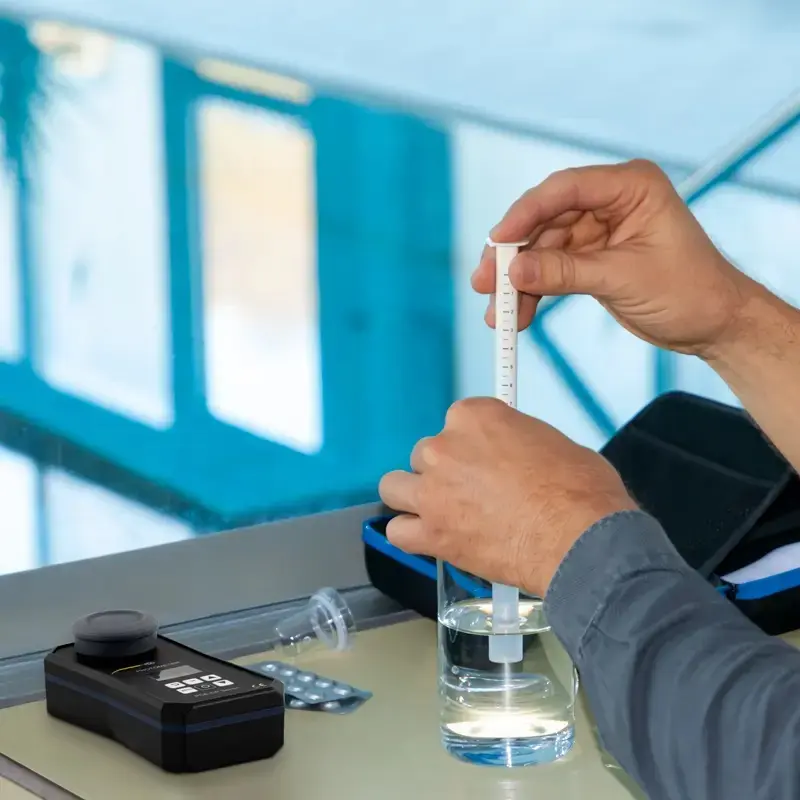

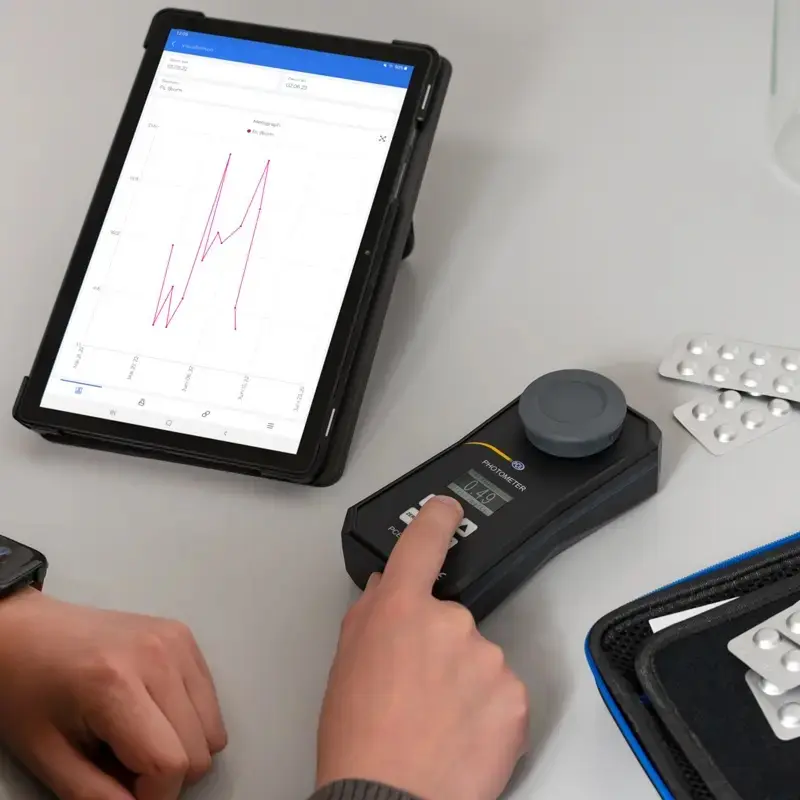

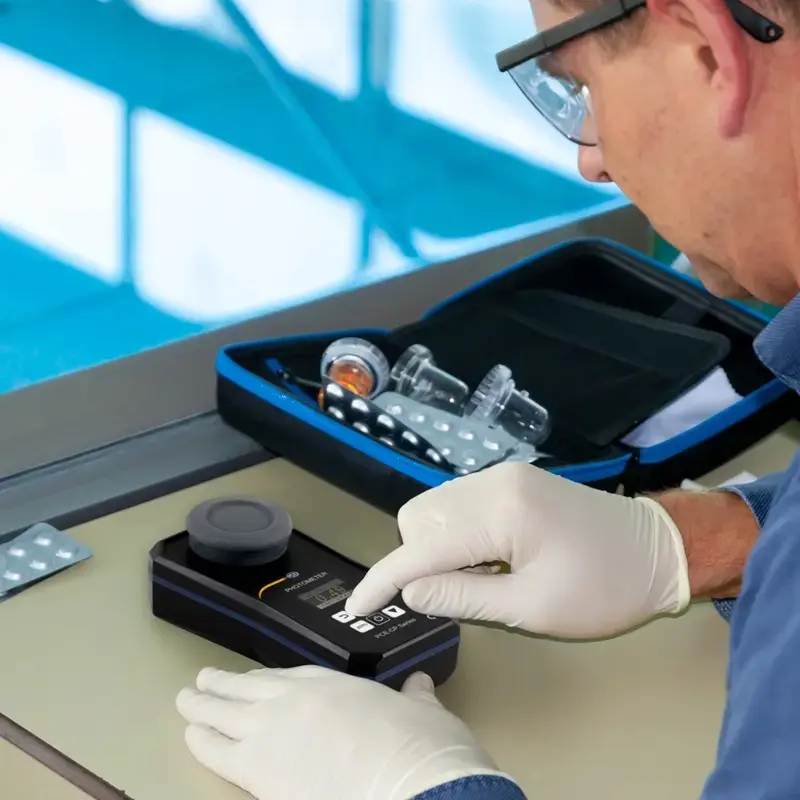

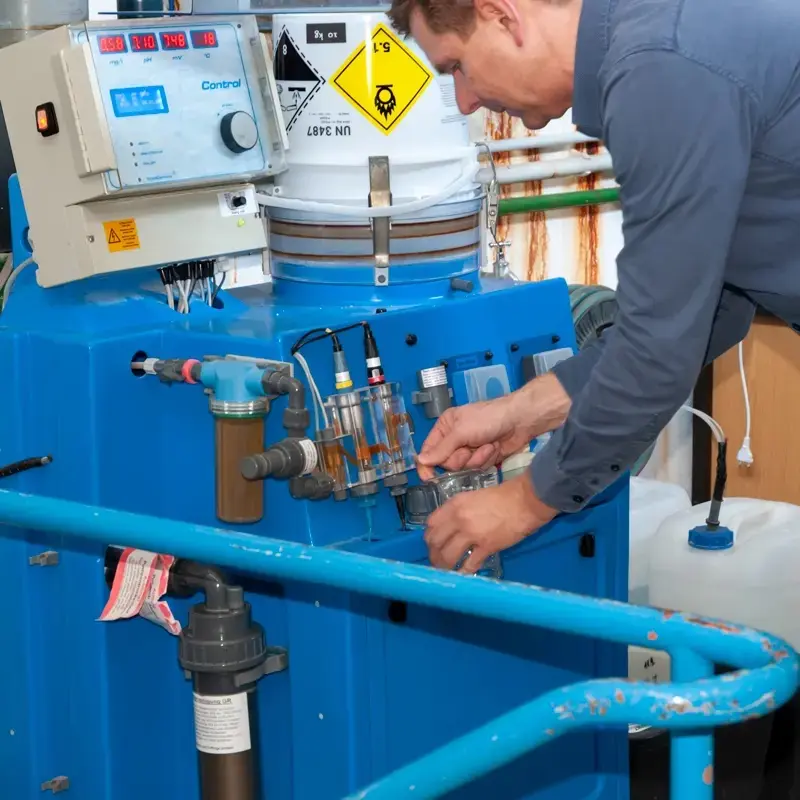

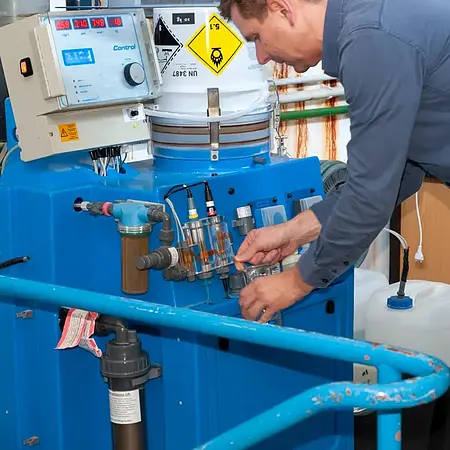

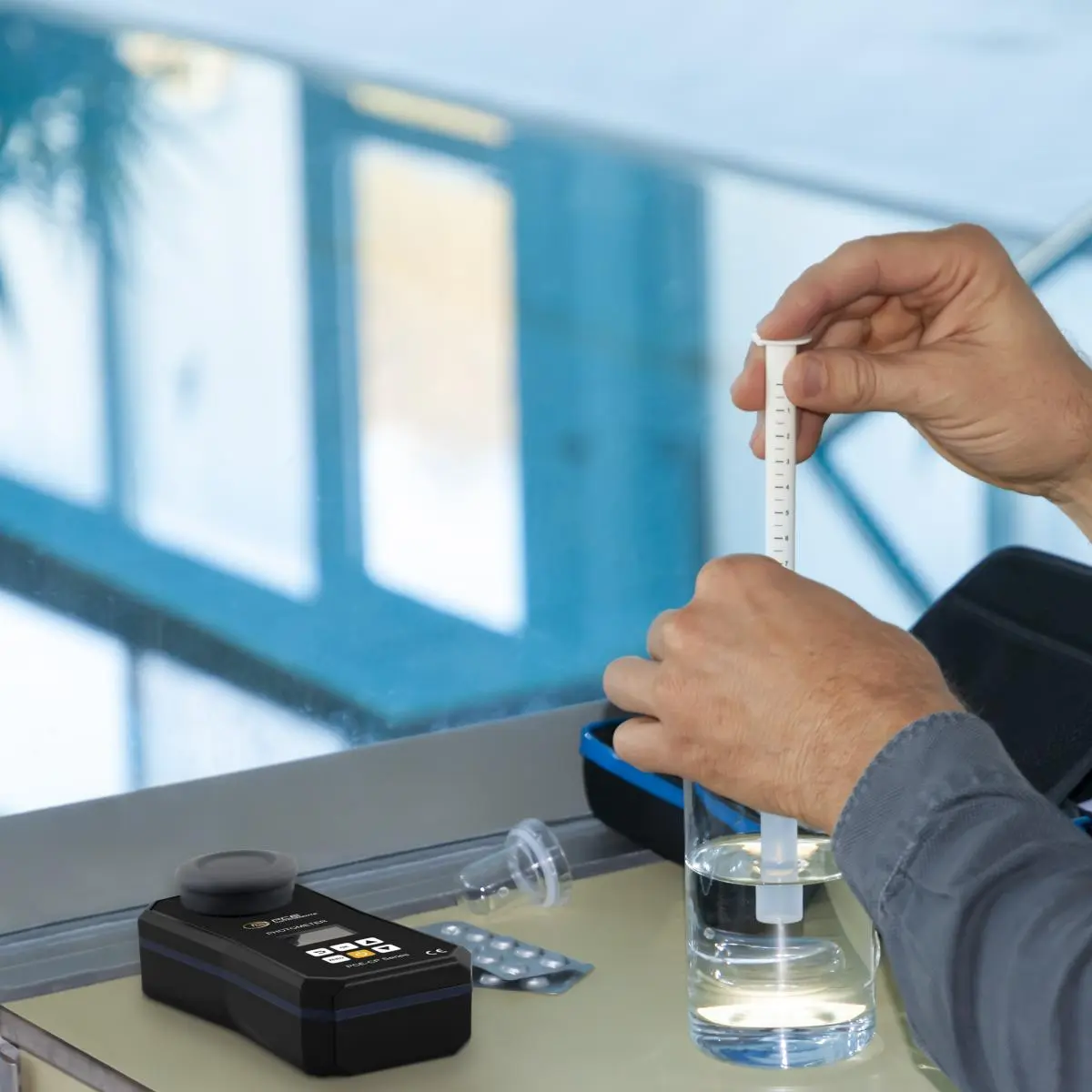

Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Application picture
Water Hardness Meter / Water Hardness Tester Delivery scope

Water Hardness Tester PCE-CP 22

Order no.: PCE-CP 22
GTIN (EAN): 4250348727428
₹59,655.00
₹70,392.90
price ex. (VAT / delivery)
:
4250348727428
PCE-CP 22
Delivery time:1-2 working days

Accessory

Description

Multi-parameter water hardness tester with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

The multi-parameter water hardness tester is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the water hardness tester. With this water hardness tester, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the water hardness tester, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the water hardness tester generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

Each measurement is automatically saved by the multi-parameter water hardness tester. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the water hardness tester. A free app is available to analyze the measured values ​​from the water hardness tester. It is also possible to establish a Bluetooth connection between the water hardness tester and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the water hardness tester, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the water hardness tester is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Ammonia
Measuring range  0 ... 0,12 mg/L
Resolution  0,01 mg/L
Accuracy  0.02 mg/l

Ammonia
Measuring range  0,12 ... 0,25 mg/L
Resolution  0,01 mg/L
Accuracy  0.04 mg/l

Ammonia
Measuring range  0,25 ... 0,57 mg/L
Resolution  0,01 mg/L
Accuracy  0.06 mg/l

Ammonia
Measuring range  0,57 ... 1,21 mg/L
Resolution  0,01 mg/L
Accuracy  0.09 mg/l

Iron
Measuring range  0 ... 0,2 mg/L
Resolution  0,01 mg/L
Accuracy  0.02 mg/l

Iron
Measuring range  0,2 ... 0,6 mg/L
Resolution  0,01 mg/L
Accuracy  0.04 mg/l

Iron
Measuring range  0,6 ... 1 mg/L
Resolution  0,01 mg/L
Accuracy  0.08 mg/l

Urea
Measuring range  0 ... 0,3 mg/L
Resolution  0,01 mg/L
Accuracy  0.05 mg/l

Urea
Measuring range  0,3 ... 0,6 mg/L
Resolution  0,01 mg/L
Accuracy  0.06 mg/l

Urea
Measuring range  0,6 ... 1 mg/L
Resolution  0,01 mg/L
Accuracy  0.09 mg/l

Urea
Measuring range  1 ... 1,5 mg/L
Resolution  0,01 mg/L
Accuracy  0.12 mg/l

Urea
Measuring range  1,5 ... 2,5 mg/L
Resolution  0,01 mg/L
Accuracy  0.19 mg/l

Potassium
Measuring range  0,8 ... 3 mg/L
Resolution  0,1 mg/L
Accuracy  0.3 mg/l

Potassium
Measuring range  3 ... 7 mg/L
Resolution  0,1 mg/L
Accuracy  0.4 mg/l

Potassium
Measuring range  7 ... 10 mg/L
Resolution  0,1 mg/L
Accuracy  0.5 mg/l

Potassium
Measuring range  10 ... 12 mg/L
Resolution  0,1 mg/L
Accuracy  1 mg/l

Copper
Measuring range  0 ... 2 mg/L
Resolution  0,01 mg/L
Accuracy  0.20 mg/l

Copper
Measuring range  2 ... 3 mg/L
Resolution  0,01 mg/L
Accuracy  0.31 mg/l

Copper
Measuring range  3 ... 5 mg/L
Resolution  0,01 mg/L
Accuracy  0.44 mg/l

Nitrate
Measuring range  0 ... 20 mg/L
Resolution  1 mg/L
Accuracy  2 mg/l

Nitrate
Measuring range  20 ... 40 mg/L
Resolution  1 mg/L
Accuracy  4 mg/l

Nitrate
Measuring range  40 ... 60 mg/L
Resolution  1 mg/L
Accuracy  6 mg/l

Nitrate
Measuring range  60 ... 100 mg/L
Resolution  1 mg/L
Accuracy  10 mg/l

Nitrite
Measuring range  0 ... 0,25 mg/L
Resolution  0,01 mg/L
Accuracy  0.02 mg/l

Nitrite
Measuring range  0,25 ... 0,4 mg/L
Resolution  0,01 mg/L
Accuracy  0.06 mg/l

Nitrite
Measuring range  0,4 ... 1,3 mg/L
Resolution  0,01 mg/L
Accuracy  0.09 mg/l

Nitrite
Measuring range  1,3 ... 1,64 mg/L
Resolution  0,01 mg/L
Accuracy  0.12 mg/l

pH
Measuring range  6,5 ... 8,4 pH
Resolution  0,01 pH
Accuracy  0.11 pH

Phosphate
Measuring range  0 ... 0,4 mg/L
Resolution  0,01 mg/L
Accuracy  0.04 mg/l

Phosphate
Measuring range  0,4 ... 1,2 mg/L
Resolution  0,01 mg/L
Accuracy  0.12 mg/l

Phosphate
Measuring range  1,2 ... 2 mg/L
Resolution  0,01 mg/L
Accuracy  0.20 mg/l

General technical data
Display type  LED
Storage medium  Internal memory
Storage capacity  255 Values
Interface  Bluetooth
Sensor  Photodiode
Light source  530 nm / 570 nm / 620 nm LED
Number of calibration points  0
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP21
(Rechargeable) battery  3 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Performance  1,8 Wh
Operating conditions  5 ... 45 °C , 20 ... 90 % RH
Storage conditions  5 ... 45 °C , 20 ... 90 % RH
Dimensions ( L x W x H )  150 x 75 x 52 mm
Other dimensions  Cuvette: 36 x ø 21 mm (10 ml)
Weight  196,5 g

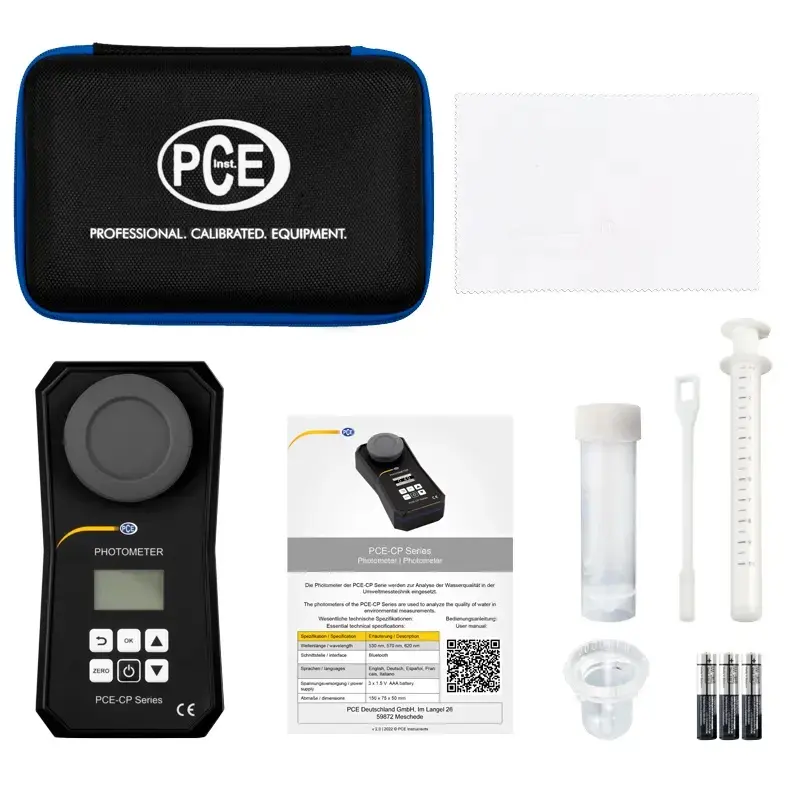

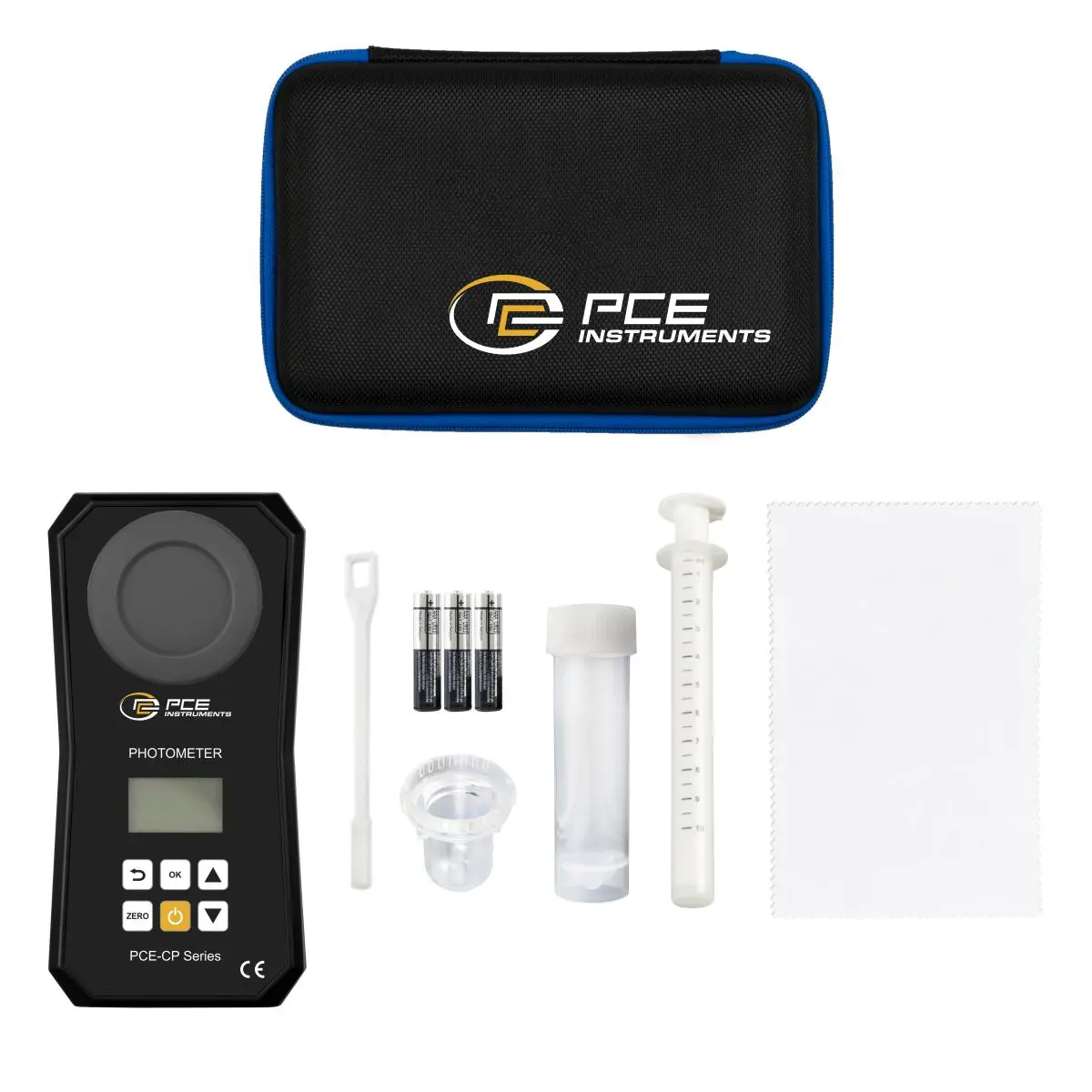

Delivery Scope

1 x Multi-parameter Water Hardness Meter / Water Hardness Tester PCE-CP 22 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 25 ml shaker (for nitrate)
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
