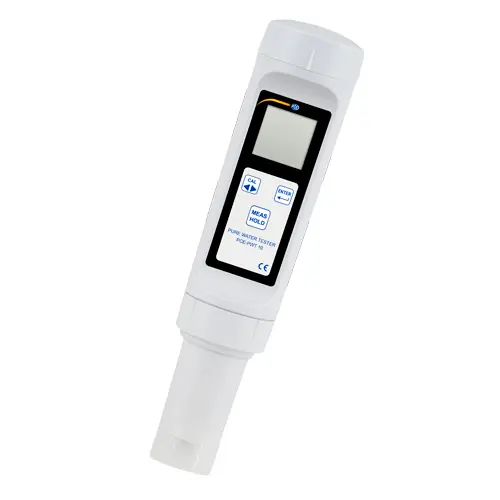

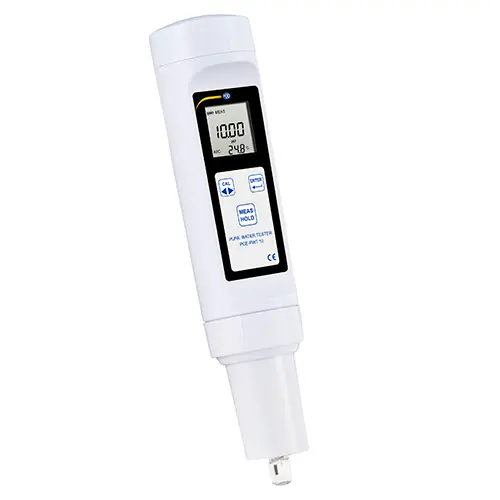

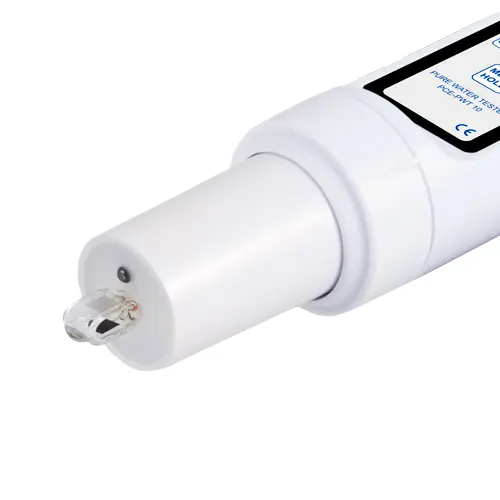

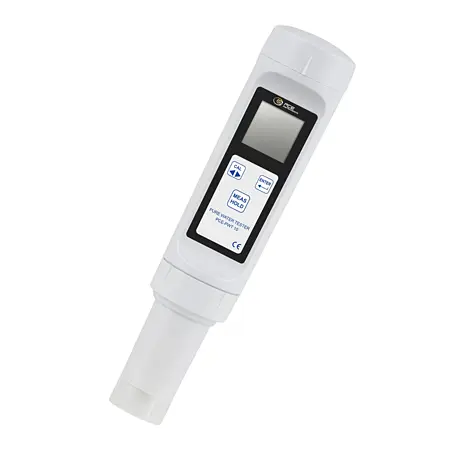

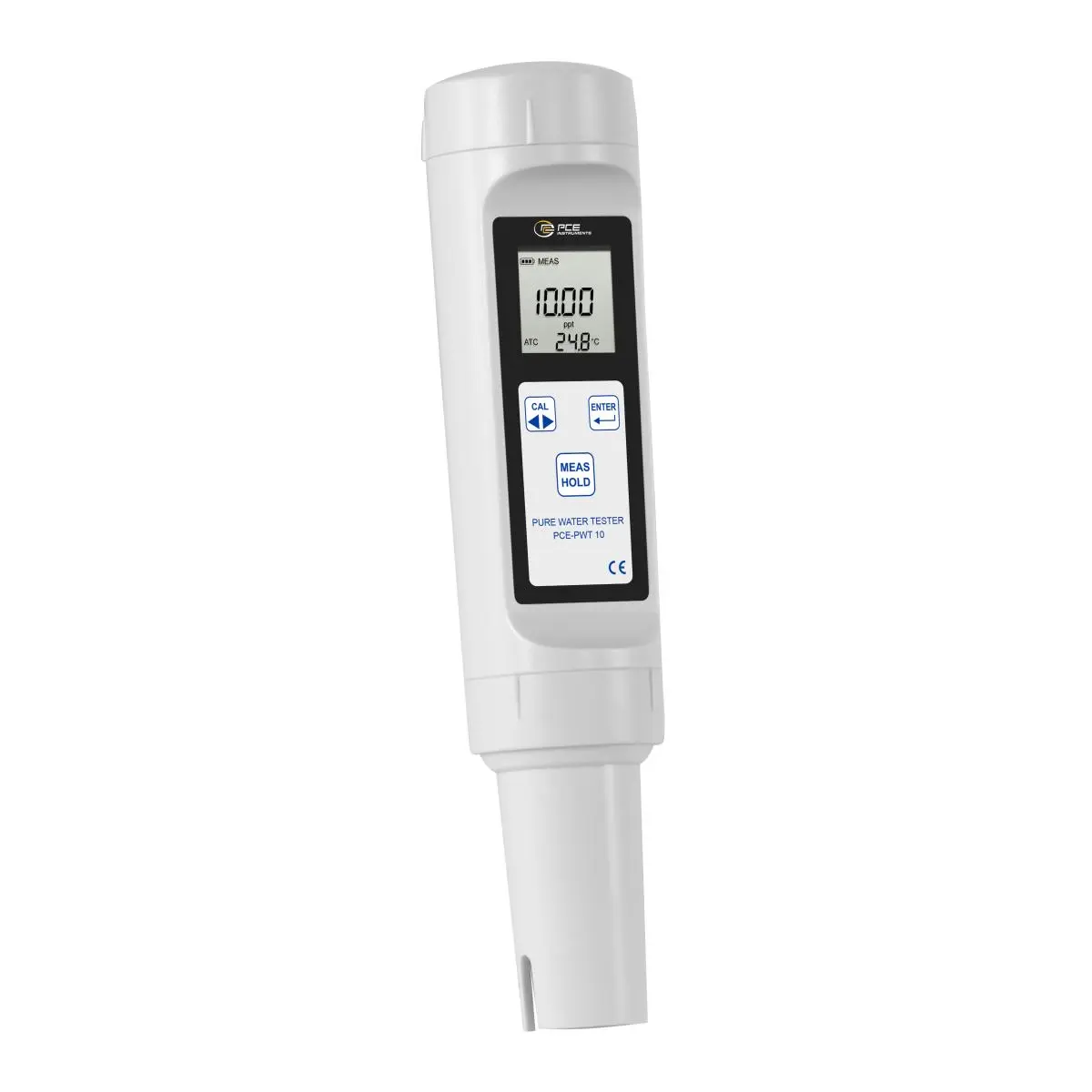

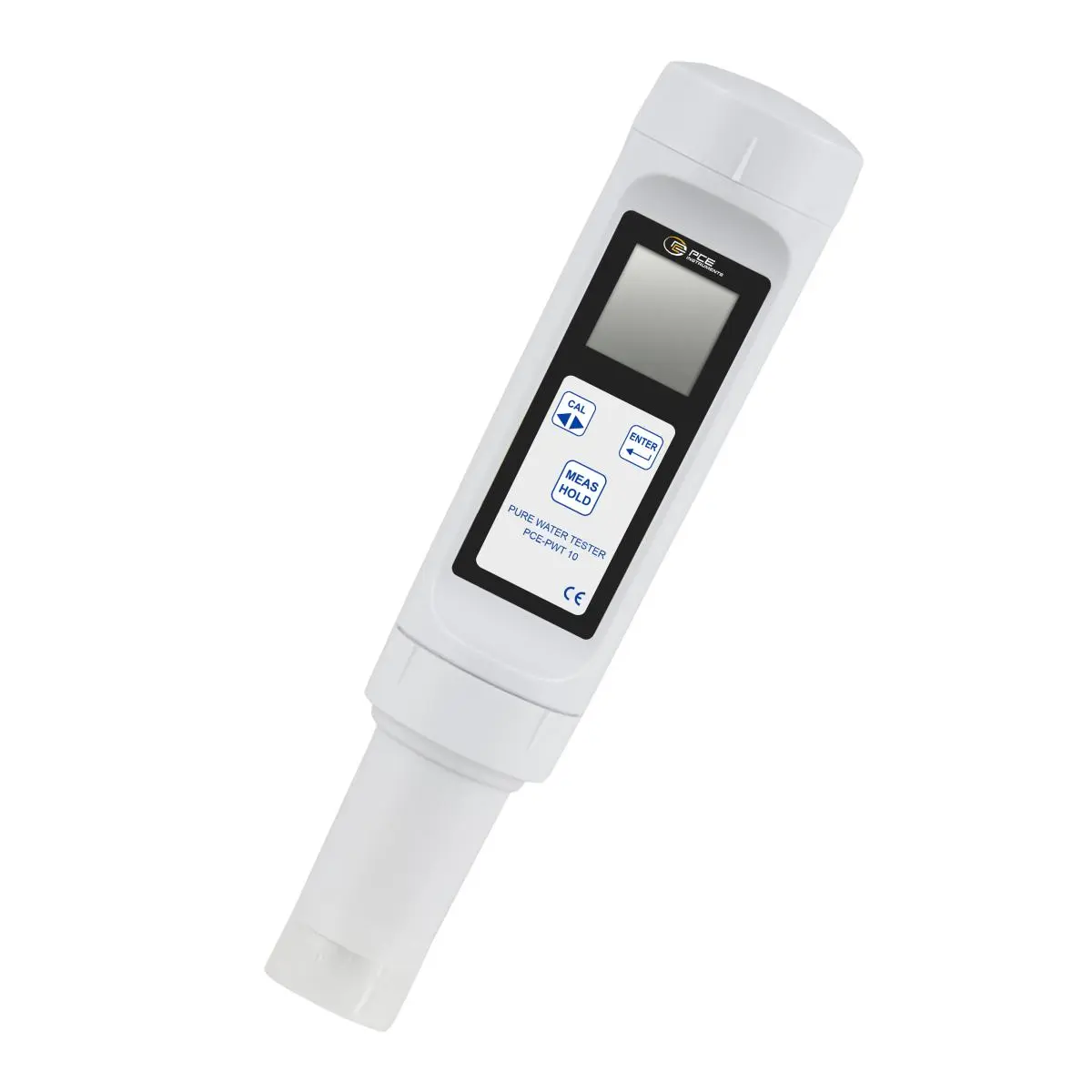

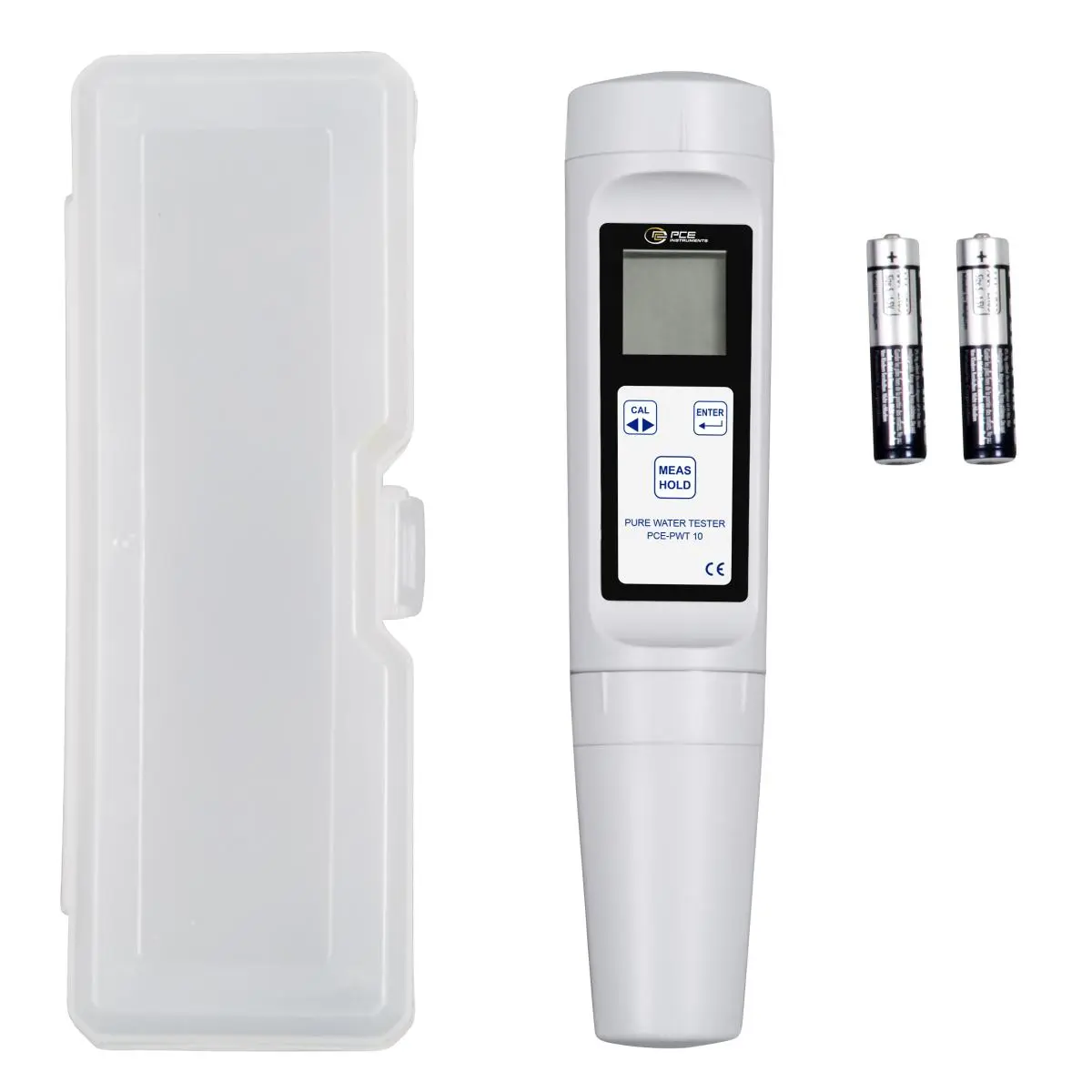

The water analysis meter is a good solution for anyone who wants to check the conductivity of ultrapure water. This water analysis meter is a compact device with an integrated temperature sensor for optimum temperature compensation. Among other things, the water analysis meter has a very low measuring range of only 0 ... 20 μS / cm.
Furthermore, the water analysis meter is able to accurately determine the salinity of liquids. The water analysis meter has an automatic temperature compensation in the range of 0 ... 60 ° C. The calibration of the water analysis meter is carried out via a three-point calibration.
| Conductivity | |
| Measuring range | 0 ... 20 µS/cm |
| Resolution | 0,01 µS/cm |
| Accuracy | ±1% FS |
| Conductivity | |
| Measuring range | 0 ... 200 µS/cm |
| Resolution | 0,1 µS/cm |
| Accuracy | ±1% FS |
| Conductivity | |
| Measuring range | 0 ... 2000 µS/cm |
| Resolution | 1 µS/cm |
| Accuracy | ±1% FS |
| Conductivity | |
| Measuring range | 0 ... 20 mS/cm |
| Accuracy | ±1% FS |

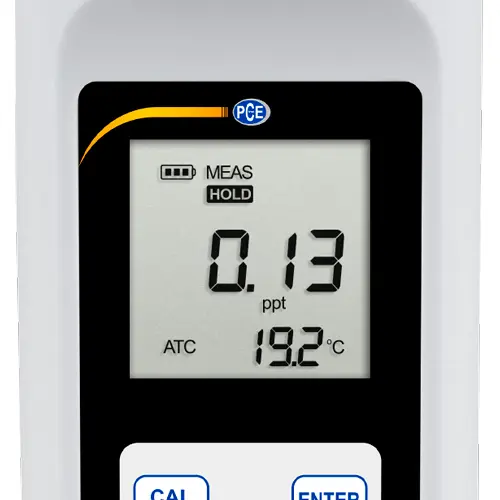

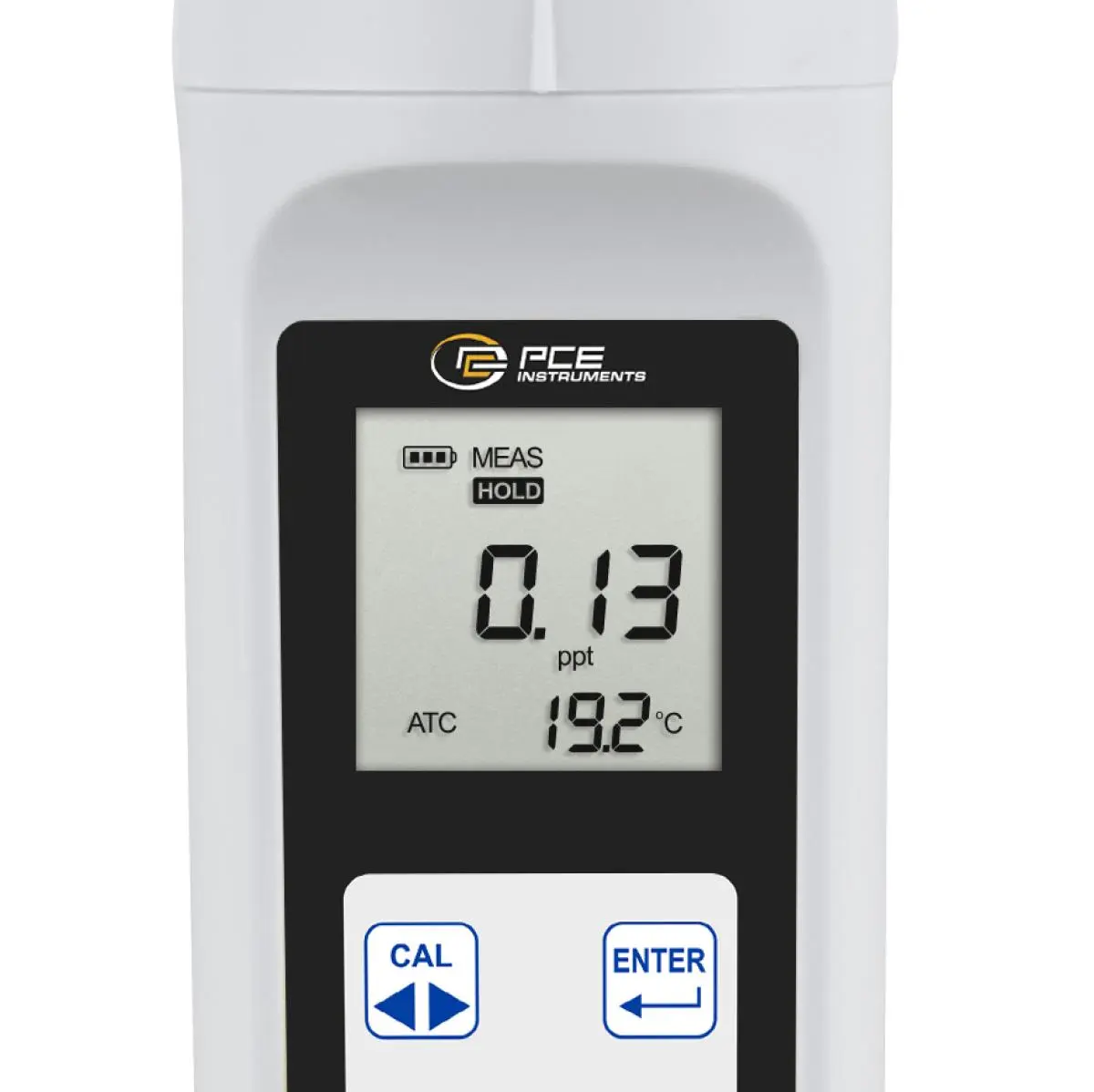

| Salinity | |
| Measuring range | 0 ... 10 ppt |
| Resolution | 0,01 ppt |
| Accuracy | ±1 % FS |
| Temperature | |
| Measuring range | 0 ... 60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Temperature | |
| Measuring range | 32 ... 140 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.8 °F |
| General technical data | |
| Measuring functions | HOLD |
| Temperature compensation | 0 to 60°C / 32 to 140°F, automatically |
| Display type | LCD |
| Display size | 1 Inch |
| Automatic power-off | 8 min |
| Calibration | Temperature: 1 point, measured value ±10°C Conductivity: 1 ... 3 points, with 84 µS/cm / 1413 µS/cm / 12.88 mS/cm |
| Menu language | English, English (GB) |
| Protection class (device) | IP54 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 185 x 40 x 40 mm |
| Weight | 100 g |
