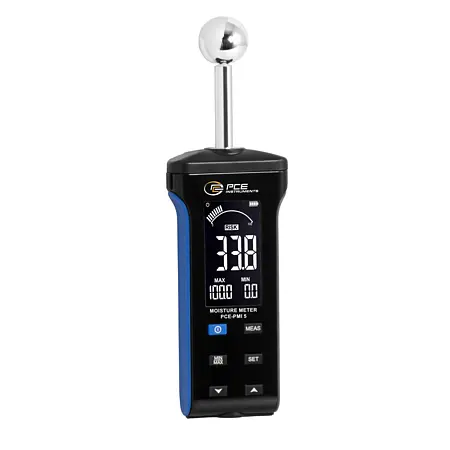

Wall Moisture Meter PCE-PMI 5

Wall Moisture Meter PCE-PMI 5

Order no.: PCE-PMI 5
GTIN (EAN): 4250348738097
1 pc.

Description

Wall Moisture Meter for non-destructive measurement / Illuminated display / MAX-MIN-HOLD / Adjustable limit values / USB-C charging function

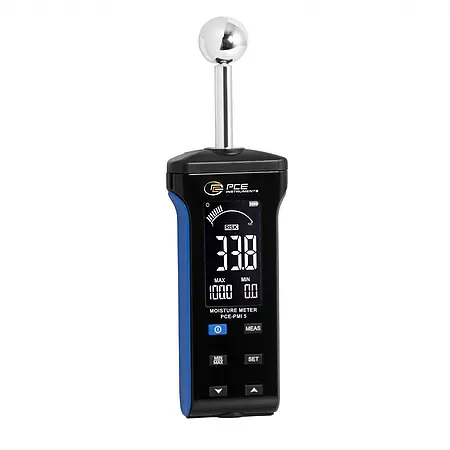

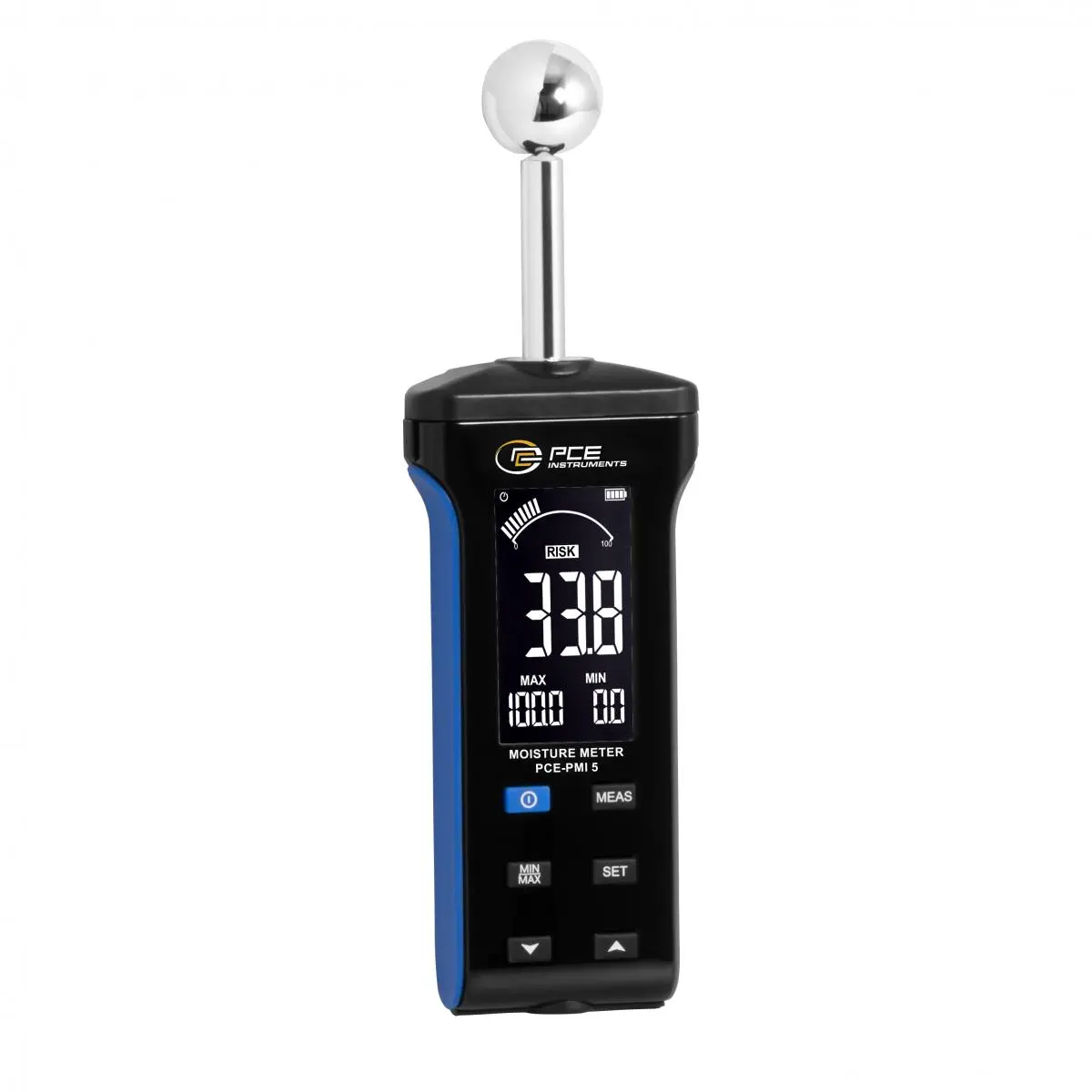

The Wall Moisture Meter is used in various building materials such as concrete, wood, screed, plaster, walls, and other materials and is particularly suitable for construction, renovation, or craft work where the moisture content must be reliably determined. The measuring range of the device is 0 to 100 digits, with a high resolution of 0.1 digits, so that even the smallest changes in moisture can be detected. The Wall Moisture Meter works non-destructively and measures the moisture content at a depth of 20 to 40 mm / 0.8 to 1.6 in without damaging the surface of the material. The measurement results are displayed both numerically and analogously on an easy-to-read 2.4-inch LCD display, the backlighting of which can be switched off if required. For easy evaluation of the moisture content, the Wall Moisture Meter has DRY, RISK, and WET modes, whose limit values can be set individually. It also offers practical measurement functions such as HOLD for holding values and MAX/MIN for recording maximum and minimum values. The integrated capacitive sensor ensures precise measurements, while the automatic switch-off after 30 minutes conserves the lithium battery. Charging is convenient via USB-C.

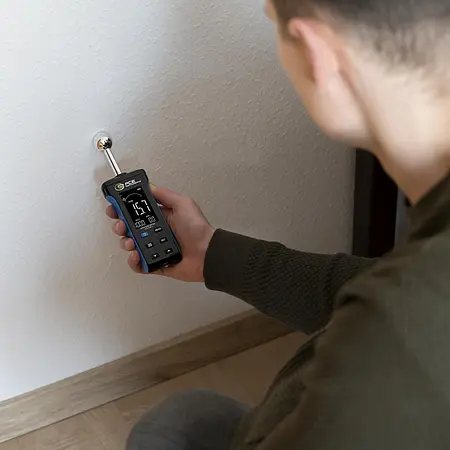

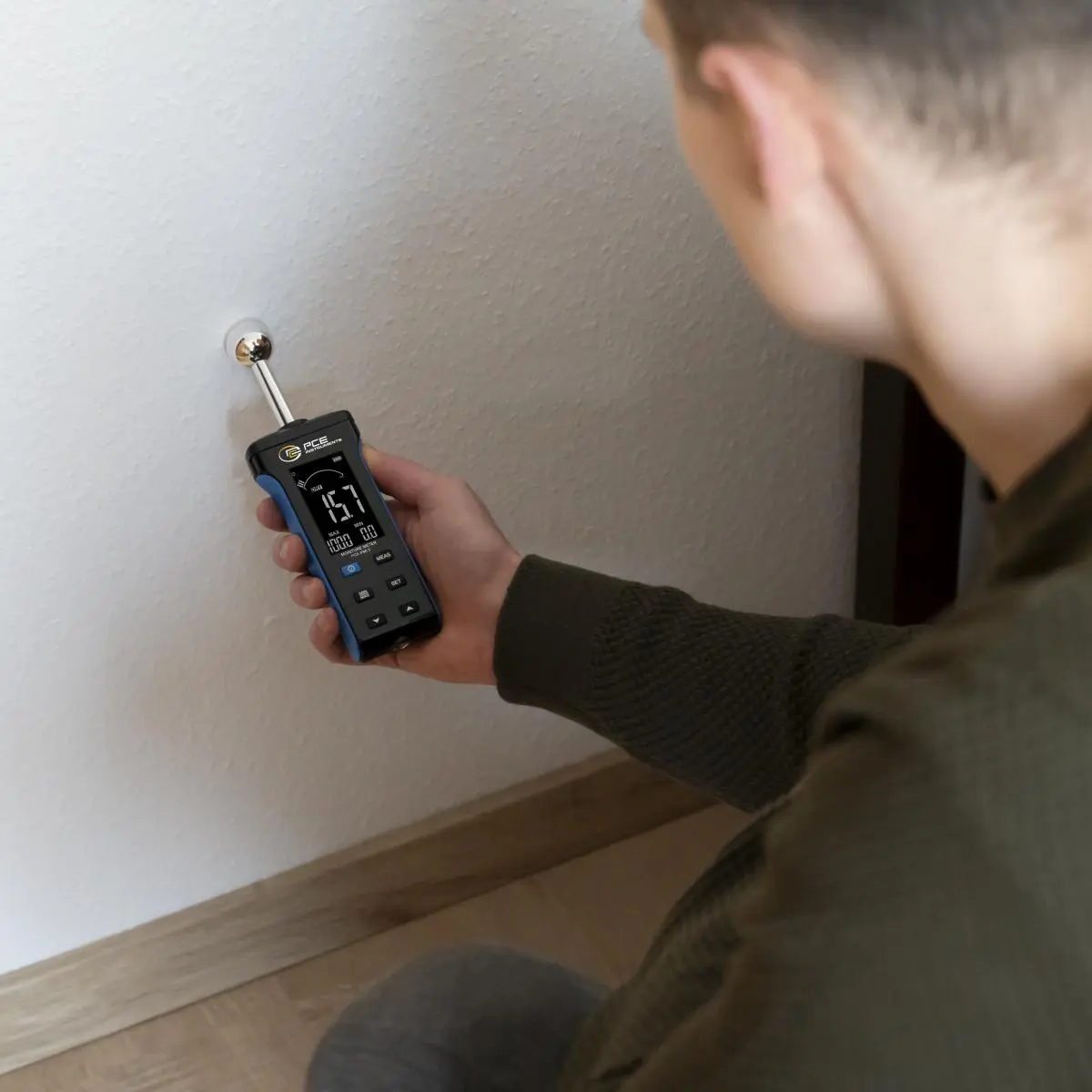

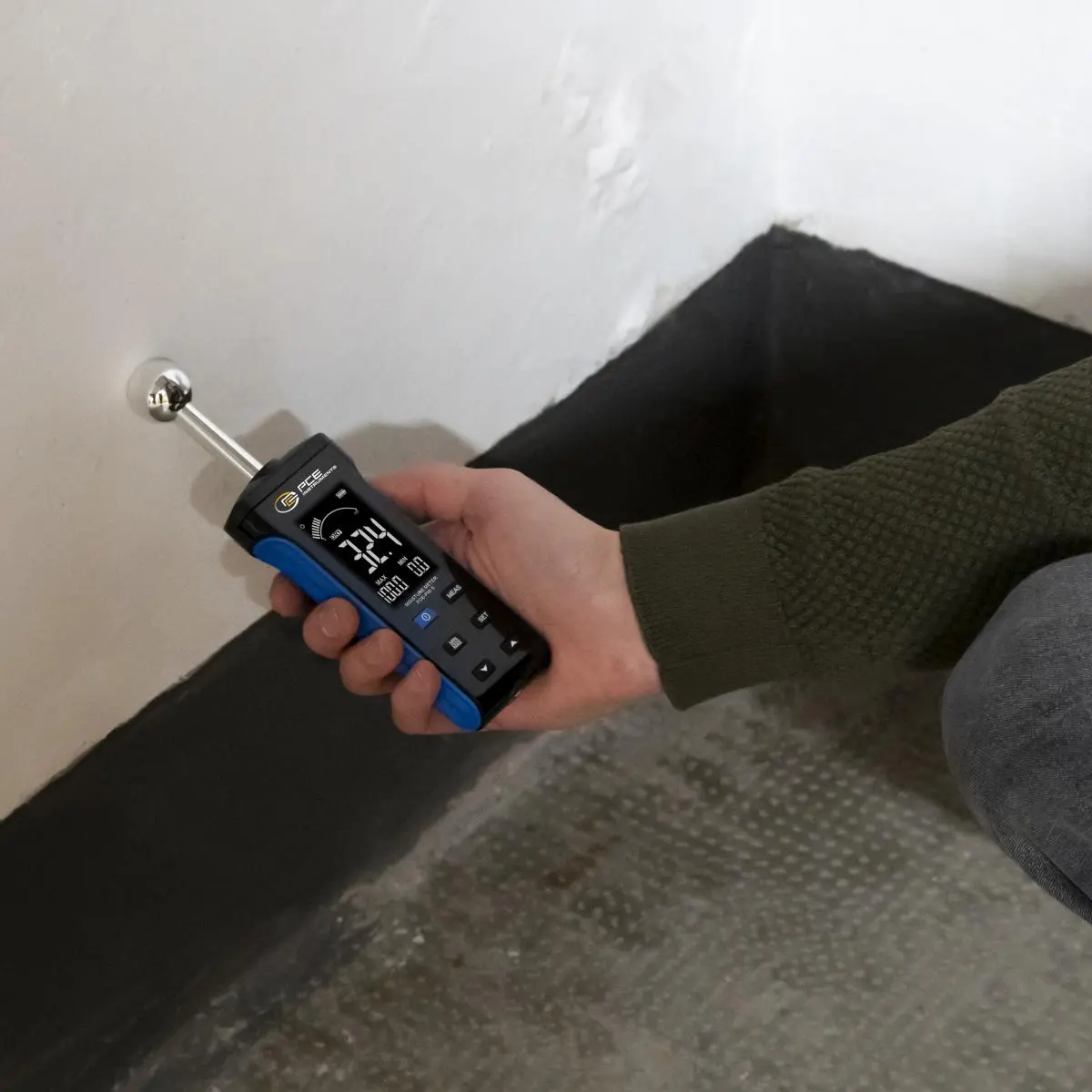

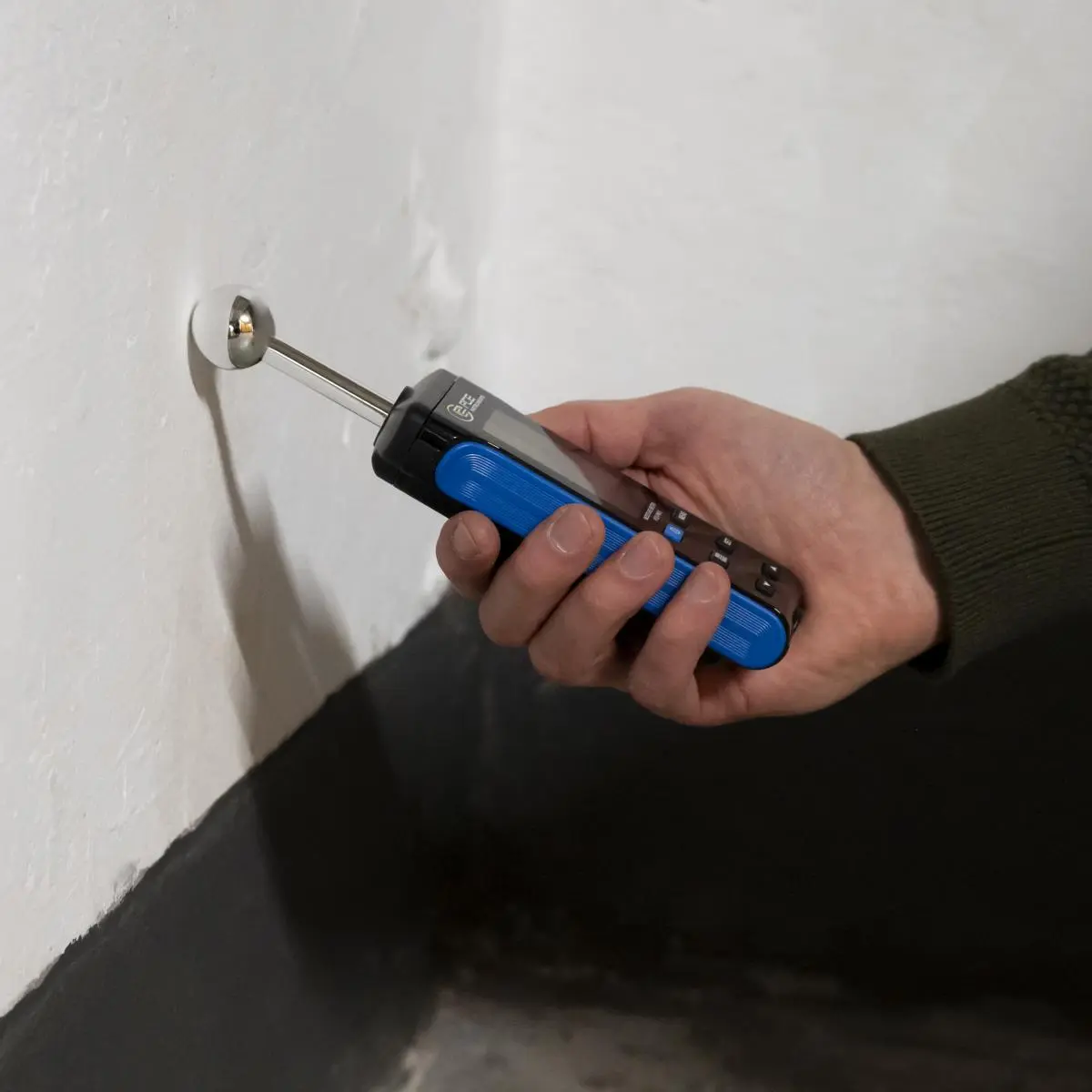

Thanks to its compact design and low weight, the Wall Moisture Meter is ideal for mobile use on construction sites, for construction supervision, or for assessing water damage. Craftsmen, site managers, or renovation specialists can use the device to quickly and reliably determine the moisture content in wood, concrete, screed, plaster, and other building materials. The Wall Moisture Meter thus offers a professional solution for anyone who needs precise, non-destructive moisture measurements.


Highlights

- Non-destructive moisture measurement
- Measurement depth up to 40 mm / 1.6 in
- Adjustable limit values for RISK/WET
- Measurement functions: HOLD, MIN, MAX

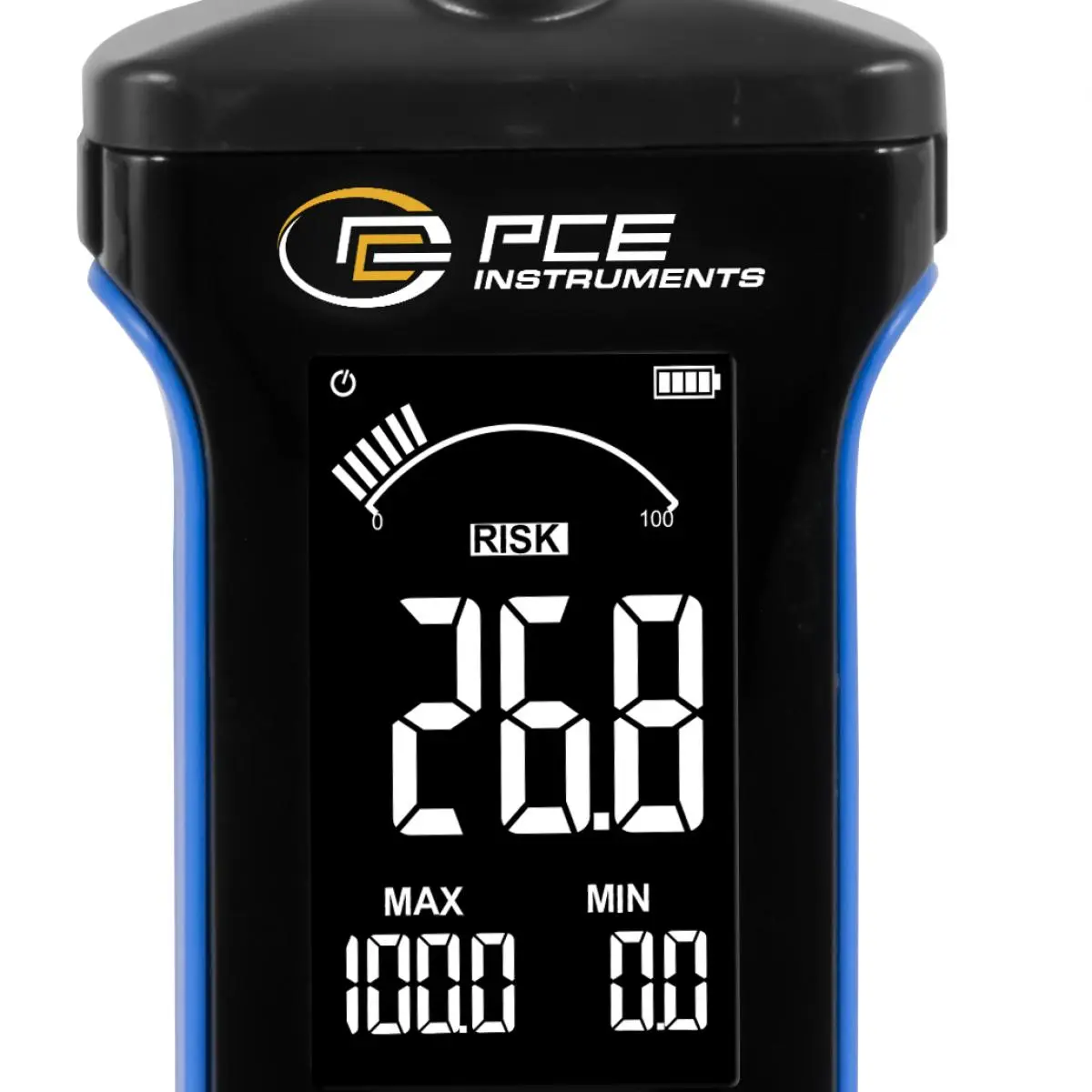

- 2.4-inch LCD display with level indicator
- Backlight can be switched off - Automatic switch-off

Specification

Humidity
Measurement range with  0 ... 100 Digits
Resolution  0,1 Digits

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD with backlight
Display size  2,4 in

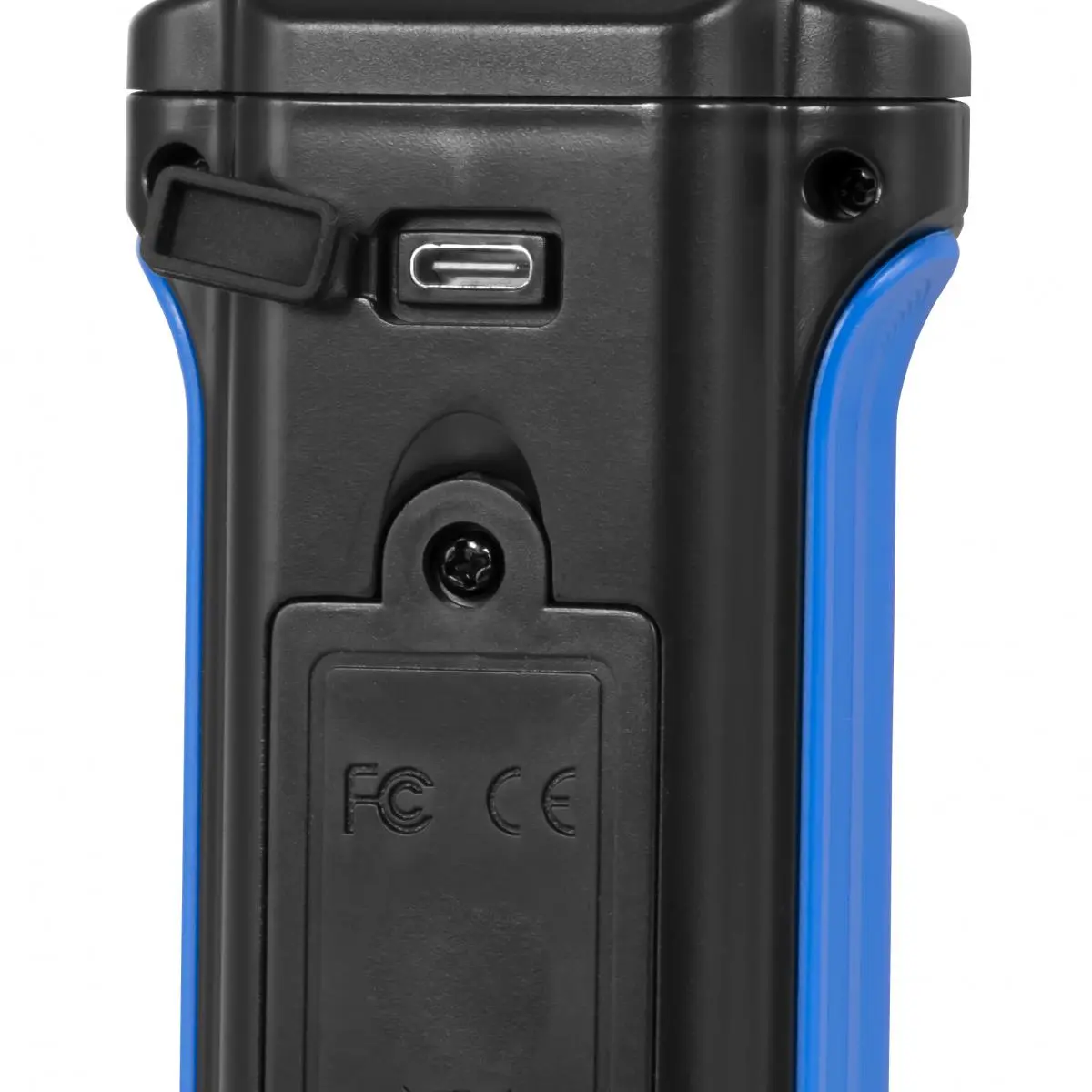

Interface  USB-C

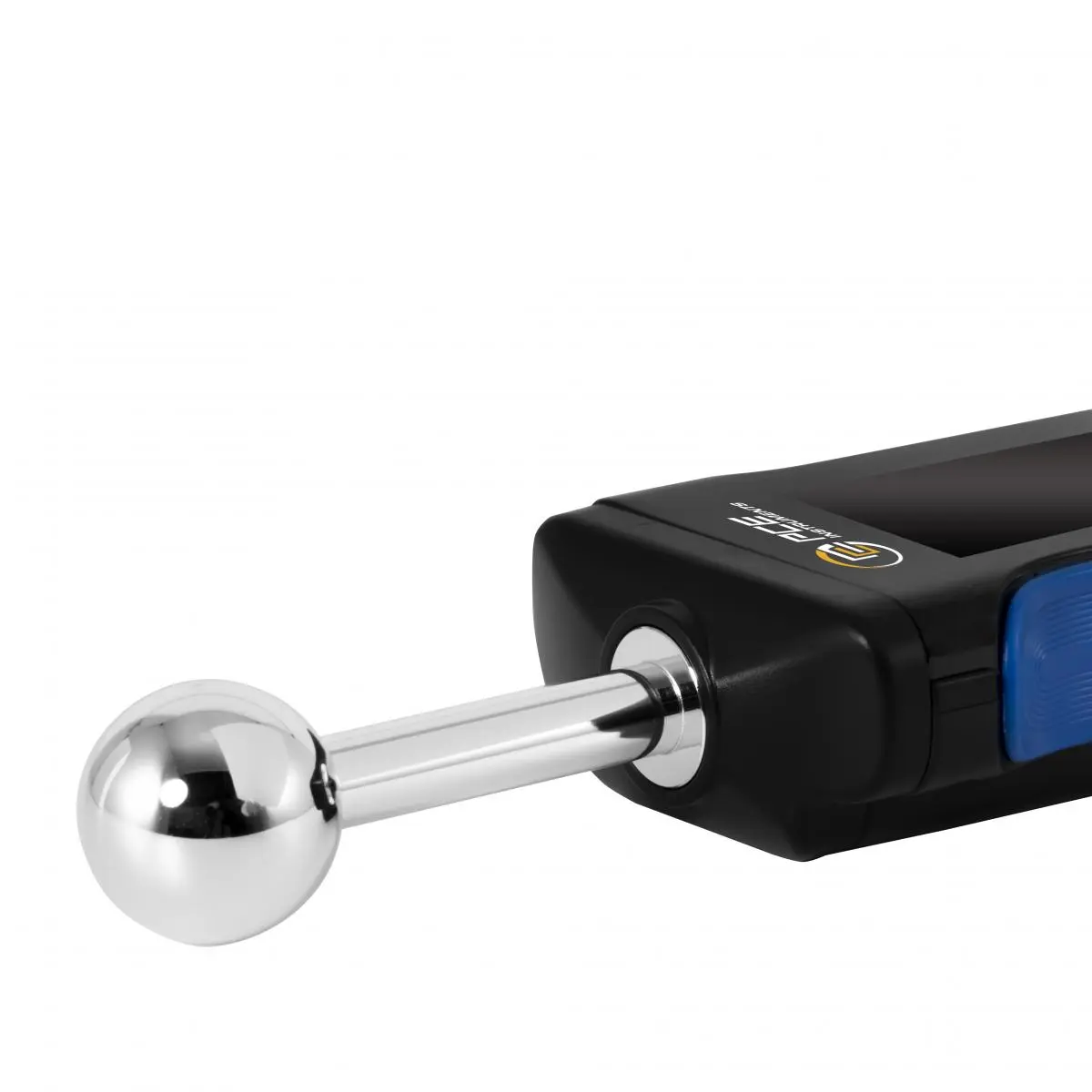

Sensor  Capacitive
Automatic power-off  30 min
Alarm modes  Adjustable acoustic humidity alarm: RISK 0 ... 50% / WET 51 ... 100%
Measuring depth  20 ... 40 mm
Menu language  English, English (GB)
Protection class (device)  IP41
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  400 mAh
Operating conditions  0 ... 40 °C , 0 ... 70 % RH
Storage conditions  -10 ... 50 °C , 5 ... 95 % RH
Dimensions ( L x W x H )  195 x 60 x 30 mm
Weight  156 g

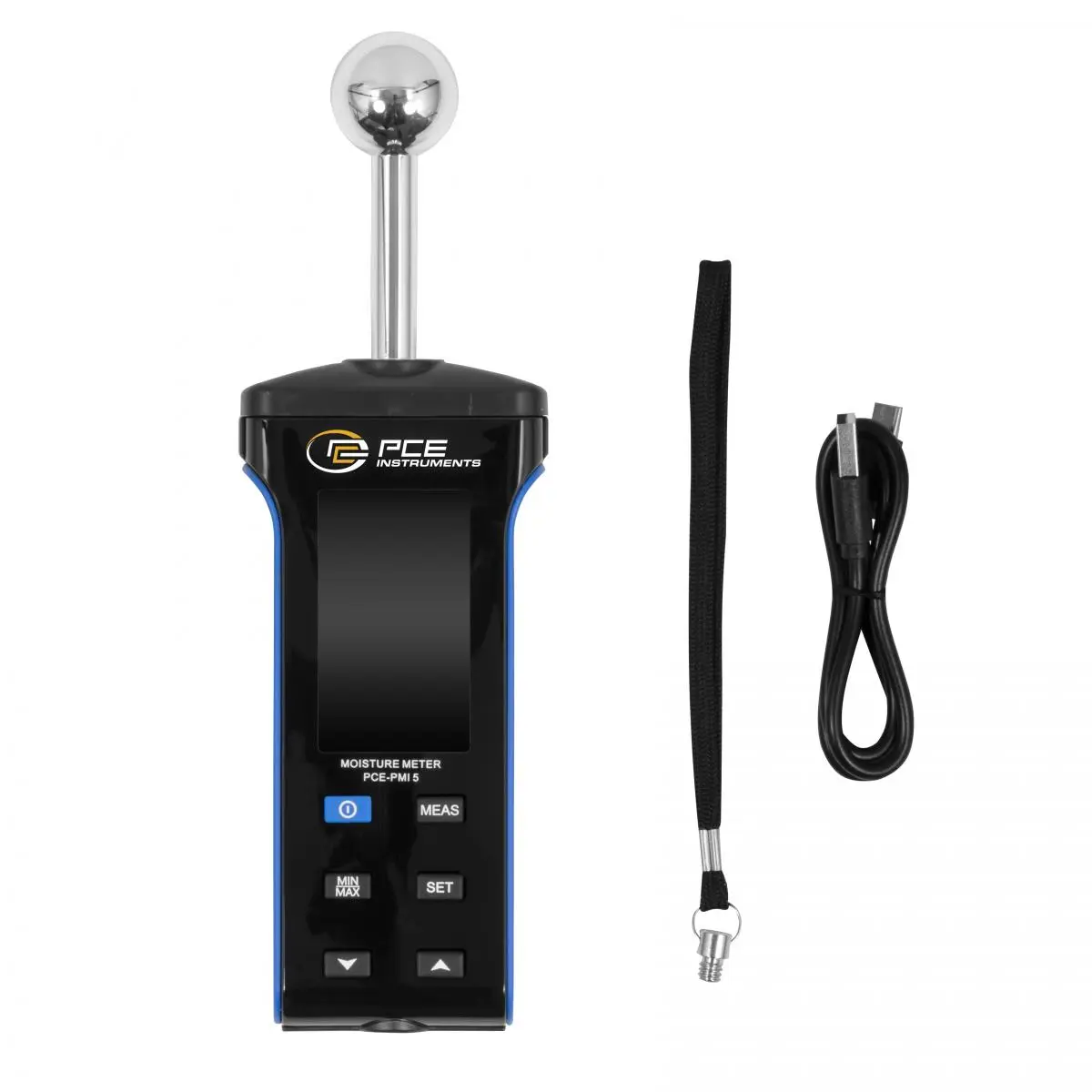

Delivery Scope

1 x PCE-PMI 5 Wall Moisture Meter
1 x Operating instructions
1 x USB-C cable
1 x Device bag
1 x Wrist strap
