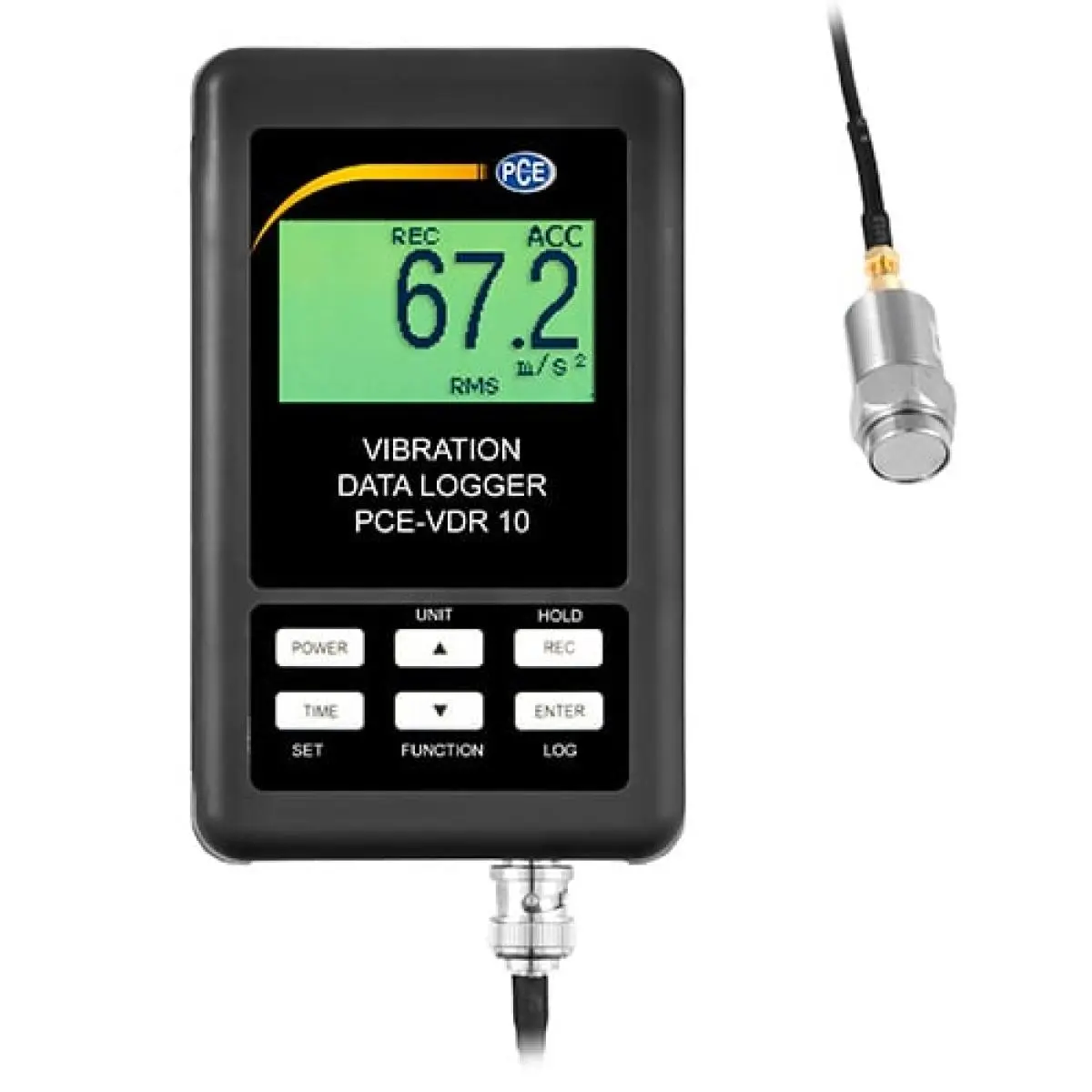

Vibration Meter PCE-VDR 10

Order no.: PCE-VDR 10

GTIN (EAN): 4250348715982

Accessory

Power Supply 9 V / 1 A (European)

₹3,810.00

USB Data Cable Incl. Software SOFT-LUT-USB

₹13,143.00

Power Supply 9 V / 0.8 A (US / North American)

₹2,433.00

Carrying Case with hard foam insert

₹3,963.00

ISO Calibration Certificate CAL-V-I for Vibration Meter

₹33,033.00

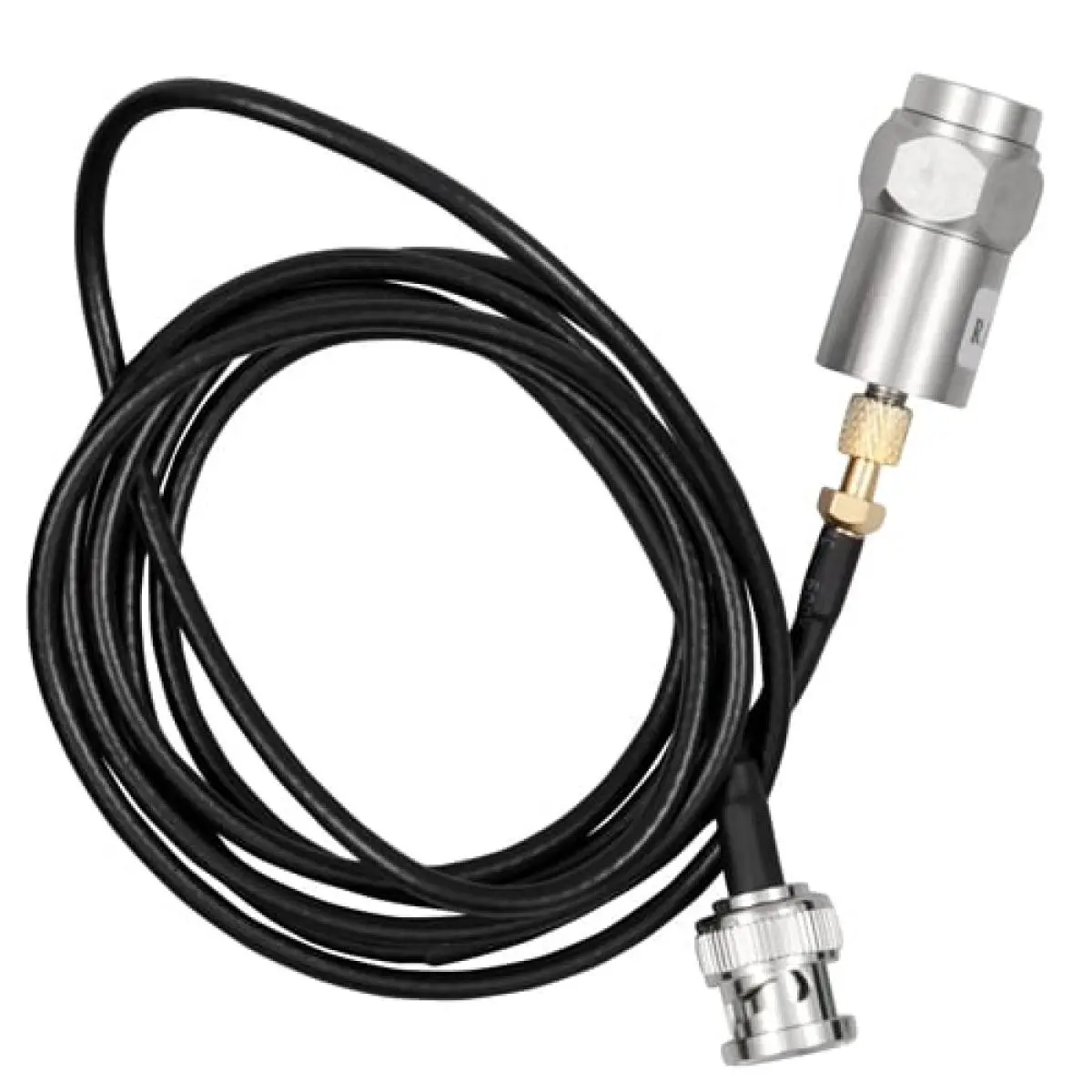

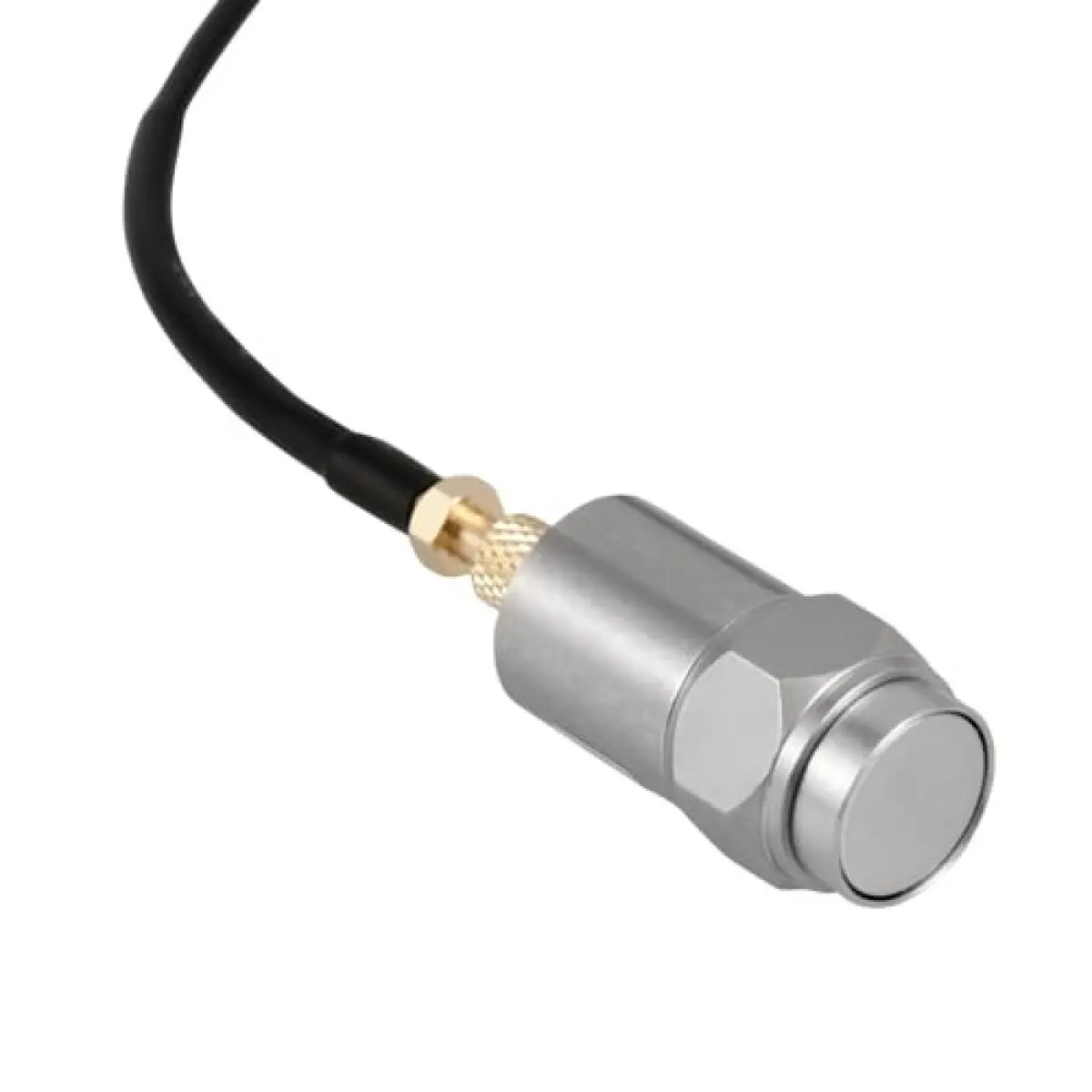

Vibration Sensor Replacement Magnet PCE-VT 204MG

₹7,176.00

Description

PCE-VDR 10 is a single-axis vibration meter or monitor with real-time measurement and data logging capabilities. This vibration analyzer records acceleration (m/s, g, ft/s) as well as speed (mm/s, cm/s, in/s) measurements and saves the measured data to an included SD card memory.

Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power (AC power supply NET-LUT or NET-LUT-US sold separately - see accessories tab).

Highlights

- Measures acceleration (m/s, g, ft/s) and speed (mm/s, cm/s, in/s)

- Adjustable automatic data logging

- SD card memory

- RS-232 and USB interface

- Data can be downloaded to a computer and analyzed using Microsoft Excel

- Backlit LCD screen

- Portable

Specification

Acceleration
Measuring range	0,5 ... 199,9 m/s²
Resolution	0,1 m/s²
Accuracy	±(5% of measured value +2 digits)
Frequency range	10 Hz ... 1 kHz

Acceleration
Measuring range	0,05 ... 20,39 g
Resolution	0,01 g
Accuracy	±(5% of measured value +2 digits)

Acceleration
Measuring range	2 ... 656 ft/s²
Resolution	1 ft/s²
Accuracy	±(5% of measured value +2 digits)

Speed
Measuring range	0,5 ... 199,9 mm/s
Resolution	0.1 mm/s
Accuracy	±(5% of measured value +2 digits)
Frequency range	10 Hz ... 1 kHz

Speed
Measuring range	0,05 ... 19,99 cm/s
Resolution	0.01 cm/s
Accuracy	±(5% of measured value +2 digits)

Speed
Measuring range	0,02 ... 7,87 inch/s
Resolution	1 inch/s
Accuracy	±(5% of measured value +2 digits)

General technical data

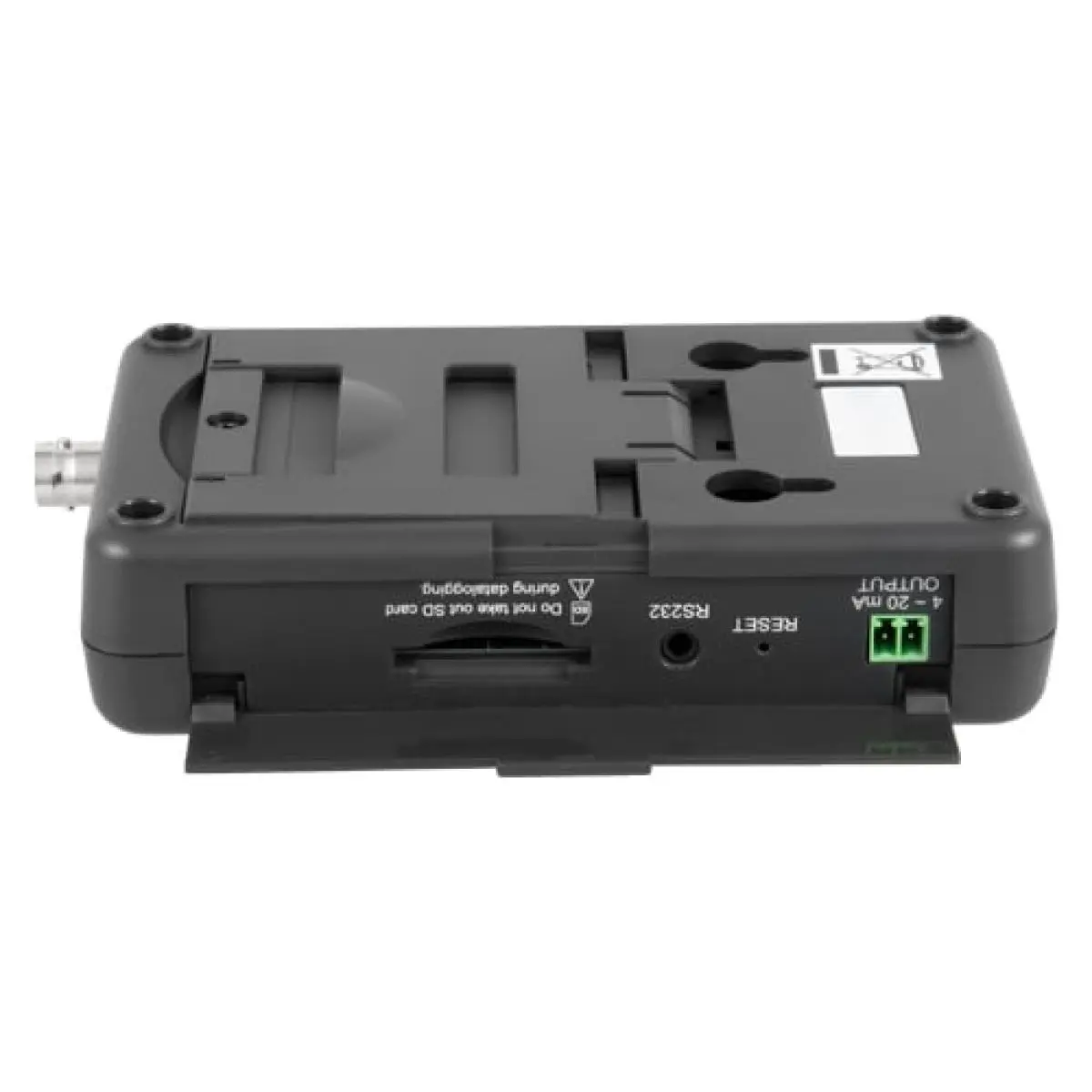

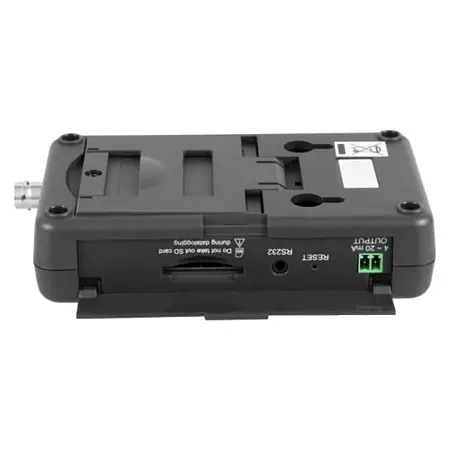

Outputs	4 ... 20 mA

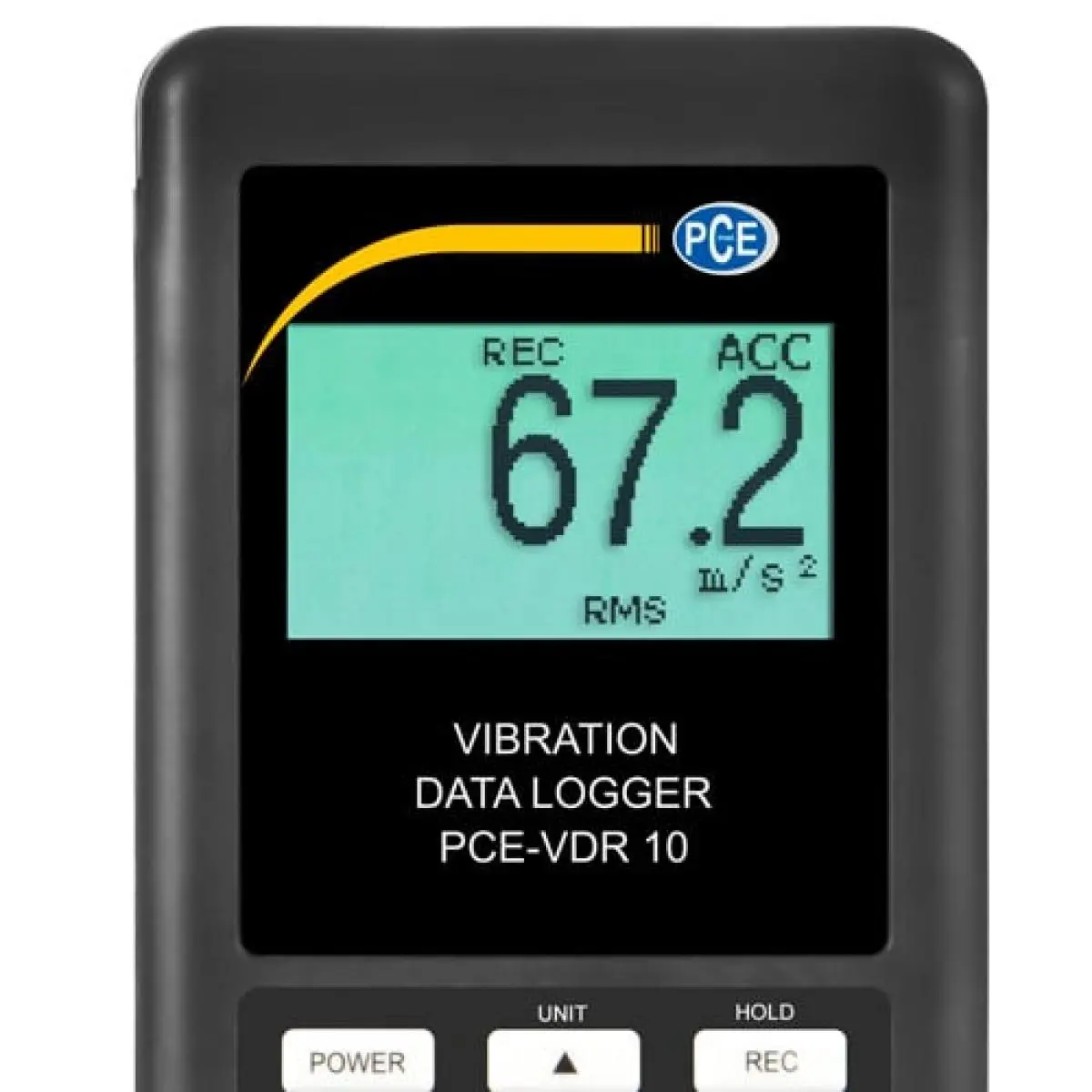

Display type	LCD with backlight
Display size	2,46 Inch
Display refresh rate	1 x per second
Storage medium	SD card
Storage interval from	5 s
Storage interval to	3600 s

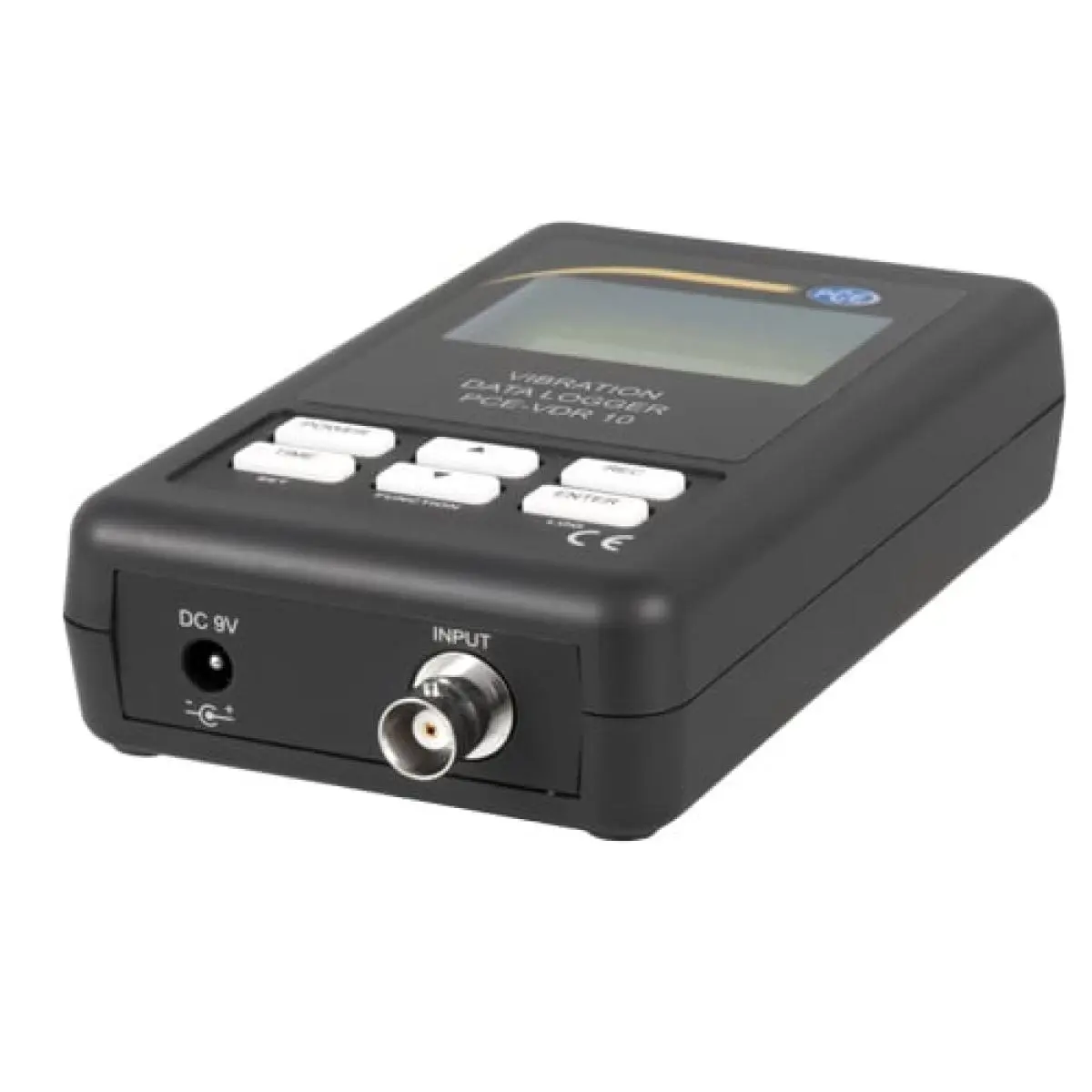

Interface	USB, RS232
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	Batteries Power supply: 9V DC
(Rechargeable) battery	6 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	132 x 80 x 32 mm
Weight	199 g
