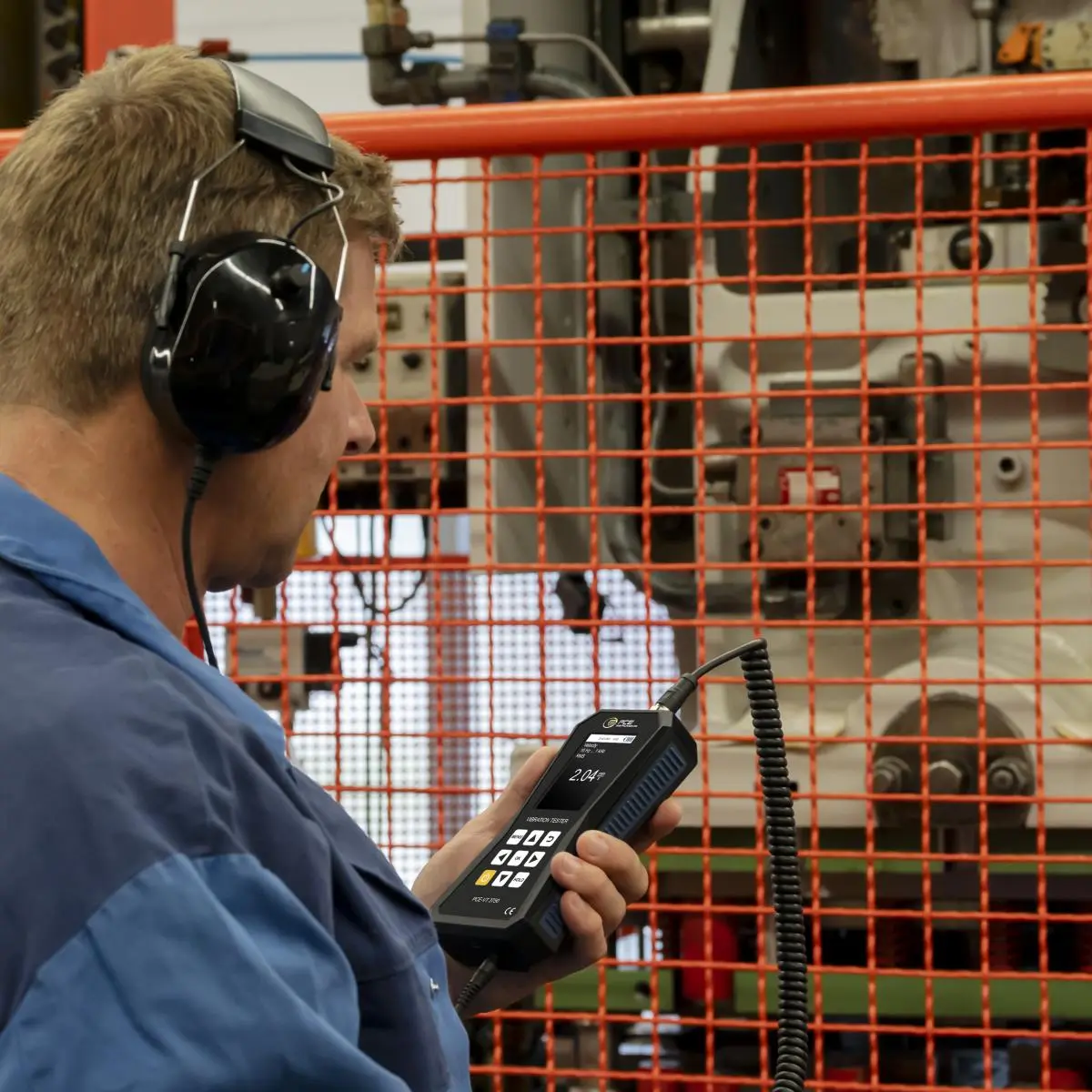

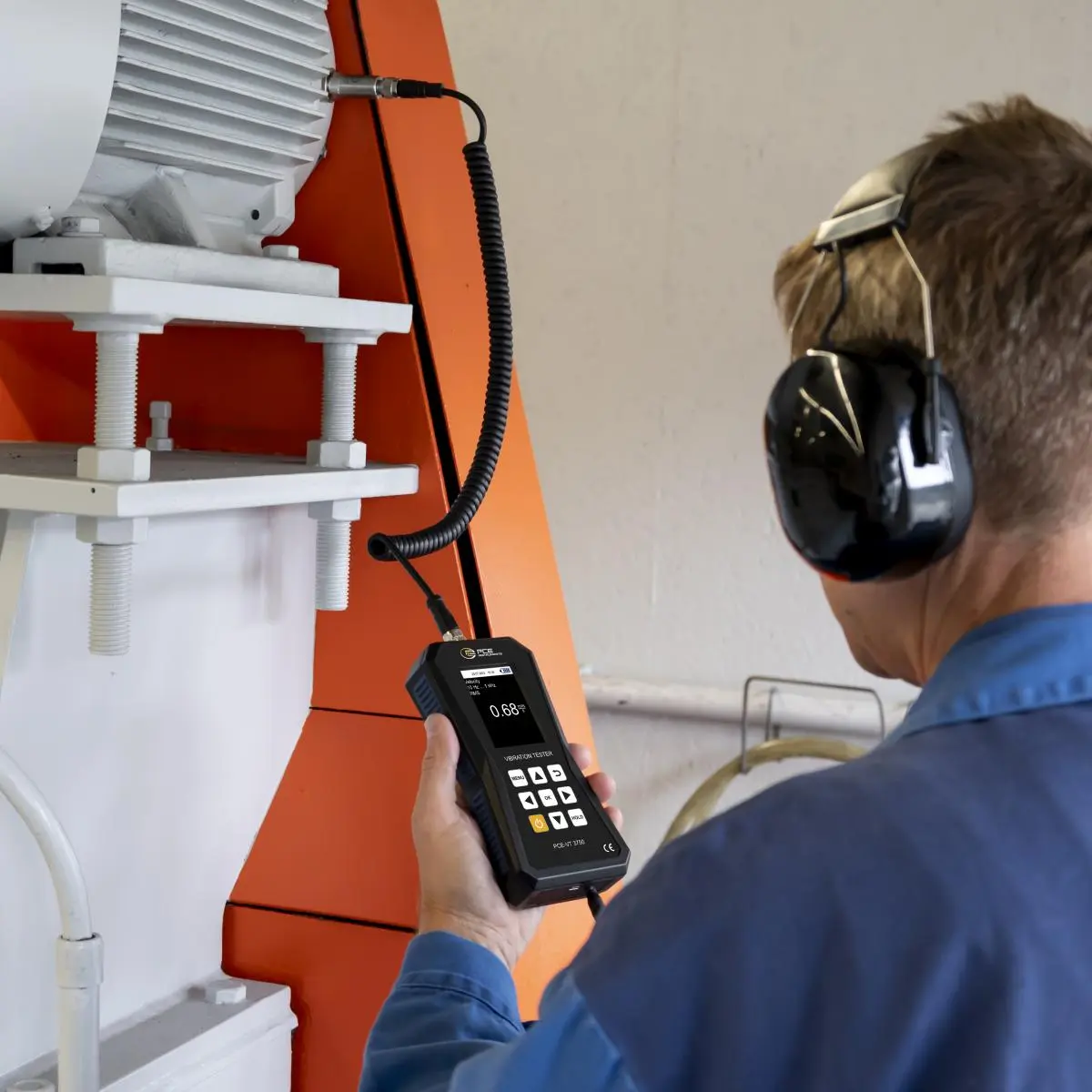

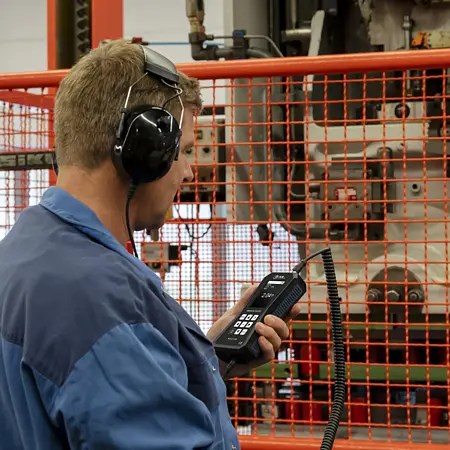

The Vibration Meter / Vibration Tester is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This Vibration Meter / Vibration Tester shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances, which can lead to, for example, bearing damage. The Vibration Meter / Vibration Tester is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The Vibration Meter / Vibration Tester analyzes the measured values and automatically shows a good / bad evaluation on the display.

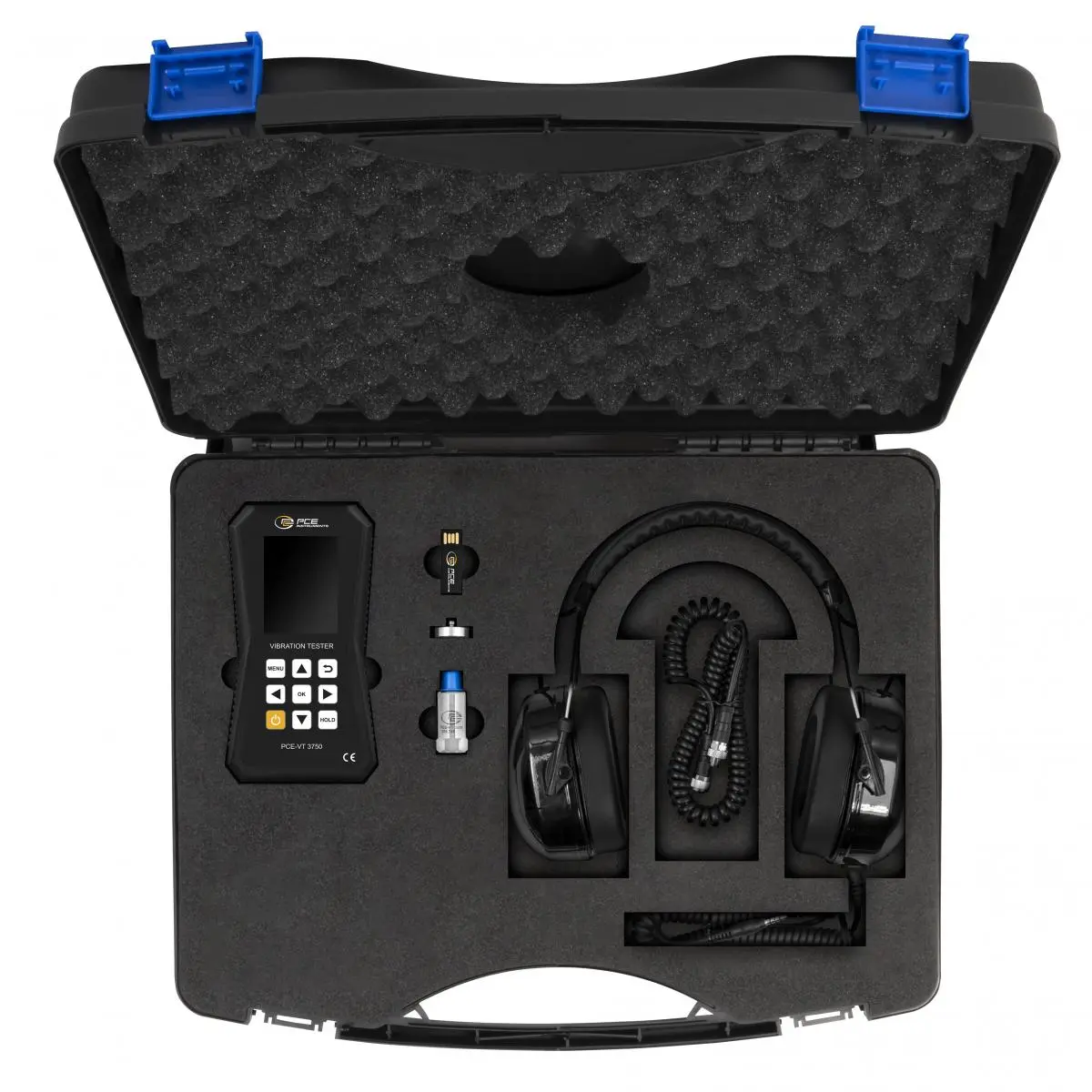

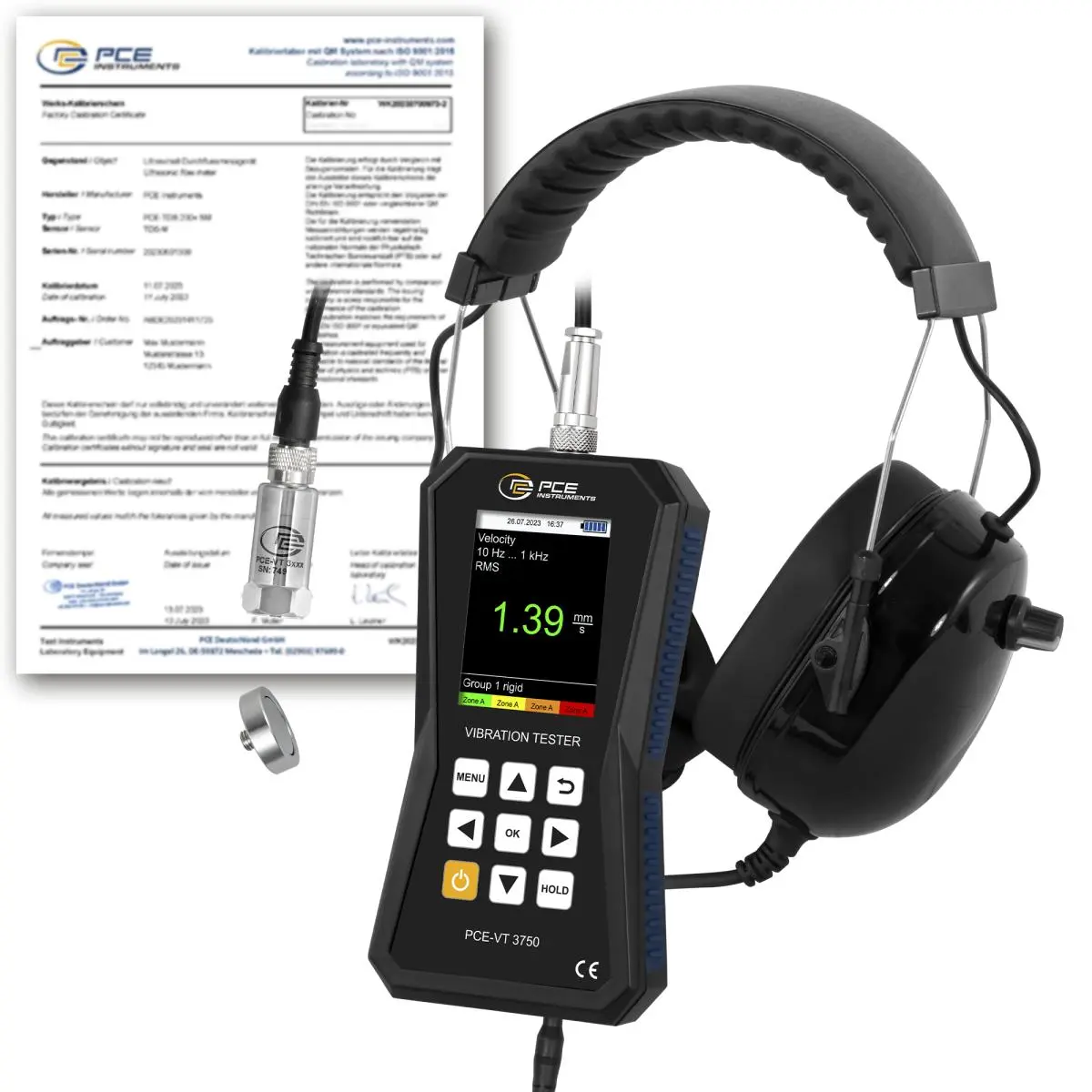

The Vibration Meter / Vibration Tester is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the Vibration Meter / Vibration Tester is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the Vibration Meter / Vibration Tester are easily switchable.
| Acceleration | |
| Measuring range | 0 ... 399,9 m/s² |
| Resolution | 0,1 m/s² |
| Accuracy | ±2% @160 Hz |
| Frequency range | 1 kHz ... 10 kHz 10 Hz ... 10 kHz |
| Speed | |
| Measuring range | 0 ... 399,9 mm/s |
| Resolution | 0.1 mm/s |
| Accuracy | ±2% @160 Hz |
| Frequency range | 10 Hz ... 1 kHz |
| Path | |
| Measuring range | 0 ... 3,9 mm |
| Resolution | 1 µm |
| Accuracy | ±2% @160 Hz |
| Frequency range | 10 Hz ... 200 Hz |
| Sensor | |
| Designation | PCE-VT 3xxx SENSOR |
| Additional description | Resonance frequency: 24 kHz Cross sensitivity: Δ 5% Destruction limit: 5000 g (peak) Housing material: stainless steel Mounting thread: ¼ - 28 UNF |
| Dimension | Ø 29 x 81 mm |
| General technical data | |
| Number of measuring channels | 1 |
| Measuring functions | RMS, peak, Peak-peak, Crest factor |
| Frequency | 10 ... 10000 Hz |
| Display type | LCD |
| Display size | 2,8 in |
| Menu language | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Protection class (device) | IP52 |
| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -20 ... 65 °C , 10 ... 95 % RH |
| Storage conditions | -20 ... 65 °C , 10 ... 95 % RH |
| Dimensions ( L x W x H ) | 165 x 85 x 32 mm |
| Other dimensions | Vibration sensor Ø17 x 46 mm Headphone connection 3.5 mm jack |
| Weight | 239 g |
| Other weights | Vibration sensor 52 g |
