Human Vibration Analyzer with Hand-Arm and Whole-Body Sensors PCE-VM 31-HAWB

Order no.: PCE-VM 31-HAWB

GTIN (EAN): 4250348714466

Accessory

ISO 8041 Calibration Certificate CAL-VM31-WB

₹89,031.00

ISO 8041 Calibration Certificate CAL-VM31-HA

₹89,031.00

ISO 8041 Calibration Certificate CAL-VM31-HAWB

₹177,924.00

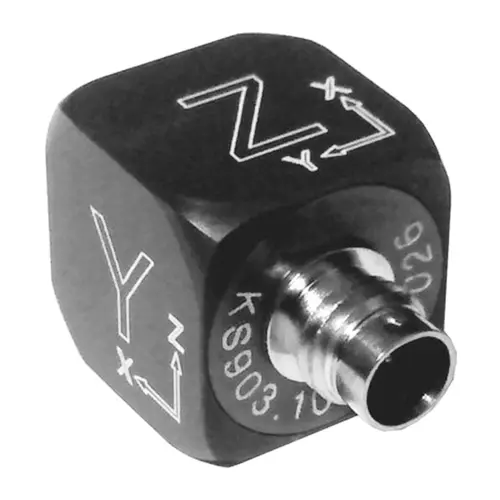

Hand-Arm Acceleration Sensor KS903.10

₹145,488.00

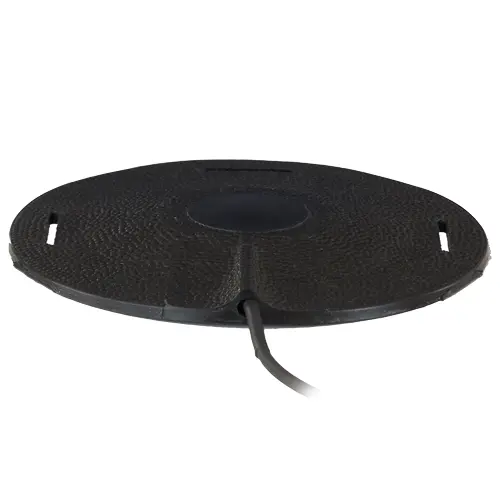

Whole-Body Acceleration Sensor KB103SVD

₹229,638.00

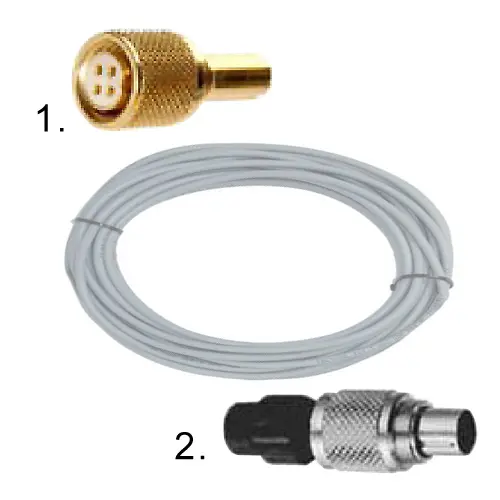

Cable for Connecting Hand-Arm Sensor

₹25,995.00

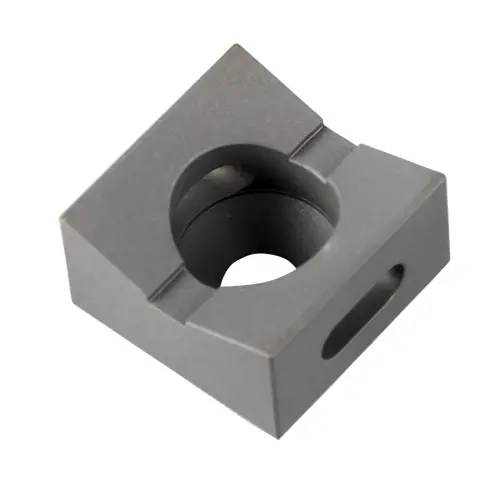

Handle Adapter for Curved Surfaces for Use with Hand-Arm Sensor

₹8,553.00

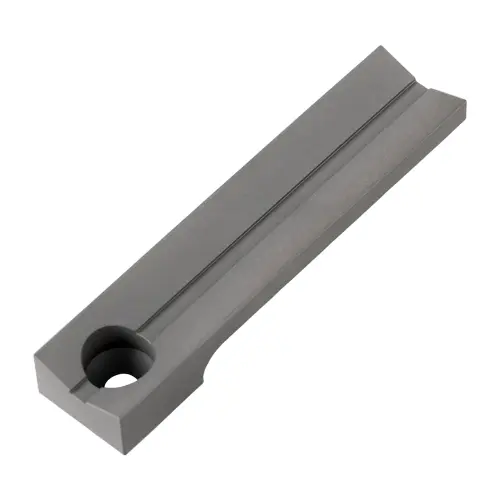

Handheld Adapter for Curved Surfaces for Use with Hand-Arm Sensor

₹20,334.00

Description

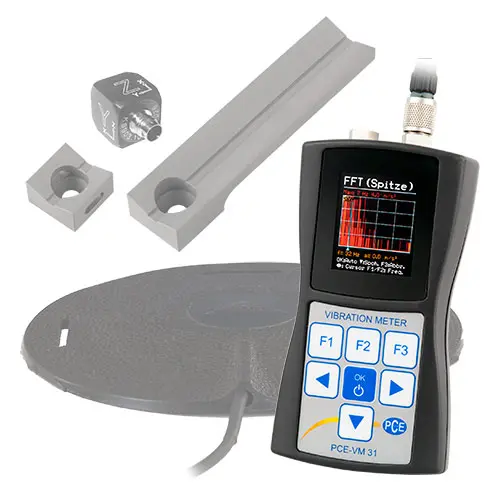

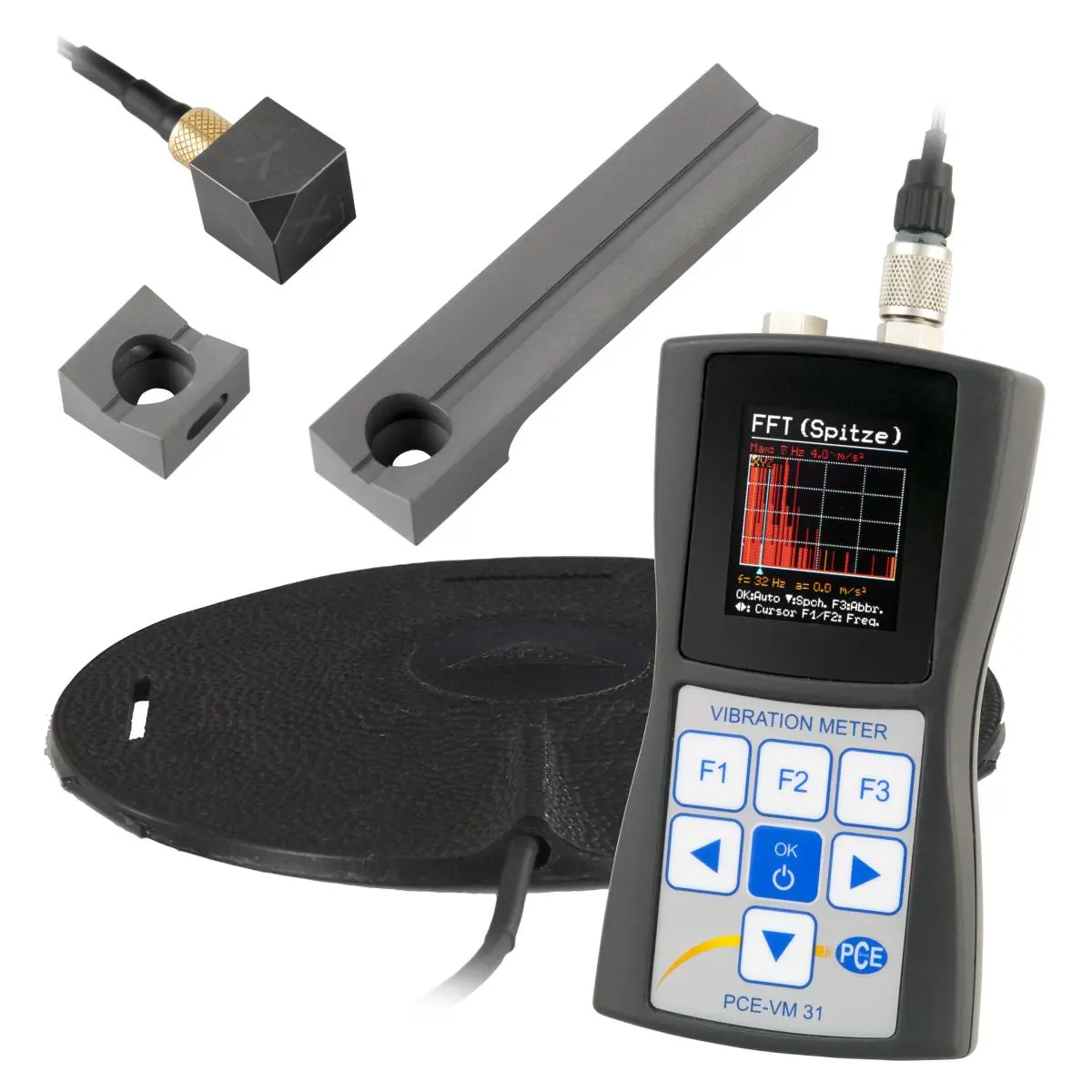

The PCE-VM 31-HAWB Human Vibration Analyzer is designed for measuring human vibration at the workplace. The Vibration Analyzer can calculate hand-arm vibration measurements according to ISO 5349 and whole-body vibration measurements according to ISO 2631. Each sensor consists of a triaxial Vibration Analyzer that captures acceleration, velocity, and displacement measurements. In addition to human vibration measurements, the Vibration Analyzer can measure the vibrations of machines. The Vibration Analyzer also supports TEDS, which means that it can detect and identify TEDS-capable sensors automatically. Overall, the device comes with 4 independent measuring channels. The measured data can be displayed as interval, running or maximum RMS (MTVV), as well as estimated vibration dose value (eVDV), vector sum, peak, and maximum peak. The acceleration can also be displayed as FTT with up to 125 lines. The internal flash memory of the Vibration Analyzer can store up to 10,000 measurements or up to 1,000 FTTs, each with date, time, and a comment. The measured data can also be transferred to a PC via the USB 2.0 interface.

Highlights

- For tri-axial measurement (Xh, Yh and Zh axes) of hand-arm and whole-body

human vibration

- For hand-arm vibration syndrome (HAVS) and carpal tunnel syndrome risk

assessment, measuring exposure action values (EAVs) and exposure limited values

(ELVs), and regulation compliance

- Velocity, acceleration, displacement

- 3 channel FFT

- TEDS support

- Flash memory for up to 10,000 readings

- USB interface

- Compact design

- Easy to use - ISO 8041 calibration certificate option available (see

accessories)

Specification

Acceleration
Measuring range	0,1 ... 1100 m/s²
Resolution	0,01 m/s²

Acceleration
Measuring range	0,1 ... 110 m/s²
Resolution	0,01 m/s²

Speed
Measuring range	100 ... 10000 mm/s
Resolution	0.1 mm/s
Frequency range	1 kHz / 1 Hz

Speed
Measuring range	10 ... 1000 mm/s
Resolution	0.1 mm/s
Frequency range	1 kHz / 1 Hz

Path
Measuring range	250 ... 15000 µm
Resolution	1 µm
Frequency range	5 Hz / 250 Hz

Path
Measuring range	25 ... 1500 µm
Resolution	1 µm
Frequency range	5 Hz / 250 Hz

General technical data
Inputs	IEPE
Input (additional information)	4 channels, low power (0.7 mA / 17 V), TEDS (IEEE 1451.4)
Measuring functions	Human vibration measurement, RMS, peak, FFT frequency analysis, Peak-peak
FFT	X/Y/Z, peak value spectrum of acceleration, frequency ranges 3 - 240 / 6 - 480 / 12 - 960 / 24 - 1920 Hz
Frequency weighting	Wb, Wc, Wd, Wh, Wj, Wk, Wm
Display type	OLED
Display resolution	128 x 160 pixels
Storage medium	Internal memory
Storage capacity	10000 Data records
Memory capacity (additional information)	FFT memory: up to 1,000 FFT spectra
Interface	USB 2.0
FFT spectrum (resolution)	125 lines
Sensitivity	0.8 ... 120 mV / (m/s²)
Linearity	> 75 dB for ±6 % error
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	3 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	-20 ... 60 °C , 0 ... 95 % RH
Storage conditions	-20 ... 60 °C , 0 ... 95 % RH
Dimensions ( L x W x H )	125 x 65 x 27 mm
Weight	110 g
