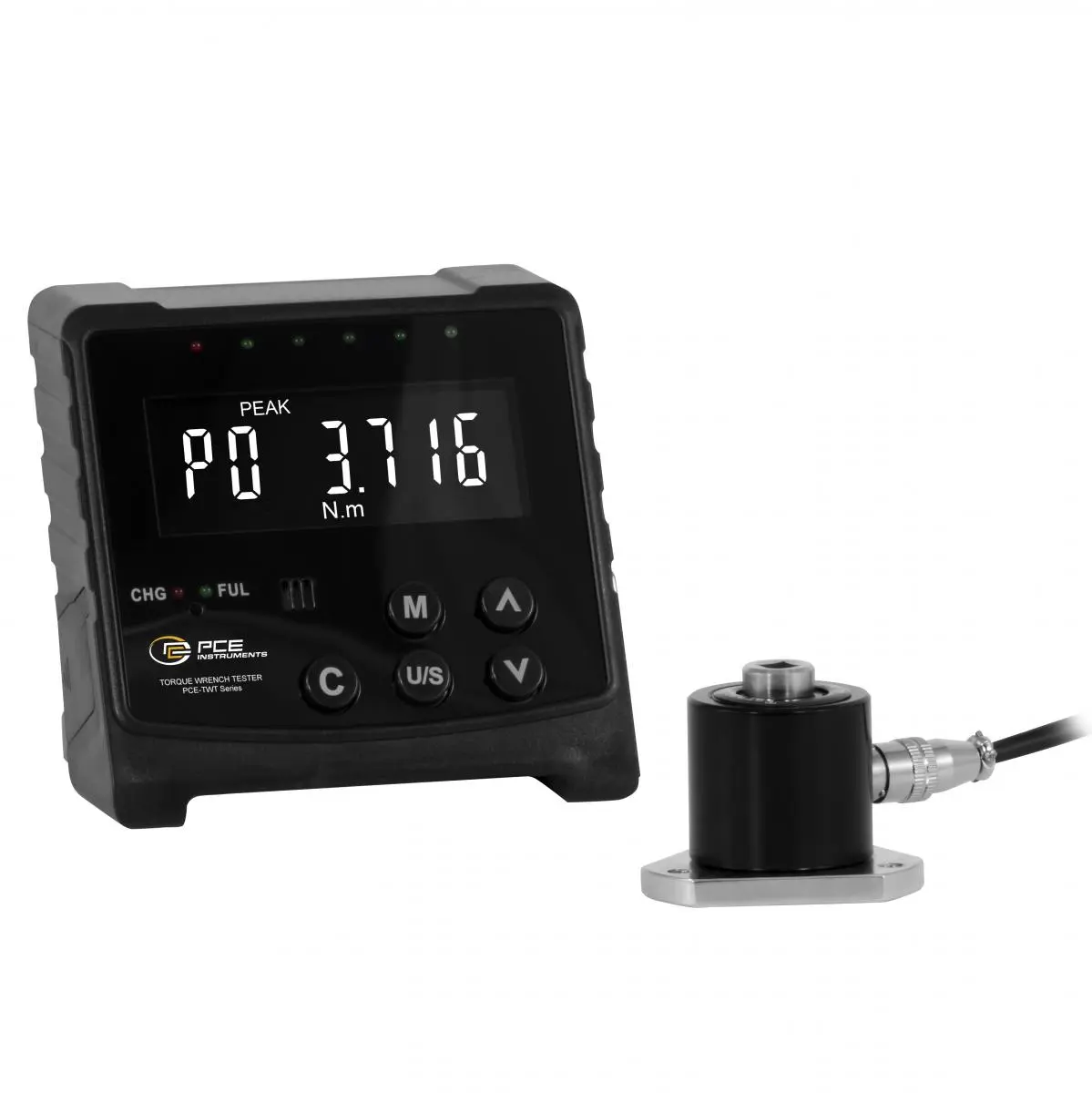

The Torque Meter / Torque Tester is a high-quality measuring instrument designed for calibrating torque sensors and for the precise measurement of the tightening torque of screws and other fasteners. The Torque Meter / Torque Tester offers a high accuracy of ±1% within the range of 10% ... 100% of the scale and can be operated in both clockwise and anti-clockwise directions.

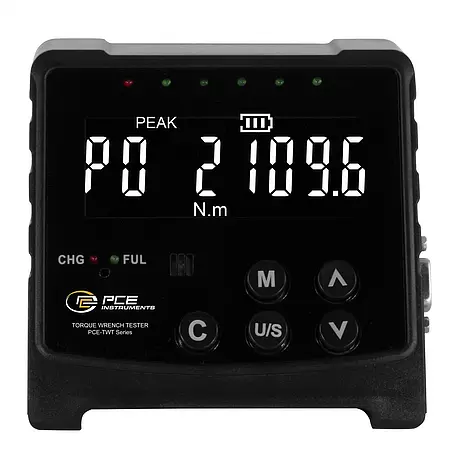

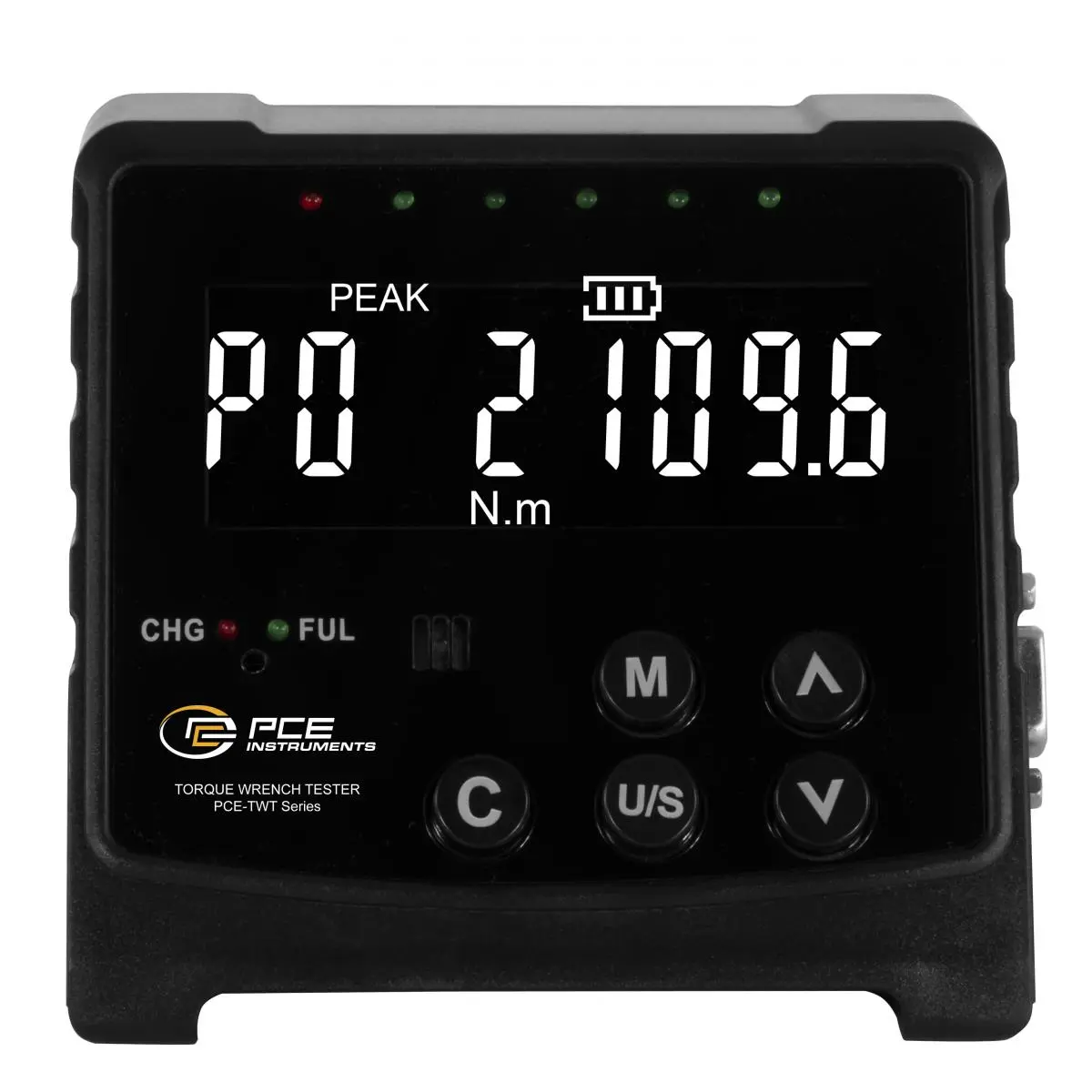

The Torque Meter / Torque Tester supports several operating modes such as Peak Hold, MAX, and real-time measurement. In Peak Hold mode, the maximum value is automatically saved, and the measurement data can be transferred via USB to the software, which also enables a pass/fail evaluation. Tolerance ranges can be set directly on the device, allowing values to be checked quickly. An integrated LED traffic light display shows the measured value at a glance.

The choice between the units Newton meter (N·m), kilogram-force-centimeter (kgf·cm), and pound-force-inch (lbf·in) enables flexible applications across various industries. With a storage capacity of 2,000 measurement groups and the option of data transfer via USB, the measuring instrument is ideal for use in the mechanical engineering industry and in scientific research facilities.

The Torque Meter / Torque Tester operates reliably at ambient temperatures of 5 to 40°C / 41 … 104°F and is powered by a 7.2V NiMH battery, which is optimized for mobile use.
