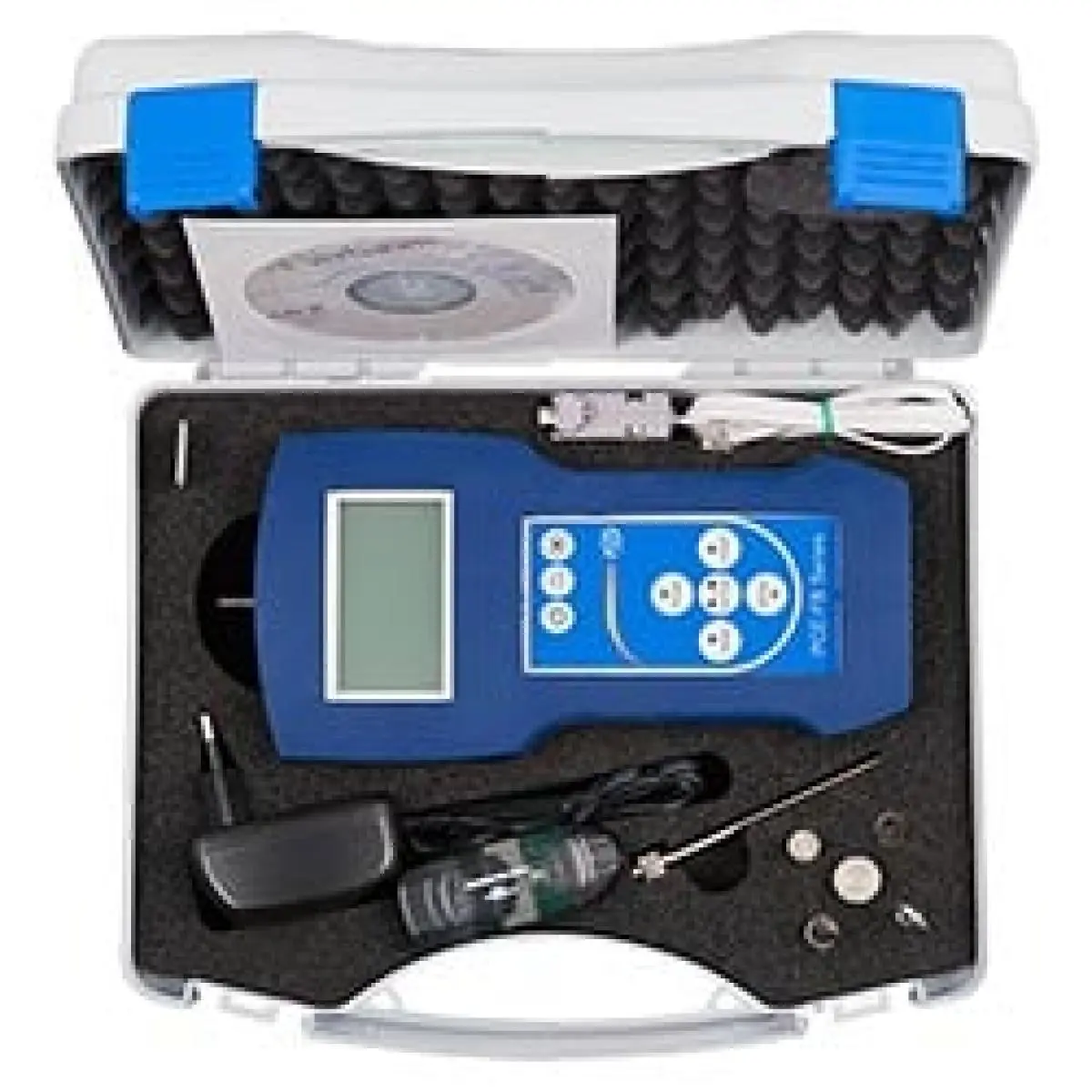

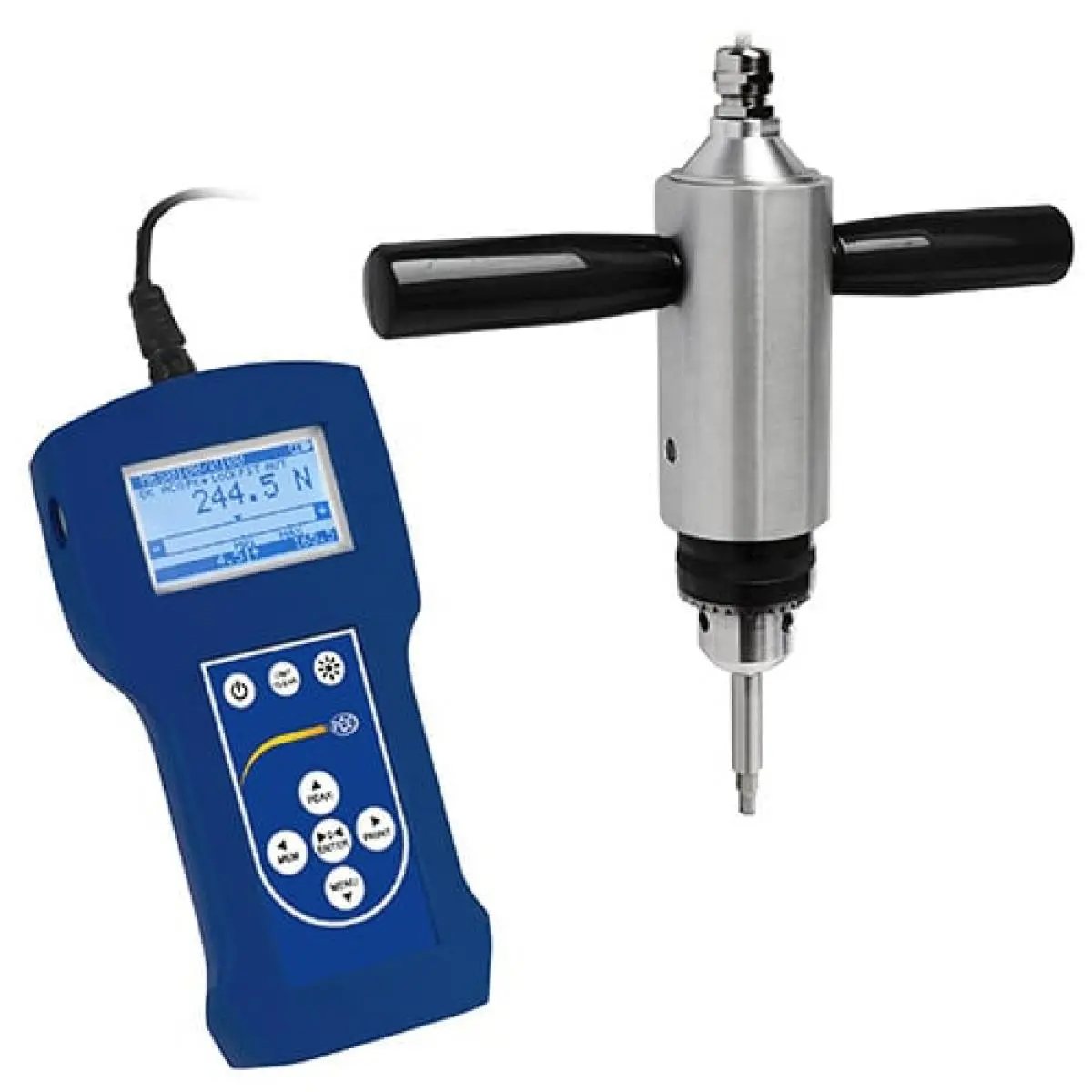

The torque gauge serves for detection of the loosening torque as well as for tightening screws. Simultaneously, the torque gauge can be used as a monitoring instrument. The torque test instrument provides a keyed chuck with two steady handles.

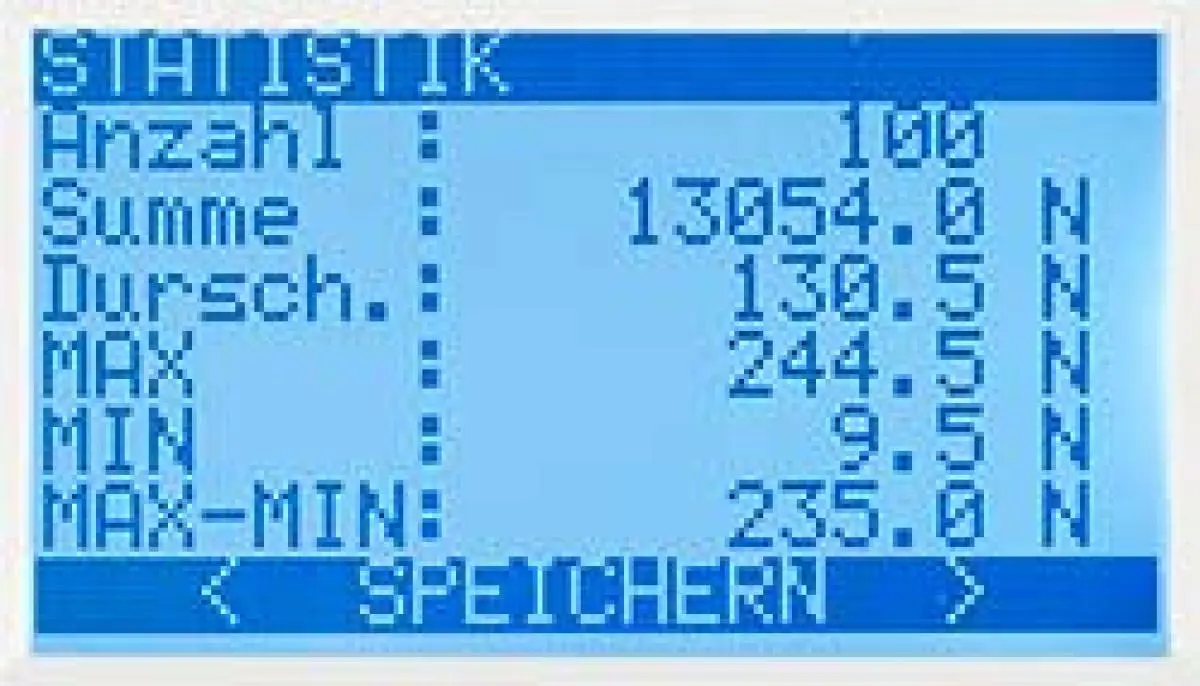

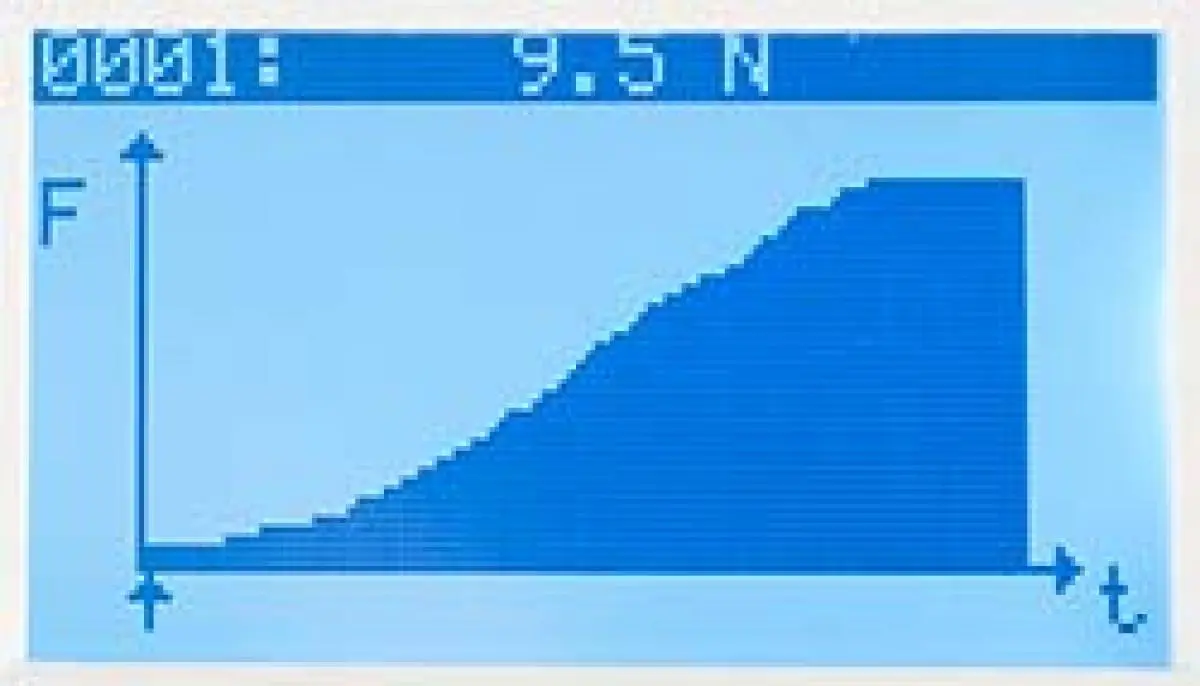

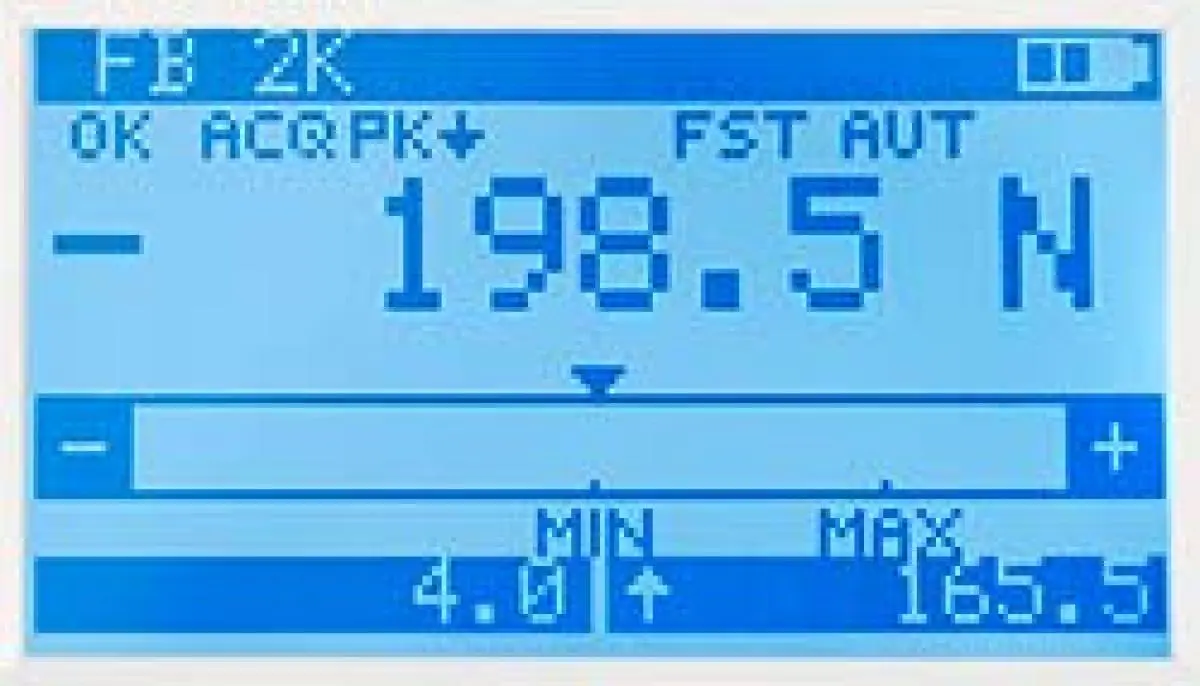

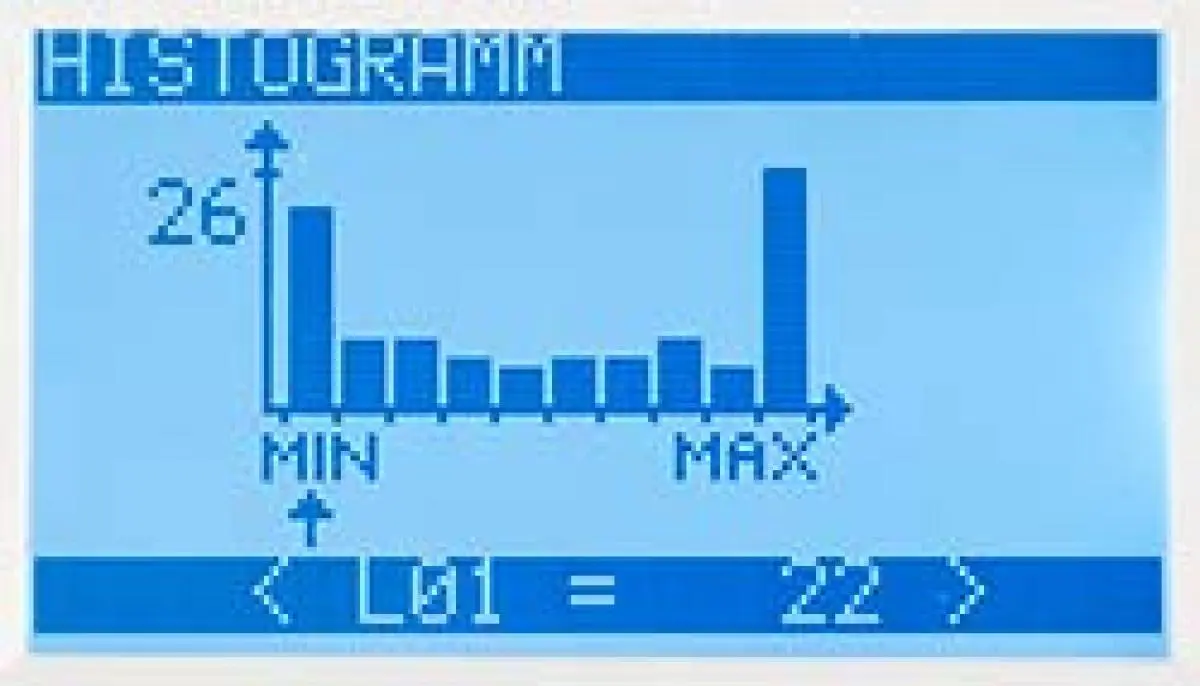

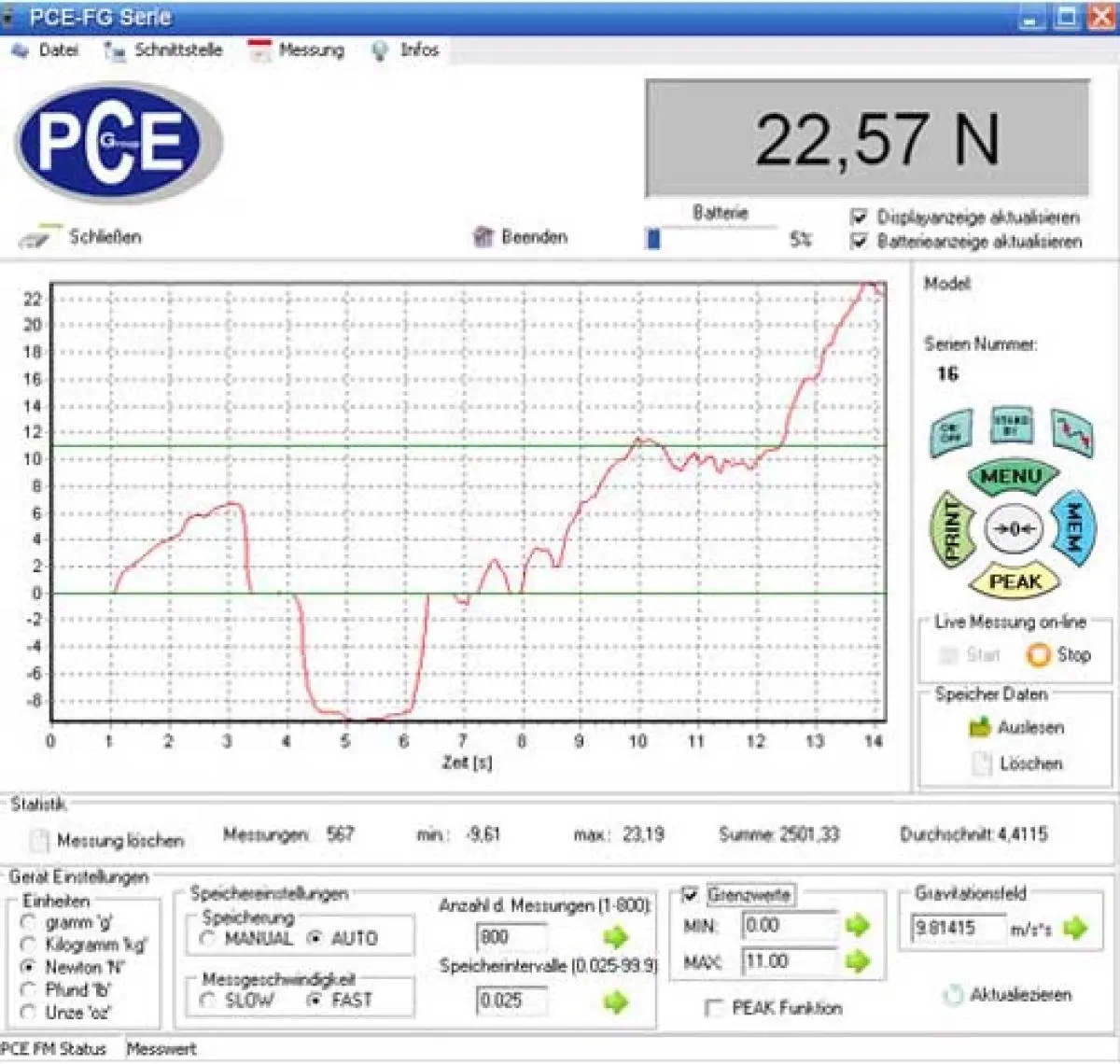

The torque gauge enables taking of tools with a maximum diameter of 13 mm and thus offers a wide range of applications. It has two adjustable thresholds which can monitor the rotation of the screws and can warn the user acoustically when the limits are reached. Thus, the torque gauge can also be used without visual contact with the display. The display shows at a glance the breakaway or tightening as well as the current force profile. The sampling rate can be individually set up to 1000 Hz. The measurement data can be transferred during or after the measurement to the supplied torque gauge downloadable PC software or can remain stored in the device on the micro SD card. The test instrument is powered by AA mignon replaceable battery packs and thus enables flexible use.
If you have any further questions about the torque gauge, you are welcome to check the following technical specifications or to use the contact form, or to call PCE. Our technicians and engineers will be glad to give any kind of assistance concerning the “Torque Test Instrument” or any other product from the section control systems, laboratory technology, measuring instruments or weighing equipment of PCE Instruments.
