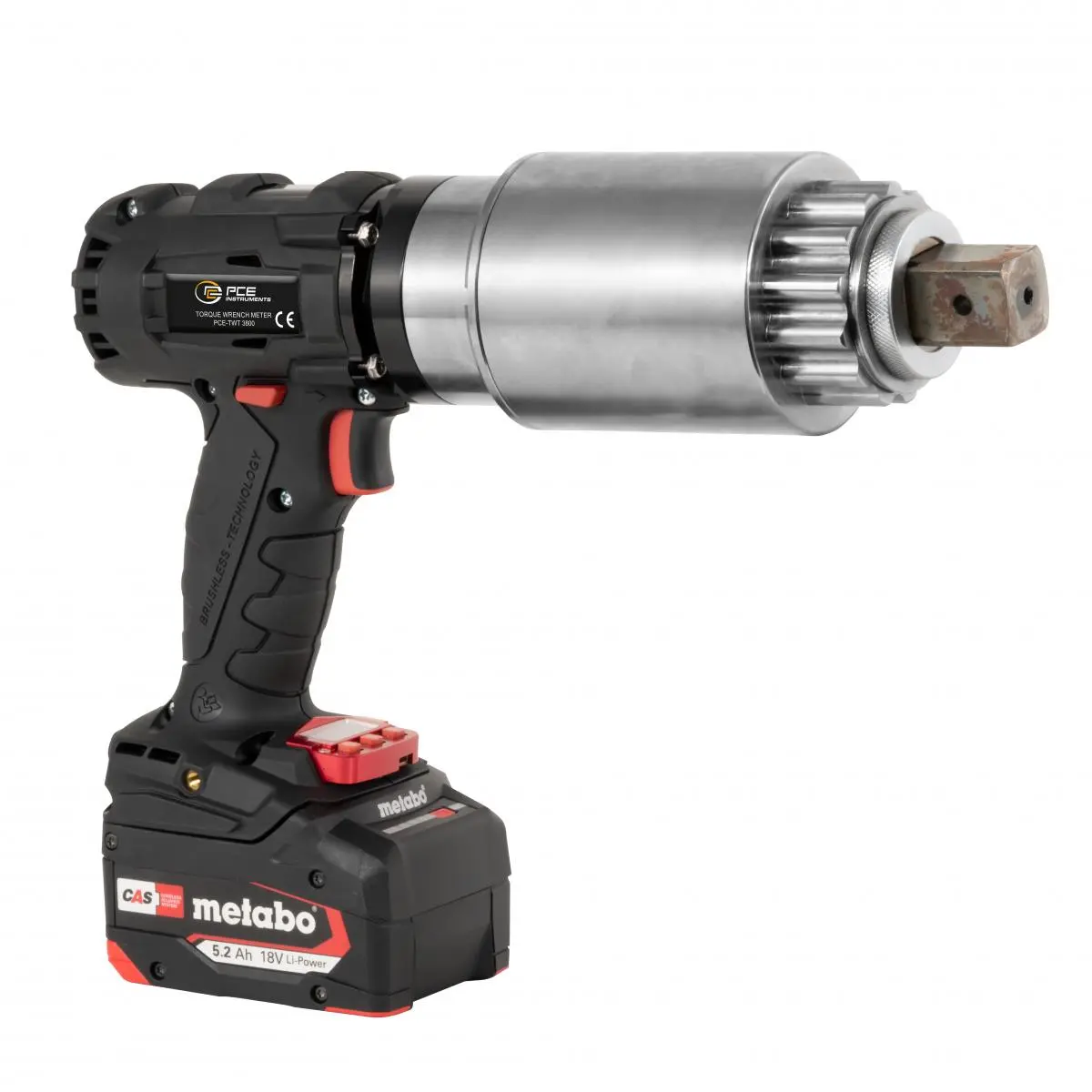

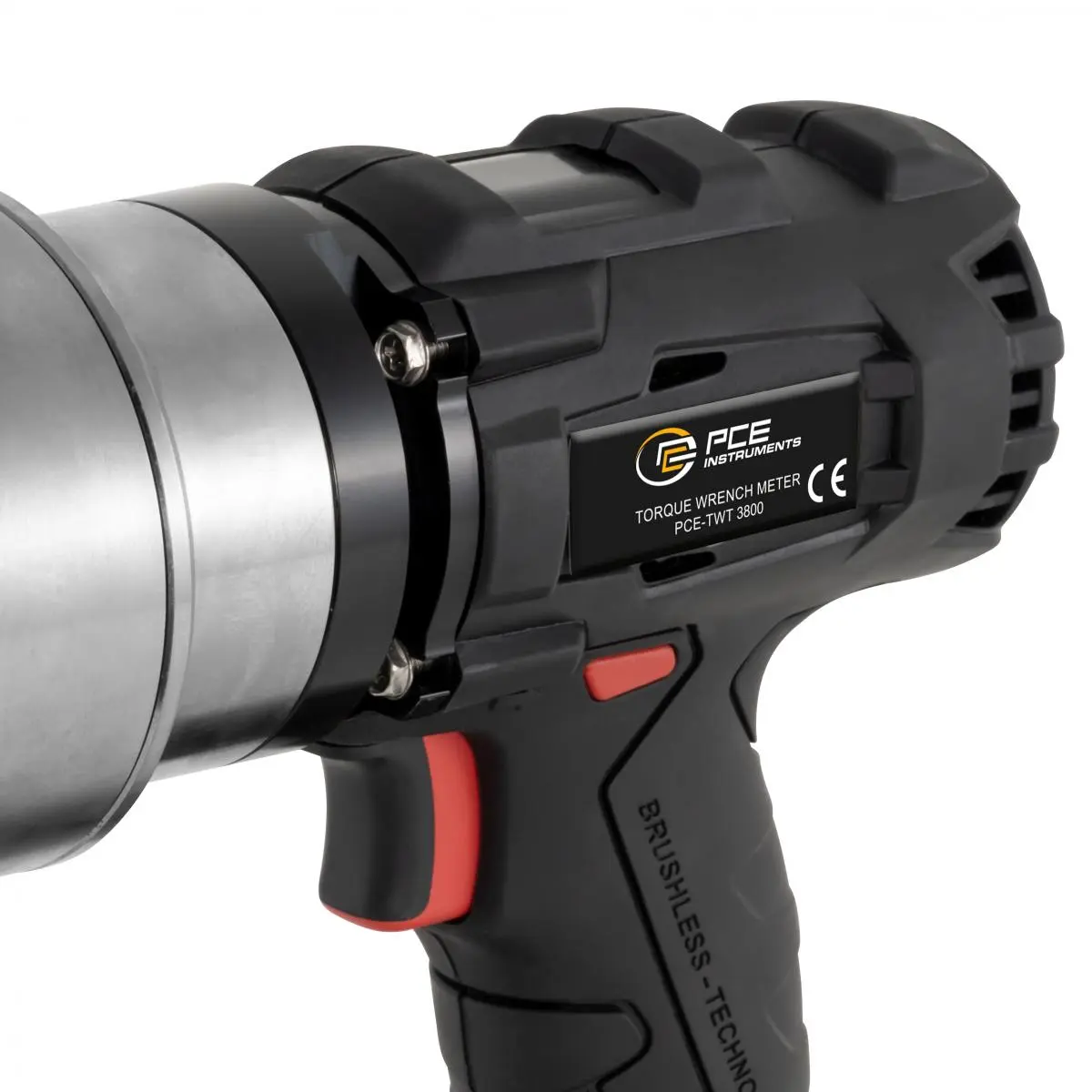

Torque Meter PCE-TWT 3800

Torque Meter PCE-TWT 3800

Order no.: PCE-TWT 3800
GTIN (EAN): 4250348703248
₹1,421,026.00
₹1,676,810.68
price ex. (VAT / delivery)
:
4250348703248
PCE-TWT 3800
Delivery time:1-2 working days

Description

Torque Meter / Color display / Various operating modes / Internal memory / Software / Temperature display / Heat protection

The Torque Meter combines state-of-the-art technology with a robust design and guarantees maximum precision for a wide range of assembly tasks. With its three intelligent operating modes, comprehensive protective functions and practical replaceable battery pack, this Torque Meter is the ideal solution for industrial, workshop and assembly applications.

In torque mode, the desired torque can be set quickly and continuously. The value can be conveniently adjusted using the operating buttons and the screwdriving process begins with a simple pull of the trigger. Angle mode enables controlled tightening not only via the torque, but also via the angle of rotation - perfect for applications that require maximum precision. In addition, Point Mode offers up to six memorizable presets for frequently used torque values. These can be individually configured and called up at the touch of a button during operation - ideal for recurring assembly tasks.

Other highlights of the torque screwdriver include precise torque adjustment with high repeat accuracy, a multi-stage gearbox for reliable power transmission and alarm and monitoring functions that help the user to assess the tightening result. Integrated protective functions such as temperature monitoring prevent overheating and extend the service life of the tool. Thanks to the replaceable battery, uninterrupted work is also guaranteed. Another highlight is the software supplied, which can be used to conveniently read out all the recorded screwdriving data. This allows users to document and analyze torque values, results and process data. The software also allows centralized settings to be made directly on the device.

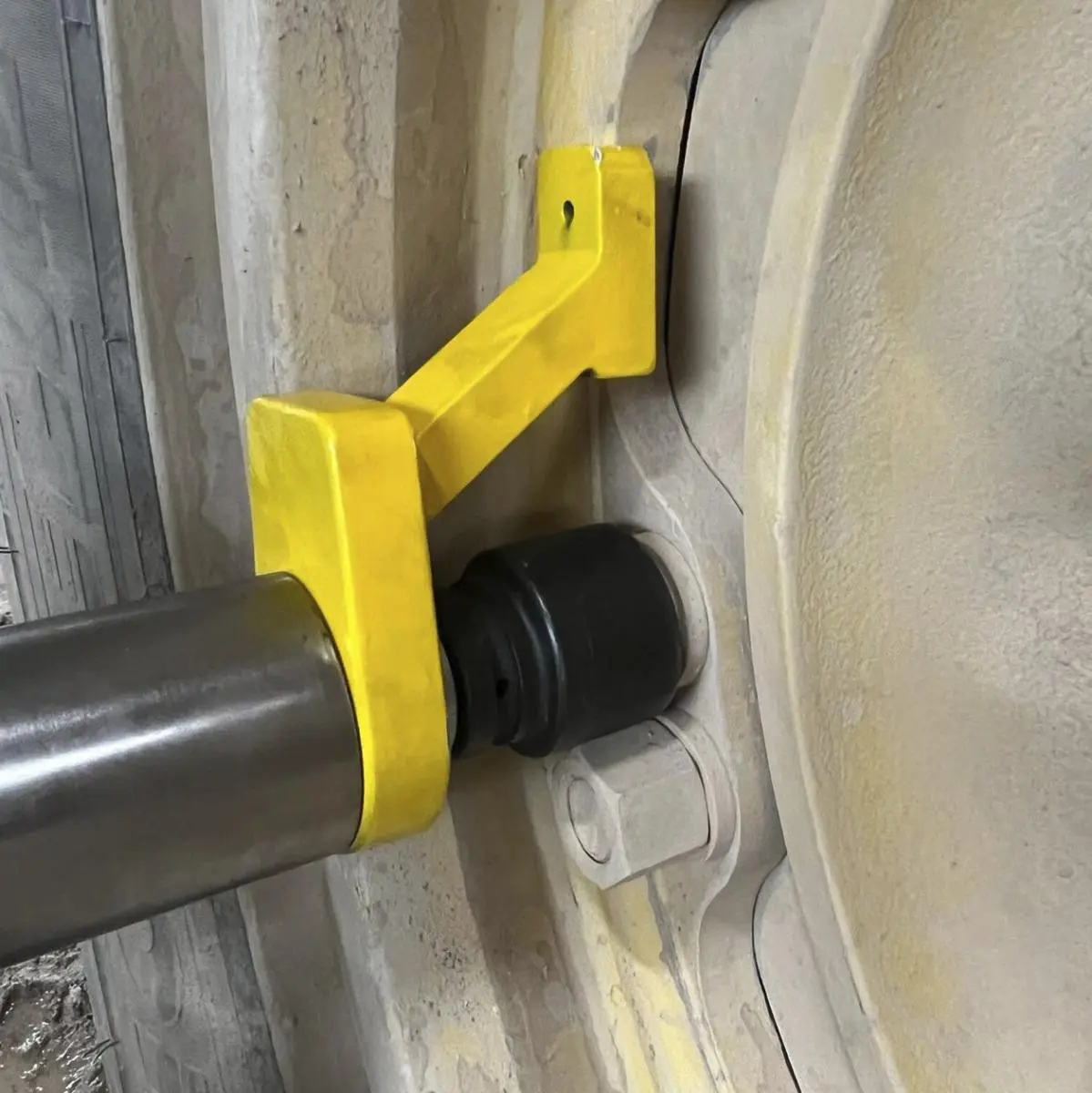

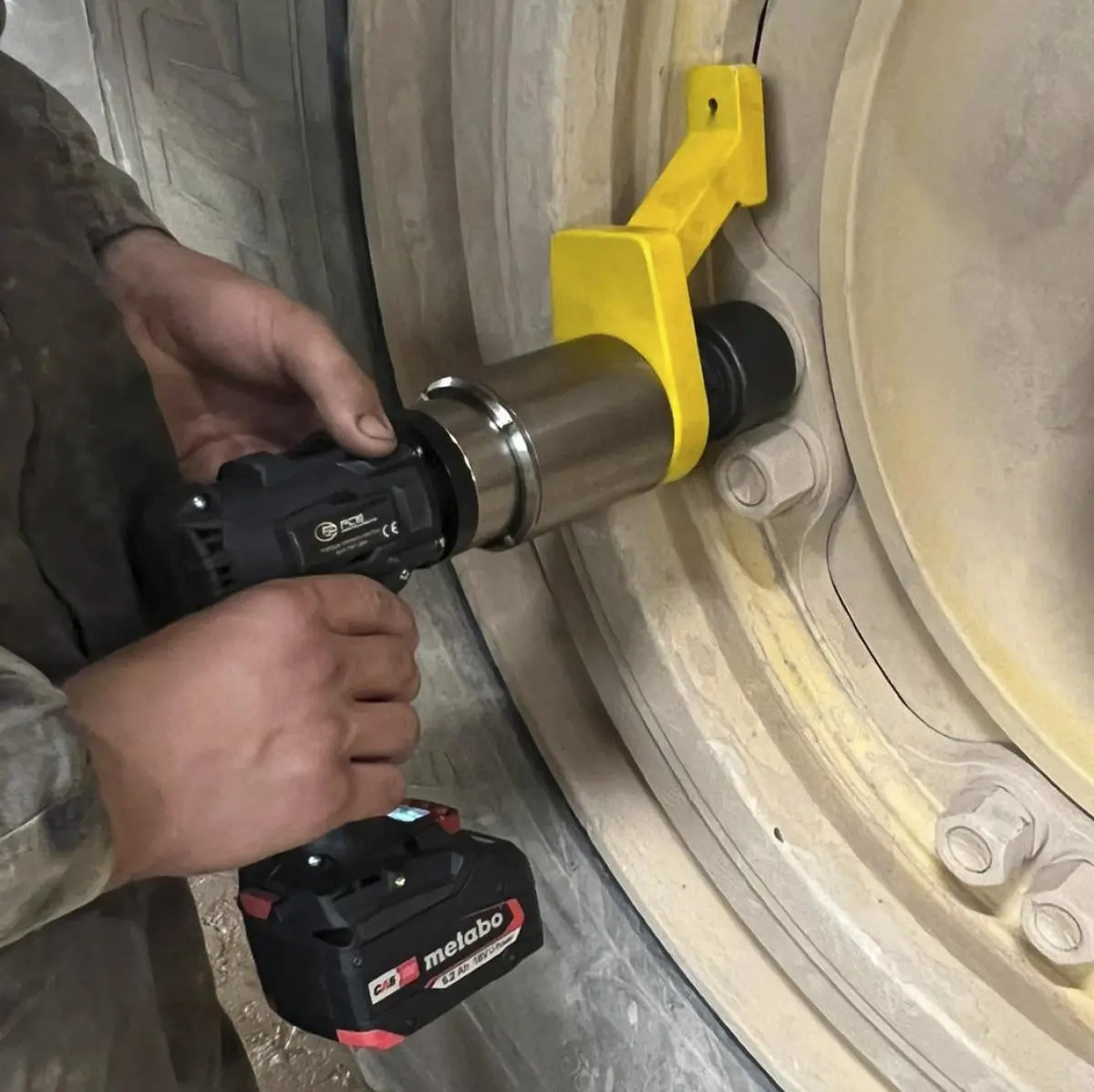

The Torque Meter is ideal for precise screw connections in mechanical and plant engineering. It also ensures reliable results when assembling wind turbines and steel structures. In the automotive sector, it is an indispensable tool for maintenance and repairs. It can also be used in a wide range of applications in heavy industry and construction.


Highlights

- Operating modes: Torque, angle of rotation, preset value
- Precise torque setting
- Multi-stage gearbox
- Exchangeable battery
- PC software

Specification

Torque
Measurement range up to  600 ... 3800 Nm
Resolution  1 Nm
Accuracy  ±5 % of Rd

General technical data
Units  Nm, lbfft

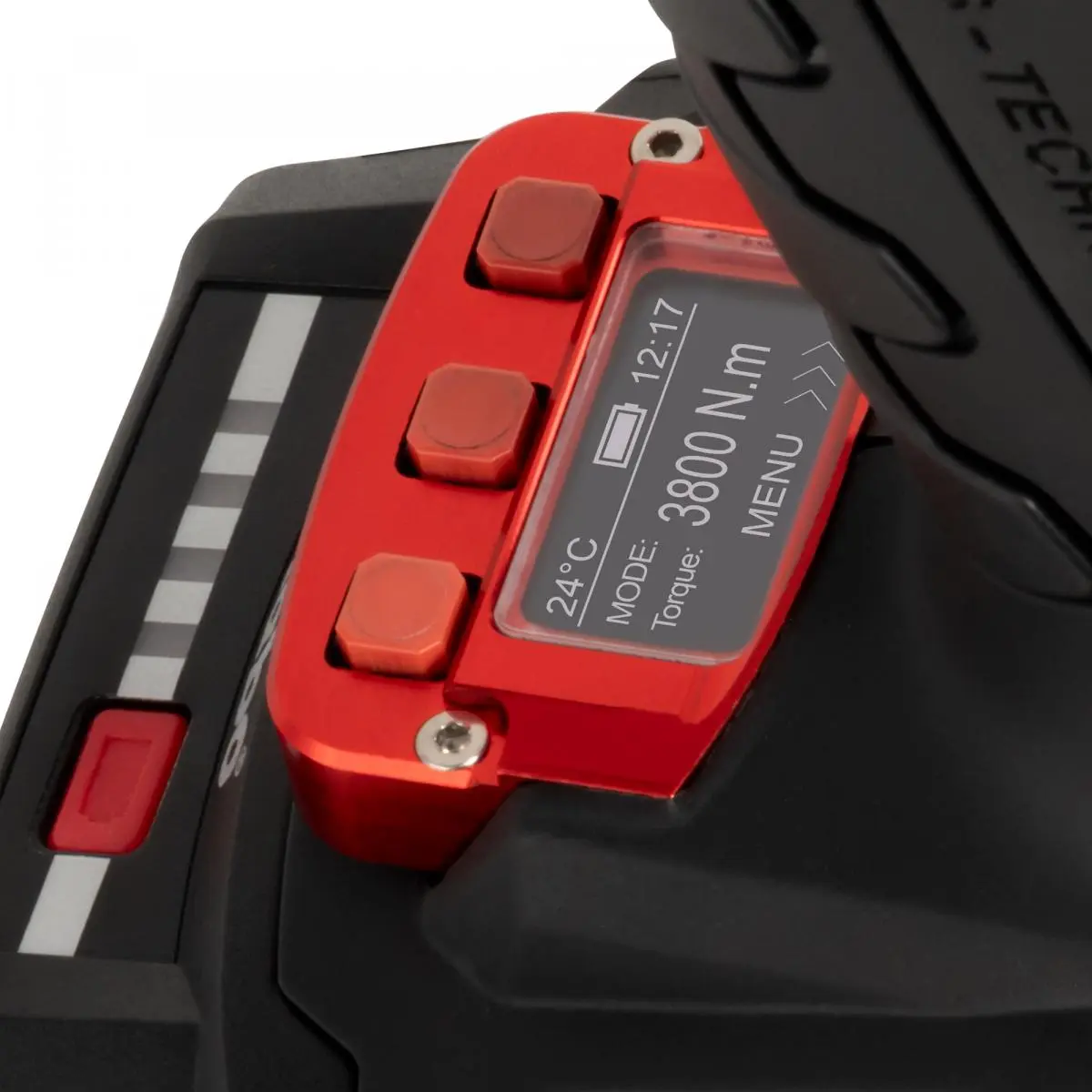

Display type  TFT colour display
Display size  1,1 Inch
Storage medium  Internal memory
Storage capacity  66536 Values

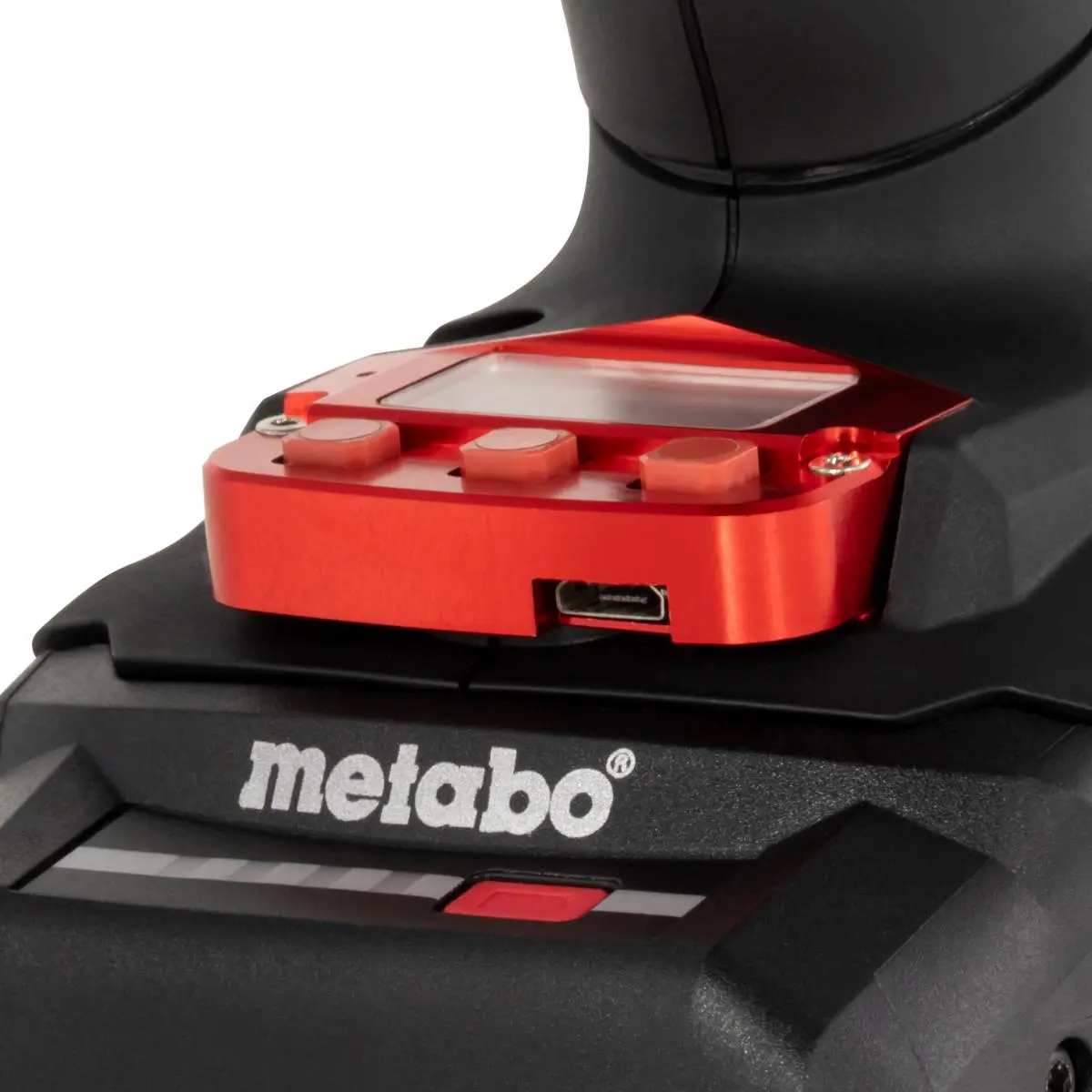

Interface  Micro-USB
Automatic power-off  200 s
Repeatability  2 %
Menu language  English (GB), English, Chinese
Protection class (device)  IP20
Power supply  Battery pack incl. charger
Connector type  Euro plug

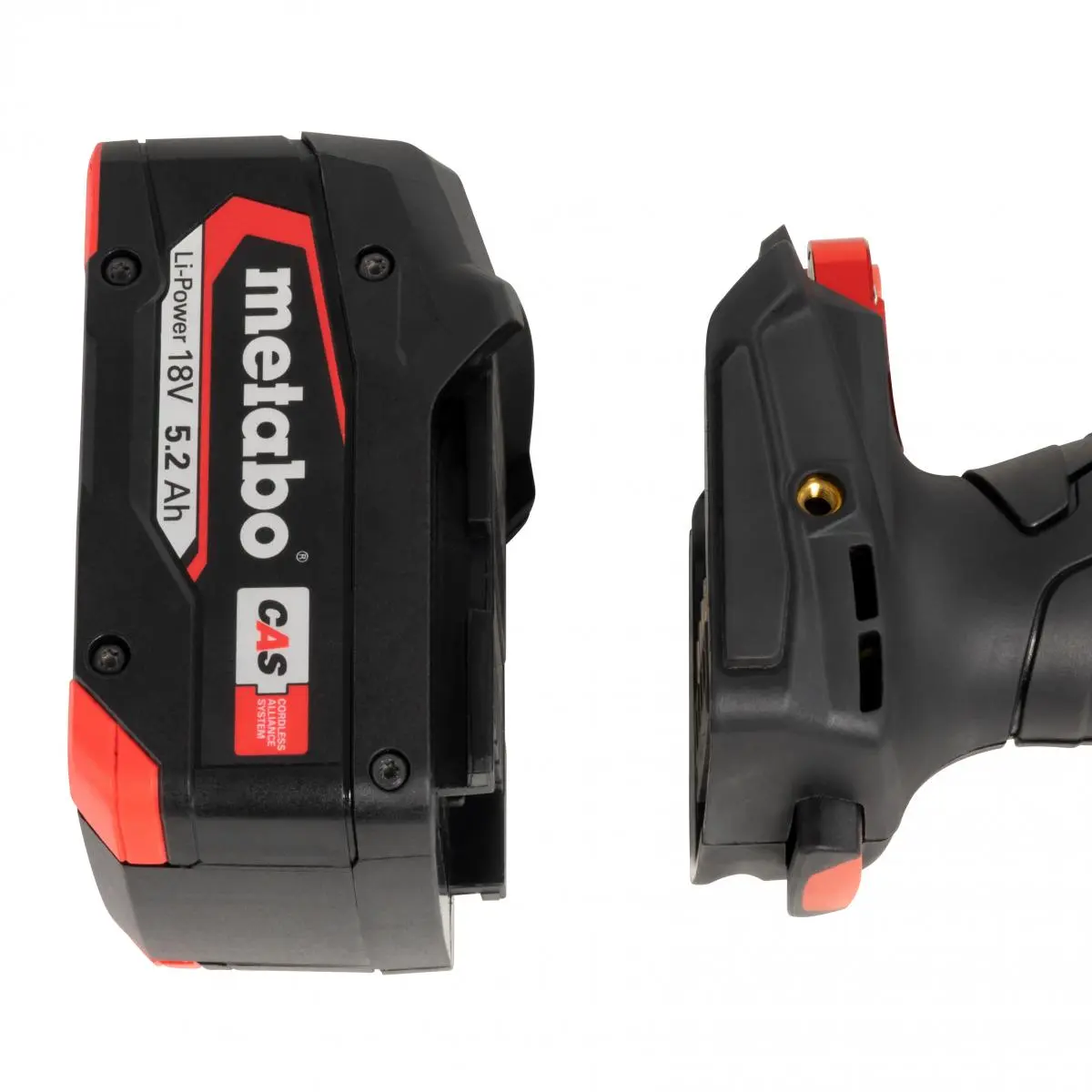

(Rechargeable) battery  2 x 18 V Battery pack , Lithium-ion battery
Capacity  5200 mAh
Operating conditions  -20 ... 50 °C , 10 ... 90 % RH
Storage conditions  -20 ... 50 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  310 x 85 x 250 mm
Weight  6,4 kg

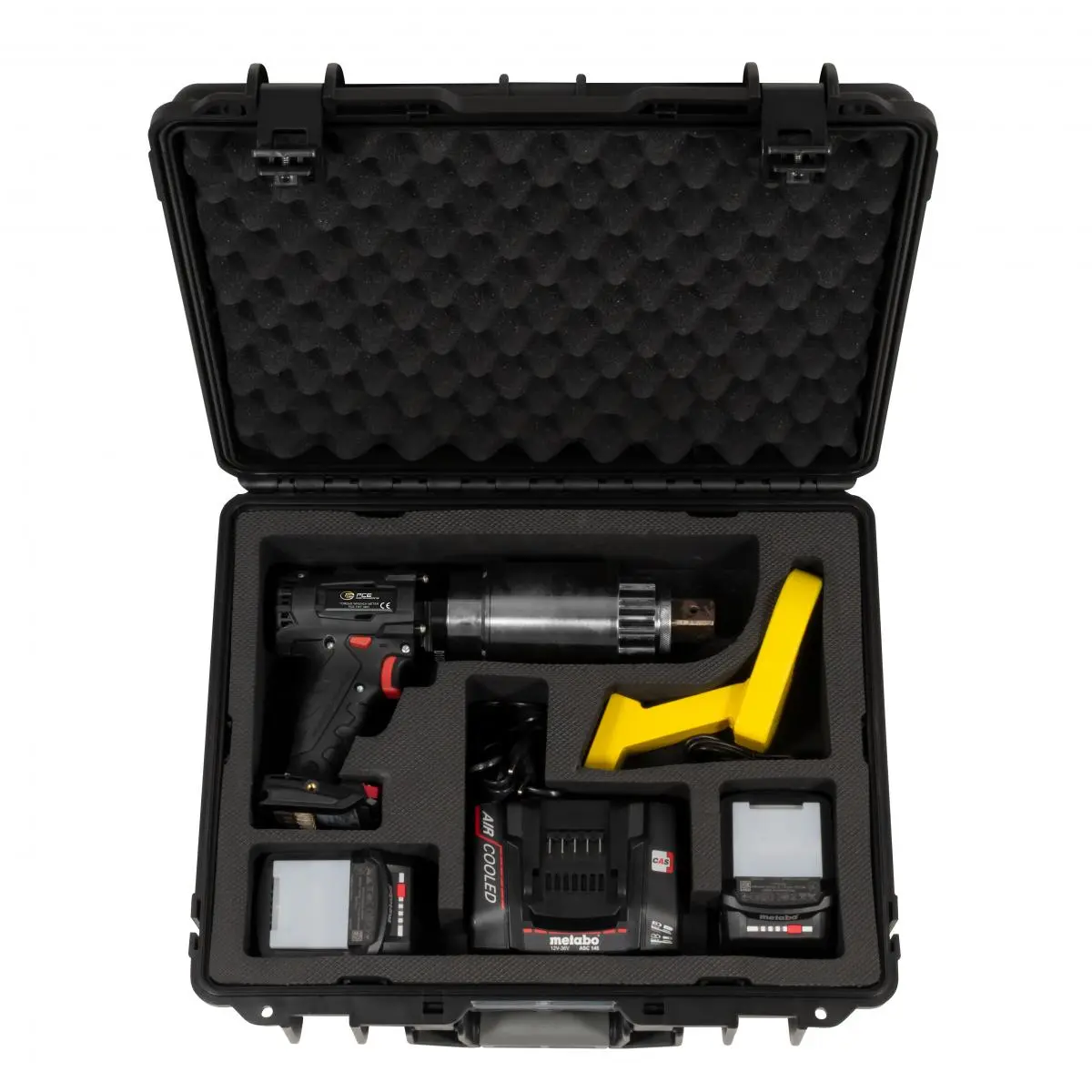

Delivery Scope

1 x Torque Meter PCE-TWT 3800
2 x Metabo Battery pack 18V / 5.2 Ah (commercially available)
1 x Charger

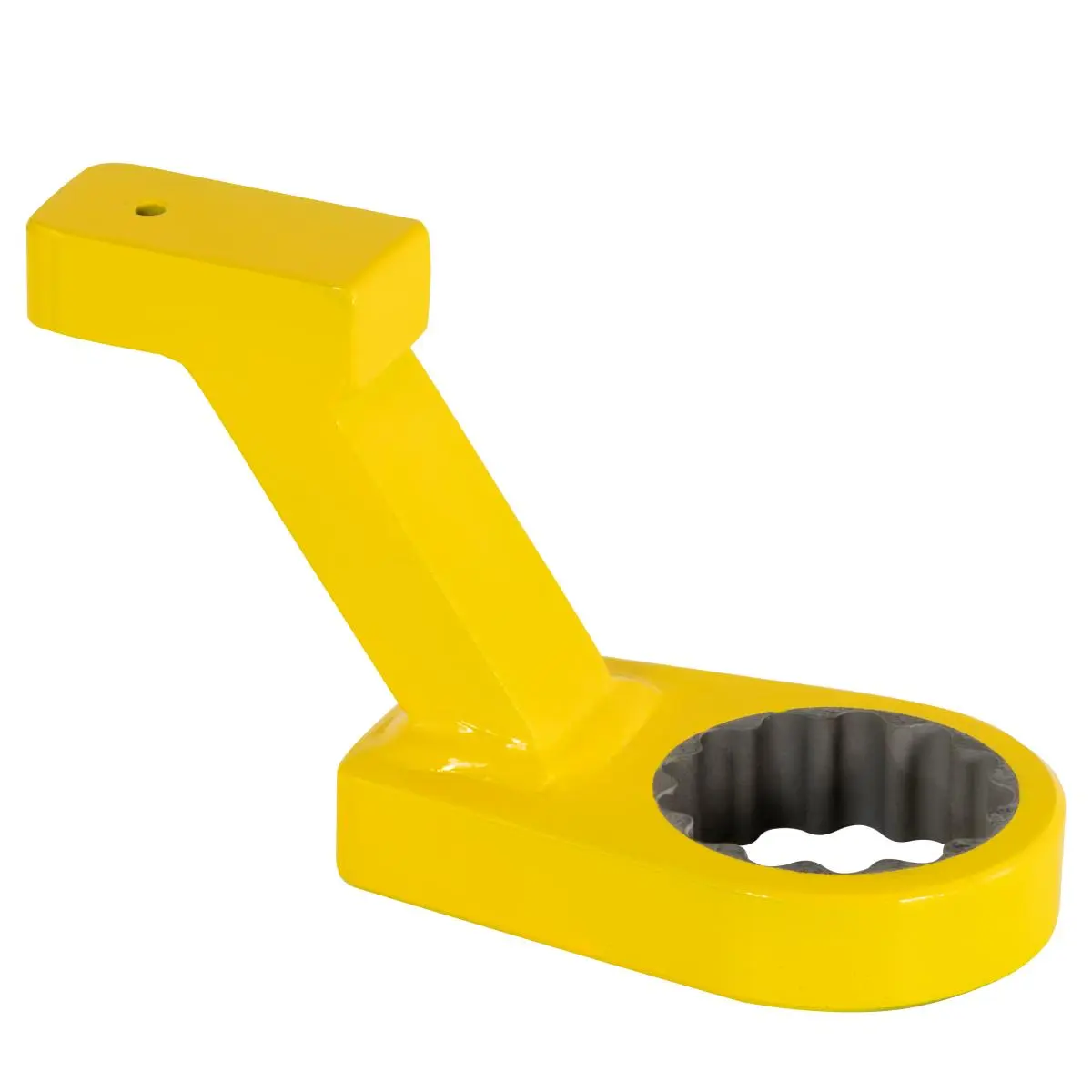

1 x Support
1 x Allen key
1 x Carrying case
1 x Software (in the download area)
