PCE-PA 8000 Power Analyser
Real-time current, voltage and power consumption measurement / Built-in data recorder with adjustable rate / Includes current clamps, alligator clips, test leads, SD card memory and 2-year warranty against manufacturer defects

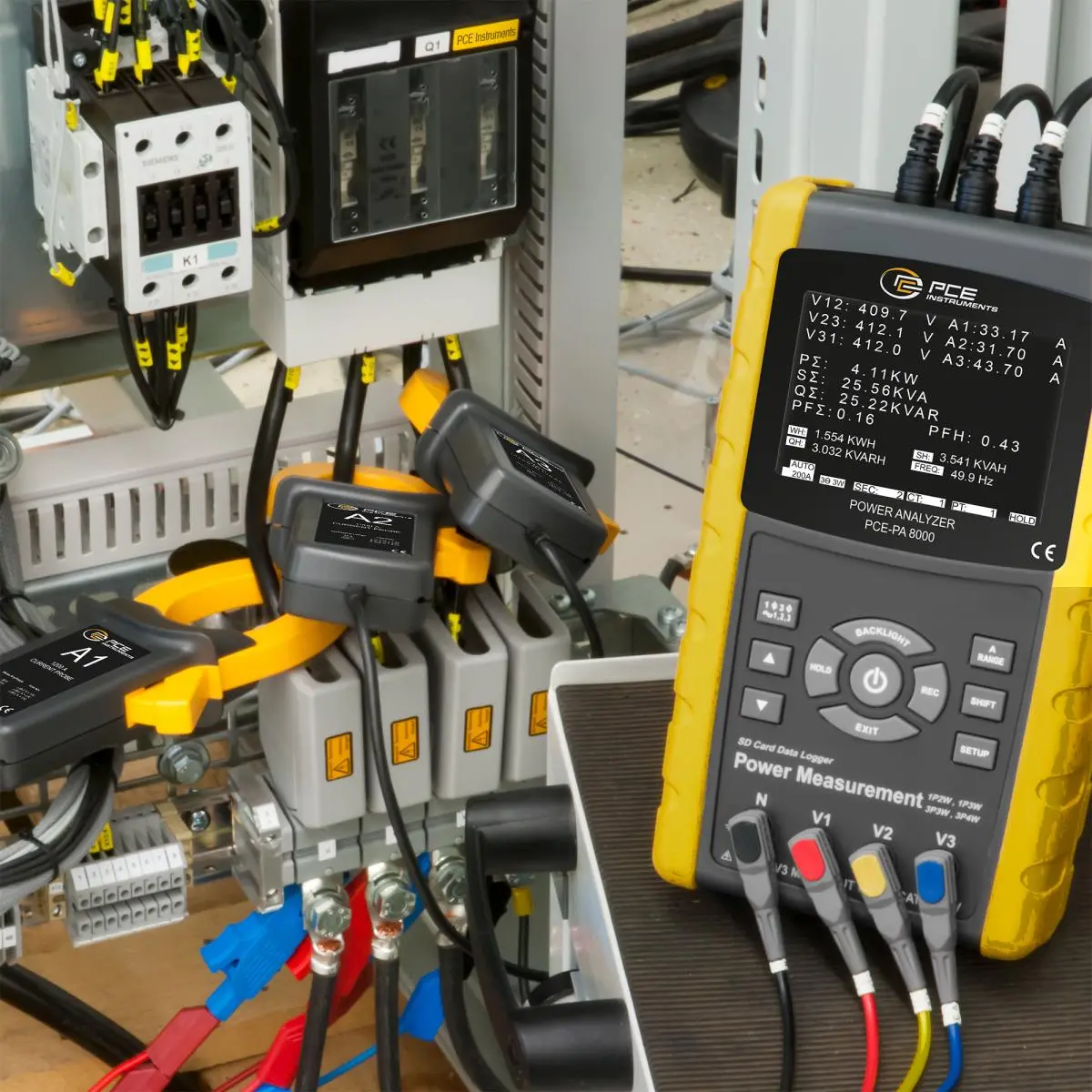

PCE-PA 8000 is a portable handheld power analyzer used for the testing and inspection of 3-phase / 4-wire, 3-phase / 3-wire, 1-phase / 2-wire and 1-phase / 3-wire electrical circuits. This handy power quality analyzer not only measures multiple electrical properties in real time, but also saves the measurement data in .xls format to the included SD card memory for quick and easy data transfer and analysis using Microsoft Excel.

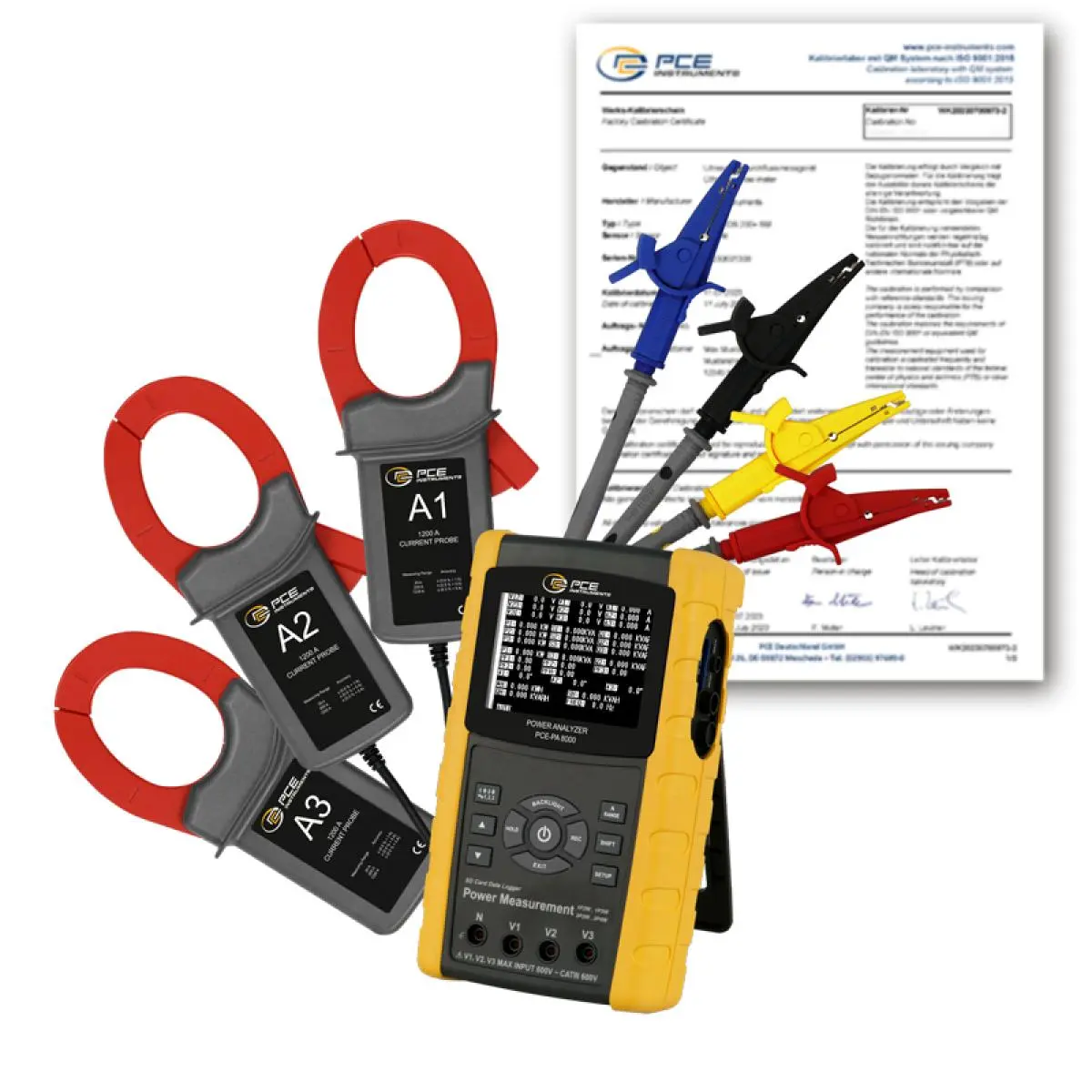

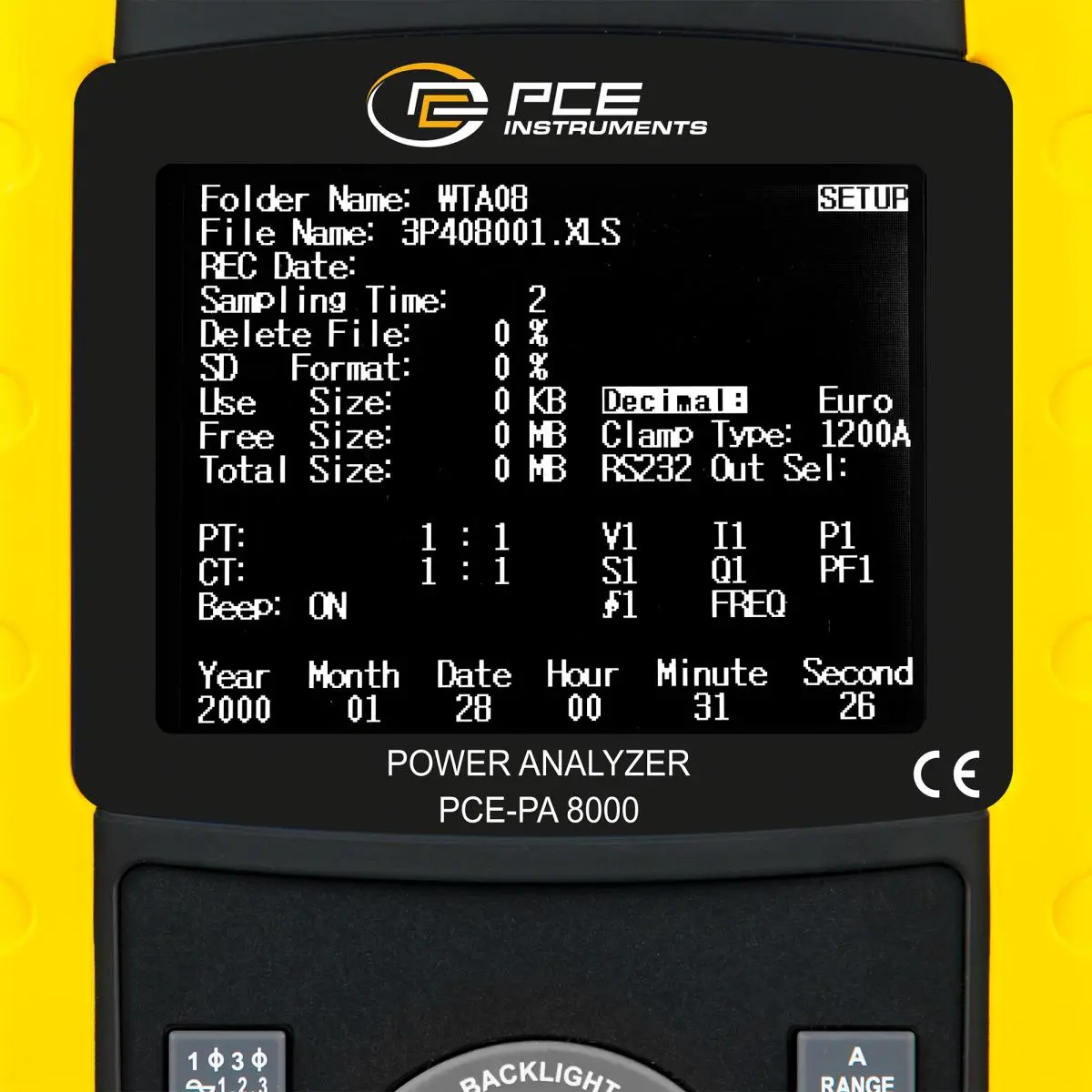

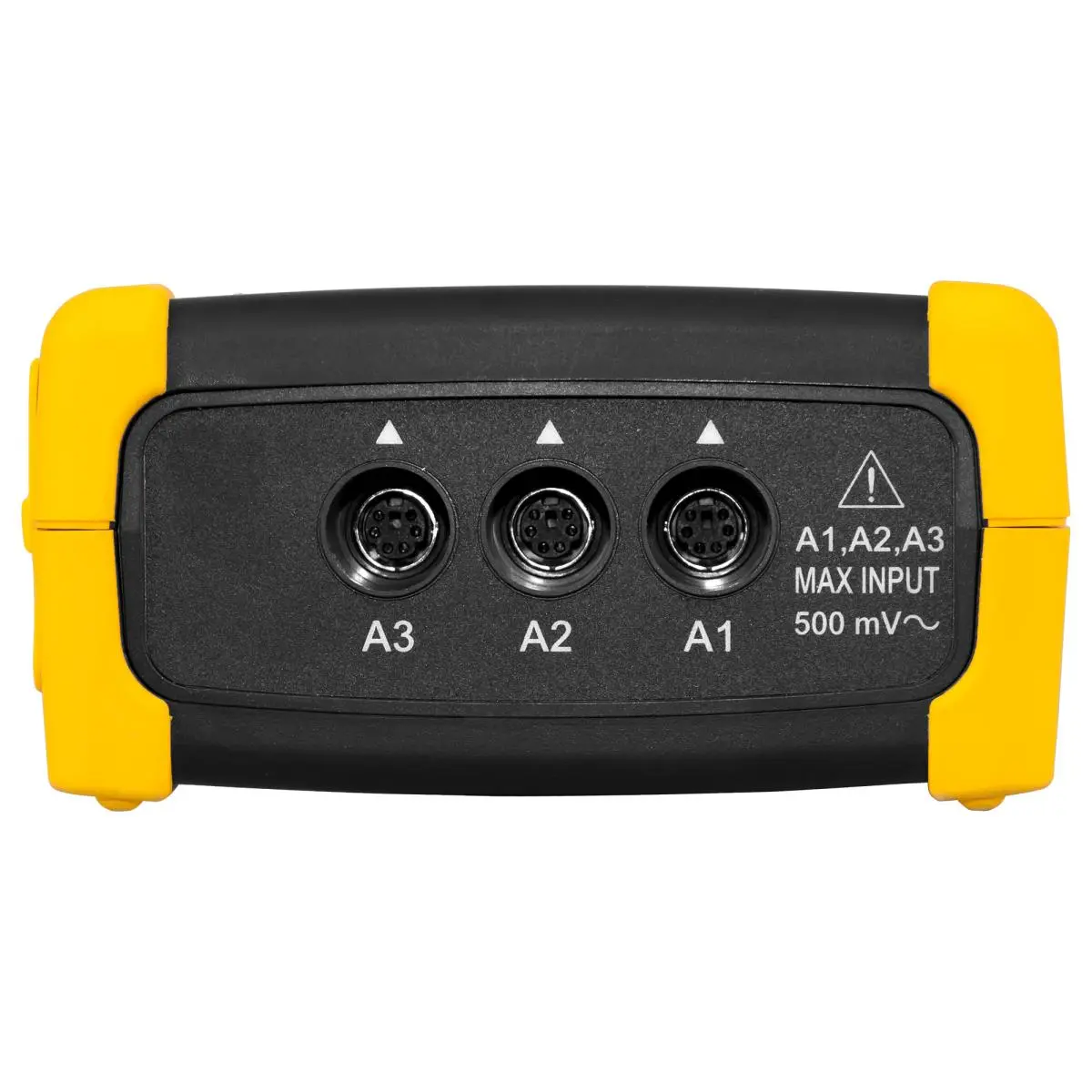

The PCE-PA 8000 power analyzer provides true RMS measurements of current and voltage. The power analyzer also determines power factor (PF), phase angle (Φ), active power, apparent power and reactive power. The three current clamps included with the power analyzer can be used on wires and cables with a diameter of 2.0" / 50 mm, allowing for use with the power grid. Also included in the delivery contents are four alligator clips, four test leads and an SD card. For real-time current, voltage and power consumption measurements at a glance, the PCE-PA 8000 features an easy-to-read 3.7" / 94 mm (320 x 240 pixel) LCD screen with backlight.
| AC voltage | |
| Measuring range | 10 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.5 % +0.5 V) |
| Overload | 720 V RMS |
| Alternating current AC | |
| Measuring range | 0,2 ... 10 A |
| Resolution | 0,001 A |
| Accuracy | ±(0.5 % +1 A) |
| Overload | 1300 A with current clamp |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 10 ... 20 A |
| Resolution | 0,01 A |
| Accuracy | ±(0.5 % +1 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 0,2 ... 100 A |
| Resolution | 0,01 A |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 100 ... 200 A |
| Resolution | 0,1 mA |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 0,2 ... 1000 A |
| Resolution | 0,1 mA |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 1000 ... 1200 A |
| Resolution | 1 A |
| Accuracy | ±(0.5% +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Active power | |
| Measuring range | 0 ... 9,999 kW |
| Resolution | 0,001 kW |
| Accuracy | ±(1 % +0.008 kW) |
| Active power | |
| Measurement range up to | 10 kW |
| Measurement range from | 99,99 kW |
| Resolution | 0,01 kW |
| Accuracy | ±(1% +0.08 kW) |
| Active power | |
| Measuring range | 100 ... 999,9 kW |
| Resolution | 0,1 kW |
| Accuracy | ±(1% +0.8 kW) |
| Active power | |
| Measuring range | 1 ... 9,999 MW |
| Resolution | 0,001 MW |
| Accuracy | ±(1 % +0.008 MW) |
| Reactive power | |
| Measuring range | 0 ... 9,99 kVAR |
| Resolution | 0,001 kVAR |
| Accuracy | ±(1 % +0.008 kVAR) |
| Reactive power | |
| Measuring range | 10 ... 99,9 kVAR |
| Resolution | 0,01 kVAR |
| Accuracy | ±(1 % +0.08 kVAR) |
| Reactive power | |
| Measuring range | 100 ... 999,9 kVAR |
| Resolution | 0,1 kVAR |
| Accuracy | ±(1 % +0.8 kVAR) |
| Reactive power | |
| Measuring range | 1 ... 9,9 MVAR |
| Resolution | 0,001 MVAR |
| Accuracy | ±(1% +0.008 MVAR) |
| Phase angle | |
| Measuring range | -180 ... +180 ° |
| Resolution | 0,1 ° |
| Accuracy | ±1 ° |
| Apparent power | |
| Measuring range | 0 ... 9,9 kVA |
| Resolution | 0,001 kVA |
| Accuracy | ±(1% +0.008 kVA) |
| Apparent power | |
| Measuring range | 10 ... 99,99 kVA |
| Resolution | 0,01 kVA |
| Accuracy | ±(1% +0.08 kVA) |
| Apparent power | |
| Measuring range | 100 ... 999,9 kVA |
| Resolution | 0,1 kVA |
| Accuracy | ±(1 % +0.8 kVA) |
| Apparent power | |
| Measuring range | 1 ... 9,99 MVA |
| Resolution | 0,001 MVA |
| Accuracy | ±(1 % +0,008 MVA) |
| Power factor | |
| Measuring range | 0 ... 1 |
| Resolution | 0.01 |
| Accuracy | ±0.04 |
| Active energy | |
| Measuring range | 0 ... 9,9 kWh |
| Resolution | 0,001 kWh |
| Accuracy | ±(1% +0.008 kWh) |
| Active energy | |
| Measuring range | 10 ... 99,9 kWh |
| Resolution | 0,01 kWh |
| Accuracy | ±(1% +0.08 kWh) |
| Active energy | |
| Measuring range | 100 ... 999,9 kWh |
| Resolution | 0,1 kWh |
| Accuracy | ±(1% +0.8 kWh) |
| Active energy | |
| Measuring range | 1 ... 9,99 MWh |
| Resolution | 0,001 MWh |
| Accuracy | ±(1% +0.008 MWh) |
| Apparent energy | |
| Measuring range | 0 ... 9,9 kVAh |
| Resolution | 0,001 kVAh |
| Accuracy | ±(1 % +0.008 kVAh) |
| Apparent energy | |
| Measuring range | 10 ... 99,9 kVAh |
| Resolution | 0,01 kVAh |
| Accuracy | ±(1% +0.08 kVAh) |
| Apparent energy | |
| Measuring range | 100 ... 999,9 kVAh |
| Resolution | 0,1 kVAh |
| Accuracy | ±(1% +0.8 kVAh) |
| Apparent energy | |
| Measuring range | 1 ... 9,9 MVAh |
| Resolution | 0,001 MVAh |
| Accuracy | ±(1% +0,008 KVAH) |
| Reactive energy | |
| Measuring range | 0 ... 9,9 kVArh |
| Resolution | 0,001 kVArh |
| Accuracy | ±(1% +0.008 KVARh) |
| Reactive energy | |
| Measuring range | 10 ... 99,9 kVArh |
| Resolution | 0,01 kVArh |
| Accuracy | ± (1% + 0.08 KVARh) |
| Reactive energy | |
| Measuring range | 100 ... 999,9 kVArh |
| Resolution | 0,1 kVArh |
| Accuracy | ±(1% +0.8 KVARh) |
| Reactive energy | |
| Measuring range | 1 ... 9,99 MVARh |
| Resolution | 0,001 MVARh |
| Accuracy | ±(1% +0.008 KVARH) |
| Frequency | |
| Measuring range | 45 ... 65 Hz |
| Resolution | 0,1 Hz |
| Accuracy | 0.1 Hz |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 3,7 Inch |
| Storage medium | SD card |
| Storage capacity | 2 GB |
| Storage interval from | 2 s |
| Storage interval to | 120 min. |
| Interface | USB, RS232 |
| Standard(s) | IEC 1010 |
| Current consumption meter | 300 mA DC |
| Current consumption current clamp | 34 mA DC |
| Maximum cable diameter | 50 mm |
| Safety standard | CAT III 600V |
| Overload protection | Voltage AC 720 V / current AC 1300 A |
| Dimensions | Current clamp: 210 x 85 x 33 mm |
| Measuring range selection | Automatic, Manual |
| Menu language | English, English (GB) |
| Protection class (device) | IP21 |
| Power supply | 9V |
| Connector type | Device-europlug |
| (Rechargeable) battery | 8 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 225 x 125 x 64 mm |
| Weight | 811,5 g |
