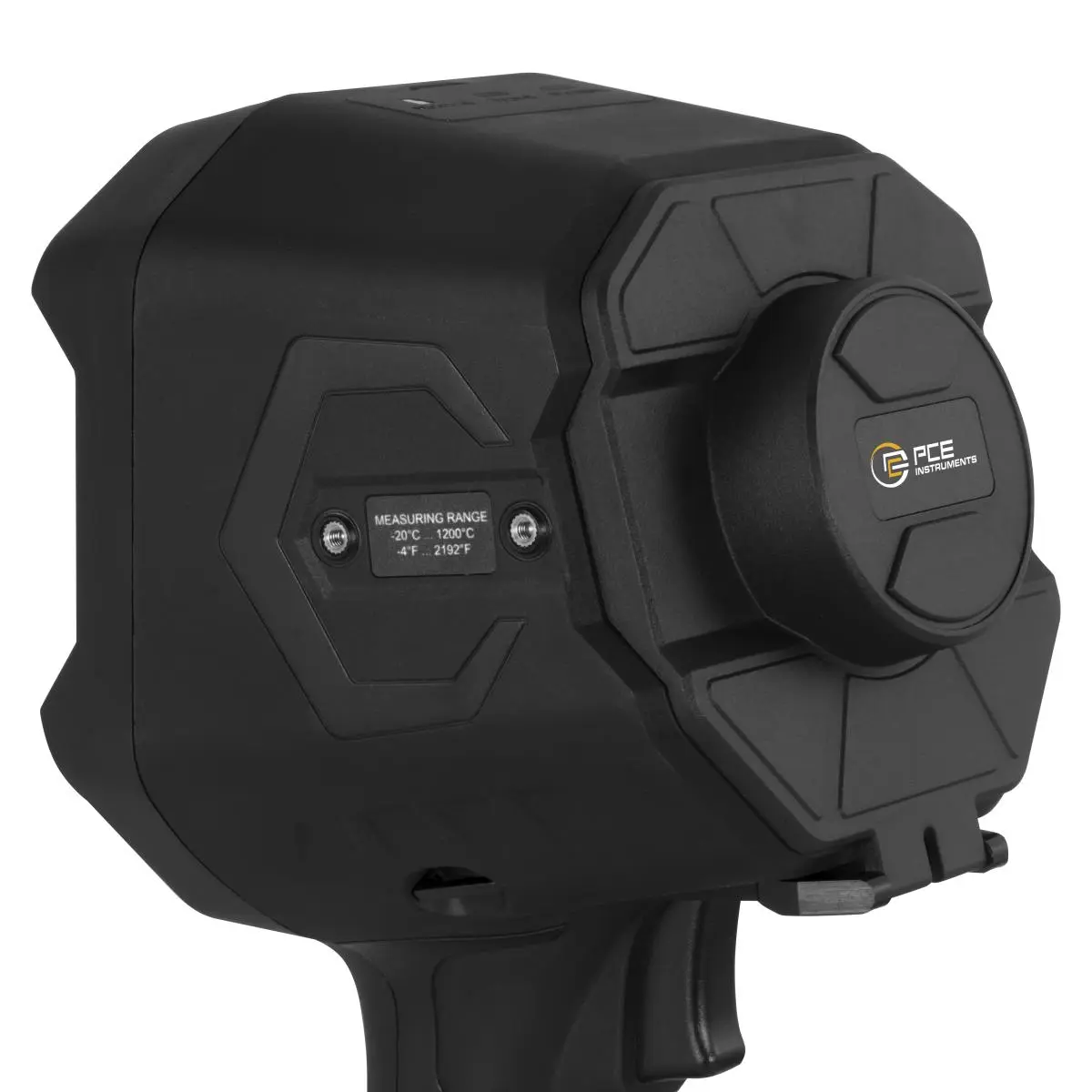

The Thermal Imaging Camera is suitable for applications in industry, maintenance, building services engineering, electrical engineering, and for service and maintenance work. With a temperature measurement range of -20 to 1200°C, a resolution of 0.1°C and an accuracy of ±2°C or ±2% of the reading, the Thermal Imaging Camera enables precise recording of temperature distributions. The IR resolution of 640 x 512 pixels and thermal sensitivity of <40 mK at 25°C also make it possible to display even small temperature differences.

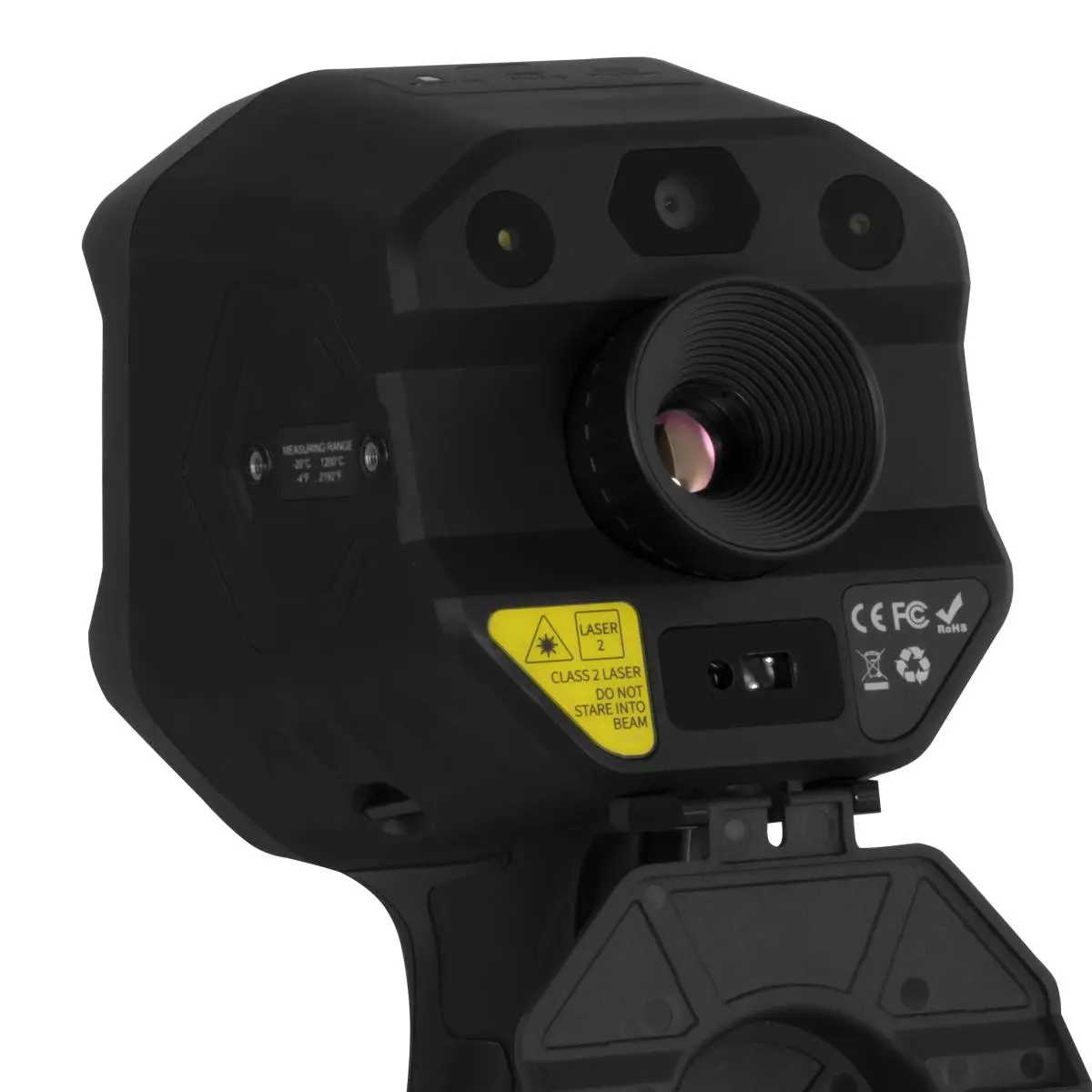

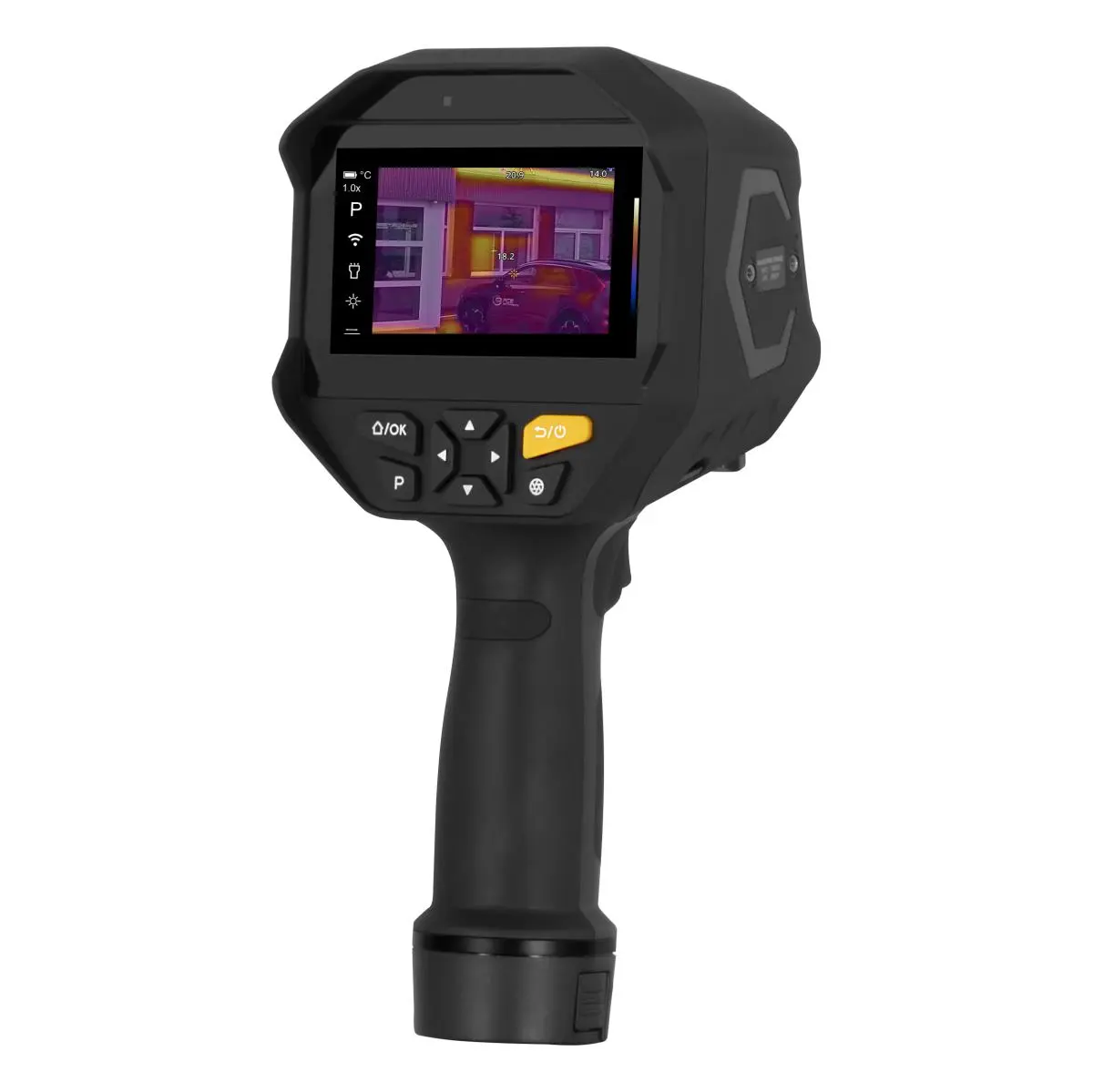

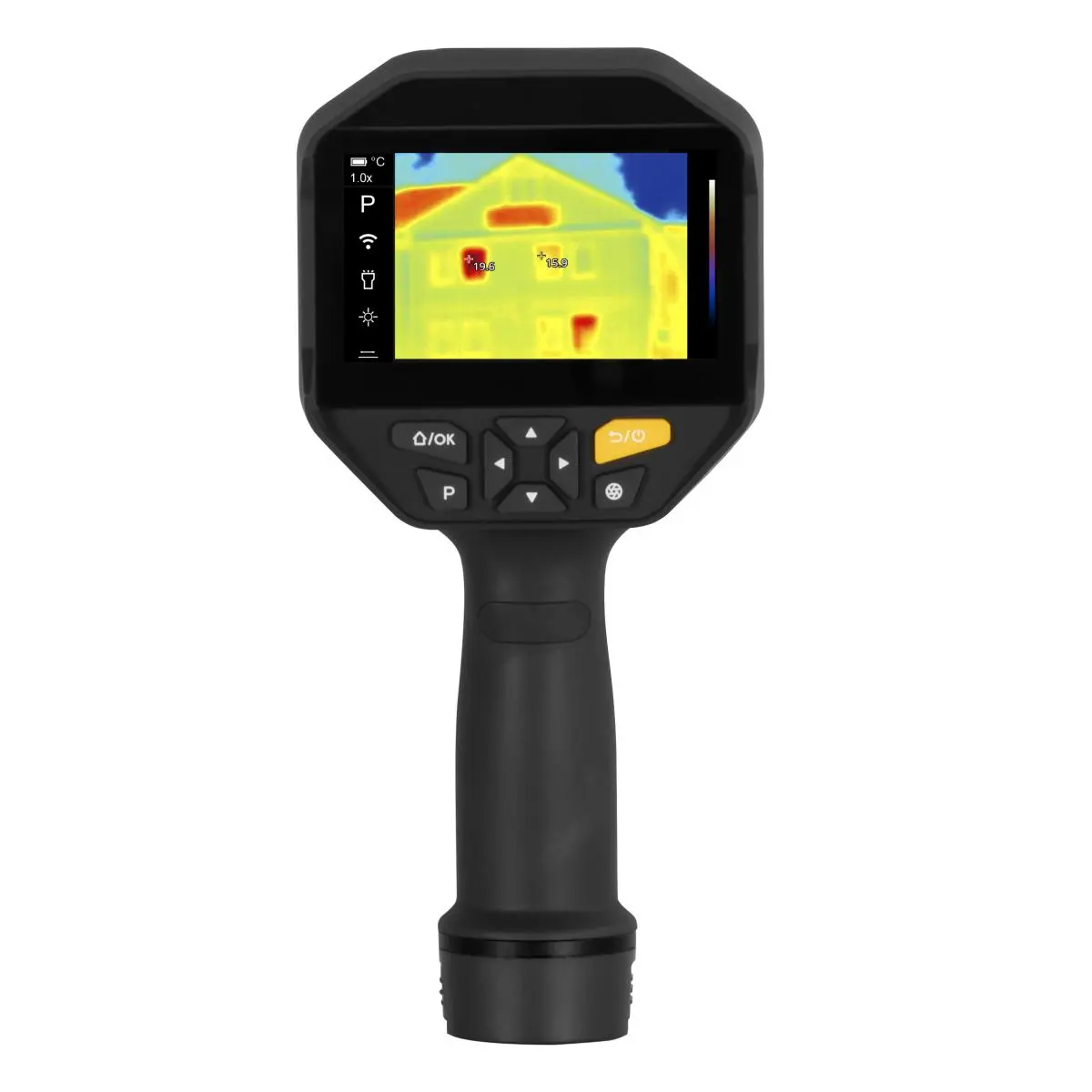

The Thermal Imaging Camera features an 8-megapixel digital camera with image fusion, picture-in-picture function and integrated lighting for recordings in low-light conditions. The 4.3-inch LC touch display with button operation enables convenient use. To determine the measurement distance, the Thermal Imaging Camera is equipped with laser distance measurement. The target distance can be manually set independently from 0.5 to 50 m in order to adapt the temperature measurement to the respective measurement distance. In addition, the camera has maximum temperature detection and minimum temperature detection for the rapid localisation of temperature deviations.

The adjustable emissivity of 0.01 to 0.99 enables measurements on different materials. The camera operates in a wavelength range of 8 to 14 µm and has a frame rate of 50 Hz. For documentation purposes, photos in JPG format and videos in MP4 format can be recorded and saved. The internal 32 GB memory can be expanded using a microSD card up to 256 GB.

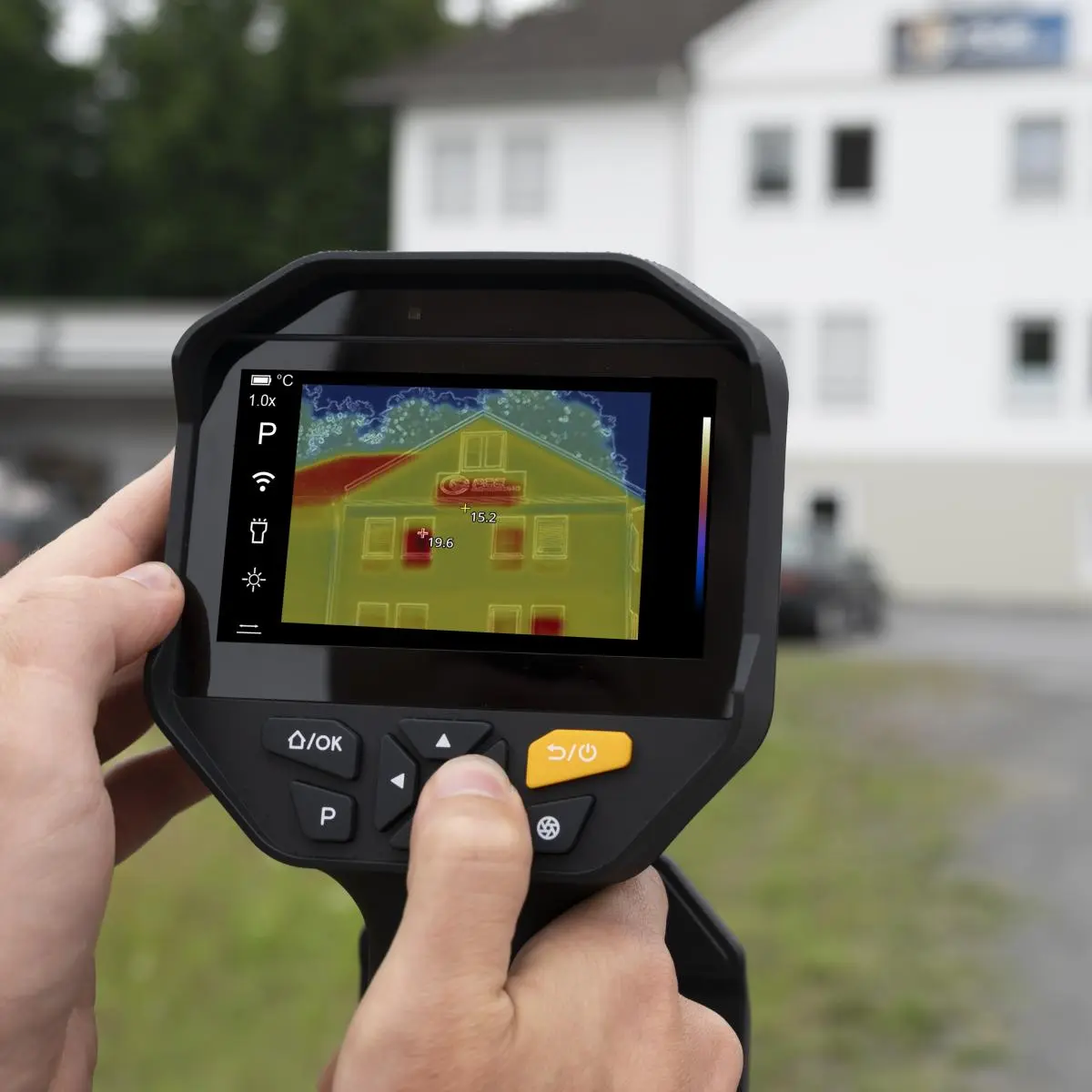

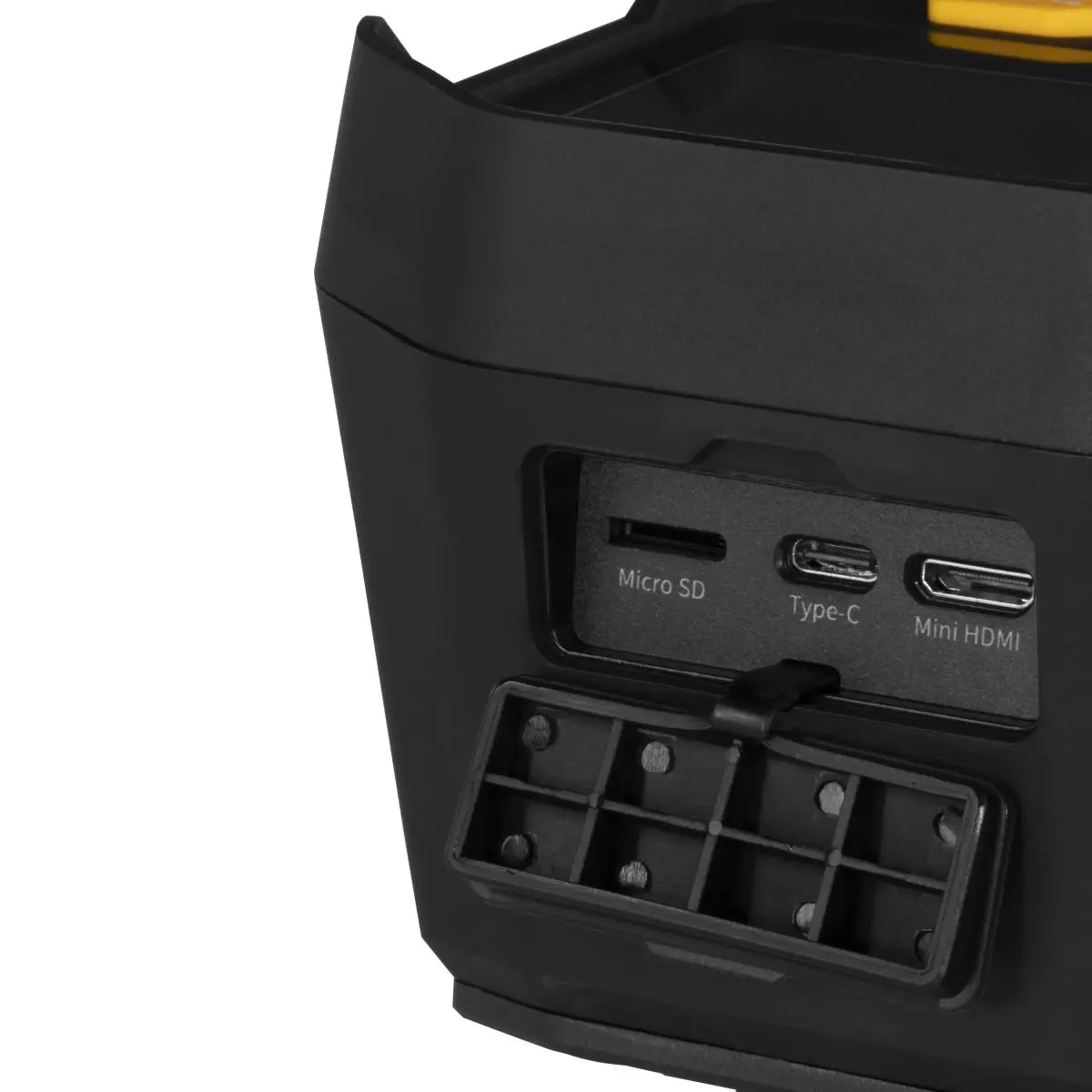

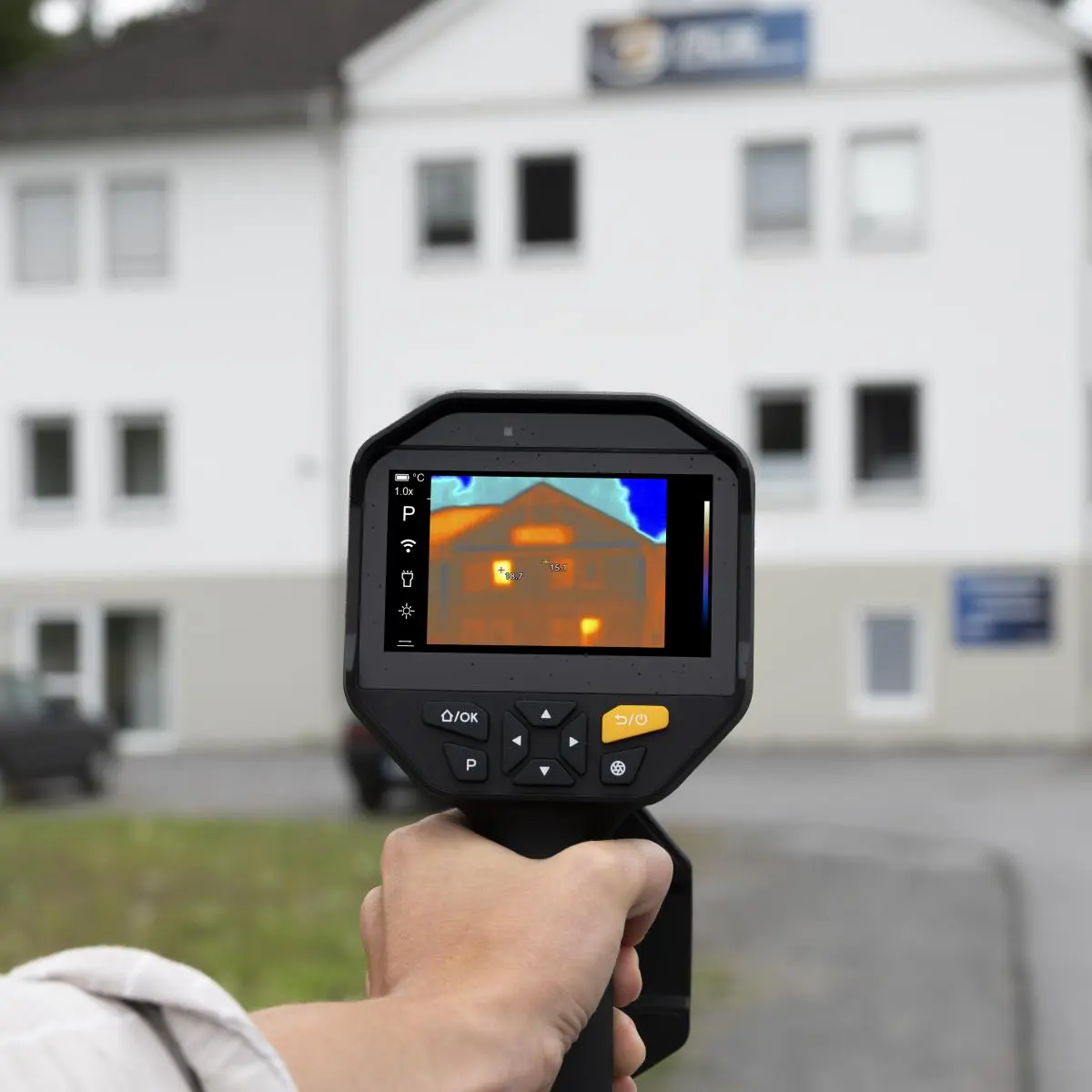

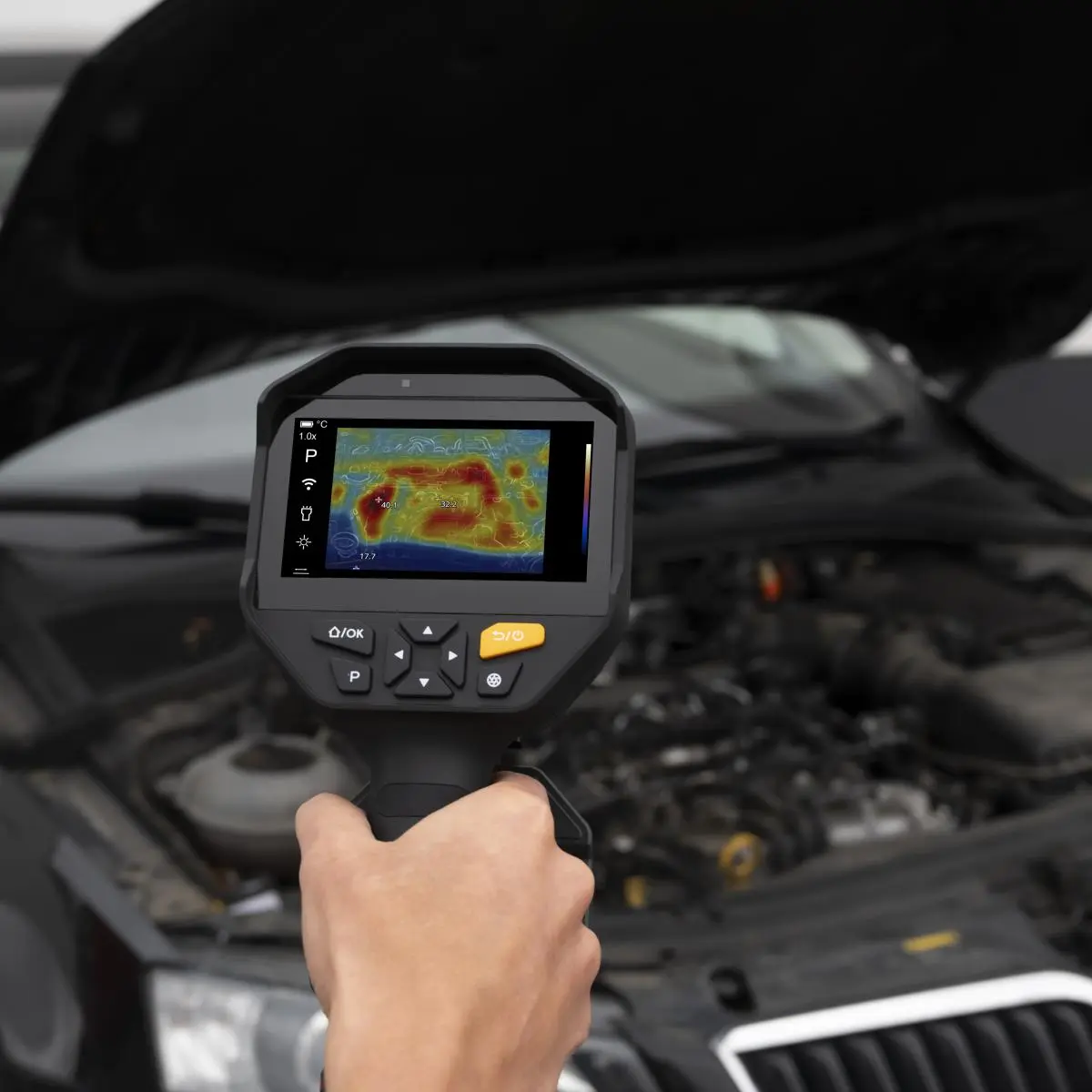

Data can be transferred via WLAN, USB-C and Mini HDMI, and images can be displayed on external devices. Other functions include PC software for thermal image analysis, seven colour palettes, automatic switch-off, and a visual and audible temperature alarm with adjustable upper and lower limits. When the set limits are reached, visual and audible alerting is triggered. The Thermal Imaging Camera is suitable for thermal inspection of electrical systems, machinery, buildings, as well as heating and air conditioning systems.
