Surface Testing PCE-ATP 1

Surface Testing - ATP Meter PCE-ATP 1

Order no.: PCE-ATP 1
GTIN (EAN): 4250348715913
₹214,185.00
₹252,738.30
price ex. (VAT / delivery)
:
4250348715913
PCE-ATP 1
Delivery time:1-2 working days
Surface Inspection UV Light

Description

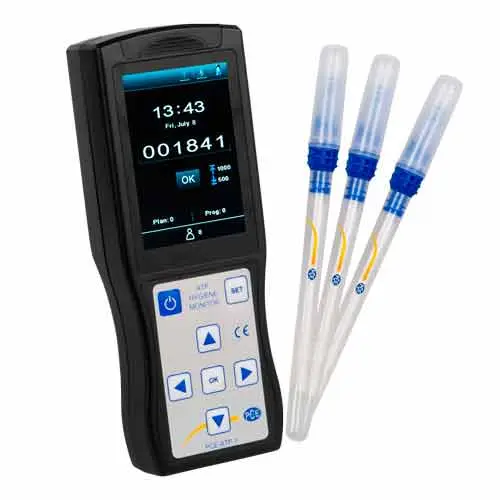

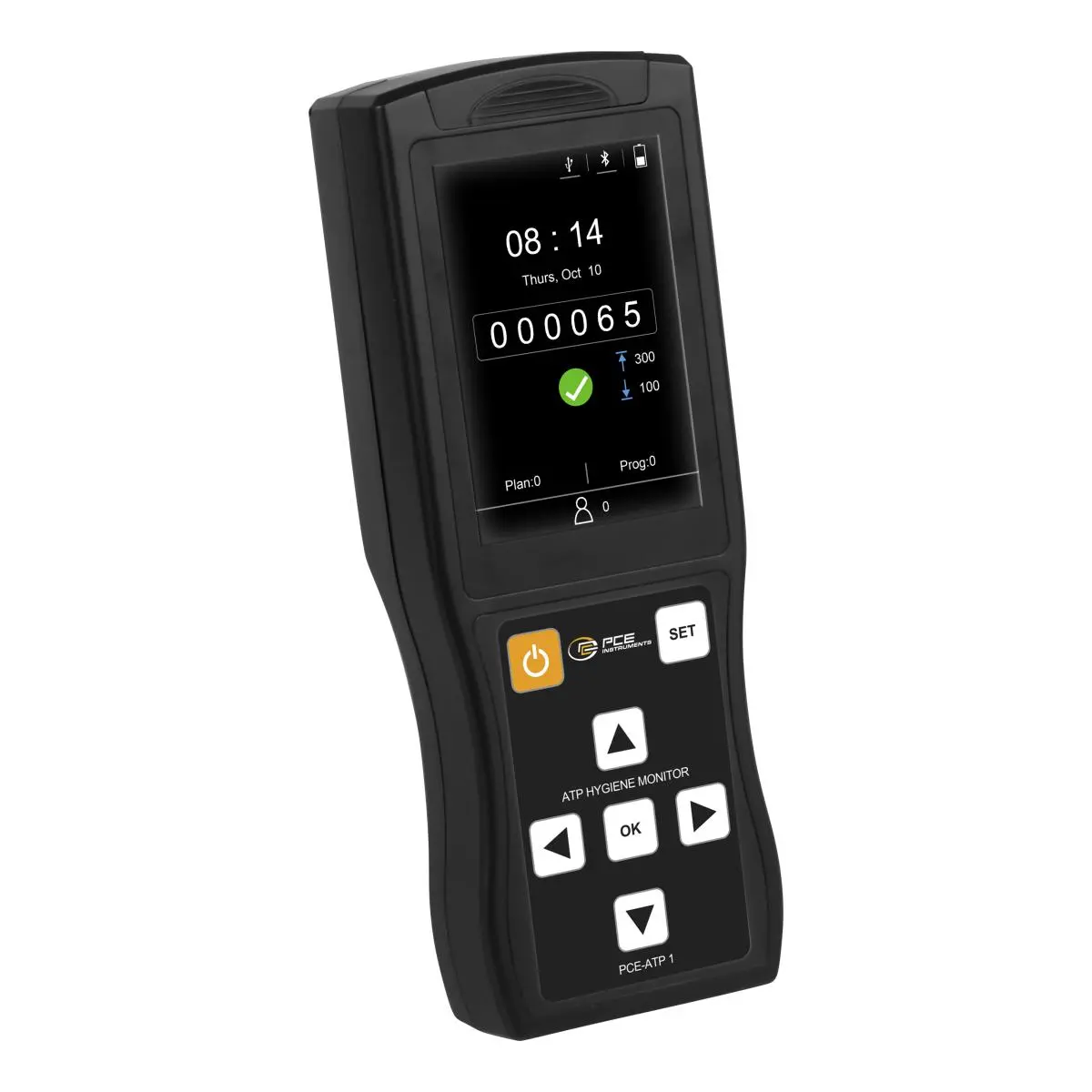

PCE-ATP 1 Surface Testing - ATP Meter
Enables rapid detection of bacterial or microbial residue / Stores up to 10,000 date- and time-stamped data records to internal memory / Provides connectivity via USB and Bluetooth interfaces / Includes PC software for analysis

PCE-ATP 1 is an ATP meter, tester, lumitester or luminometer used for surface testing. This luminometer allows for quick and easy first-generation adenosine triphosphate (ATP) testing and monitoring to ensure proper cleanliness, sterilization and sanitization. PCE-ATP 1 is an ATP tester that can be used for cleanliness control and documentation in many different applications.

Basic operation

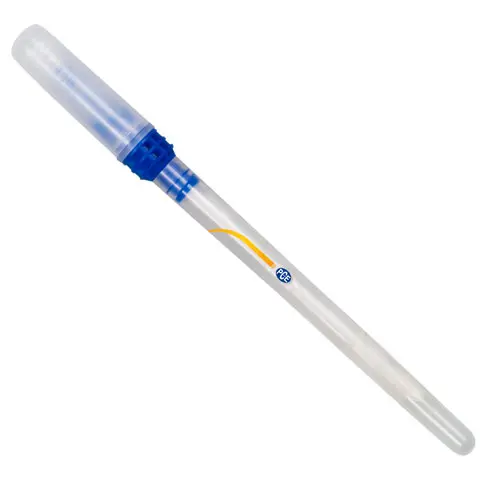

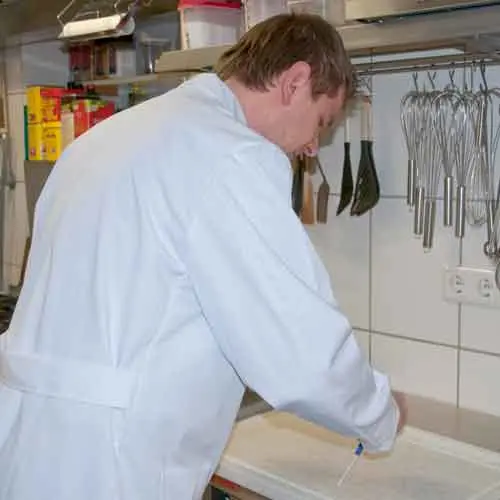

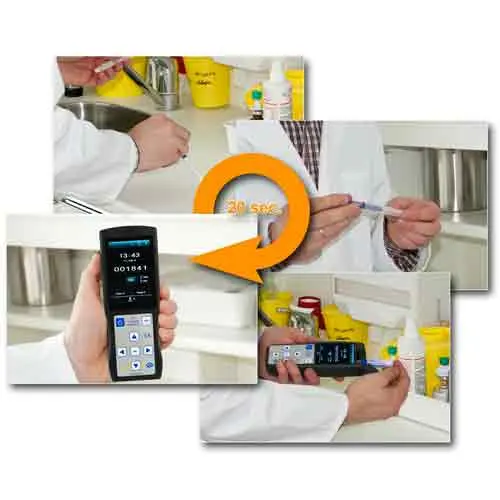

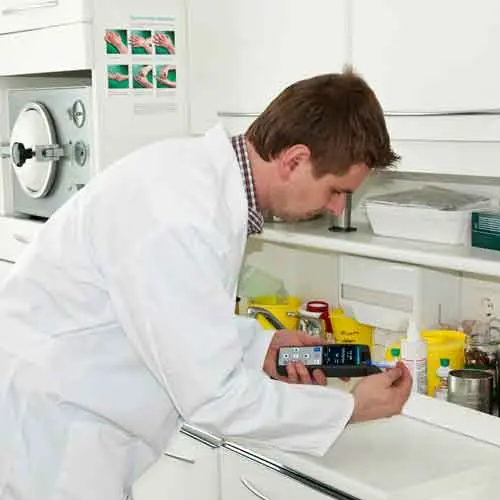

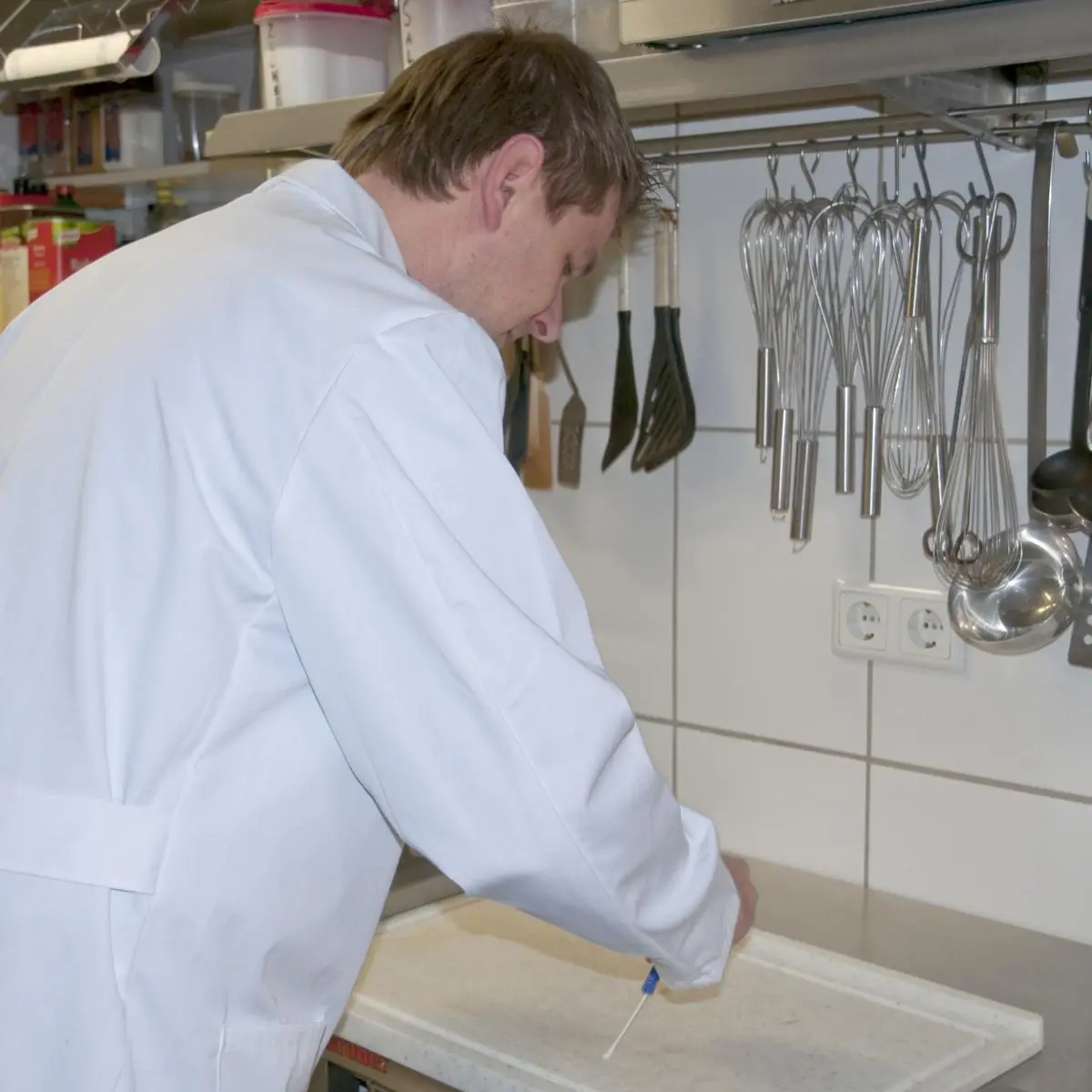

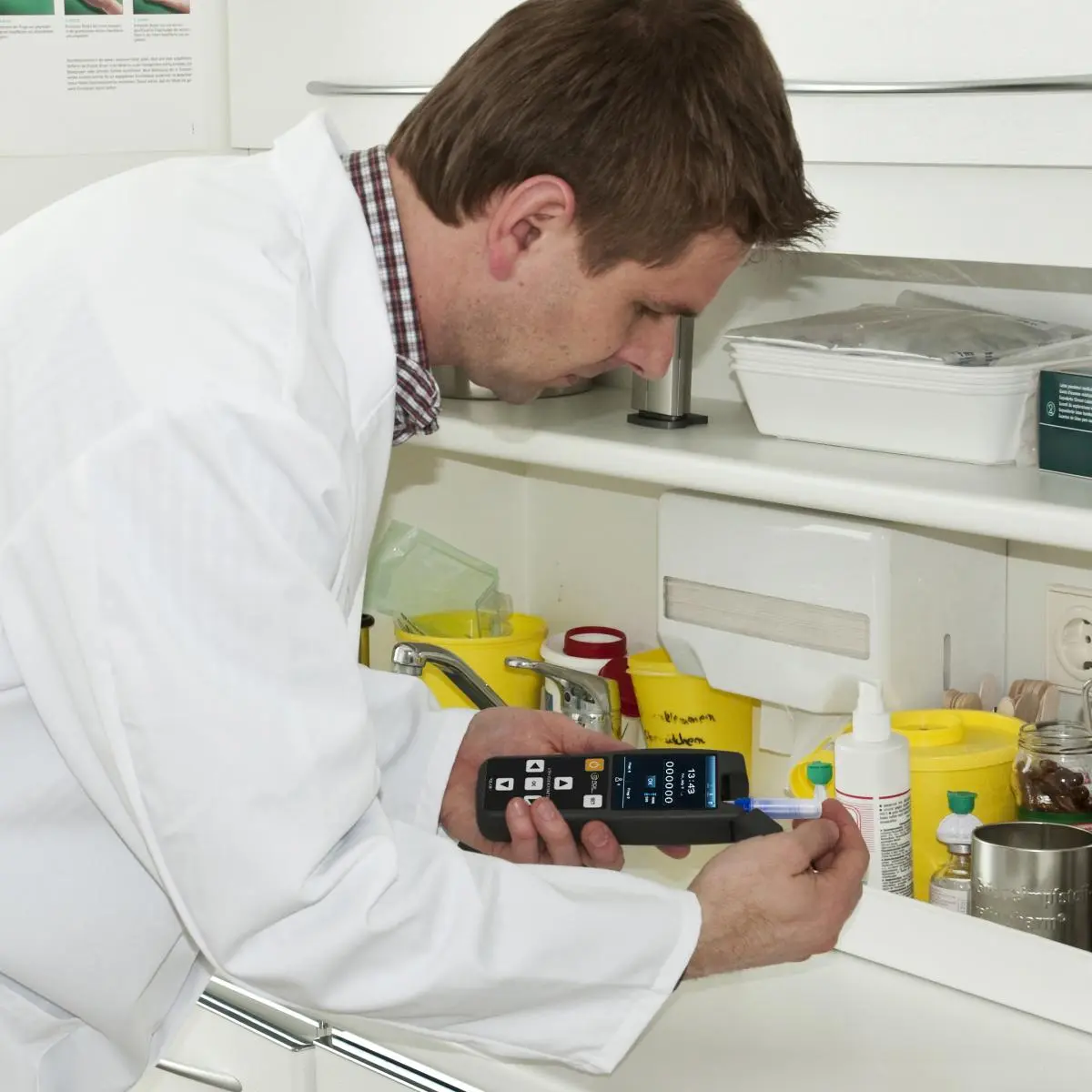

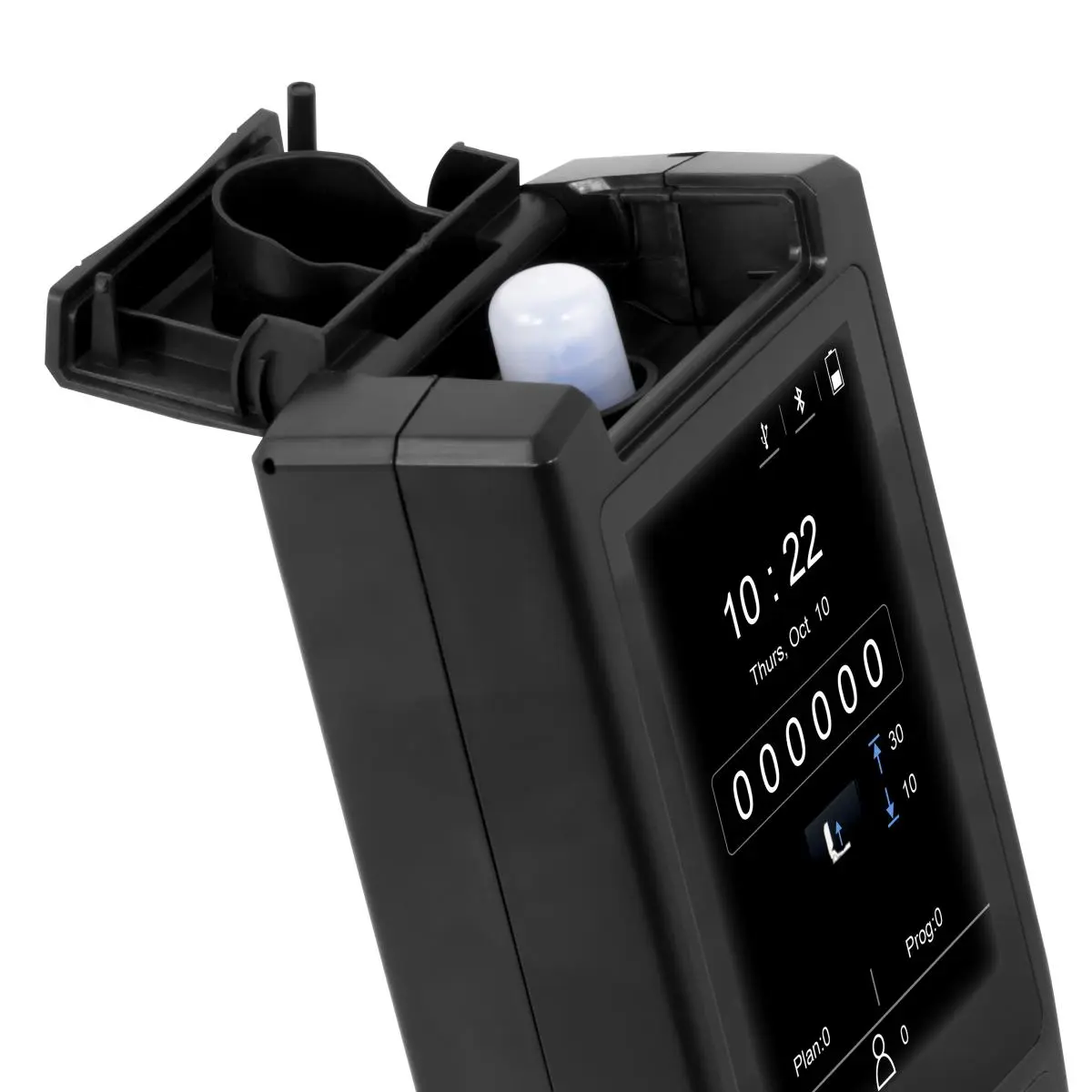

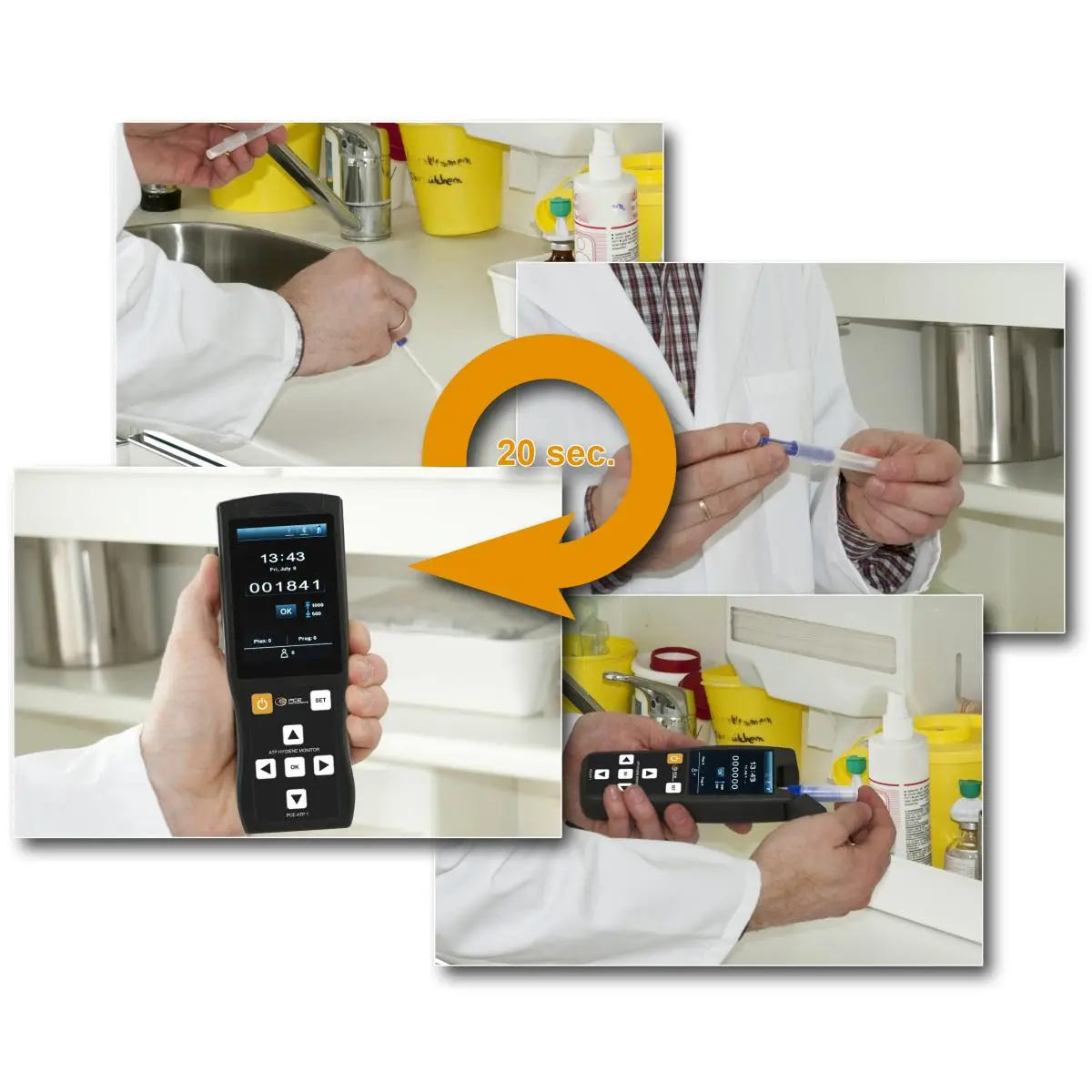

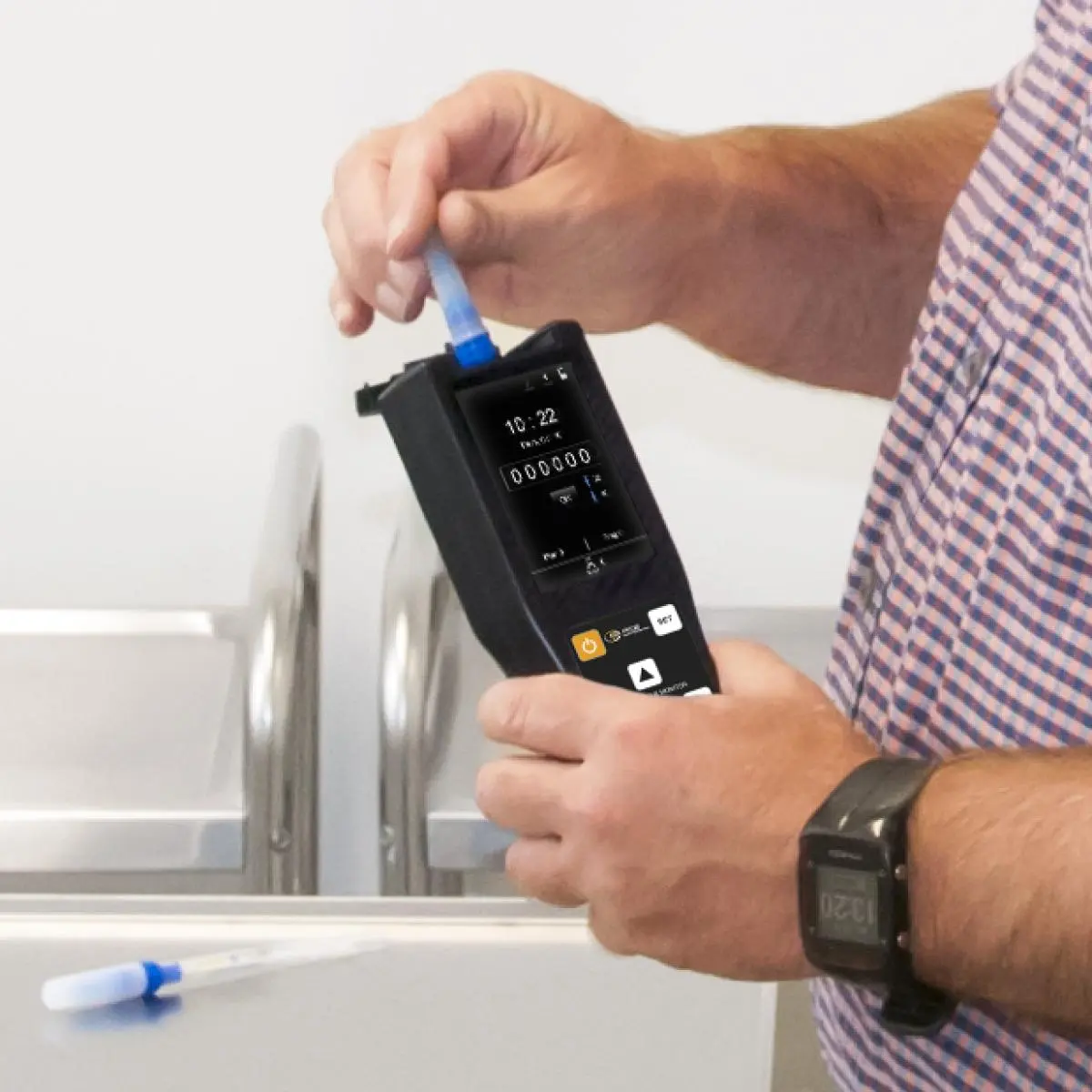

Use PCE-ATP SWAB (sold separately - see accessories) to take a sample of the surface to be tested. Press the swab all the way down into the tube, so the swab comes into contact with the reaction liquid and reagent. Gently shake the tube to ensure the sample is fully covered. Insert the whole test tube into the measuring chamber of the PCE-ATP 1 testing device. After 10 seconds, the measurement results are shown in relative light units (RLUs) on the device display.


Highlights

- Offers a measurement range of 0 ... 999,999 relative light units (RLUs)
- Stores up to 10,000 date- and time-stamped data records to internal memory
- Enables rapid detection of microbial residue
- Displays accurate measurement results on large LCD screen after just 10
seconds
- Performs quantitative determination of intracellular and extracellular ATP
- Features autocalibration and multiple user functionality
- Provides connectivity via USB and Bluetooth printer interfaces
- Includes PC software for analysis
Note: Swabs (PCE-ATP SWAB) sold separately. See accessories tab for details.

Specification

ATP
Measuring range  0 ... 999999 RLU
Resolution  1 RLU
Accuracy  1x10⁻¹⁸ mol ATP

General technical data

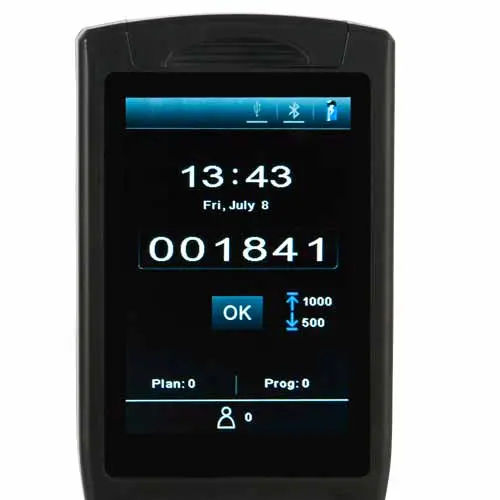

Display type  LC colour display with backlight
Display size  3,5 Inch
Storage medium  Internal memory
Storage capacity  10000 Data records
Memory capacity (additional information)  256 users, 256 plans, 2,000 programs and 10,000 results

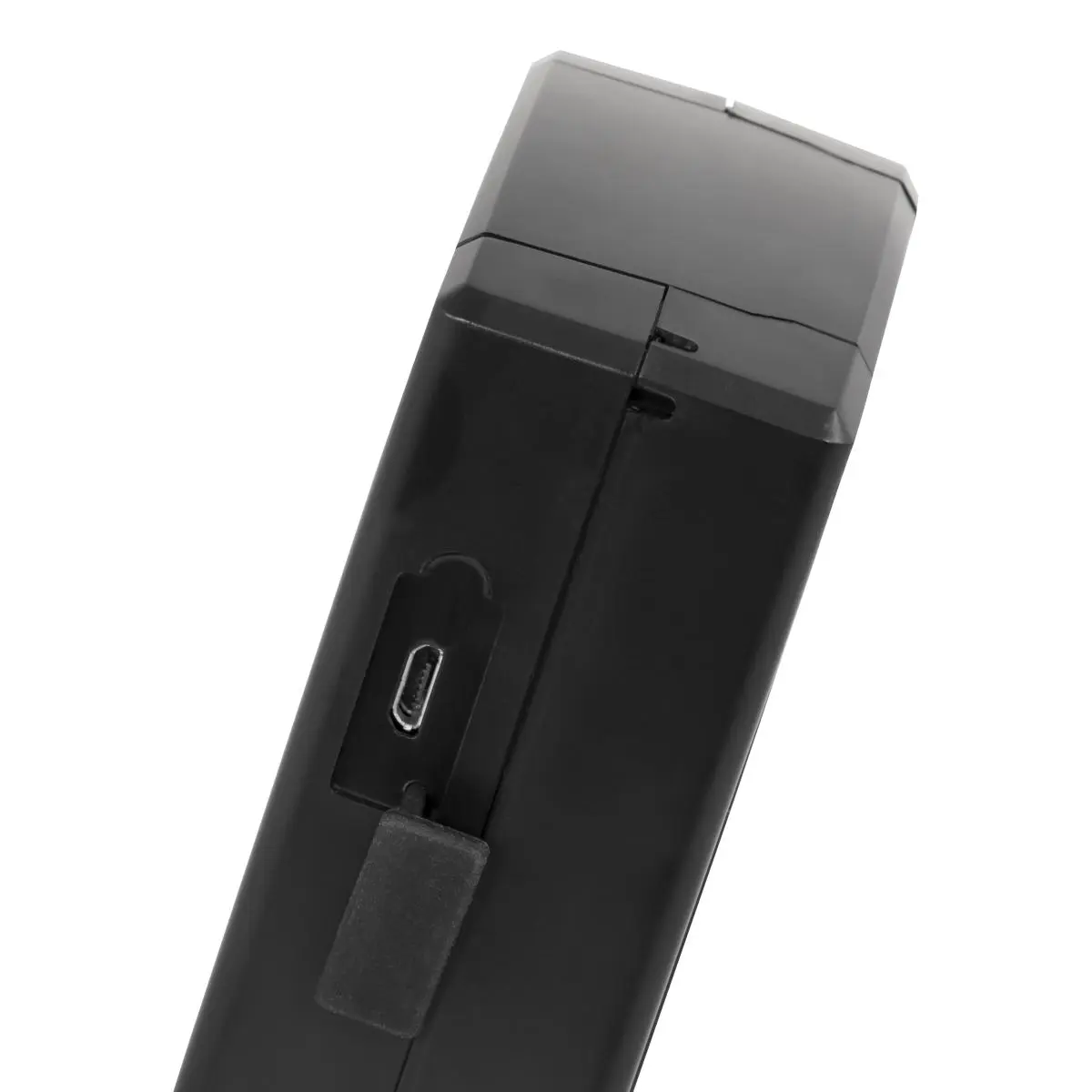

Interface  Micro-USB, Bluetooth
Operating time  10 h
Operating time additional information  Standby: 600 h
Measuring method  Analogue integration using photodiodes
Measurement time  10 s
Reproducibility  8% - 20%
Menu language  English, English (GB), Chinese
Protection class (device)  IP21
Power supply  100 ... 240V AC | 50/60 Hz, 5V DC
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  2300 mAh
Operating conditions  5 ... 40 °C , 20 ... 80 % RH
Storage conditions  -10 ... 40 °C , 0 ... 60 % RH
Dimensions ( L x W x H )  189 x 70 x 35 mm
Weight  280 g

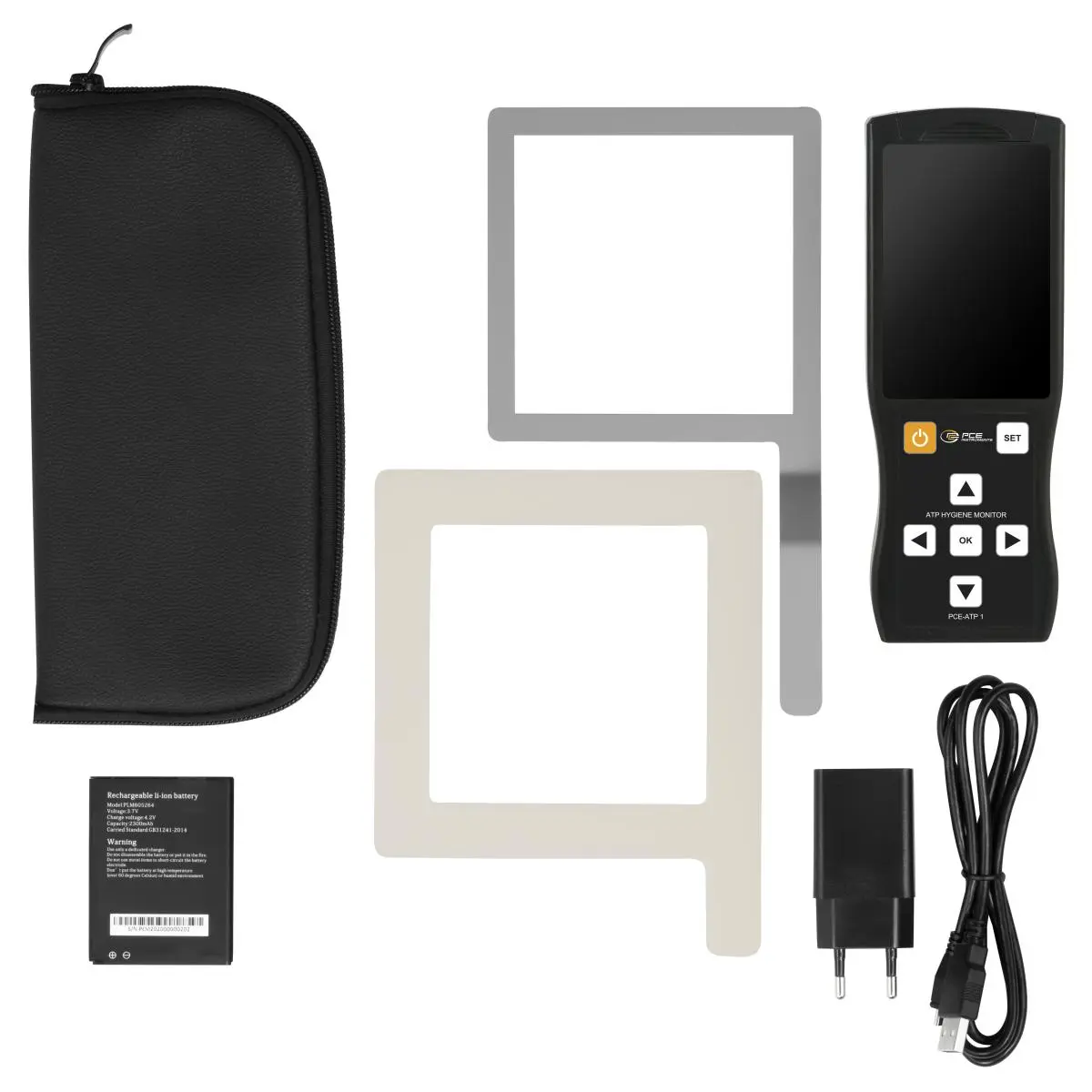

Delivery Scope

1 x PCE-ATP 1 Surface Testing
1 x 3.7 V / 2300 mAh Li-ion rechargeable battery
1 x USB cable
1 x USB charger
1 x Hand strap
1 x PC software download
1 x User manual
Note: Swabs (PCE-ATP SWAB) sold separately. See accessories tab for details.
