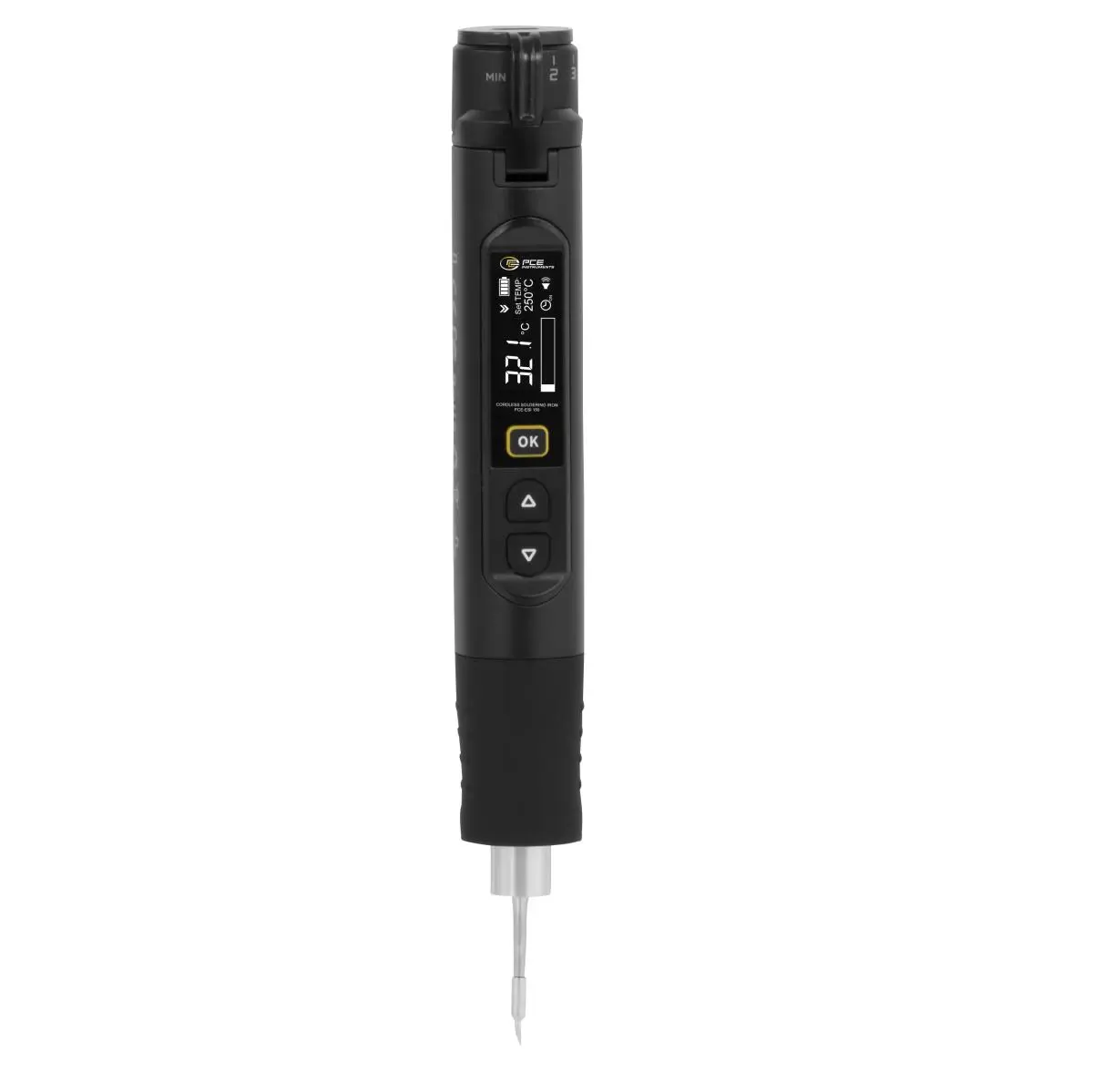

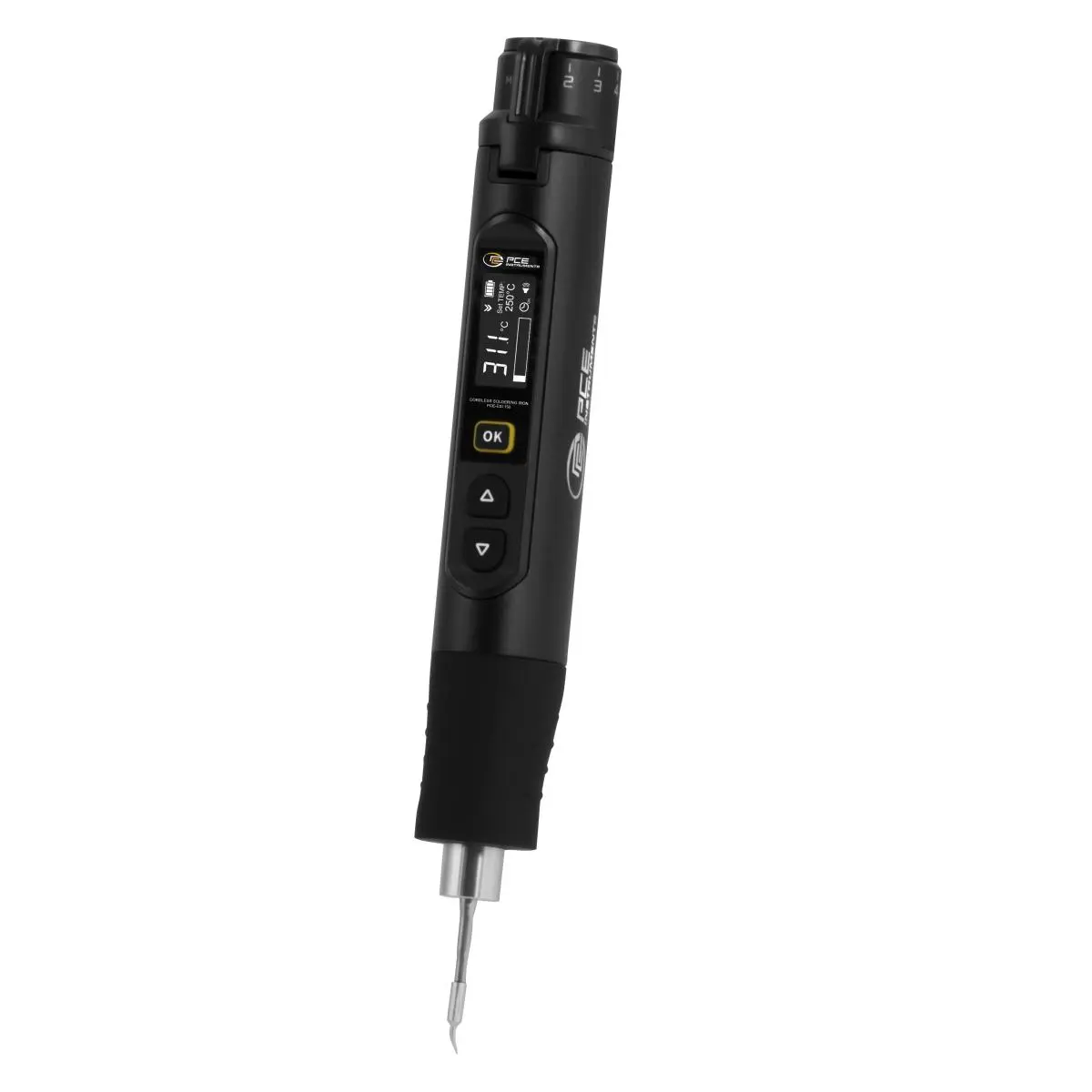

Soldering iron / Soldering device PCE-ESI 150

Soldering iron / Soldering device PCE-ESI 150

Order no.: PCE-ESI 150
GTIN (EAN): 4250348748072
₹11,766.00
₹13,883.88
price ex. (VAT / delivery)
:
4250348748072
PCE-ESI 150
Delivery time:1-2 working days

Description

Soldering iron / soldering device for precision work / Incl. 3 precision tips / 7 s rapid heat-up / Battery and USB-C power supply

The soldering iron / soldering device is designed for soldering work with a precisely adjustable temperature and combines cordless operation with a power supply via USB-C. For small components and SMD soldering, the precision tips support targeted processing, while the rapid heat-up reduces waiting times before work begins.

The temperature can be quickly adjusted to recurring tasks using five quick-setting levels and can also be finely tuned in small increments. The wide temperature range covers a variety of soldering tasks. The tips have a core resistance of 2.10 Ω and are designed for precision work. With an output of 10 W, the soldering iron / soldering device provides the heating performance required for these tasks.

For a continuous workflow, the device switches seamlessly between battery operation and USB-C power supply. The built-in 2600 mAh battery enables cordless use, while the wired and cordless dual mode allows you to choose the appropriate operating mode. An intelligent auto-sleep system and the energy-saving system support demand-based power use.

The soldering iron / soldering device is particularly suitable for precision work on small components and for SMD soldering tasks. The combination of F210 precision tips, finely adjustable temperature, and rapid heat-up supports controlled work steps on sensitive solder joints.


Highlights

- Temperature range from 100 ... 450°C
- 5 quick-select temperature levels
- Rapid heat-up in 7 s
- Fine temperature adjustment in 1°C increments

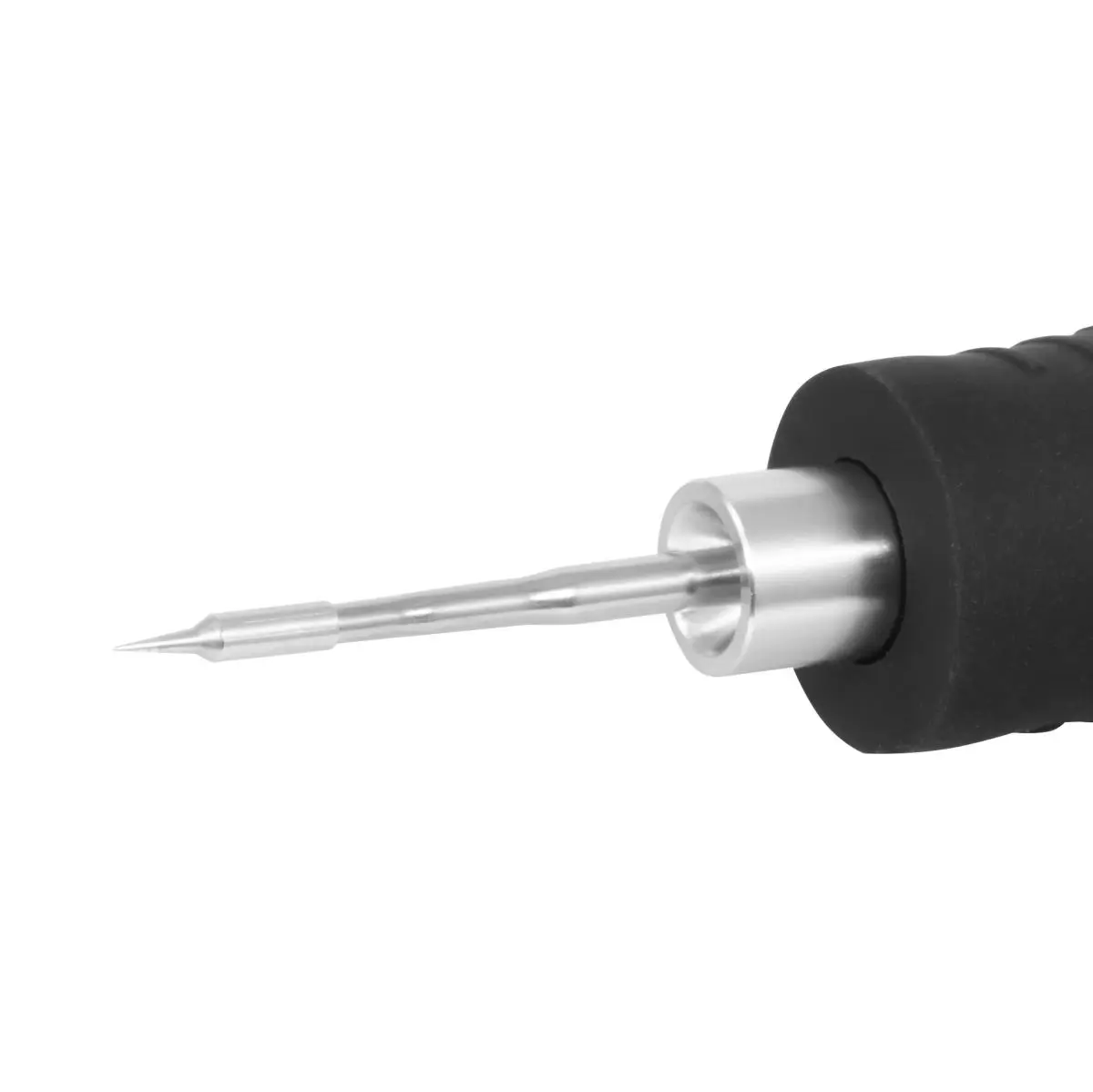

- 3 precision tips for precision work
- Operating time approx. 1.5 h @350°C
- Built-in battery with 2600 mAh
- Intelligent auto-sleep and energy-saving system

Specification

General technical data
Units  °C, °F

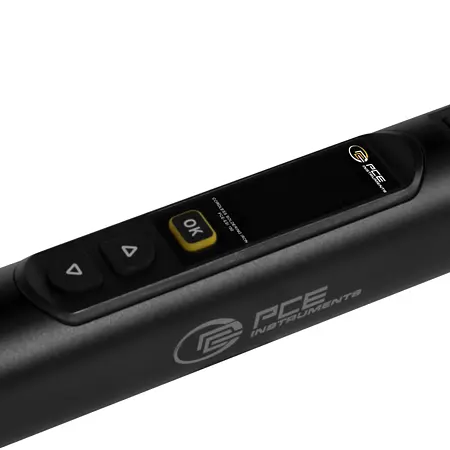

Display type  IPS
Display size  0,96 Inch

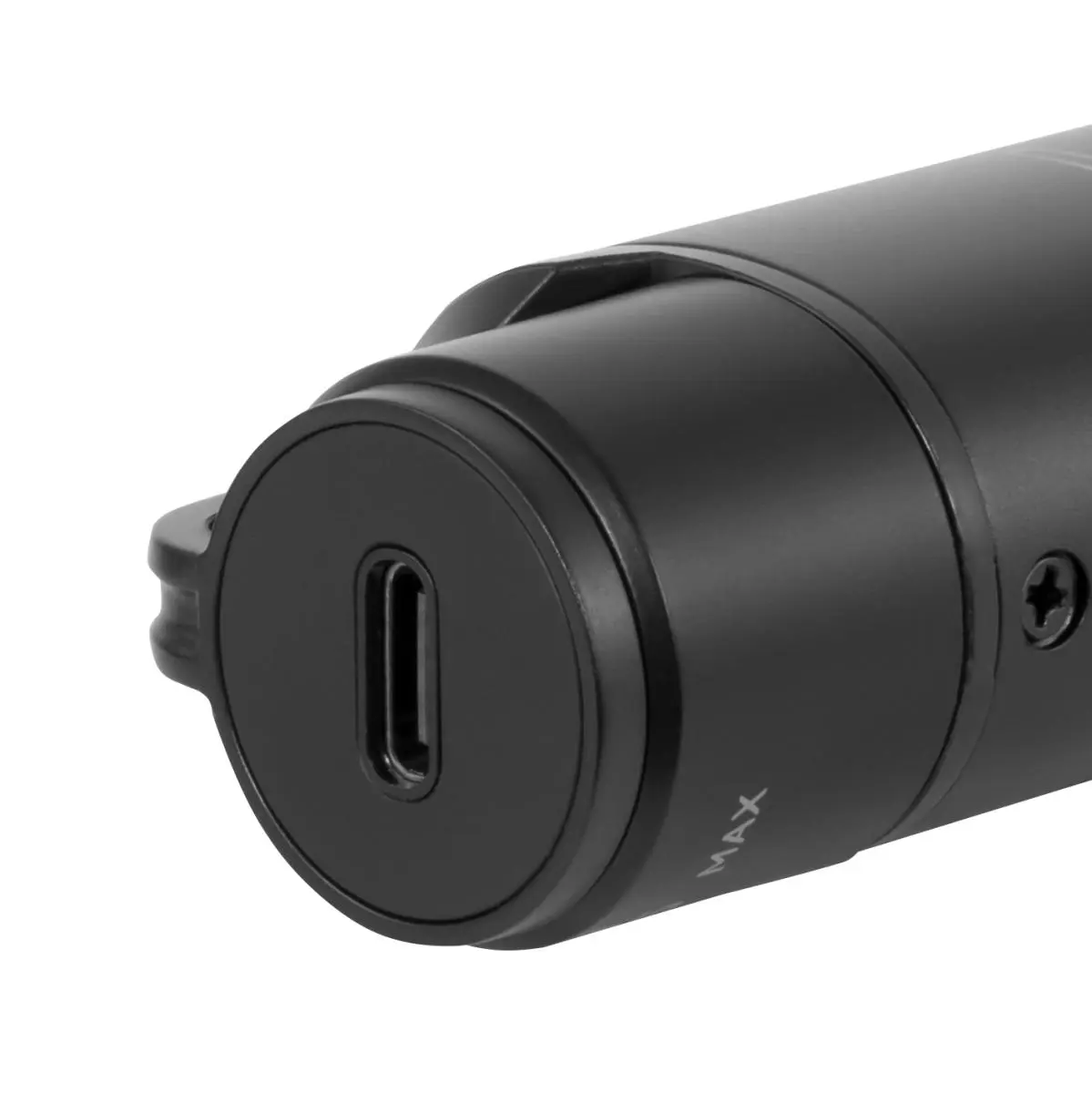

Interface  USB-C
Warm-up time  7 s
Operating time  1,5 h
Temperature range  100 ... 450 °C
Performance  10 W
Menu language  English (GB), English, Chinese
Protection class (device)  IP20
Power supply  5 V DC
Connector type  Euro plug
(Rechargeable) battery  1 x 3,7 V 18650 , Lithium-ion battery
Capacity  2600 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  195 x 24 x 30 mm
Weight  140 g

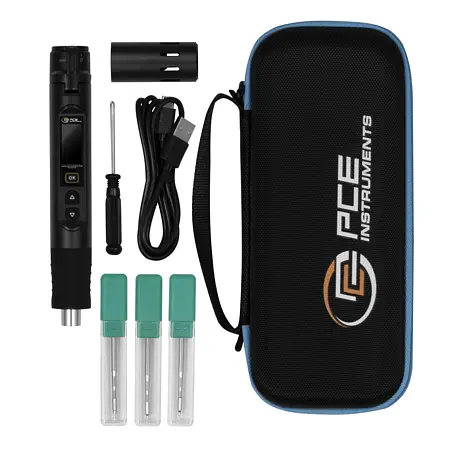

Delivery Scope

1 x Soldering iron / Soldering device PCE-ESI 150
1 x Soldering tip PCE-ESI 420-K
1 x Soldering tip PCE-ESI 420-IS
1 x Soldering tip PCE-ESI 420-I
1 x USB-C cable
1 x Screwdriver
1 x Device case
1 x Instruction manual
