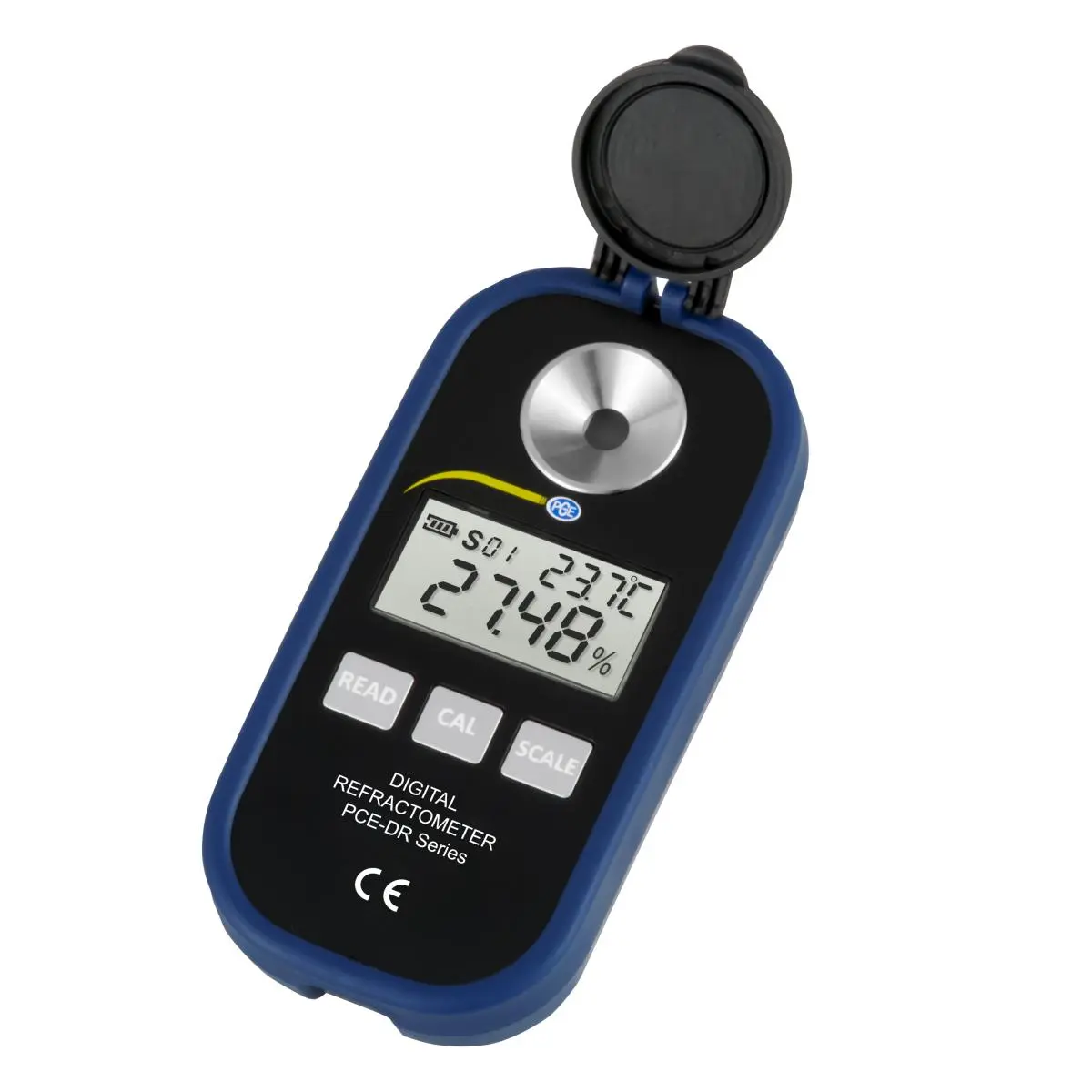

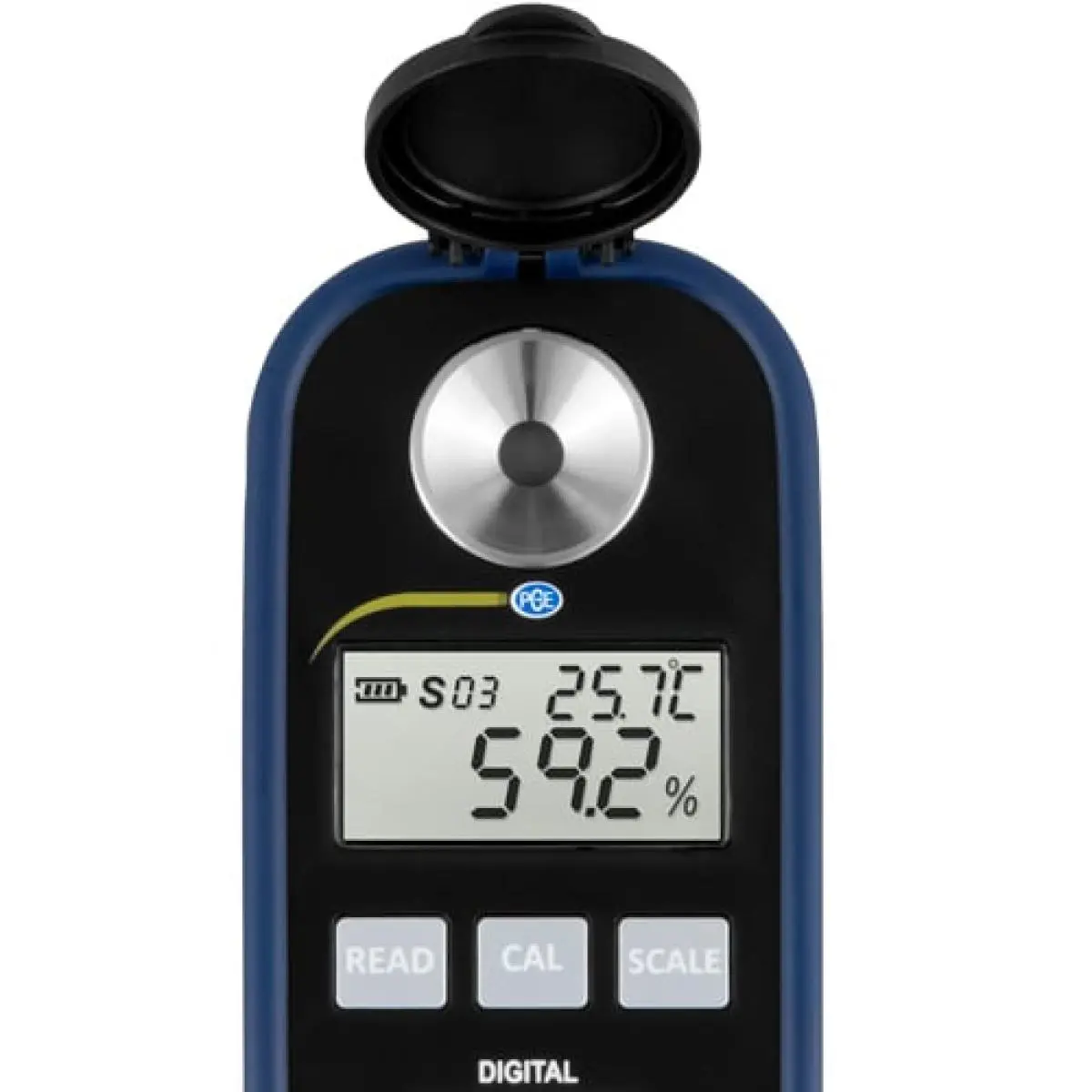

PCE-DRP 2 Coffee Handheld Digital Refractometer
Waterproof IP65-rated Brix / coffee p2 / refractive index (nD) refractometer with easy-to-read LCD
PCE-DRP 2 is a handheld digital refractometer used to determine the sugar content / coffee p2 of coffee and similar liquids in the 0 ... 30 % Brix / 0 ... 25 coffee p2 measuring range. This waterproof IP65-rated digital refractometer features automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F, as well as a large, easy-to-read LCD that shows both the measured value and the temperature.
| Brix | |
| Measuring range | 0 ... 30 % Brix |
| Resolution | 0,1 % Brix |
| Accuracy | ±0.2% Brix |
| Coffee p2 | |
| Measurement range min. | 0 |
| Measurement range | 25 |
| Resolution | 0,01 |
| Accuracy | 0,2 |
| Coffee p2 | |
| Measuring range | 0 ... 25 |
| Resolution | 0,01 |
| Accuracy | ±0.2 |
| Temperature | |
| Measuring range | 0 ... 40 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |
| General technical data | |
| Temperature compensation | automatic 10 ... 40 °C |
| Display type | LCD |
| Response time | 1 s |
| Automatic power-off | 1 min |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Sample quantity | 4 ... 5 drops |
| Sample tray | Stainless steel ring with glass prism |
| Menu language | English, English (GB) |
| Protection class (device) | IP65 |
| (Rechargeable) battery | 1 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 10 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 121 x 58 x 25 mm |
| Weight | 90 g |
