The Radiation Detector is a 3-in-1 measuring instrument for measuring electric field strength, magnetic field strength, and power flux density. The Radiation Detector measures electric field strength in the range from 1 ... 1999 V/m with a resolution of 1 V/m. Magnetic field strength can be measured in the ranges 0.1 ... 999.9 mG with a resolution of 0.1 mG and 0.01 ... 99.99 µT with a resolution of 0.01 µT. Power flux density is measured in the range from 0.1 ... 999.9 mW/m² with a resolution of 0.1 mW/m². Accuracy is ±5% for all measured variables. The bandwidth ranges from 40 Hz ... 10 GHz. Magnetic field measurement is carried out across three axes.

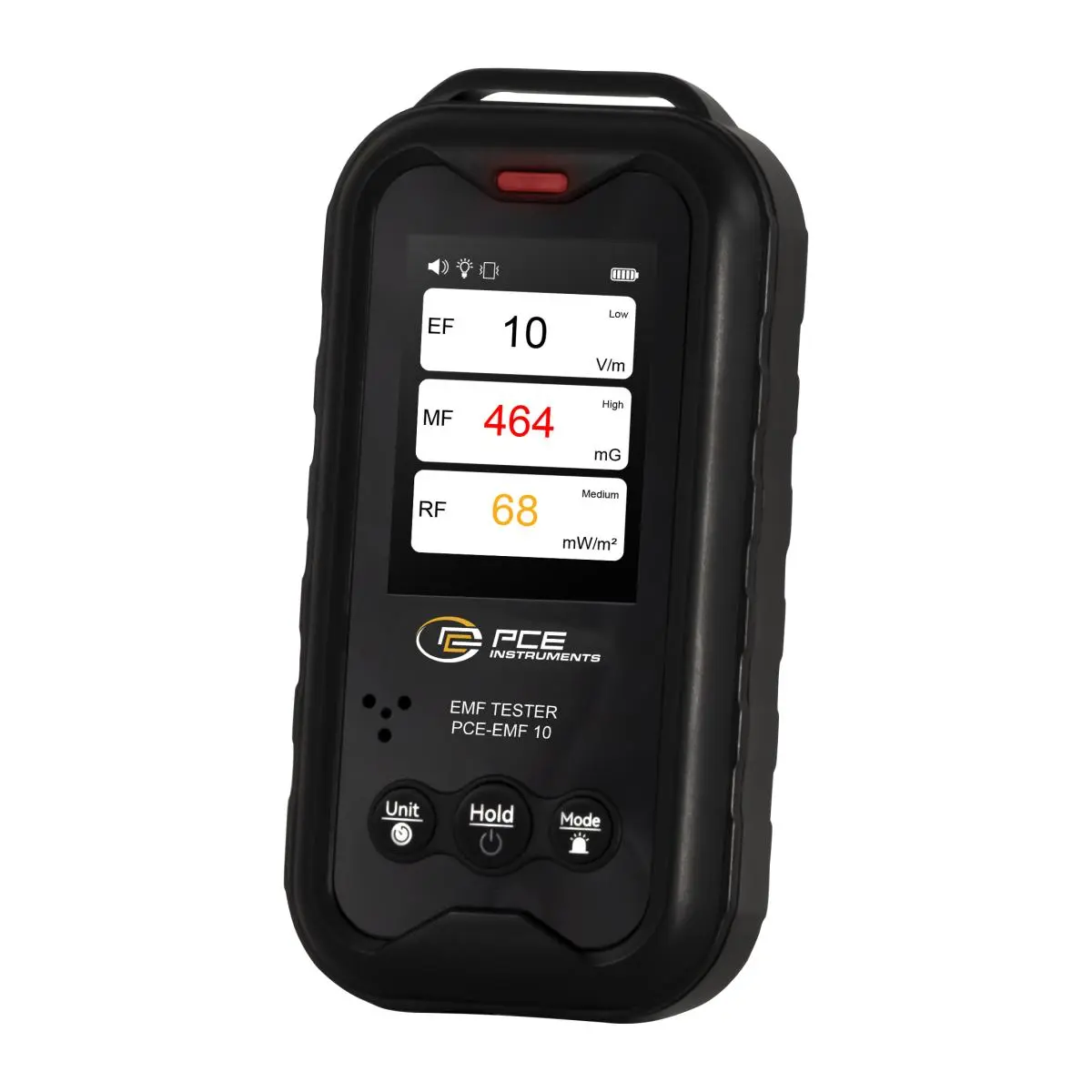

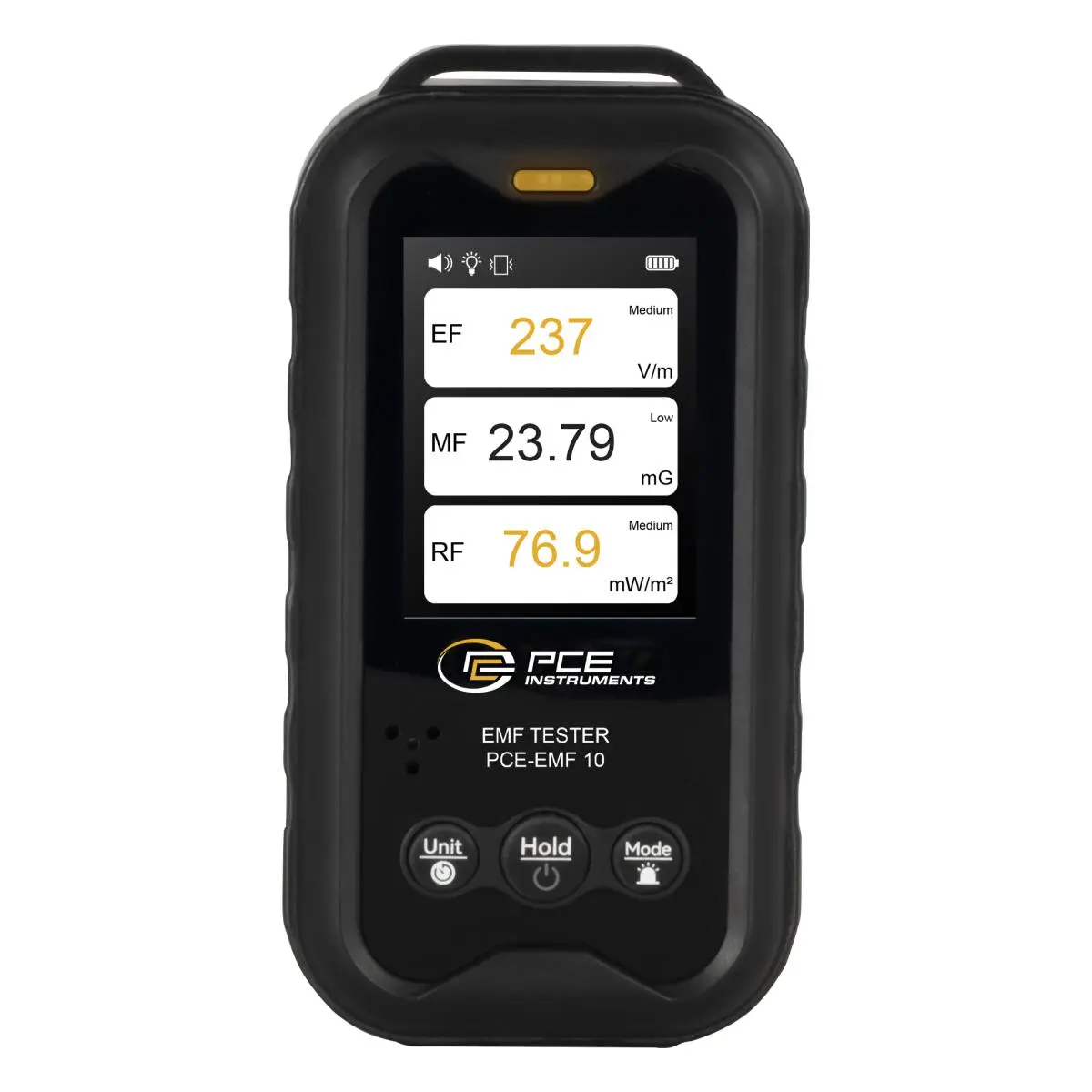

The Radiation Detector has a 2.4-inch TFT colour display and four switchable display modes. In the three measurement modes for power flux density, electric field strength, and magnetic field strength, the real-time value, historical average value, and maximum value are shown, together with the corresponding measured value trend as a graph. The overview mode displays all three measurement ranges simultaneously with their respective alarm states. The hold function allows measured values to be retained. In addition, the Radiation Detector allows switching the magnetic units between µT and mG.

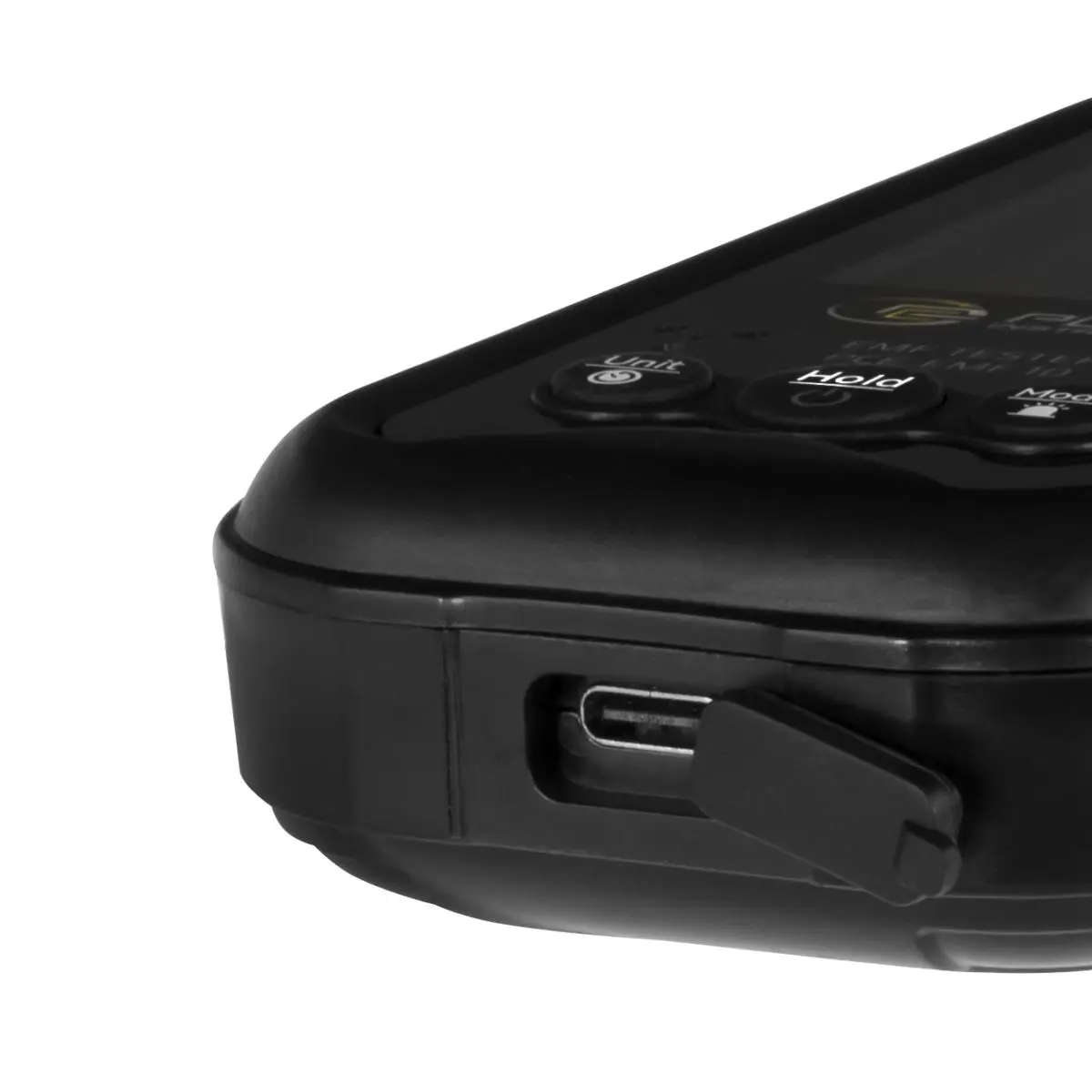

If a limit value is exceeded, the Radiation Detector warns audibly, visually, and by vibration. Automatic switch-off occurs after 15 minutes and can be deactivated. Power is supplied by an integrated lithium-ion battery charged via the USB-C interface.

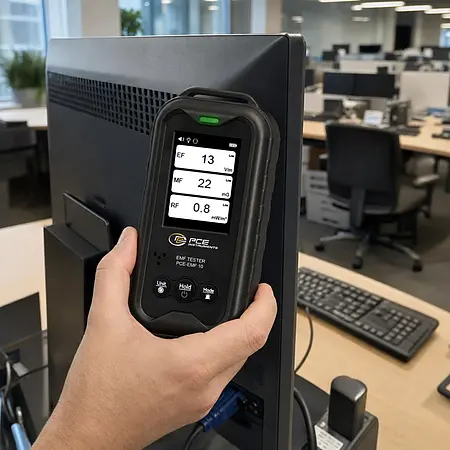

The Radiation Detector is suitable for investigating electromagnetic fields in living areas, offices, and computer environments, as well as for measuring electromagnetic fields in the vicinity of electrical and high-frequency devices
