Psychrometer PCE-DPM 10

Name: Psychrometer PCE-DPM 10
Brand: PCE Instruments
SKU: 6185449
Price: 608925 INR
Availability: InStock

Order no.: PCE-DPM 10

GTIN (EAN): 4250348733634

Accessory

Optional activation of the Smart Features PCE-DPM 10-SF

₹46,650.00

Description

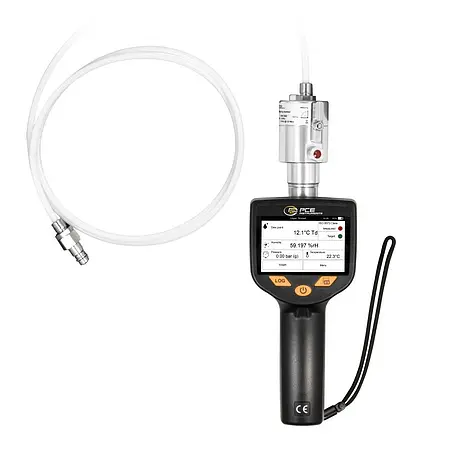

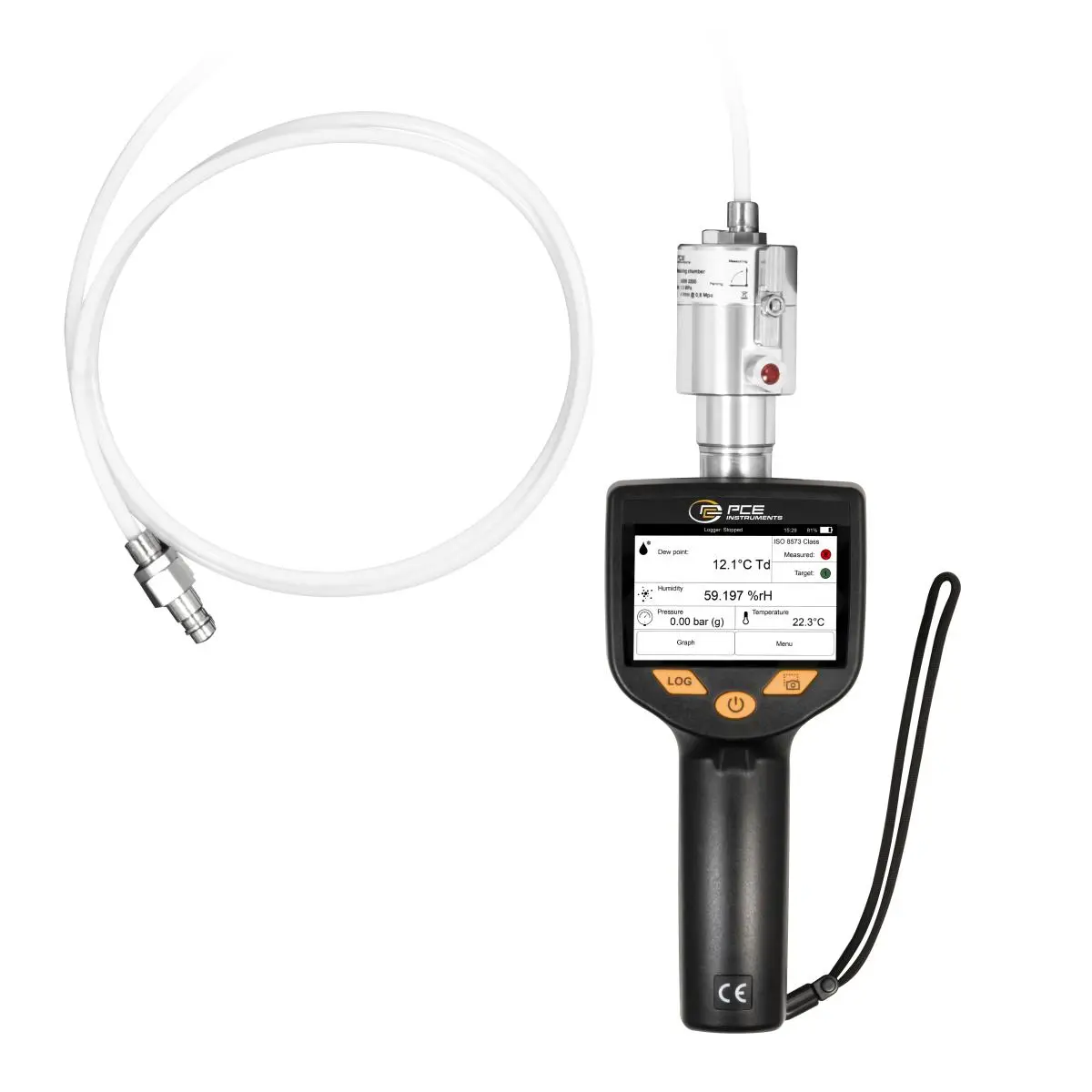

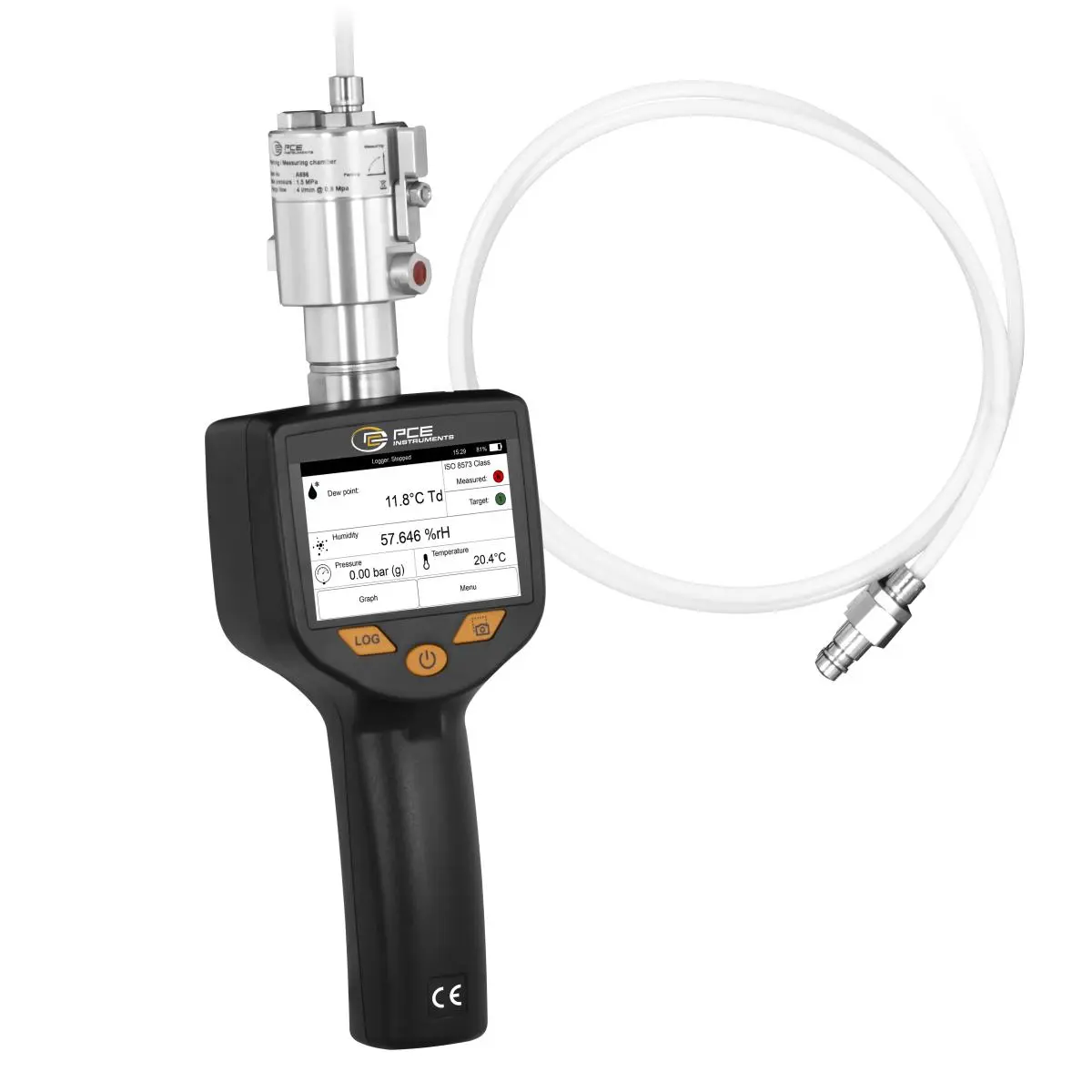

Psychrometer for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display

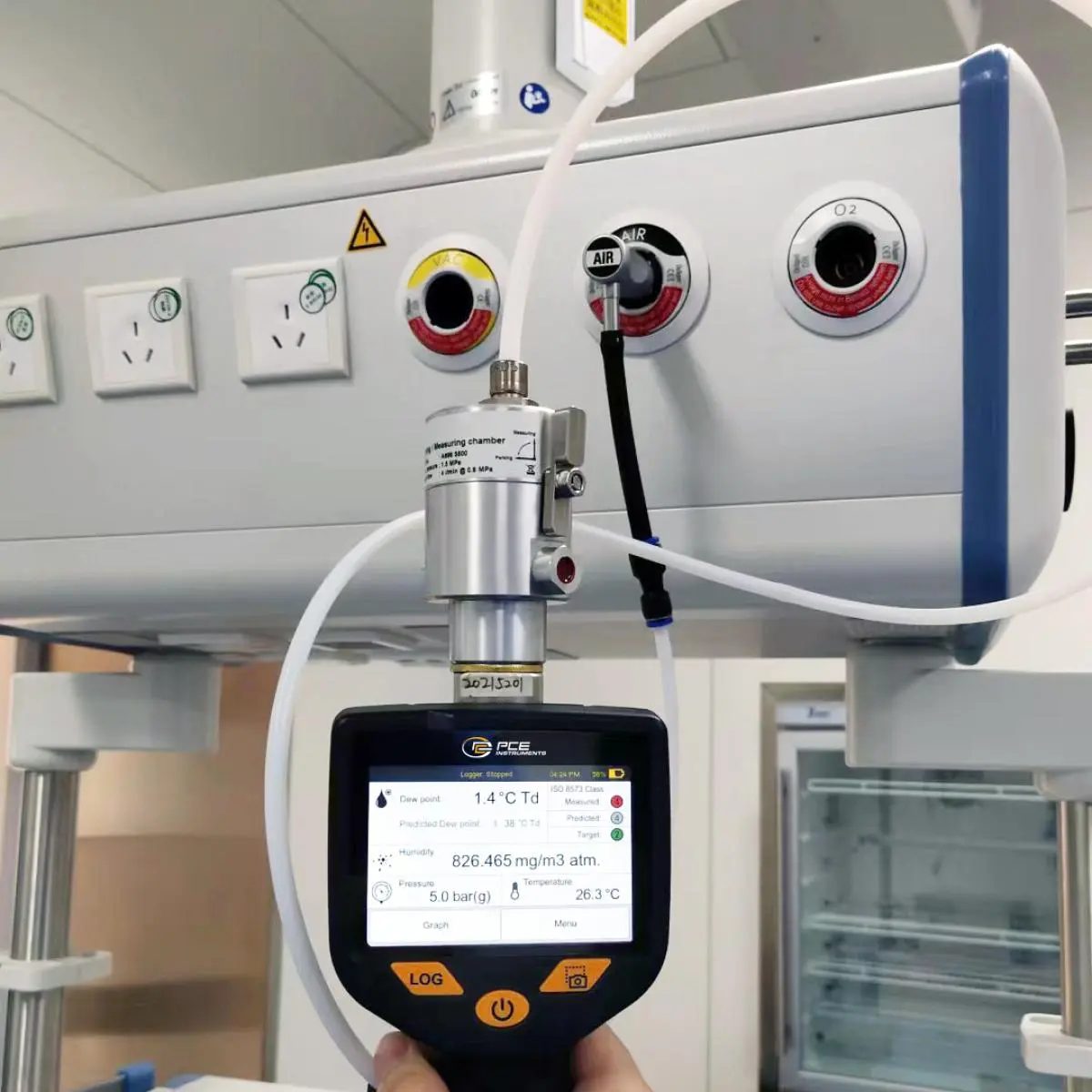

The precise psychrometer from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The psychrometer is versatile and provides accurate results for air and various gases.

The psychrometer offers a robust and handy design, the housing of the psychrometer was specially developed for industrial applications.

The operation of the psychrometer is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the psychrometer. The psychrometer offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.

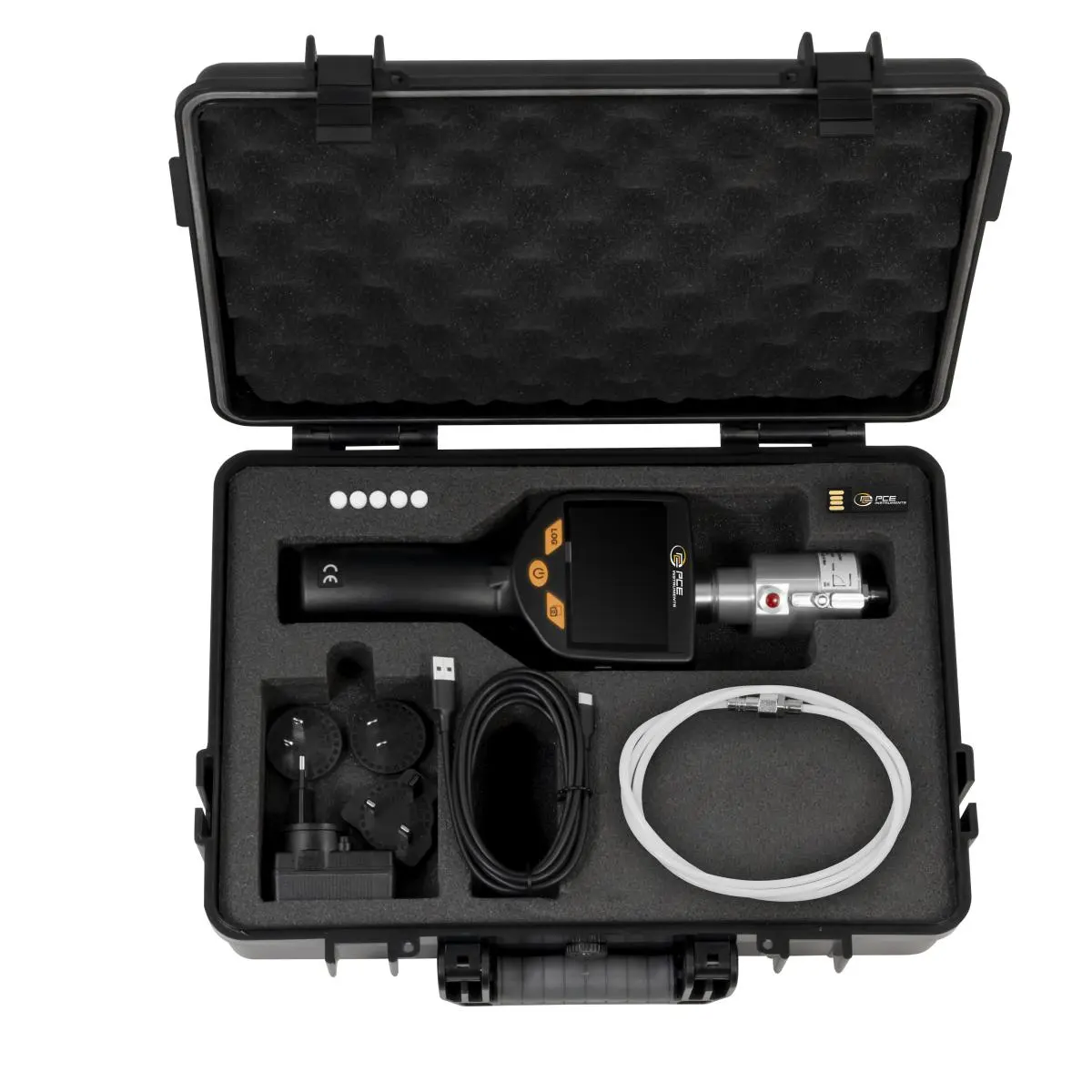

In addition, the psychrometer is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the psychrometer to be used quickly and also saves time during measurement.

In addition, the psychrometer has a psychrometer function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.

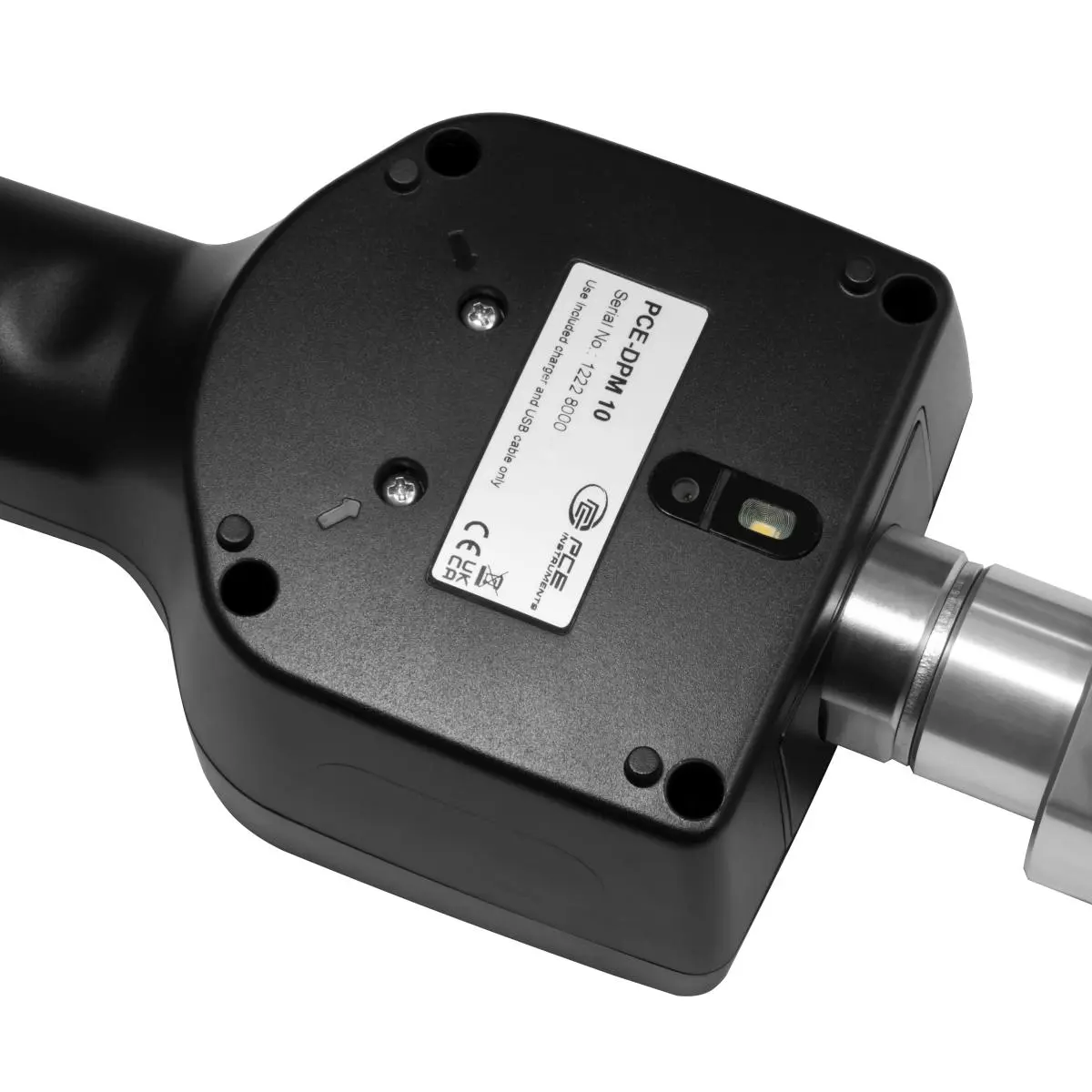

When the optional Smart Features are purchased, the psychrometer can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the psychrometer to document the measurement location using the integrated camera.

Highlights

- Taupunkt Messbereich von -100 ... +50 °C

- Druckbereich bis 15 bar Differenzdruck

- Datenlogger für bis zu 100 Millionen Messwerte

- Alarmgrenzen einstellbar.

- Touch LC Display

Specification

Differential pressure
Measuring range	0 ... 15 bar
Resolution	0,01 bar
Accuracy	0.5 % of range

Dew point
Measuring range	-100 ... +50 °C
Resolution	0,1 °C
Accuracy	±3°C

Dew point
Measuring range	0 ... 20 °C
Resolution	0,1 °C
Accuracy	±1°C

Dew point
Measuring range	-60 ... +50 °C
Resolution	0,1 °C
Accuracy	±2°C

Dew point
Measuring range	-100 ... -60 °C
Resolution	0,1 °C
Accuracy	±3°C

Temperature
Measuring range	-30 ... +50 °C
Resolution	0,1 °C
Accuracy	±0.3 °C

General technical data
Measuring functions	Average value
Units	°C, °F, bar, psi, MPa, °C Td, %RH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.

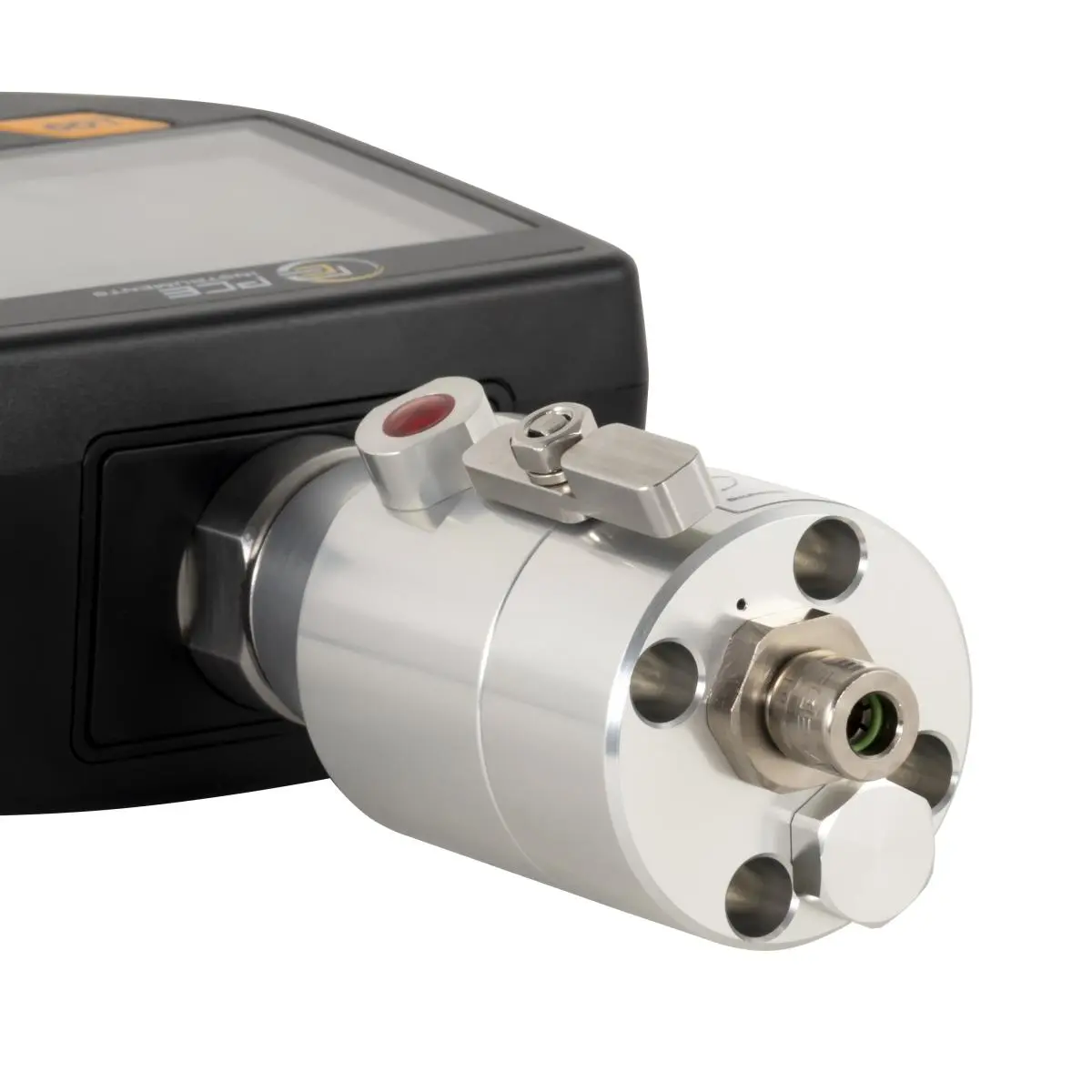

Connections	G1/2 inch with 6mm quick coupling
Display type	LC touch display
Display size	3,5 Inch
Display refresh rate	1 x per second
Storage medium	Internal memory
Storage capacity	100 Million values
Storage interval from	1 s
Storage interval to	60 s

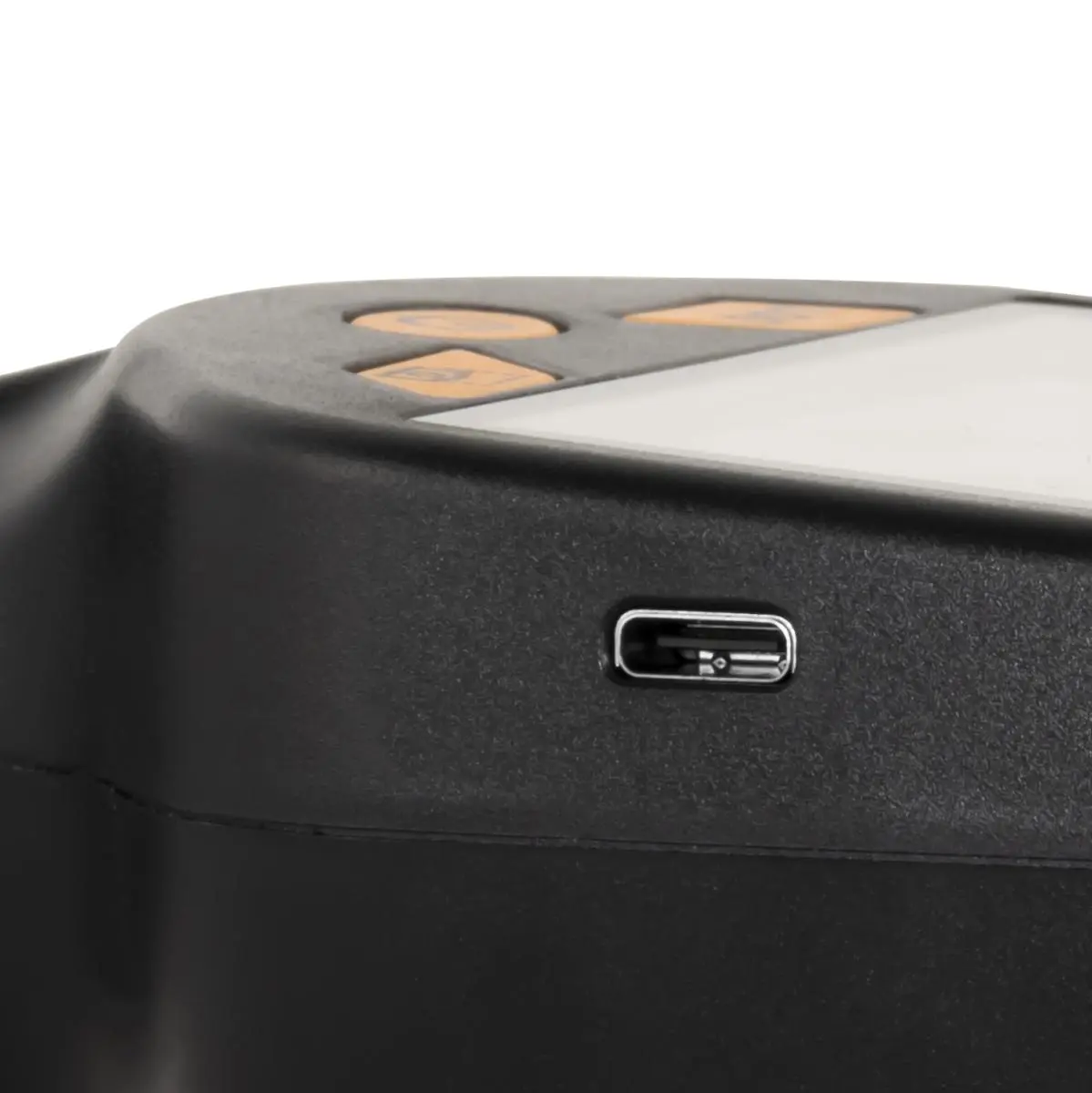

Interface	USB-C
Standard(s)	ISO8573-1
Standard(s) additional information	Evaluation according to ISO8573-1 only possible when purchasing the additional functions! Item no. PCE-DPM 10-SF
Current consumption meter	400 mA DC
Sensor	QCM (Quartz crystal microbalance)
Response time	1 s
Measured medium	Air, Nitrogen, Argon, Carbon dioxide, Oxygen
Operating time	8 h
Operating time additional information	The charging process takes approx. 3 h.
Automatic power-off from...to	10 ... 60 min.
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)
Menu language	English, Spanish, German, Chinese, Japanese, French, Korean
Protection class (device)	IP30

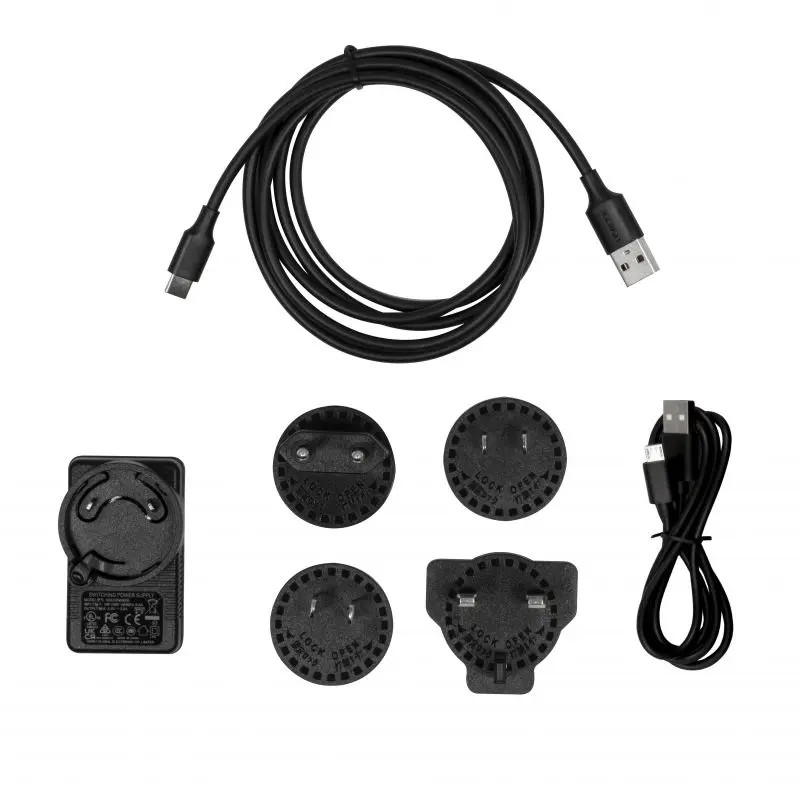

Power supply	5V DC 3 A (via USB-C)
Connector type	Device-europlug
Capacity	3500 mAh
Operating conditions	0 ... 40 °C , 0 ... 80 % RH
Storage conditions	0 ... 40 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	310 x 100 x 60 mm
Other dimensions	PTFE hose 1.5 m with 6 mm quick coupling
Weight	775 g
