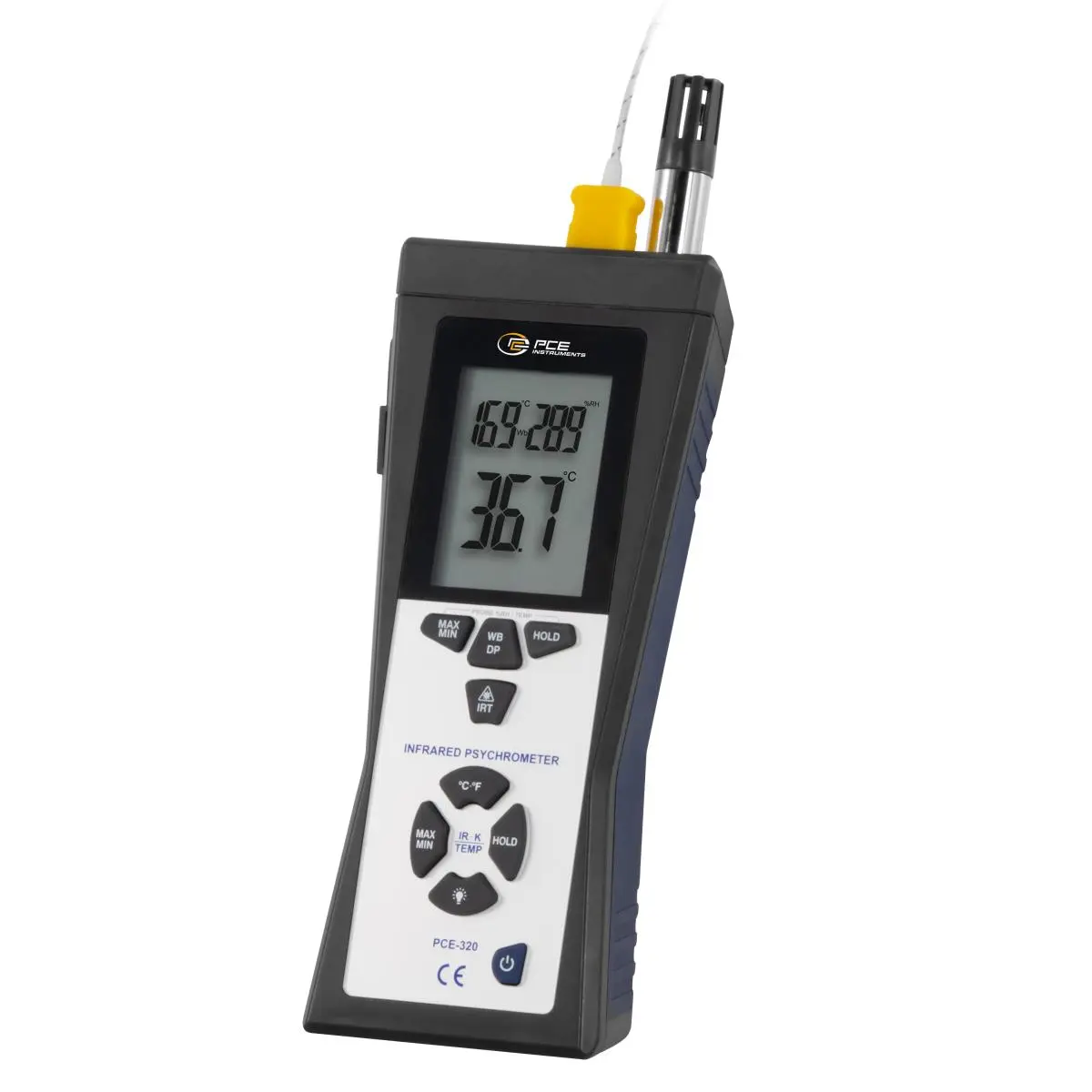

Psychrometer PCE-320

Psychrometer PCE-320

Order no.: PCE-320
GTIN (EAN): 4250348700322
₹51,240.00
₹60,463.20
price ex. (VAT / delivery)
:
4250348700322
PCE-320
Delivery time:1-2 working days

Description

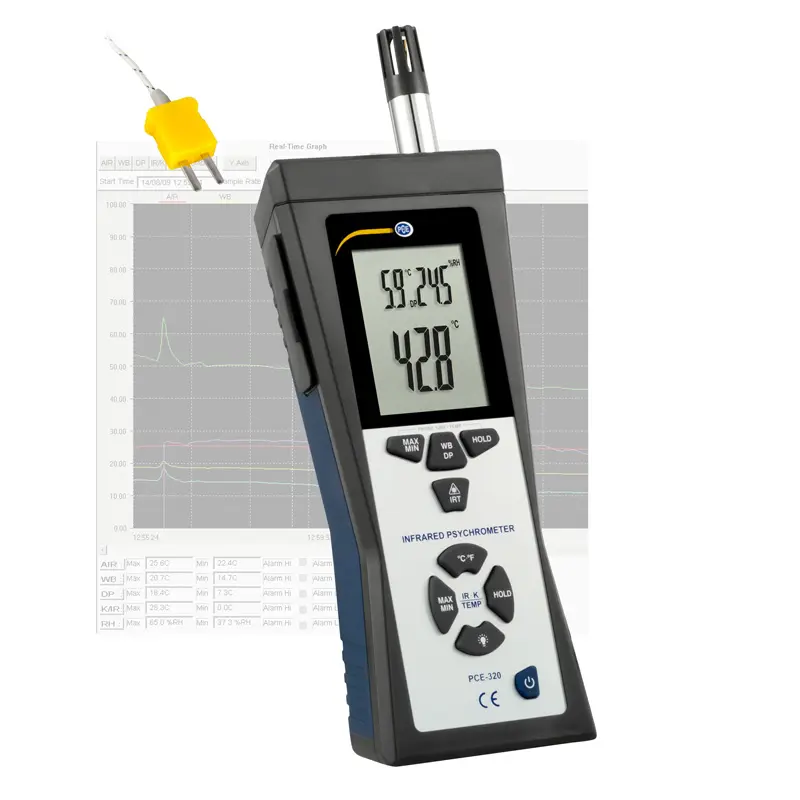

Psychrometer PCE-320
Humidity / Temperature / Dew point / Wet bulb globe temperature / Surface temperature

With the psychrometer it is possible to measure climate conditions such as temperature and relative humidity, as well as determining surface temperature of objects simultaneously by using the included external temperature sensor or using an infrared measurement. The psychrometer offers features such as average value, maximum, minimum, and hold functions. The psychrometer provides additional information relating to dew point temperature and the global humidity temperature. Measurement values can be directly seen on the device's LCD display, and maximum and minimum values can be registered or transferred to a PC or portable computer for further analysis.

The psychrometer helps prevent damage to products, such as allowing for the elimination of fungus in food when being stored and during transportation. The psychrometer is also very useful in the construction industry, industrial sector, or in product development. Customers frequently complain about not having a tool available that can measure ambient conditions and surface temperature of a wall both inside and outside. The device can be sent away to be calibrated by an accredited DIN ISO laboratory. We offer the possibility of ISO calibration from factory (when the device is ordered or as an annual recalibration).


Highlights

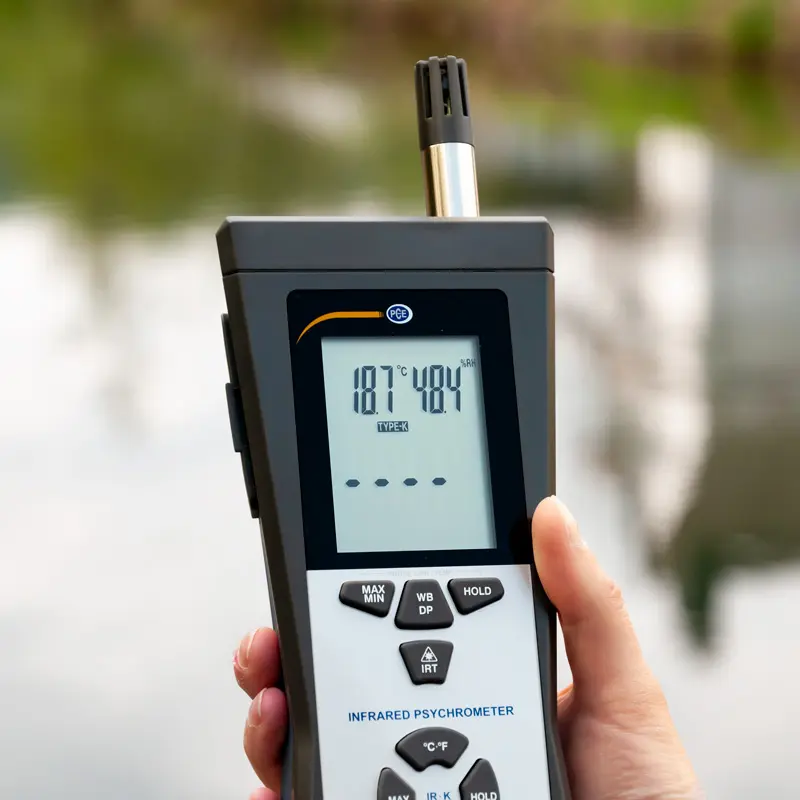

- Backlit LCD

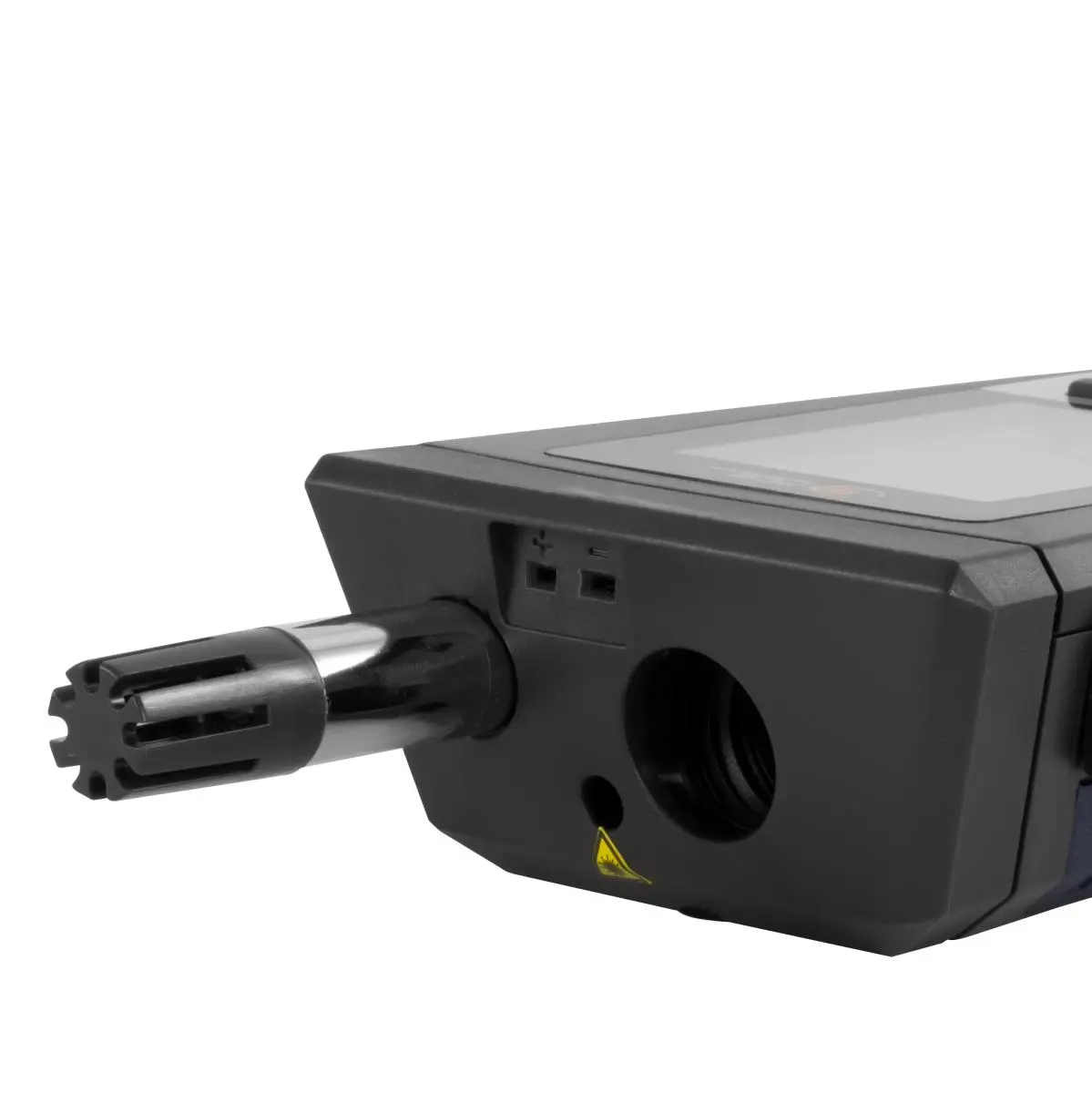

- Measures ambient humidity and temperature using an internal sensor

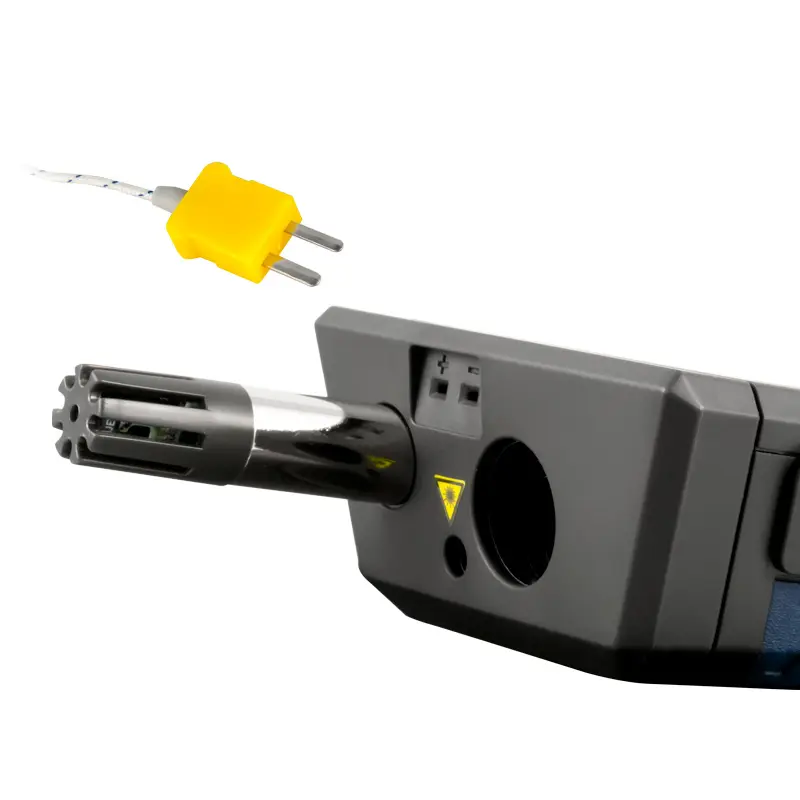

- Measures surface temperature using an optional external sensor

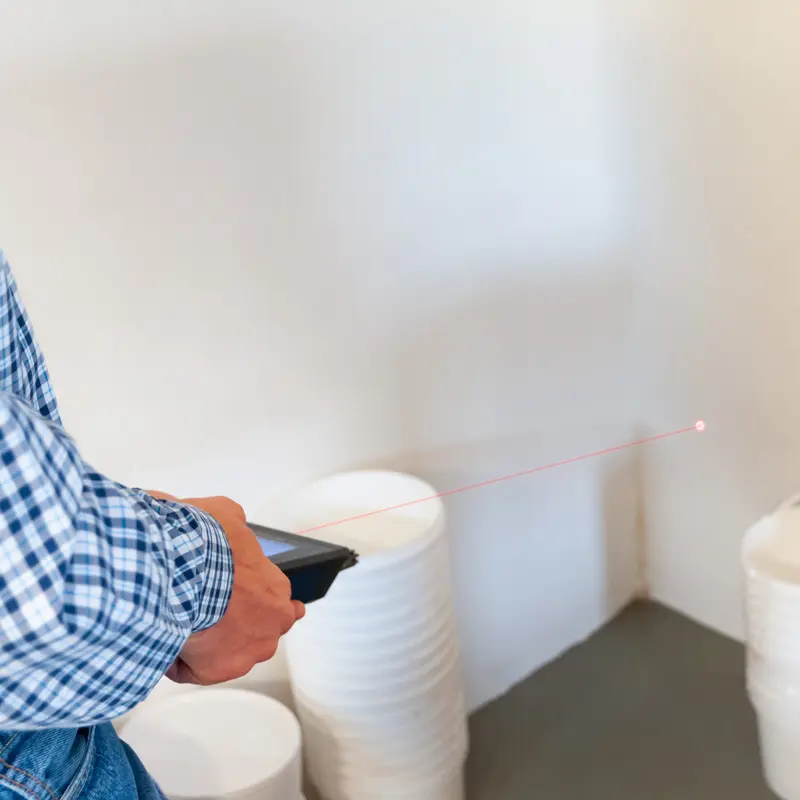

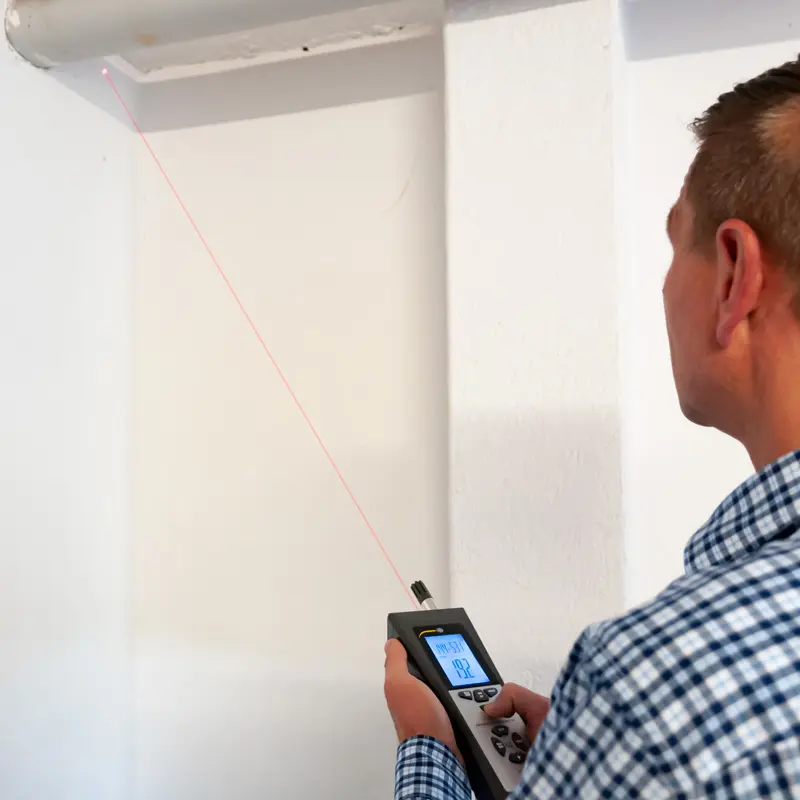

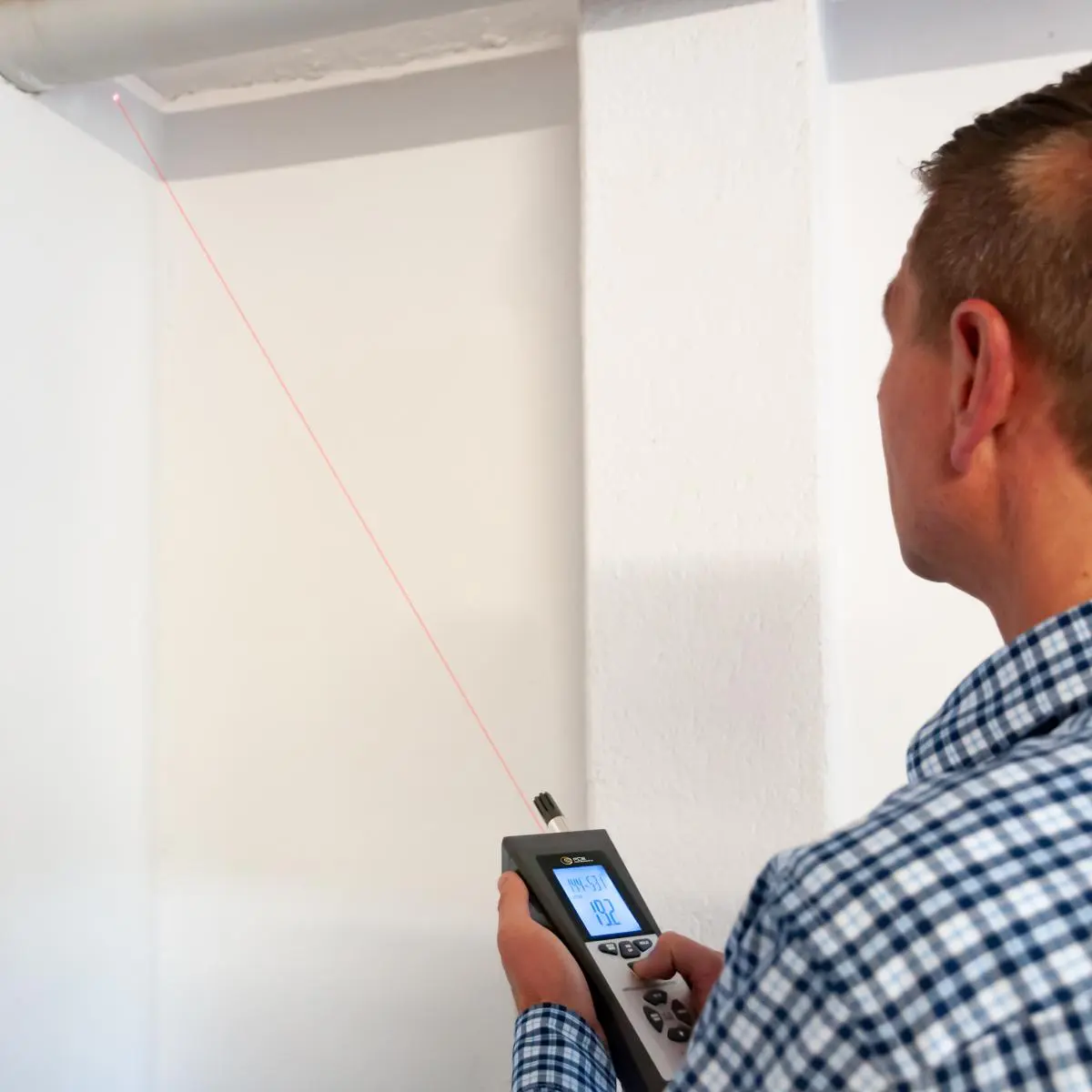

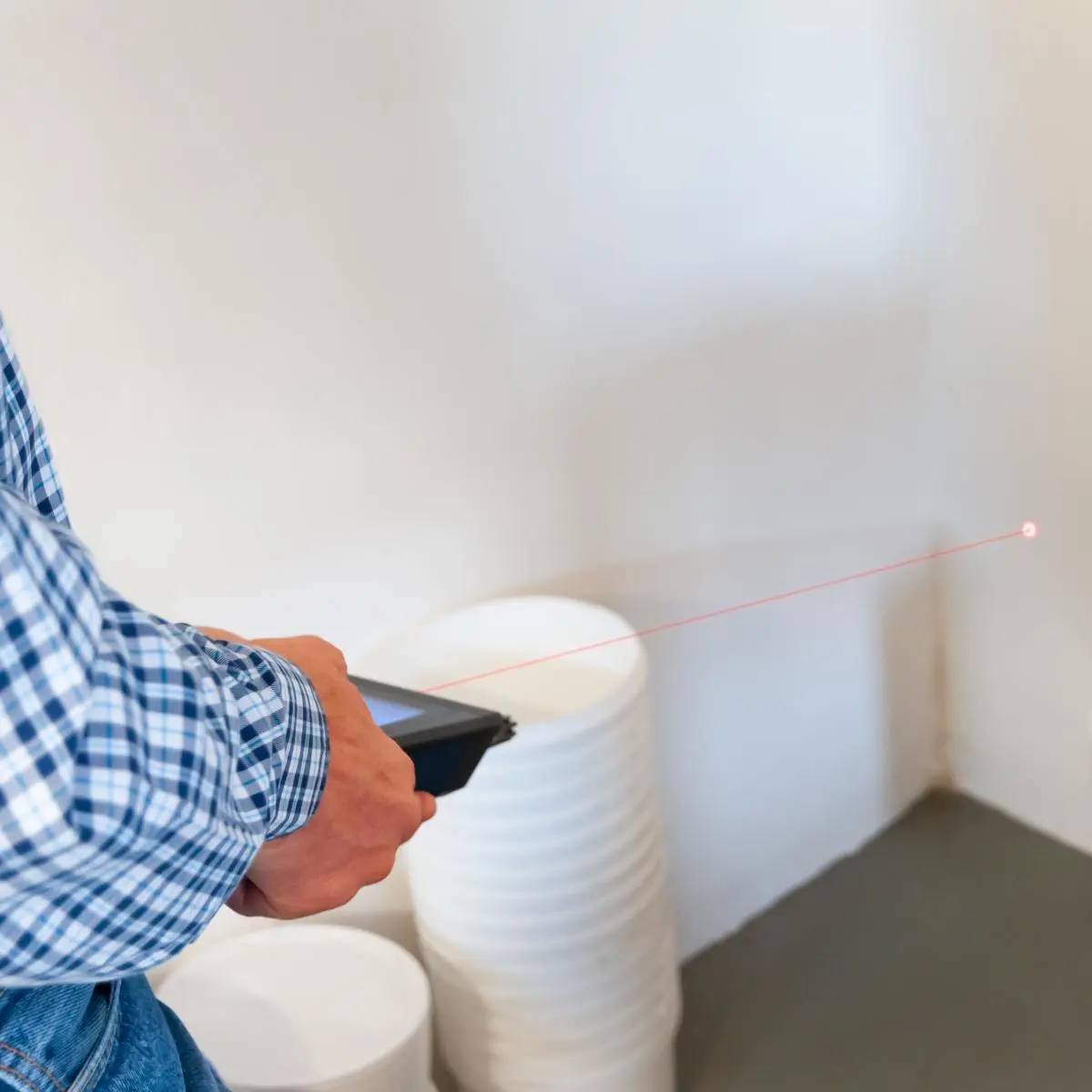

- Infrared measurement of a material temperature

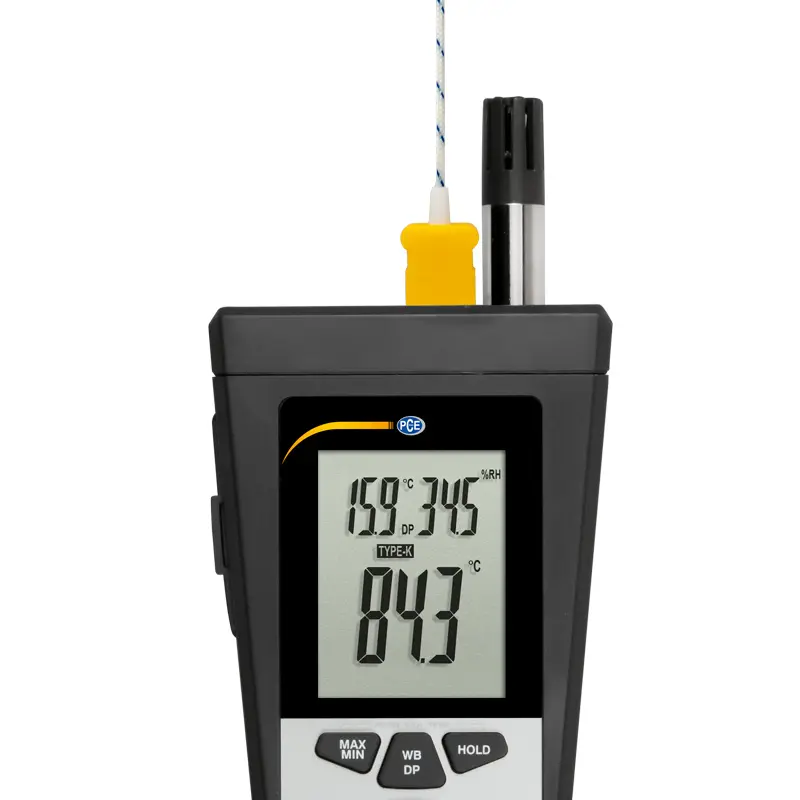

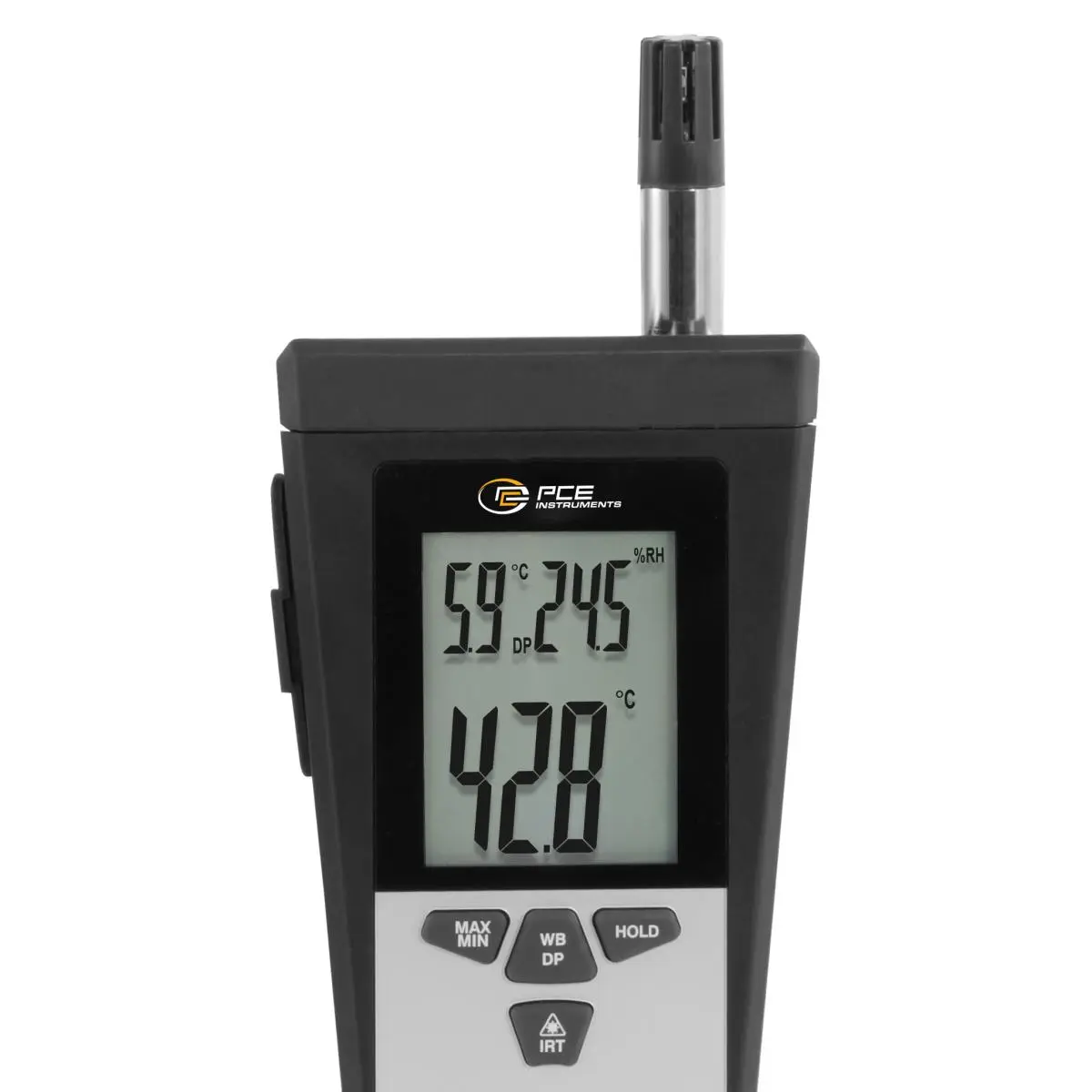

- Display shows temperature and humidity simultaneously
- Determines dew point and global humidity temperature
- Average value, Maximum, Minimum and Hold functions
- Auto shut-off to protect battery life

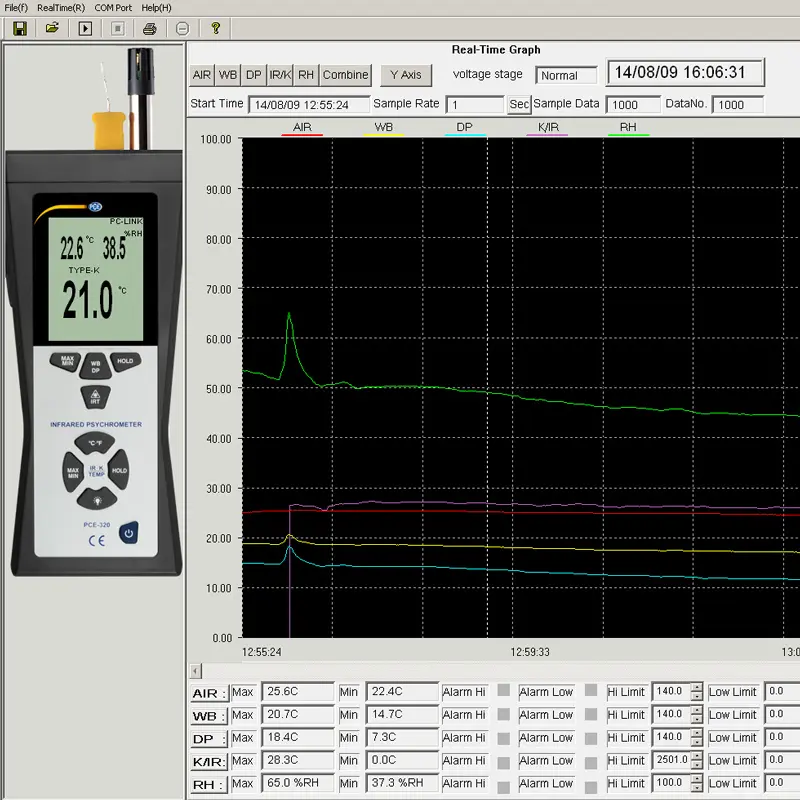

- Software for data transmission included
- Optional ISO calibration certificate available

Specification

Wet bulb temperature
Measuring range  21,6 ... 60 °C
Resolution  0,1 °C
Accuracy  ±1.0 °C

Temperature K-type
Measuring range  -100 ... +1372 °C
Resolution  0,1 °C
Accuracy  ±5.0 °C

Infrared temperature
Measuring range  -20 ... +500 °C
Resolution  0,1 °C
Accuracy  ±2 °C or ±2 % (the higher value applies)

Dew point
Measuring range  -68 ... +60 °C
Resolution  0,1 °C
Accuracy  ±1.0°C

Relative humidity
Measuring range  10 ... 90 % RH
Resolution  0,1 % RH
Accuracy  ±3%

Temperature
Measuring range  -20 ... +60 °C
Resolution  0,1 °C
Accuracy  ±1.0 °C

General technical data
Number of measuring channels  1
Measuring functions  MIN, MAX, HOLD
Display type  LCD
Display size  2,8 Inch
Storage medium  Internal memory

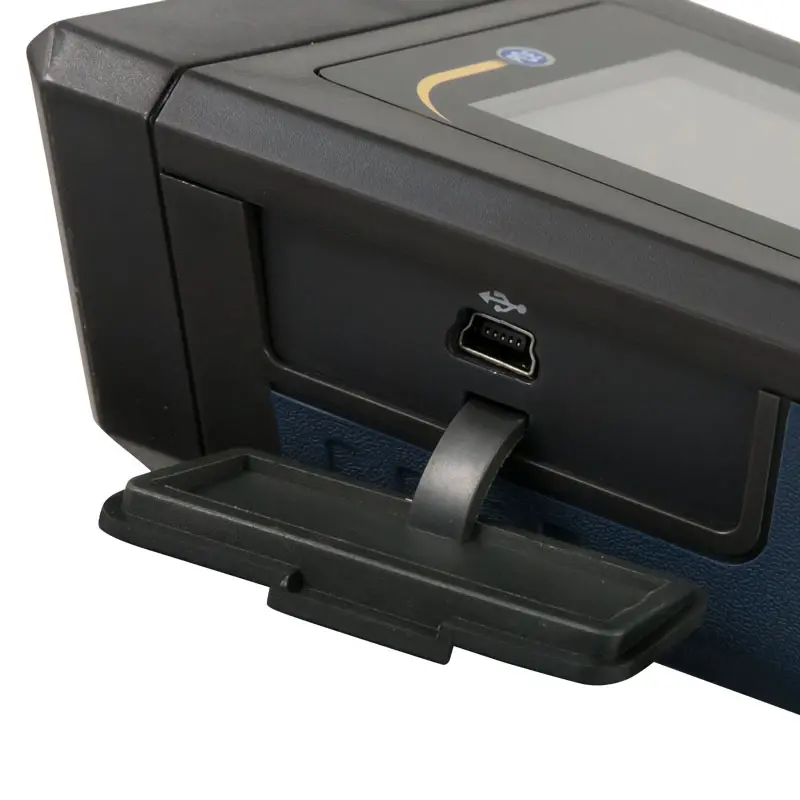

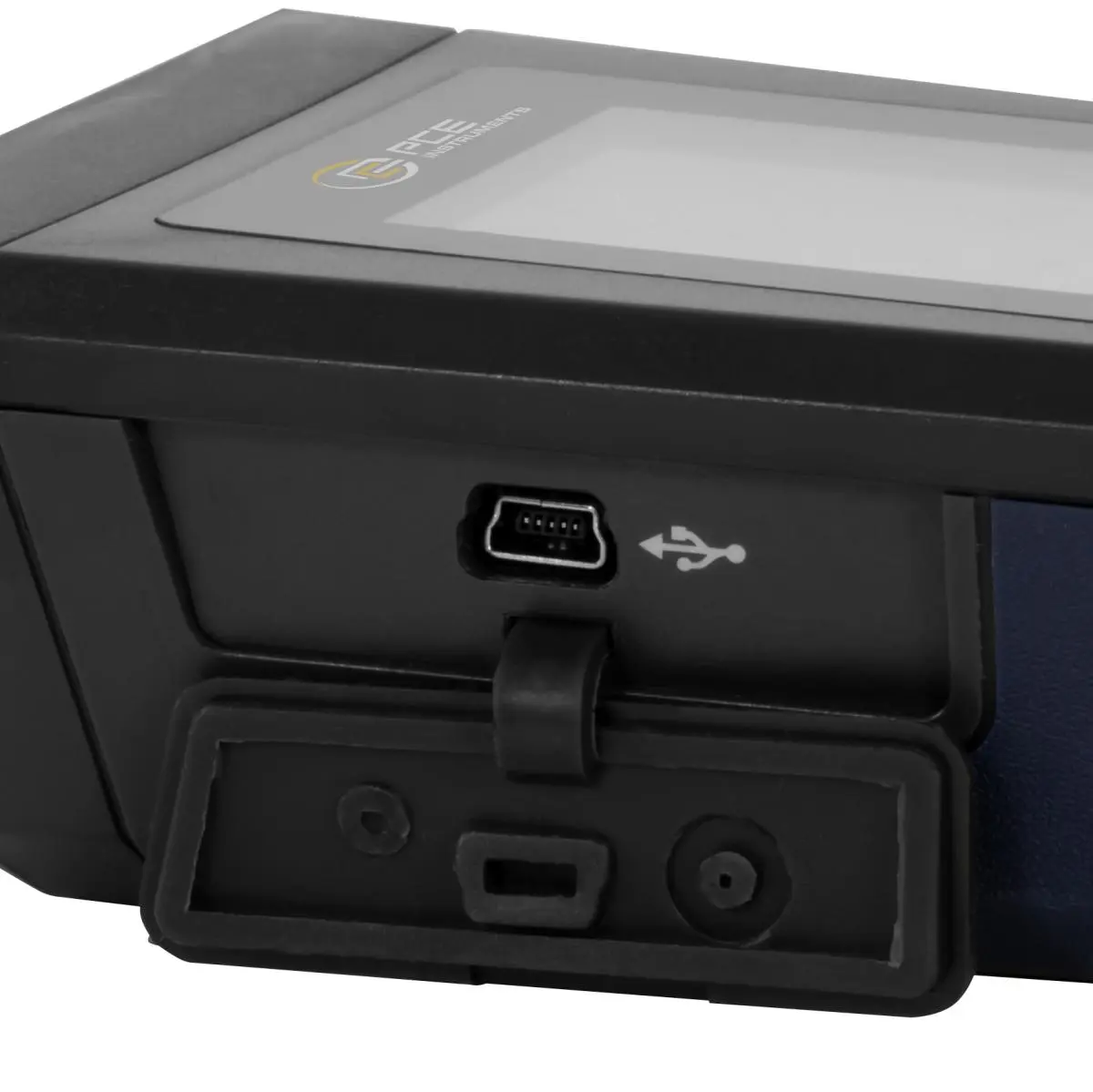

Interface  Mini-USB
Sensor  Resistance sensor
Response time  60 s
Automatic power-off  15 min
Menu language  English, English (GB)
Protection class (device)  IP20

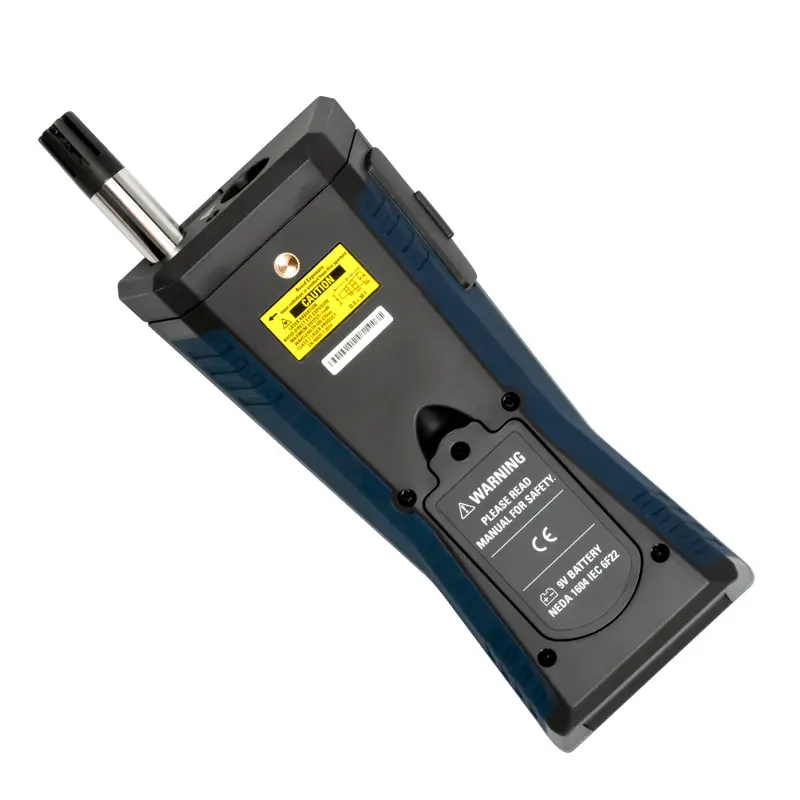

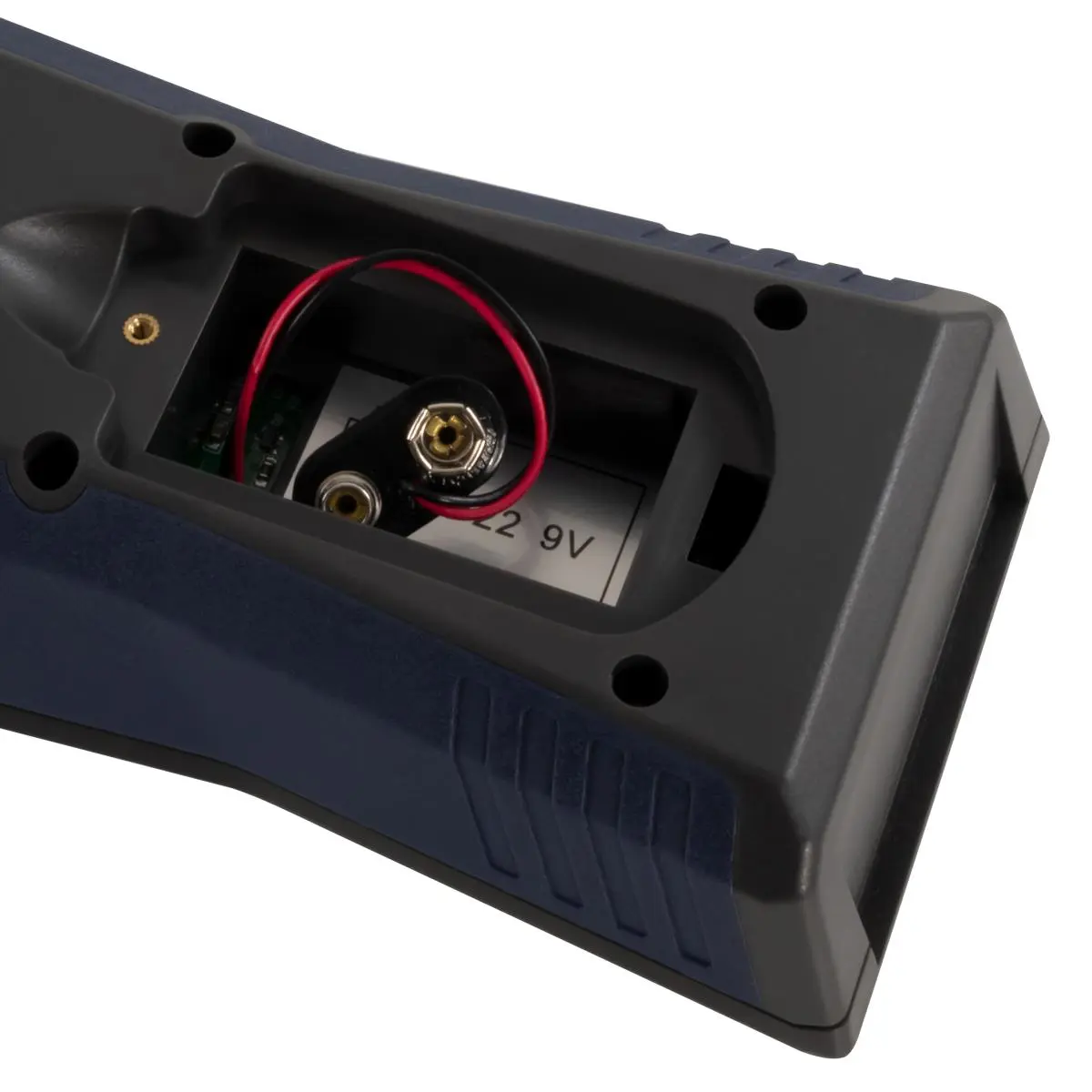

(Rechargeable) battery  1 x 9 V 9V block , Zinc carbon
Capacity  400 mAh
Operating conditions  -20 ... 60 °C , 0 ... 90 % RH
Storage conditions  -20 ... 60 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  260 x 95 x 45 mm
Weight  350 g

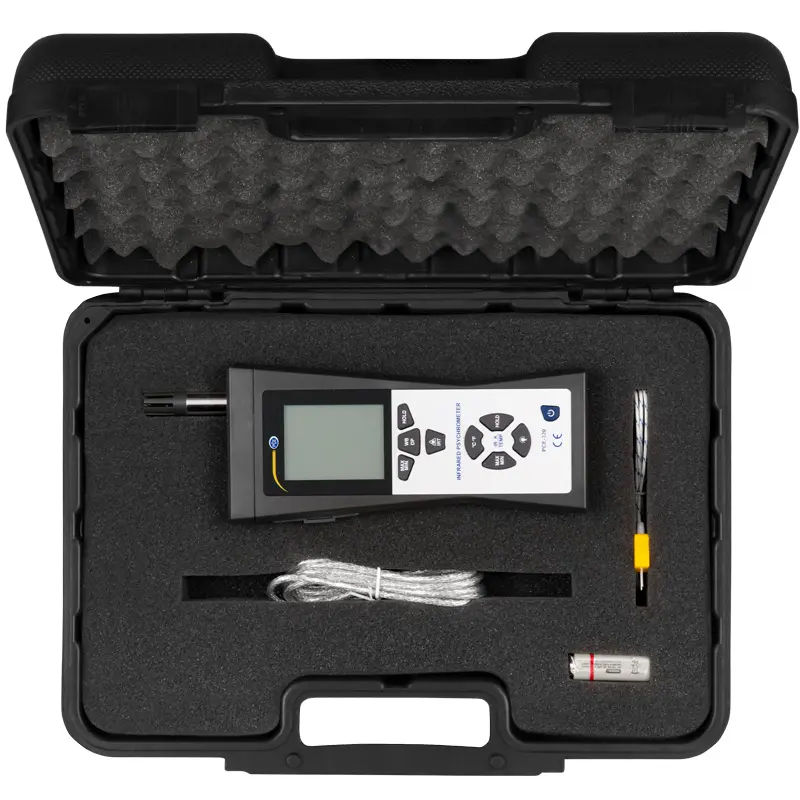

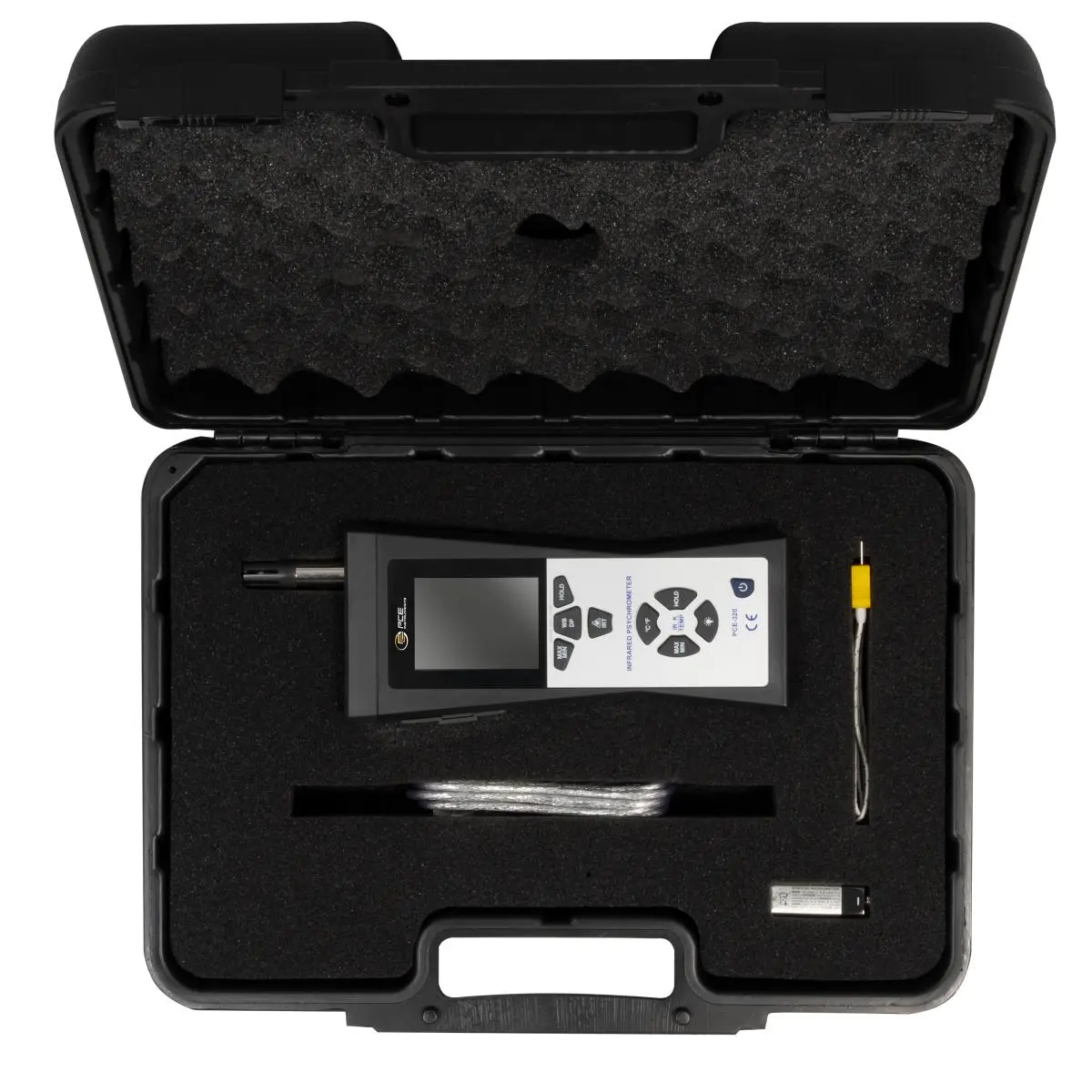

Delivery Scope

1 x Psychrometer PCE-320
1 x External temperature sensor
1 x Software and data cable
1 x 9V battery
1 x User's manual
