The digital Pressure Meter is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalization, combustion processes, air conditioning systems, ventilation systems, etc. The Pressure Meter is suitable for measuring non-aggressive and non-explosive gases.
The Pressure Meter offers a variety of measuring functions such as maximum, minimum, and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC, as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The Pressure Meter has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.
| Differential pressure | |
| Measuring range | -125 ... +125 Pa |
| Resolution | 1 Pa |
| Accuracy | ±1 % FS |
| Differential pressure | |
| Measuring range | -1,25 ... +1,25 mbar |
| Resolution | 0,01 mbar |
| Accuracy | ±1 % FS |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, AVG |
| Units | inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O |

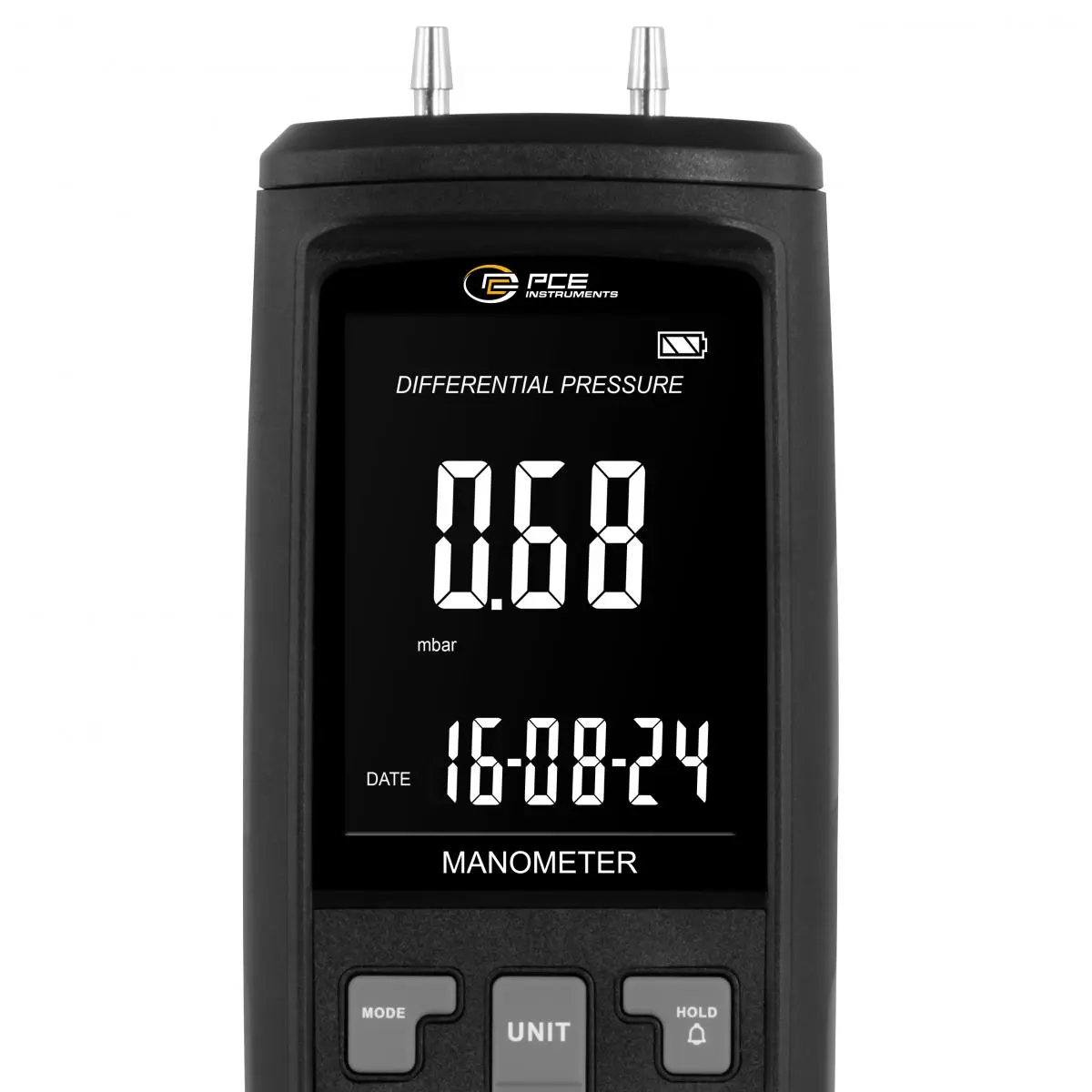

| Display type | LC colour display |
| Storage medium | Internal memory |
| Storage capacity | 15996 Measurements |
| Storage interval from | 1 s |
| Storage interval to | 9999 s |

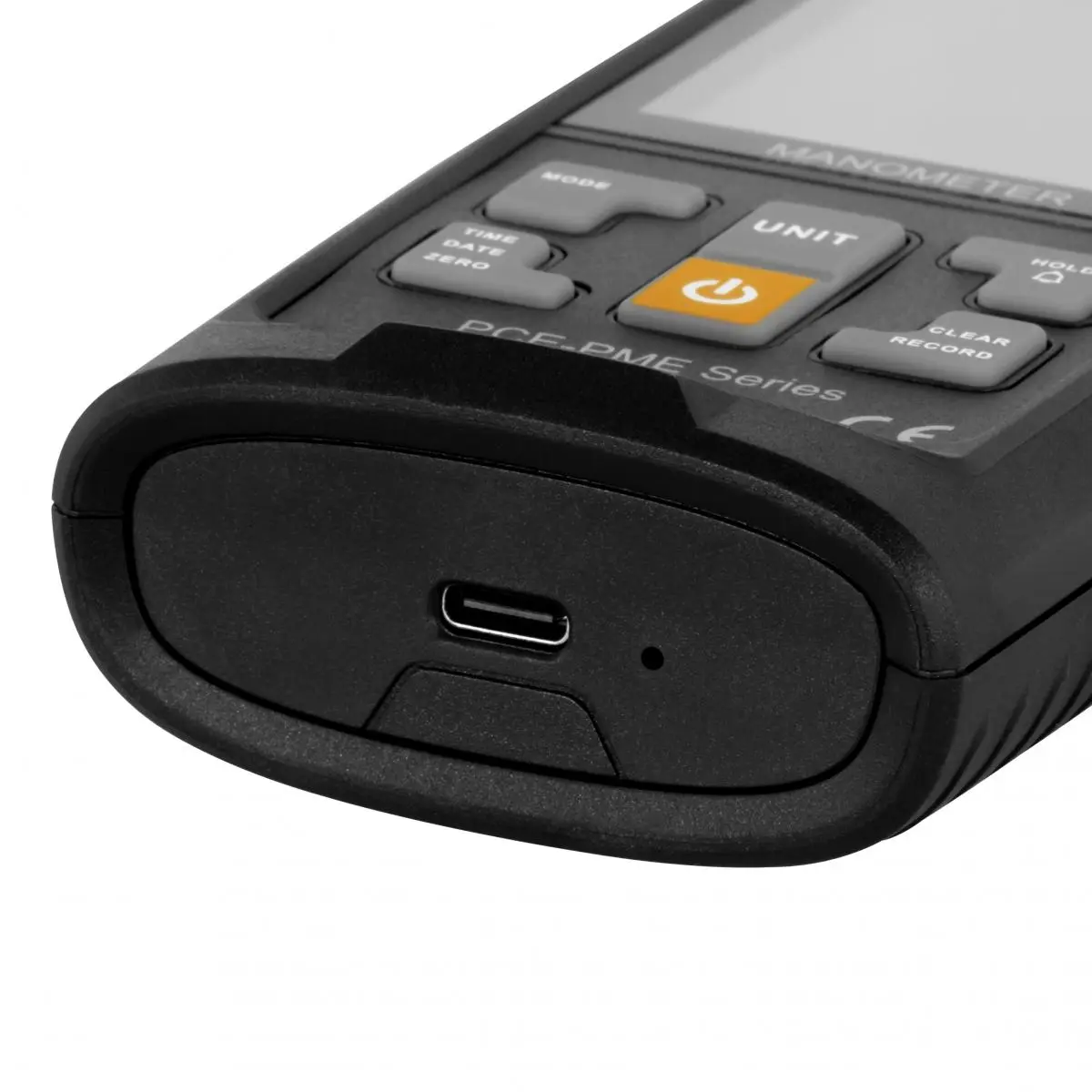

| Interface | USB-C |
| Operating time | 13 h |
| Automatic power-off from...to | 1 ... 99 min. |
| Alarm | Acoustic |
| Alarm modes | Above, below |
| Overpressure | 3 kPa |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 5 V |
| Capacity | 1000 mAh |
| Operating conditions | -10 ... 60 °C , 0 ... 95 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 95 % RH |
| Dimensions ( W x H x D ) | 63 x 162 x 32 mm |
| Weight | 180 g |
