₹13,143.00

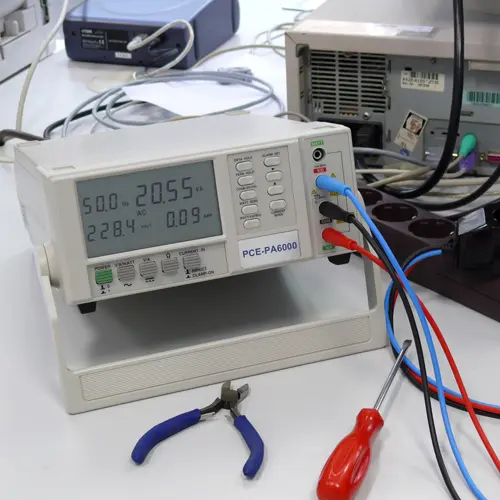

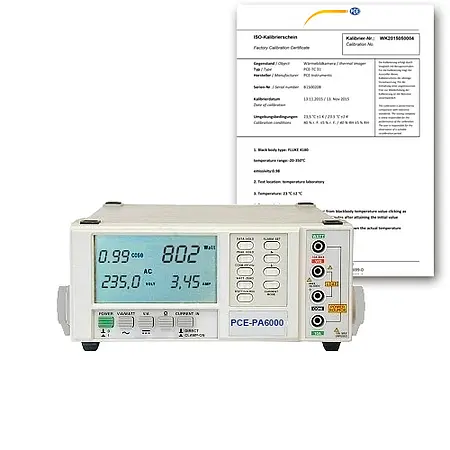

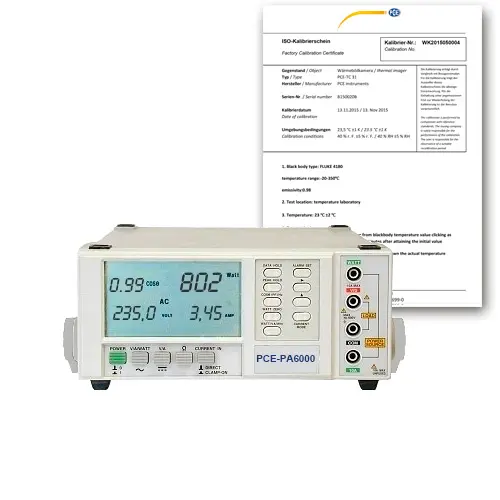

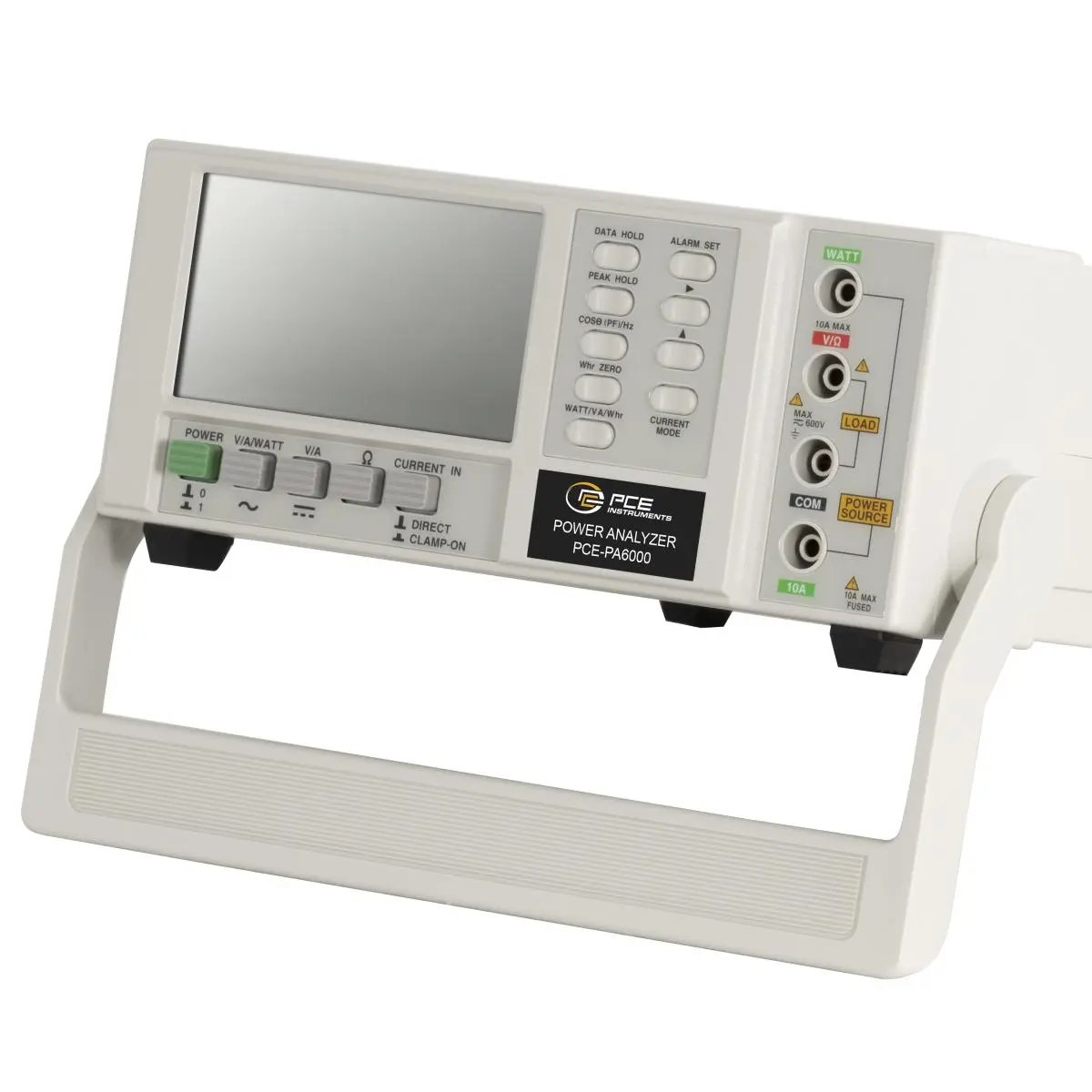

The PCE-PA6000 power analyser is a tabletop device for measuring effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance and frequency. The power analyser also offers the possibility to connect industrial current converters with a transmission relation of 100/5A or 1000/5A. Its large 93 x 52mm LCD is easy to read and provides a variety of results, including Watts, cos φ, ACV and ACA.

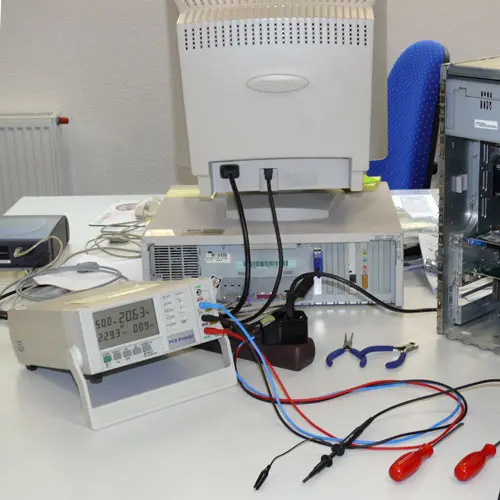

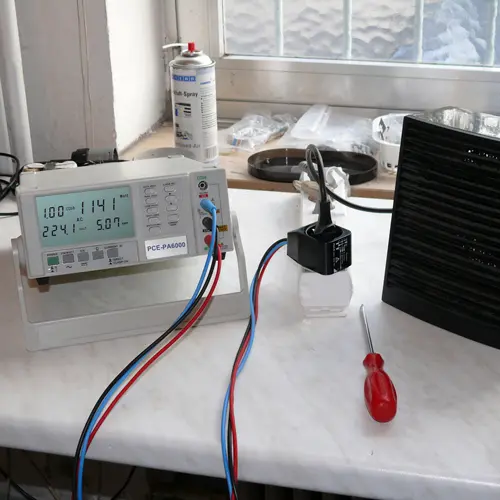

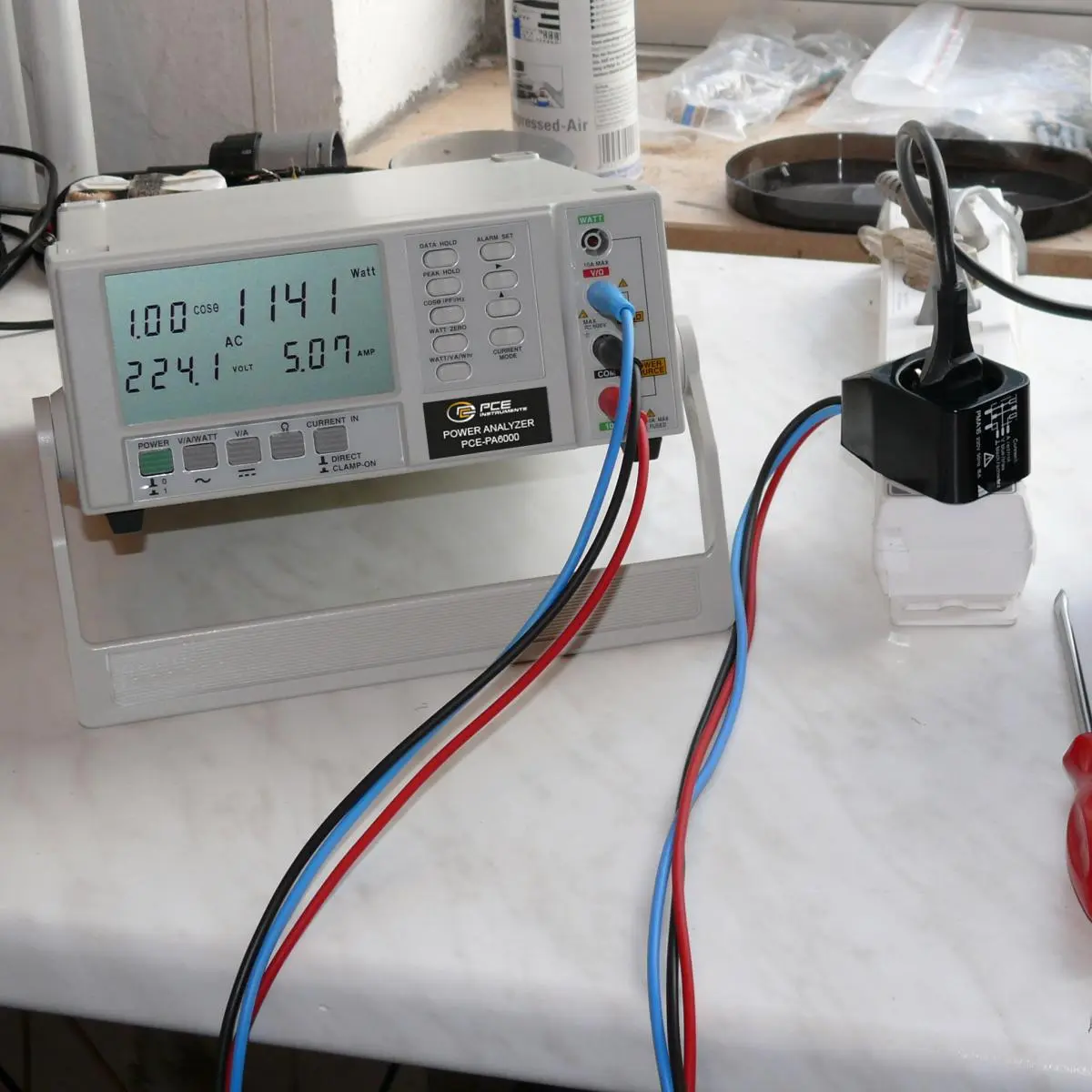

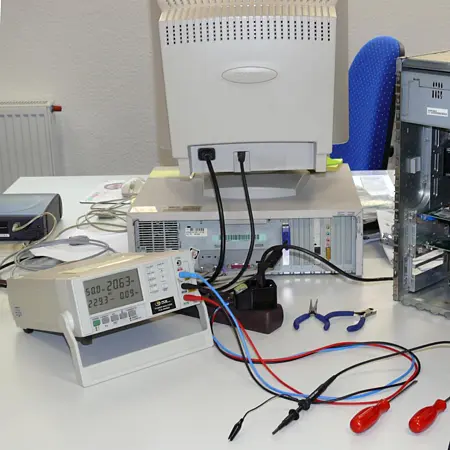

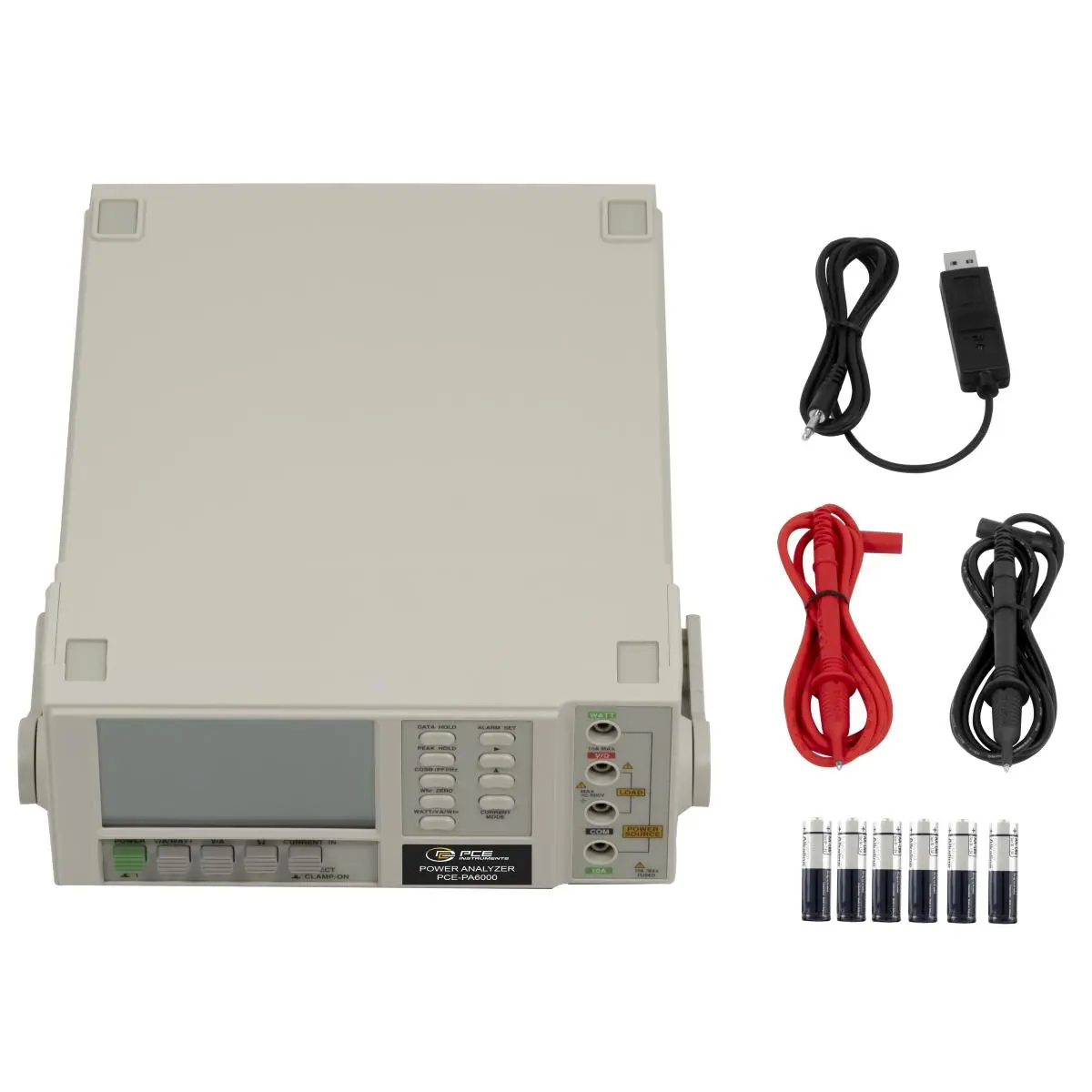

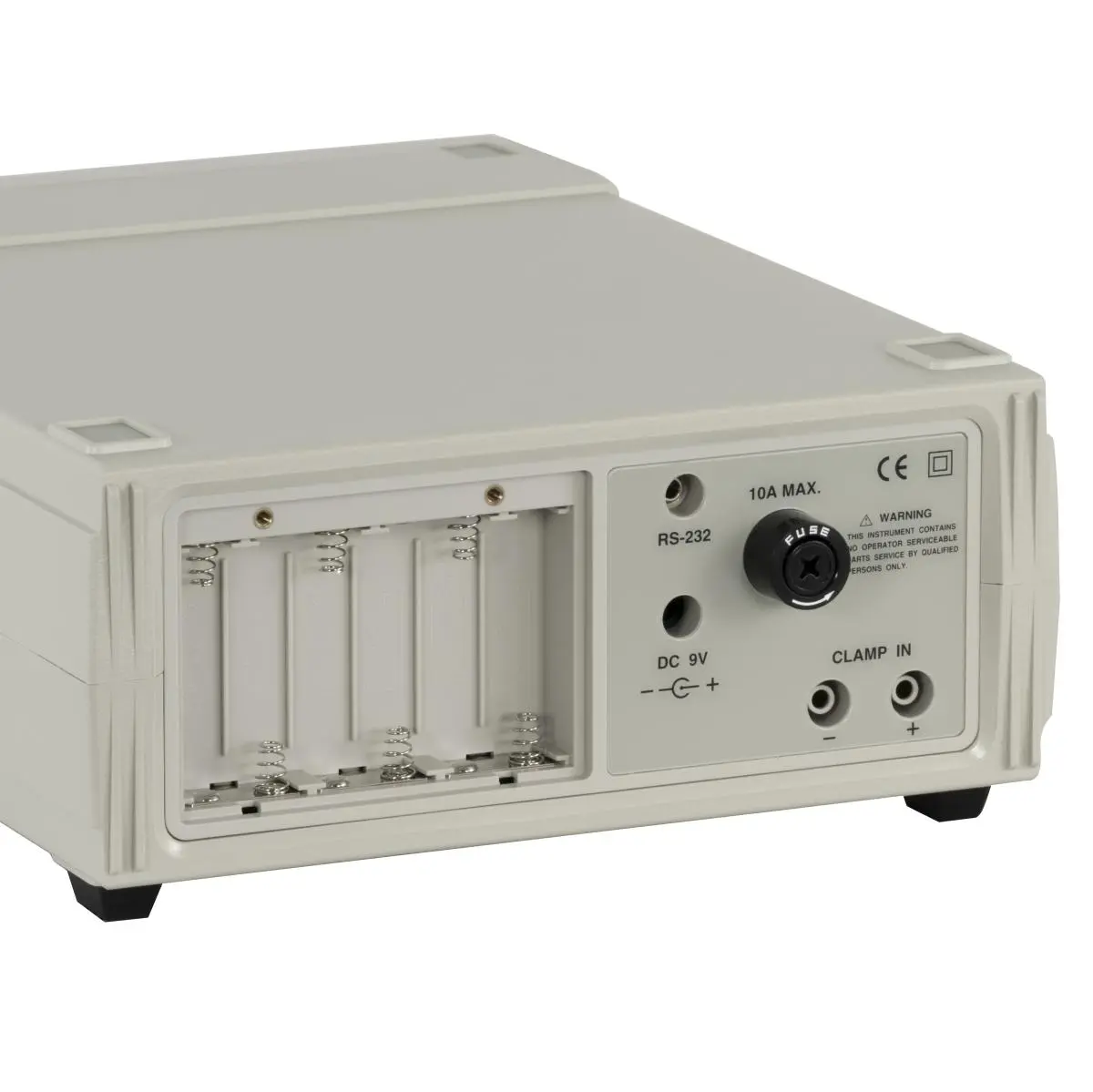

With the optional PCE-PA ADP current adaptor with ground wire (up to 10ACA) it can safely and quickly measure and analyse with the help of the power analyser. Measurement of current and power can be done directly with test cables that come with the device or indirectly using the clamps. The device has an RS-232 interface, and software* to analyse results and transfer data to a computer. This makes it the ideal device for any workshop or for measuring power to determine faults in devices.
*Software soft-lut-usb available in the accessories tab
| Direct voltage DC | |
| Measuring range | 0,1 ... 299,9 V |
| Resolution | 0,1 V |
| Accuracy | ±(1 % +1 digit) |
| Direct voltage DC | |
| Measuring range | 300 ... 600 V |
| Resolution | 1 V |
| Accuracy | ±(1 % +1 digit) |
| Direct current DC | |
| Measuring range | 0,01 ... 10 A |
| Resolution | 10 mA |
| Accuracy | ±(1 % +1 digit) |
| AC voltage | |
| Measuring range | 0,1 ... 10 V |
| Resolution | 0,1 V |
| Accuracy | ±(1 % +7 Digits) |
| Overload | 300 V AC/DC |
| Frequency range | 40 ... 400 Hz |
| AC voltage | |
| Measuring range | 11 ... 100 V |
| Resolution | 0,1 V |
| Accuracy | ±(1% +5 digits) |
| Frequency range | 40 ... 400 Hz |
| AC voltage | |
| Measuring range | 101 ... 299,9 V |
| Resolution | 0,1 V |
| Accuracy | ±(1 % +1 digit) |
| Frequency range | 40 ... 400 Hz |
| AC voltage | |
| Measuring range | 300 ... 600 V |
| Resolution | 1 V |
| Accuracy | ±(1 % +1 digit) |
| Frequency range | 40 ... 400 Hz |
| Alternating current AC | |
| Measuring range | 0,05 ... 1,999 A |
| Resolution | 1 mA |
| Accuracy | ±(1 % +3 digits) |
| Frequency range | 40 ... 400 Hz |
| Alternating current AC | |
| Measuring range | 2 ... 10 A |
| Resolution | 10 mA |
| Accuracy | ±(1 % +3 digits) |
| Frequency range | 40 ... 400 Hz |
| Active power | |
| Measuring range | 1 ... 1000 W |
| Resolution | 0,1 W |
| Accuracy | ±(1.5 % +5 digits) |
| Active power | |
| Measurement range up to | 1000 W |
| Measurement range from | 6000 W |
| Resolution | 1 W |
| Accuracy | ±(1.5 % +5 digits) W |
| Resistance | |
| Measuring range | 1 ... 9,999 Ω |
| Resolution | 1 Ω |
| Accuracy | ±(1% +1Digits) |
| Resistance | |
| Measuring range | 10 Ω ... 19,99 kΩ |
| Resolution | 10 Ω |
| Accuracy | ±(1% +1Digits) |
| Apparent power | |
| Measuring range | 0 ... 99,99 VA |
| Resolution | 0,01 VA |
| Accuracy | ±(2% +2 Digits) |
| Apparent power | |
| Measuring range | 0 ... 999,9 VA |
| Resolution | 0,1 VA |
| Accuracy | ±(2% +2 Digits) |
| Apparent power | |
| Measuring range | 0 ... 9,999 VA |
| Resolution | 1 VA |
| Accuracy | ±(2% +2 Digits) |
| Power factor | |
| Measuring range | 0 ... 1 |
| Resolution | 0.01 |
| Accuracy | ±(1.5% +2 Digits) |
| Frequency | |
| Measuring range | 10 ... 99,9 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±(1% + 1 digit) |
| Frequency | |
| Measuring range | 100 ... 999 Hz |
| Resolution | 1 Hz |
| Accuracy | ±(1% + 1 digit) |
| General technical data | |
| Measuring functions | HOLD, peak |
| Frequency | 40 ... 400 Hz |
| Display type | LCD |
| Display size | 4,2 Inch |
| Interface | USB |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 280 x 210 x 90 mm |
| Weight | 1600 g |
