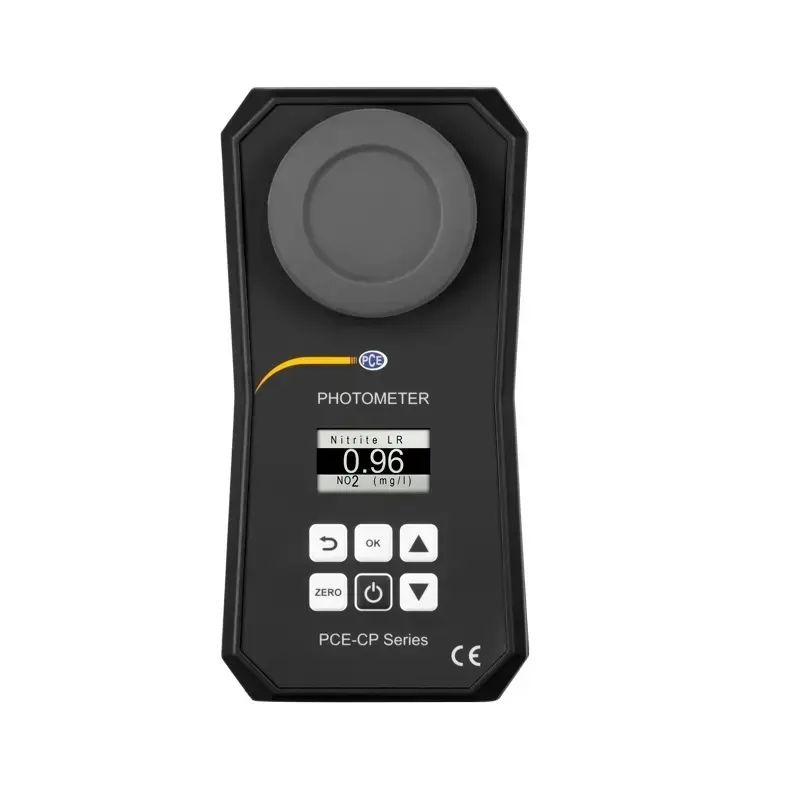

pH Meter / pH Tester PCE-CP 22

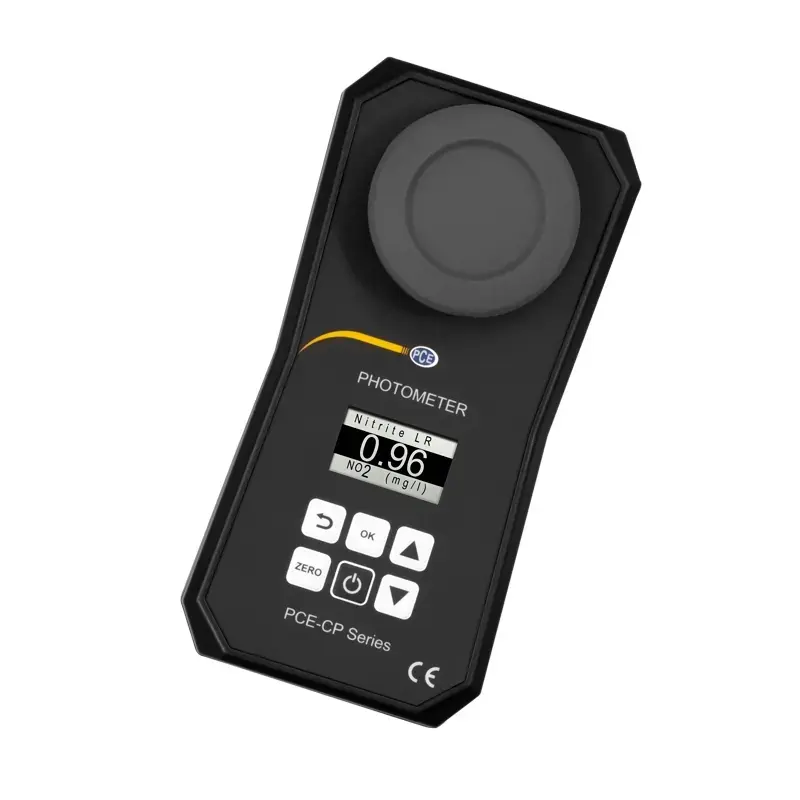

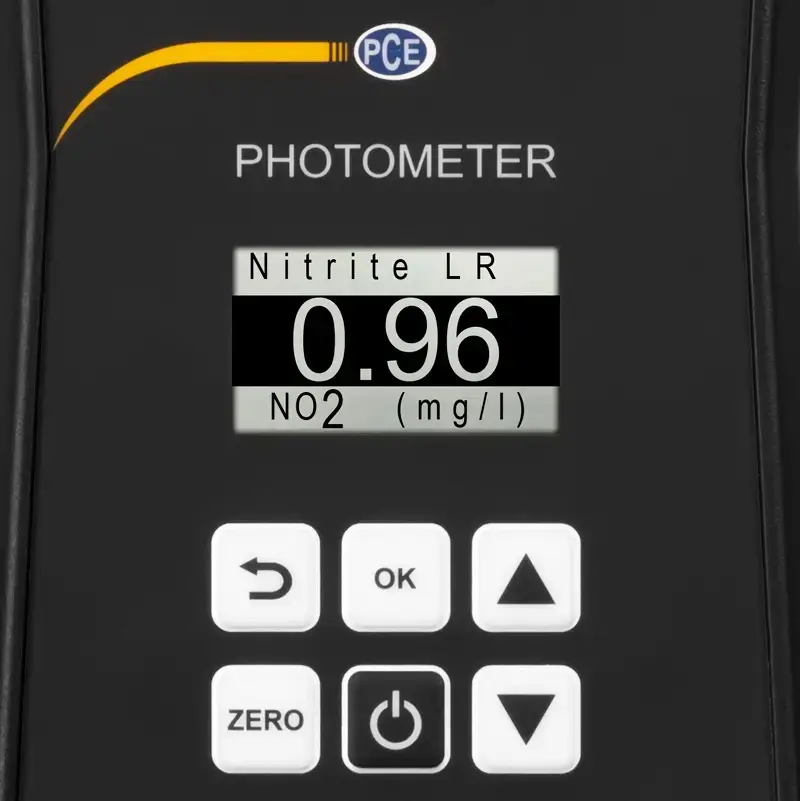

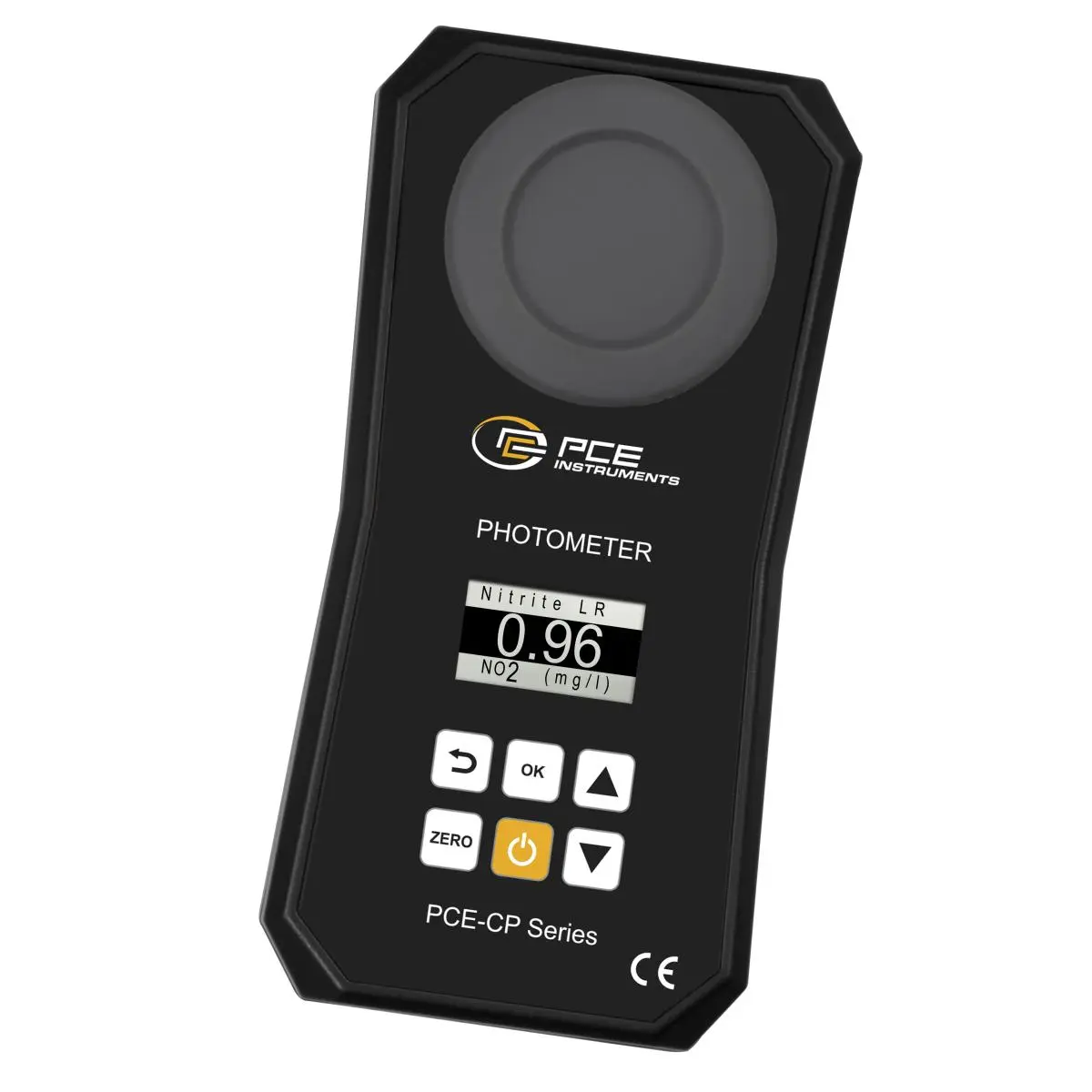

pH Meter / pH Tester Frontal
pH Meter / pH Tester Cuvette

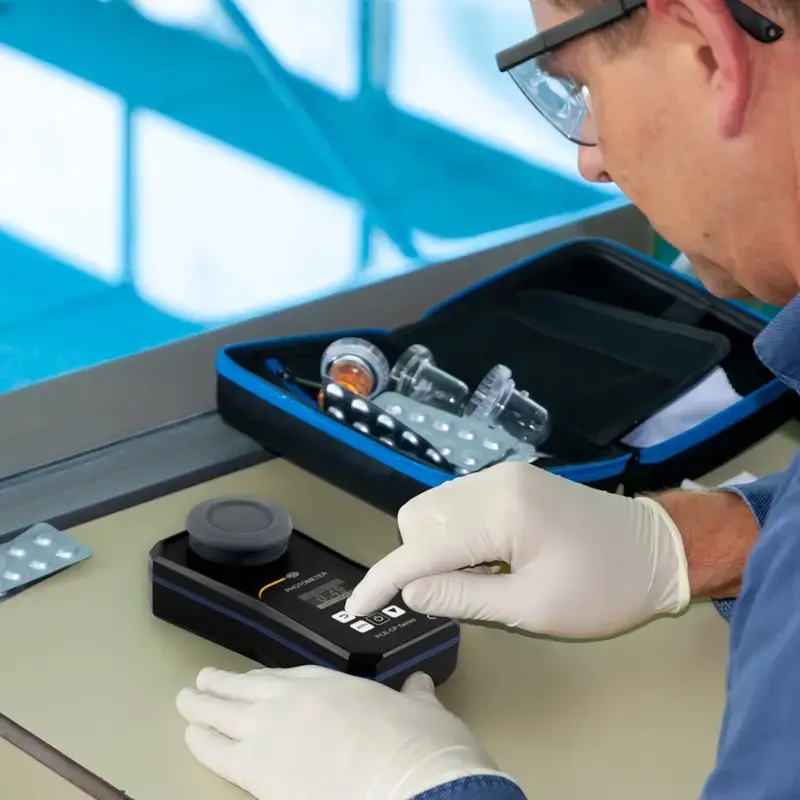

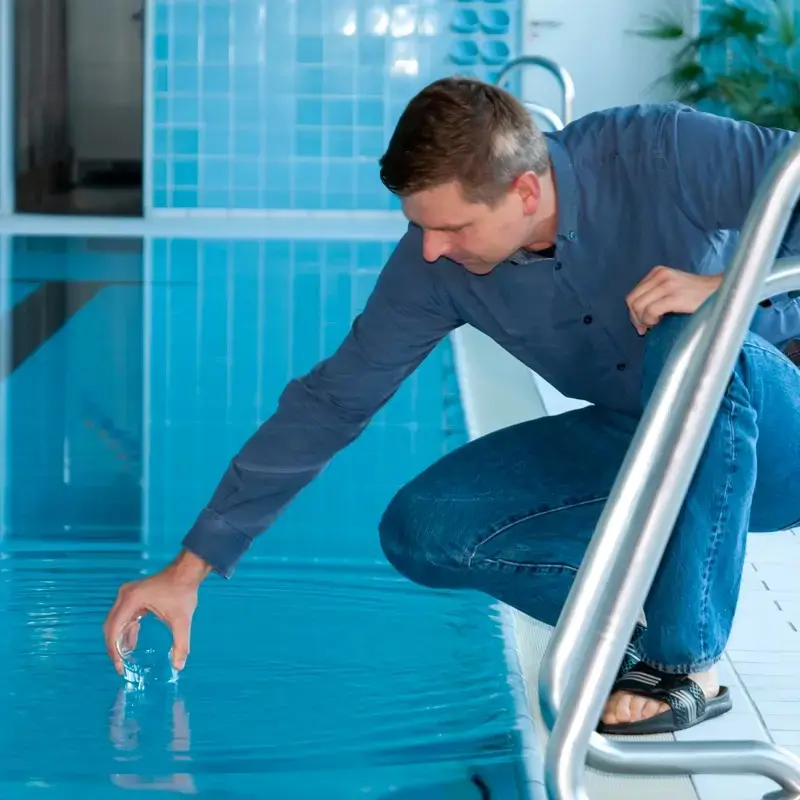

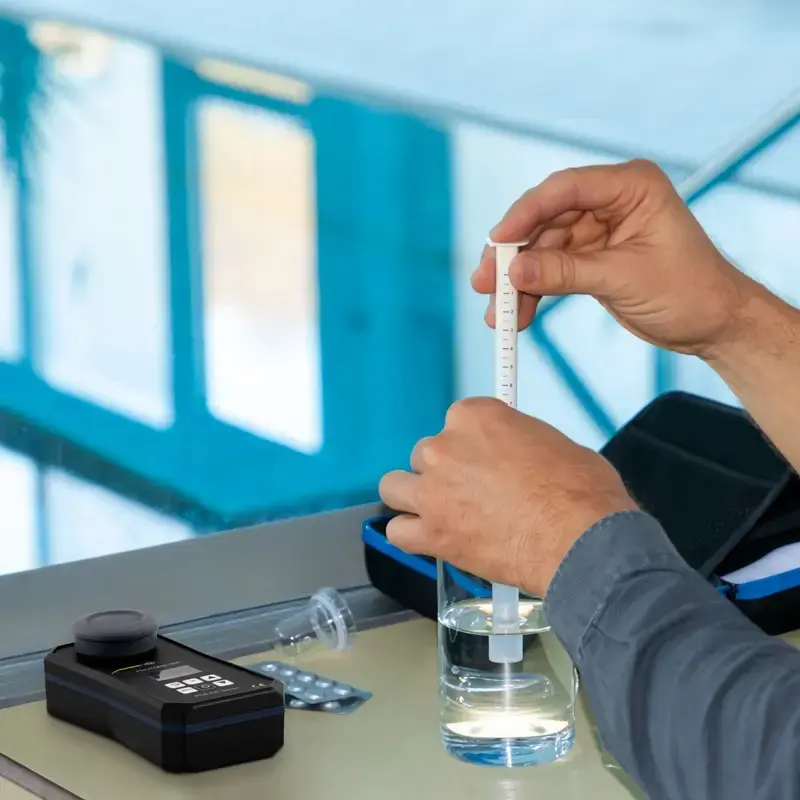

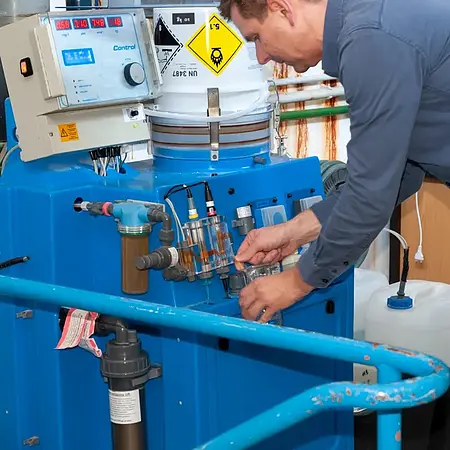

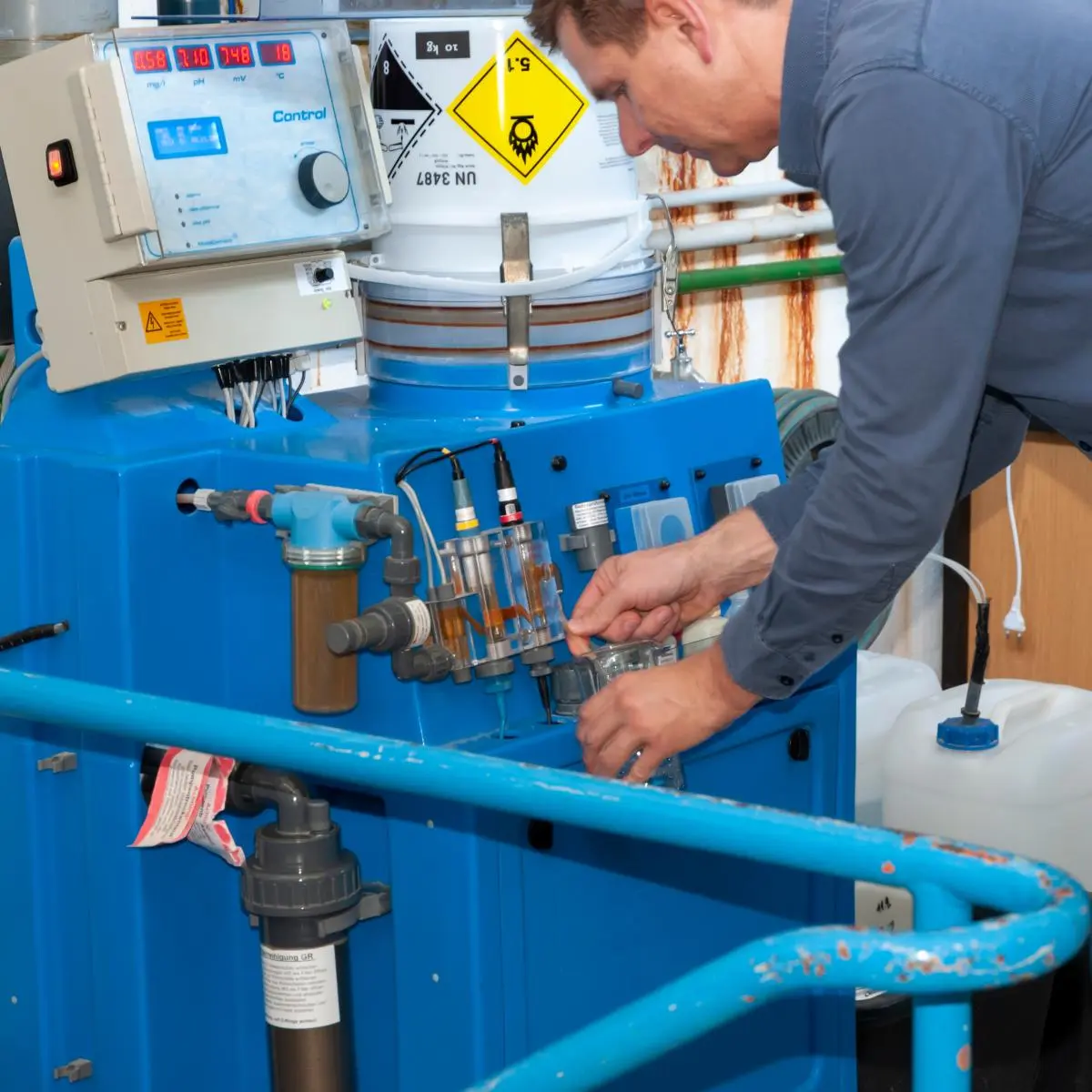

pH Meter / pH Tester Application picture

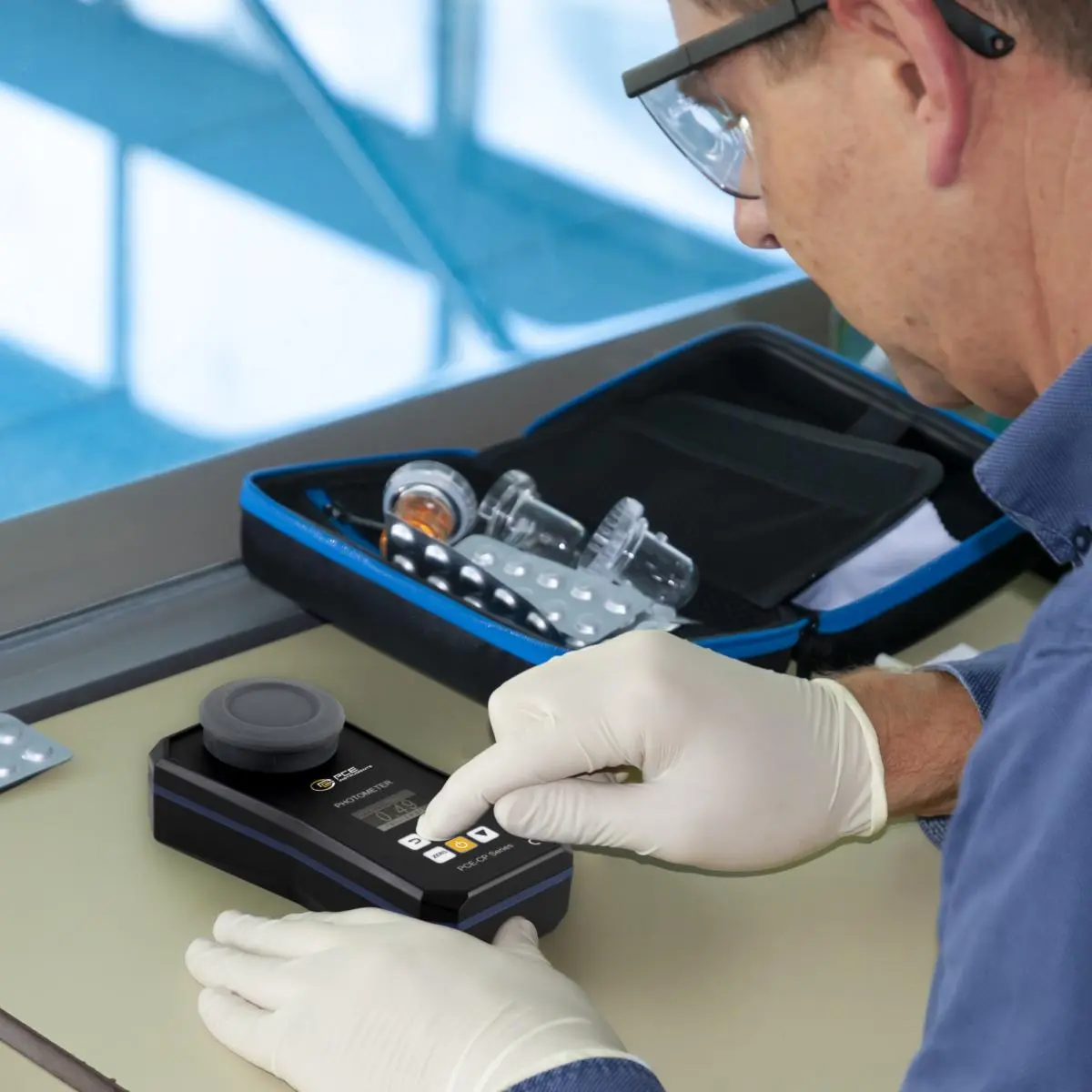

pH Meter / pH Tester Application picture

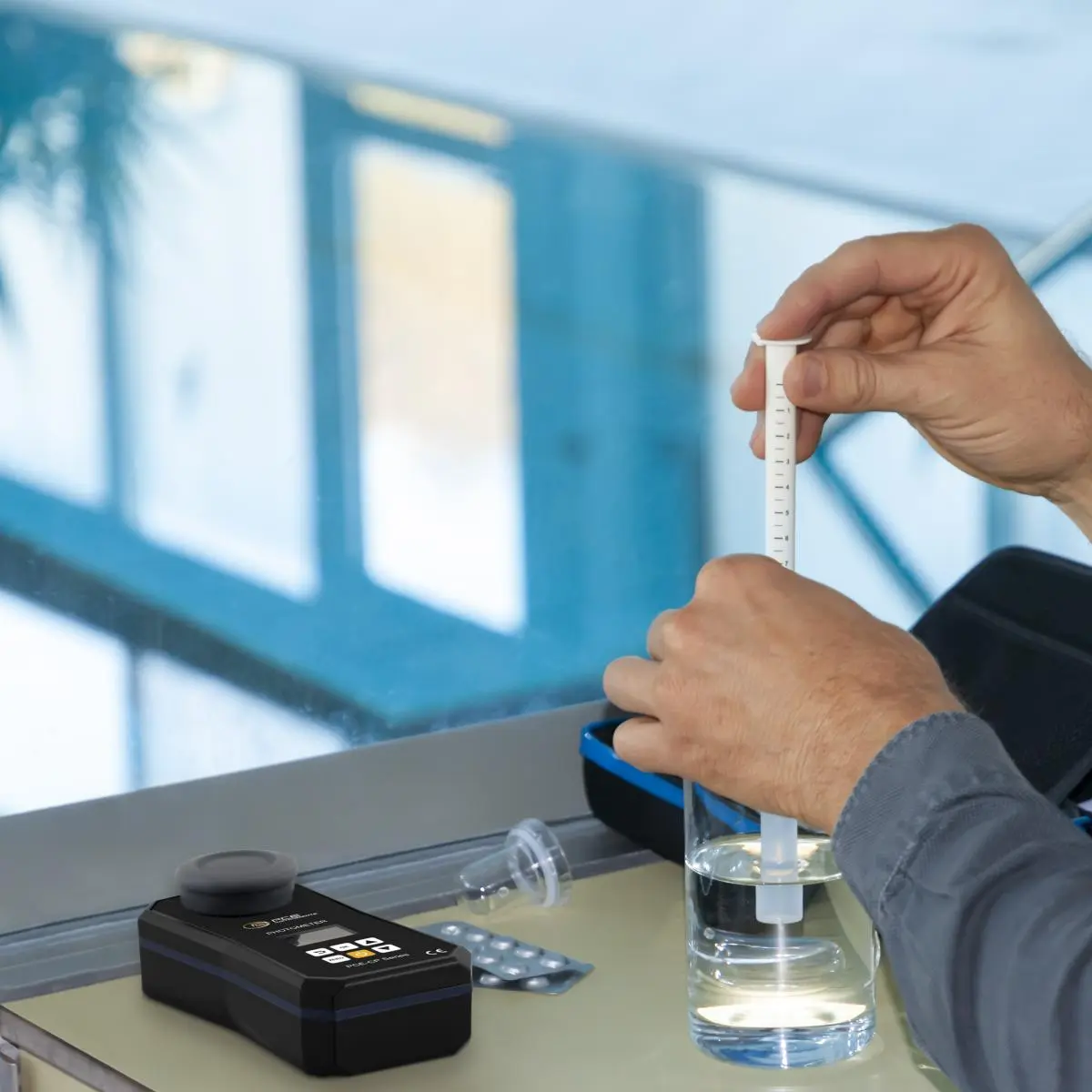

pH Meter / pH Tester Application picture
pH Meter / pH Tester Application picture
pH Meter / pH Tester Application picture
pH Meter / pH Tester Delivery scope

pH Meter PCE-CP 22

Order no.: PCE-CP 22
GTIN (EAN): 4250348727428
₹59,655.00
₹70,392.90
price ex. (VAT / delivery)
:
4250348727428
PCE-CP 22
Delivery time:1-2 working days
measurement in liquids
Handheld
+5 … +45 °C / 41 ... +113 °F
6.50 ... 8.40 pH

Accessory

Description

Multi-parameter pH meter with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

The multi-parameter pH meter is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter photometer. With this multi-parameter photometer, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter photometer, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter photometer generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

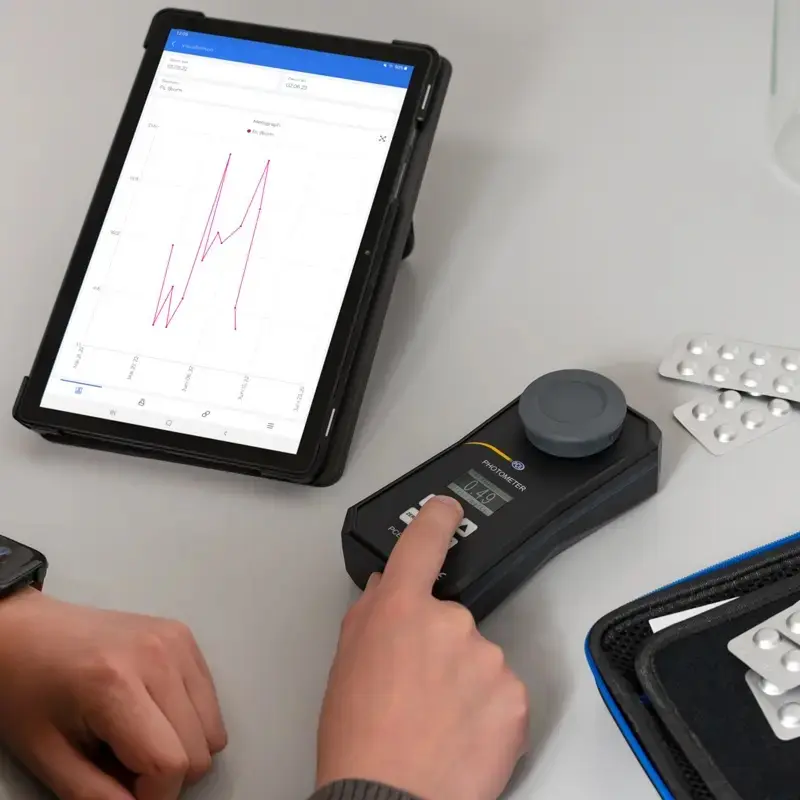

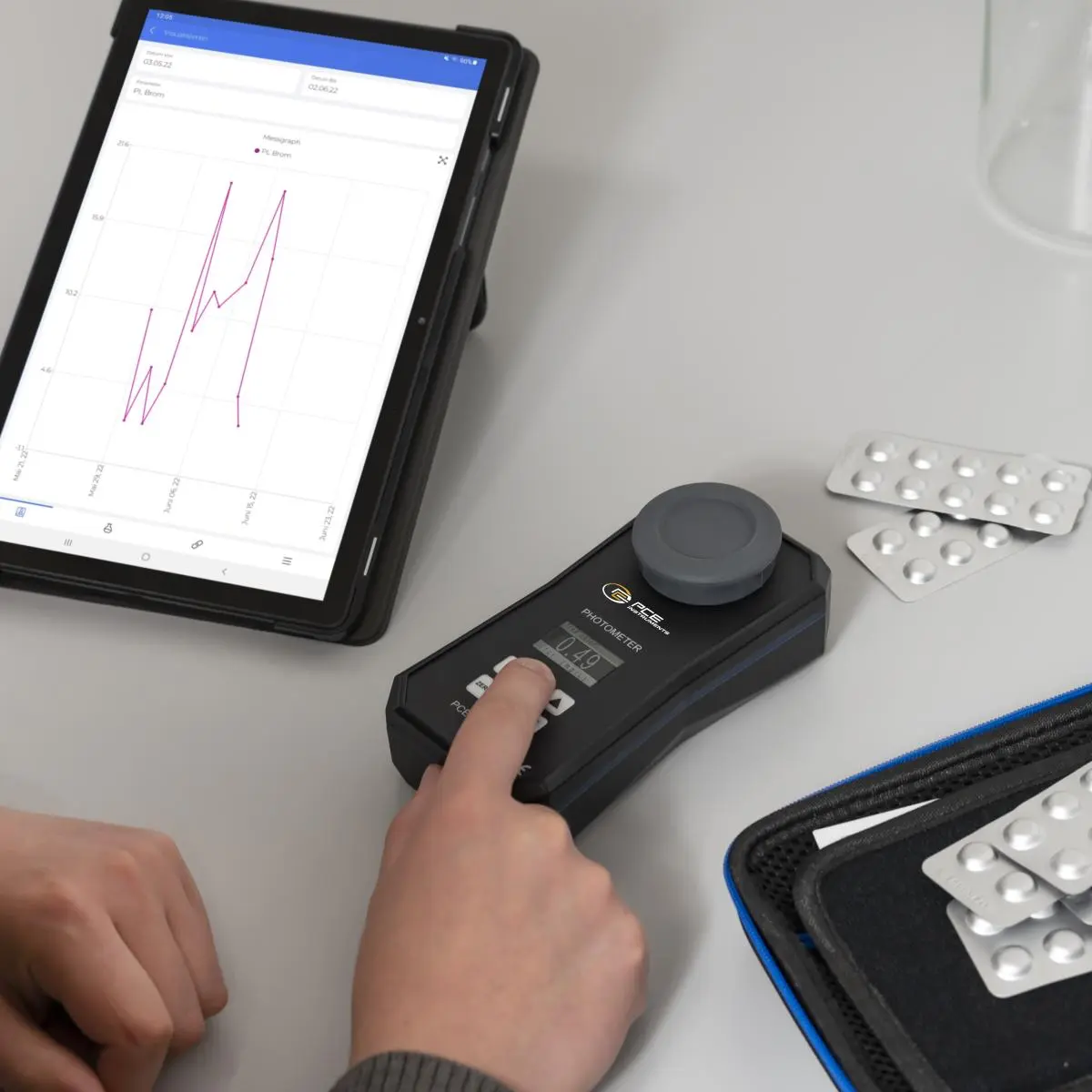

Each measurement is automatically saved by the multi-parameter pH meter. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter photometer. A free app is available to analyze the measured values ​​from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter photometer, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter photometer is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Ammonia
Measuring range  0 ... 0,12 mg/l
Resolution  0,01 mg/l
Accuracy  0.02 mg/l

Ammonia
Measuring range  0,12 ... 0,25 mg/l
Resolution  0,01 mg/l
Accuracy  0.04 mg/l

Ammonia
Measuring range  0,25 ... 0,57 mg/l
Resolution  0,01 mg/l
Accuracy  0.06 mg/l

Ammonia
Measuring range  0,57 ... 1,21 mg/l
Resolution  0,01 mg/l
Accuracy  0.09 mg/l

Iron
Measuring range  0 ... 0,2 mg/l
Resolution  0,01 mg/l
Accuracy  0.02 mg/l

Iron
Measuring range  0,2 ... 0,6 mg/l
Resolution  0,01 mg/l
Accuracy  0.04 mg/l

Iron
Measuring range  0,6 ... 1 mg/l
Resolution  0,01 mg/l
Accuracy  0.08 mg/l

Urea
Measuring range  0 ... 0,3 mg/l
Resolution  0,01 mg/l
Accuracy  0.05 mg/l

Urea
Measuring range  0,3 ... 0,6 mg/l
Resolution  0,01 mg/l
Accuracy  0.06 mg/l

Urea
Measuring range  0,6 ... 1 mg/l
Resolution  0,01 mg/l
Accuracy  0.09 mg/l

Urea
Measuring range  1 ... 1,5 mg/l
Resolution  0,01 mg/l
Accuracy  0.12 mg/l

Urea
Measuring range  1,5 ... 2,5 mg/l
Resolution  0,01 mg/l
Accuracy  0.19 mg/l

Potassium
Measuring range  0,8 ... 3 mg/l
Resolution  0,1 mg/l
Accuracy  0.3 mg/l

Potassium
Measuring range  3 ... 7 mg/l
Resolution  0,1 mg/l
Accuracy  0.4 mg/l

Potassium
Measuring range  7 ... 10 mg/l
Resolution  0,1 mg/l
Accuracy  0.5 mg/l

Potassium
Measuring range  10 ... 12 mg/l
Resolution  0,1 mg/l
Accuracy  1 mg/l

Copper
Measuring range  0 ... 2 mg/l
Resolution  0,01 mg/l
Accuracy  0.20 mg/l

Copper
Measuring range  2 ... 3 mg/l
Resolution  0,01 mg/l
Accuracy  0.31 mg/l

Copper
Measuring range  3 ... 5 mg/l
Resolution  0,01 mg/l
Accuracy  0.44 mg/l

Nitrate
Measuring range  0 ... 20 mg/l
Resolution  1 mg/l
Accuracy  2 mg/l

Nitrate
Measuring range  20 ... 40 mg/l
Resolution  1 mg/l
Accuracy  4 mg/l

Nitrate
Measuring range  40 ... 60 mg/l
Resolution  1 mg/l
Accuracy  6 mg/l

Nitrate
Measuring range  60 ... 100 mg/l
Resolution  1 mg/l
Accuracy  10 mg/l

Nitrite
Measuring range  0 ... 0,25 mg/l
Resolution  0,01 mg/l
Accuracy  0.02 mg/l

Nitrite
Measuring range  0,25 ... 0,4 mg/l
Resolution  0,01 mg/l
Accuracy  0.06 mg/l

Nitrite
Measuring range  0,4 ... 1,3 mg/l
Resolution  0,01 mg/l
Accuracy  0.09 mg/l

Nitrite
Measuring range  1,3 ... 1,64 mg/l
Resolution  0,01 mg/l
Accuracy  0.12 mg/l

pH
Measuring range  6,5 ... 8,4 pH
Resolution  0,01 pH
Accuracy  0.11 pH

Phosphate
Measuring range  0 ... 0,4 mg/l
Resolution  0,01 mg/l
Accuracy  0.04 mg/l

Phosphate
Measuring range  0,4 ... 1,2 mg/l
Resolution  0,01 mg/l
Accuracy  0.12 mg/l

Phosphate
Measuring range  1,2 ... 2 mg/l
Resolution  0,01 mg/l
Accuracy  0.20 mg/l

General technical data
Display type  LED
Storage medium  Internal memory
Storage capacity  255 Values
Interface  Bluetooth
Sensor  Photodiode
Light source  530 nm / 570 nm / 620 nm LED
Number of calibration points  0
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP21
(Rechargeable) battery  3 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Performance  1,8
Operating conditions  5 ... 45 °C , 20 ... 90 % RH
Storage conditions  5 ... 45 °C , 20 ... 90 % RH
Dimensions ( L x W x H )  150 x 75 x 52 mm
Other dimensions  Cuvette: 36 x ø 21 mm (10 ml)
Weight  196,5 g

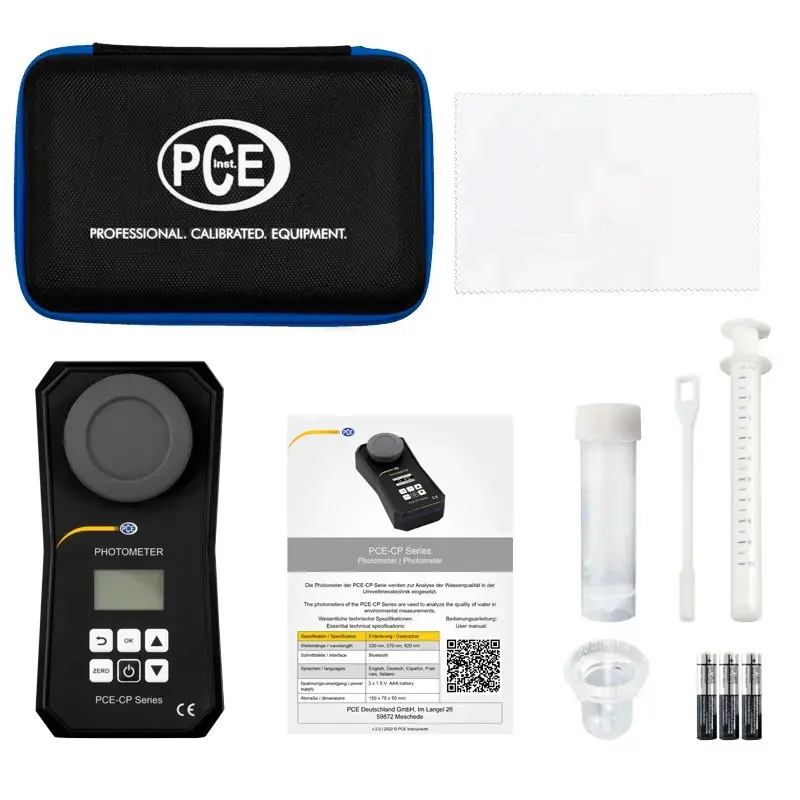

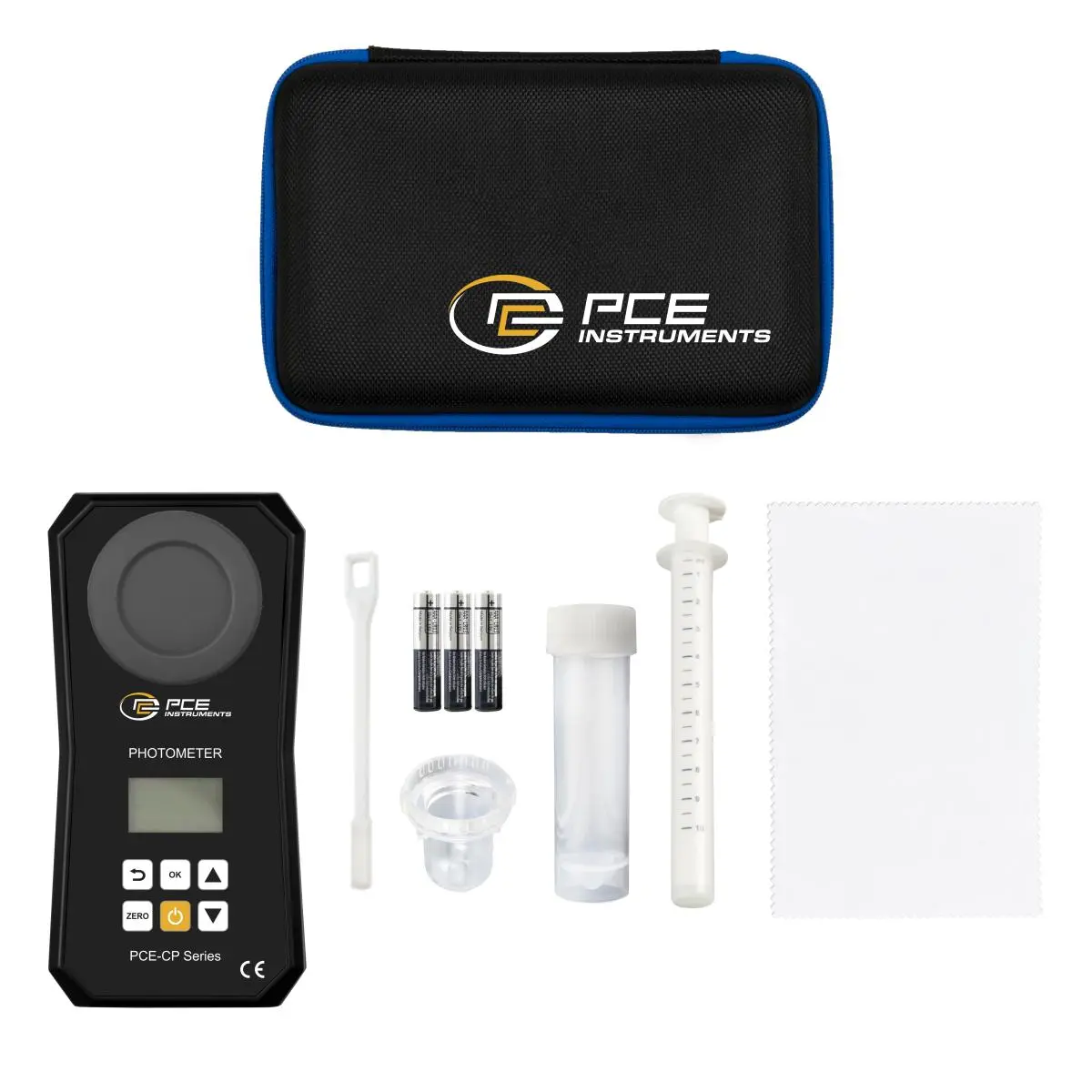

Delivery Scope

1 x Multi-parameter pH Meter / pH Tester PCE-CP 22 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 25 ml shaker (for nitrate)
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
