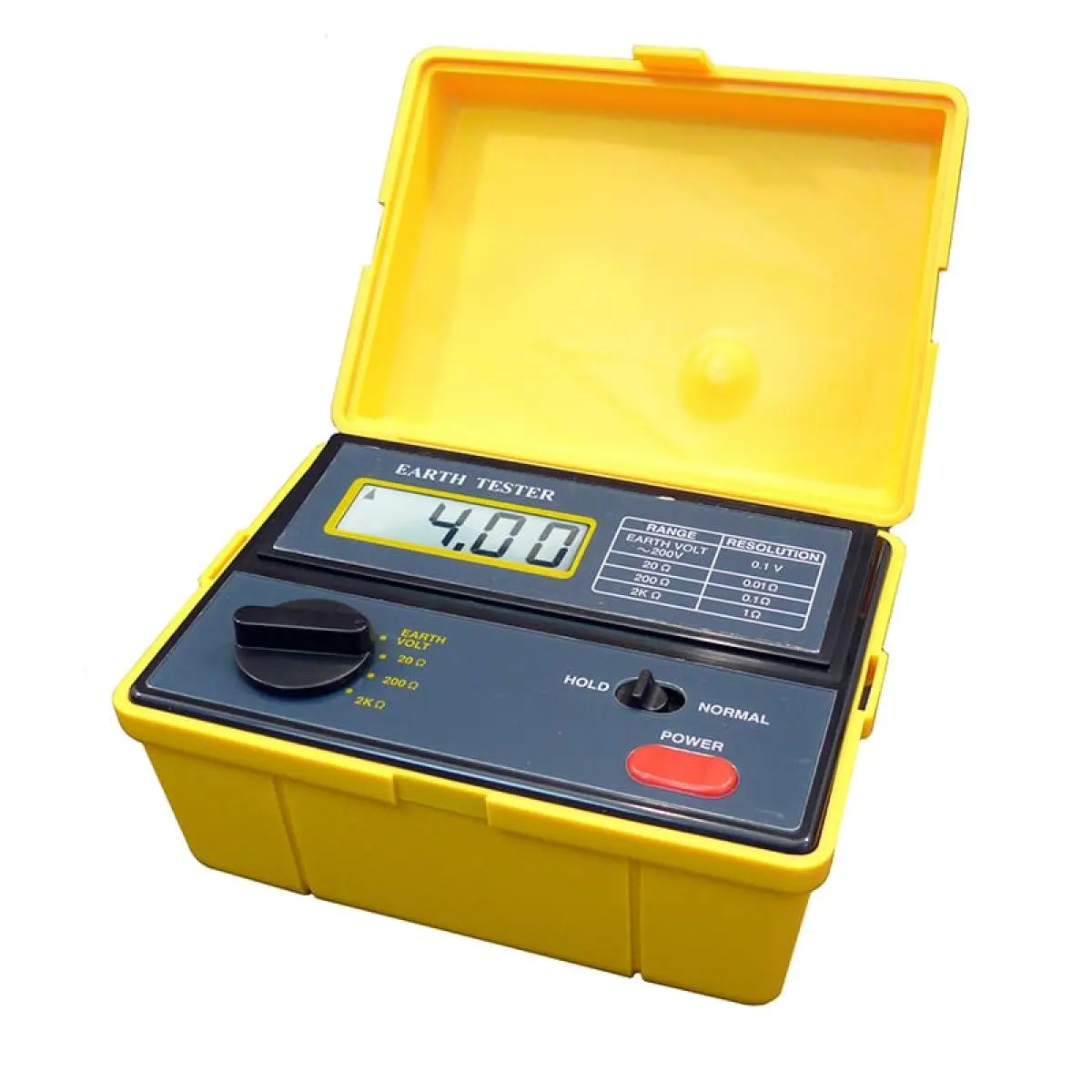

PAT Tester / Portable Appliance Testing Equipment PCE-ET 3000

PAT Tester / Portable Appliance Testing Equipment PCE-ET 3000 [zoom]
PAT Tester / Portable Appliance Testing Equipment PCE-ET 3000

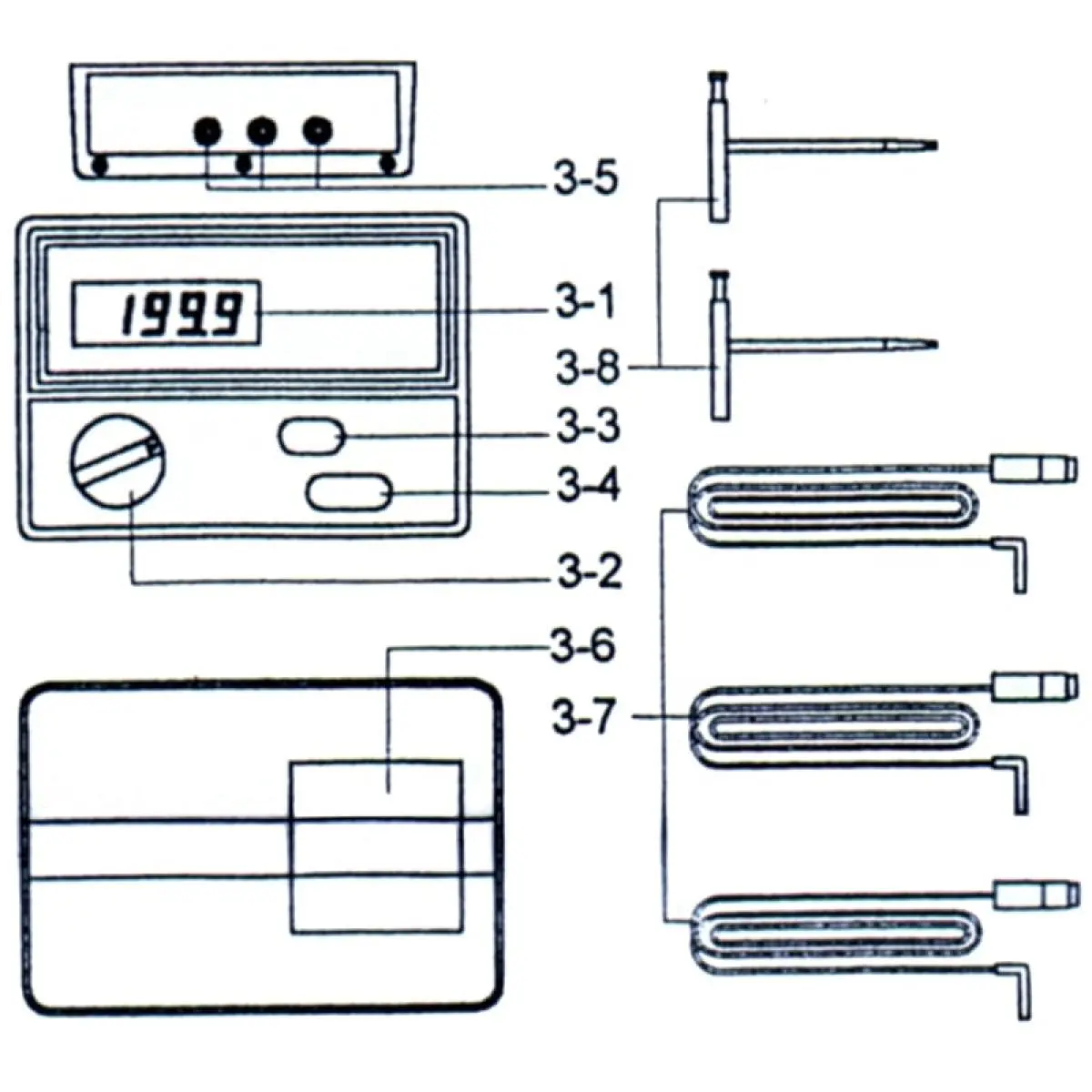

PAT Tester / Portable Appliance Testing Equipment Wiring diagram

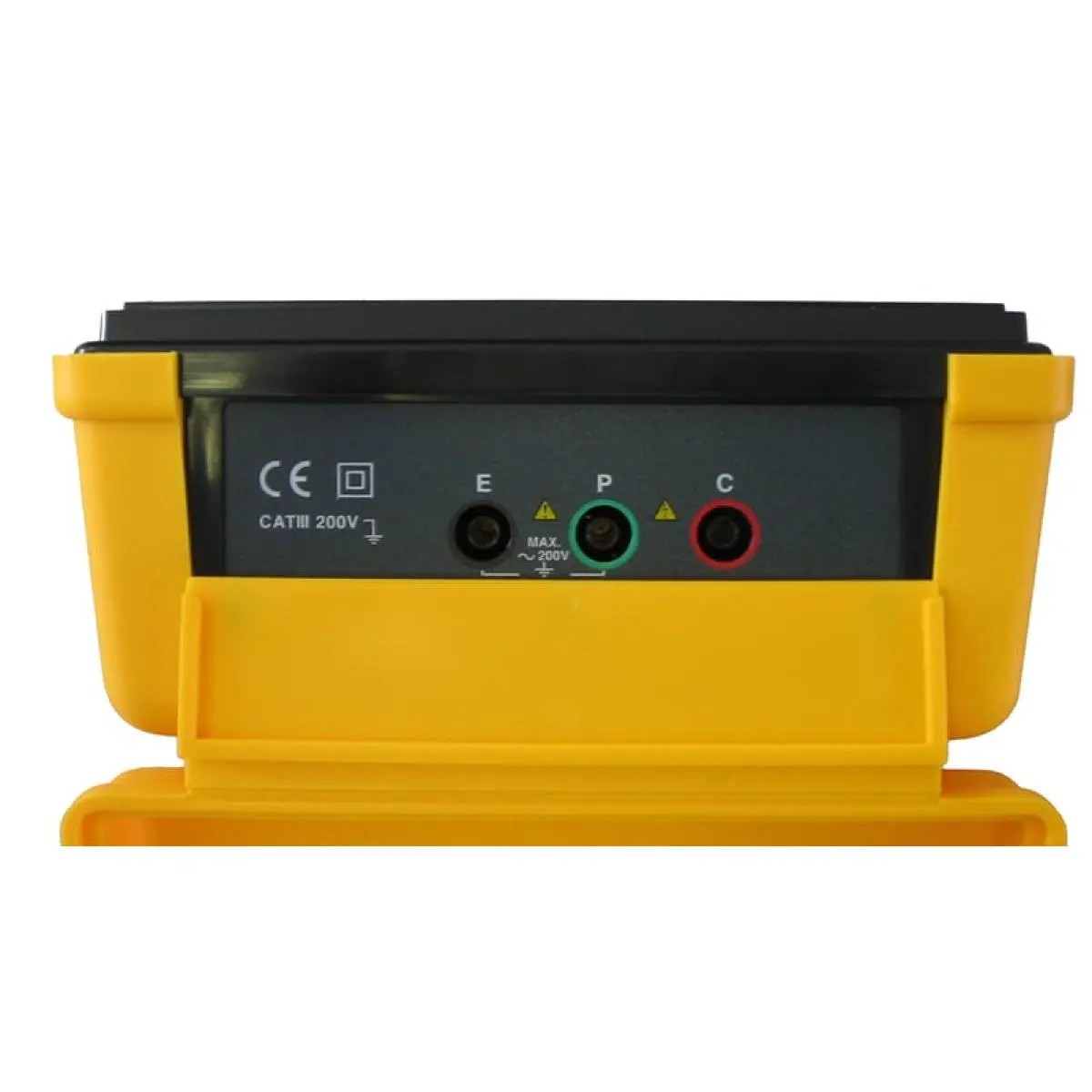

PAT Tester / Portable Appliance Testing Equipment Connections

PAT Tester PCE-ET 3000

Order no.: PCE-ET 3000
GTIN (EAN): 4250348700803
₹80,616.00
₹95,126.88
price ex. (VAT / delivery)
:
4250348700803
PCE-ET 3000
Delivery time:1-2 working days

Accessory

Description

PAT Tester  (resistance / voltage)
for houses and buildings

This PAT Tester is used to measure lightning-arresters or ground connection lightning-arresters for all kind of buildings. earth tester possesses a hermetic case and fulfils all the VDE 0413 safety requirements for the technical service operators. The PAT Tester is appropriate for measuring ground electrodes, lightning-arresters or little earth resistance systems as well as for measuring power resistance, conductive elements and coupling components.

Modern switching circuits reduce the influences of both pressure and earth resistance of the surrounding earth electrodes. Calibration of the earth tester with the adjoining control mechanism avoids the loss of precision at measuring.

Frequency control of 850 Hz avoids the influence of scattered currents of the net and its harmonic elements. Besides, this tester has a filter incorporated to delete distorted signs. The PAT Tester is delivered with the factory calibration however it can also have ISO calibration certificate.


Highlights

Characteristics:
- 3 ½ positions LCD display (máx. 1999)
- High accuracy
- Battery indicator / of range superation
- Data Hold
- Safety: IEC-1010-1 y CAT III 300 V
- Very good quality
- Components: checking cables: 15 m of red
cable, 10 m of yellow cable, 5 m of green
cable, ground needles, batteries and user
manual.
- Optional ISO calibration certificate.
Measuring earth resistance.
The earth tester is connected with the special ground components introduced on
the earth by means of the checking cables. To make accurate measurements with
this tester, ground has to be wet, if not ground will be wet. Ground components
will be put in a straight line (place the black cable, then the green cable,
the yellow one for one ground rod and finally the red cable for the second
ground rod). Now everything is ready to connect the earth tester to check the
earth connection of your building. This can be also used inside a building to
check that water connections with earth work properly. This tester has been
developed according to IEC 1010-1 standard and fulfils all the safety
conditions for control electronic mechanism (CAT III).

Specification

AC voltage
Measuring range  0 ... 200 V
Resolution  0,1 V
Accuracy  ±3% + 2 digits
Frequency range  50 ... 60 Hz

Resistance
Measuring range  0,01 ... 19,99 Ω
Resolution  0,01 Ω
Accuracy  ±2% +2 Digits

Resistance
Measuring range  0,01 ... 199,9 Ω
Resolution  0,1 Ω
Accuracy  ±2% +2 Digits

Resistance
Measuring range  0,01 ... 1999 Ω
Resolution  1 Ω
Accuracy  ±2% +2 Digits

General technical data
Display type  LCD
Measuring rate  4 s
Response time  2,5 s
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Test current  2 mAeff/rms
Test frequency  820 Hz
Protection class (device)  IP20
(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  160 x 120 x 65 mm
Weight  560 g

Delivery Scope

1 x PAT Tester / Portable Appliance Testing Equipment PCE-ET 3000
1 x Test cable set (15 m red, 10 m yellow, 5 m green)
1 x Set of earth rods
1 x User manual
