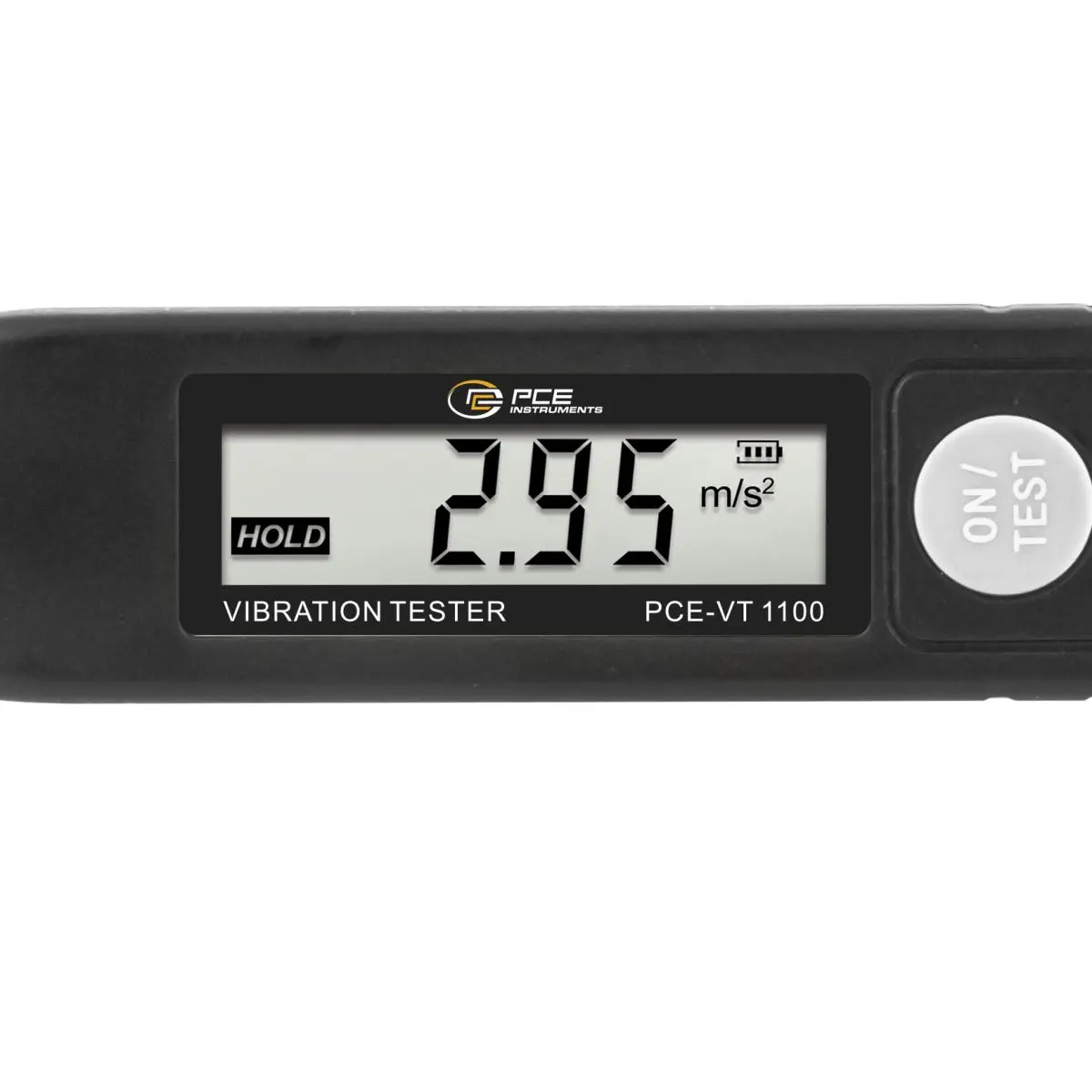

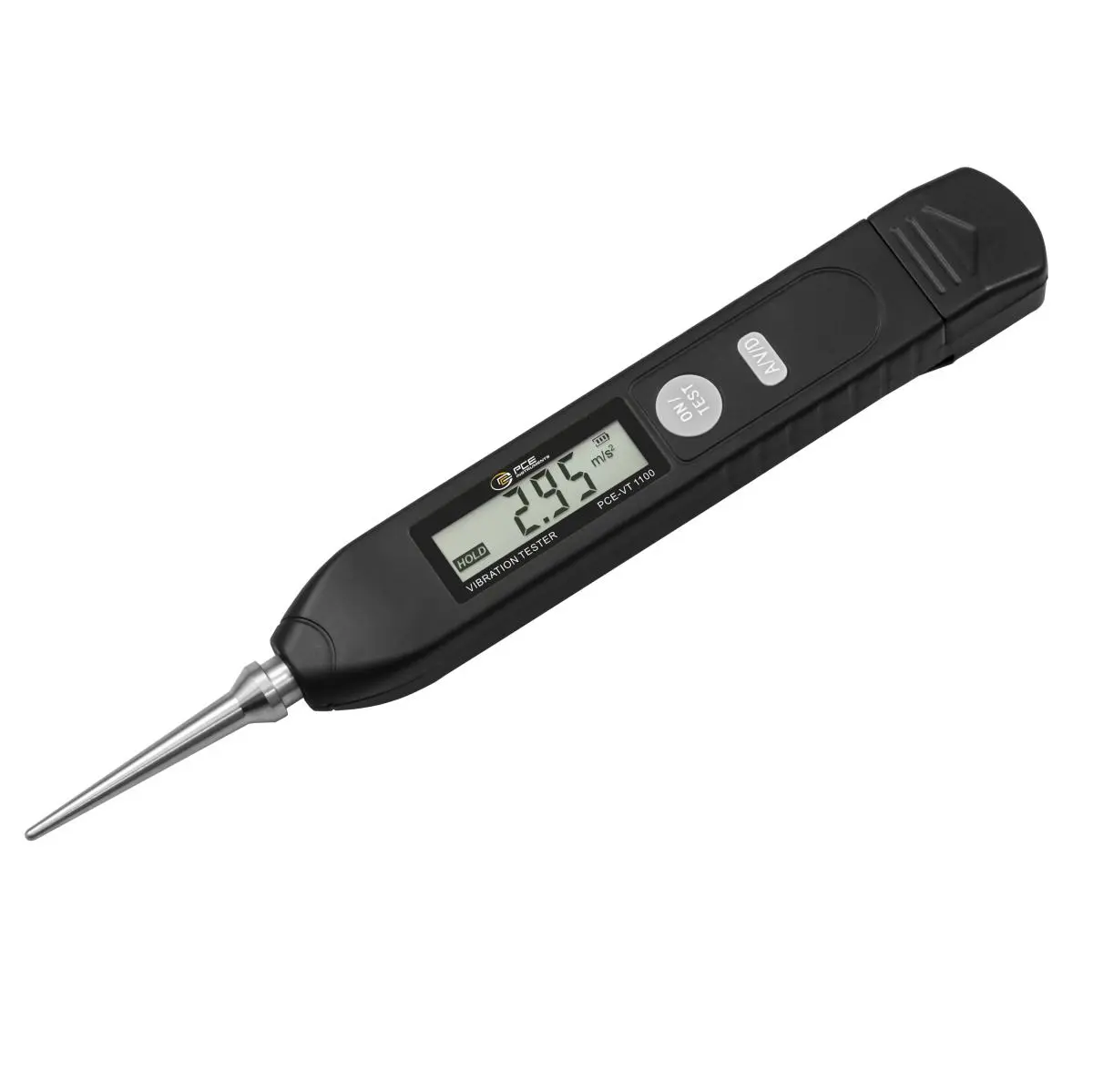

The oscilloscope is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this oscilloscope the actual state can easily be determined on-site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the oscilloscope serves as a measuring device for a relative measurement on different machines.
The oscilloscope is essentially for precautionary or preventive maintenance of production machines. This oscilloscope is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the oscilloscope is also used to assess the status of smaller electric motors.
| Acceleration | |
| Measuring range | 0,01 ... 199,9 m/s² peak |
| Resolution | 0,01 m/s² peak |
| Accuracy | ≤3 % of Rd |
| Frequency range | 10 Hz ... 1 kHz |
| Speed | |
| Measuring range | 0,01 ... 199,9 |
| Resolution | 0.01 |
| Accuracy | ±(5% of measured value +2 digits) |
| Frequency range | 10 Hz ... 1 kHz |
| Displacement | |
| Measuring range | 0,001 mm p-p ... 1,999 |
| Resolution | 0,001 mm p-p |
| Accuracy | ±(5% of reading +2 digits); frequency-dependent: 10 ... 20 Hz: +10 / -20% and 20 ... 1000 Hz: ±5% |
| Frequency range | 10 ... 500 Hz |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Response time | 1 s |
| Operating time | 5 h |
| Automatic power-off | 20 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 2 x 3 V CR 2032 (button cell 3V) , lithium |
| Capacity | 220 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 84 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 84 % RH |
| Dimensions ( L x W x H ) | 155 x 24 x 18,7 mm |
| Weight | 40 g |
