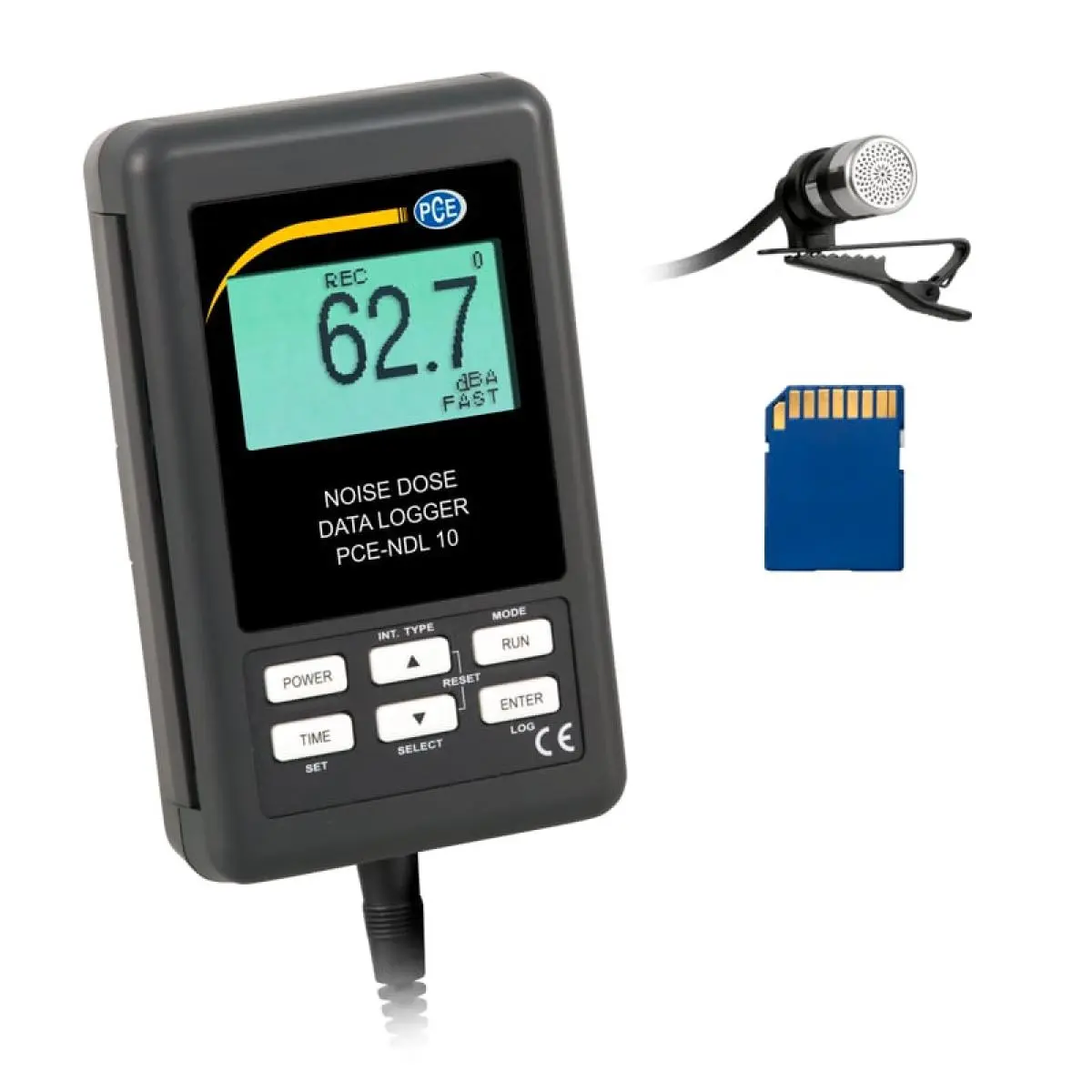

Data-Logging Noise Meter / Sound Meter PCE-NDL 10

Order no.: PCE-NDL 10

GTIN (EAN): 4250348715975

Accessory

USB Data Cable Incl. Software SOFT-LUT-USB

₹13,143.00

Power Supply 9 V / 0.8 A (US / North American)

₹2,433.00

Power Supply 9 V / 1 A (European)

₹3,810.00

ISO Calibration Certificate for Noise Meter CAL-SL

₹18,957.00

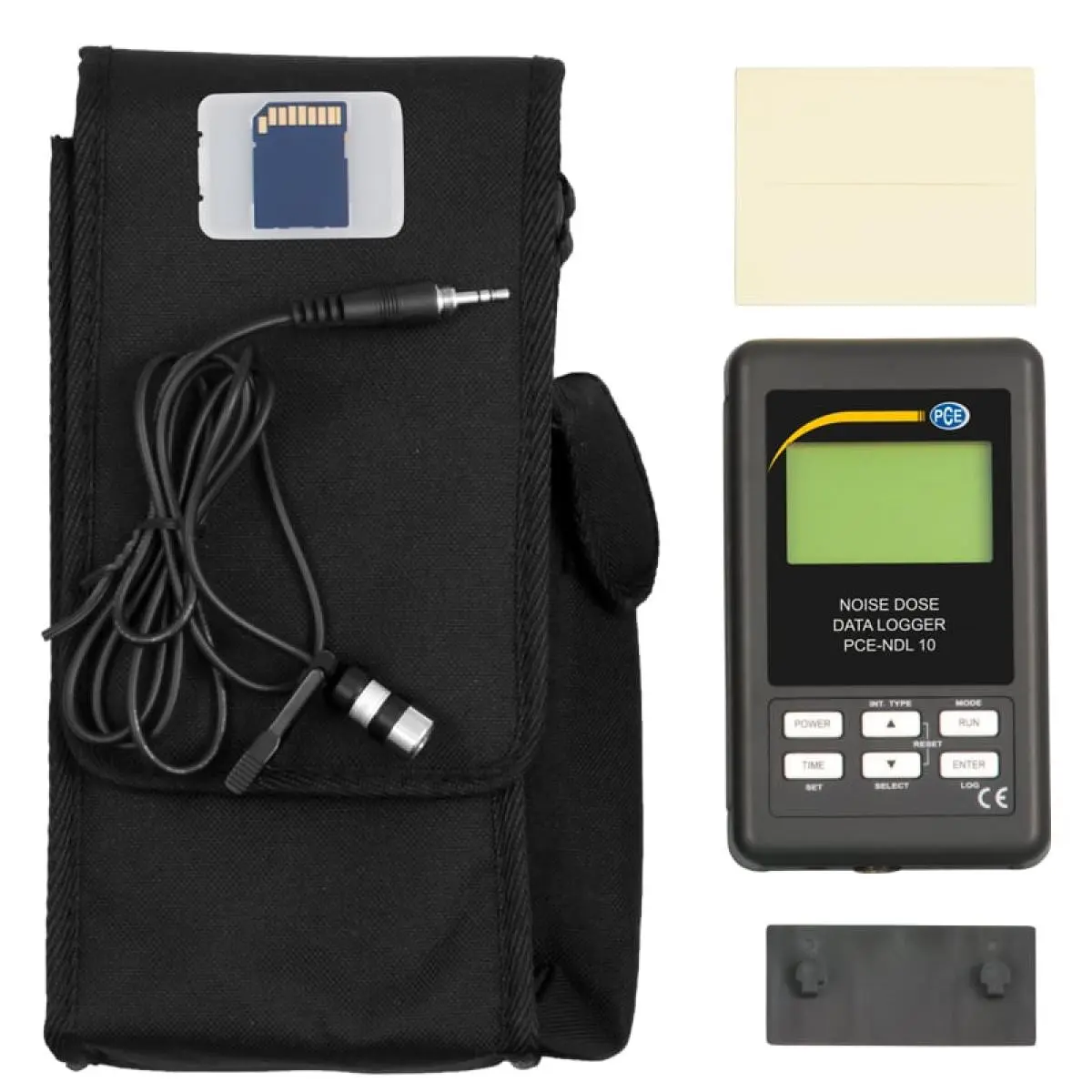

Carrying Case with hard foam insert

₹3,963.00

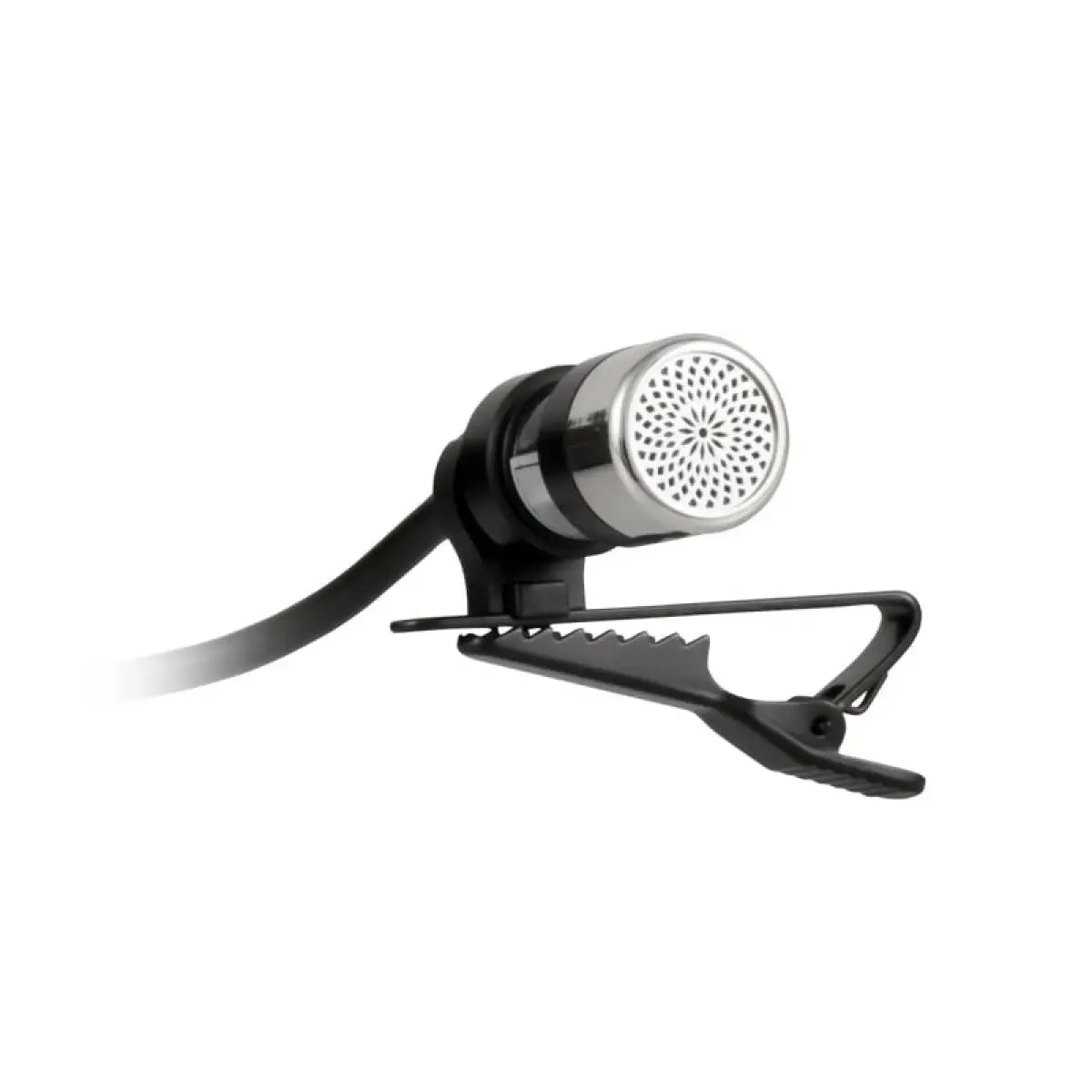

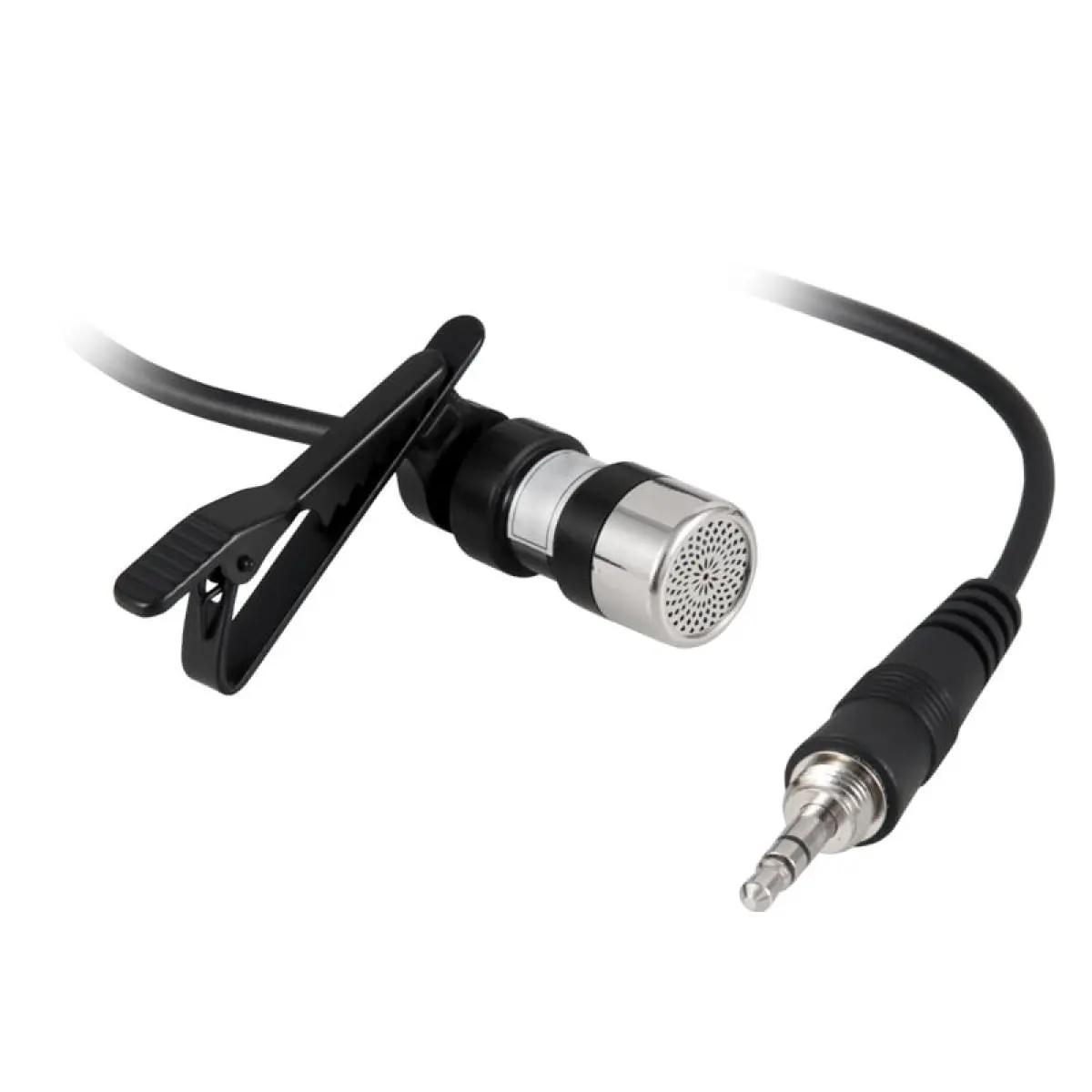

Microphone PCE-NDL 10-MIC

₹11,766.00

Class I Acoustic Calibrator PCE-SC 09

₹80,310.00

Lockable Mount

₹10,695.00

Description

PCE-NDL 10 is a high-quality noise meter or sound level meter with data logging capabilities. This noise dosimeter records sound pressure level (SPL) measurements as well as dosimetry (dose) measurements in decibels (dB) and saves the measurement data to the internal memory, which can then be transferred to an SD card.

Note: To set up the SD card for the first time, the PCE-NDL 10 must be connected to AC power adapter (AC power supply NET-LUT or NET-LUT-US sold separately - see accessories tab).

Highlights

- Measures SPL and dose in dB

- Manual or adjustable automatic data logging

- Data hold, min / max, date / time, auto shutdown (on / off) and audible alarm (on / off) functionality

- Internal memory and SD card slot (SD card included)

- RS-232 and USB interface

- Backlit LCD screen

- Portable

Specification

Sound level
Measuring range	30 ... 130 dB
Resolution	0,1 dB
Accuracy	±1 dB at 1 kHz

Sound level
Measuring range	70 ... 130 dB
Resolution	0,1 dB
Accuracy	±1 dB at 1 kHz

General technical data
Measuring functions	HOLD, MAX, MIN, Average value
Time weighting	slow (1 s), fast (125 ms)
Frequency weighting	C, A
Frequency	31.5 ... 8000 Hz
Display type	LCD with backlight
Display size	2,3 Inch
Measuring rate	1 x per second
Storage medium	SD card, Internal memory
Storage capacity	16000 Data records
Memory capacity (additional information)	additional memory SD card 1 ... 16 GB
Storage interval from	1 s
Storage interval to	60 min.
Microphone type	Electret capacitor
Interface	RS232, USB
Standard(s)	IEC 61672-1 (Class II)
Automatic power-off	10 min
Dimensions	Microphone: Ø12.7 mm
Measurement error	≤0.1% of the total stored data
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	9 V/DC 0.8 A
Connector type	Device-europlug
(Rechargeable) battery	6 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	130 x 80 x 33 mm
Weight	200 g
