| Leakage current and current (AC A) | |||
| Measurement ranges | Resolution | Accuracy | |
| 50 / 60 Hz | 400 Hz ... 1 kHz | ||
| 40-mA | 10 µA | ± (1% + 0.5-mA) | ± (4.5% + 0.5-mA) |
| 400-mA | 100 µA | ± (3% + 5-mA) | ± (3% + 5-mA) |
| 4 A | 1-mA | ± (4% + 0.1-mA) | ± (4% + 0.1 A) |
| 40 A | 10-mA | ± (4% + 1 A) | ± (4% + 1 A) |
| 80 A | 10-mA | ± (2.5% + 1 A) | ± (3% + 1 A) |
| 80 A - 100 A | 100-mA | ± (5% + 1 A) | ± (5% + 1 A) |
| Voltage (AC V) | |||
| Measurement ranges | Resolution | Accuracy | |
| 50 / 60 Hz | 400 Hz ... 1 kHz | ||
| 400V | 1V | ± (1.5 % + 2 digits) | ± (2 % + 4 digits) |
| Resistance | |||
| Measurement ranges | Resolution | ||
| Accuracy | Alarm | ||
| 400 Ω | 0.1 Ω | ± (1% + 2 digits) | Measurement value <38Ω |
| General Technical Specifications | |||
| Display | 3 3/4 | ||
| Measured electrical properties | AC V, AC A, resistance | ||
| Security standards | CAT III 300V / CAT II 600V | ||
| Diameter of the clip | 30 mm | ||
| Input impedance | 10 MΩ | ||
| Registration rate | 2 Hz (numerical values), 20 Hz (bar graph) | ||
| Operating temperature | -10 ... 50ºC / 14 ... 122ºF | ||
| Operating humidity | <85% H.r. | ||
| Storing temperature | -20 ... 60ºC / -4 ... 140ºF | ||
| Auto shut-off | After 30 minutes | ||
| Power | 9 V battery | ||
| Input current | 10-mA | ||
| Weight | 200 g / < 1 lb | ||
| Dimensions | 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in | ||

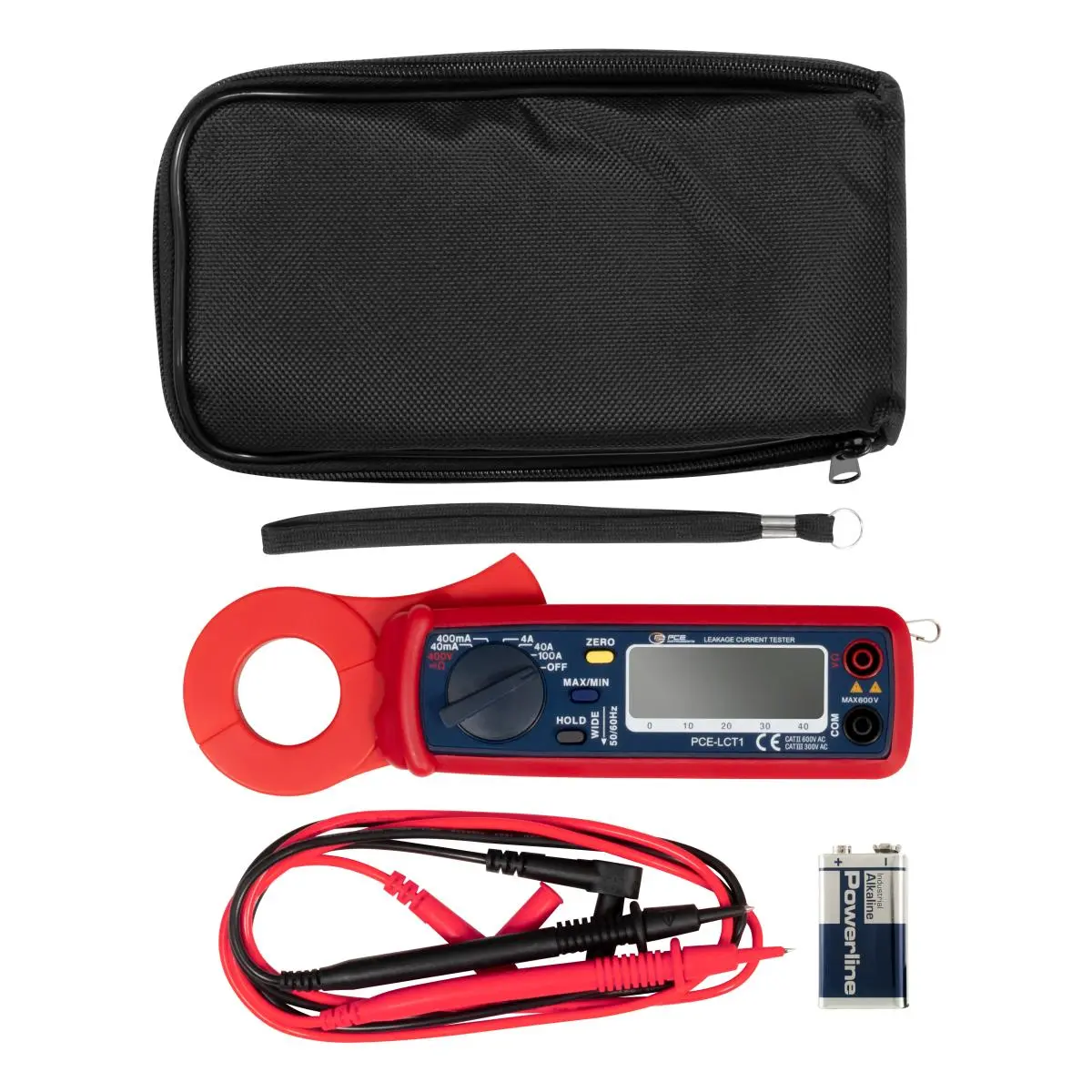

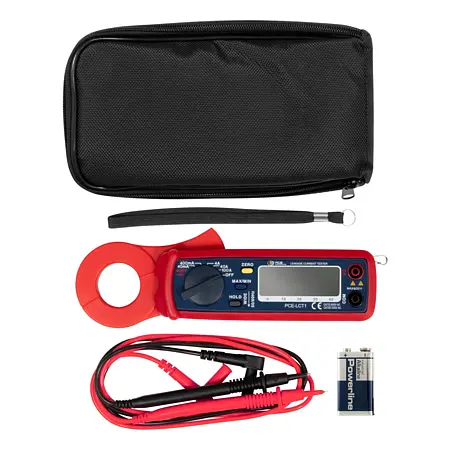

1 x Multimeter / TRMS Multimeter PCE-LCT 1
1 x 9V block battery

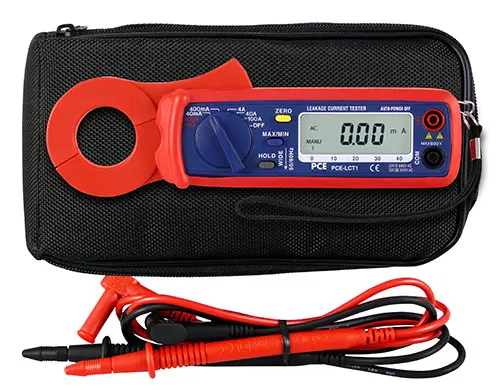

1 x Carrying case
1 x Rubber protection
1 x Test leads
1 x Operating instructions

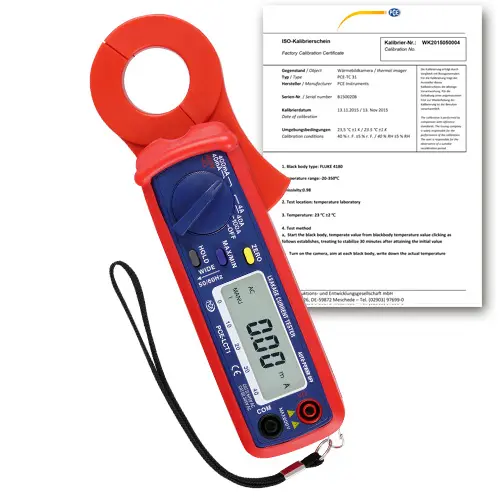

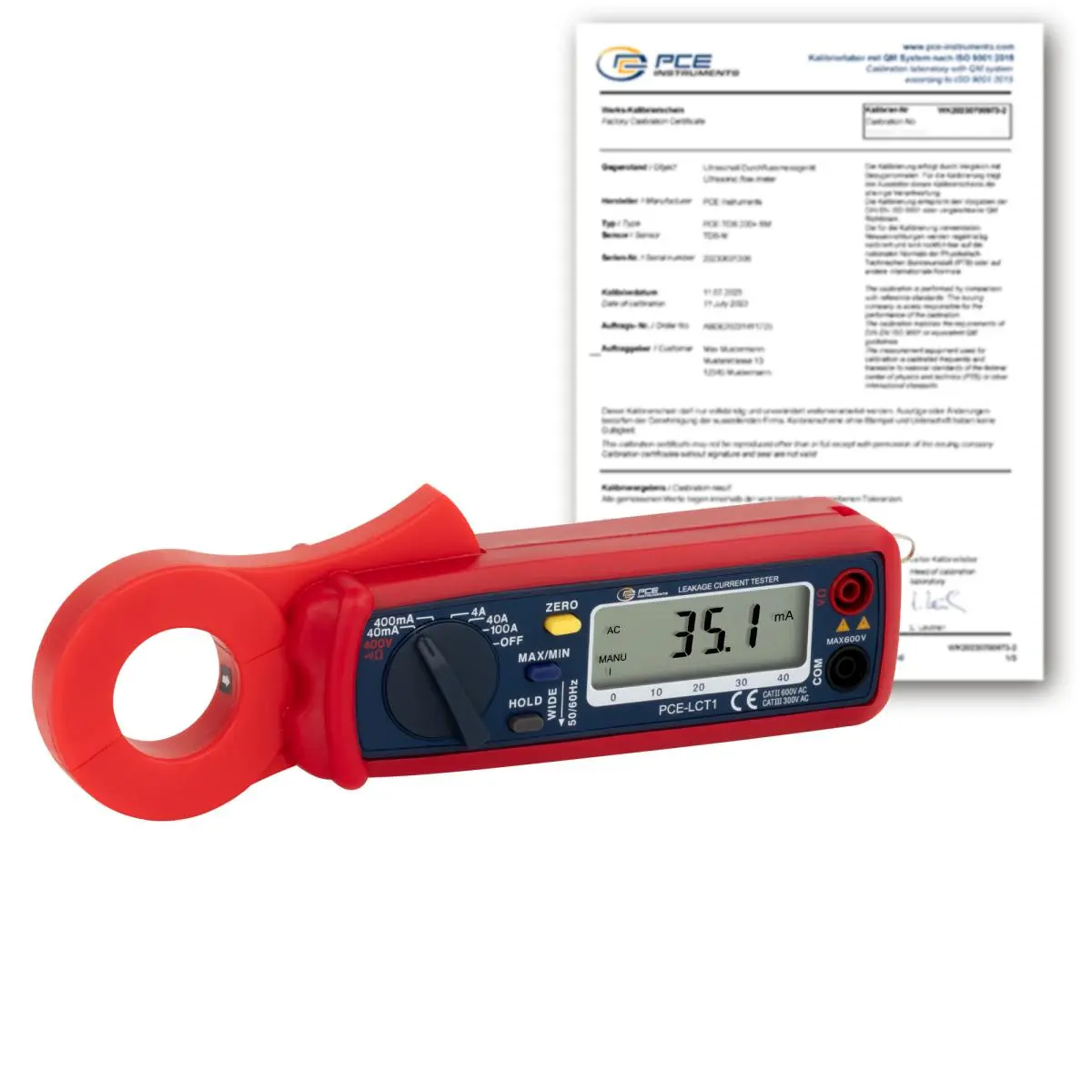

1 x ISO calibration certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
