Multimeter / TRMS Multimeter PCE-DC1-ICA

[zoom]

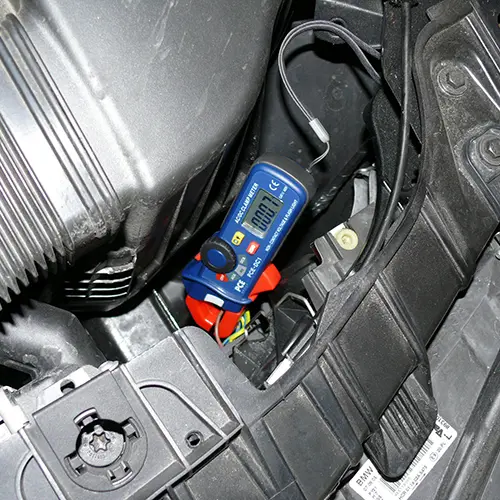

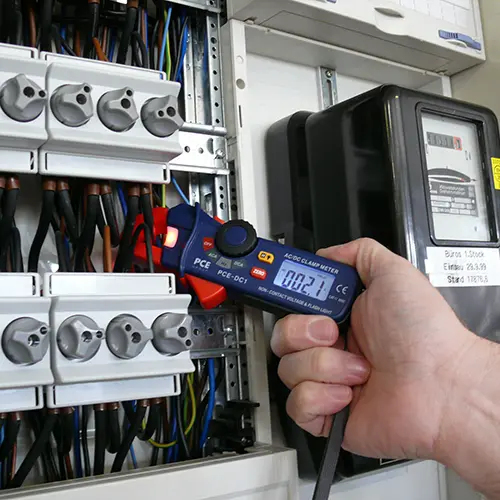

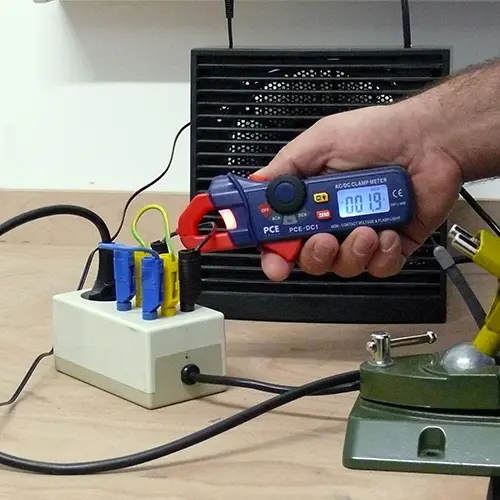

Multimeter / TRMS Multimeter Application picture

Multimeter / TRMS Multimeter Delivery scope

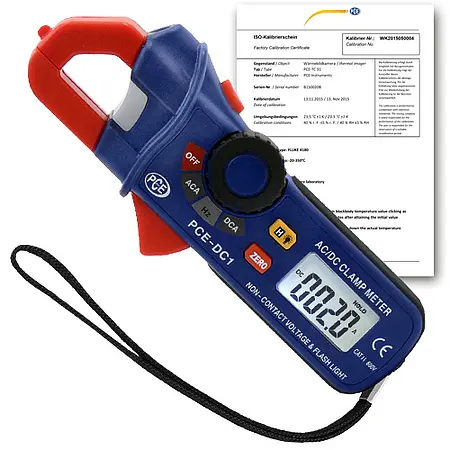

Multimeter / TRMS Multimeter PCE-DC1-ICA Incl. ISO Calibration Certificate

Order no.: PCE-DC1-ICA

GTIN (EAN): 4250348725431

Description

Multimeter / TRMS Multimeter incl. ISO calibration certificate

for AC Power, AC Voltage, DC Power and frequency (3 in 1) / Clamp opening max. 18 mm

This Multimeter / TRMS Multimeter was developed for the indirect detection of AC / DC currents as well as the frequency. A non-contact voltage tester function and a torch for illuminating the measuring point were also integrated in this Multimeter / TRMS Multimeter. The small dimensions of this Multimeter / TRMS Multimeter, allow use in hard to reach places.

The large illuminated display of the Multimeter / TRMS Multimeter ensures a very good readability even in dark places, such as in control cabinets and cable ducts. The non-contact voltage tester not only helps you identify dangerous potentials, but also provides you with an accurate tool for finding broken wire positions.

Highlights

- LCD with 3 2/3 positions, backlit, clamp for continuous current

- Measures AC/DC current, AC voltage and frequency

- Memory function, zero reset for the DCA, test voltage without contact

- Integrated flashlight

- Automatic range selection

- Auto shut-off

- Aperture of the clamp: 18 mm / .7 in

- incl. ISO-Calibration Certificate

Specification

Direct current DC
Measuring range	0 ... 200 A
Resolution	0,1 A
Accuracy	±(2.8% of reading +8 digits)

Alternating current AC
Measuring range	0 ... 200 A
Resolution	0,1 A
Accuracy	±(3 % of Rd +8 digits)

Frequency
Measuring range	40 ... 50 Hz
Resolution	0,01 Hz
Accuracy	±(1.2 % +5 digits)

Frequency
Measuring range	51 ... 510 Hz
Resolution	0,1 Hz
Accuracy	±(1.2% +3 Digits)

Frequency
Measuring range	0,51 ... 1 kHz
Resolution	0,001 kHz
Accuracy	±(1.2% +3 Digits)

General technical data
Measuring functions	HOLD
Display type	LCD with backlight
Display size	1,4 Inch
Standard(s)	EN 61010-1, EN 61010-2-032
Maximum cable diameter	18 mm
Automatic power-off	7 min
Housing	PVC
Safety standard	CAT II / 600V
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	2 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 30 °C , 0 ... 90 % RH
Storage conditions	0 ... 30 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	155 x 66 x 31 mm
Weight	155 g

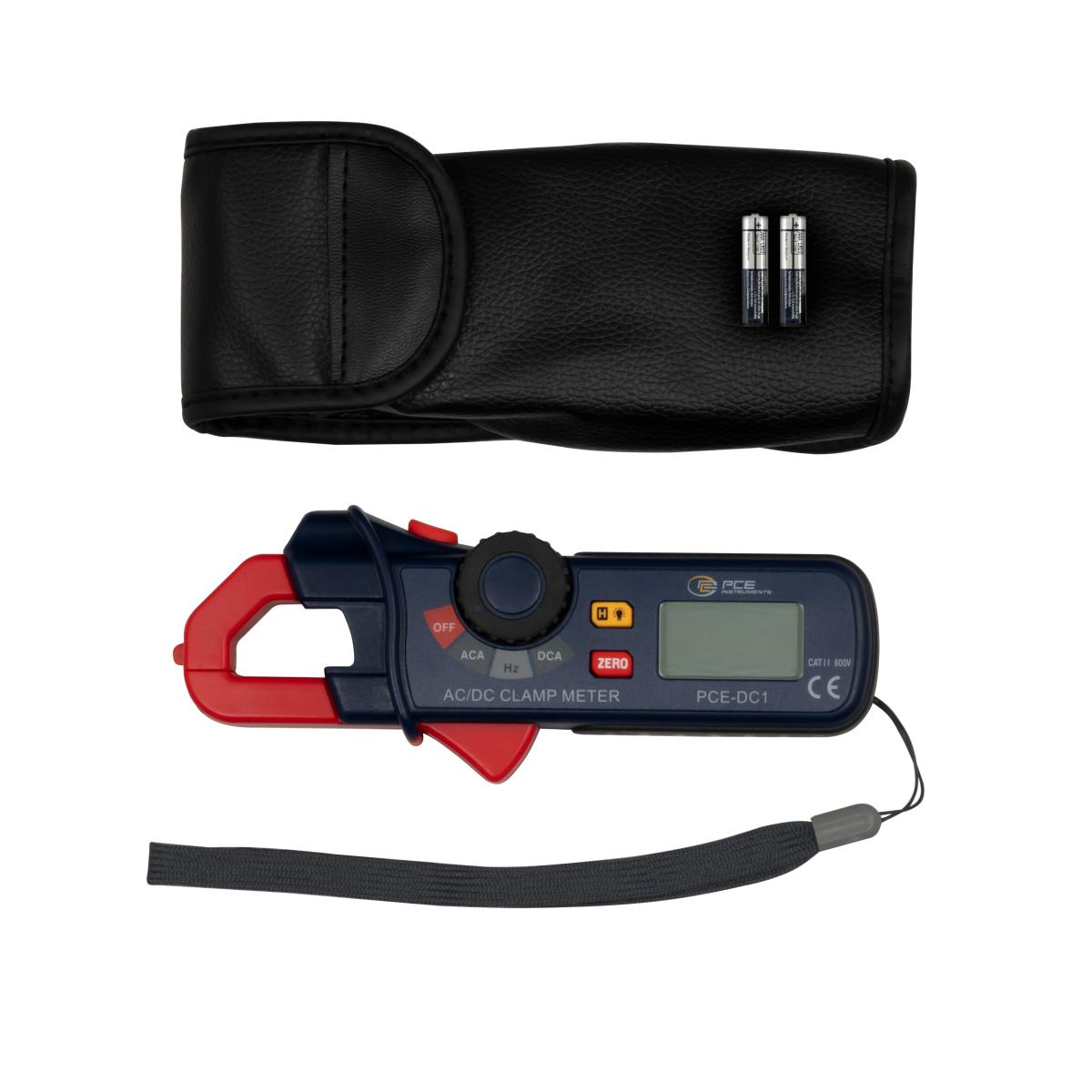

Delivery Scope

1 x PCE-DC1-ICA Multimeter / TRMS Multimeter

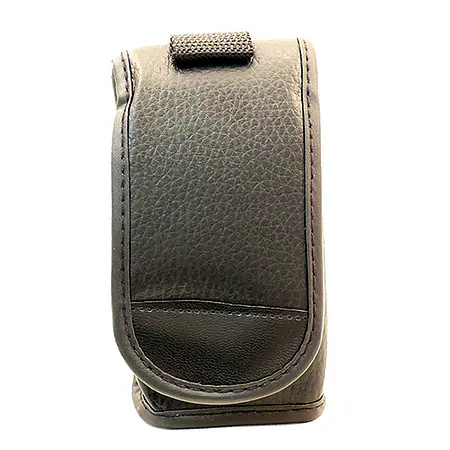

1 x Bag

2 x Batteries

1 x User's manual

1 x ISO-Calibration Certificate

Downloads

Datasheet

CE Certificate

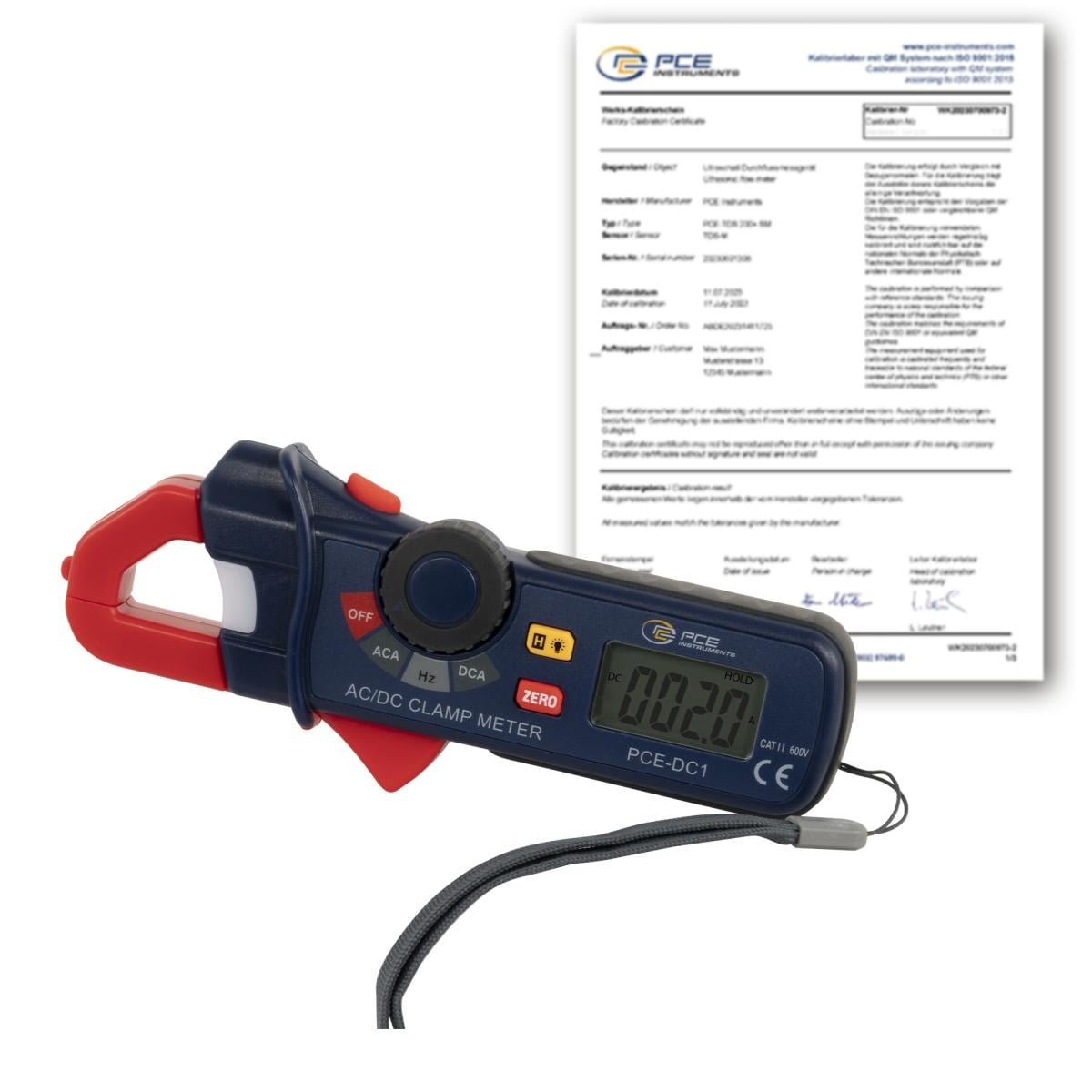

Multimeter / TRMS Multimeter PCE-DC1-ICA

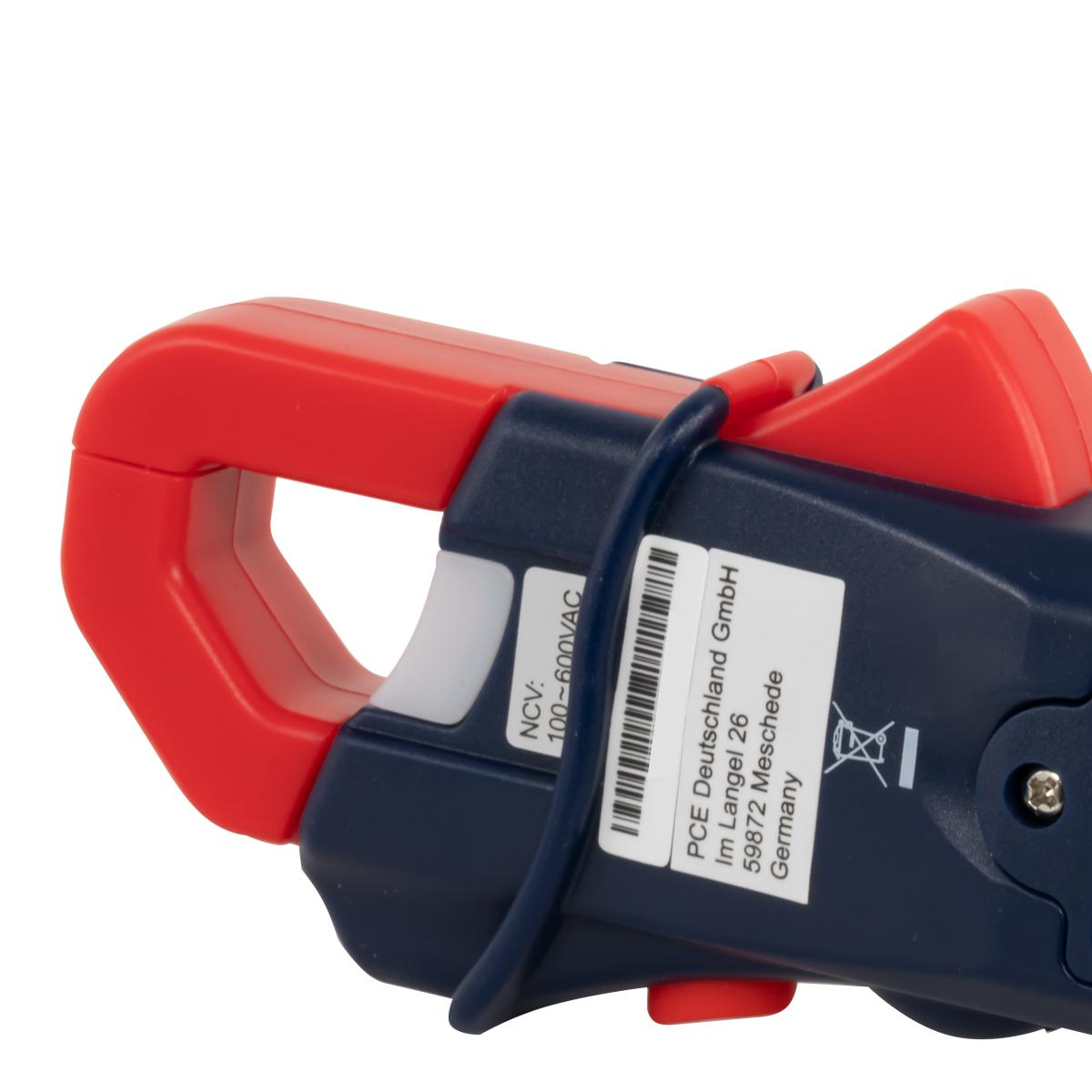

Multimeter / TRMS Multimeter Rear side

Multimeter / TRMS Multimeter Handle

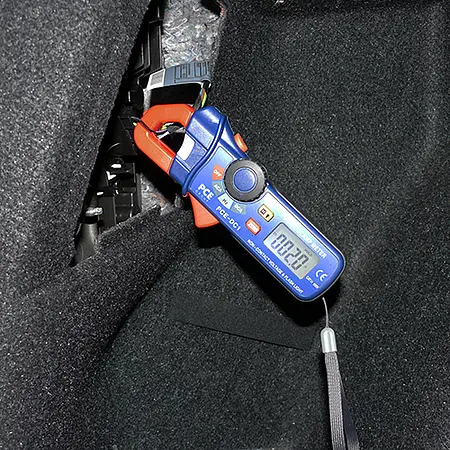

Multimeter / TRMS Multimeter Application picture
