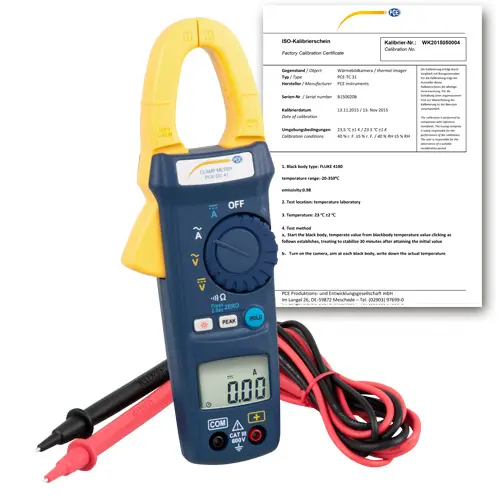

Multimeter / TRMS Multimeter PCE-DC 41-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC 41-ICA

GTIN (EAN):

Description

Multimeter / TRMS Multimeter PCE-DC 41-ICA incl. ISO Calibration Certificat

Voltage metering up to 600 V / Current metering up to 600 A / CAT III 600 V
Electrical resistance metering up to 1000 Ω / Contact-free measuring of electrical conductors

The Multimeter / TRMS Multimeter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the Multimeter / TRMS Multimeter, or you can use the integrated clamp mechanism. By using the clamp of the Multimeter / TRMS Multimeter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it. You can also check the continuity with the Multimeter / TRMS Multimeter.

Due to its compact design and light weight, the device is well-suited for mobile use. When using the clamp mechanism, it is also possible to run the Multimeter / TRMS Multimeter with one hand only. The measured data is shown on the large backlit 4-digit display. By using the peak-hold or data-hold function, you can also freeze the readings on the display. The auto power-off function saves battery power, when the device is not in use.

Highlights

- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism
- Continuity check

- Peak- and data-hold function
- Measuring leads included in the package
- 4-digit display
- Display backlight
- Auto power-off
- Incl. ISO Calibration Certificate

Specification

Technical specifications

Direct voltage
	Range	Resolution	Accuracy
Input impedance: 1 MΩ	600 V	0.1 V	± 1 % + 2 digits
Direct voltage (peak model)
Input impedance: 1 MΩ	600 V 0.0 ... 0.01 in	0.1 V 0.0 ... 0.01 in	± 1.5 % + 8 digits 0.0 ... 0.01 in
Alternating voltage
Input Impedance: 1 MΩ	600 V	0.1 V	± 1.2 % ± 5 digits (50 ... 500 Hz)
Alternating voltage (peak model)
Input impedance: 1 MΩ	600 V	0.1 V	± 1.7 % + 10 digits
Direct current
	60 A 600 A	0.01 A 0.1 A	± 2 % + 5 digits
Direct current (peak model)
	600 A	0.1 A	± 2.5 % + 8 digits
Alternating current
	60 A 600 A	0.01 A 0.1 A	±2 % + 5 digits (50...60 Hz) ±3 % + 5 digits (60...500 Hz)
Alternating current (peak model)
	600 A	0.01 A	±2.5 % + 10 digits
Electrical resistance
	1000 Ω	0.1 Ω	± 1 % + 2 digits


Continuinty check
Buzzer function <40 Ω

General specifications

Display	4-digit LCD maximum reading: 6200
Sampling rate	3 times/s
Power supply	2 x 1.5 V AAA batteries
Batter life	50 hours (without buzzer backlight function)
Auto Power off	After 30 minutes of inactivity
Operating conditions	0.0°C ... 40°C / < 70 % RH 0.0°F ... 104°F
Storage conditions	-10°C ... 60°C / < 80 % RH 14°F ... 140°F
Maximum clamp opening	Ø 25 mm / Ø 0.1 in
Dimensions	210 mm x 62 mm x 36 mm / 8.26 in x 2.44 in x 1.41 in
Weight	273 g / < 1 lb with batteries
