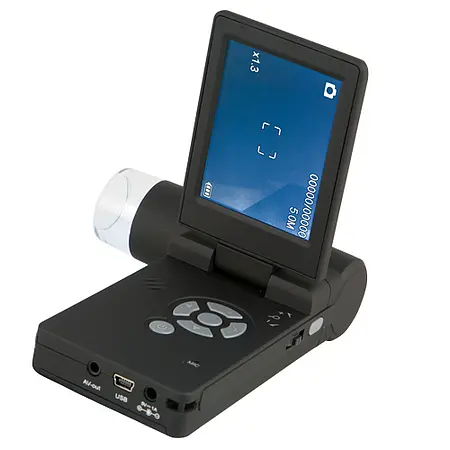

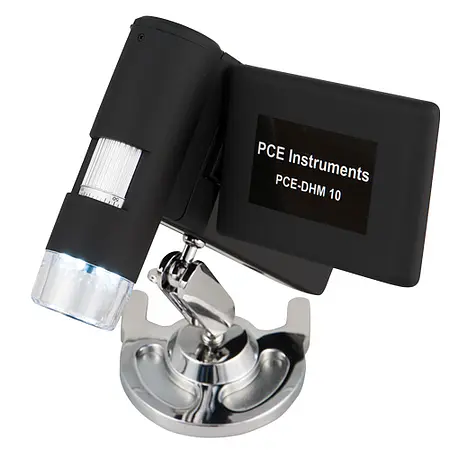

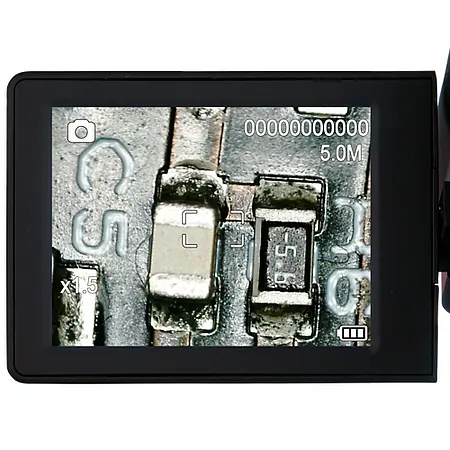

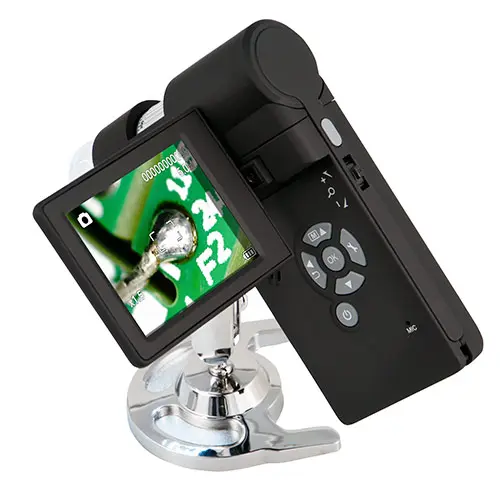

Thanks to the integrated 7.62 cm / 3" TFT color display and Li-Ion batteries, the microscope PCE-DHM 10 can be PC-independent and therefore used completely mobile. Being equipped with 8 white LEDs increases the microscope up to a 500-fold size and thus captures even the smallest details in image or video. The integrated 5 megapixel camera (12 megapixel interpolated) also provides sharp images of the magnified object. With the zoom button imagedetails can be enlarged directly on the TFT color monitor and videos can be played. As with a conventional digital camera,images captured bythe microscope PCE-DHM 10 are stored directly on a MicroSD memory card. The recordings can then be transferredvia the USB 2.0 port on your computer or laptop. With its digital technology, the microscope PCE-DHM 10 is very versatile: It is suitable for examining, measuring and photographingthesmallest items at home or traveling, school, university, in research and professional applications, e.g. in industrial surface inspection and in hobbies and leisure. Using the included software, pictures and videos can bestored, archived or sent via e-mail to friends, acquaintances or business partners.
| General technical data | |
| Connections additional information | Reduced resolution with USB 1.1 |
| Display type | TFT colour display |
| Display size | 3 Inch |
| Storage medium | Micro SD card |
| Memory information | Stores independently of PC on Micro-SD cards up to 32 GB |
| Interface | Mini-USB, AV out |
| Sensor | CMOS |
| Camera resolution | Image resolution (pixels): 12 million (interpolated), 9 million (interpolated), 5 million, 3 million, 1.3 million, VGA |

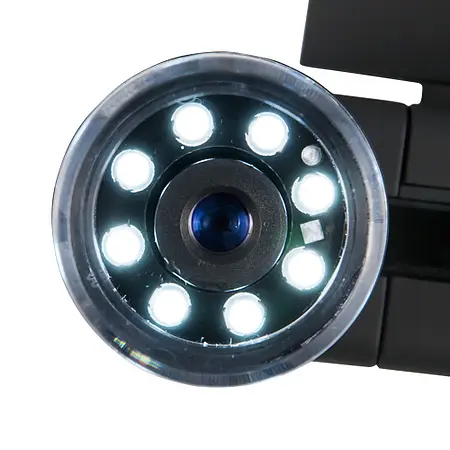

| Light source | 8 white LEDs |
| Working distance | 10 .... 30 mm |
| Magnification | 20 ... 500 x |
| Shutter speed | 0.001 ... 1 s |
| Additional description | - Software for scale-accurate measurements of distances and areas in enlarged view - Capture software for video recording. Resolution for video recording: VGA and QVGA - Dual Axis 27X & 100X microscope lens |
| Menu language | English, German, French, Spanish |
| Protection class (device) | IP20 |
| Power supply | 3.7V |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 800 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 130 x 112 x 28 mm |
| Weight | 171 g |
