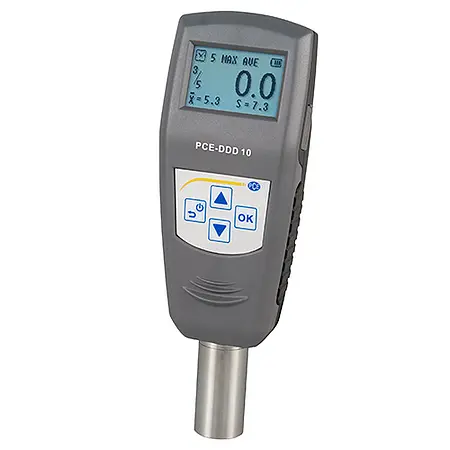

Material Tester

Material Tester [zoom]
Material Tester

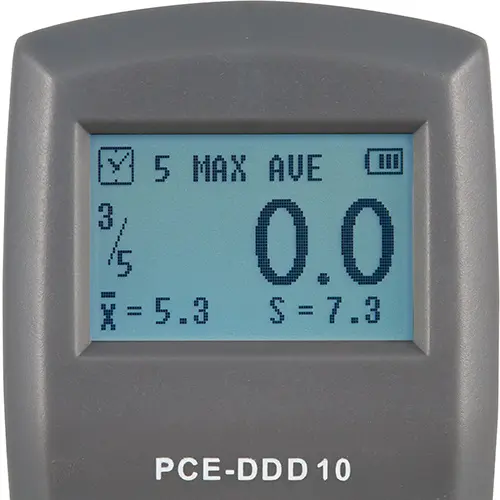

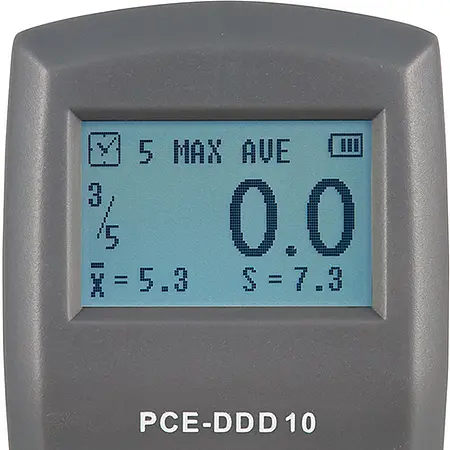

Material Tester Display

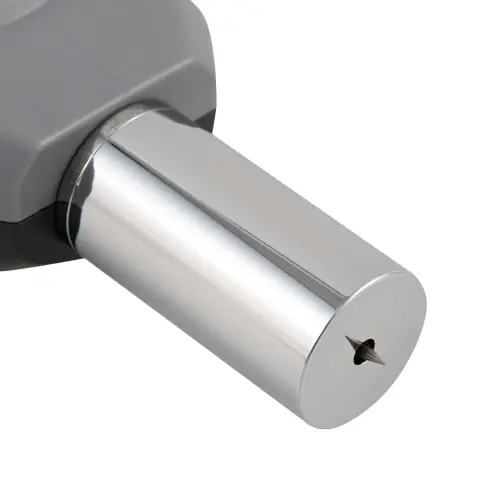

Material Tester Sensor

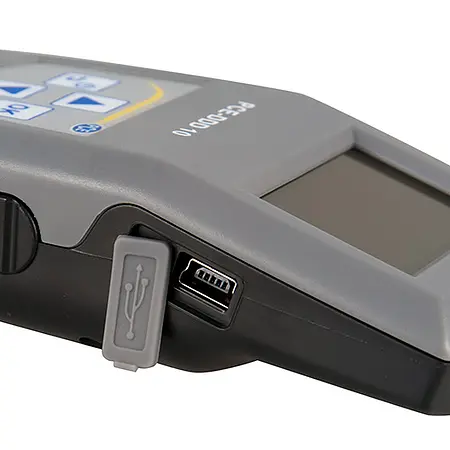

Material Tester Connections

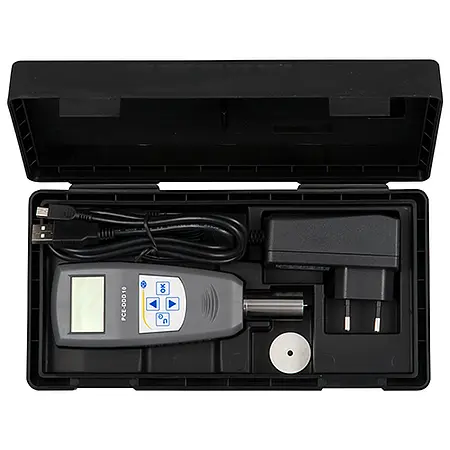

Material Tester Delivery scope

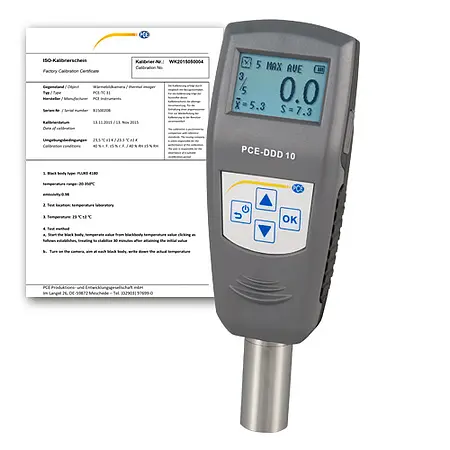

Material Tester PCE-DDD 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-DDD 10-ICA
GTIN (EAN): 4250348727978
₹121,620.00
₹143,511.60
price ex. (VAT / delivery)
:
4250348727978
PCE-DDD 10-ICA
Delivery time:5-7 working days

Accessory

Description

Digital Material Tester to measure Shore D hardness in materials such as hard rubber and thermoplastic with USB port and downloadable software

The PCE-DDD 10 Material Tester is an ergonomic device to check Shore D hardness in materials such as hard rubber and thermoplastic. It has been designed with a very high quality. If the material thickness is not enough, it should be tightened on the back with the same material in order to increase its thickness.

Highlights

- Portable handheld digital hardness testing device
- Measures Shore D hardness in hard rubber and thermoplastic
- Features a USB port and downloadable PC software for data transfer
- Large, easy-to-read display
- For single and serial measurements
- incl. ISO-Calibration Certificate

Specification

Hardness
Measuring range  0 ... 100 Shore D
Resolution  0,1 Shore D
Accuracy  <±1 Shore D

General technical data
Measuring functions  MAX, Average value
Measuring principle  Spring load
Storage medium  Internal memory
Storage capacity  500 Measurements
Interface  Mini-USB
Standard(s)  GB/T 531.1, ISO7619-1, ASTM D 2240
Operating time  20 h
Charging time  3 h
Impact device  D-type
Dimensions  Indentor / geometry:

- Spring pin diameter: 1.25 ± 0.1 mm
- Ball diameter: 0.1 mm ± 0.01
- Cone angle (tip angle): 30 ± 0.5°
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  3.6V
Connector type  Device-europlug
(Rechargeable) battery  3 x 1,2 V AAA rechargeable battery , Nickel-metal hydride battery
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 20 ... 85 % RH
Storage conditions  0 ... 50 °C , 20 ... 85 % RH
Dimensions ( L x W x H )  153 x 50 x 29 mm
Weight  170 g

Delivery Scope

1 x PCE-DDD 10-ICA Shore D durometer
1 x Calibration plate
1 x Charger / AC power adapter
1 x Mini USB cable
1 x User manual
1 x Carrying case
Note: Software is available for download from this website.
1 x ISO-Calibration Certificate
