₹37,470.00

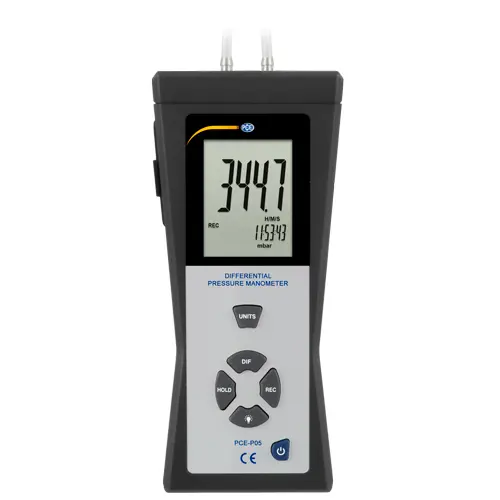

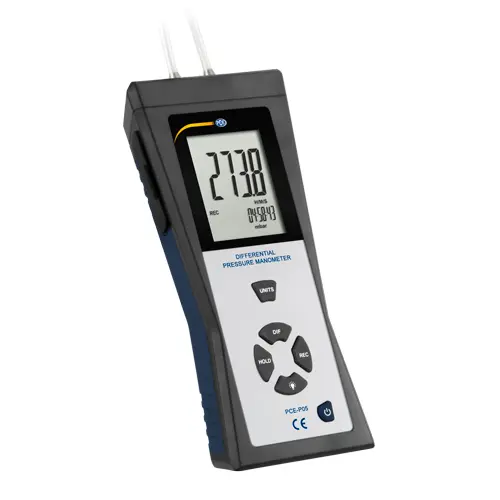

PCE-P05 Differential Pressure Manometer
Portable handheld meter measures differential pressure from -0.344 to 0.344 bar (-5.000 to 5.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

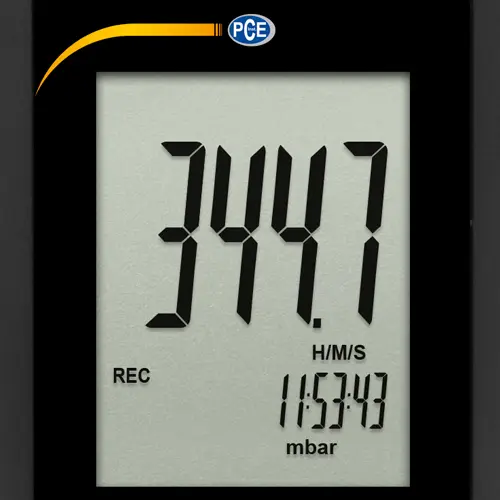

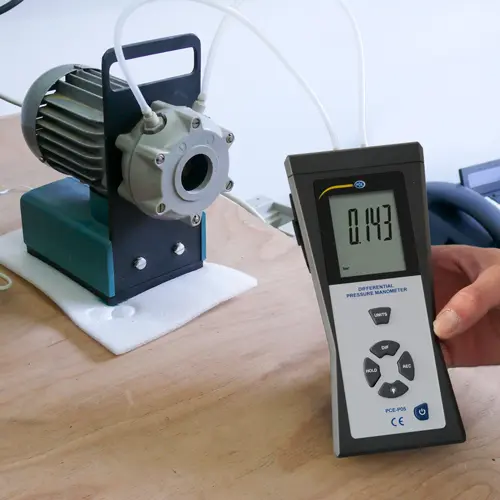

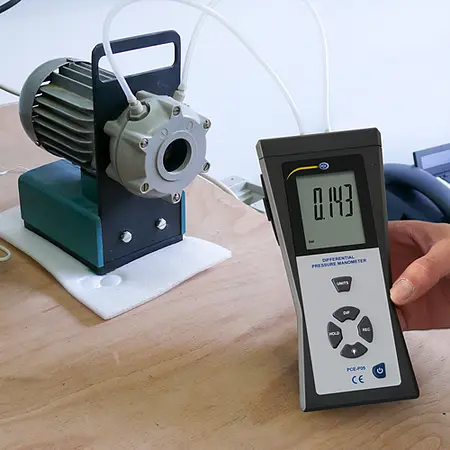

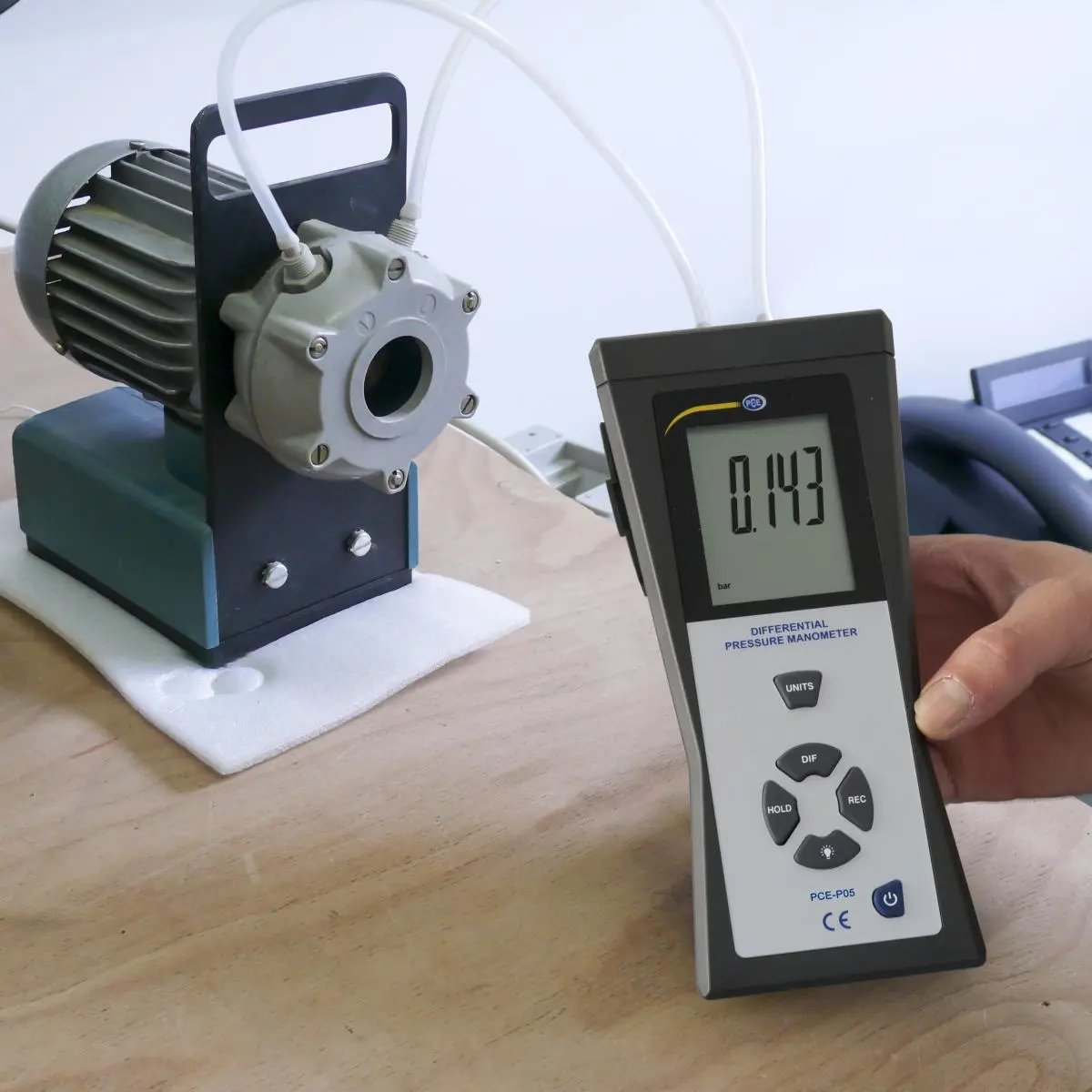

PCE-P05 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P05 displays min / max / average values right on the meter's screen for comparison against current measurement values.
In addition, the PCE-P05 differential pressure manometer features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values according to your selected time interval. You can then calculate average values directly in the software or export the saved data to Microsoft Excel.
| Differential pressure | |
| Measuring range | -344,7 ... +344,7 mbar |
| Resolution | 0,1 mbar |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -5 ... +5 psi |
| Resolution | 0,001 psi |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -138,3 ... +138,3 inH₂O |
| Resolution | 0,1 inH₂O |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -34,47 ... +34,47 kPa |
| Resolution | 0,01 kPa |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -1,018 ... +1,018 inHg |
| Resolution | 0,001 inHg |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -258,5 ... +258,5 mmHg |
| Resolution | 0,1 mmHg |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | 80 ... 80 ozin² |
| Resolution | 0,01 ozin² |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -11,53 ... +11,53 ftH₂O |
| Resolution | 0,001 ftH₂O |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -351,5 ... +351,5 cmH₂O |
| Resolution | 0,1 cmH₂O |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -0,351 ... +0,351 kg/cm² |
| Resolution | 0,001 kg/cm² |
| Accuracy | ±0.3% FS at 25°C |
| Differential pressure | |
| Measuring range | -0,344 ... +0,344 bar |
| Resolution | 0,001 bar |
| Accuracy | ±0.3% FS at 25°C |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, AVG |
| Display type | LCD with backlight |
| Storage interval from | 1 s |
| Storage interval to | 24 h |

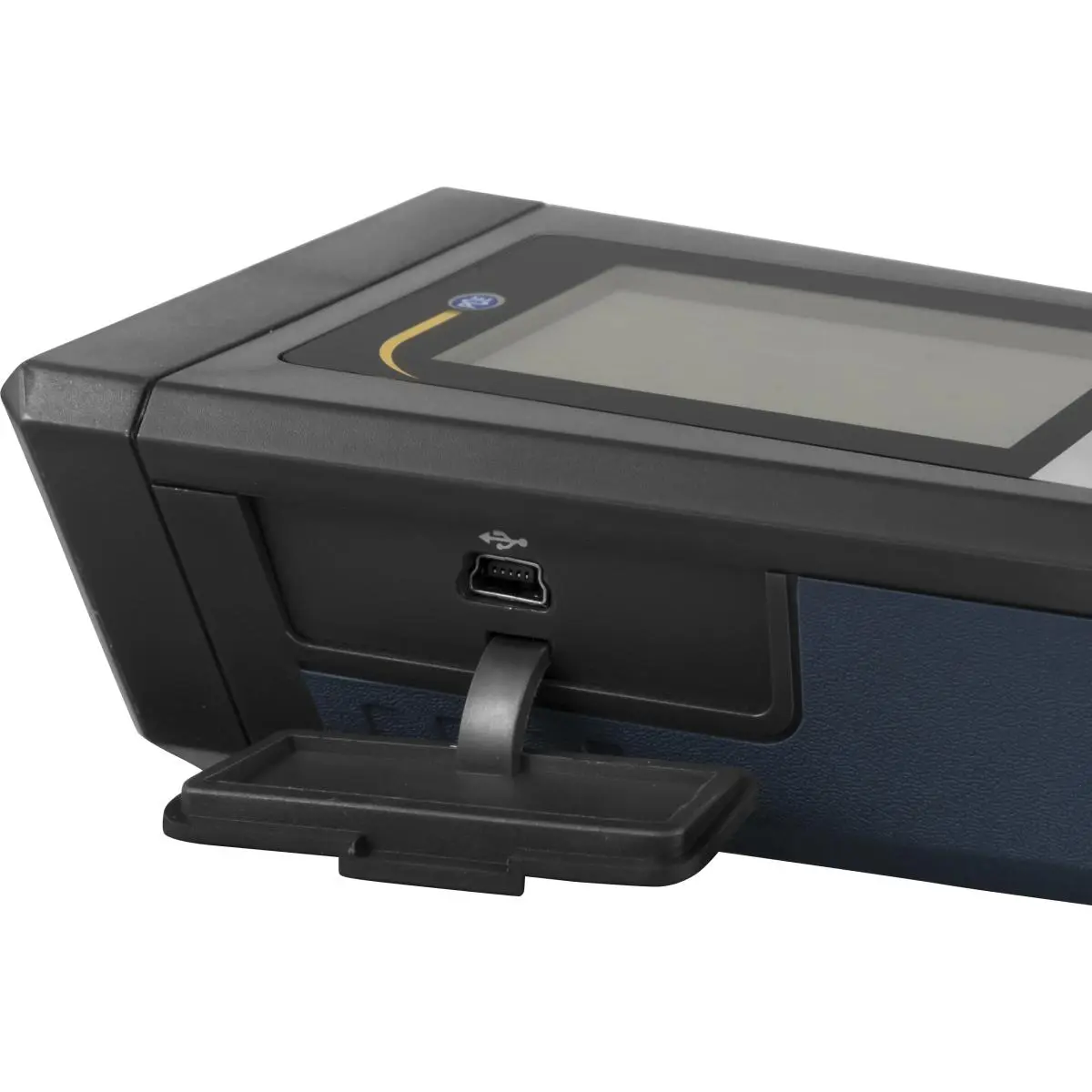

| Interface | Mini-USB |
| Response time | 0,5 s |
| Measured medium | non-explosive gases, Air |
| Automatic power-off | 20 s |
| Linearity | 0,2 % |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 9V DC, 500 mA |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 210 x 75 x 50 mm |
| Weight | 289 g |
