₹5,034.00

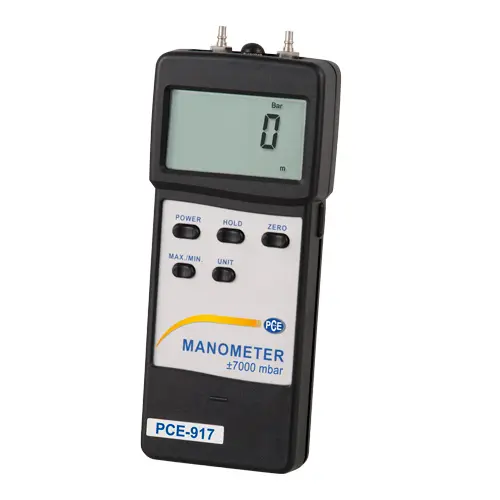

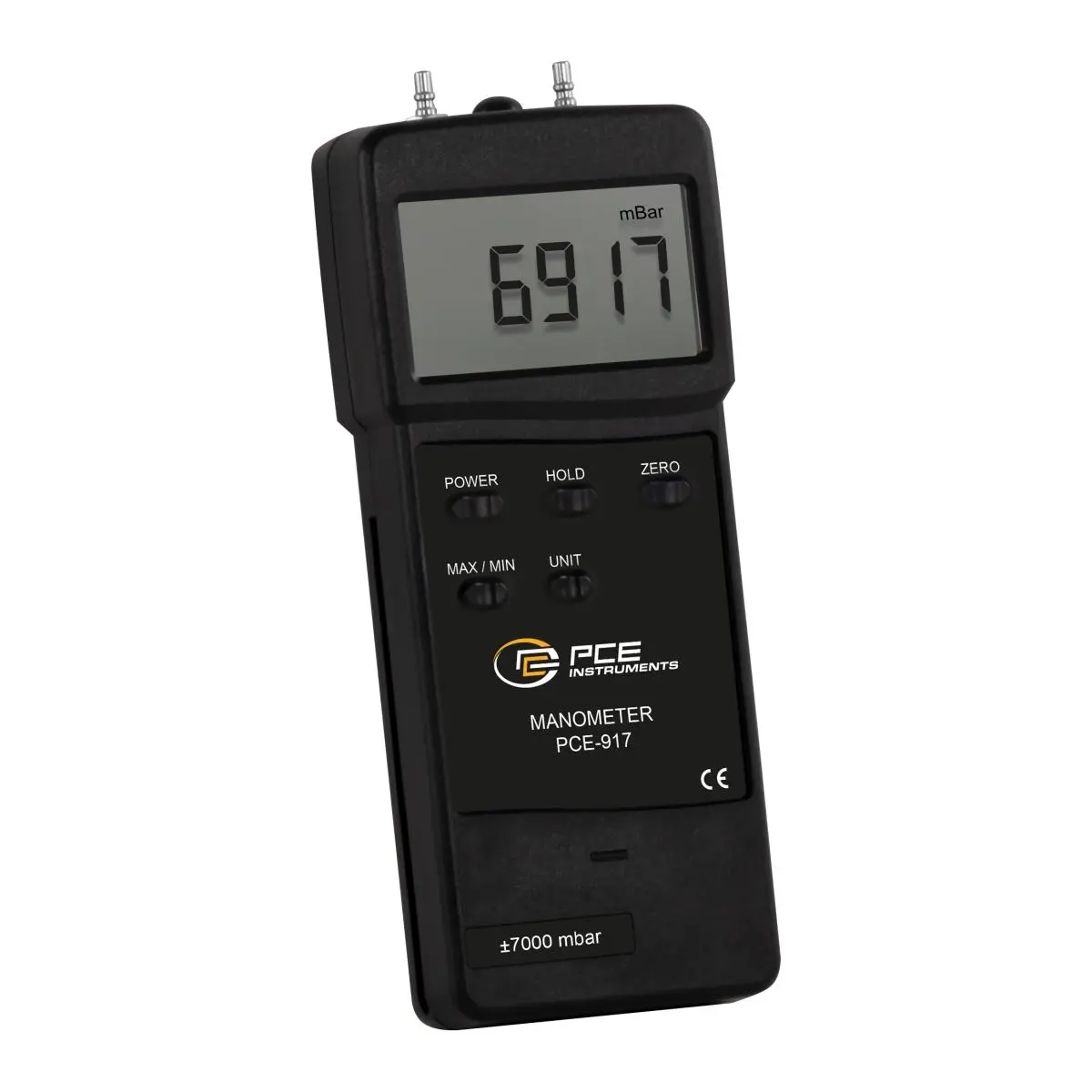

PCE-917 Differential Pressure Manometer
Portable handheld meter measures differential pressure from ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory
PCE-917 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

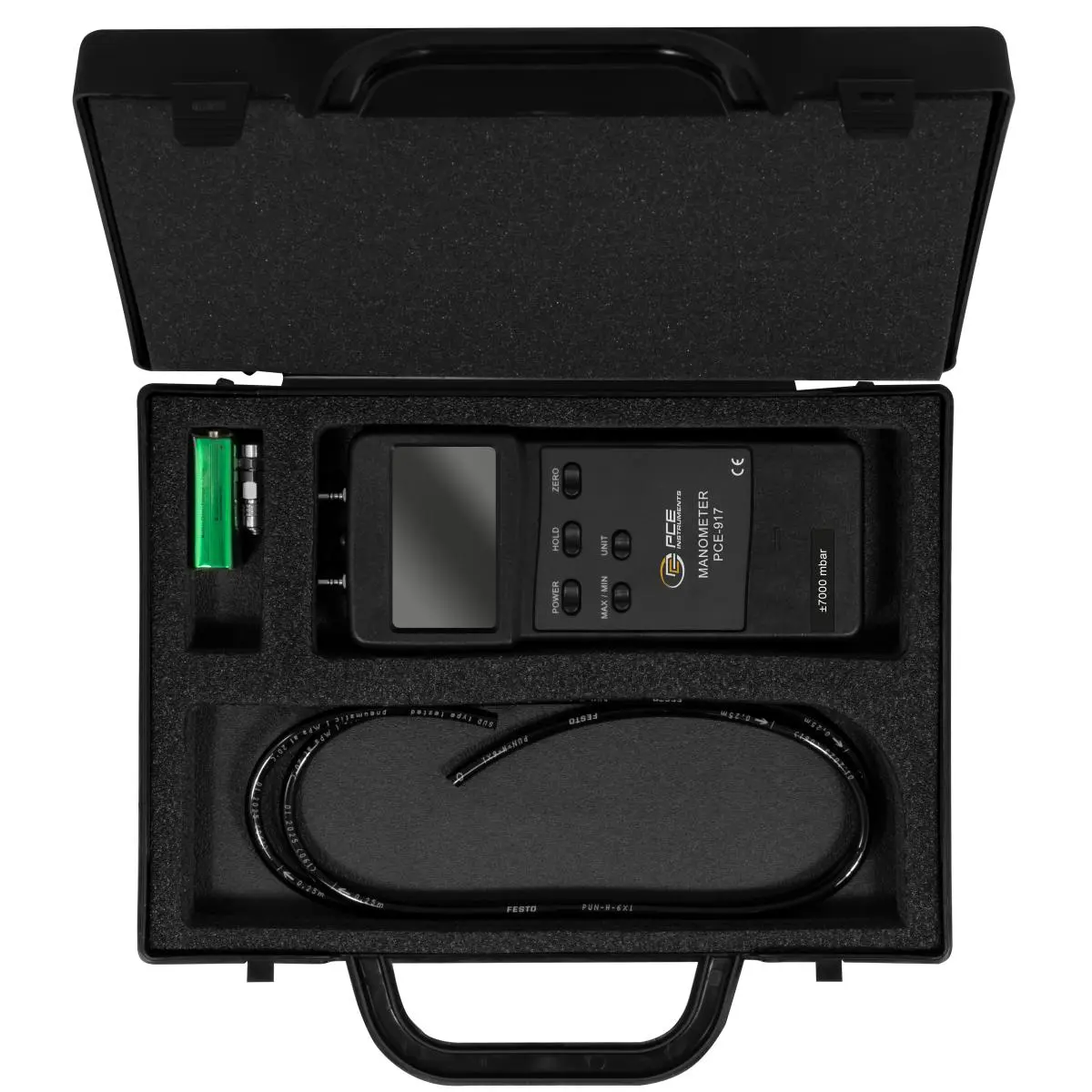

The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
| Pressure | |
| Measuring range | -7000 ... +7000 mbar |
| Resolution | 5 mbar |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -101,5 ... +101,5 psi |
| Resolution | 0,1 psi |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -2800 ... +2800 inH₂O |
| Resolution | 2 inH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -70 ... +70 mH₂O |
| Resolution | 0,05 mH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -206 ... +206 inHg |
| Resolution | 0,1 inHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -5250 ... +5250 mmHg |
| Resolution | 5 mmHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -6,905 ... +6,905 atm |
| Resolution | 0,005 atm |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -7 ... +7 kg/cm² |
| Resolution | 0,005 kg/cm² |
| Accuracy | ±2% FS |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, peak |
| Display type | LCD |
| Display size | 2,8 Inch |
| Interface | RS232 |
| Automatic power-off | 10 min |
| Repeatability | 1 % |
| Housing | Plastic |
| Measuring interval | 0,8 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 550 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 190 x 76 x 32 mm |
| Weight | 205 g |
