Lux Meter PCE-LMD 200

Lux Meter PCE-LMD 200

Order no.: PCE-LMD 200
GTIN (EAN): 4250348733849
₹311,034.00
₹367,020.12
price ex. (VAT / delivery)
:
4250348733849
PCE-LMD 200
Delivery time:1-2 working days

Description

Lux Meter class A according to DIN 5032-7 / data logger with 8 GB measured value memory / auto-range switching / external sensor / optional luminance measurement

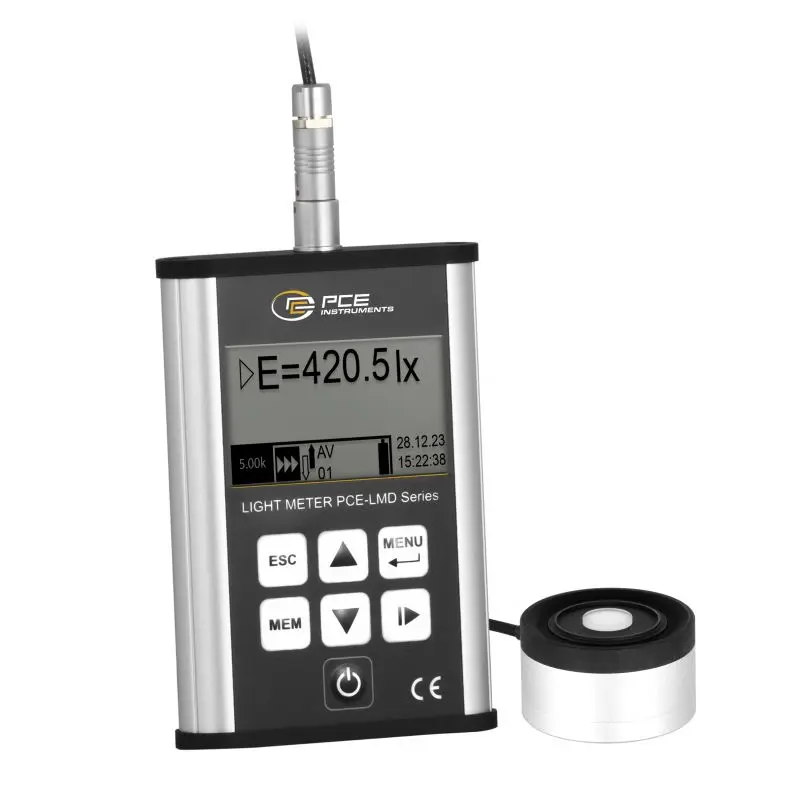

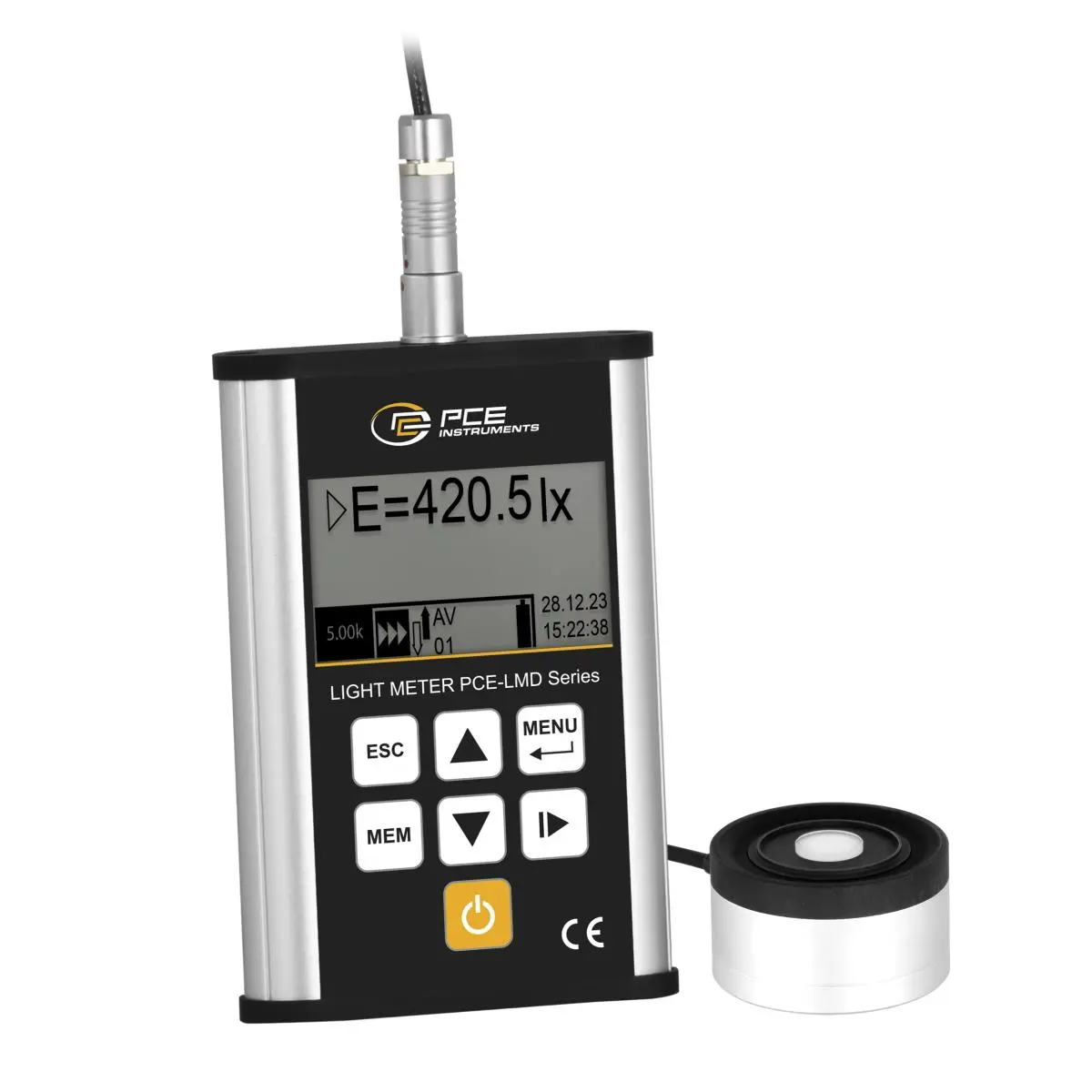

The lux meter is a precise measuring instrument that meets the highest demands for light measurements. In accordance with DIN 5032-7, it fulfils the requirements of precision class A, which enables accurate and reliable detection of light intensities. With an impressive measuring range of 0.000 lux to 500,000 lux, the lux meter is extremely versatile.

Whether for lighting control at the workplace, in exhibitions or outdoors - the lux meter covers a wide range of applications. Accuracy class A not only ensures precise measurements, but also high reproducibility of the results. This is particularly important in applications where accurate light measurements are crucial.

The lux meter has an external sensor and a probe holder that allows measurements to be taken in hard-to-reach places and ensures maximum practicality in various application scenarios. Another feature of the luxmeter is the integrated measured value memory. With this function, measurement results can be easily saved and also automatically recorded. This is particularly useful in situations where the measured values are to be used for later analyses. The lux meter creates a text document in which the data is stored.

With the help of the luminance adapter from our accessories, the lux meter can be upgraded for surface-mounted measurements or distance measurements with a 1° measuring angle. Overall, the lux meter offers an unbeatable combination of precision, versatility and user-friendliness. Whether you need to measure light conditions indoors, outdoors or in industrial environments, this lux meter is the ideal choice for precise and reliable light measurements.


Highlights

- Precision according to DIN 5032-7
- Large measuring range: 0.000 lx ... 500 klux
- Accuracy class: A
- External sensor
- 8 GB measured value memory
- Battery operation

Specification

Light
Measuring range  0 ... 50 lx
Resolution  0,001 lx
Accuracy  Total error ≤2.0% (CIE, DIN 5032-7) class A @ 10 ... 40°C /

Light
Measuring range  50 lx ... 5 klx
Resolution  0,1 lx
Accuracy  Total error ≤2.0% (CIE, DIN 5032-7) class A @ 10 ... 40°C /

Light
Measuring range  5 ... 500 klx
Resolution  0,01 klx
Accuracy  Total error ≤2.0% (CIE, DIN 5032-7) class A @ 10 ... 40°C /

Sensor
Cable length  150 cm

General technical data
Units  lx, klx
Display type  LCD
Display refresh rate  1 x per second
Measuring rate  1 Hz
Storage medium  Micro SD card
Storage capacity  8 GB
Storage interval from  1 s
Storage interval to  60 s
Classification  A (CIE, DIN 5032-7)
Interface  Micro-USB
Standard(s)  DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665
Operating time  23 h
V(λ) - adjustment (f1')  ≤ 2%
Cosine adjustment (f2)  ≤ 1%
Menu language  English, Polish
Protection class (device)  IP20
Power supply  5V DC / max. 2.1A
Connector type  Device-europlug
Capacity  1500 mAh
Operating conditions  -20 ... 50 °C , 0 ... 90 % RH
Storage conditions  -20 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  118 x 74 x 21 mm
Other dimensions  Probe dimensions: Ø 44 x 25 mm
Extension rod: approx. 1 m
Weight  172 g

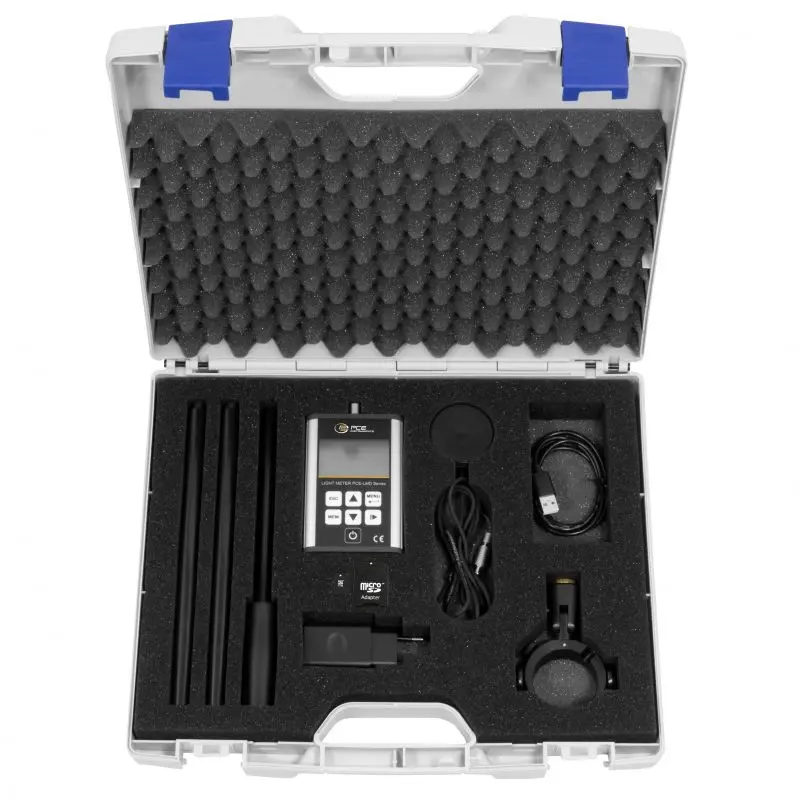

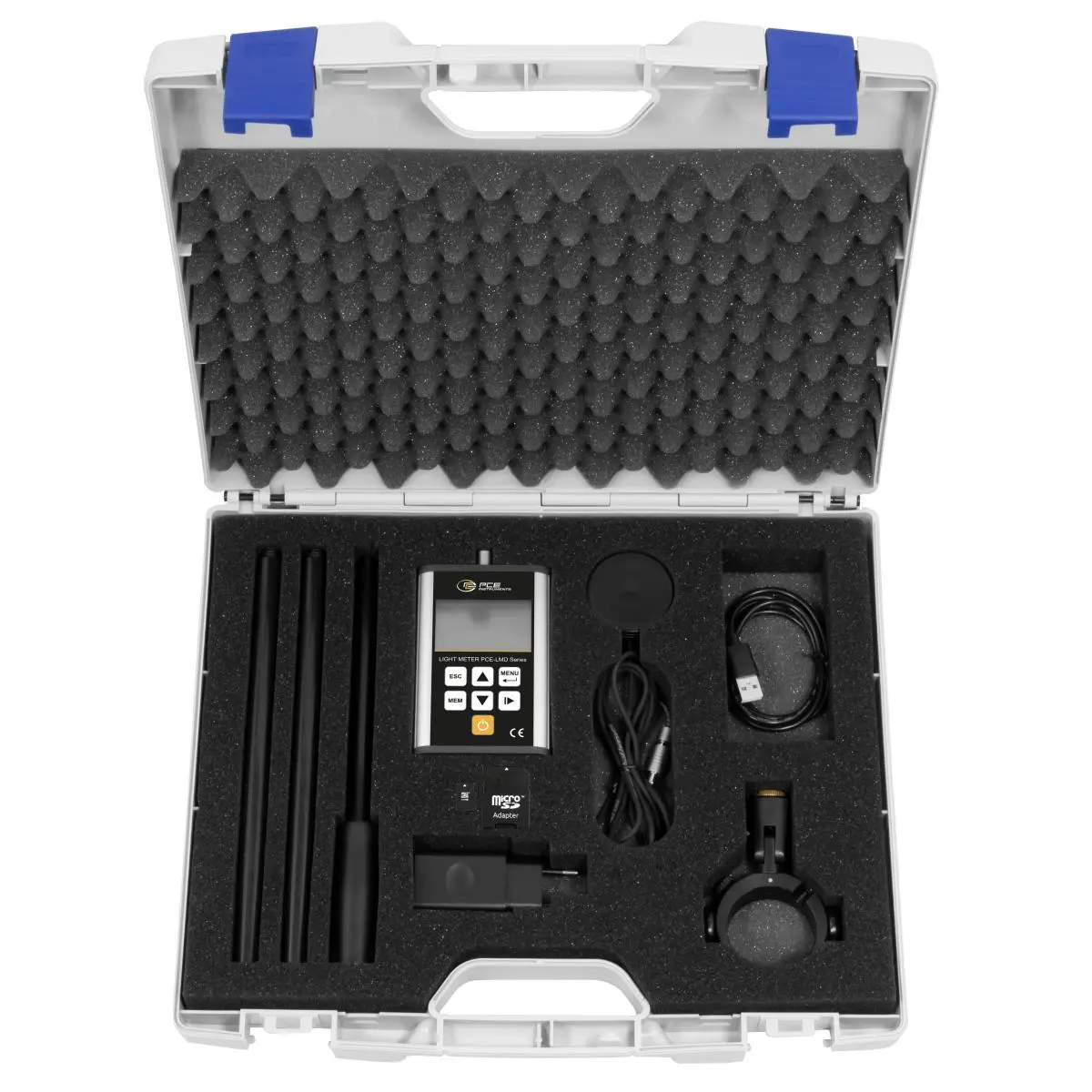

Delivery Scope

1 x PCE-LMD 200 Lux Meter

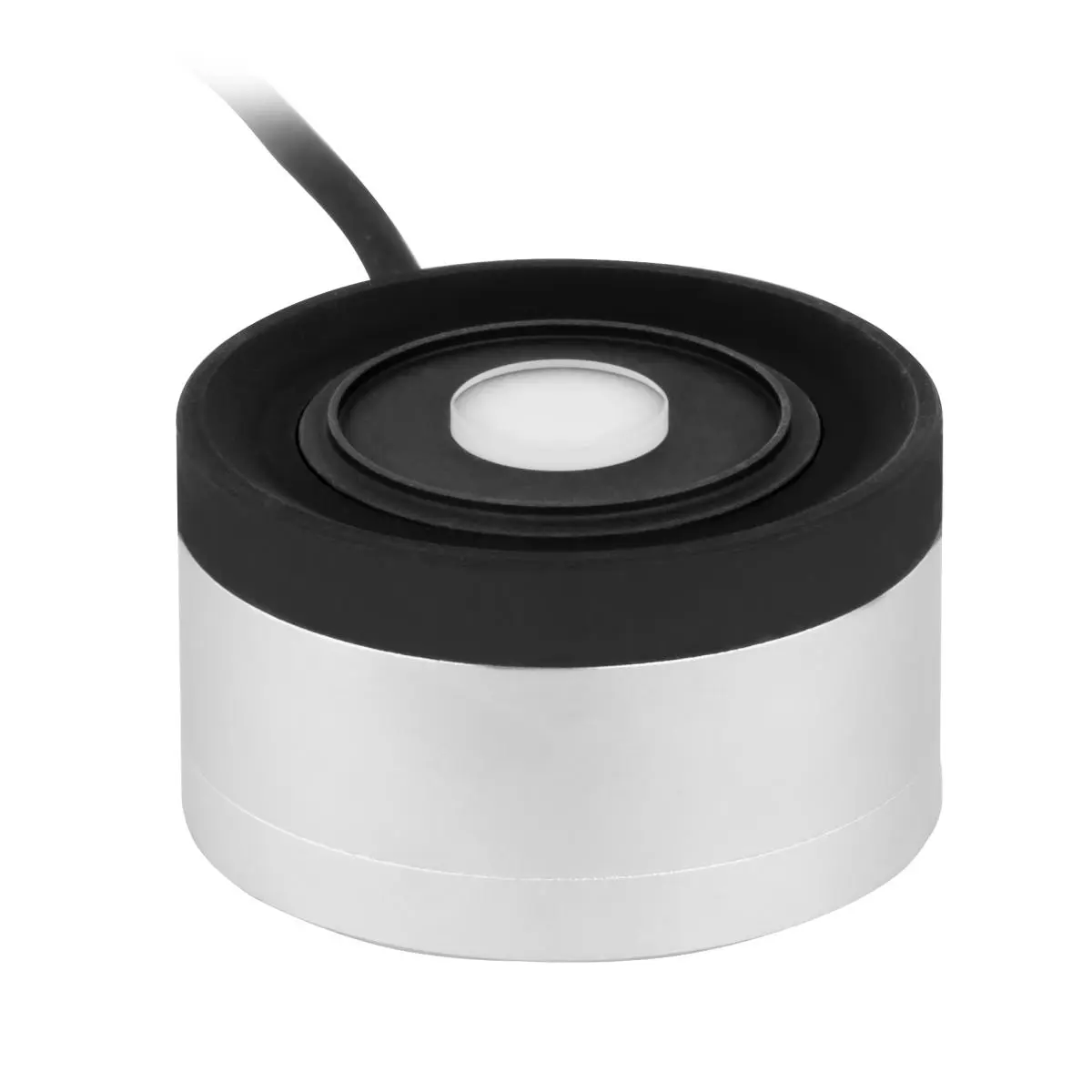

1 x lux sensor
1 x micro USB charging cable
1 x 8 GB micro SD memory card incl. adapter

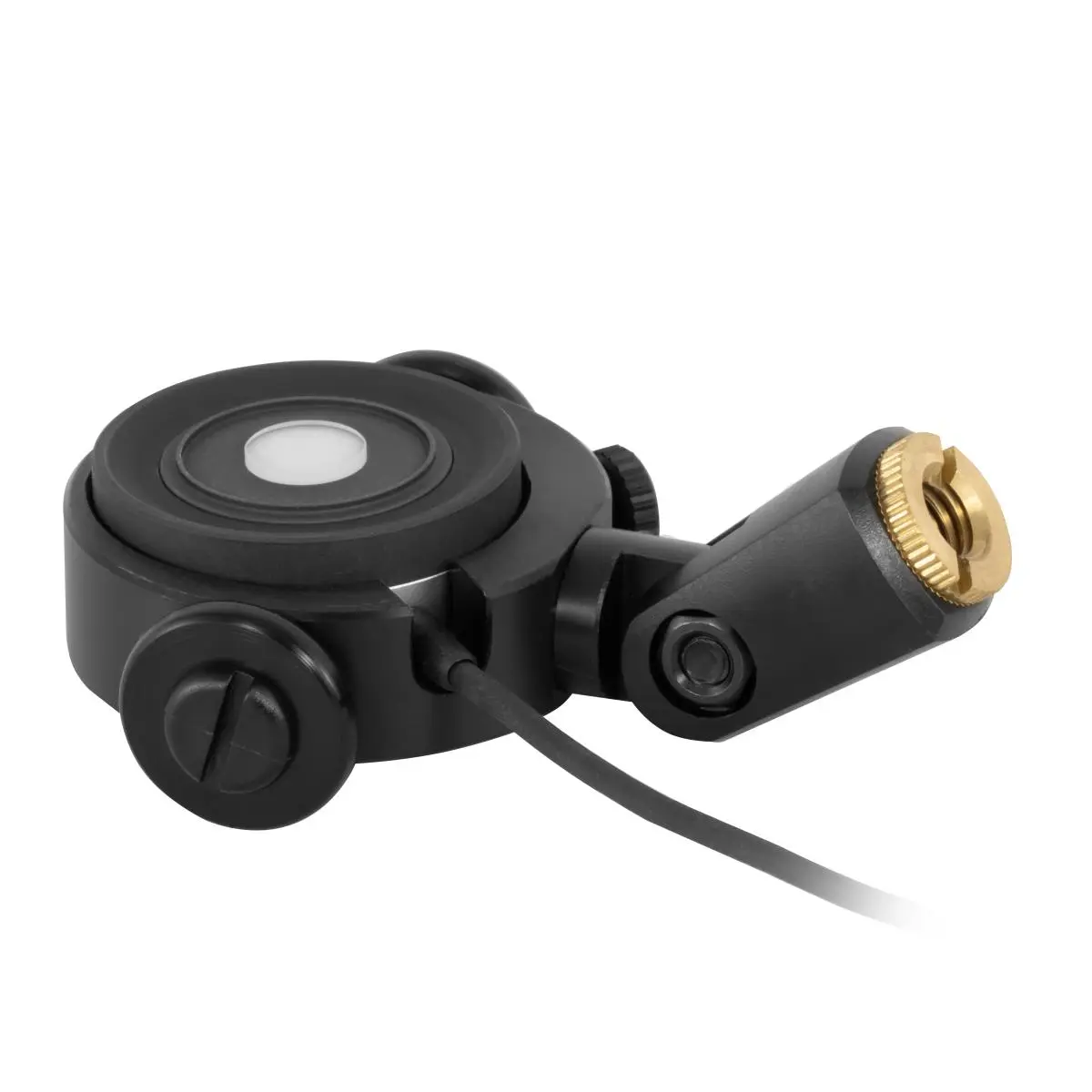

1 x probe holder
1 x long extension rod
1 x USB power supply
2 x operating instructions
1 x transport case
